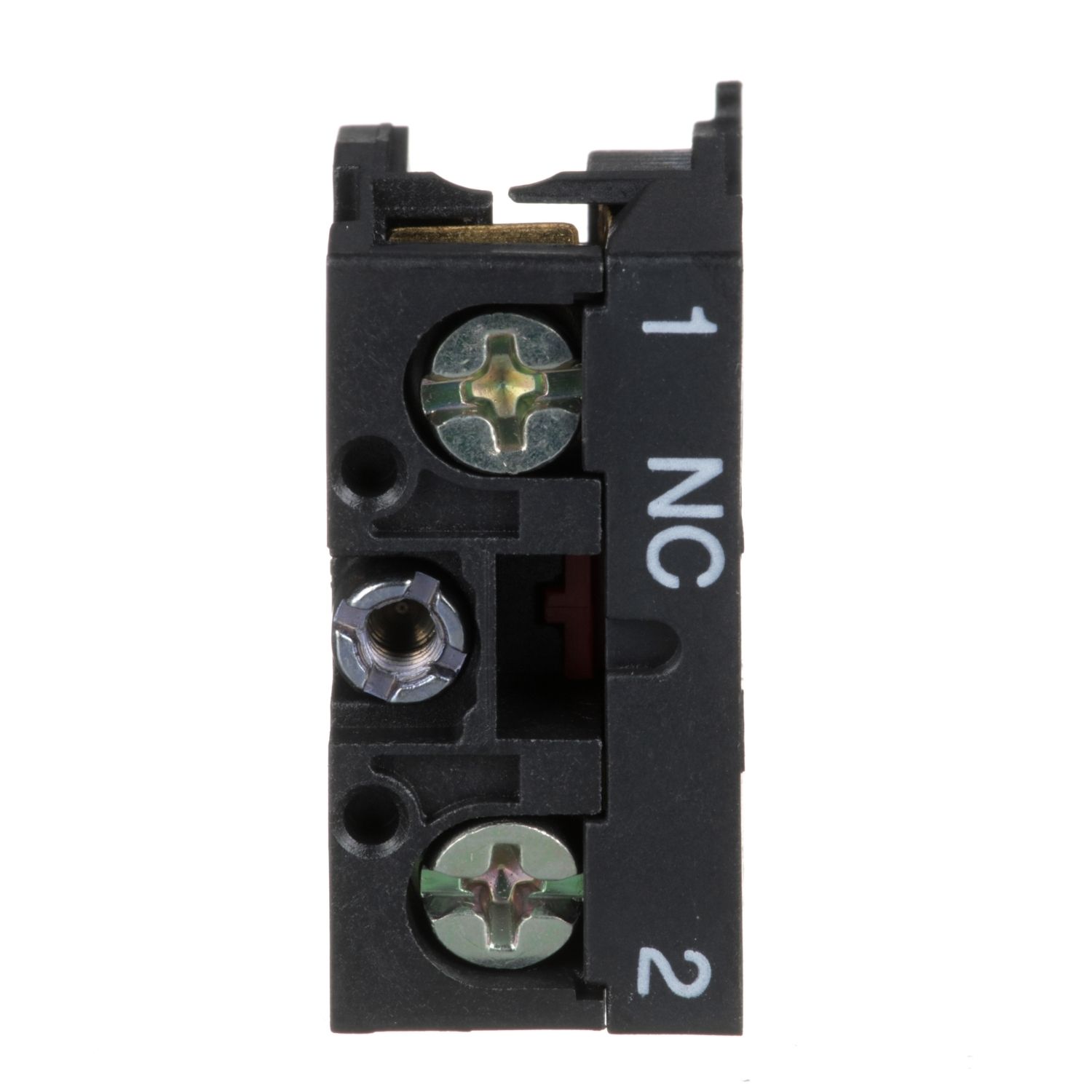

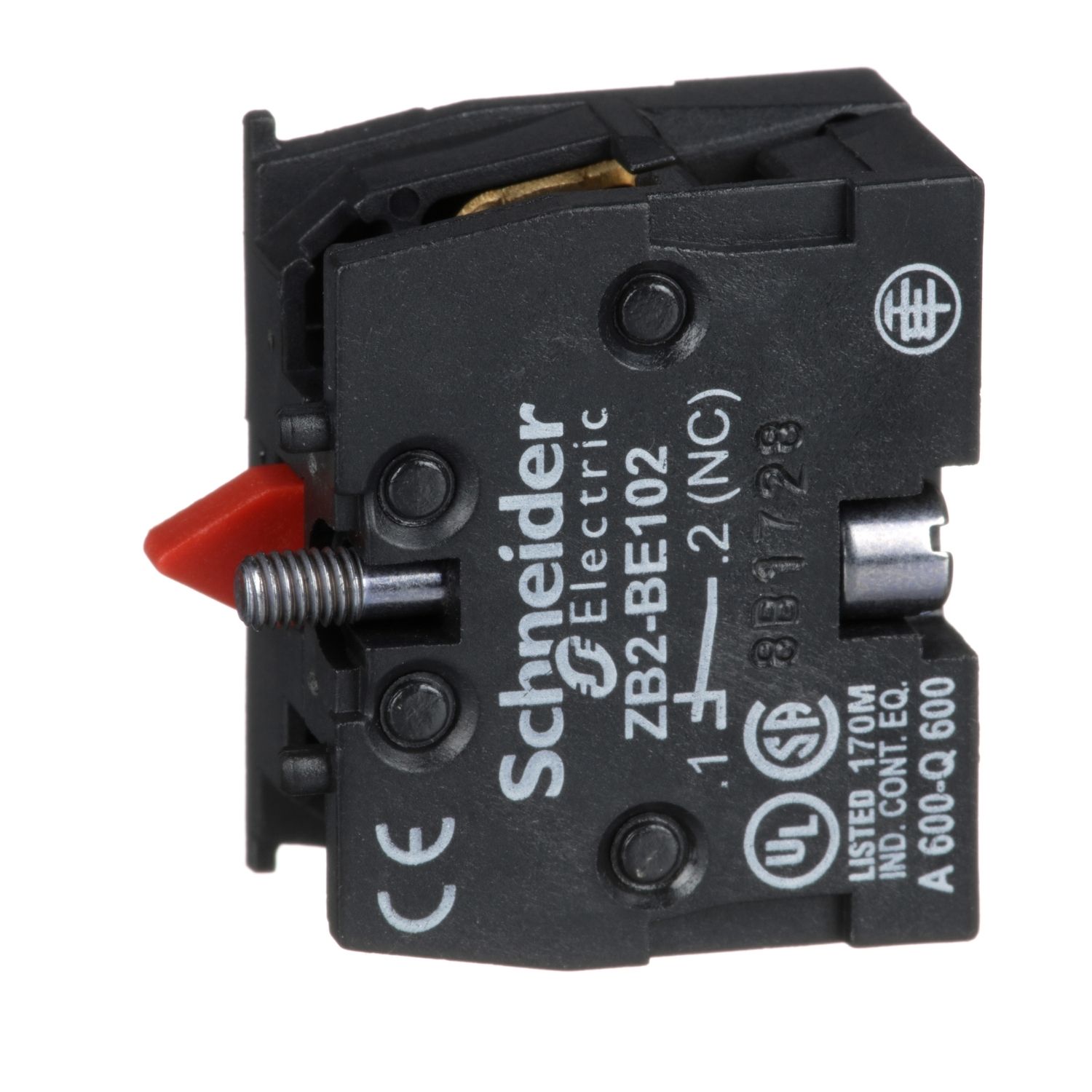

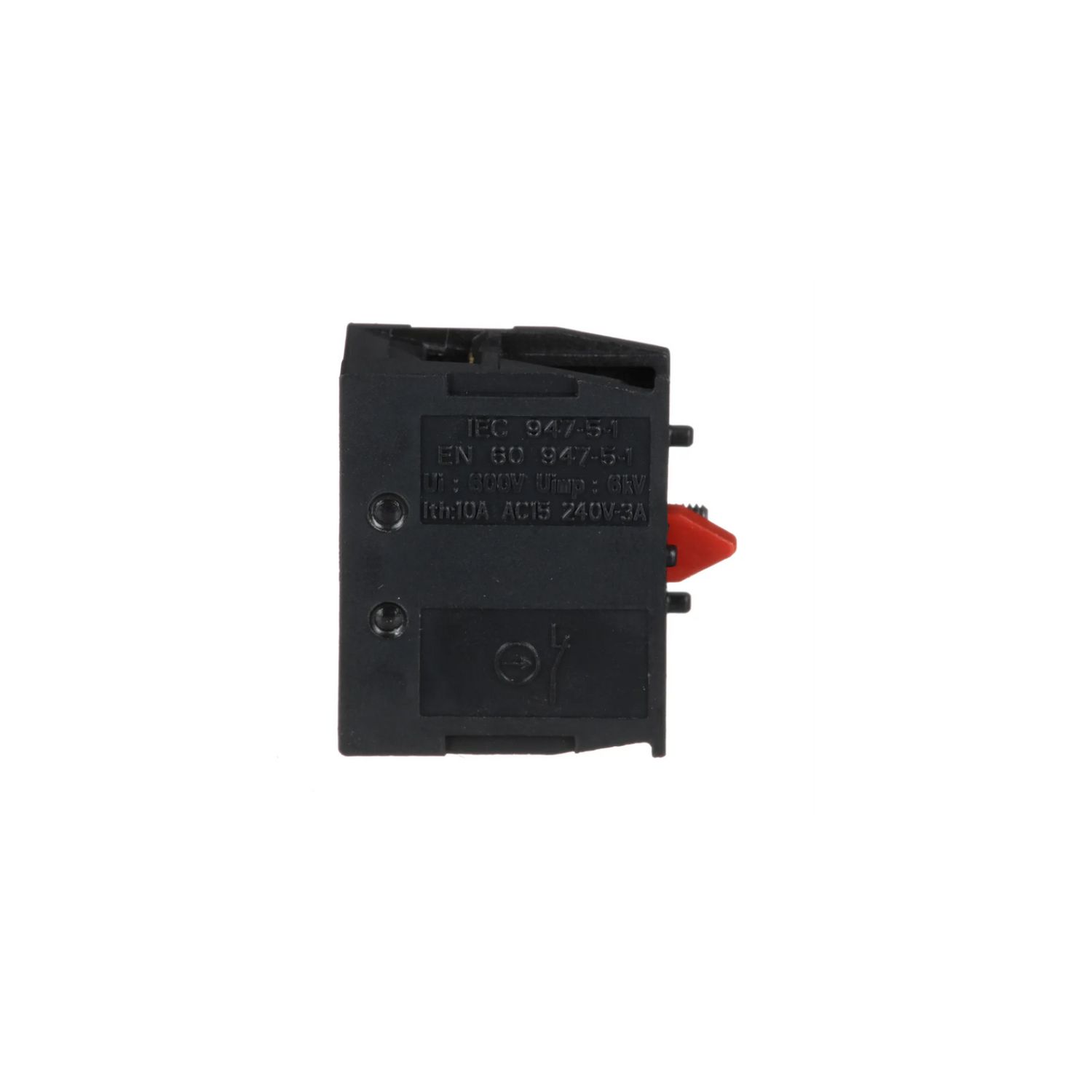

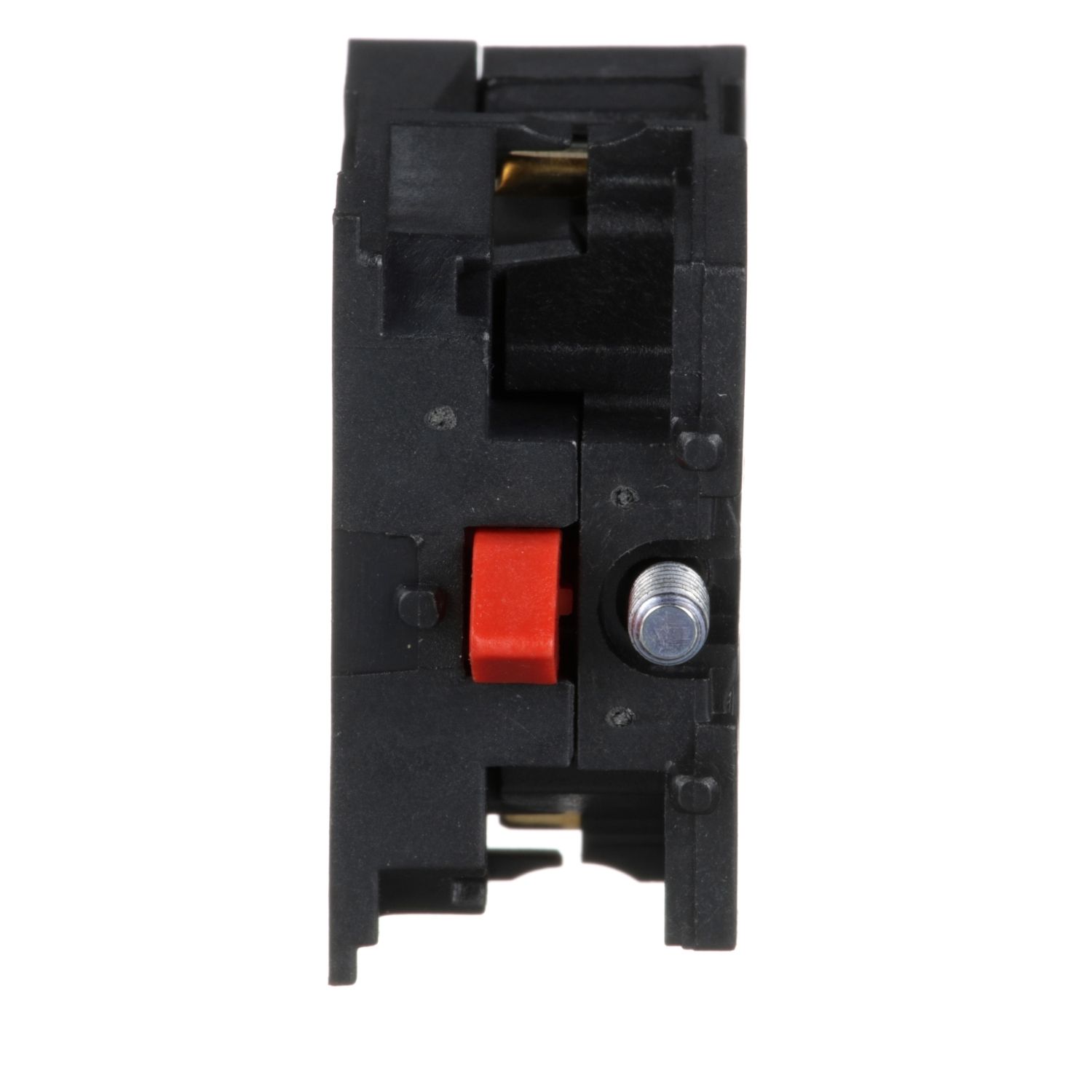

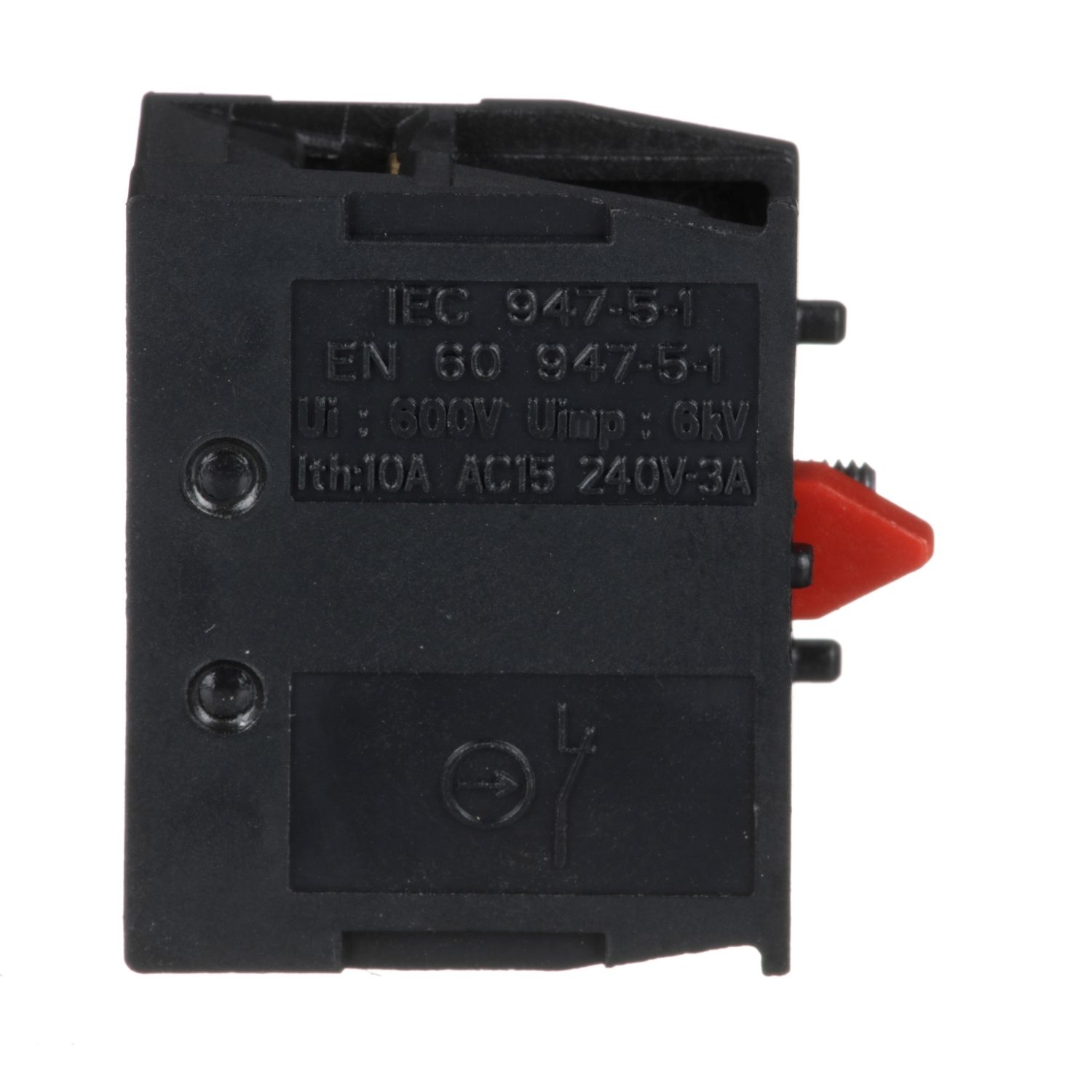

Picture of Contact block, Harmony XAC, single contact, spring return, 1 speed, front mounting, screw clamp terminal, 1NC
SKU:

ZB2BE102

Contact block, Harmony XAC, single contact, spring return, 1 speed, front mounting, screw clamp terminal, 1NC

$23.52
Available for Shipping : 17-Nov-2024
Contact block, Harmony XAC, single contact, spring return, 1 speed, front mounting, screw clamp terminal, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This additionnal contact block for high power switching is a separate component of diameter 22mm XB4 or XB5 ranges It features a single NC contact block and screw connection type. It is easily fitted on the back of high power switching contacts ZBE50x.

Products specifications

Attribute name Attribute value
Main
Product compatibility XB5, XB4, XACA
Electrical circuit type control circuit
Contact operation slow-break
Contact block application single speed
Contact block type single
Range of product Harmony XAC
Type of operator spring return
Contacts type and composition 1 NC
Component name ZB2
Product or component type contact block
Mounting of block front mounting
Complementary
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A
Mechanical durability 1000000 cycles
Short-circuit protection 10 A fuse protection by cartridge fuse type gG (gl)
Maximum resistance across terminals 25 MOhm
Operating force 13-15 N
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1, 48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1, 40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamps terminals, 2 x 1.5 mm² with or without cable end, screw clamps terminals, 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.02 kg
[Ithe] conventional enclosed thermal current 10 A
Terminals description ISO n°1 (11-12)NC
Environment
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II conforming to IEC 61140
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60204-32
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4 cm
Package 1 Width 14 cm
Package 1 Length 10 cm
Package 1 Weight 15 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 4 cm
Package 2 Width 14 cm
Package 2 Length 10 cm
Package 2 Weight 157 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 15 cm
Package 3 Width 15 cm
Package 3 Length 40 cm
Package 3 Weight 3.449 kg
Unit Type of Package 4 4
Number of Units in Package 4 3200
Package 4 Height 45 cm
Package 4 Width 60 cm
Package 4 Length 80 cm
Package 4 Weight 63.684 kg
