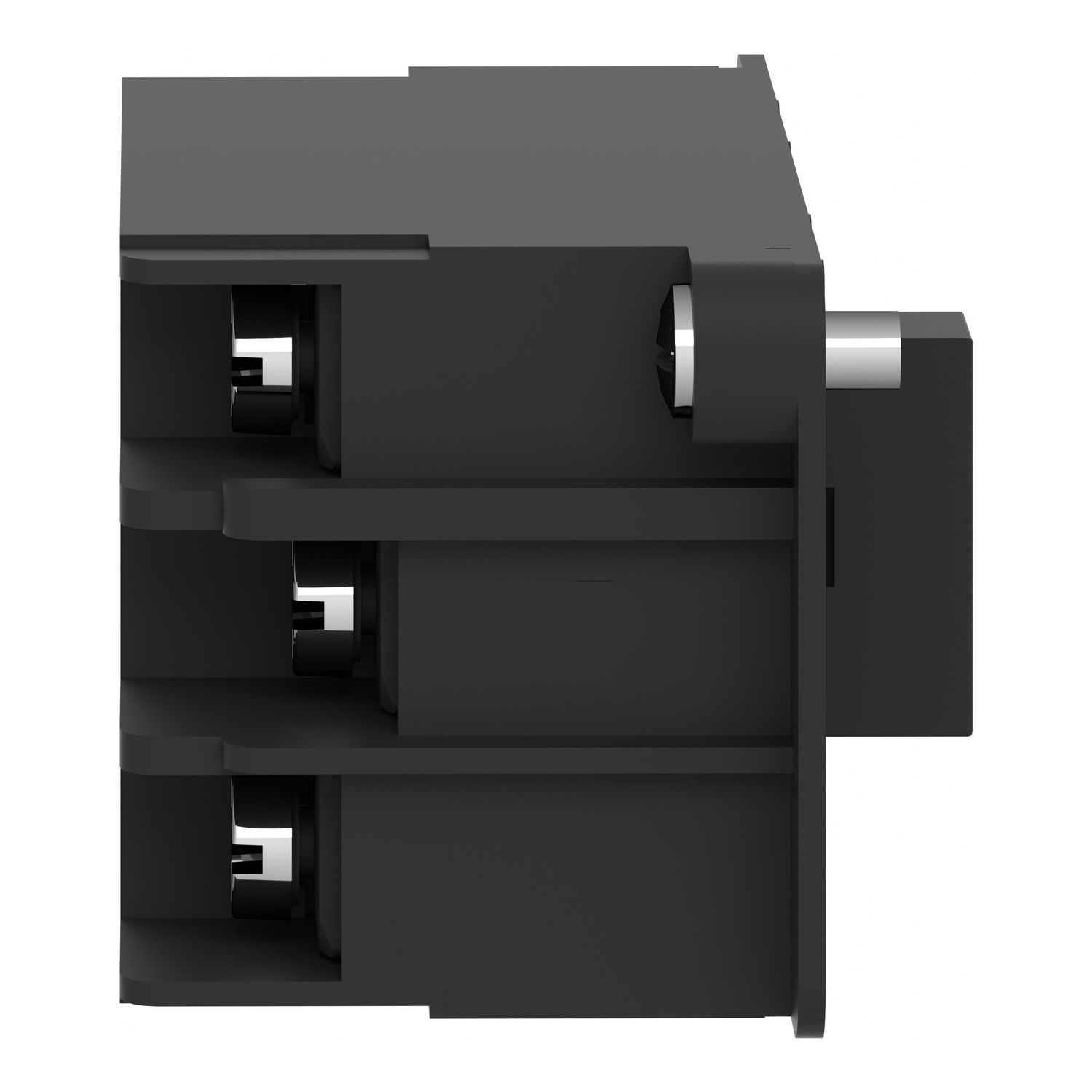

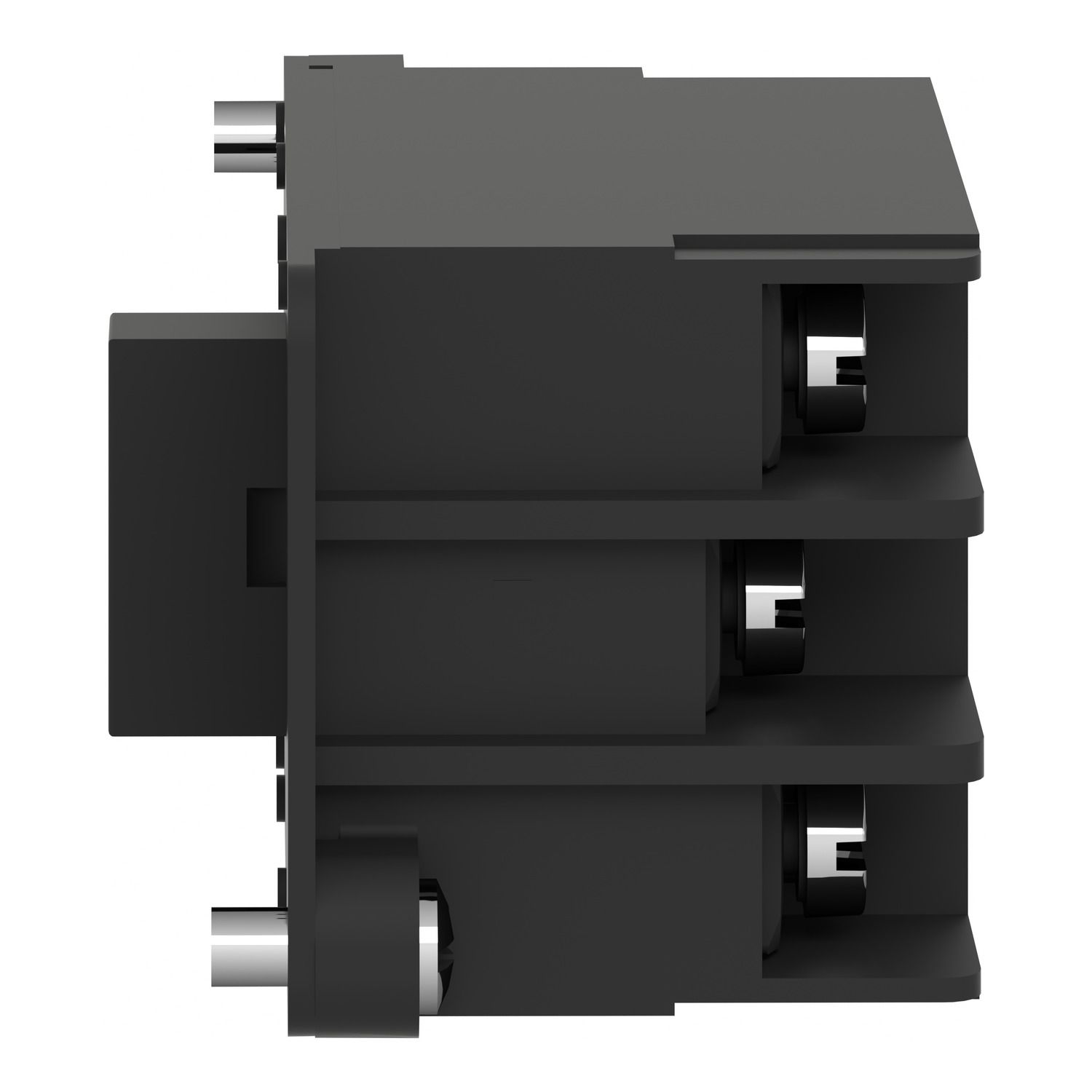

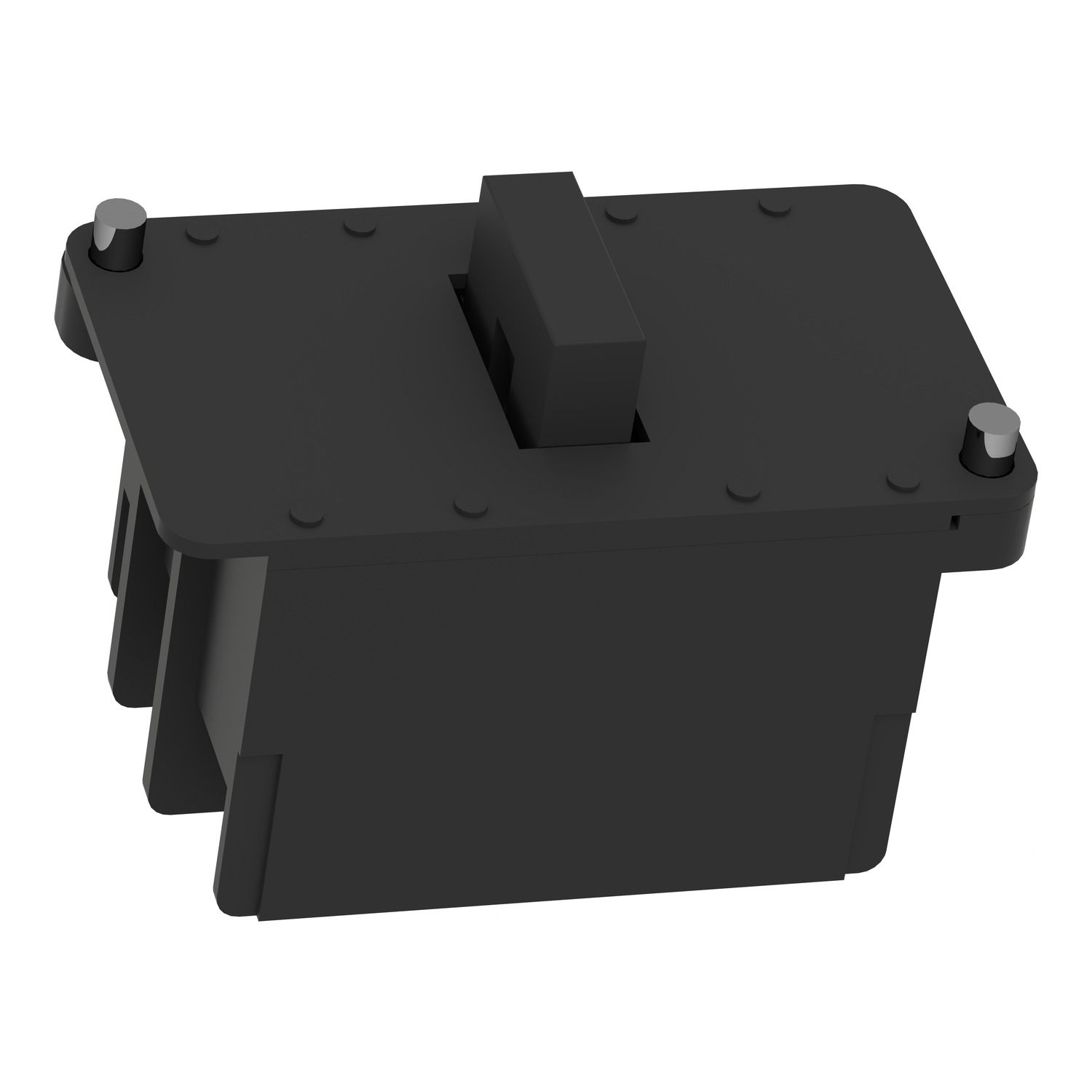

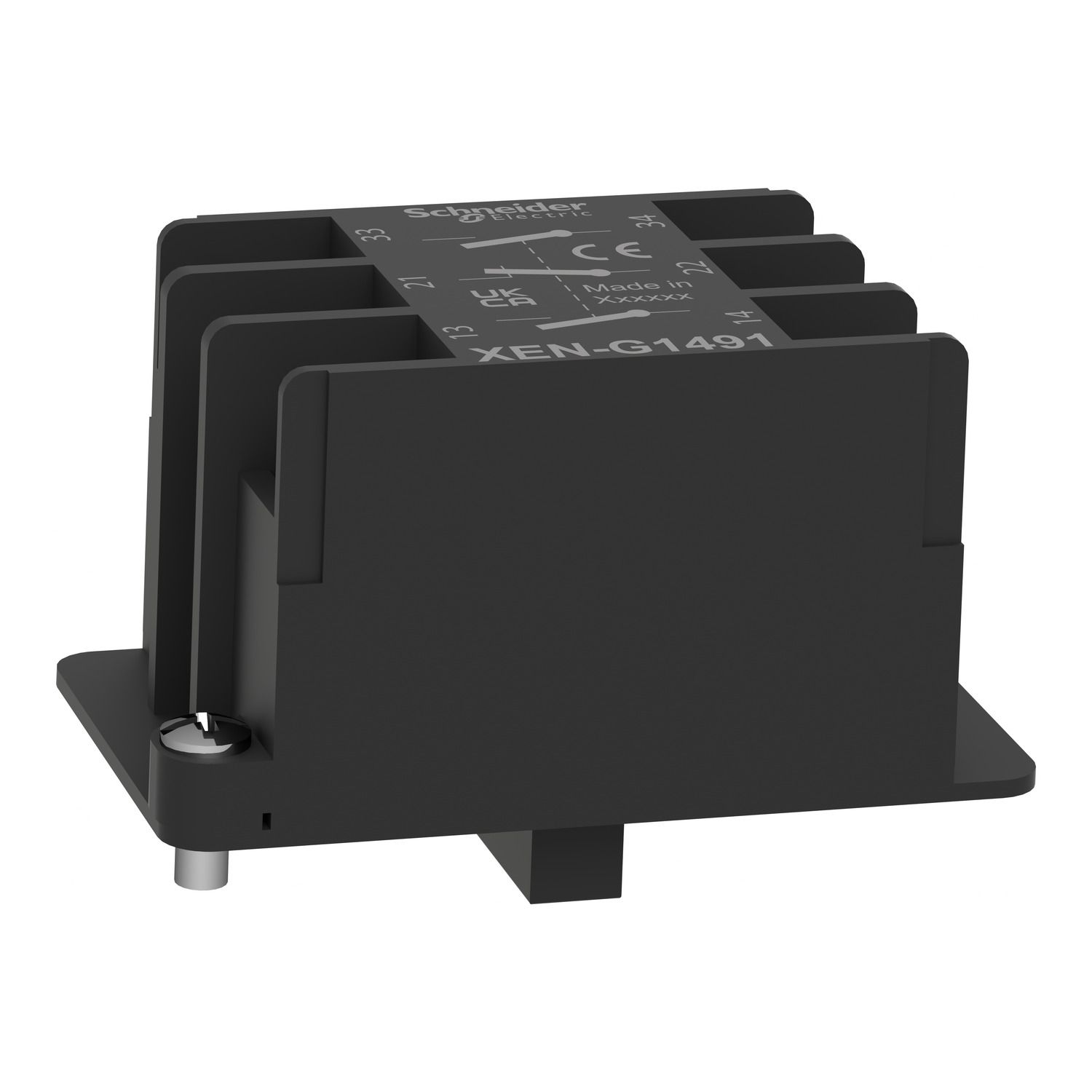

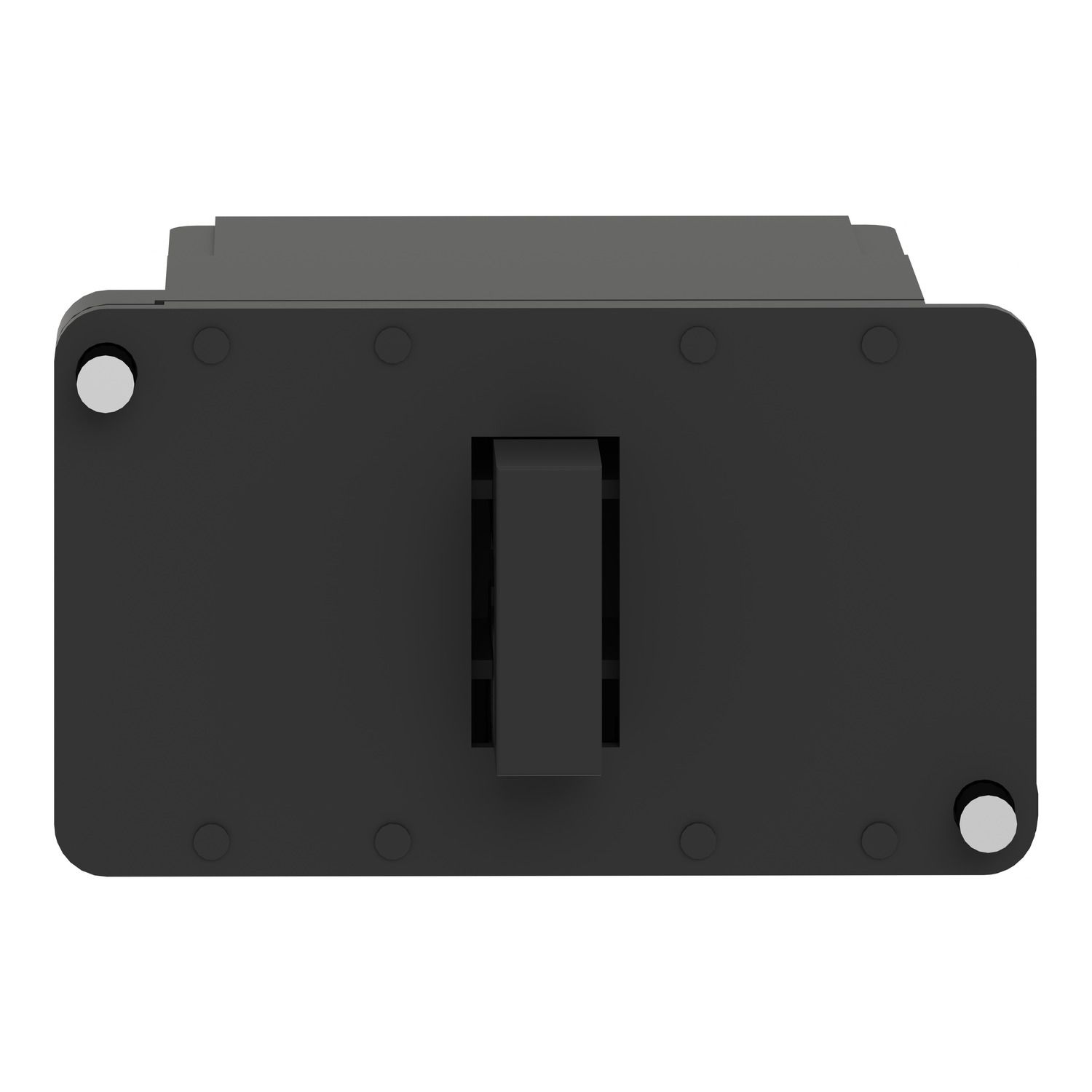

Single contact block, Harmony XAC, spring return, single speed, spring return, front mounting, 2NO+1NC

$78.55
Available for Shipping : 24-Nov-2024
Single contact block, Harmony XAC, spring return, single speed, spring return, front mounting, 2NO+1NC
Manufacturer: Schneider Electric

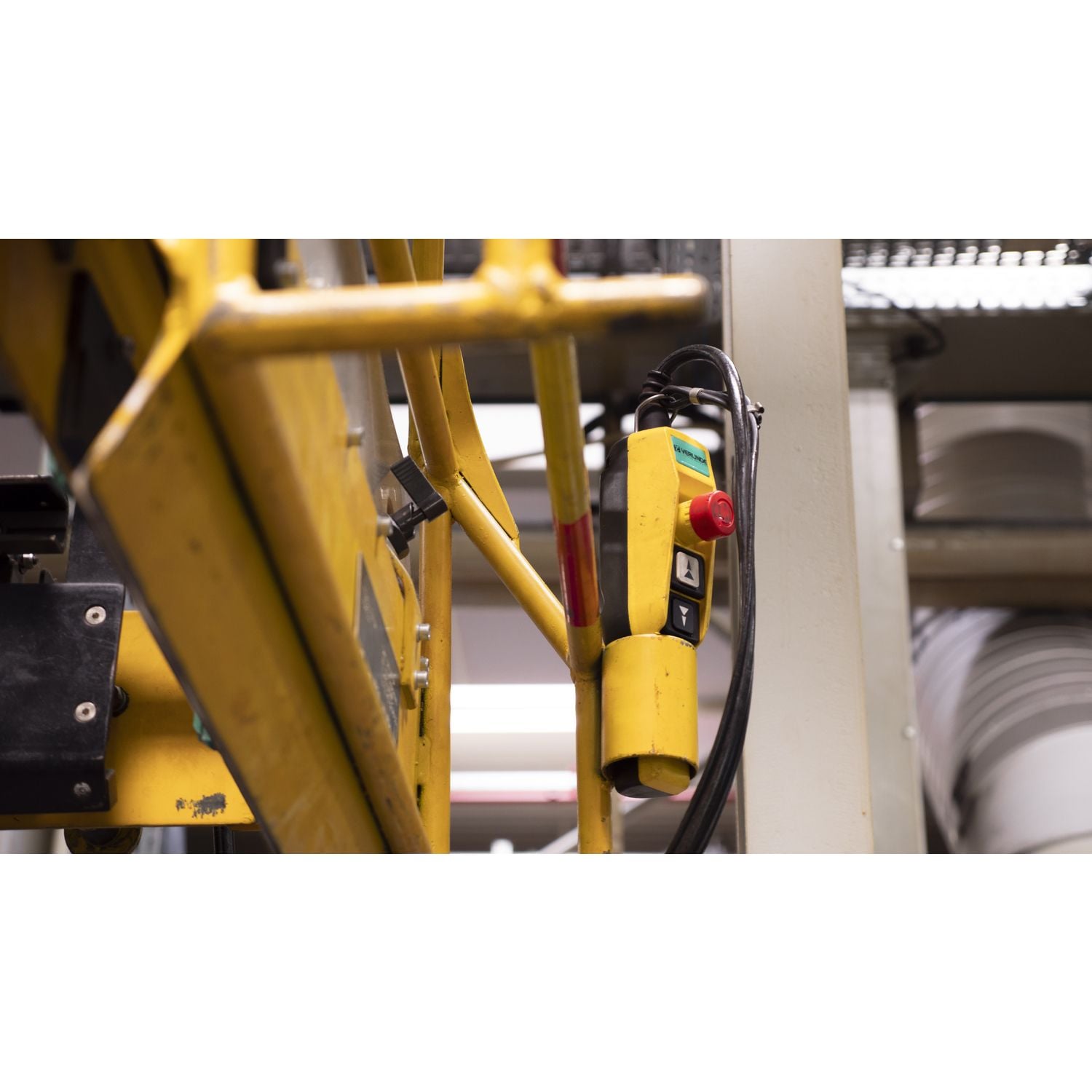

This spring return contact block is a separate component for double insulated, XACA pendant control station. It is designed for front mounting and features 1 NC + 2 NO contacts.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA, XACA9...head
Electrical circuit type control circuit
Type of operator spring return
Contact operation simultaneous, slow-break
Contacts type and composition 1 NC + 2 NO
Component name XENG
Contact block application single speed
Product or component type contact block
Contact block type single
Range of product Harmony XAC
Mounting of block front mounting
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Operating force 18 N
Mechanical durability 1000000 cycles
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.04 kg
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
[Ithe] conventional enclosed thermal current 10 A
Maximum resistance across terminals 25 MOhm

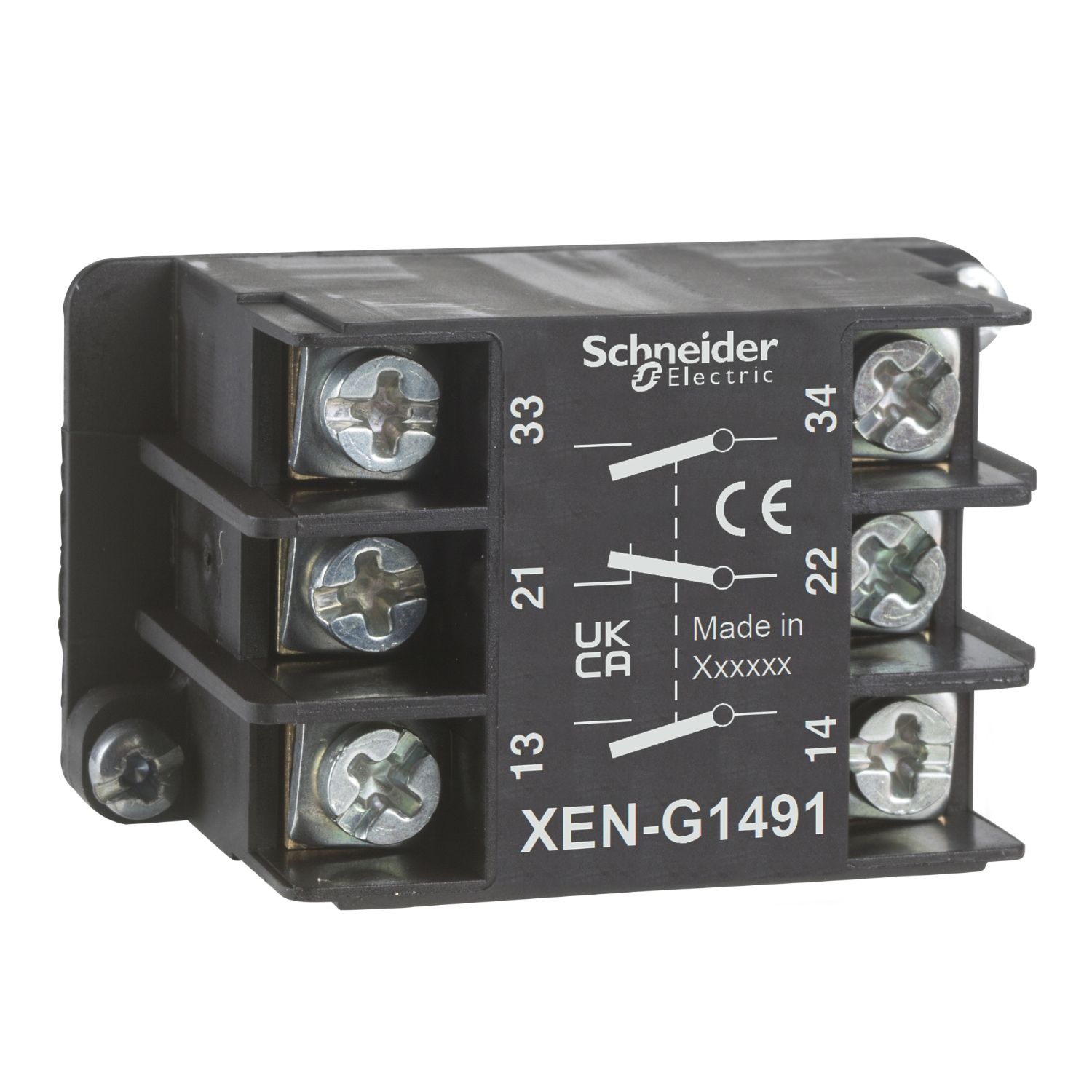

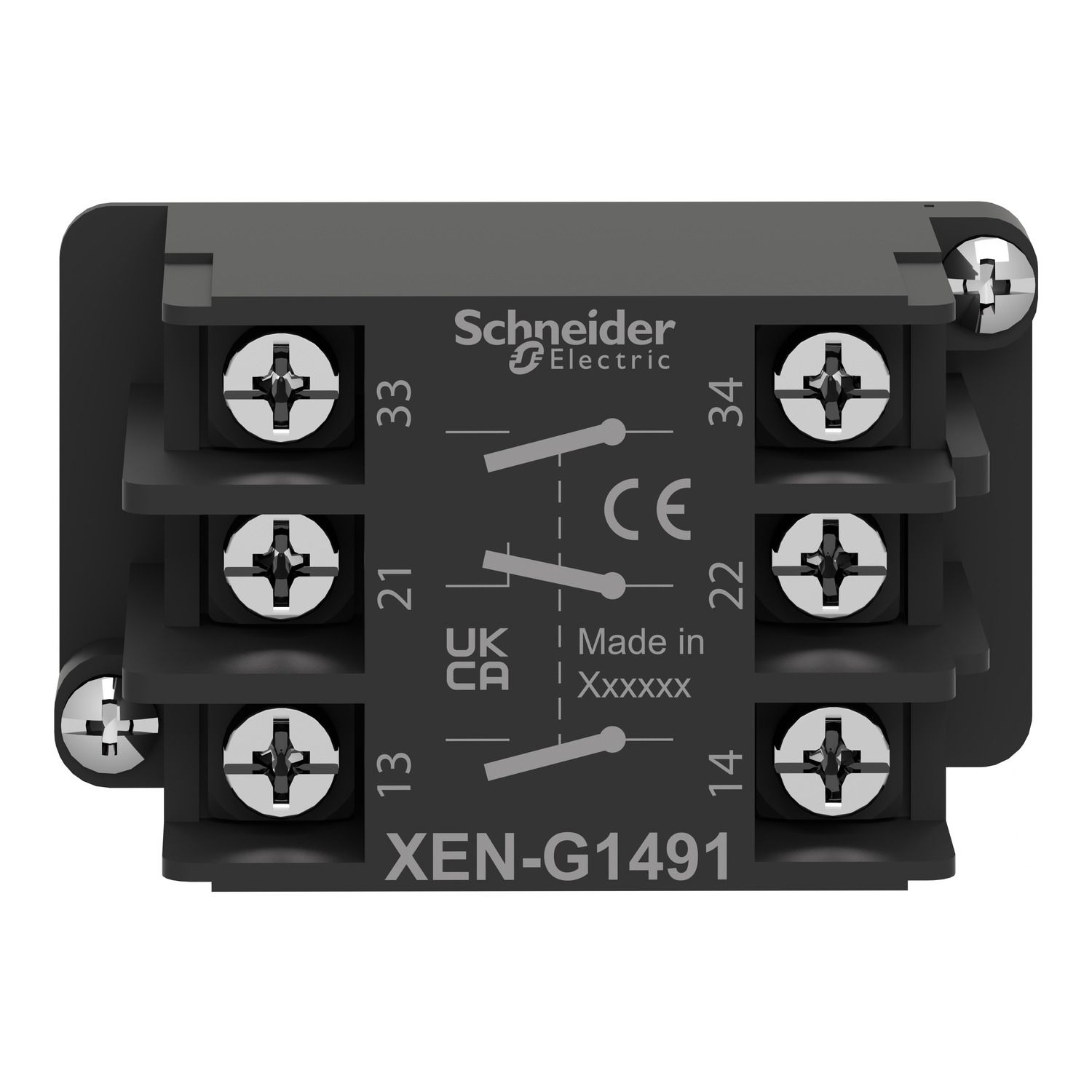

Terminals description ISO n°1 (33-34)NO, (13-14)NO, (21-22)NC
Environment
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards UL 508, CSA C22.2 No 14, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 3.5 cm
Package 1 Length 5.5 cm
Package 1 Weight 40.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.407 kg
