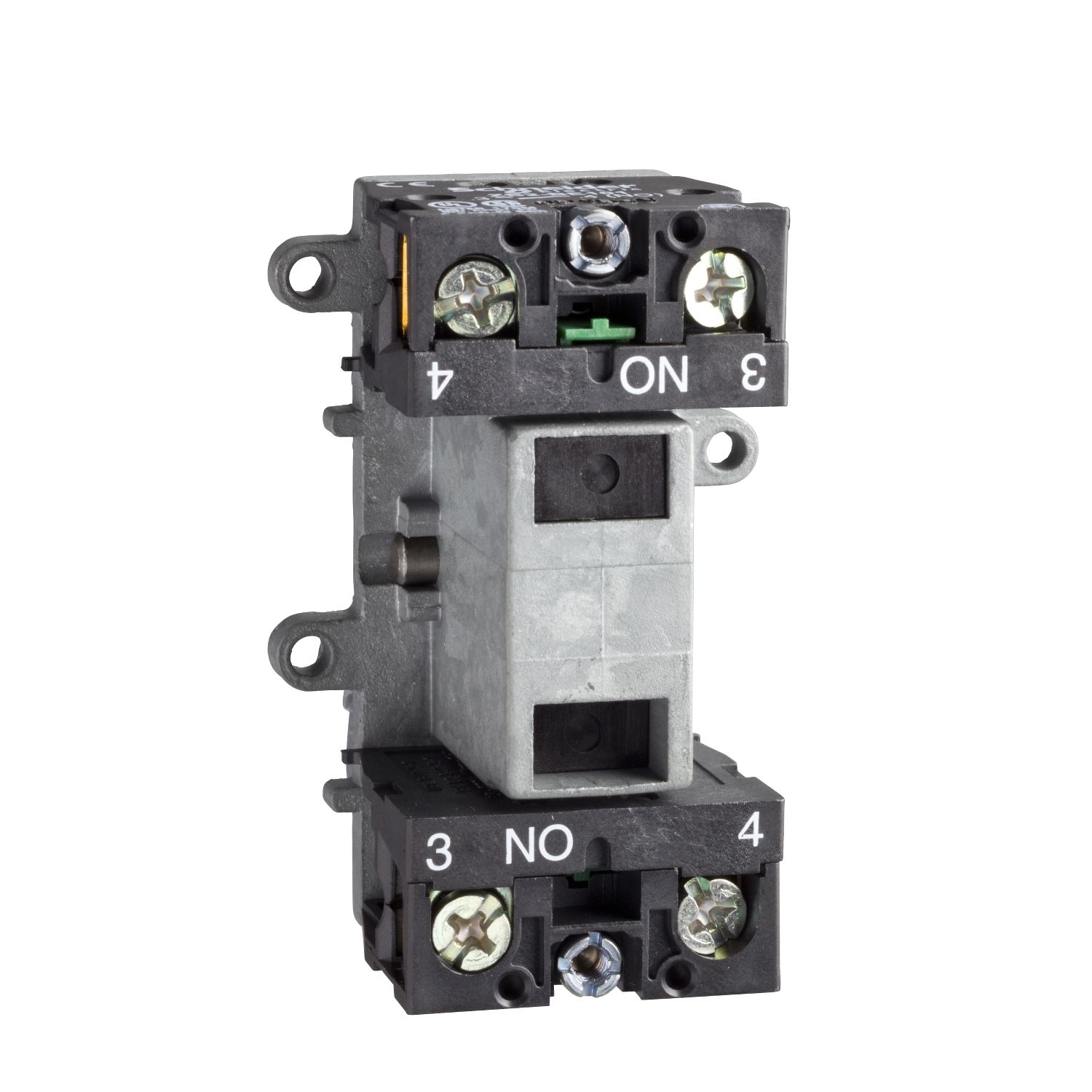

Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 2NO

$76.10
Available for Shipping : 10-Dec-2024
Contact block, Harmony XAC, double contact, latching, single speed, front mounting, 2NO
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA
Electrical circuit type control circuit
Type of operator latching
Contact operation slow-break
Contacts type and composition 2 NO
Component name XENG
Contact block application single speed
Product or component type contact block
Contact block type double
Range of product Harmony XAC
Mounting of block front mounting
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Operating force 15 N
Mechanical durability 1000000 cycles
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
[Ithe] conventional enclosed thermal current 10 A
Maximum resistance across terminals 25 MOhm
Terminals description ISO n°1 B, (13-14)NO
Terminals description ISO n°2 B, (13-14)NO
Environment
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 4.0 cm
Package 1 Length 6.0 cm
Package 1 Weight 90.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.7 kg
