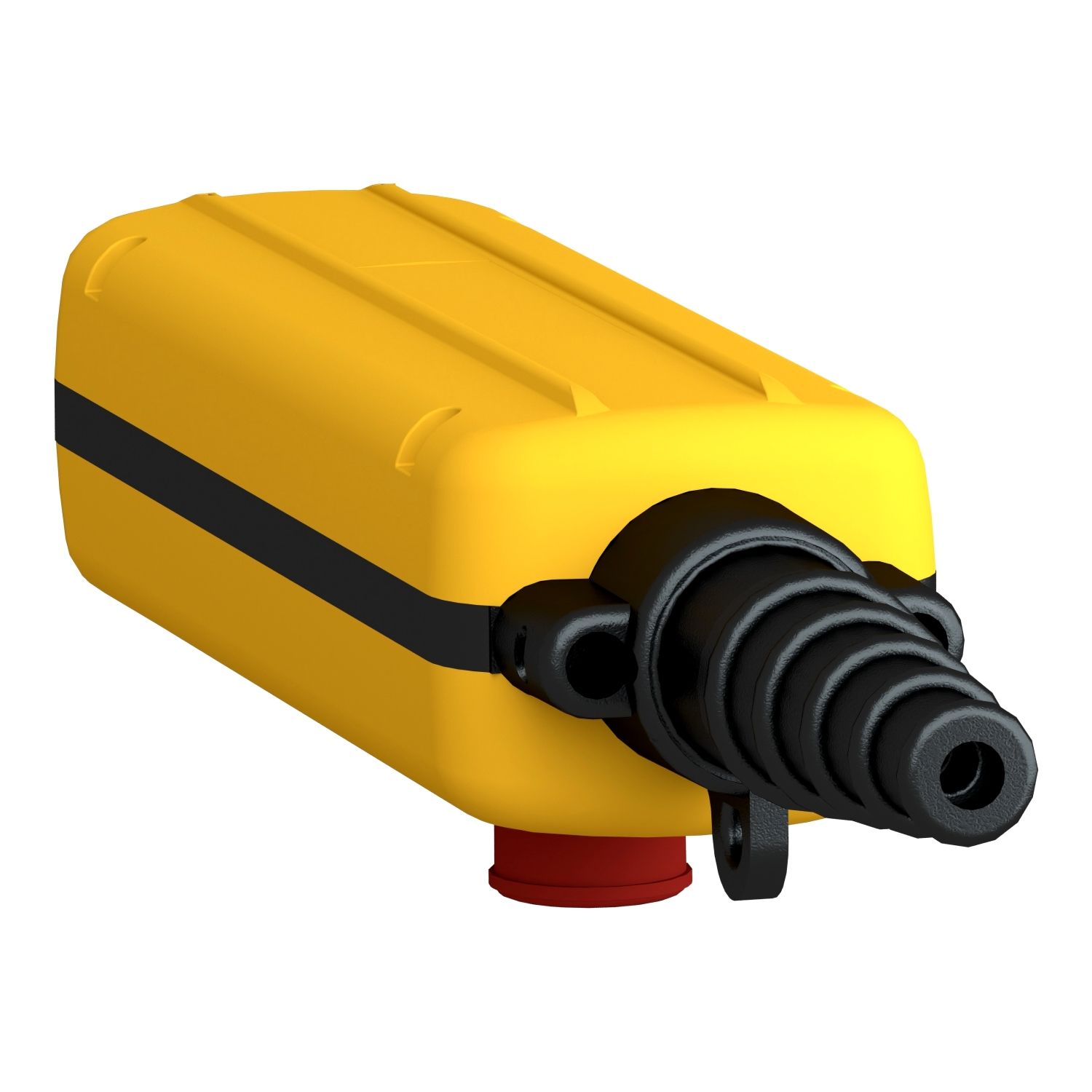

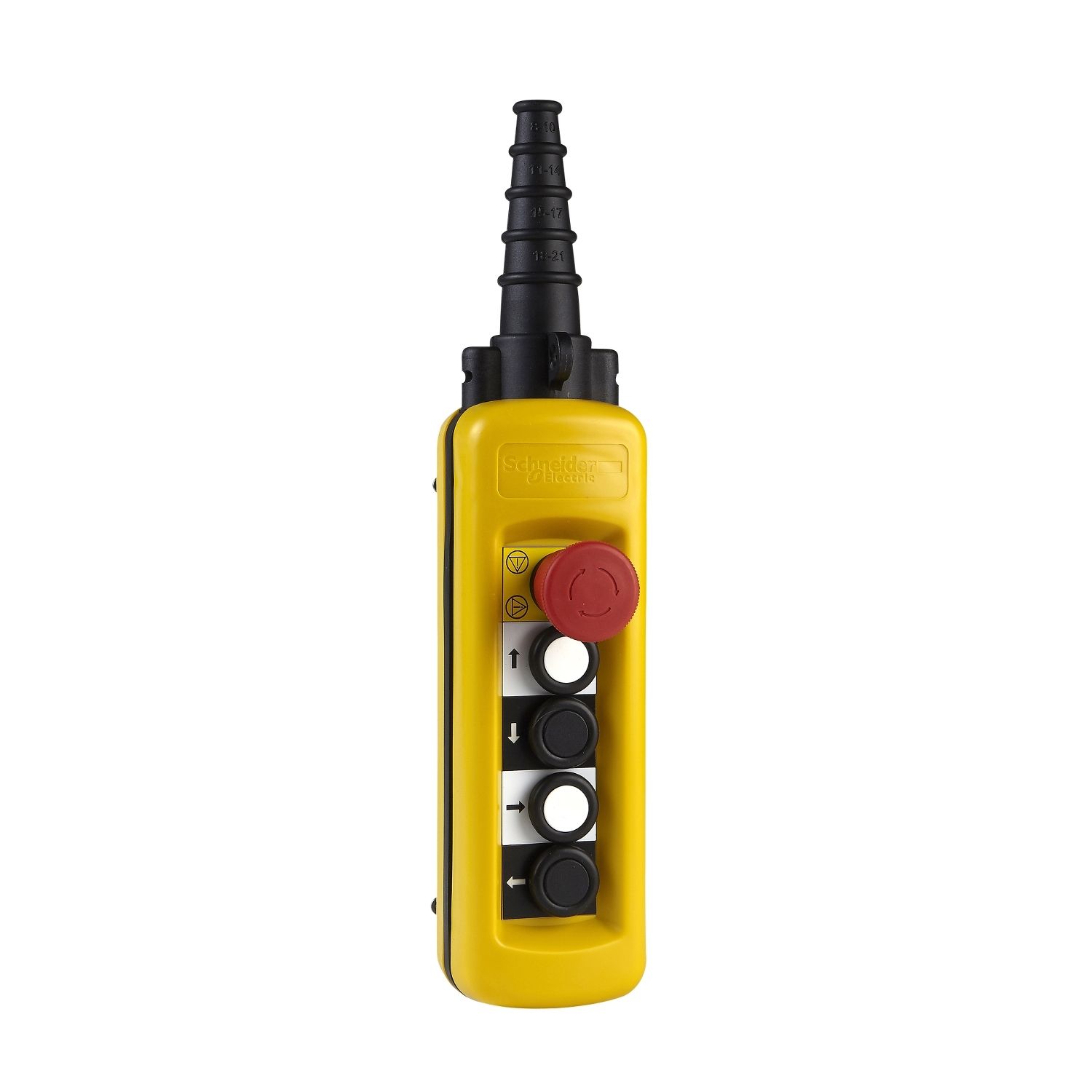

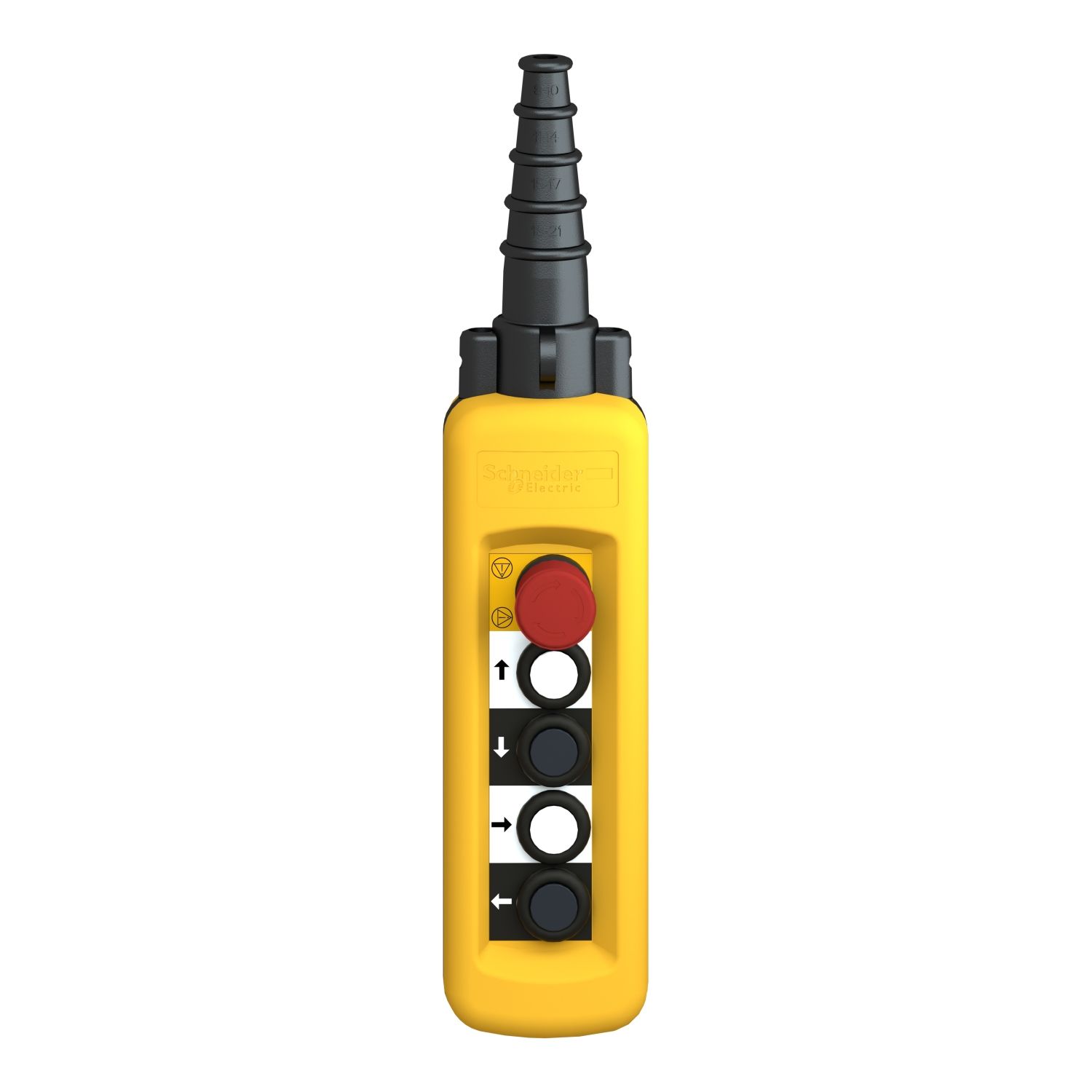

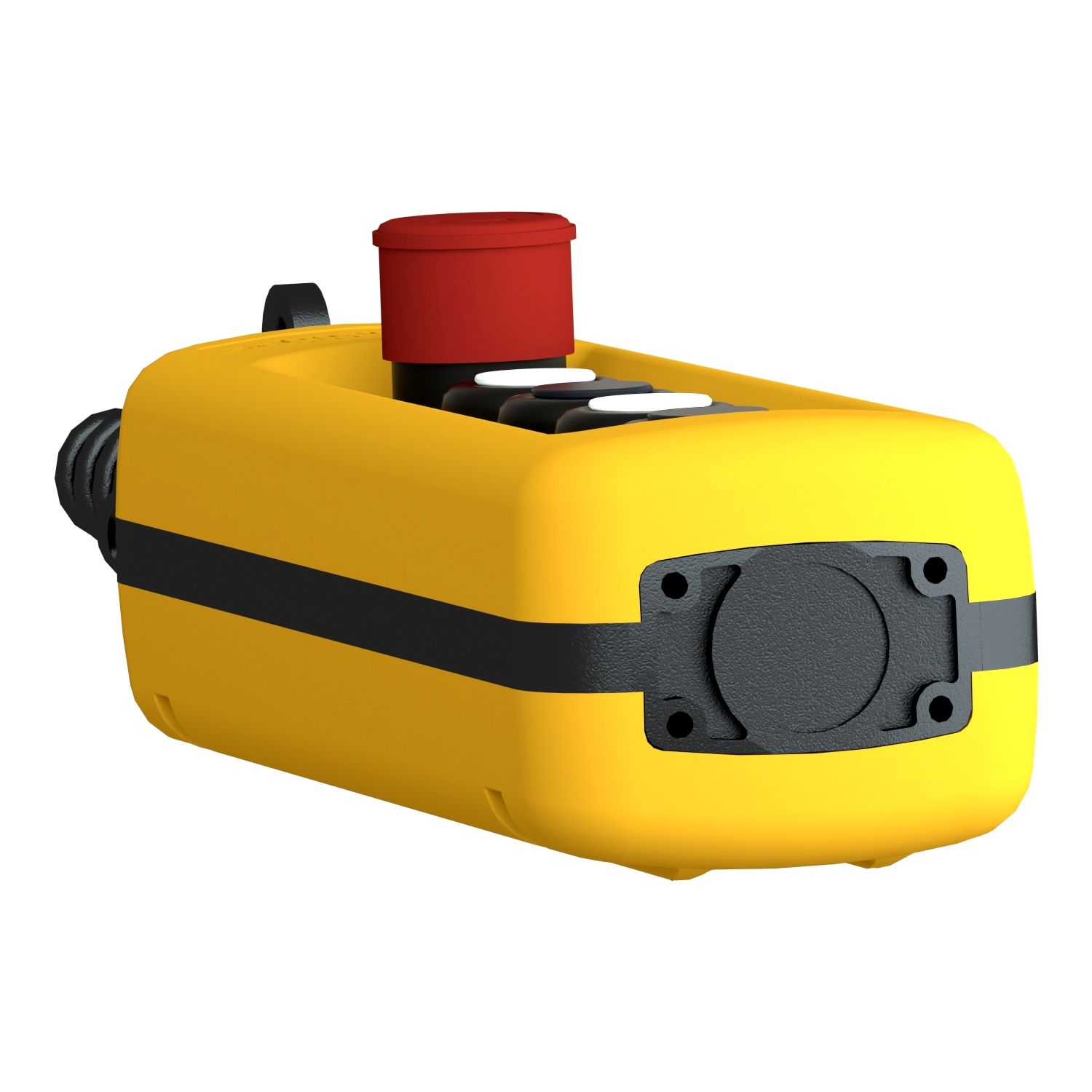

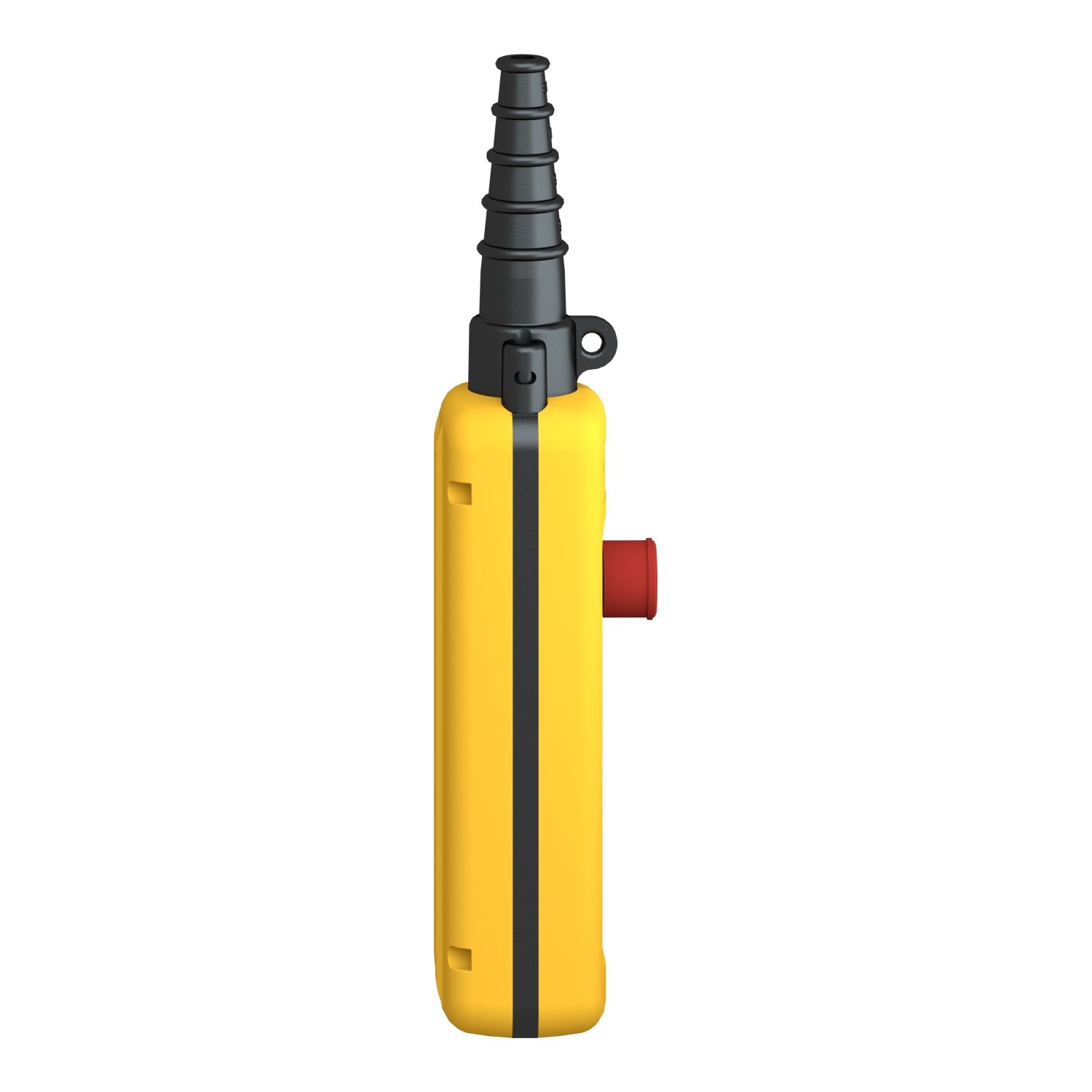

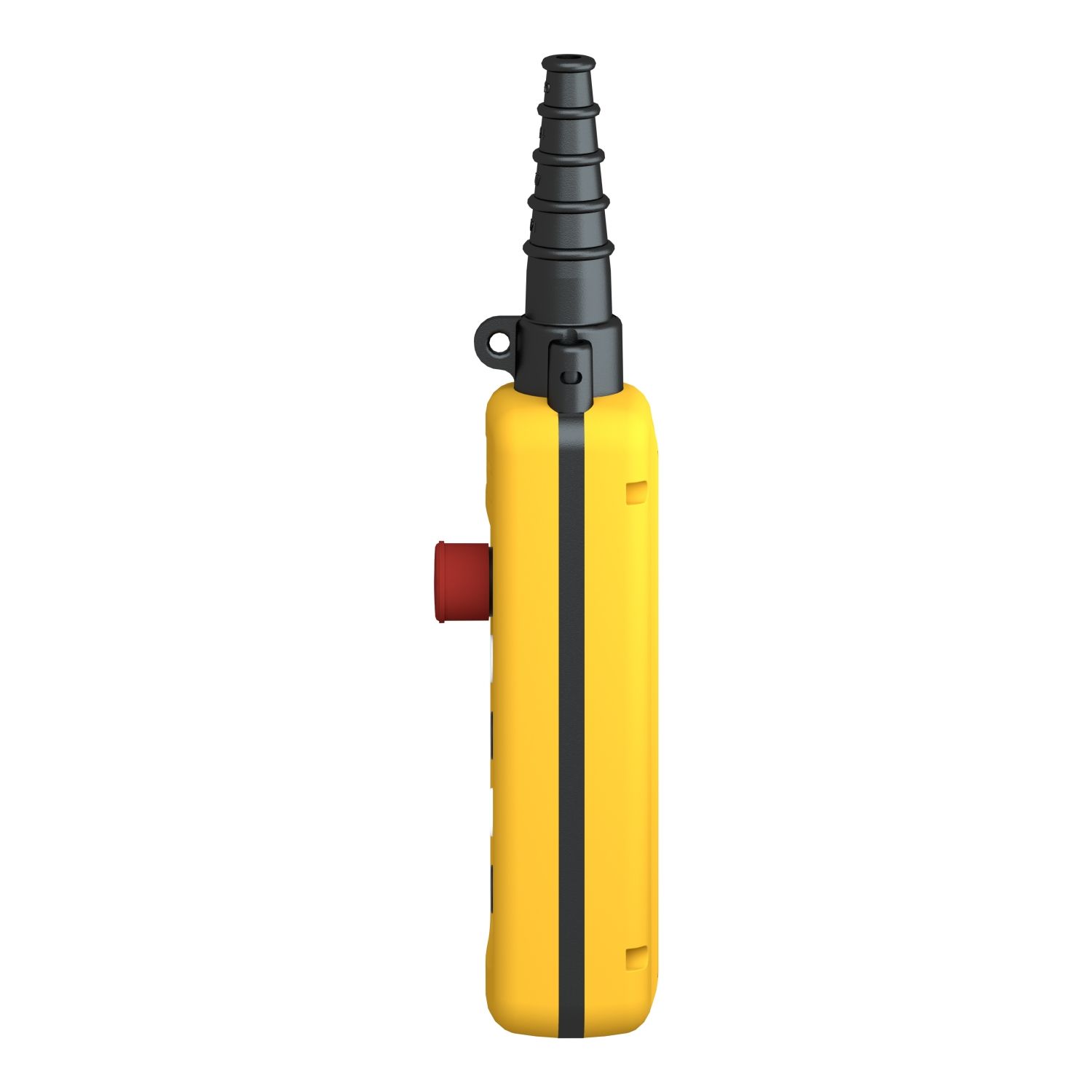

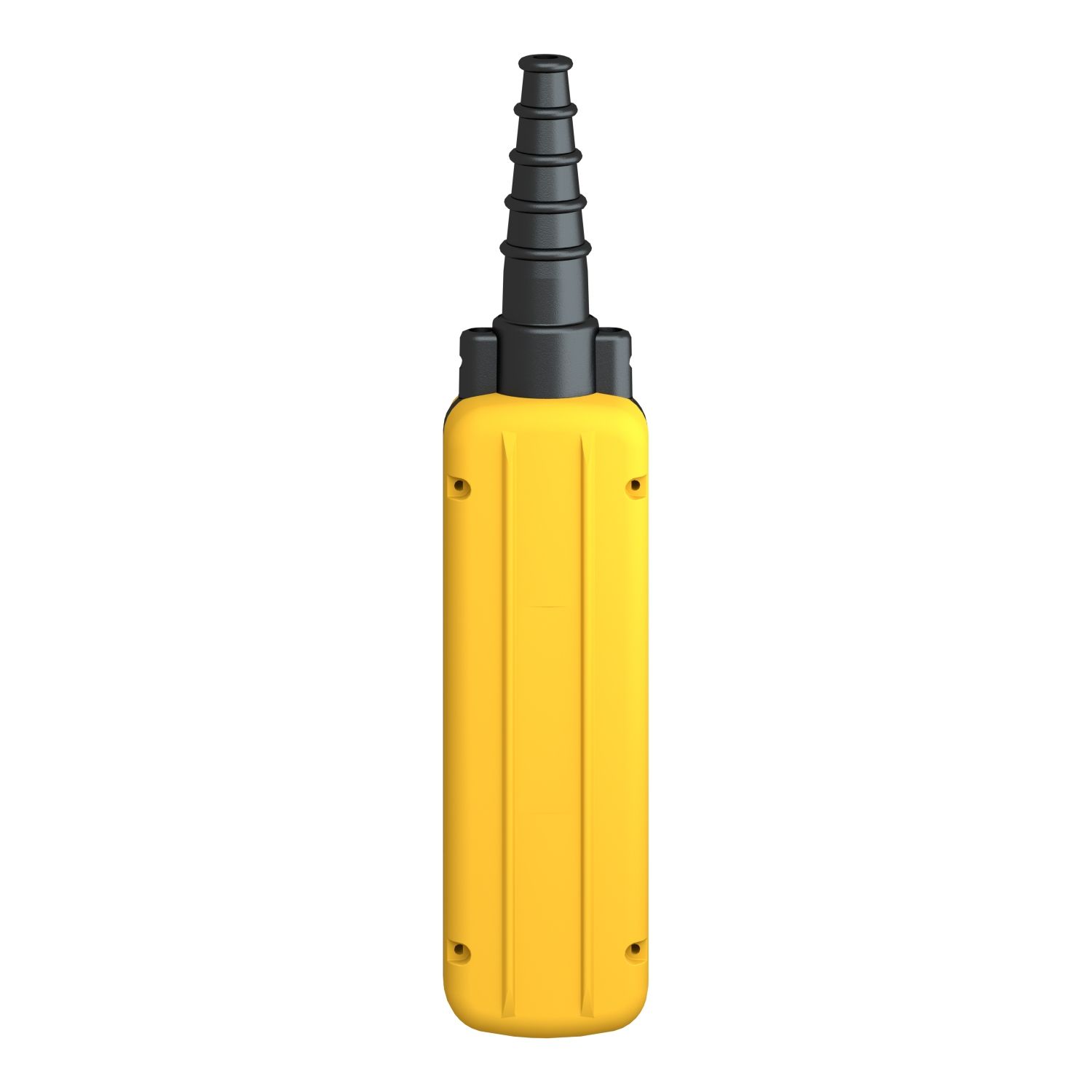

Harmony XAC, Pendant control station, plastic, yellow, 4 push buttons, 1 emergency stop

$442.68 INC GST
Available for Shipping : 18-Feb-2025
Harmony XAC, Pendant control station, plastic, yellow, 4 push buttons, 1 emergency stop
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylène enclosure with 4 standard push buttons mechanically interlocked between pairs and 1 trigger action latching emergency stop diameter 40mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.

Products specifications

Attribute name Attribute value
Main
Device short name XACA
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Electrical circuit type control circuit
Control button type emergency stop push-button Ø 40 mm 1 NC trigger action, third push-button 1 NO right, slow, fourth push-button 1 NO left, slow, second push-button 1 NO lower, slow, first push-button 1 NO raise, slow
Operating force 8-8 N emergency stop, 10-10 N push-button
Mechanical durability 1000000 cycles
Control station colour yellow
Mechanical interlocking with mechanical interlocking between pairs
Contact operation slow-break
Overvoltage category class II conforming to IEC 61140
Control station composition 4 push-buttons + 1 emergency stop
Ambient air temperature for storage -40-70 °C
[Ui] rated insulation voltage 600 V (pollution degree 3)
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Product compatibility ZB2BE102 for emergency stop, ZB2BE101 for each direction
Net weight 0.8 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 8-26 mm
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Standards EN/IEC 60947-5-5, CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1, EN/ISO 13850: 2006, EN/IEC 60204-32
Terminals description ISO n°1 (13-14)NO
Terminals description ISO n°2 (11-12)NC
Ambient air temperature for operation -25-70 °C
Terminal identifier (13-14)NO, (11-12)NC
IK degree of protection IK08 conforming to EN 50102
Control station application control of single speed hoist motor
Product certifications CCC, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10 cm
Package 1 Width 11 cm
Package 1 Length 51.2 cm
Package 1 Weight 793 g
