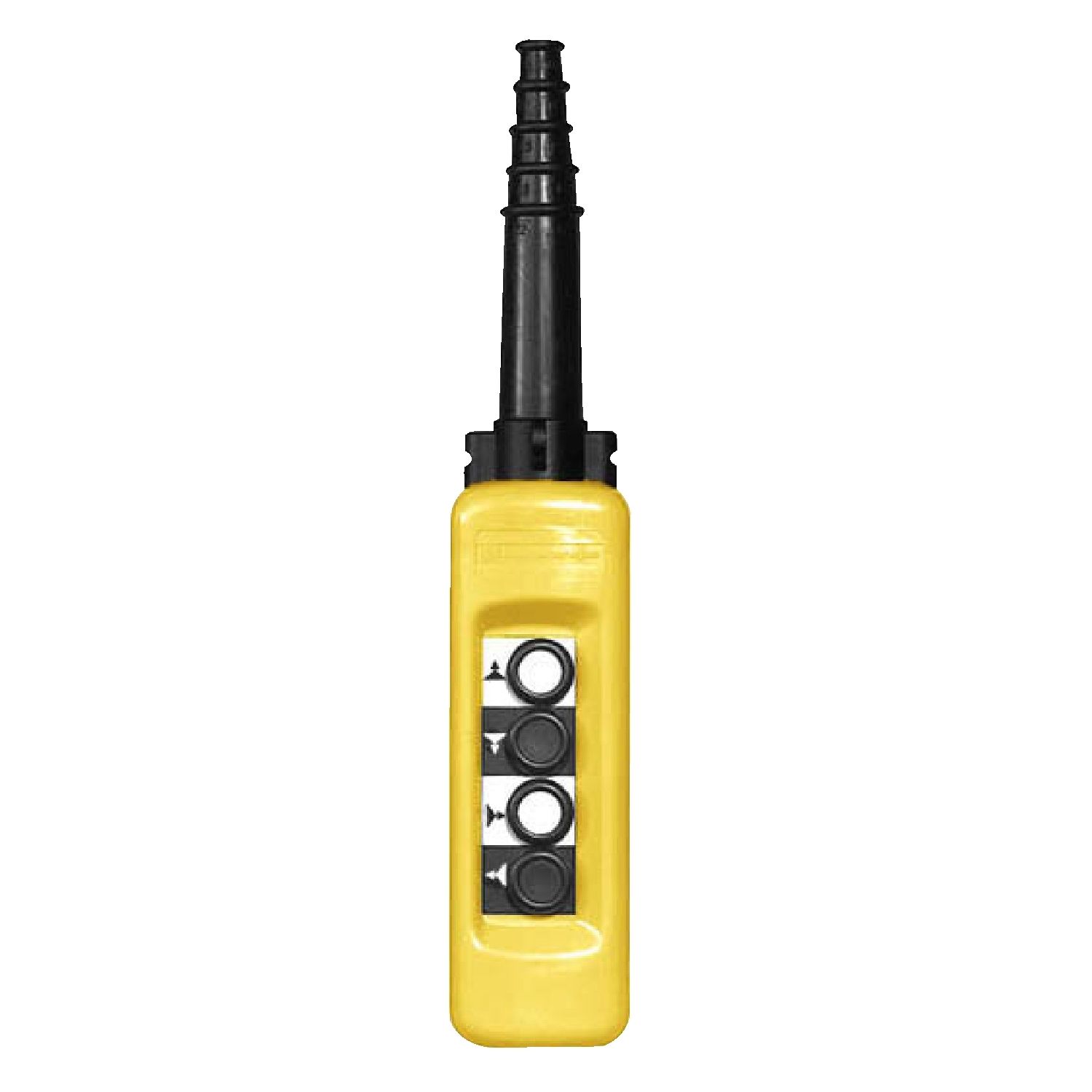

Picture of pendant control station XAC-A - 4 pushbuttons
SKU:

XACA492

pendant control station XAC-A - 4 pushbuttons

$646.99
Available for Shipping : 09-Dec-2024
pendant control station XAC-A - 4 pushbuttons
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This Harmony XACA492 is a pendant control station with 4 push buttons for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute name Attribute value
Main
Device short name XACA
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Electrical circuit type control circuit
Control button type third push-button 1 NO right, slow, fourth push-button 1 NO left, slow, second push-button 1 NC + 2 NO lower, slow-fast, first push-button 1 NC + 2 NO raise, slow-fast
Operating force 18-18 N push-button, 10-10 N emergency stop
Mechanical durability 1000000 cycles
Control station colour yellow
Mechanical interlocking with mechanical interlocking between pairs
Contact operation slow-break, staggered
Overvoltage category class II conforming to IEC 61140
Control station composition 4 push-buttons
Ambient air temperature for storage -40-70 °C
[Ui] rated insulation voltage 600 V (pollution degree 3)
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Product compatibility ZB2BE101 for right/left direction, XENG1191 for raise/lower direction
Net weight 0.675 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 8-26 mm
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Standards EN/IEC 60947-5-1, EN/IEC 60204-32, CSA C22.2 No 14, UL 508
Terminals description ISO n°1 (13-14)NO, (33-34)NO_CL, (21-22)NC
Terminals description ISO n°2 (13-14)NO
Ambient air temperature for operation -25-70 °C
Terminal identifier (11-12)NC, (13-14)NO
IK degree of protection IK08 conforming to EN 50102
Control station application control of 2-speed hoist motor
Product certifications GOST, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 9.000 cm
Package 1 Length 44.500 cm
Package 1 Weight 773.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 9.926 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 47.704 kg
