SKU:

XACA6913

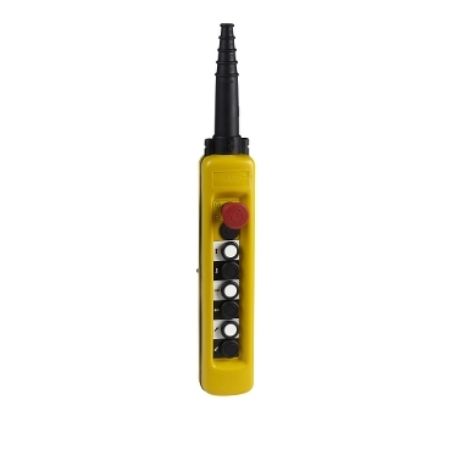

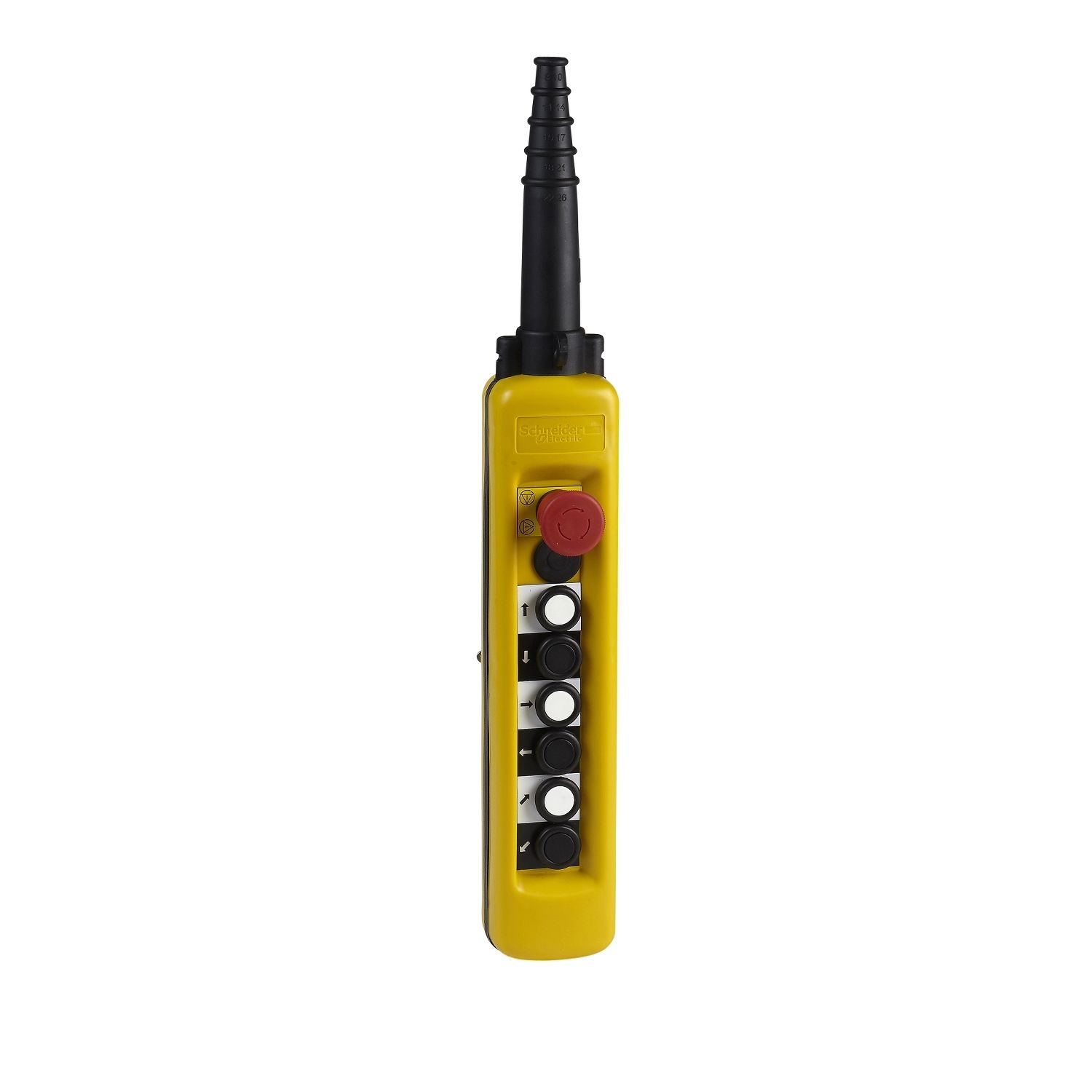

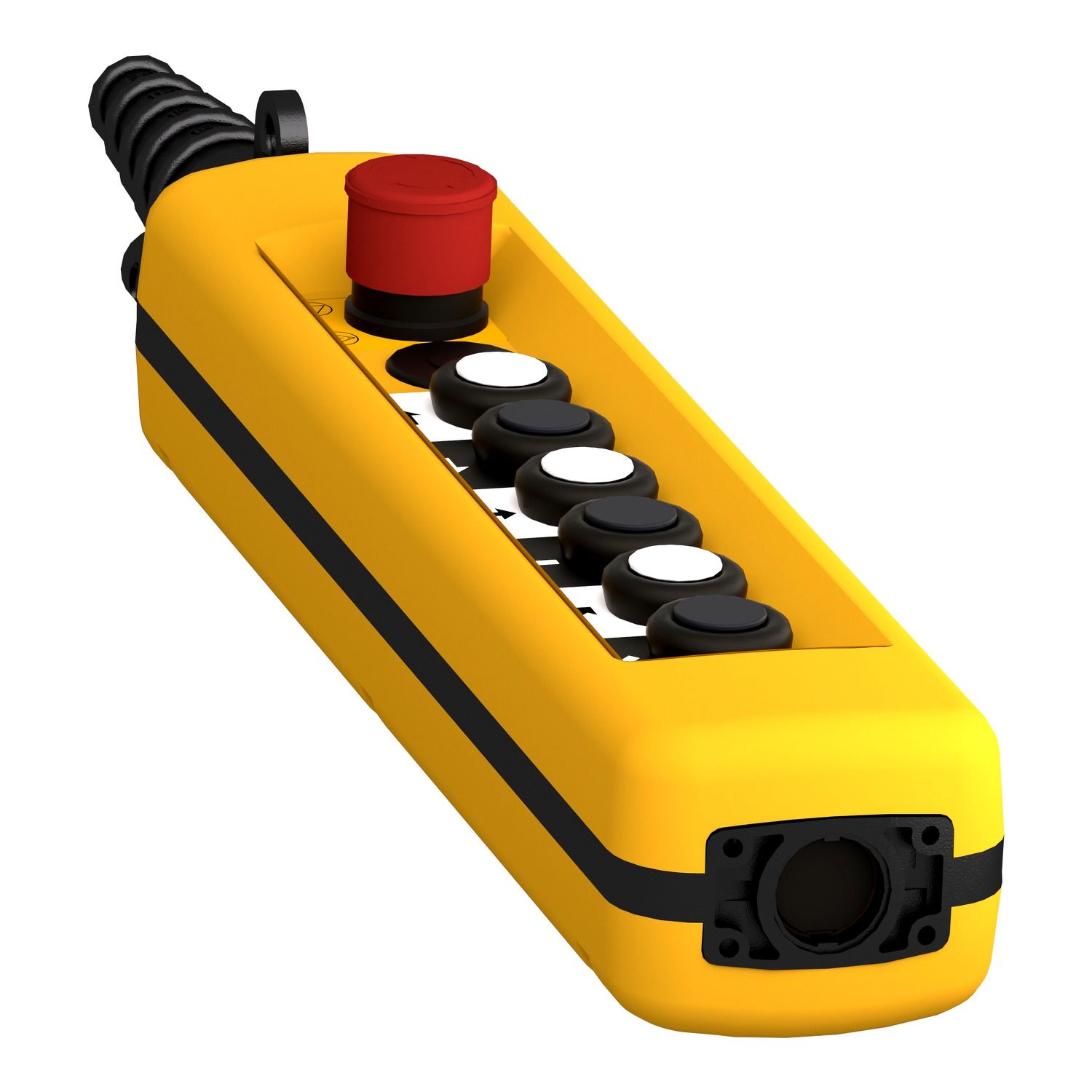

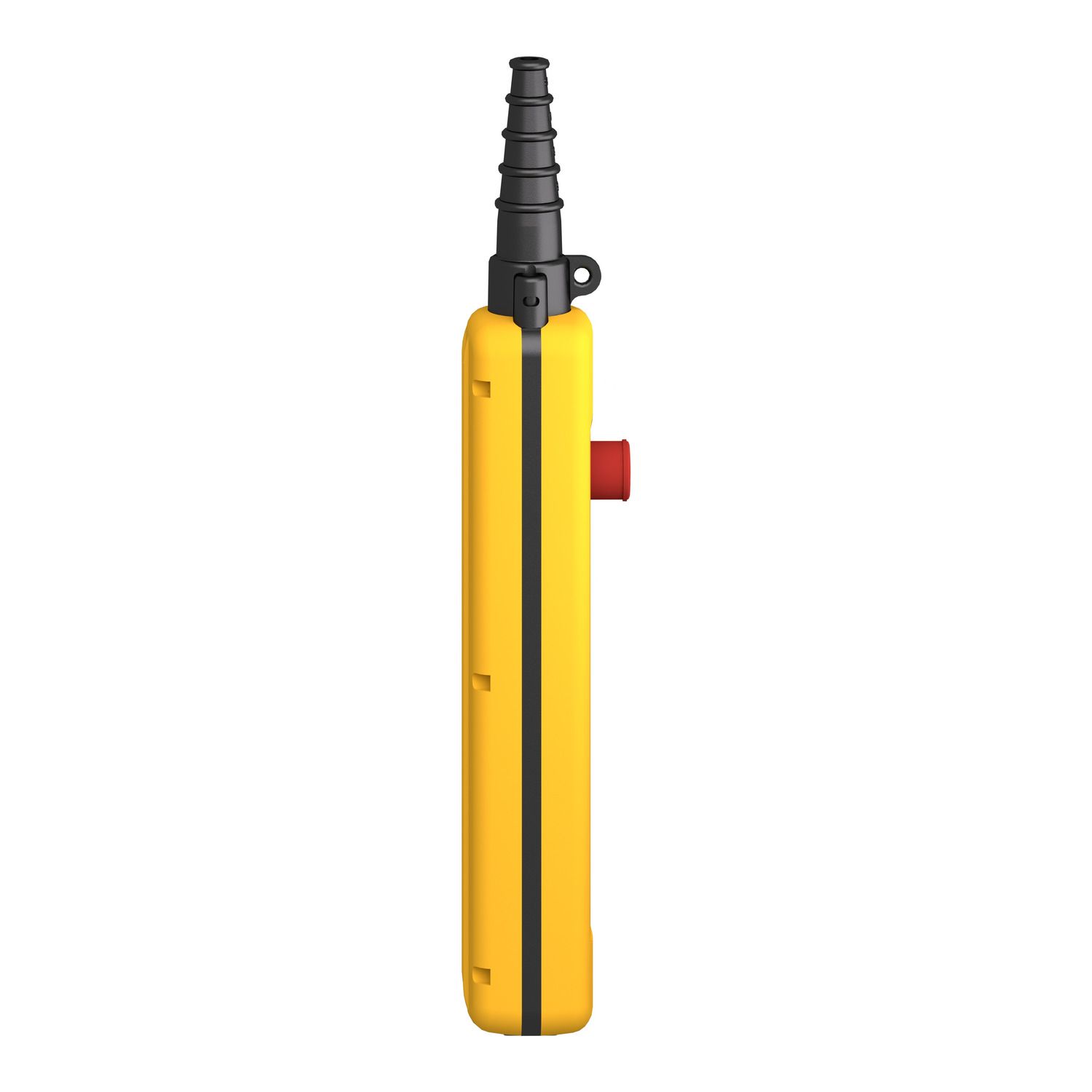

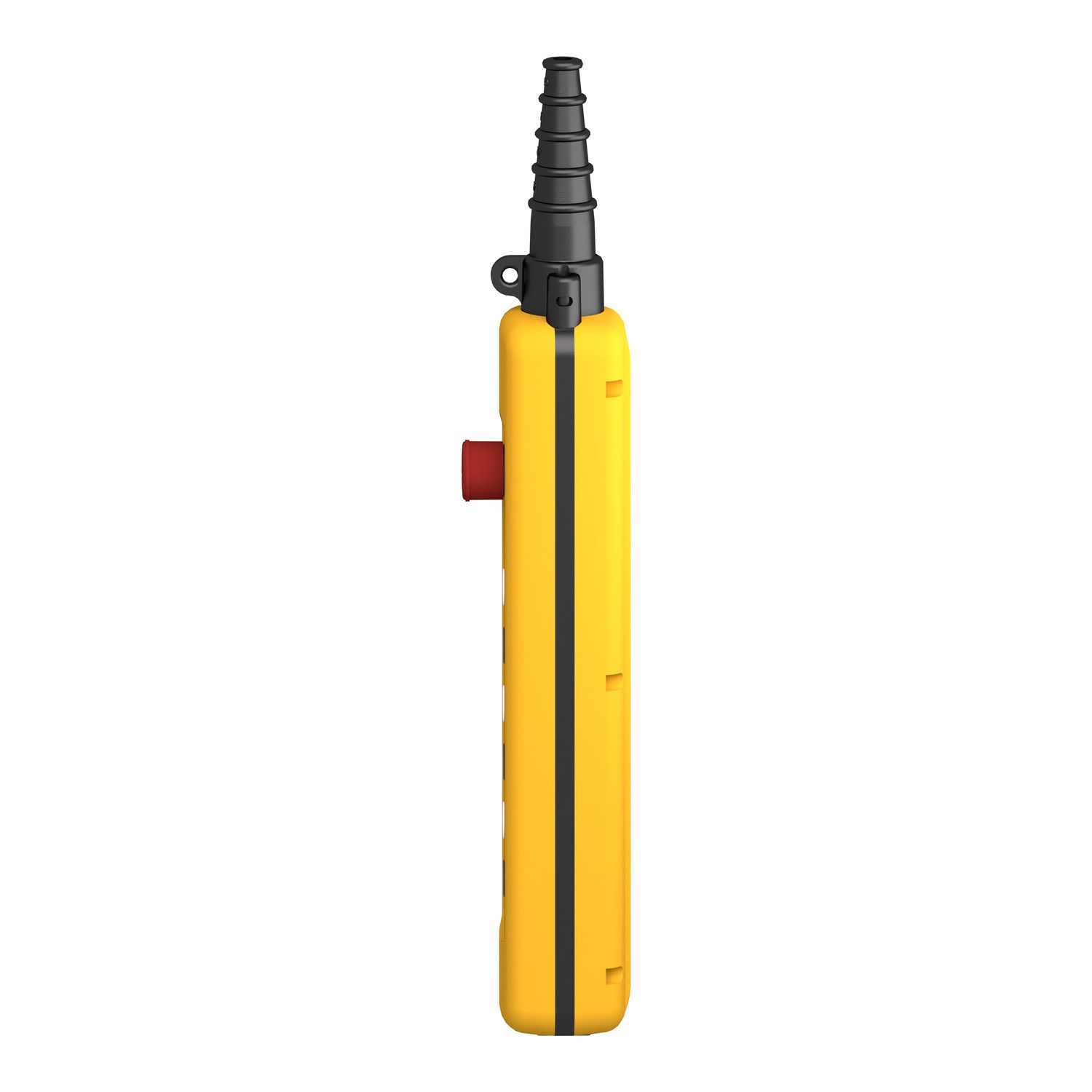

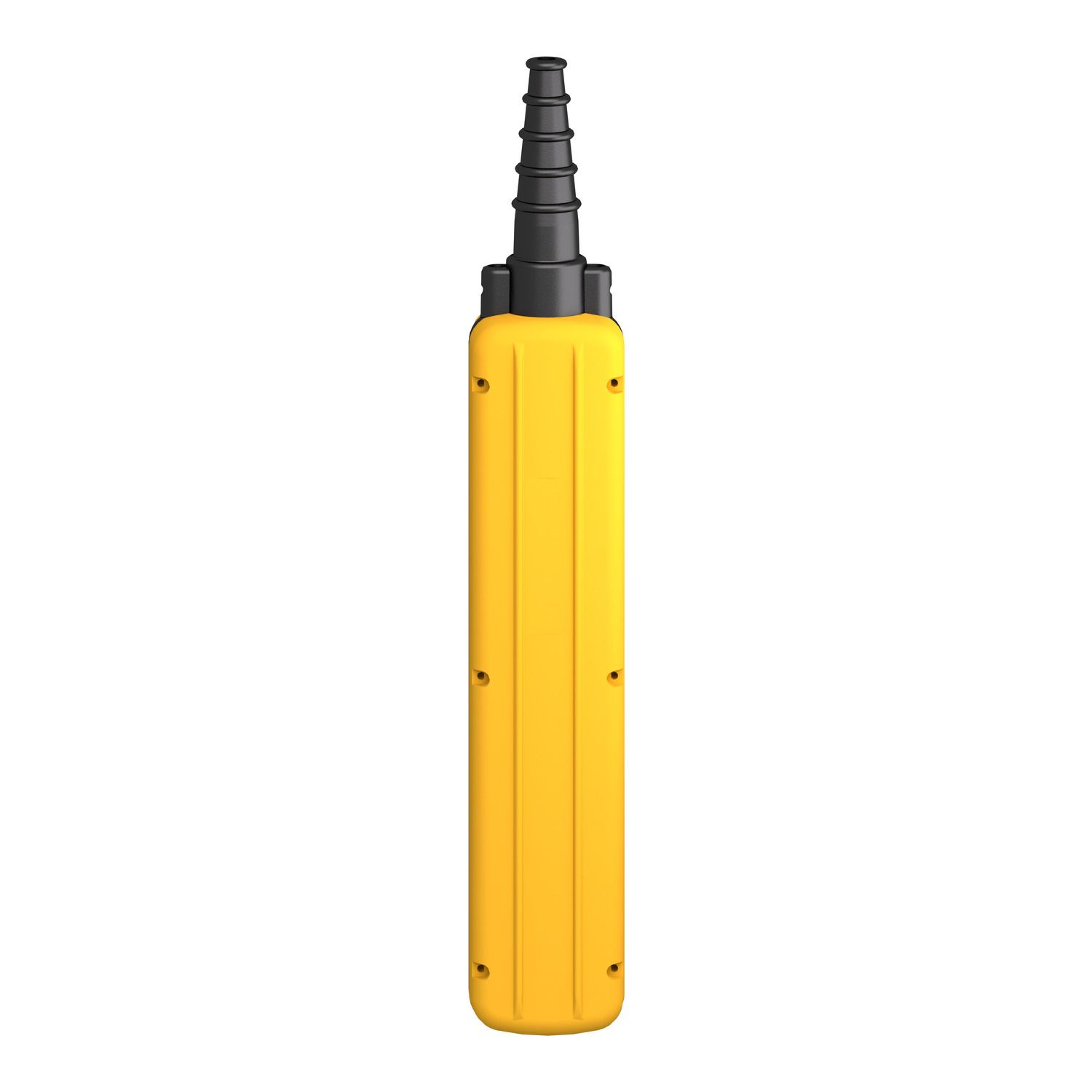

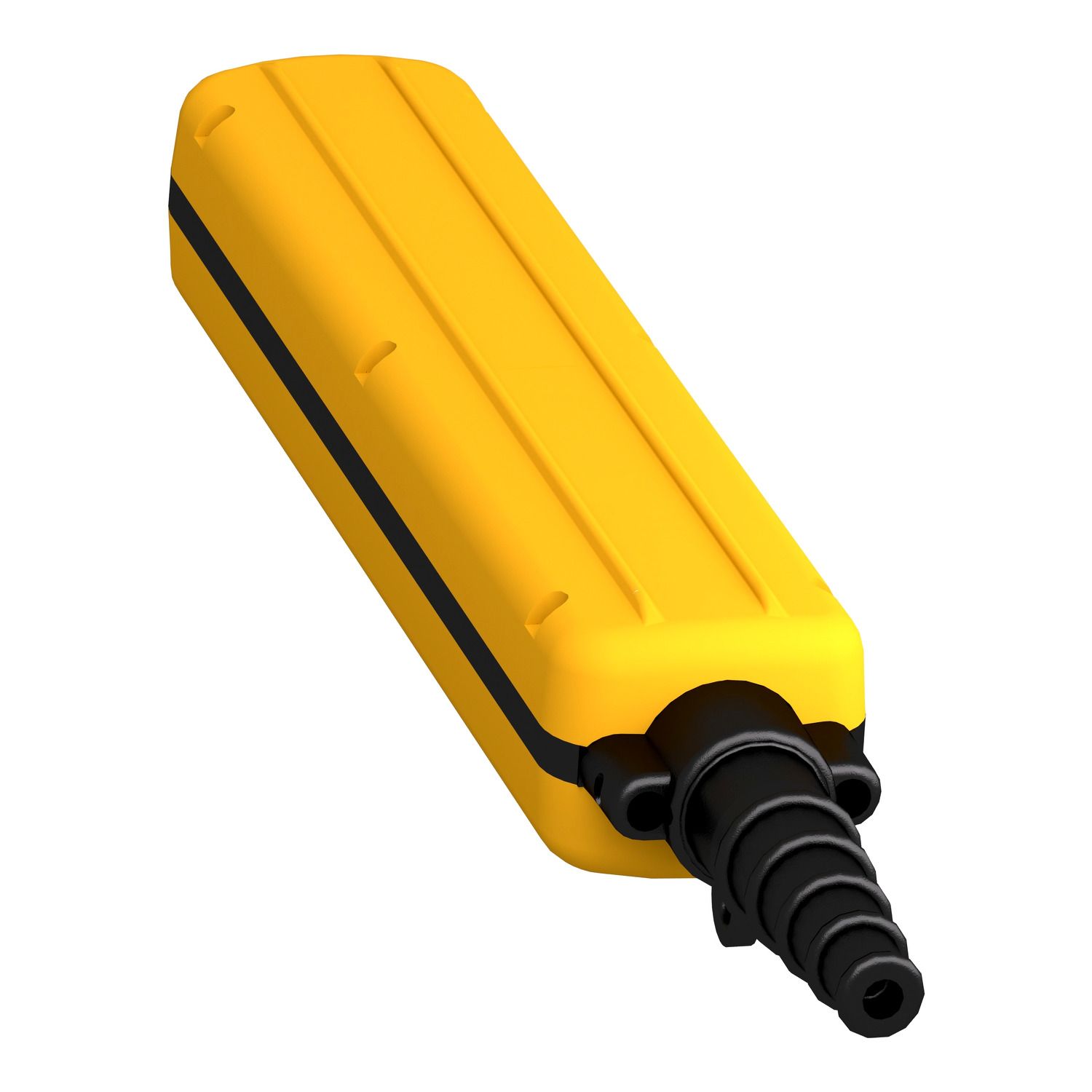

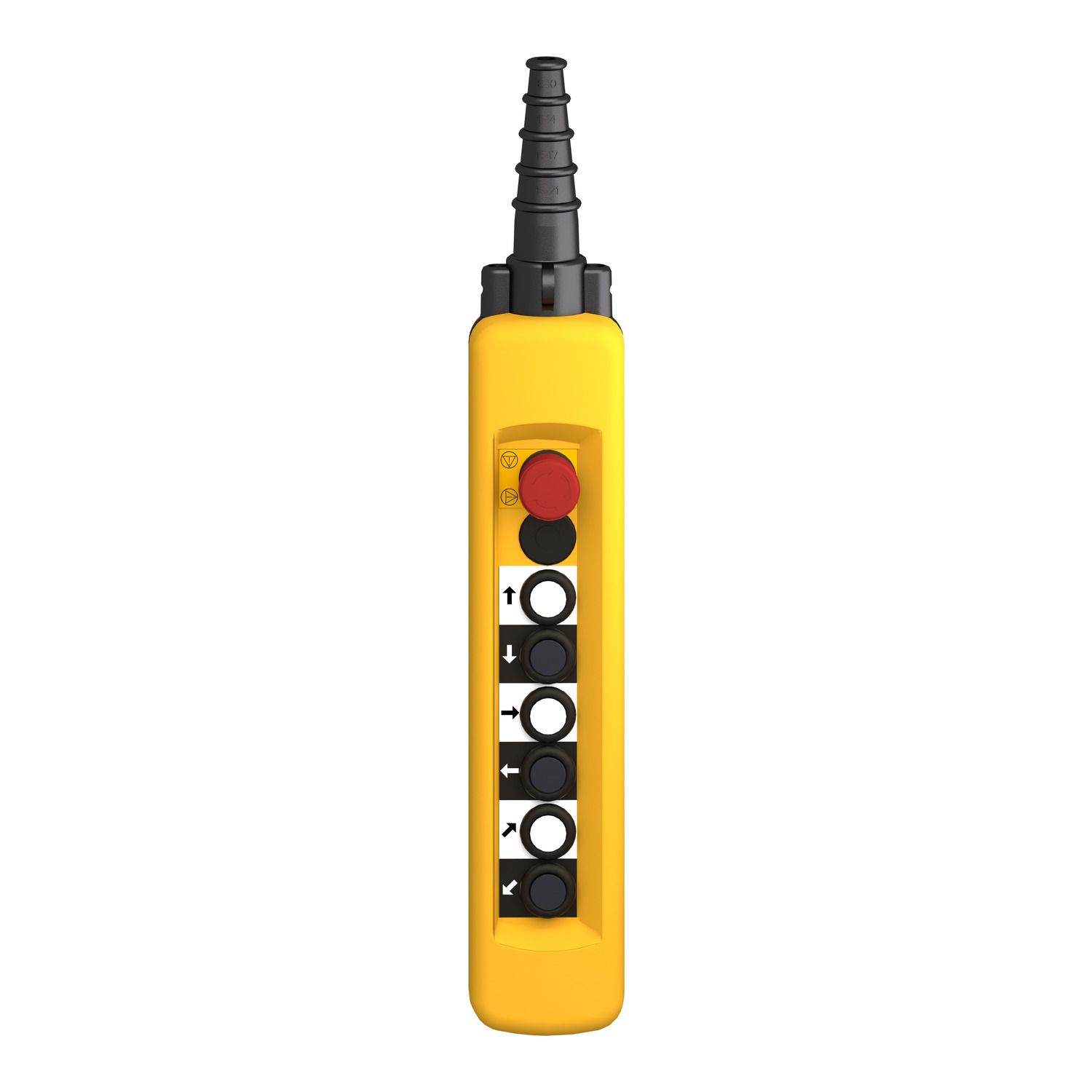

Pendant control station, Harmony XAC, plastic, yellow, 7 push buttons 2NO + 1NC, 1 emergency stop 40mm trigger blank 1NC, 2 speeds

Old price: $1,238.60 INC GST
$966.11 INC GST
Available for Shipping : 13-Jan-2026
Pendant control station, Harmony XAC, plastic, yellow, 7 push buttons 2NO + 1NC, 1 emergency stop 40mm trigger blank 1NC, 2 speeds
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Catalog
Environmental Disclosure

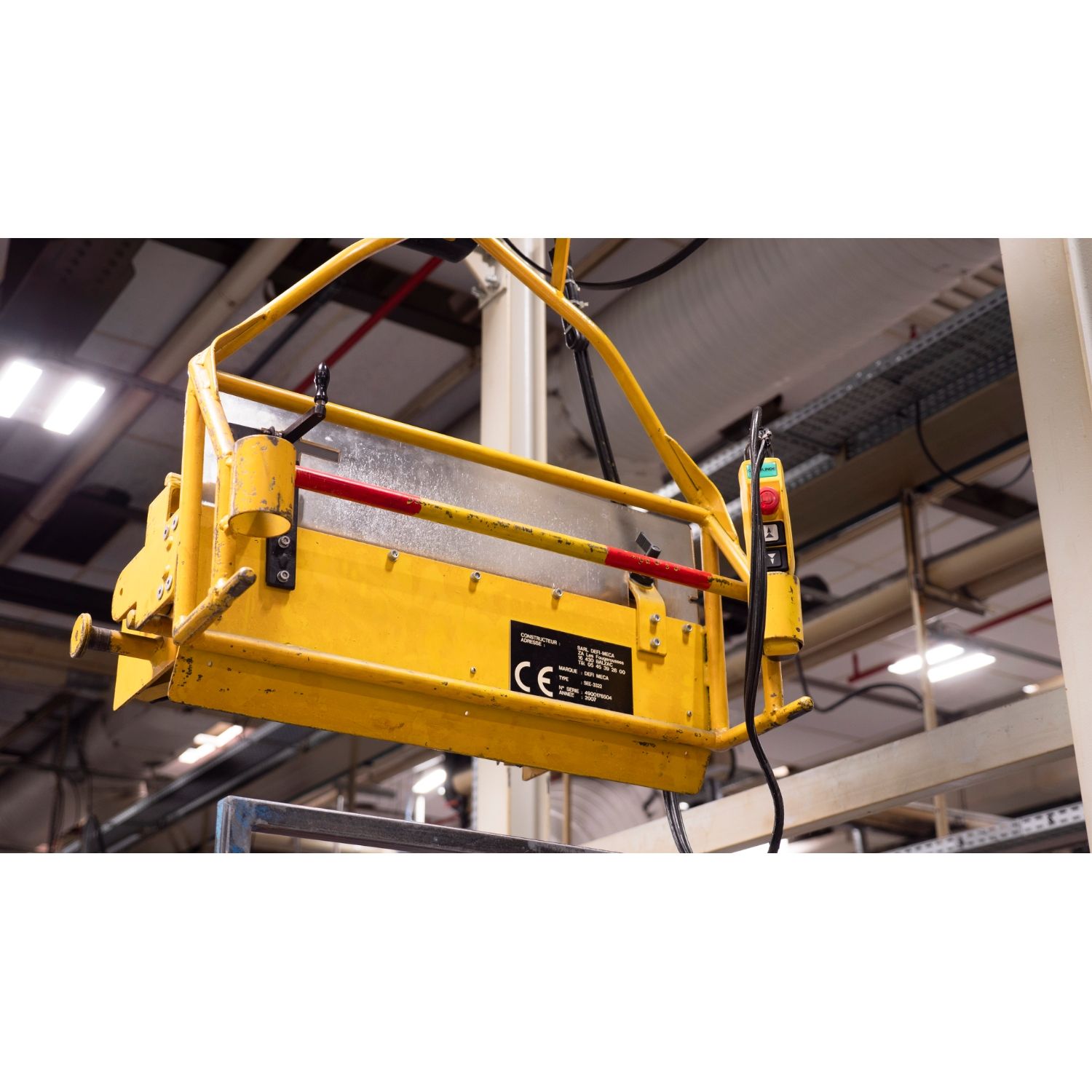

Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XAC, yellow pendant station for hoist motor has 2-speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 5 push buttons and 1 emergency stop with "raise", "lower", "left", "right", "forward" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It offers movement in 2 speeds (low and high) for each movements. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XACA
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Protective treatment TH
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Enclosure material polypropylene
[Ithe] conventional enclosed thermal current 10 A
Electrical circuit type control circuit
Control button type fifth push-button 1 NC + 1 NO + 1 NO forward, slow-fast, fourth push-button 1 NC + 1 NO + 1 NO right, slow-fast, third push-button 1 NC + 1 NO + 1 NO left, slow-fast, second push-button 1 NC + 1 NO + 1 NO lower, slow-fast, first push-button 1 NC + 1 NO + 1 NO raise, slow-fast, emergency stop push-button Ø 40 mm 1 NC trigger action blank
Operating force 14-14 N emergency stop, 13-13 N push-button
Mechanical durability 1000000 cycles
Control station colour yellow
Mechanical interlocking with mechanical interlocking between pairs
Contact operation slow-break
Overvoltage category class II conforming to IEC 61140
Control station composition 7 push-buttons + 1 emergency stop
Ambient air temperature for storage -40-70 °C
[Ui] rated insulation voltage 600 V (pollution degree 3), emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Product compatibility XENG1191, ZB2BE102 + ZB2BE101 for each direction, ZB2BE102 for emergency stop
Net weight 0.97 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type complete ready for use
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 8-26 mm
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
Maximum resistance across terminals 25 MOhm
Standards EN/ISO 13850: 2006, IEC 60947-5-5, UL 508, CSA C22.2 No 14, IEC 60204-32, IEC 60947-5-1
Terminals description ISO n°1 (11-12)NC, (13-14)NO
Terminals description ISO n°2 (21-22)NC, (11-12)NC, (31-32)NC
Ambient air temperature for operation -25-70 °C
Terminal identifier (13-14)NO, (11-12)NC
IK degree of protection IK08 conforming to IEC 62262
Control station application control of 2-speed hoist motor
Product certifications GOST, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.0 cm
Package 1 Width 11.0 cm
Package 1 Length 70.0 cm
Package 1 Weight 1.271 kg
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 75.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 39.775 kg

Related products

Contact block, Harmony XAC, single contact, spring return, 1 speed, front mounting, screw clamp terminal, 1NO

ZB2BE101
$25.48 INC GST $32.67 INC GST
View Detail

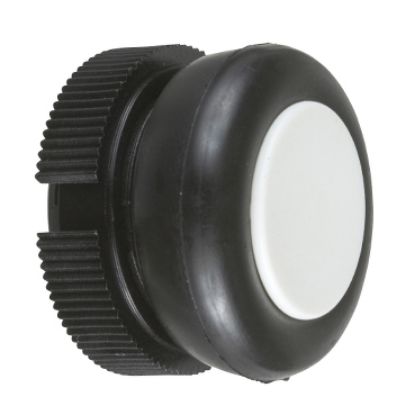

Head for push button, Harmony XAC, plastic, white, booted, spring return
