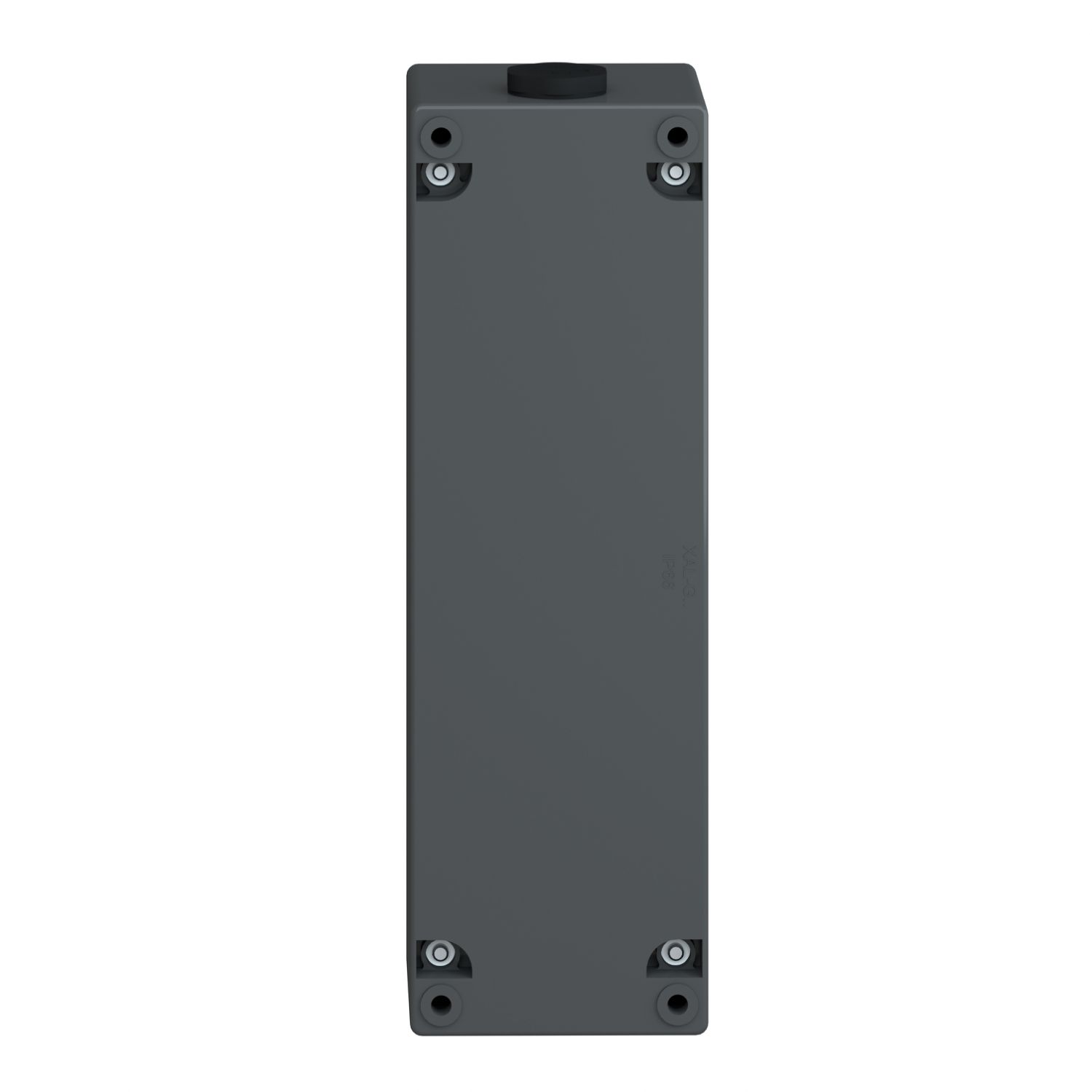

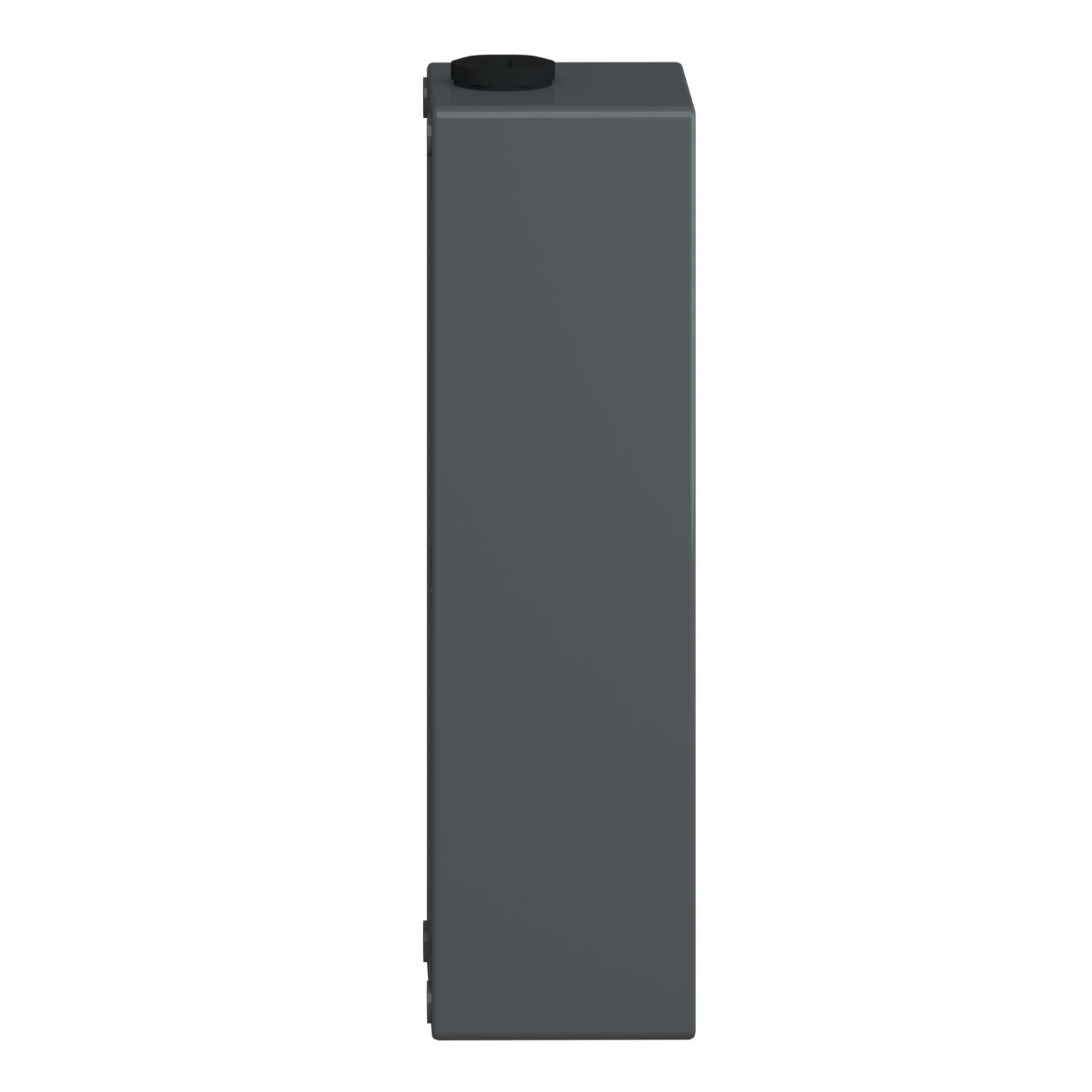

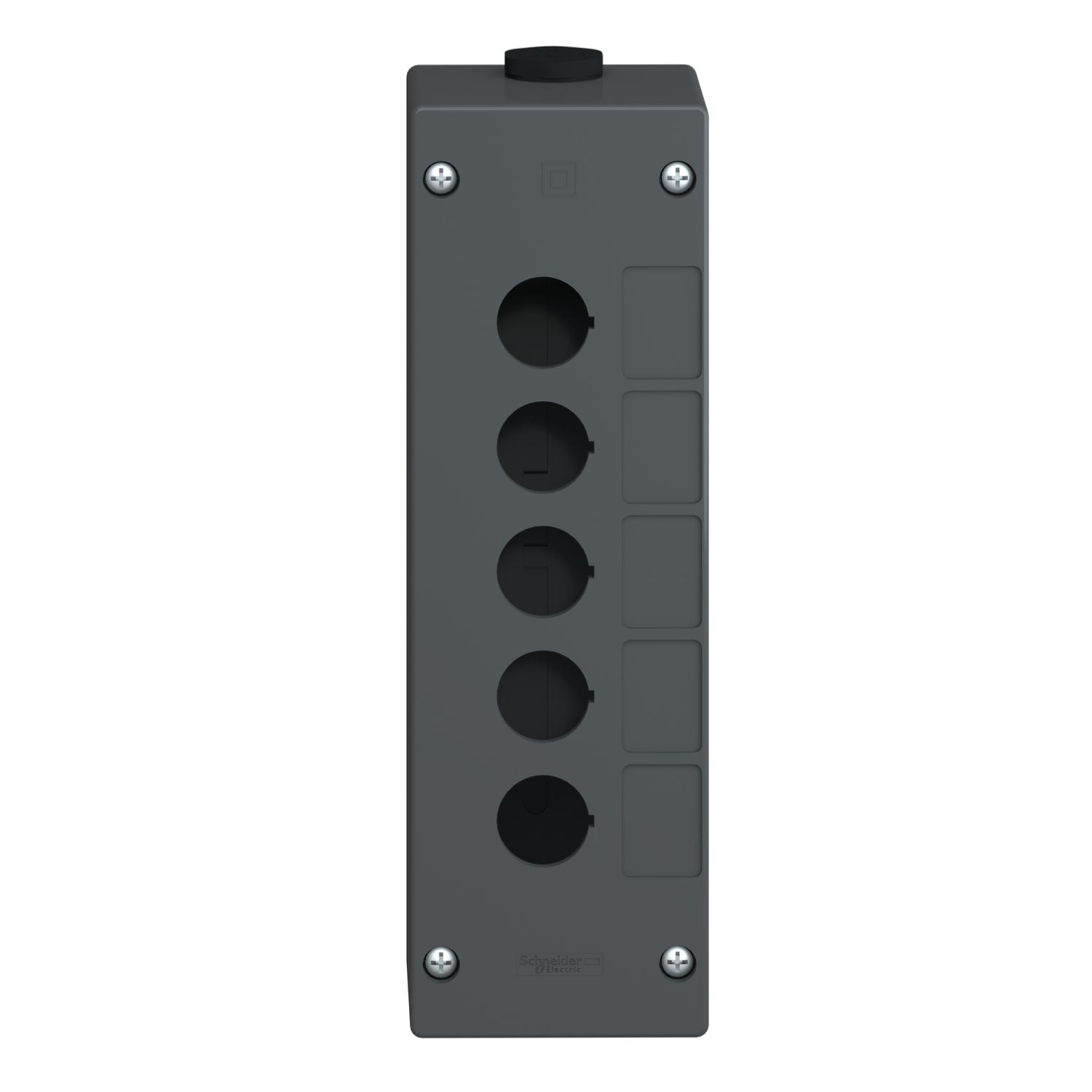

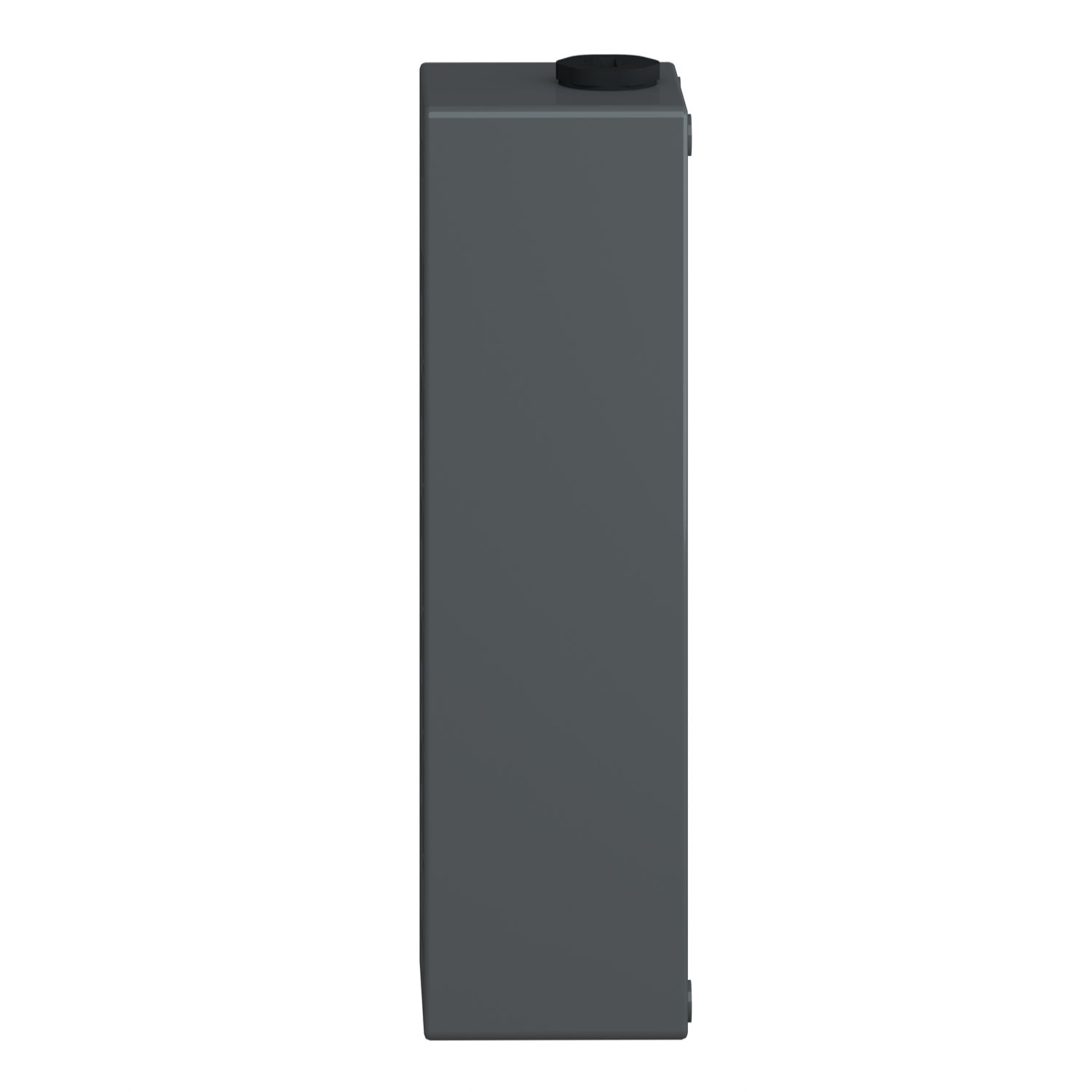

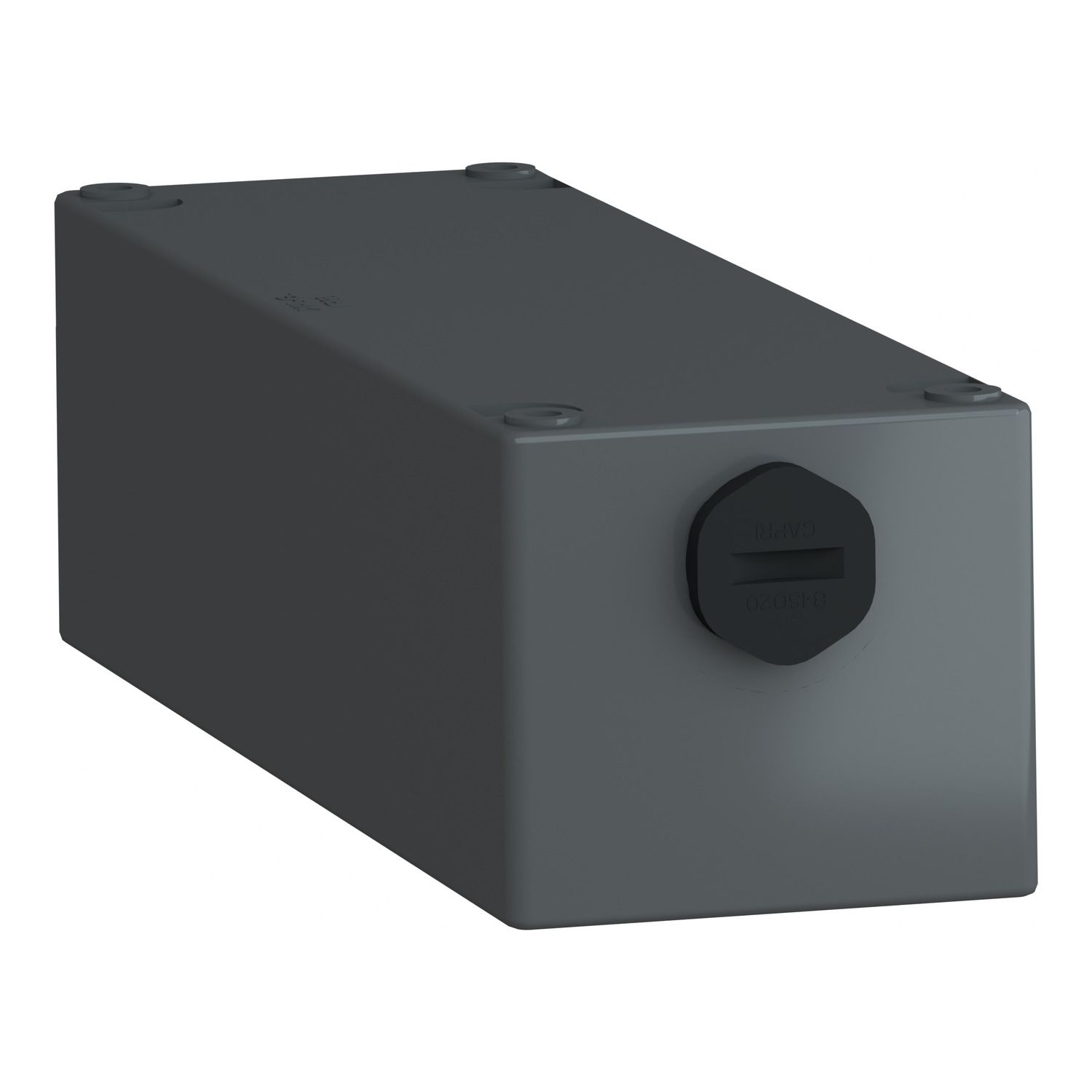

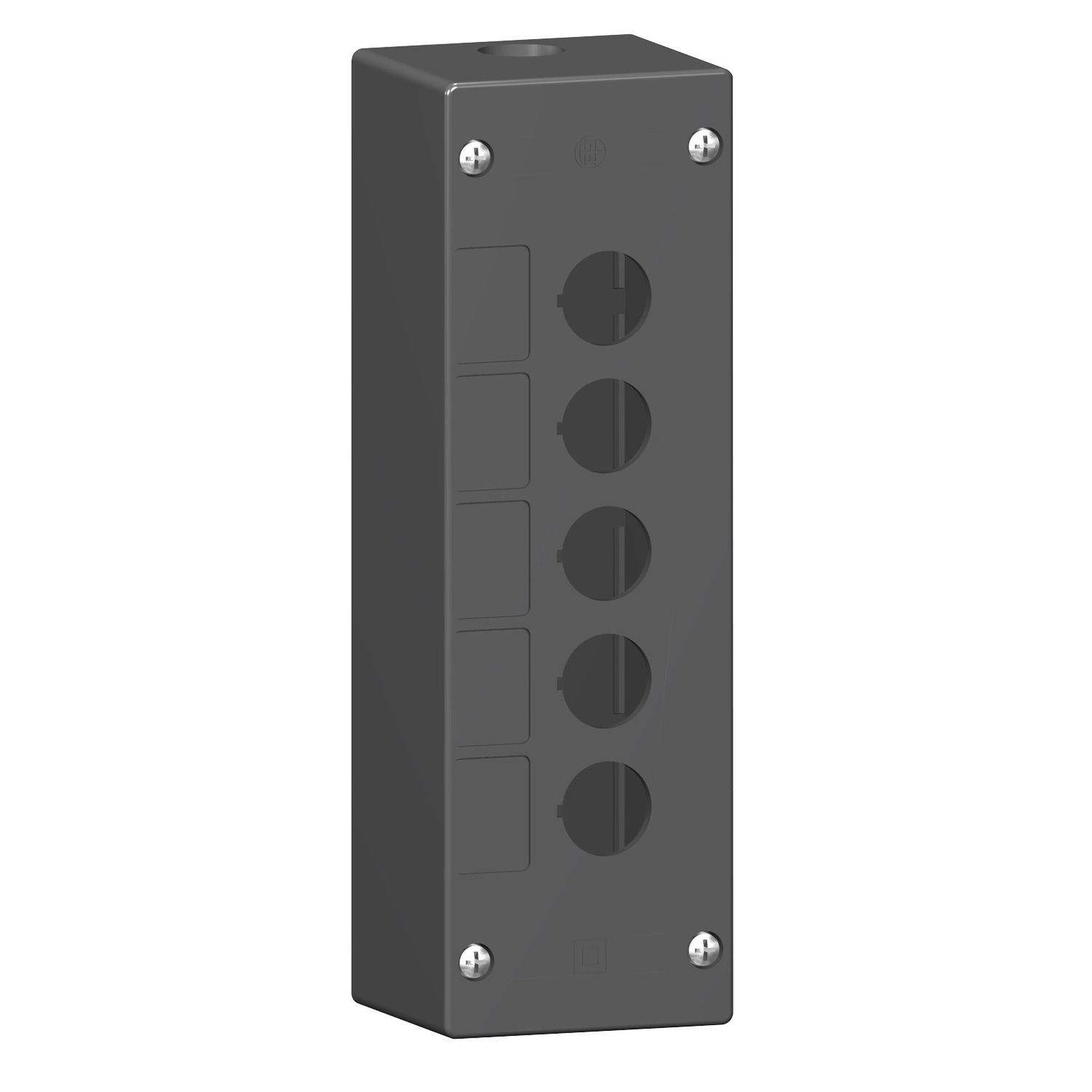

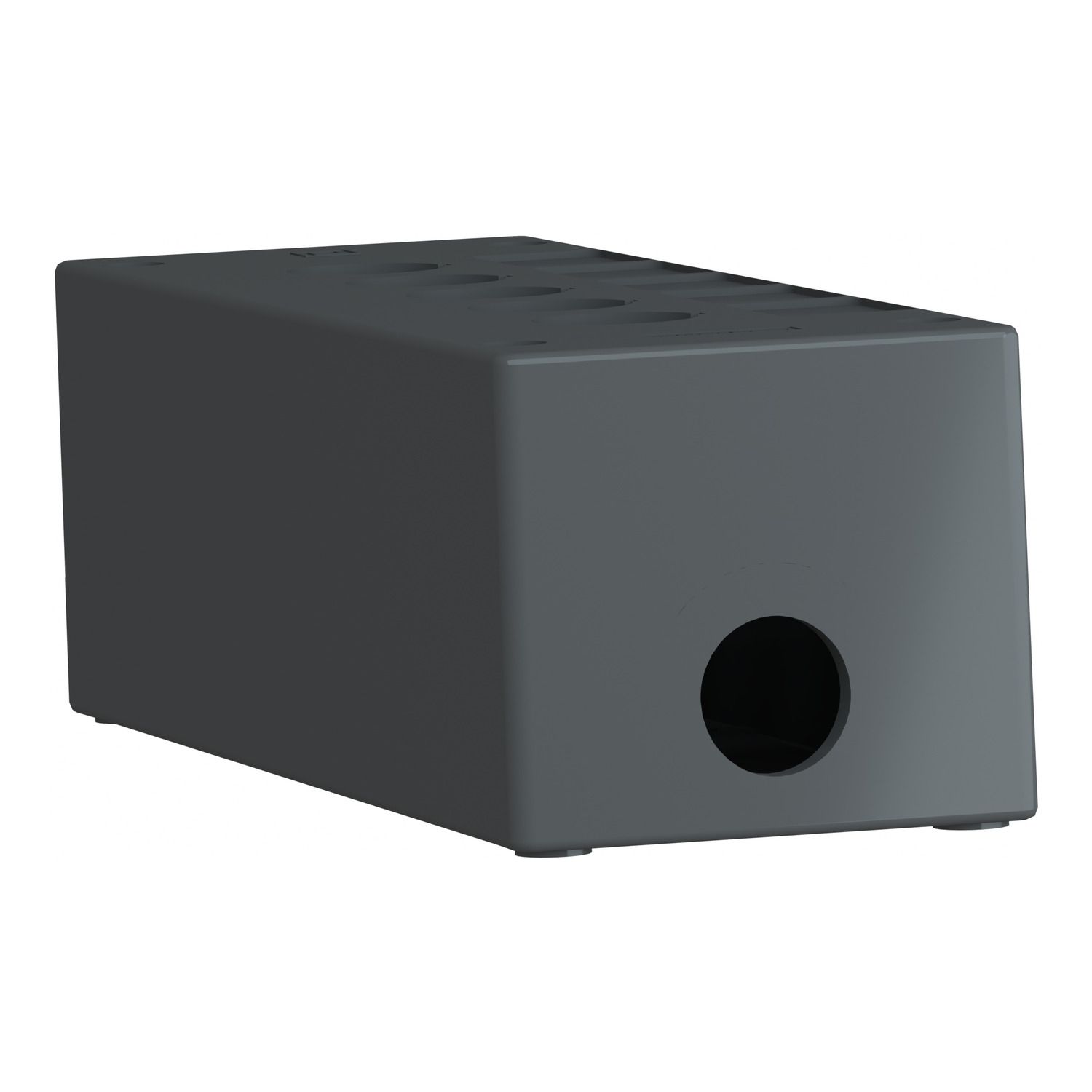

Picture of Empty control station, Harmony XALG, mineral reinforced polyamide, black, 5 cut outs, for severe environments
SKU:

XALG05

Empty control station, Harmony XALG, mineral reinforced polyamide, black, 5 cut outs, for severe environments

$148.09
Available for Shipping : 10-Dec-2024
Empty control station, Harmony XALG, mineral reinforced polyamide, black, 5 cut outs, for severe environments
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This Harmony XALG, is an empty control station for severe environments. It has 5 cut-outs, 5 vertical openings, diameter 22mm for 5 functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. Extremely robust, this control station ensures esistance to high pressure cleaning and resistance to chemical products. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides mineral a reinforced polyamide enclosure with a black (RAL 9005) base of enclosure and a black (RAL 9005) cover. It is suited for applications like animal farming, food and beverage production/processing, water industry, cereal and fruit growing, aquaculture, shipbuilding and maintenance, and building construction, waste and wastewater treatment, etc. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads

Products specifications

Attribute name Attribute value
Main
Device short name XALG
Environmental characteristic severe ambiance
Colour of cover black (RAL 9005)
IP degree of protection IP69K, IP69, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Colour of base of enclosure black (RAL 9005)
Range of product Harmony XALG
Material mineral reinforced polyamide
Product or component type empty control station
Cable entry 2 knock-outs for ISO M20 cable entry
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Compatibility code XALG
Assembly style for customer assembly
Number of cut-out 5 cut-outs 30 mm
CAD overall height 72 mm
CAD overall depth 65 mm
CAD overall width 224 mm
Resistance to high pressure washer 10 mPa at 80 °C, distance : 0.2 m
Net weight 0.382 kg
Environment
Protective treatment TC, TH
Resistance to chemical agents good resistance to cutting compounds, good resistance to citric acid (10 %), good resistance to butter, good resistance to benzene, good resistance to ammonia, not resistant to lactic acid at 90 °C, not resistant to formic acid (10 %) at 50 °C, not resistant to nitric acid (2 %), not resistant to hydrogen peroxide (30 %), limited resistance to boric acid, limited resistance to acetic acid (10 %), good resistant to uric acid (20 %), good resistant to detergent at 60 °C, good resistant to acetone, good resistance to petroleum, good resistance to oils (vegetable, mineral), good resistance to motor oils and greases, good resistance to milk, good resistance to fatty alcohols, good resistance to fatty acids, good resistance to ethylene, good resistance to ethanol, good resistance to ethane, good resistance to lactic acid at 10 °C
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
IK degree of protection IK05 conforming to EN 50102
Electrical shock protection class class II conforming to EN/IEC 61140
Standards EN/IEC 60947-5-1, EN/IEC 60947-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 10.000 cm
Package 1 Length 29.500 cm
Package 1 Weight 382.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.170 kg
