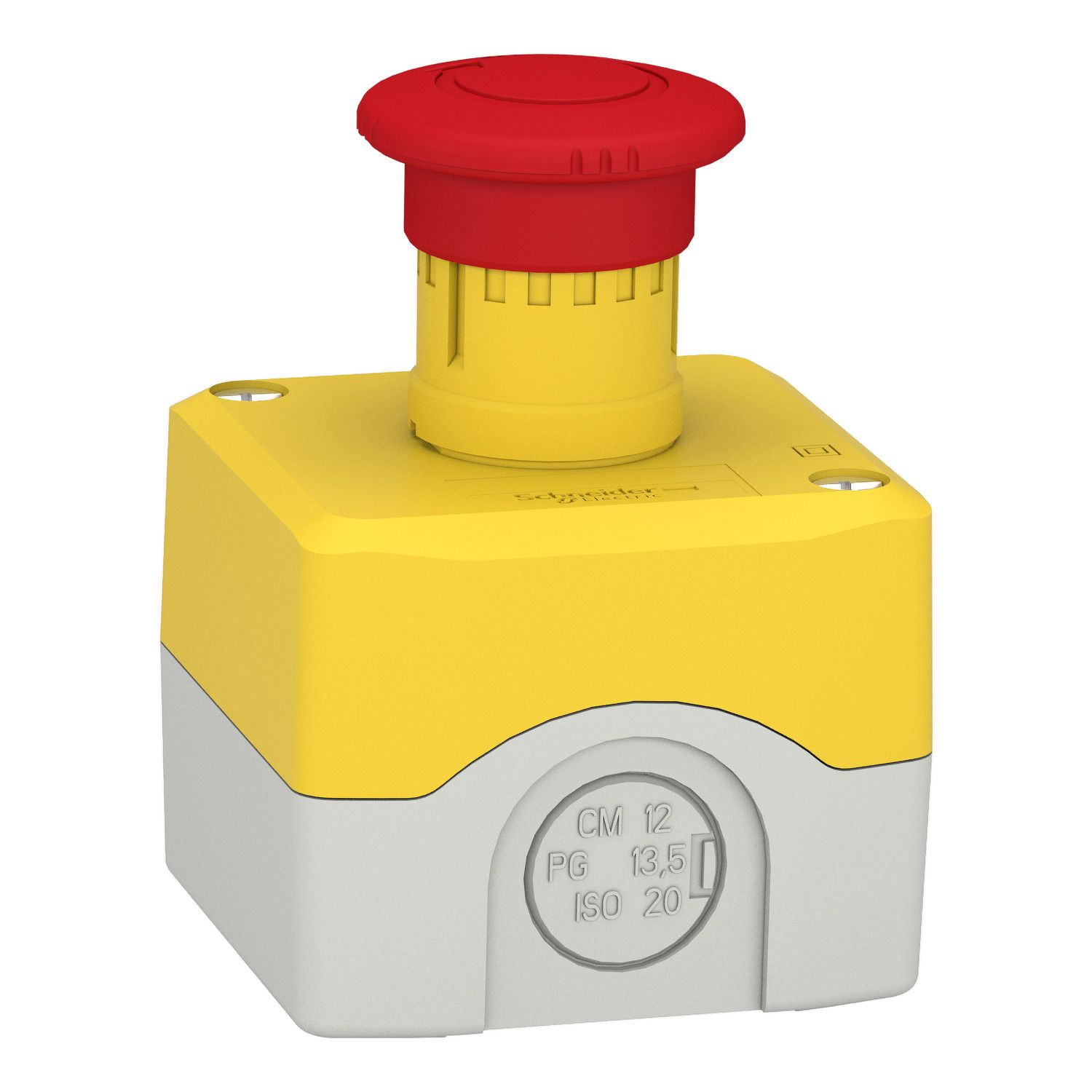

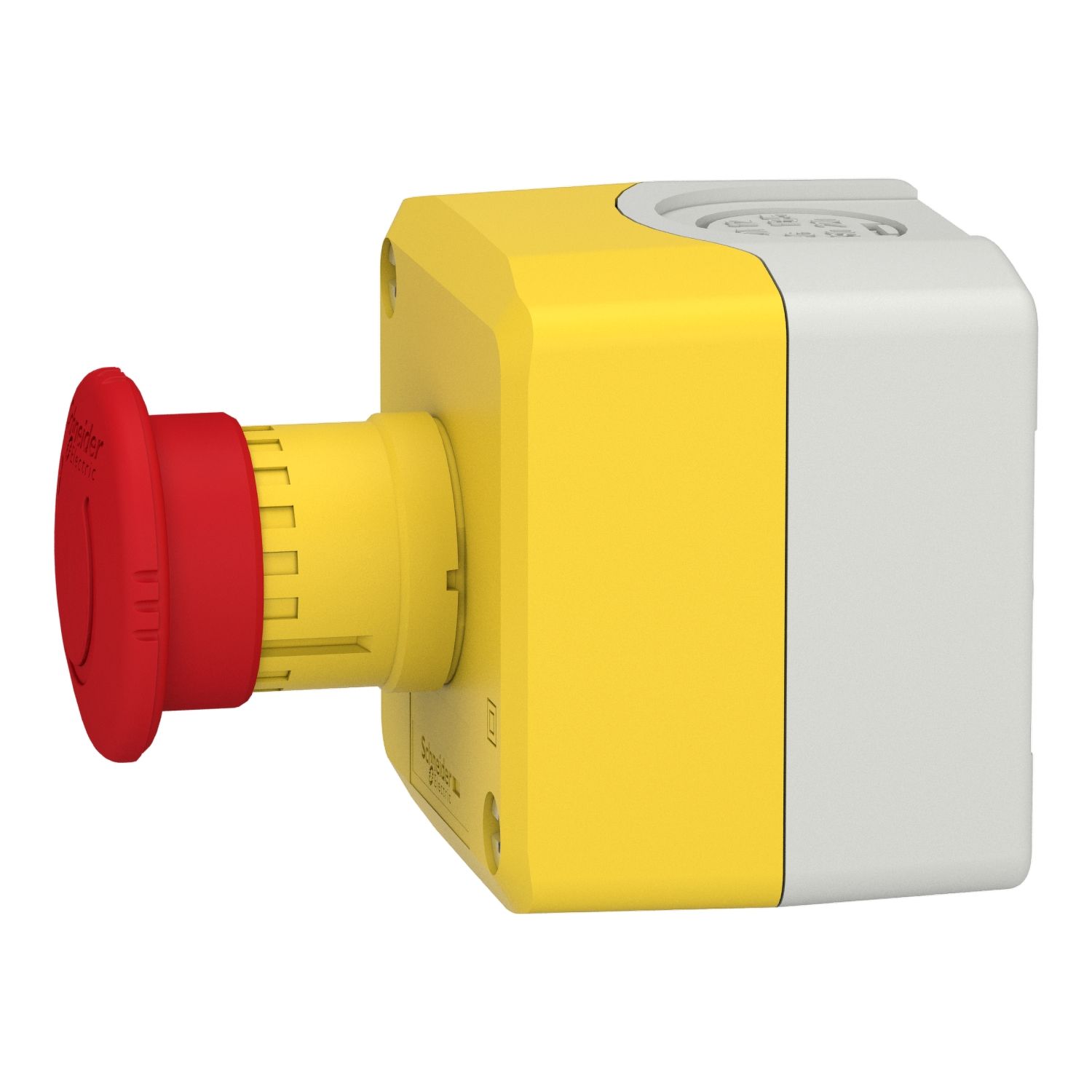

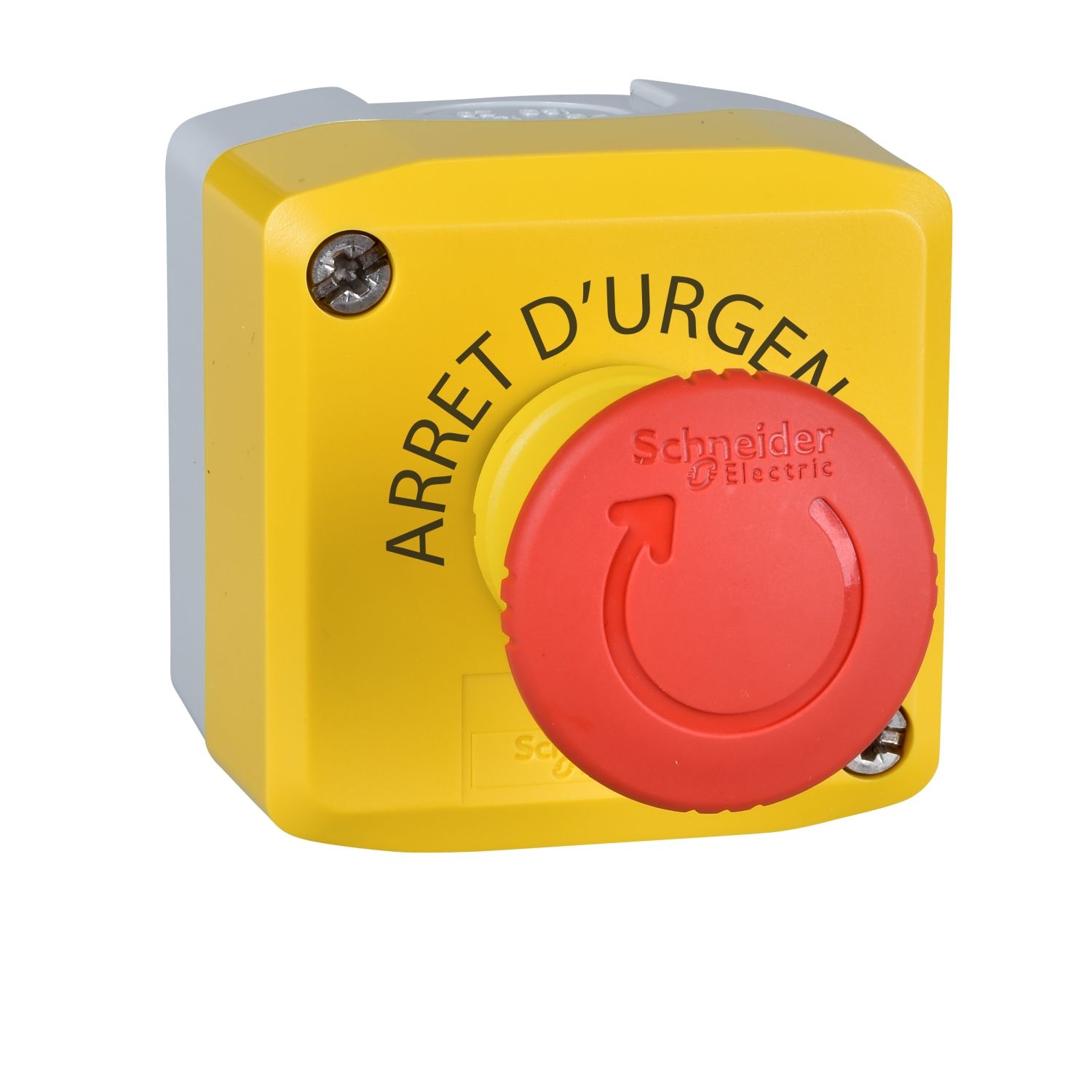

Control station, Harmony XALK, plastic, yellow lid, 1 red mushroom 40mm, turn to release, 1NC with monitoring, unmarked, UL/CSA certified

Please Contact Sales to buy this Product. click here
Product Selector
Control station, Harmony XALK, plastic, yellow lid, 1 red mushroom 40mm, turn to release, 1NC with monitoring, unmarked, UL/CSA certified
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 25-Oct-2024

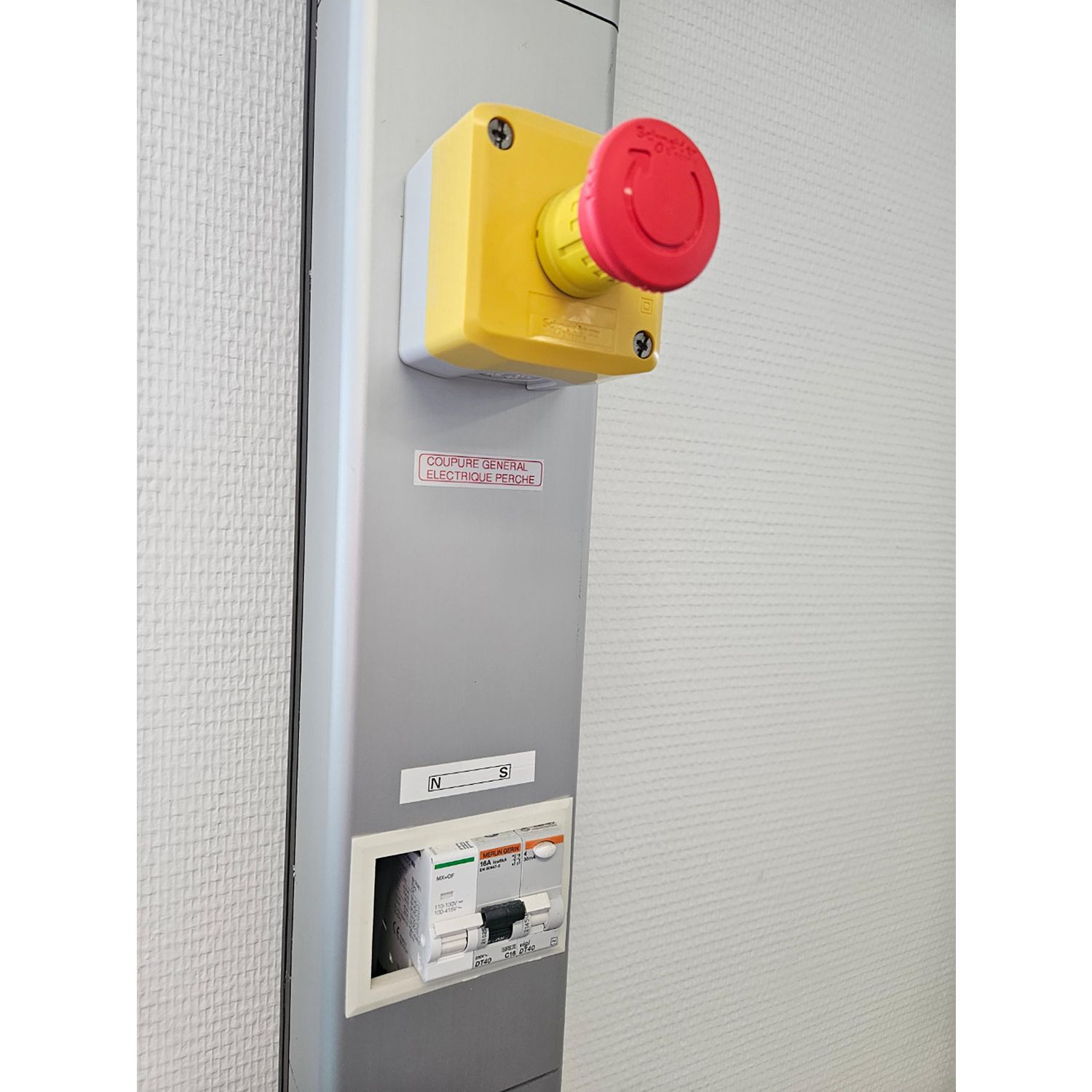

Image of product

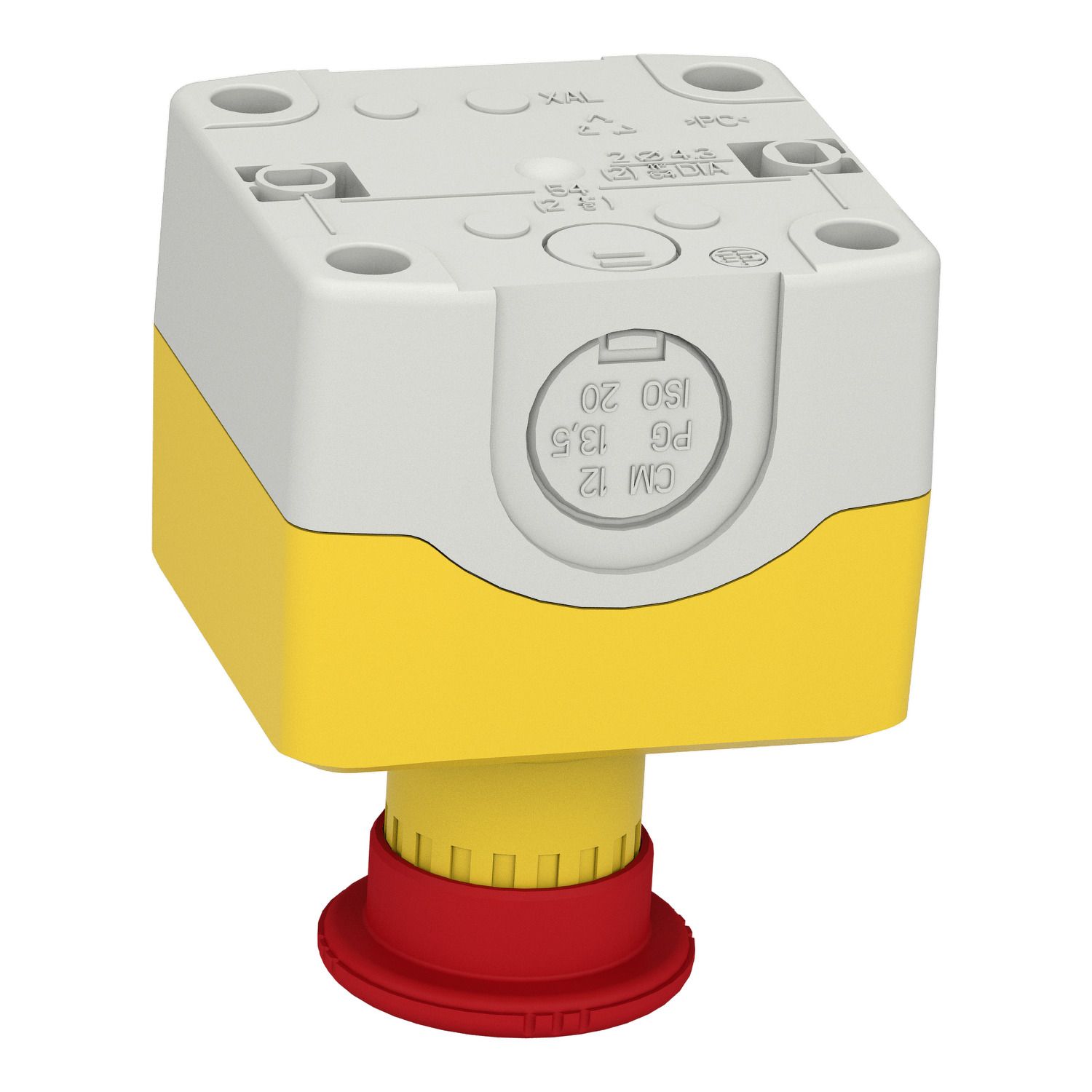

Image of product

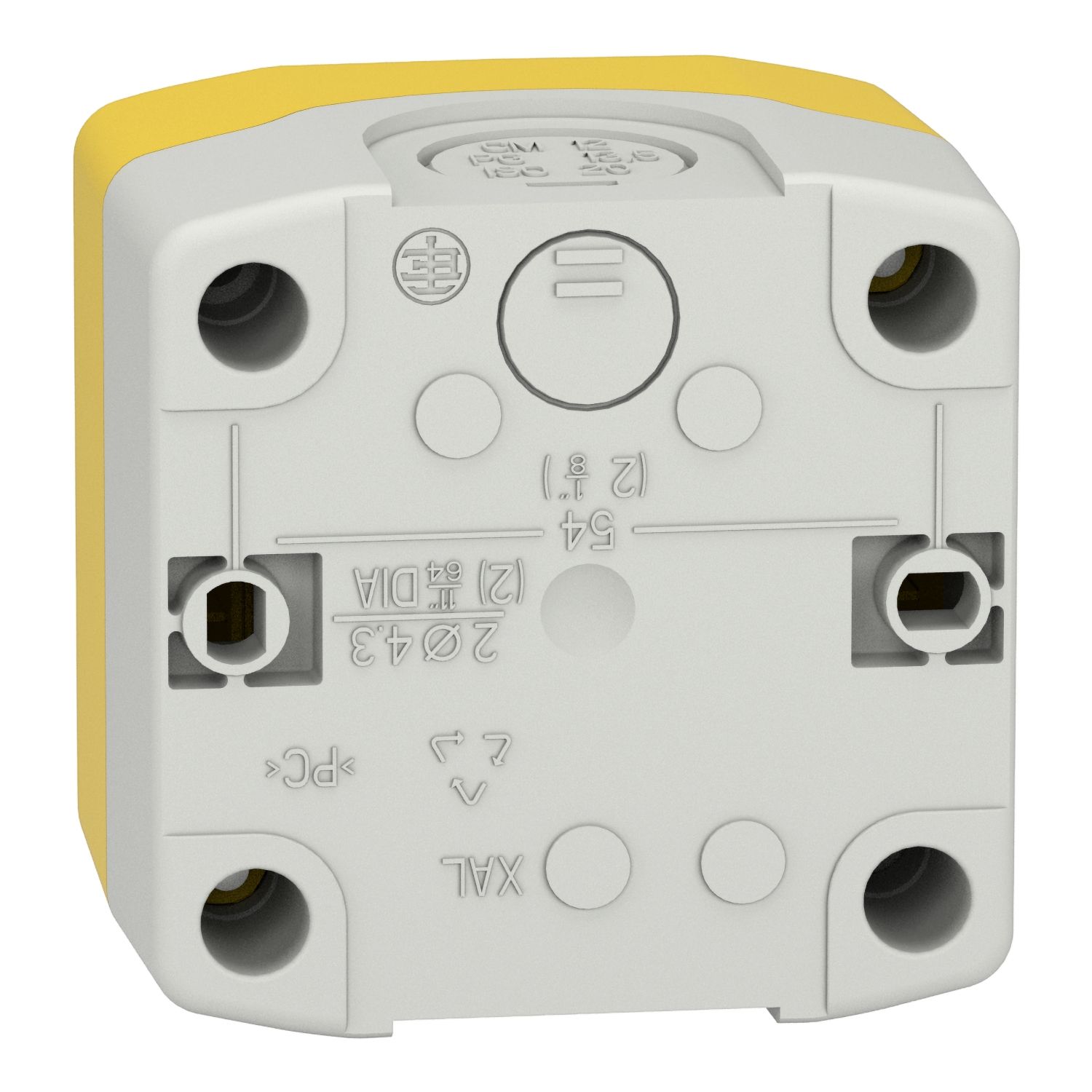

Image of product

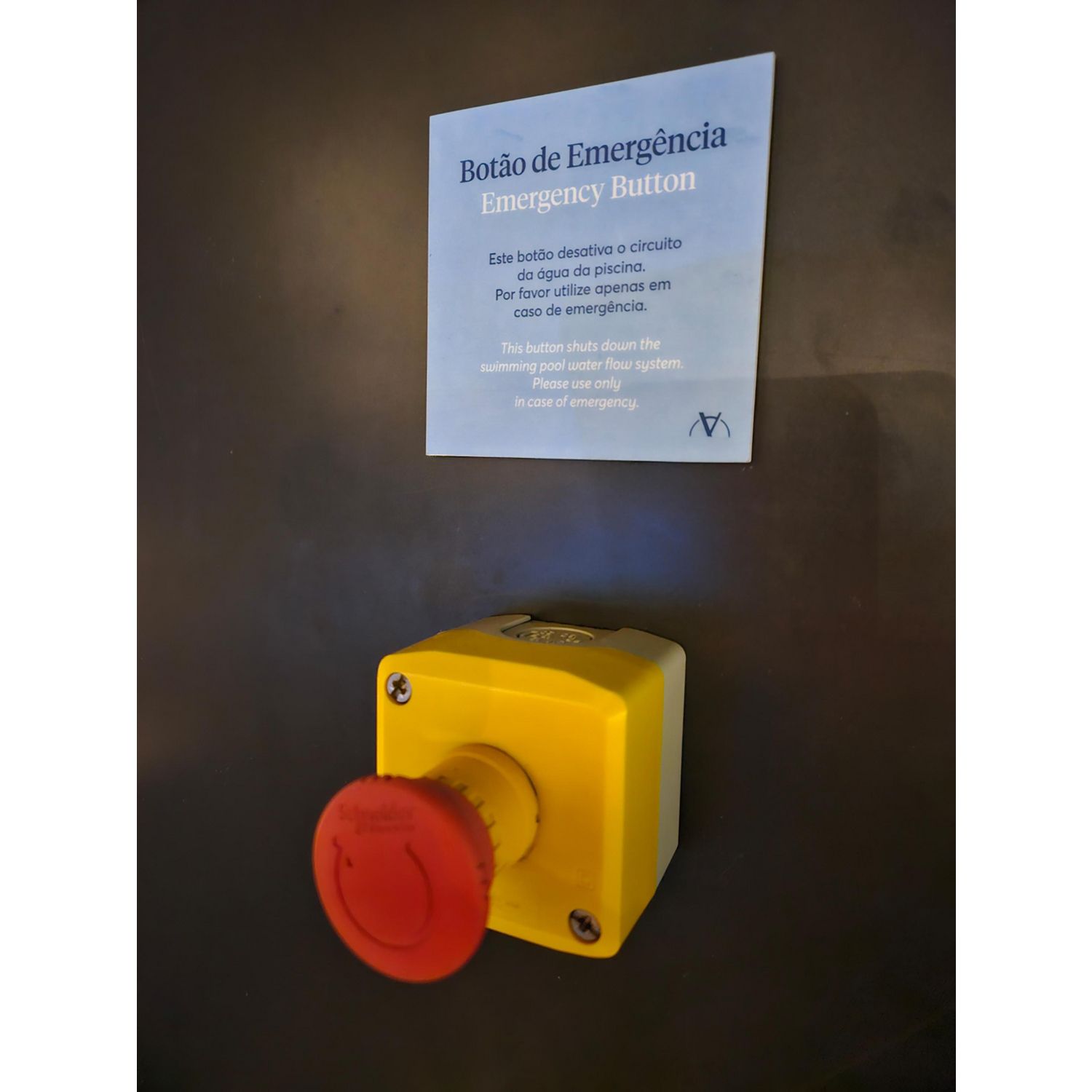

Image of product
Declaration of conformity
Image of product
Image of product
Instruction sheet
Product Page Link
Product Data Sheet

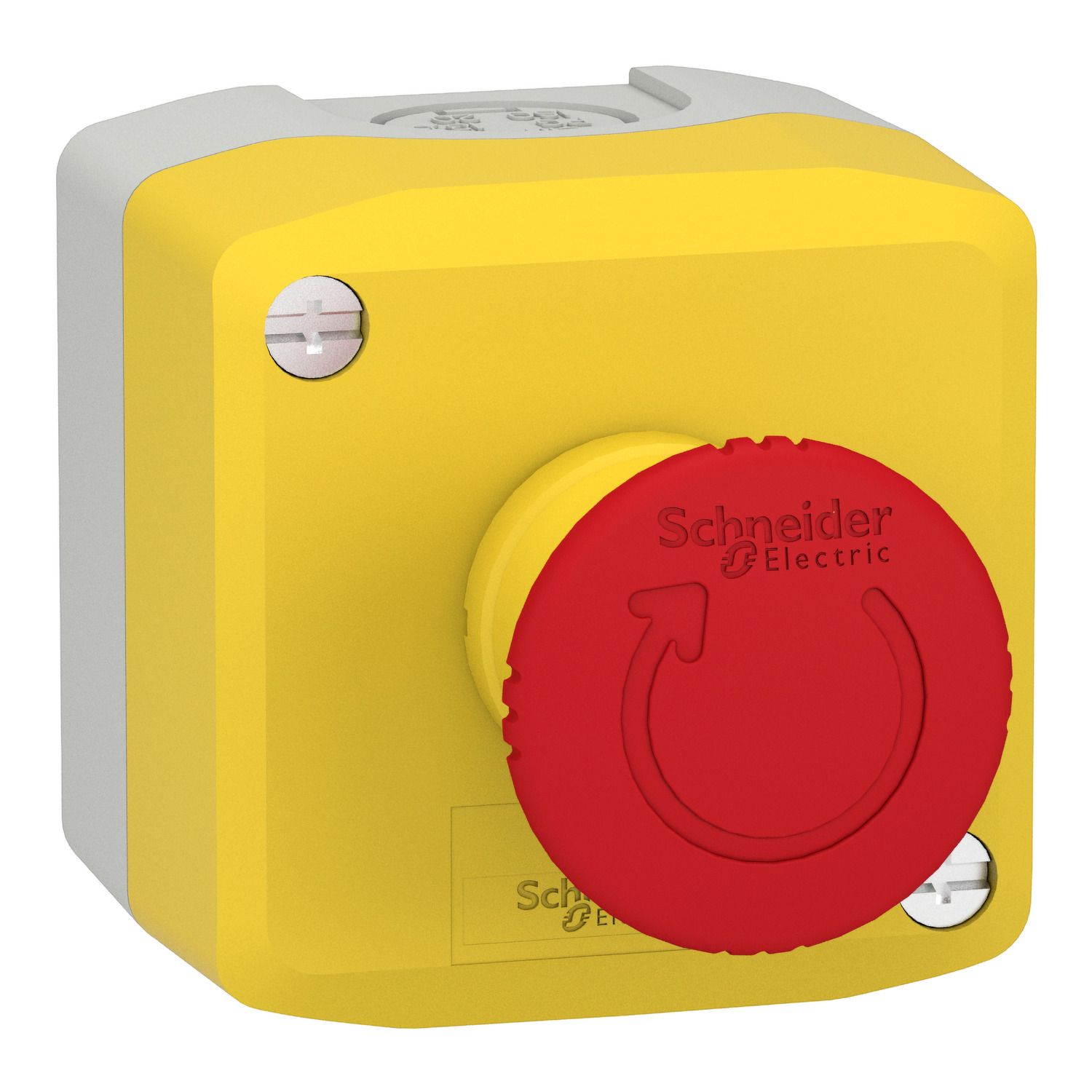

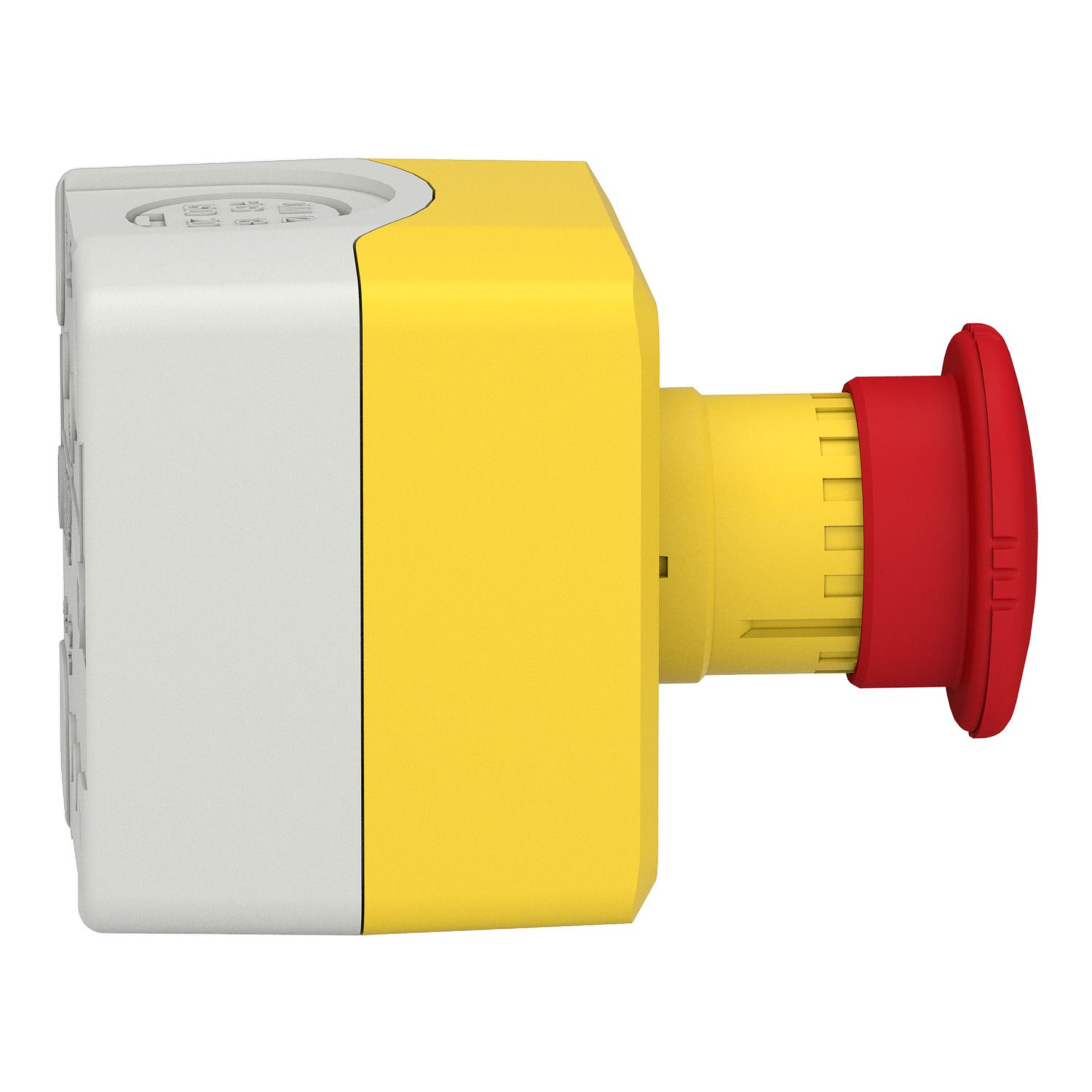

This product is part of the harmony XALD, XALK range , an offer of plastic control stations. This plastic control station has a yellow lid and has a mushroom head pushbutton. It operates with a turn to release mechanism. It offers emergency stop and emergency switching off functions. It comes with 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. The Harmony XALD, XALK range offers innovative features for simple and efficient use.

Products specifications

Attribute nameAttribute value
Main
Device short nameXALK
Contact operationslow-break
Colour of coveryellow (RAL 1021)
Device presentationcomplete product
Operators descriptionred unmarked 1 NC
Control station composition1 mushroom head Ø 40 mm push-button, red 1 NC unmarked marking
Colour of base of enclosurelight grey (RAL 7035)
Range of productHarmony XALK
Resetturn to release
Control station applicationemergency stop function, emergency switching off function
Operator profile1 mushroom head push-button
Materialpolycarbonate
Product or component typecomplete control station
Product destinationfor XB5 Ø 22 mm control and signalling units
Complementary
Shape of screw headslotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver
Tightening torque0.8-1.2 N.m conforming to EN/IEC 60947-1
Electrical reliabilityλ < 10exp(-8) at 17 V, 3.4 mA conforming to EN/IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA conforming to EN/IEC 60947-5-4
Compatibility codeXALK
Mechanical durability300000 cycles
[Ie] rated operational current0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.11 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1
Electrical durability300000 cycles, DC-13, 1 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Contacts materialsilver alloy (Ag/Ni)
Operating travel4.3 mm (total travel), 1.5 mm (NC changing electrical state)
Operating force47 N
[Ui] rated insulation voltage300 V (pollution degree 3) conforming to EN/IEC 60947-1
Connections - terminalsscrew clamp terminals, >= 1 x 0.34 mm² without cable end conforming to EN/IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1
Net weight0.147 kg
Cable entry2 knock-outs for Pg 13.5 cable gland and ISO M20, 1 knock-out for cable entry 0-14 mm
[Ith] conventional free air thermal current6 A conforming to EN/IEC 60947-5-1
Positive openingwith conforming to EN/IEC 60947-5-1 appendix K
Short-circuit protection6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Contacts usagemonitoring contact
Environment
Protective treatmentTH
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation-40-70 °C
IK degree of protectionIK03 conforming to IEC 60068-2-75
Overvoltage categoryclass II conforming to IEC 60536
Vibration resistance25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
StandardsGOST IEC 60947-5-1, BS EN 60947-5-1, GB/T 14048.5, JIS C8201-5-1, JIS C8201-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/ISO 13850, IEC 60364-5-53, IEC 60947-5-4, EN/IEC 60204-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/IEC 60947-1
Product certificationsEAC, UKCA, CB Scheme, CCC, CE, DNV, LROS (Lloyds register of shipping), UL listed, BV, CSA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.4 cm
Package 1 Width6.8 cm
Package 1 Length6.8 cm
Package 1 Weight168.0 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight7.161 kg
