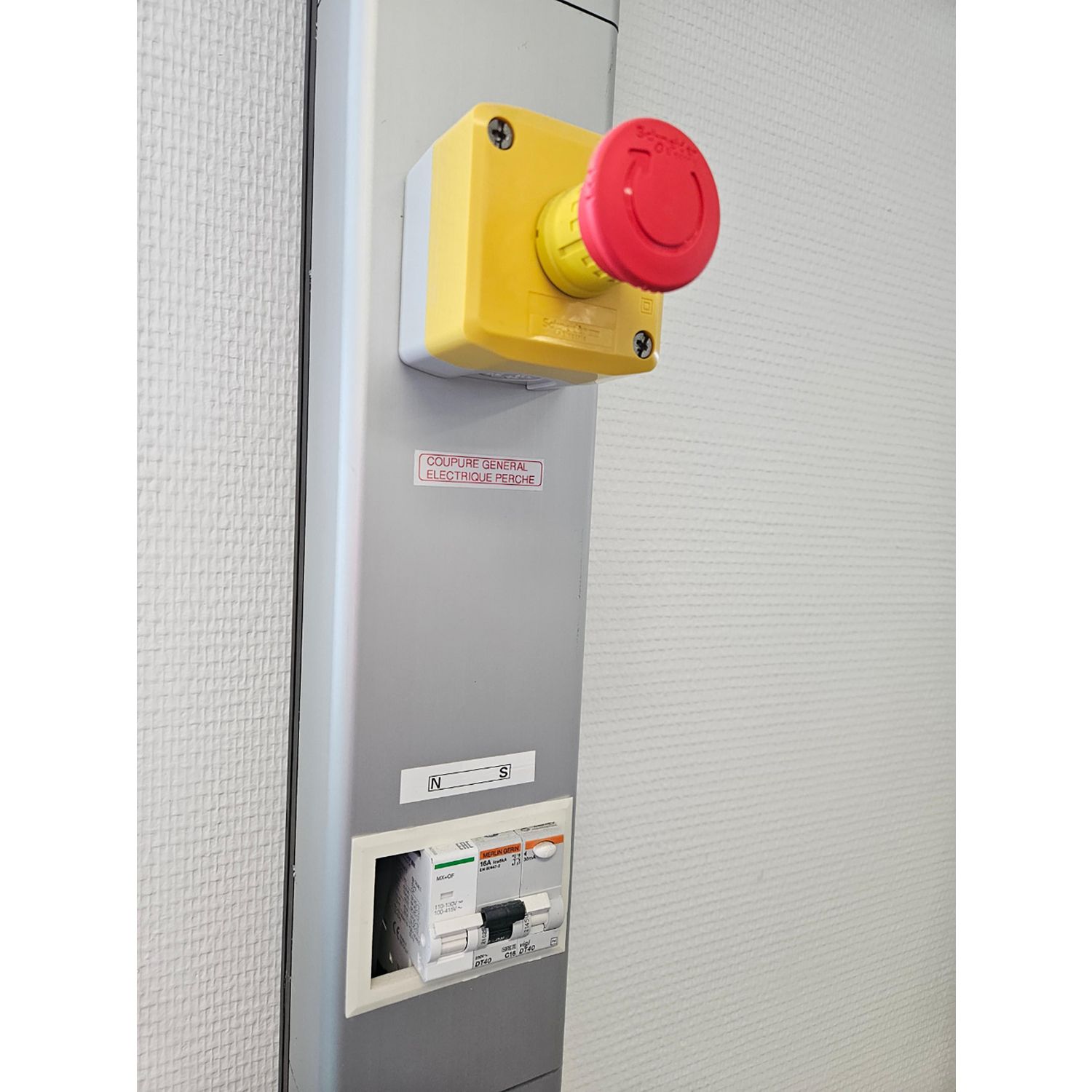

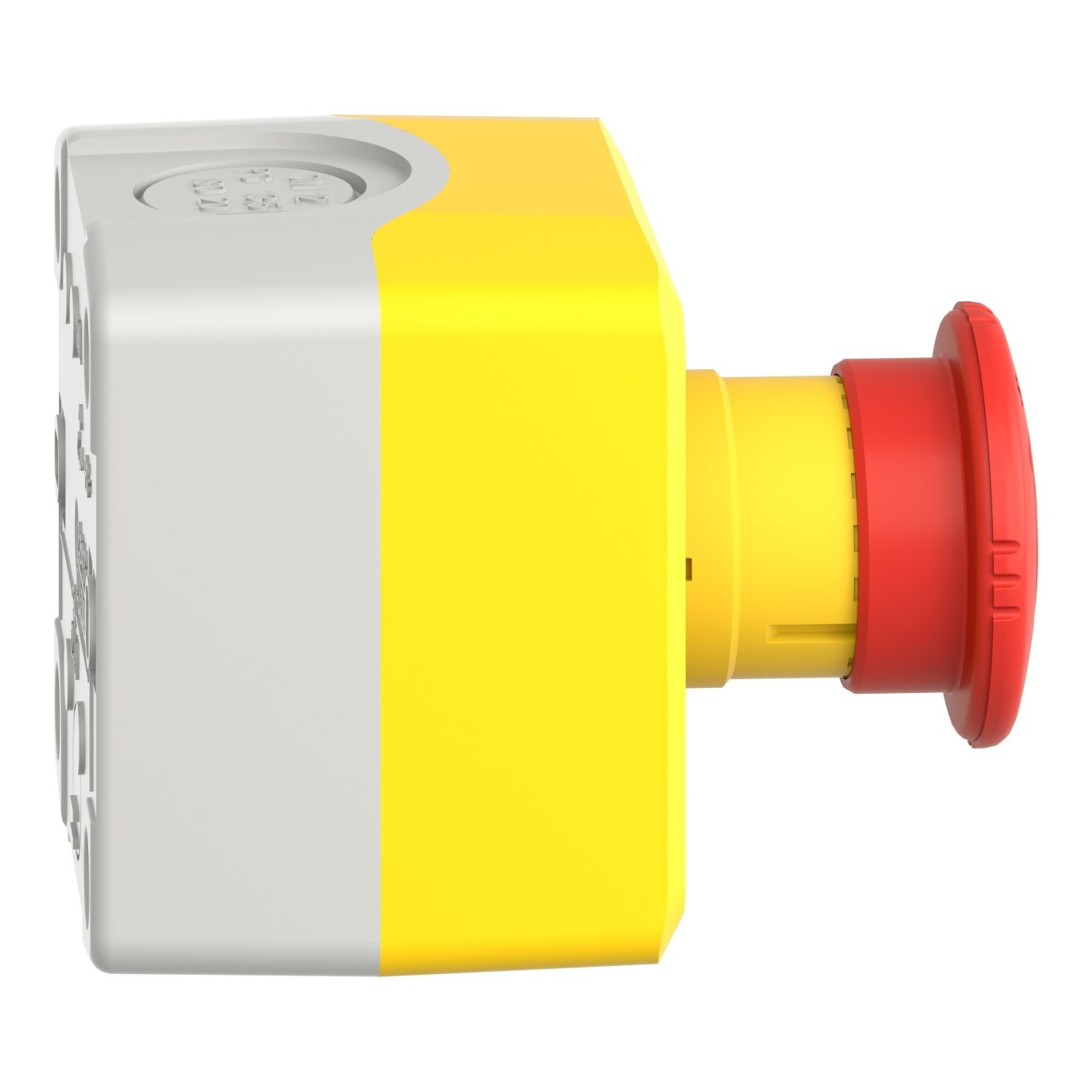

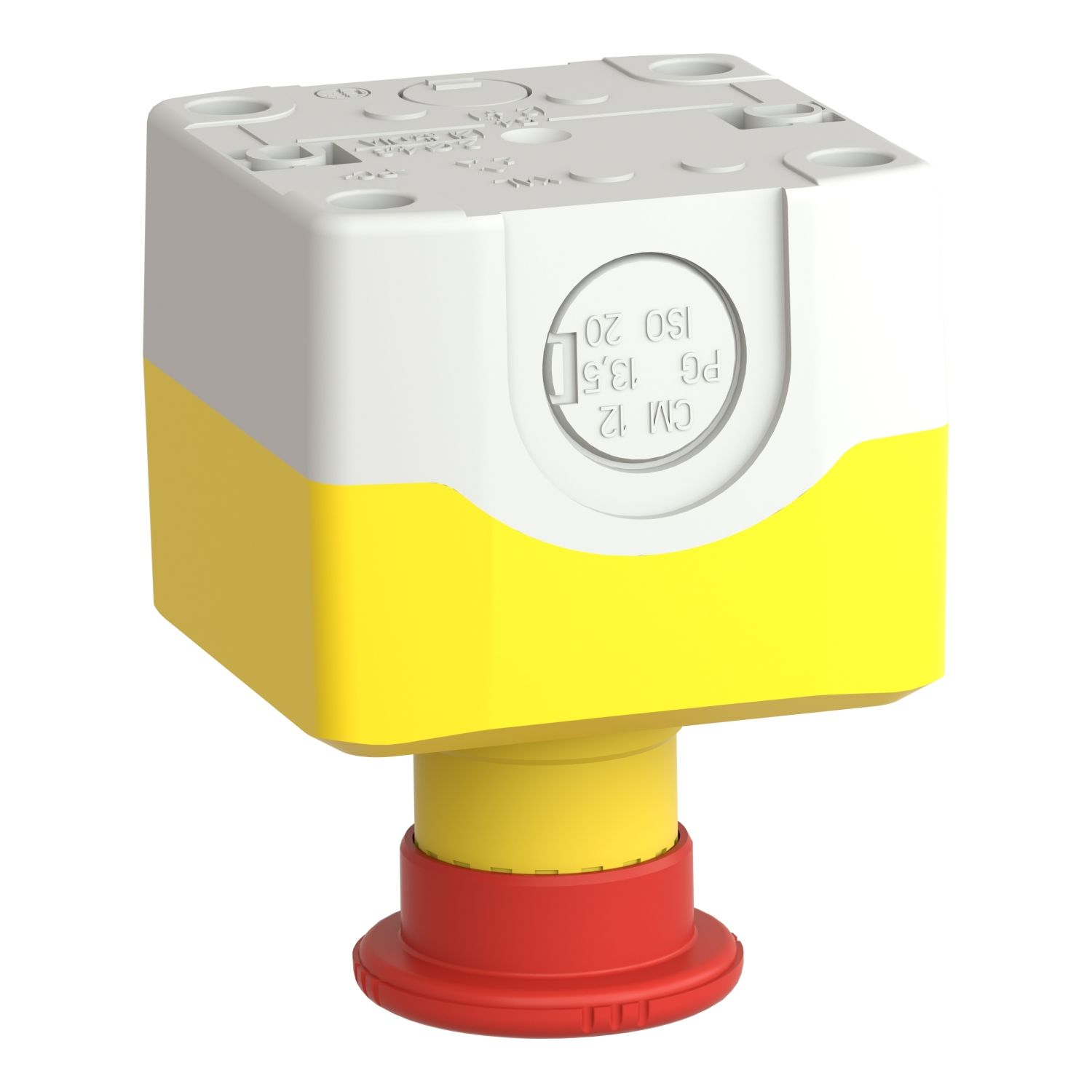

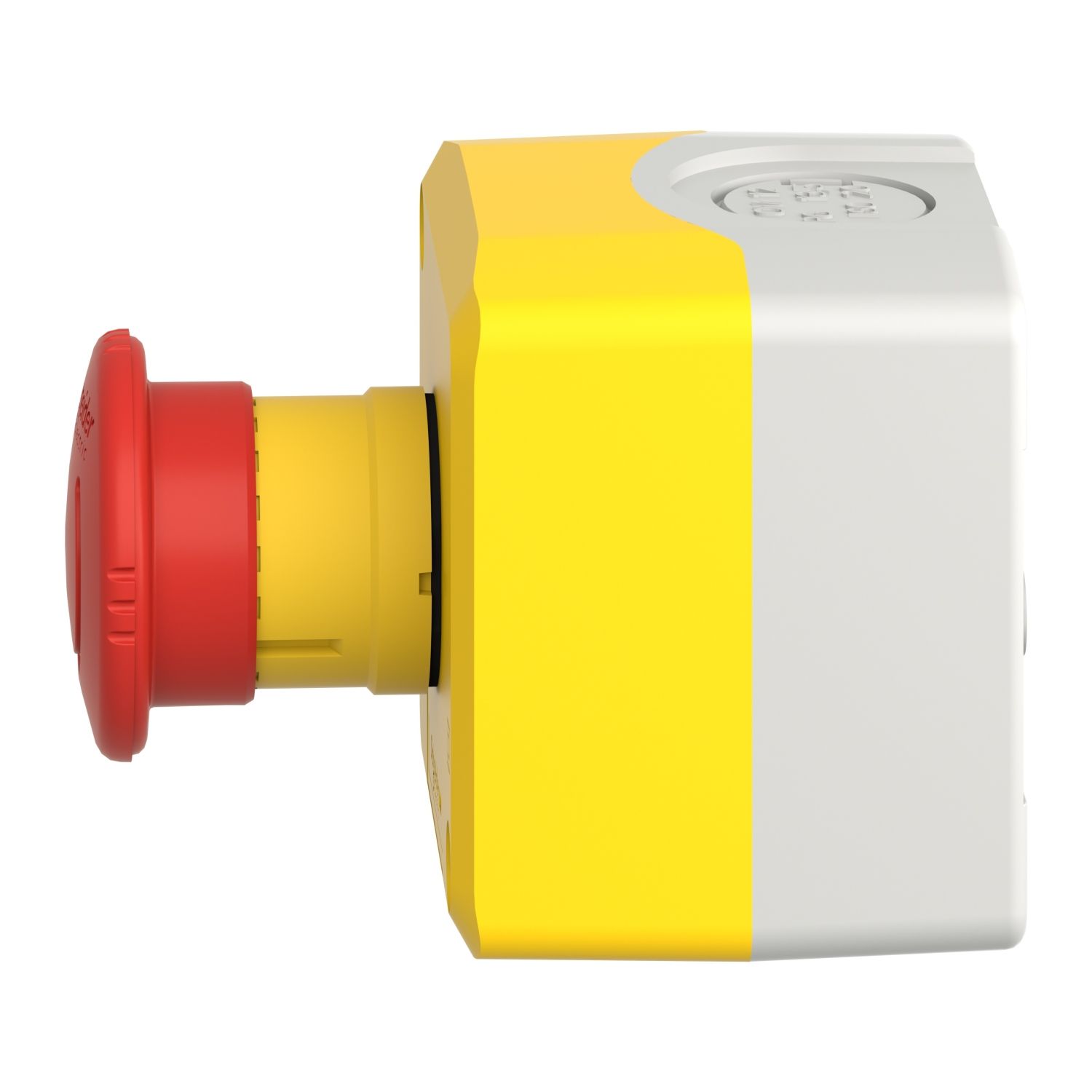

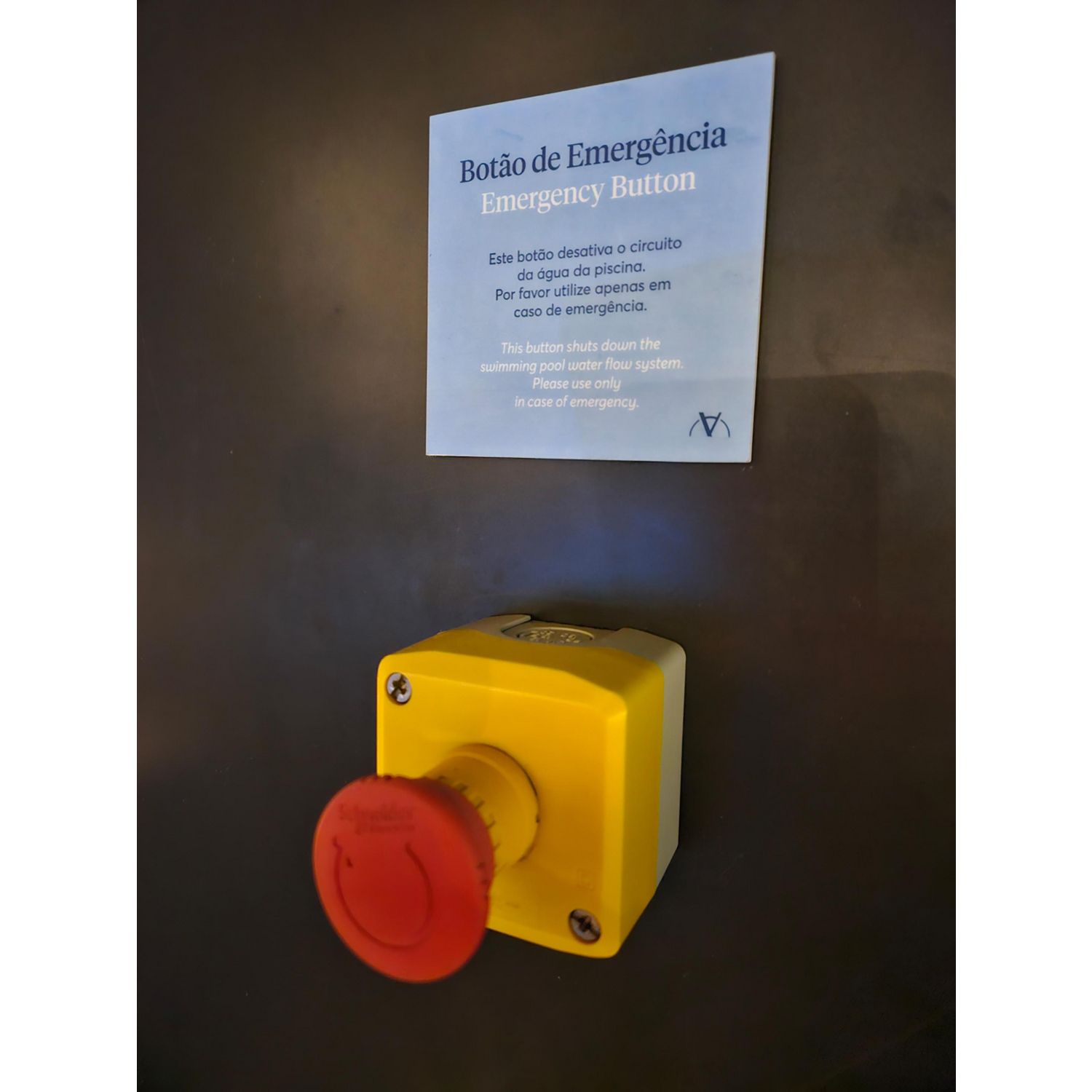

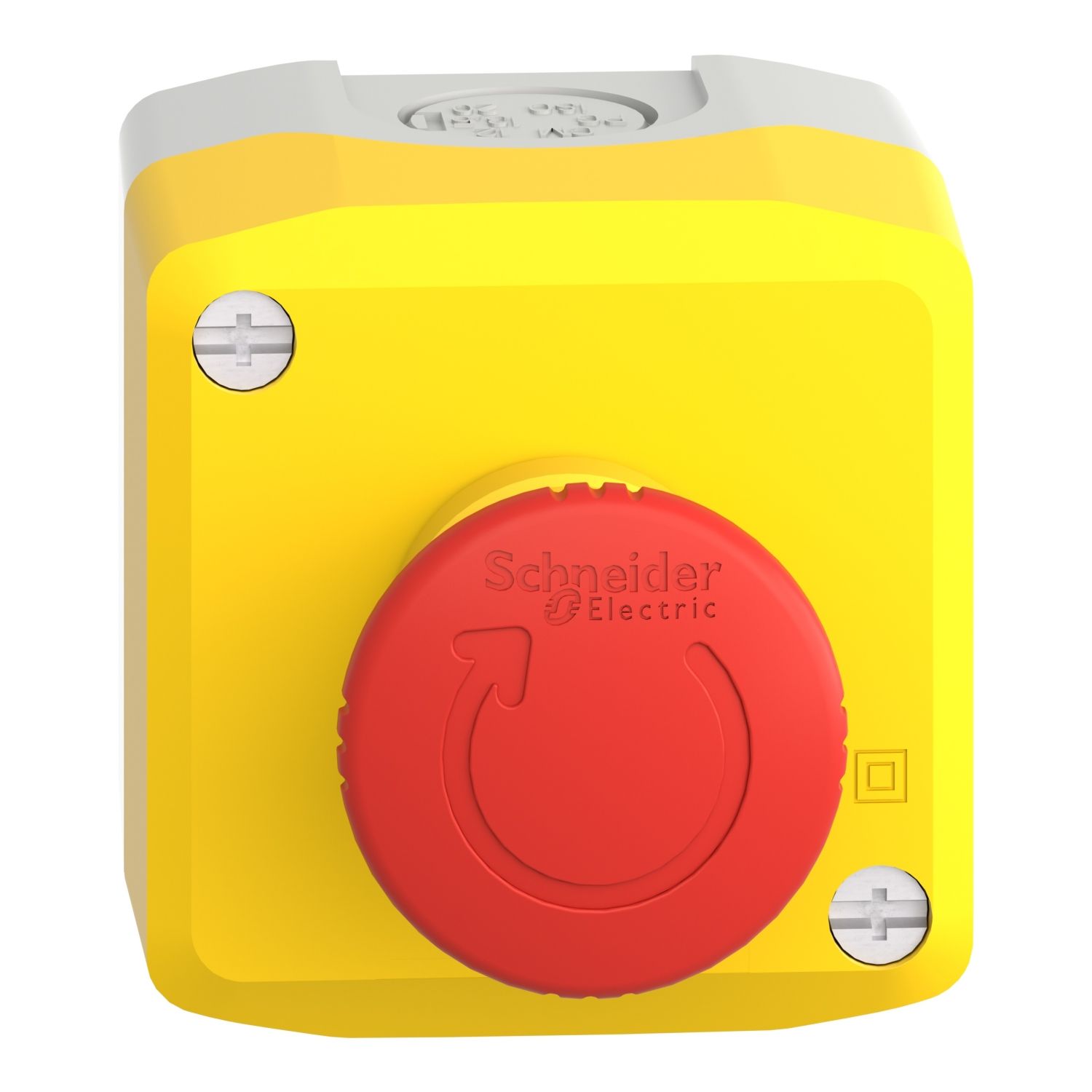

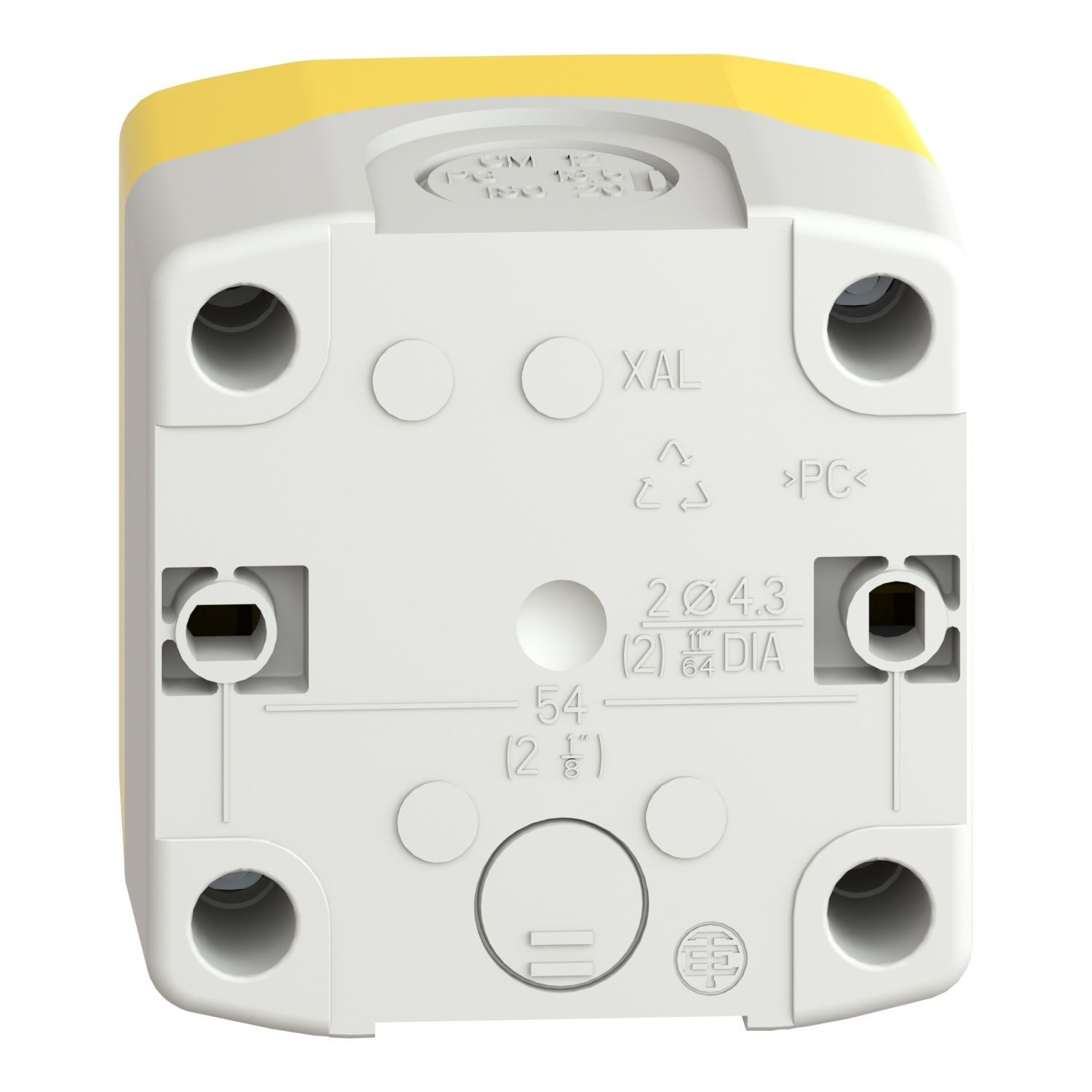

Picture of Control station, Harmony XALD, XALK, plastic, yellow, 1 red mushroom head push button 40mm, emergency stop turn to release, 1NO + 1 NC, unmarked
SKU:

XALK178E

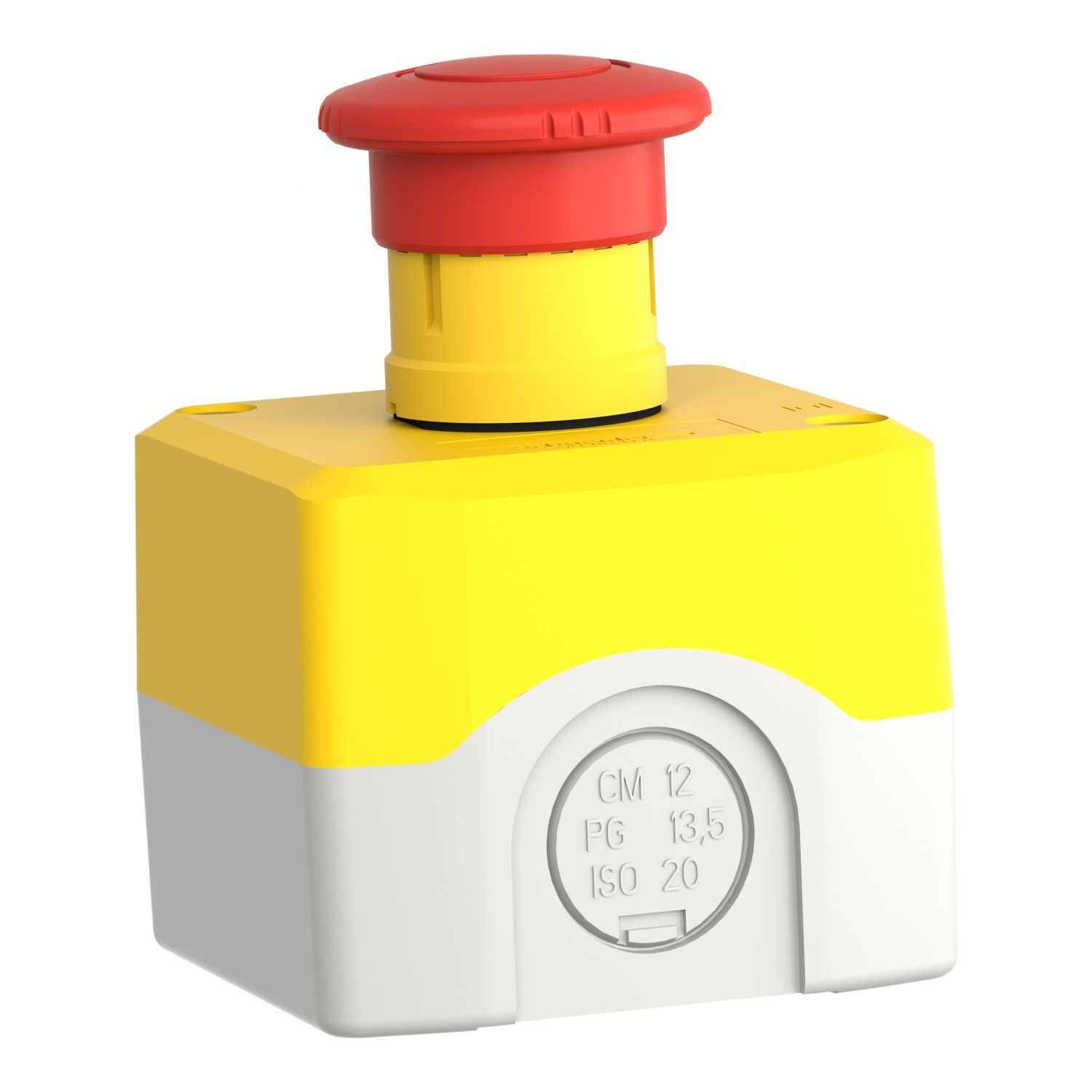

Control station, Harmony XALD, XALK, plastic, yellow, 1 red mushroom head push button 40mm, emergency stop turn to release, 1NO + 1 NC, unmarked

$87.28
Available for Shipping : 03-Dec-2024
Product Selector
Control station, Harmony XALD, XALK, plastic, yellow, 1 red mushroom head push button 40mm, emergency stop turn to release, 1NO + 1 NC, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Instruction sheet
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
This Harmony XALK yellow control station for emergency stop function is ideal for your complete control station. It operates with turn to release mechanism and uses screw-clamp terminals. This control station with mushroom head push button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Products specifications

Attribute name Attribute value
Main
Device short name XALK
Contact operation slow-break
Colour of cover yellow (RAL 1021)
Operators description red unmarked 1 NO + 1 NC
Control station composition 1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC unmarked marking
Colour of base of enclosure light grey (RAL 7035)
Range of product Harmony XALK
Reset turn to release
Control station application emergency stop function, emergency switching off function
Operator profile 1 mushroom head push-button
Material polycarbonate
Product or component type complete control station
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to EN/IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V, 5 mA conforming to EN/IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA conforming to EN/IEC 60947-5-4
Compatibility code XALK
Mechanical durability 300000 cycles
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state), 1.5 mm (NC changing electrical state)
Operating force 44 N NC + NO changing electrical state
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN/IEC 60947-1
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Net weight 0.194 kg
Cable entry 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm, 1 knock-out for cable entry 0-14 mm
[Ith] conventional free air thermal current 10 A conforming to EN/IEC 60947-5-1
Positive opening with conforming to EN/IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to EN 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Vibration resistance 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards EN/IEC 60204-1, EN/IEC 60947-1, IEC 60364-5-53, JIS C 4520, EN/IEC 60947-5-1, EN/ISO 13850, EN/IEC 60947-5-5, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-4
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.700 cm
Package 1 Width 7.000 cm
Package 1 Length 7.000 cm
Package 1 Weight 170.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.180 kg
Unit Type of Package 3 3
Number of Units in Package 3 320
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 67.644 kg
