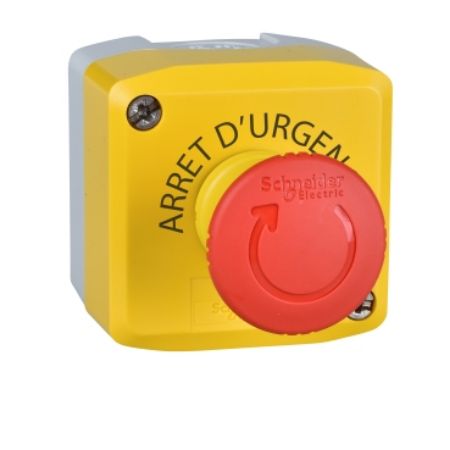

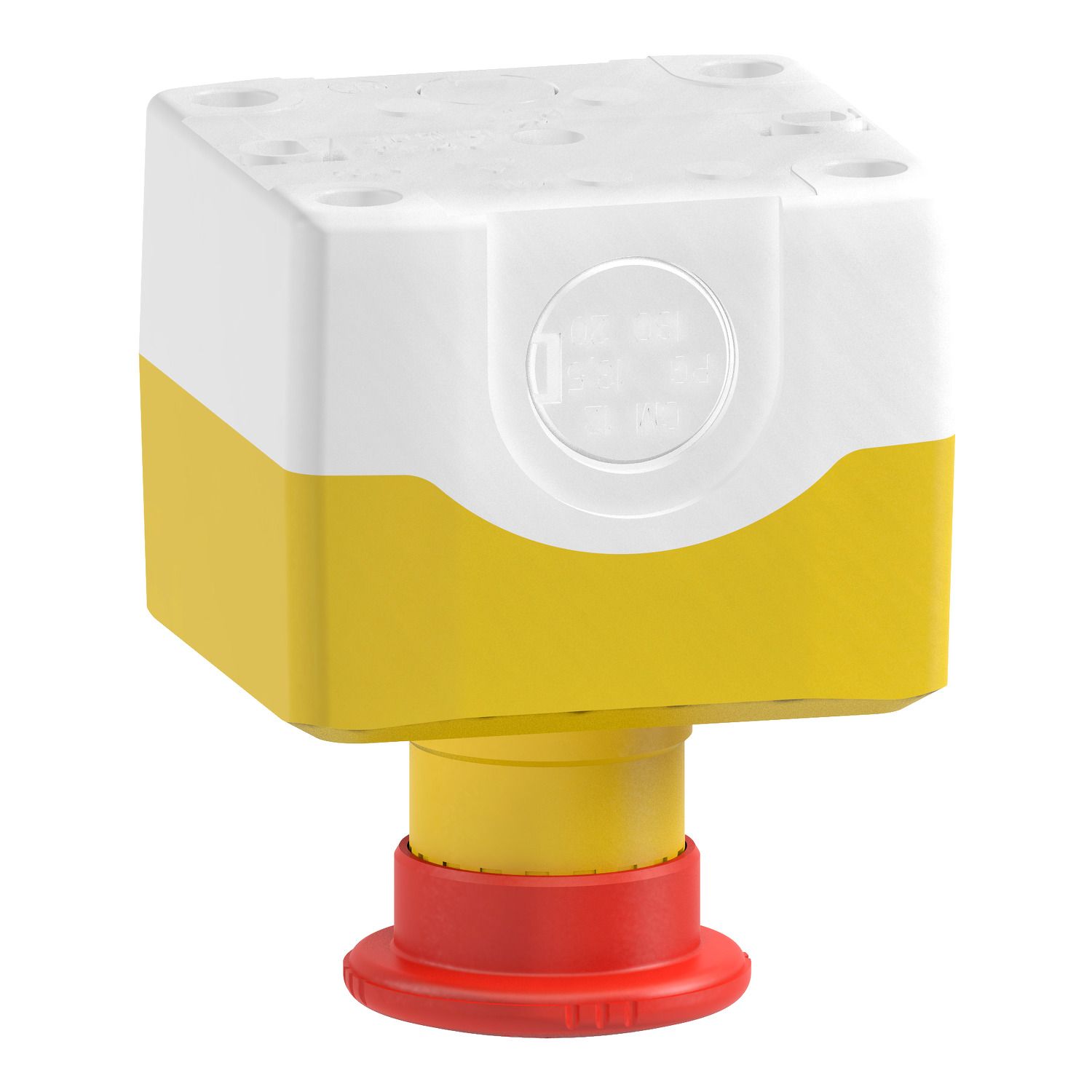

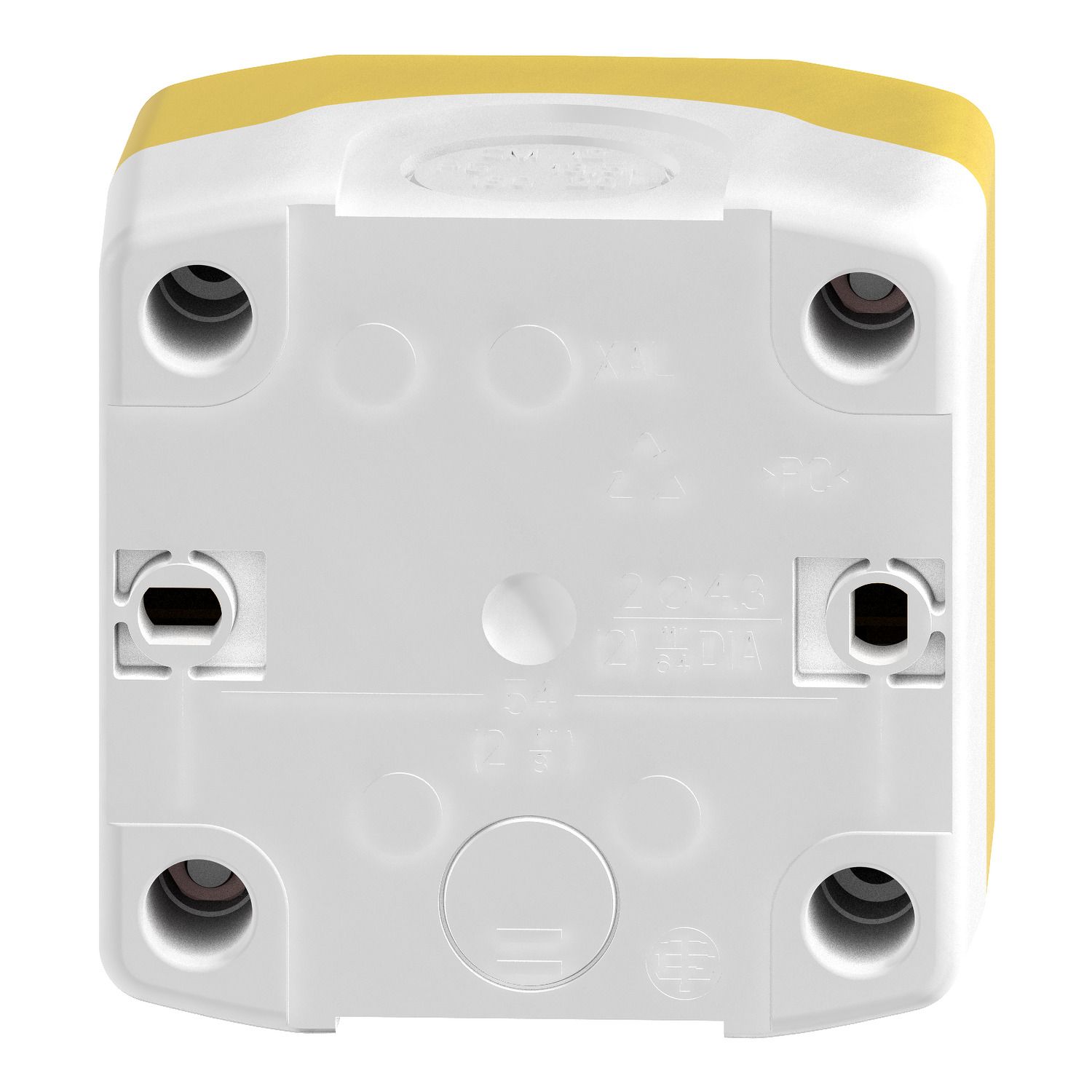

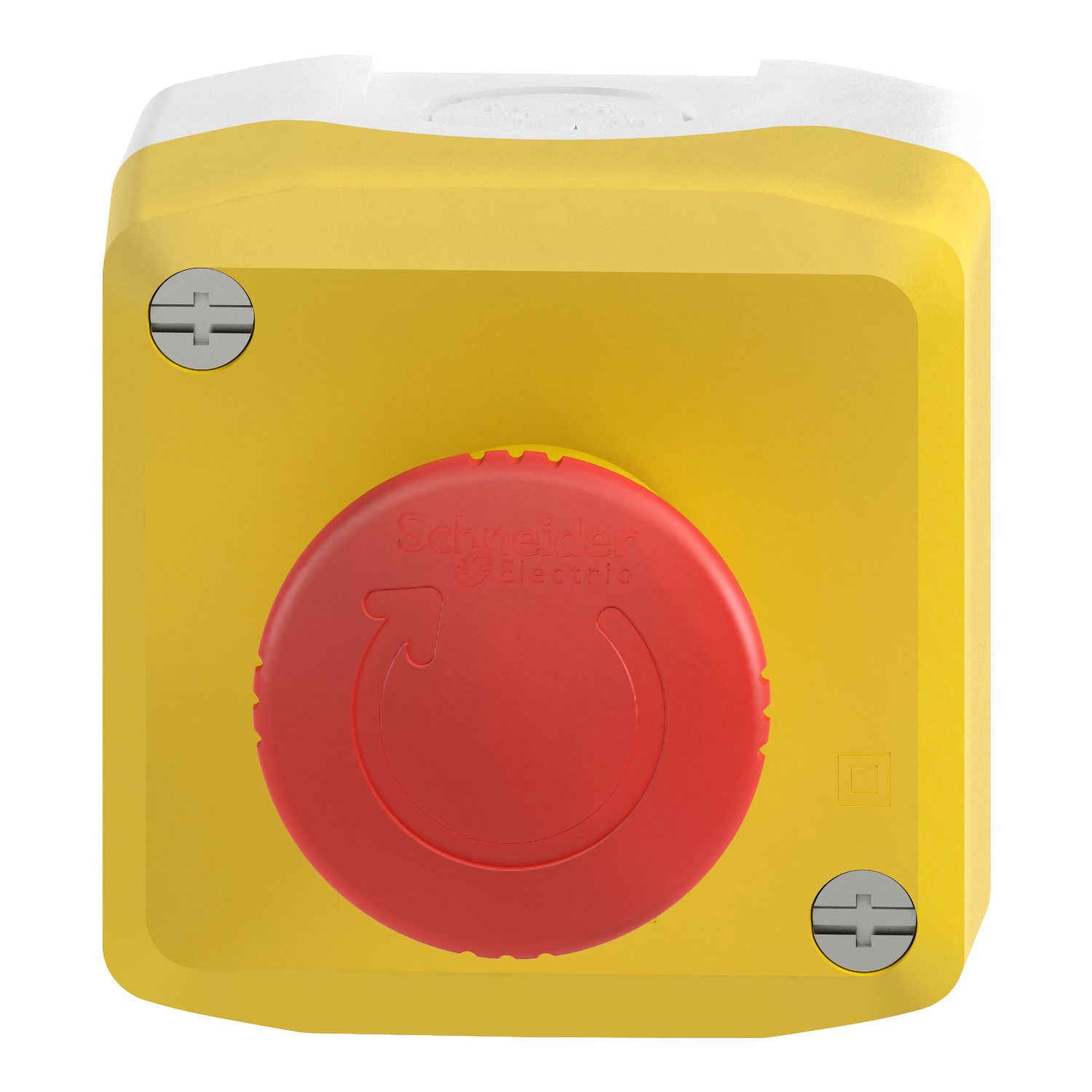

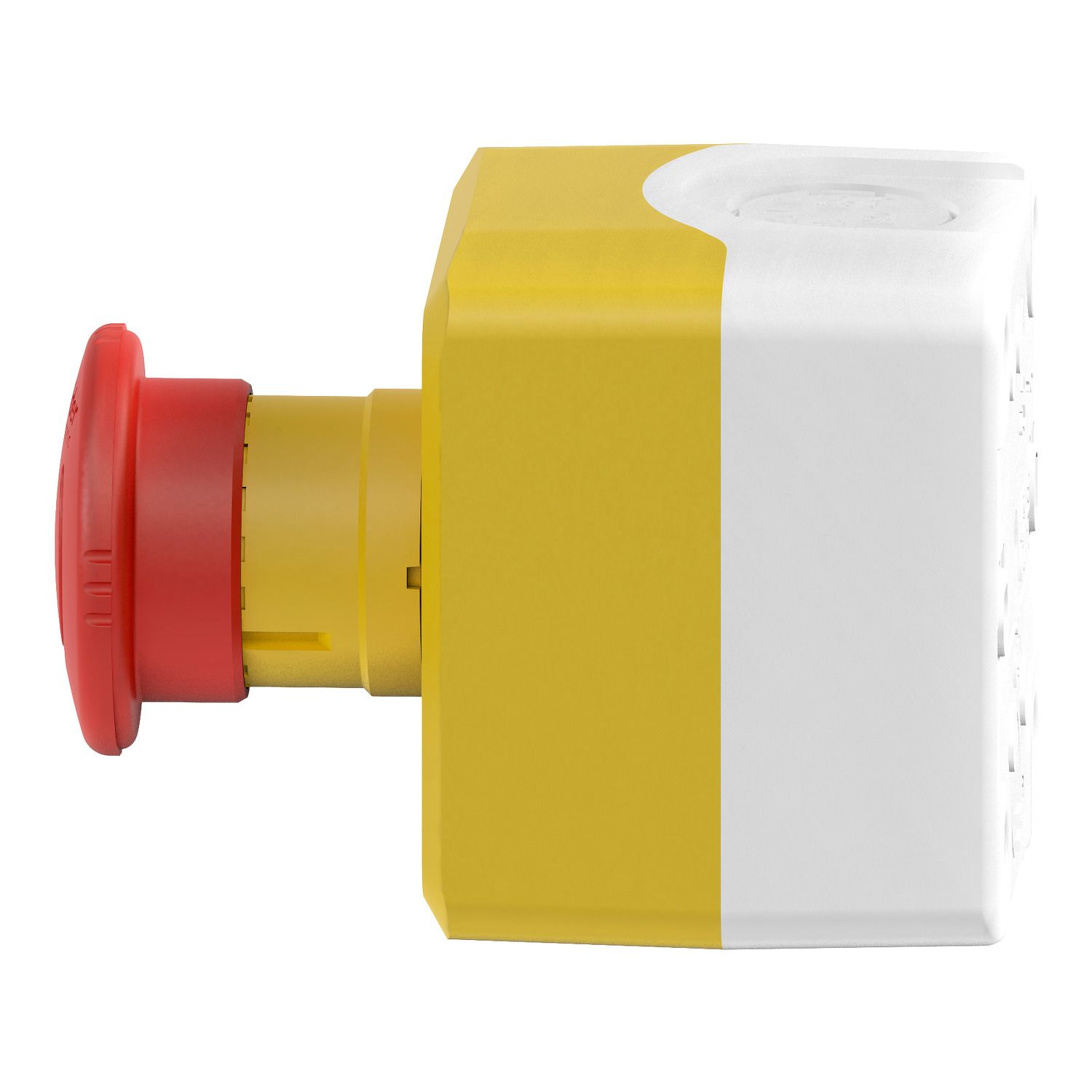

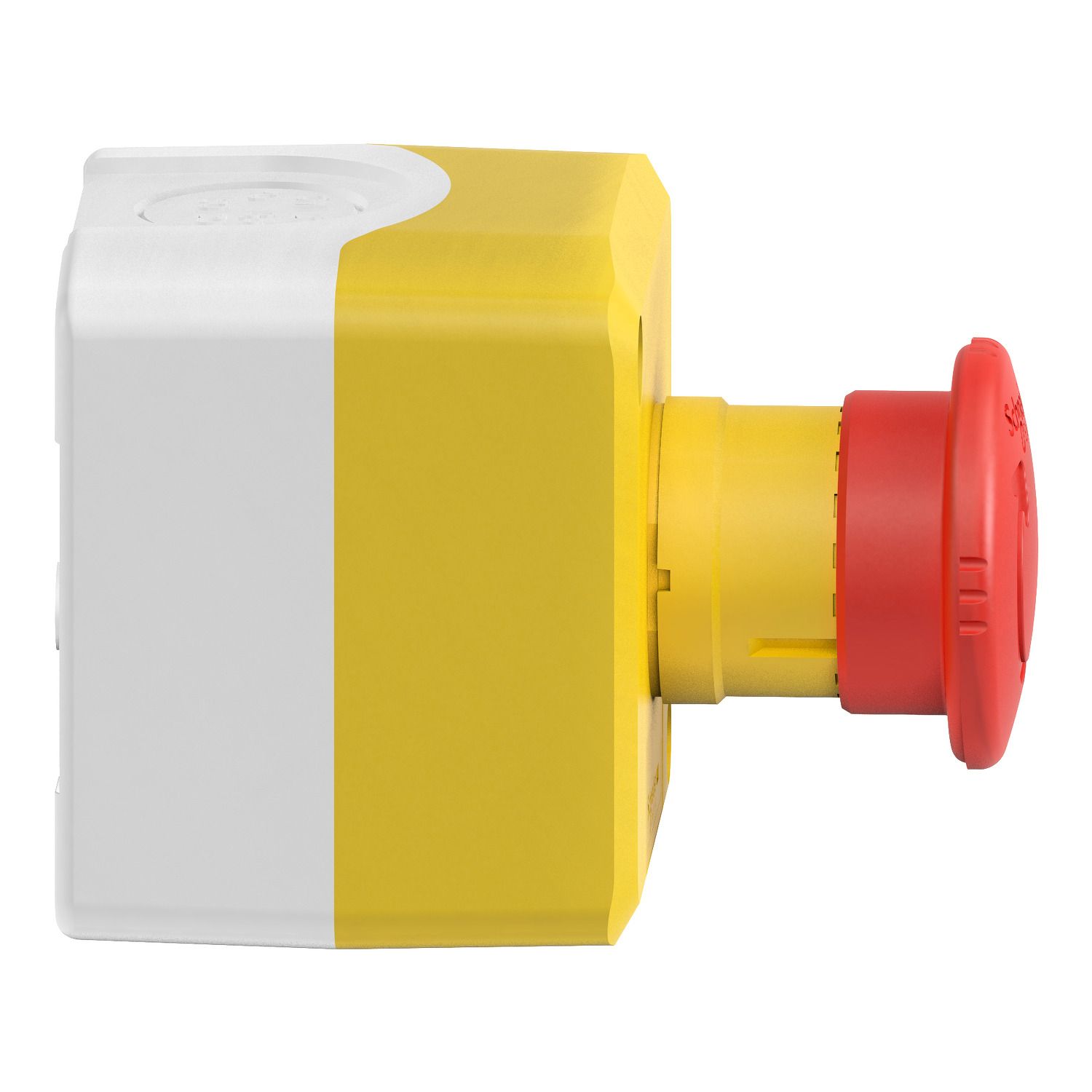

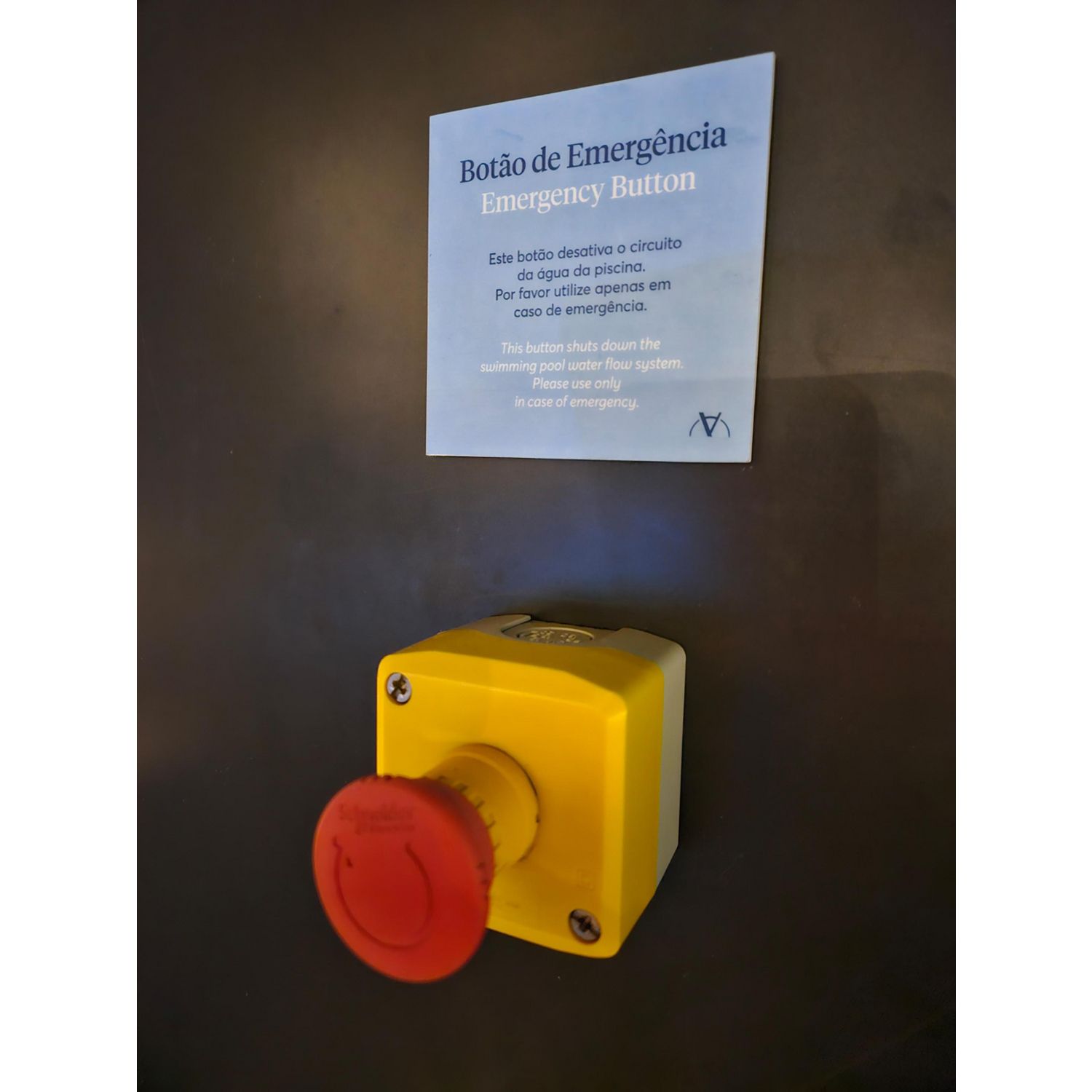

Picture of Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 red mushroom push button 40mm, turn to release, 2NC
SKU:

XALK178F

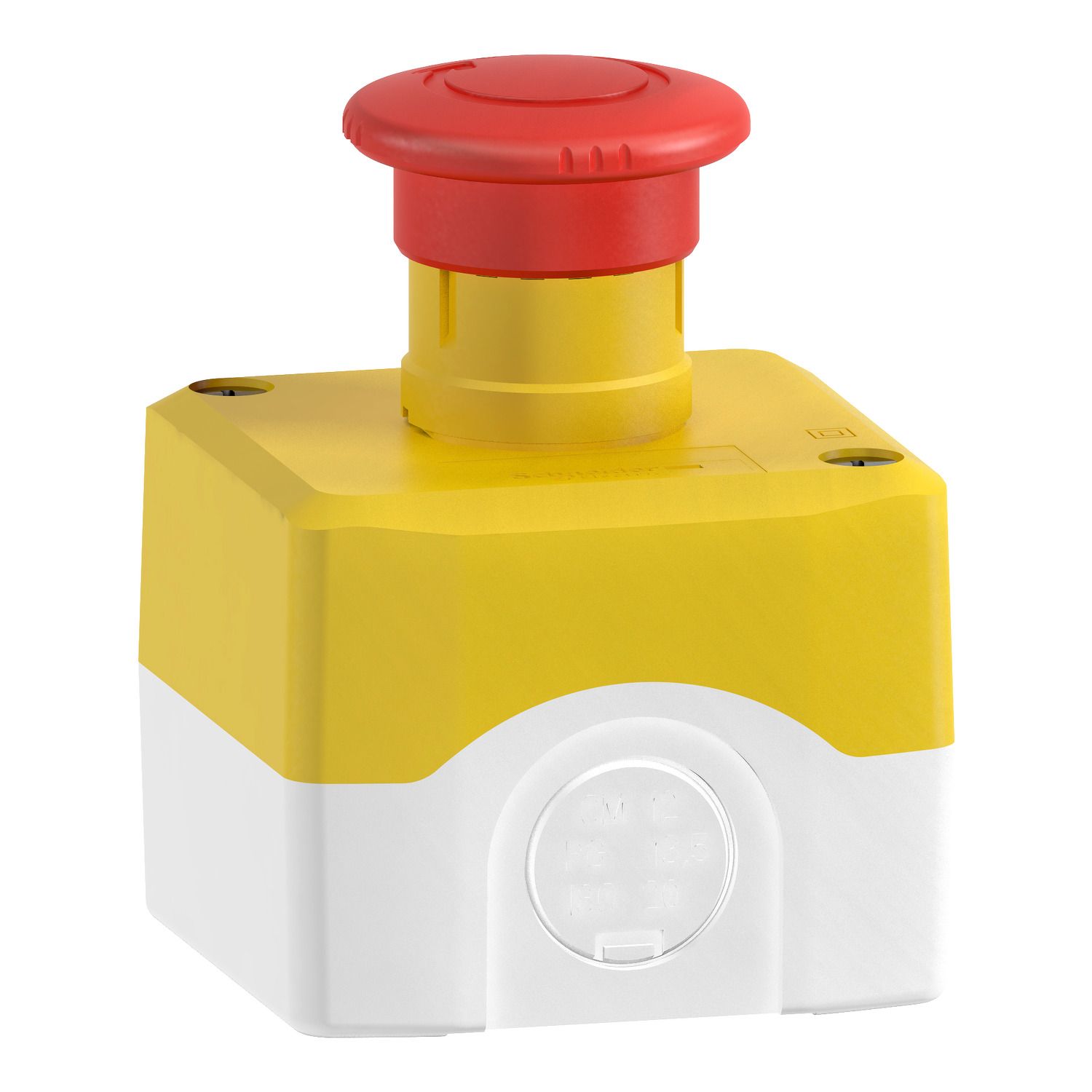

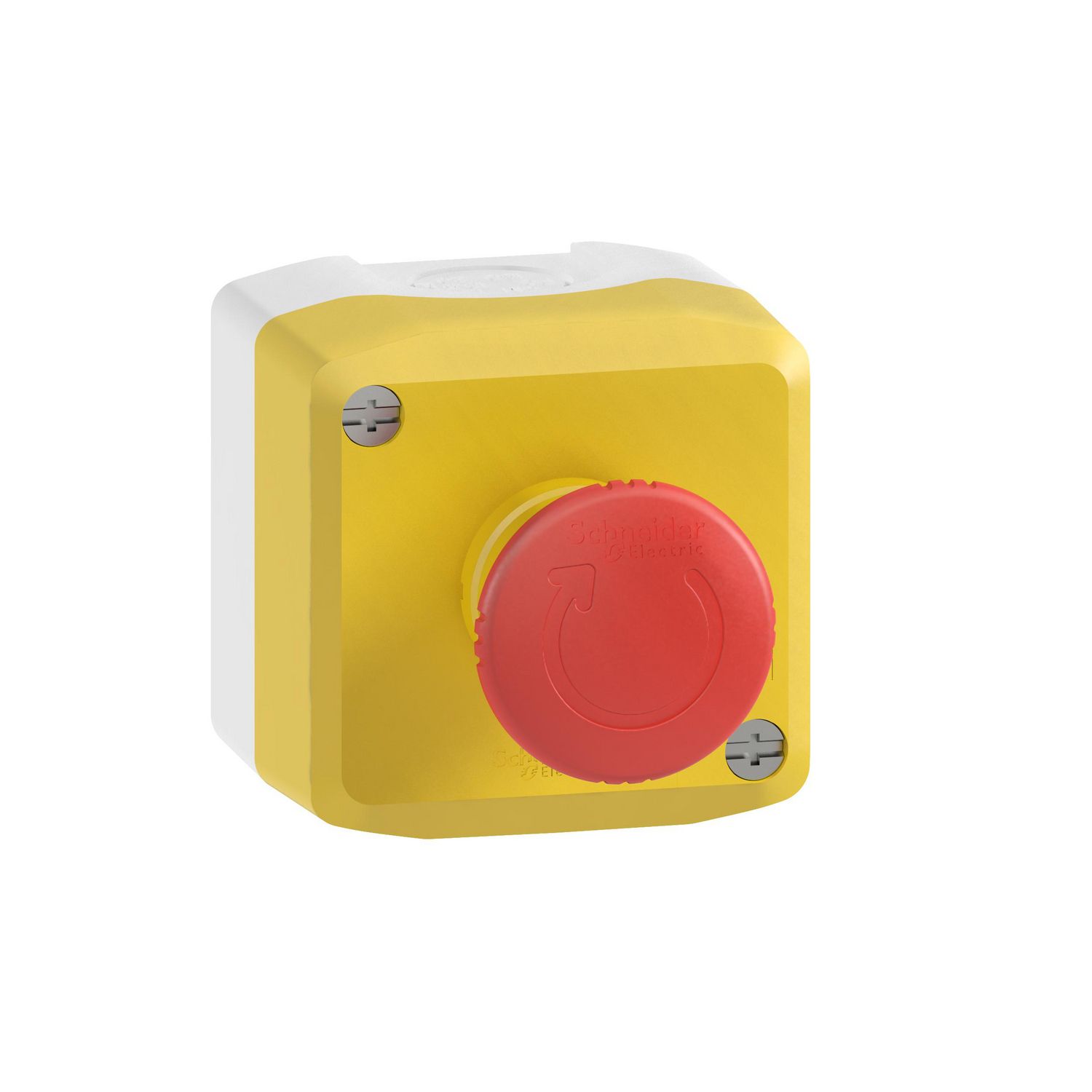

Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 red mushroom push button 40mm, turn to release, 2NC

$87.28
Product Selector
Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 red mushroom push button 40mm, turn to release, 2NC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Product environmental
Instruction sheet
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet

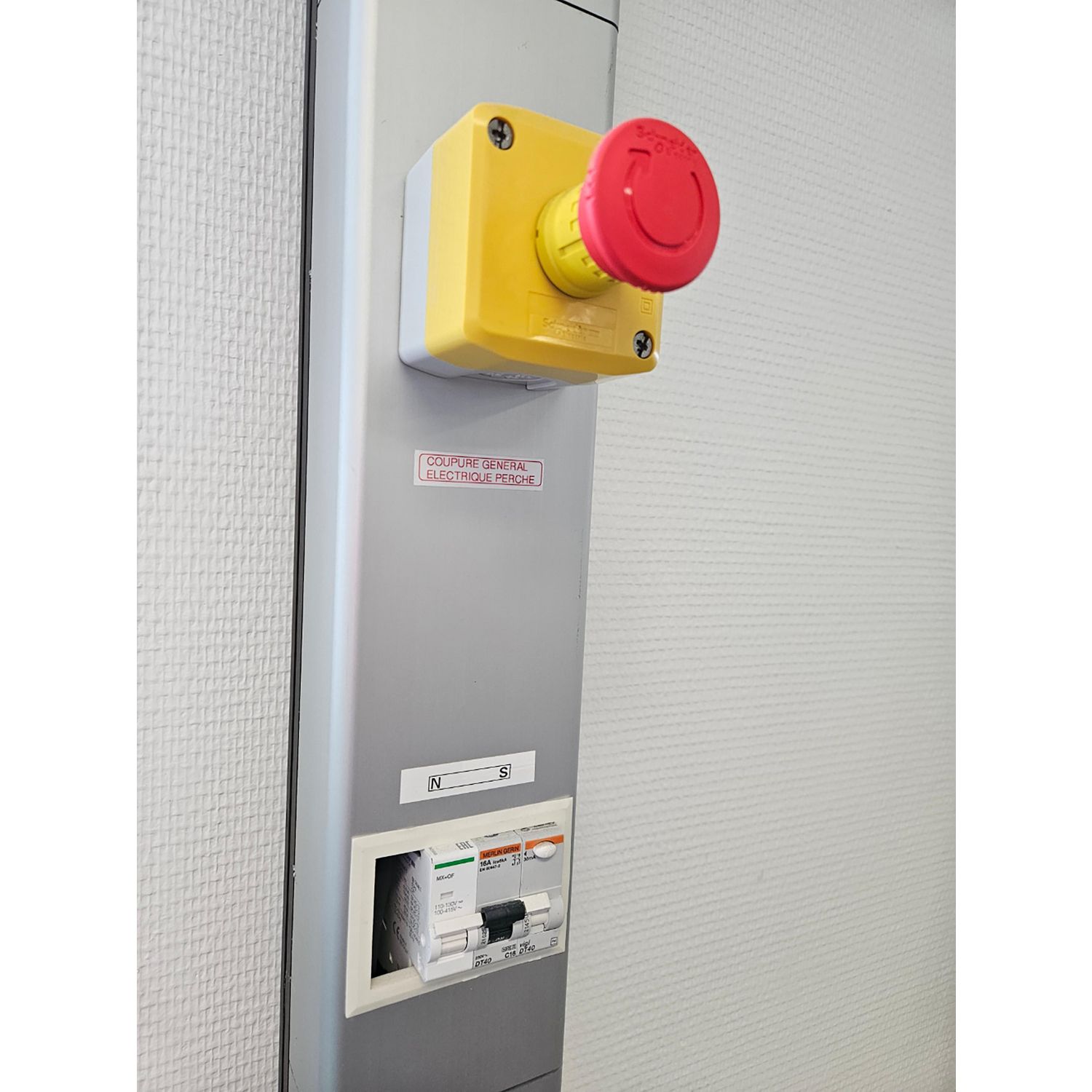

This Harmony XALK yellow (RAL1021) control station is ideal for a clearly visible emergency shutdown of any machine. This yellow control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It offers emergency stop and emergency switching off functions. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments.

Products specifications

Attribute nameAttribute value
Main
Device short nameXALK
Contact operationslow-break
Colour of coveryellow (RAL 1021)
Operators descriptionred unmarked 2 NC
Control station composition1 mushroom head Ø 40 mm push-button, red 2 NC unmarked marking
Colour of base of enclosurelight grey (RAL 7035)
Range of productHarmony XALK
Resetturn to release
Control station applicationemergency stop function, emergency switching off function
Operator profile1 mushroom head push-button
Materialpolycarbonate
Product or component typecomplete control station
Product destinationfor XB5 Ø 22 mm control and signalling units
Complementary
Shape of screw headslotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliabilityλ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4
Compatibility codeXALK
Mechanical durability300000 cycles
[Ie] rated operational current1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Contacts materialsilver alloy (Ag/Ni)
Operating travel4.3 mm (total travel), 1.5 mm (NC changing electrical state)
Operating force44 N
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminalsscrew clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Net weight0.194 kg
Cable entry2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm, 1 knock-out for cable entry 0-14 mm
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Positive openingwith conforming to IEC 60947-5-1 appendix K
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Environment
Protective treatmentTH
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation-40-70 °C
IK degree of protectionIK03 conforming to IEC 62262
NEMA degree of protectionNEMA 4X, NEMA 13
Overvoltage categoryclass II conforming to IEC 60536
Vibration resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
StandardsIEC 60947-1, IEC 60947-5-4, IEC 60947-5-5, UL 508, CSA C22.2 No 14, ISO 13850, IEC 60364-5-53, IEC 60947-5-1, JIS C 4520, IEC 60204-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.700 cm
Package 1 Width7.000 cm
Package 1 Length7.000 cm
Package 1 Weight168.000 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight7.202 kg
Unit Type of Package 33
Number of Units in Package 3320
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight67.964 kg
