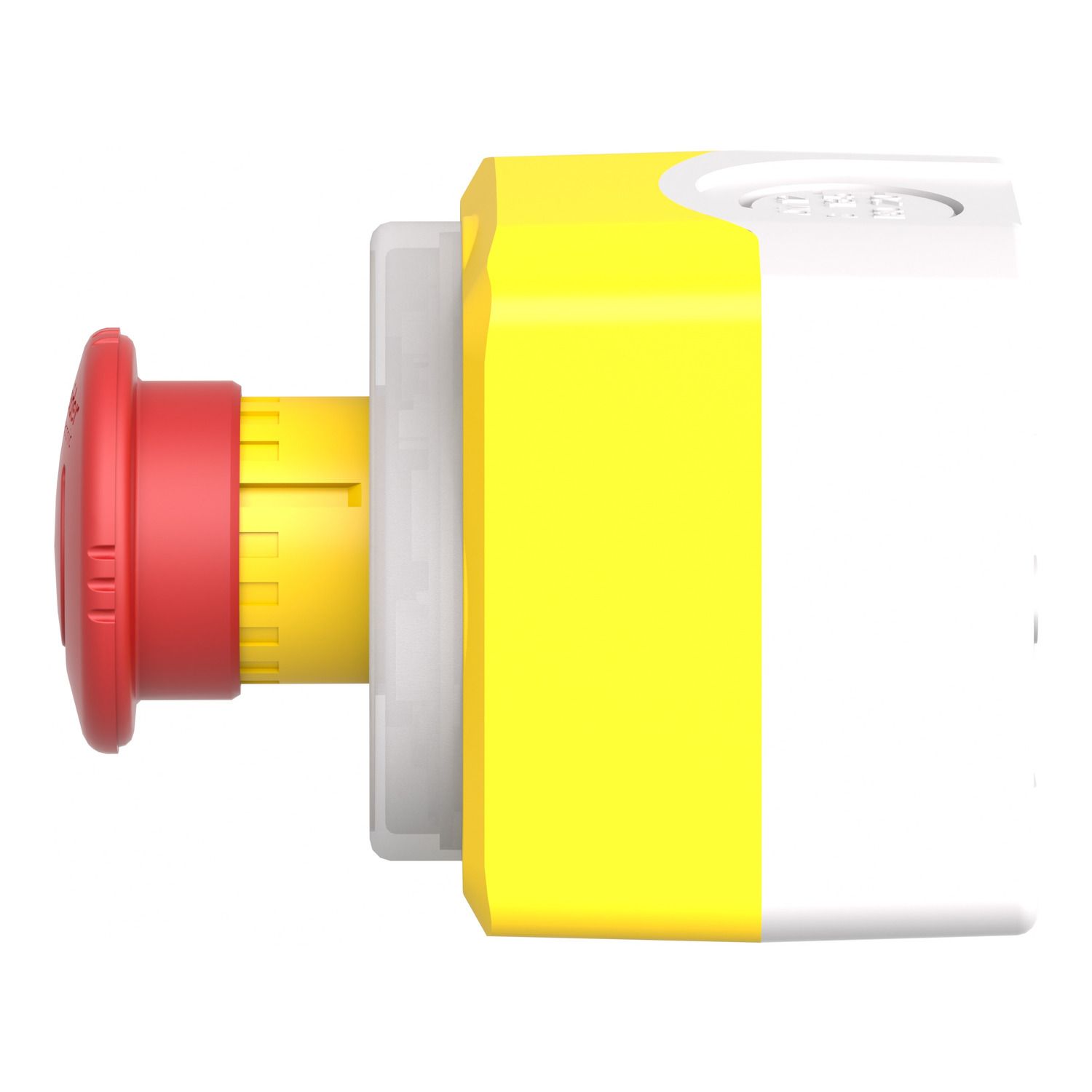

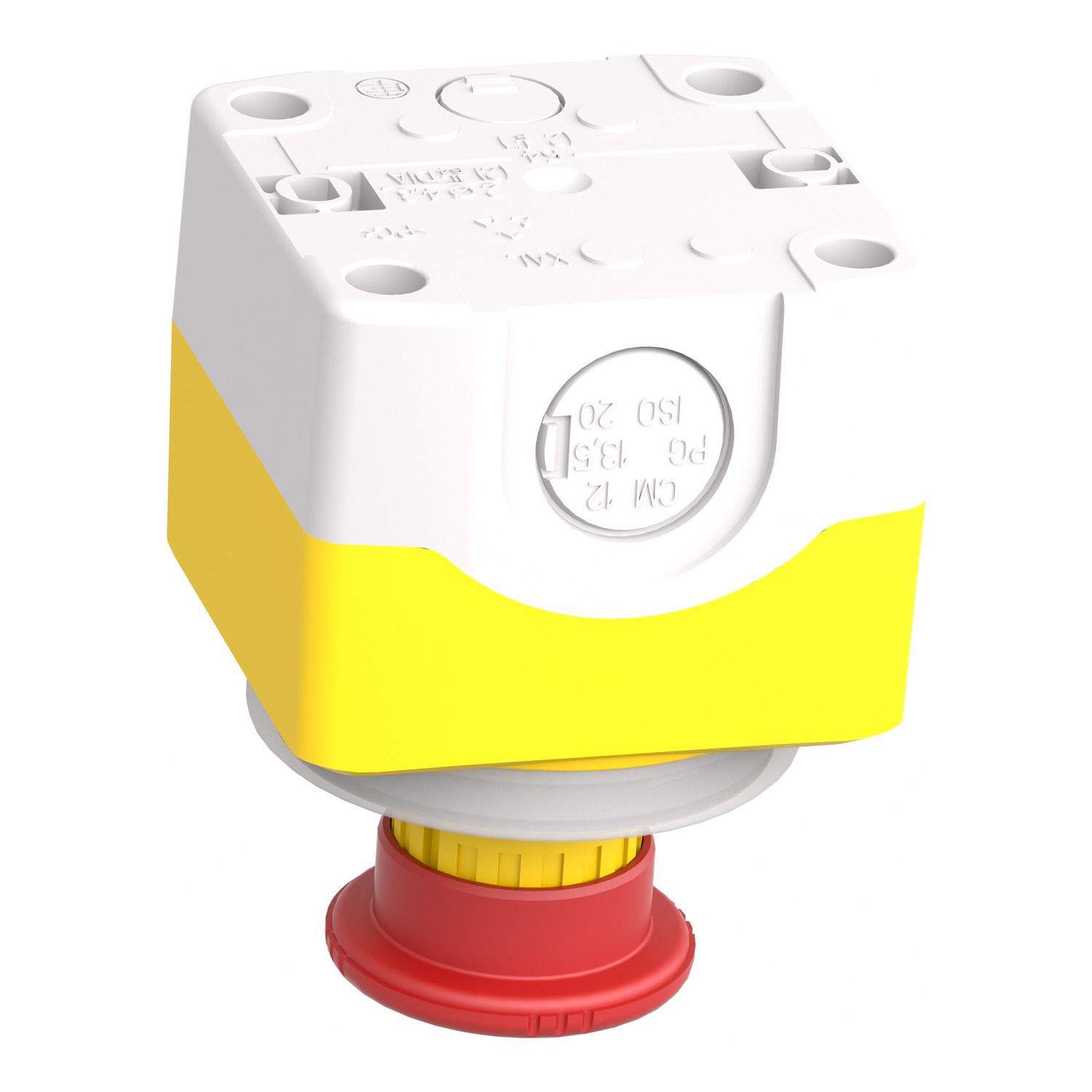

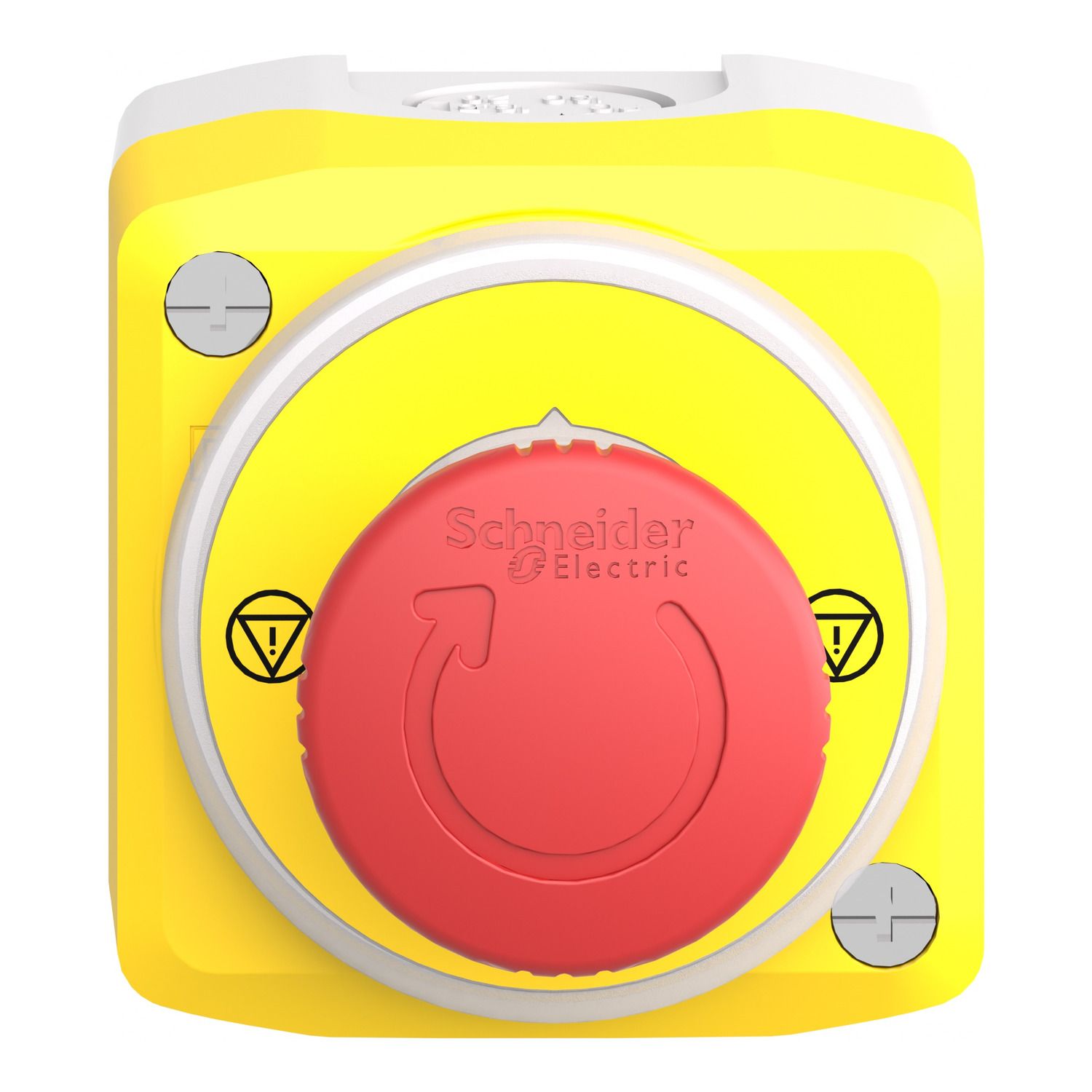

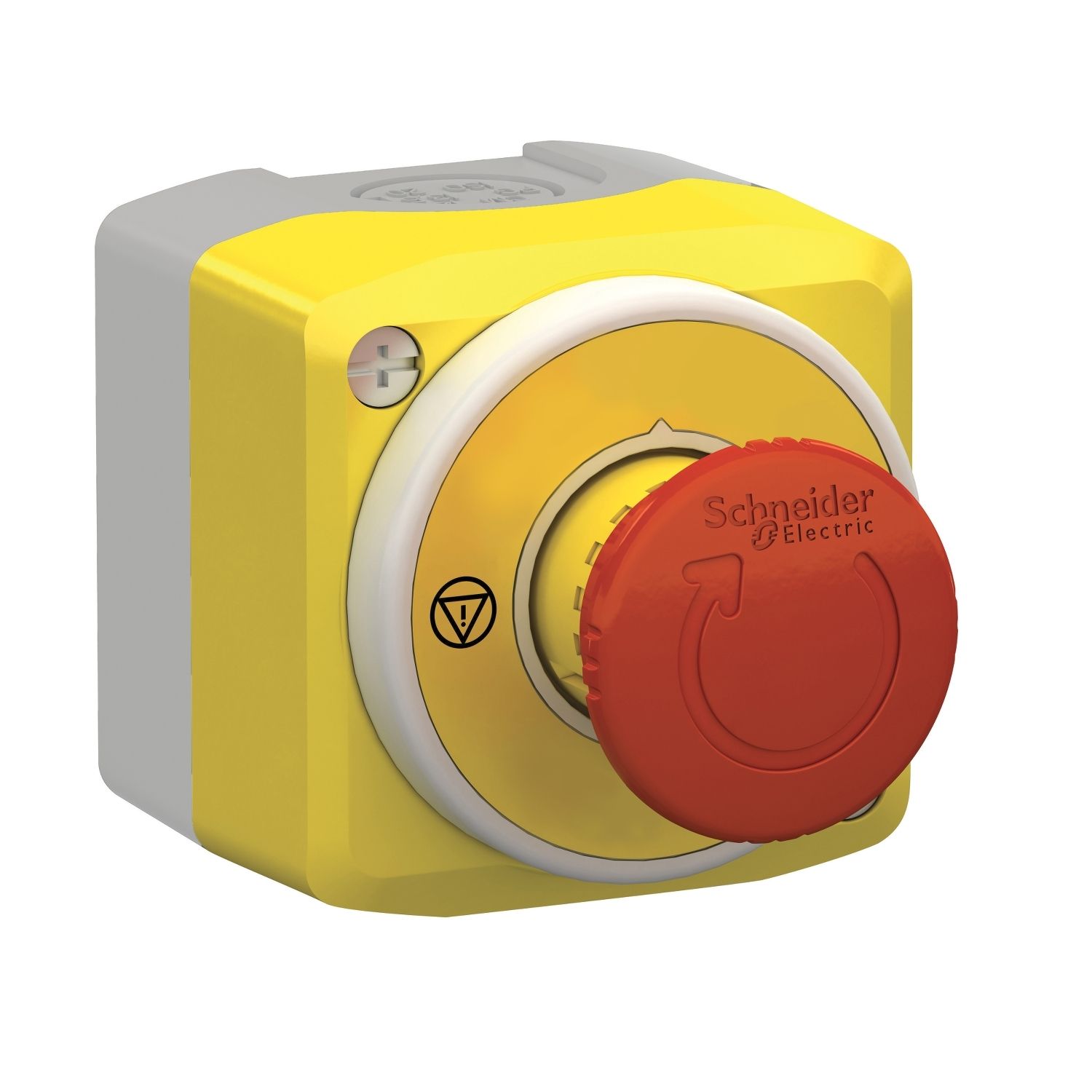

Picture of Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC
Picture of Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC

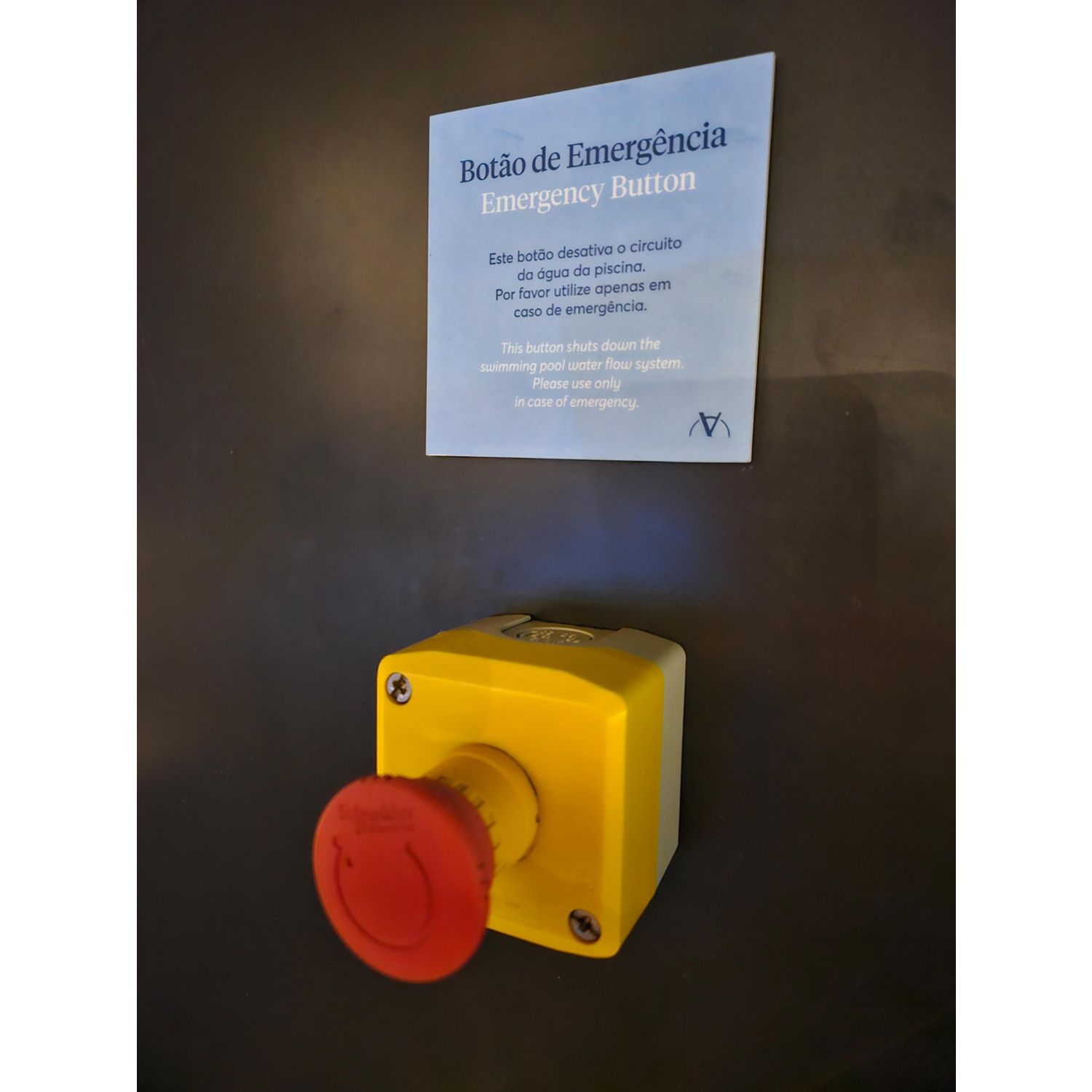

Picture of Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC

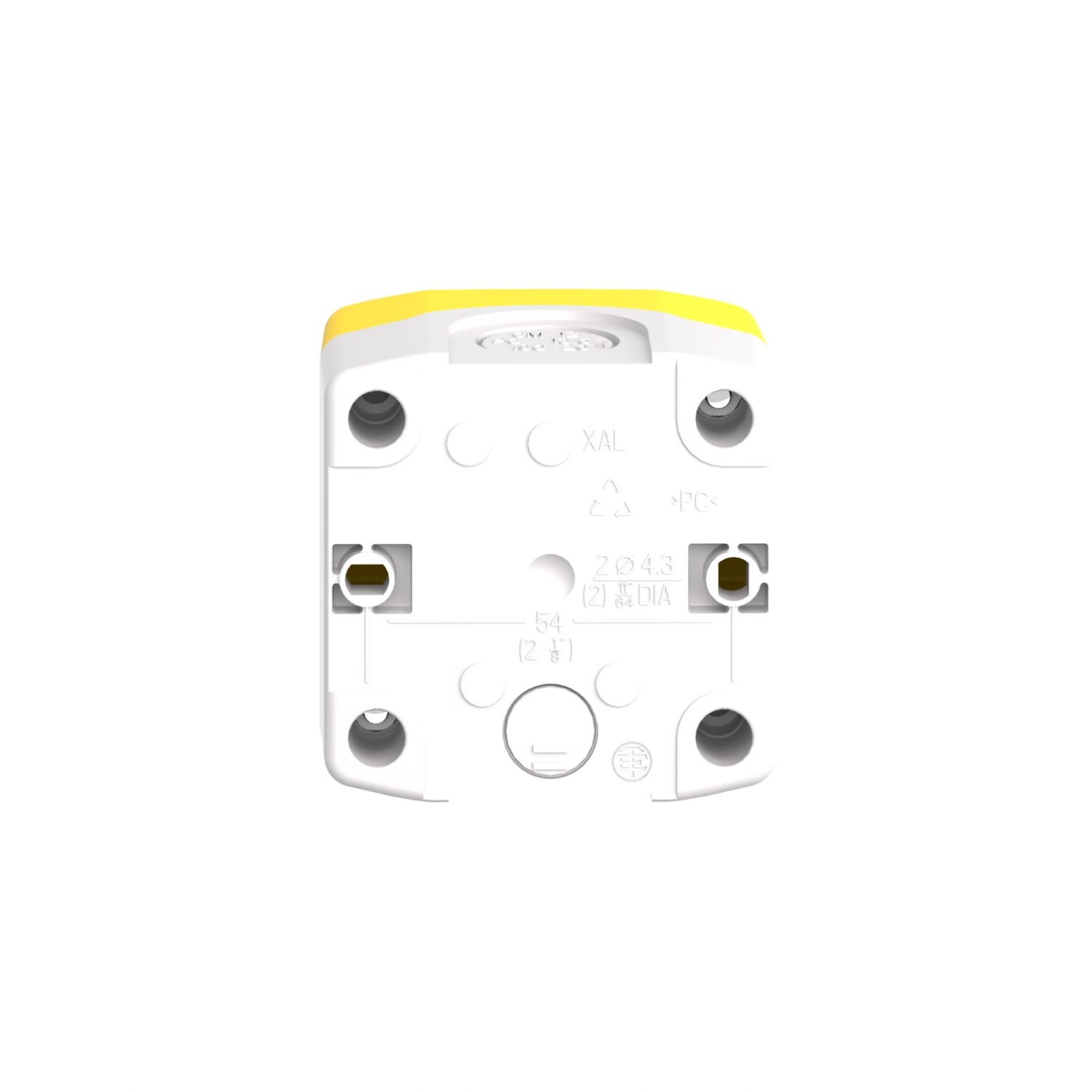

Picture of Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC

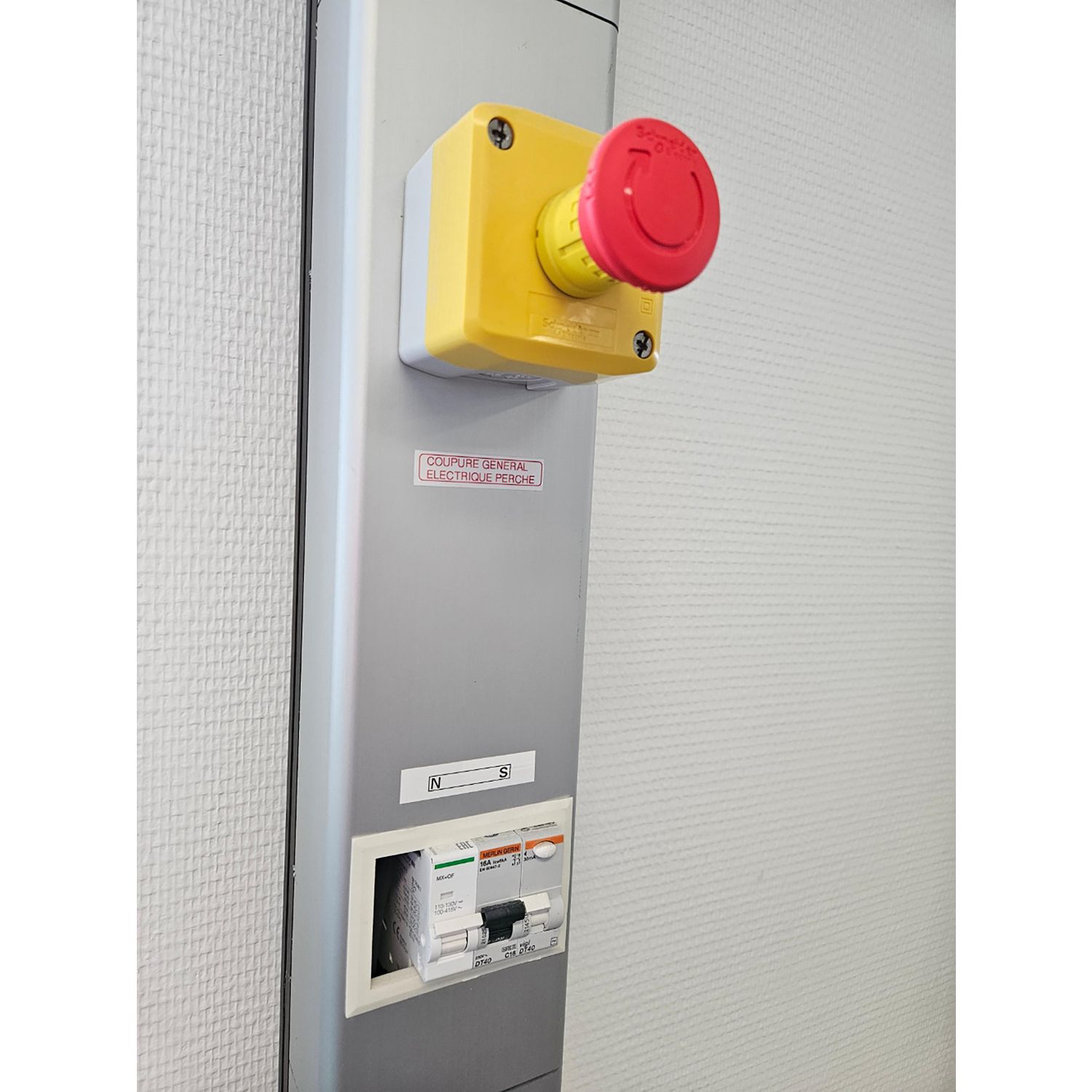

Picture of Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC

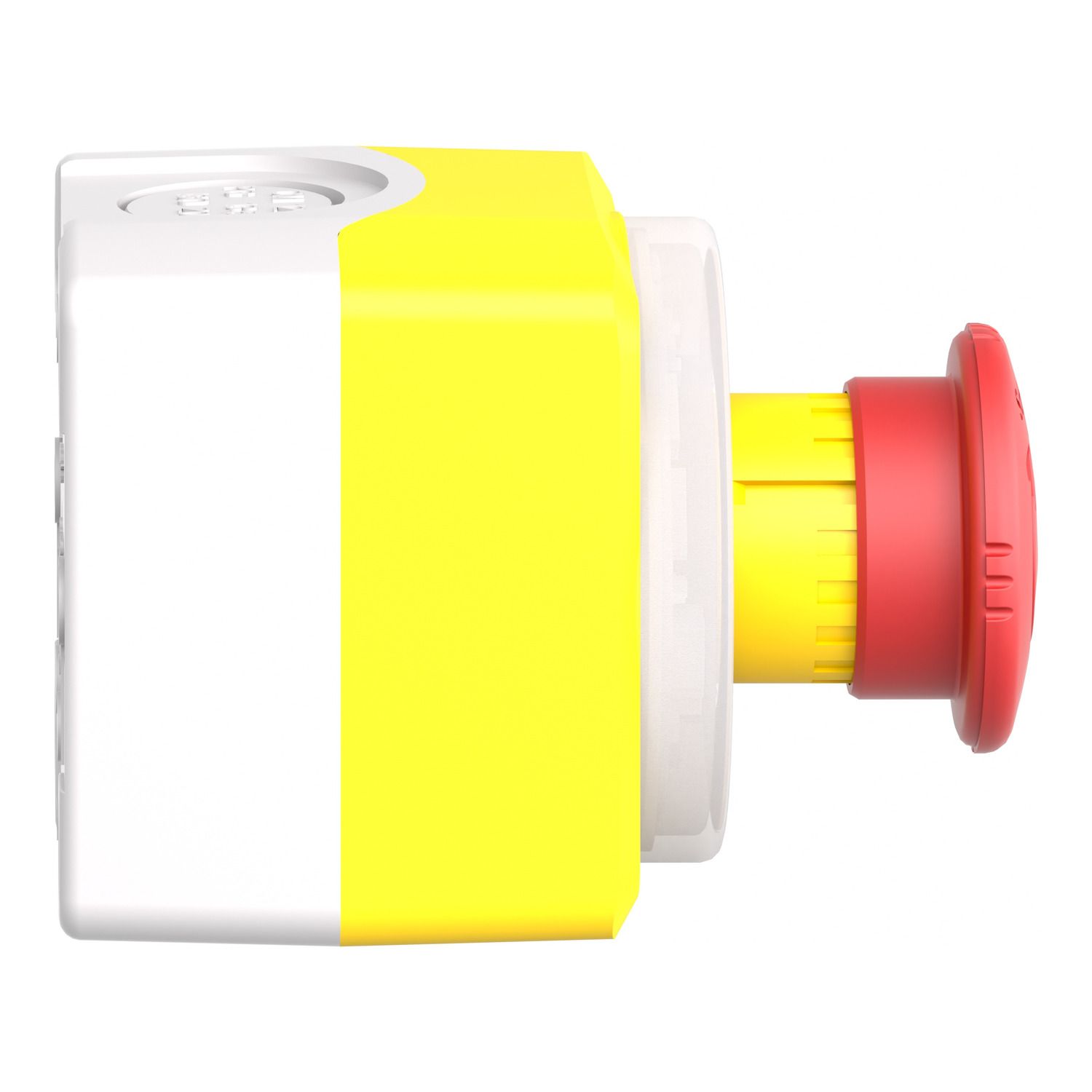

Picture of Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC

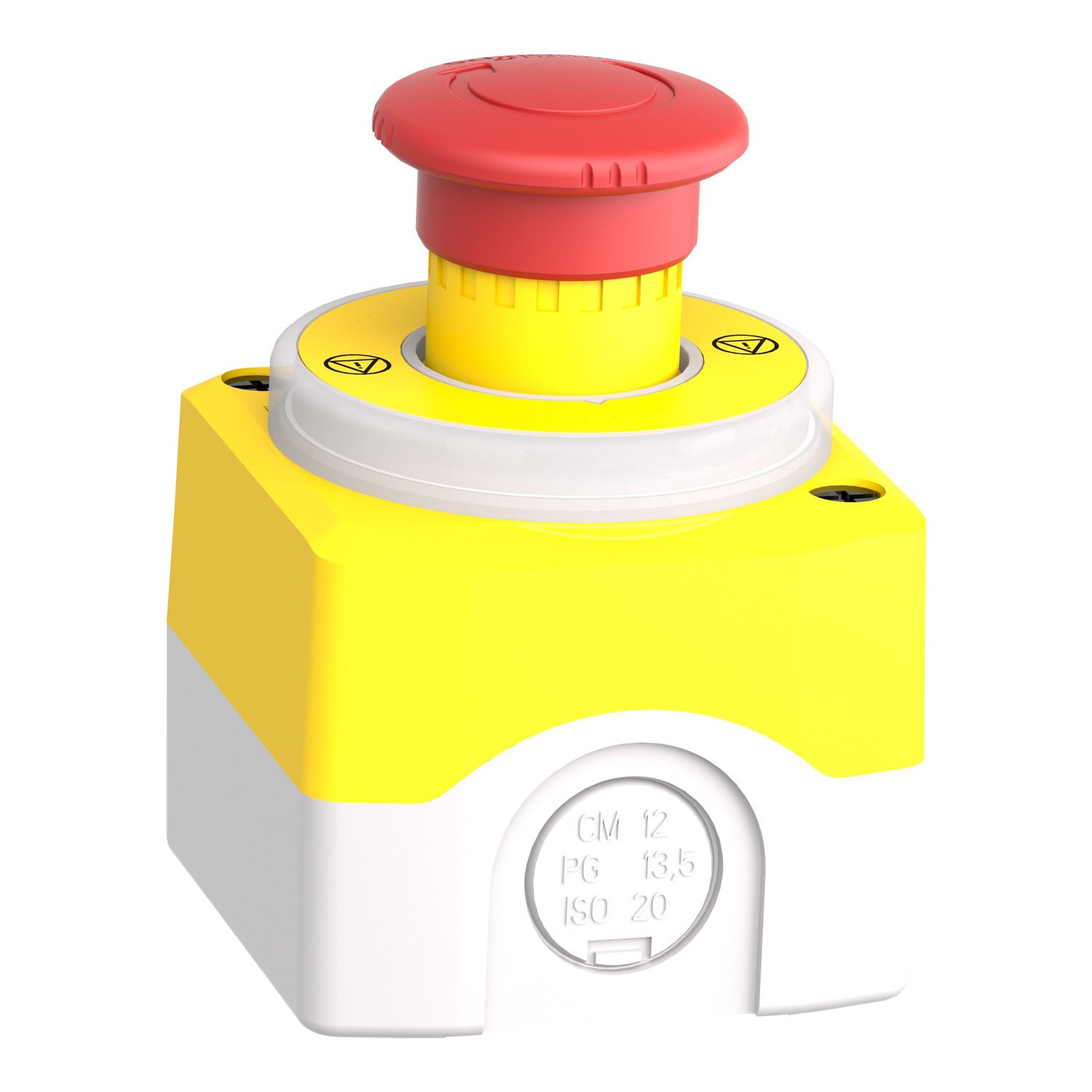

Picture of Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC
Picture of Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC
SKU:

XALK178W3B140G

Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC

$220.15
Product Selector
Control station, Harmony XALD, XALK, plastic, yellow lid, 1 Estop push button 40mm, turn to release, illum ring white red fixed, 1NO 2NC, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Declaration of conformity
Image of product
Image of product
End of life manual
Catalogue
Image of product
Image of product
Product environmental
Image of product
Image of product
Product Page Link
Product Data Sheet
This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Products specifications

Attribute nameAttribute value
Main
Device short nameXALK
Contact operationslow-break
Colour of coveryellow (RAL 1021)
Operators descriptionred unmarked 1 NO + 2 NC
Control station composition1 mushroom head Ø 40 mm push-button, red 1 NO + 2 NC
Colour of base of enclosurelight grey (RAL 7035)
Range of productHarmony XALK
Resetturn to release
Control station applicationemergency stop function, emergency switching off function
Operator profile1 mushroom head push-button
Materialpolycarbonate
Product or component typecomplete control station
Product destinationfor XB5 Ø 22 mm control and signalling units
[Us] rated supply voltage24 V AC/DC
Complementary
Shape of screw headslotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliabilityλ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4
Compatibility codeXALK
Resistance to electrostatic discharge8 kV in free air (in insulating parts), 4 kV on contact (on metal parts) conforming to IEC 61000-4-2
Mechanical durability300000 cycles
[Ie] rated operational current1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical insulation classclass II conforming to IEC 61140
Contacts materialsilver alloy (Ag/Ni)
Operating travel4.3 mm (total travel), 1.5 mm (NC changing electrical state)
Operating force44 N
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminalsscrew clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Net weight0.180 kg
Cable entry2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm, 1 knock-out for cable entry 0-14 mm
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Positive openingwith conforming to IEC 60947-5-1 appendix K
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Environment
Protective treatmentTH
Ambient air temperature for storage-40-70 °C
IP degree of protectionType 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation-40-70 °C
IK degree of protectionIK05 conforming to IEC 62262
Vibration resistance25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
StandardsJIS C 4520, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14
Product certificationsCSA, UL listed
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.6 cm
Package 1 Width7.0 cm
Package 1 Length7.0 cm
Package 1 Weight196.0 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight8.312 kg
