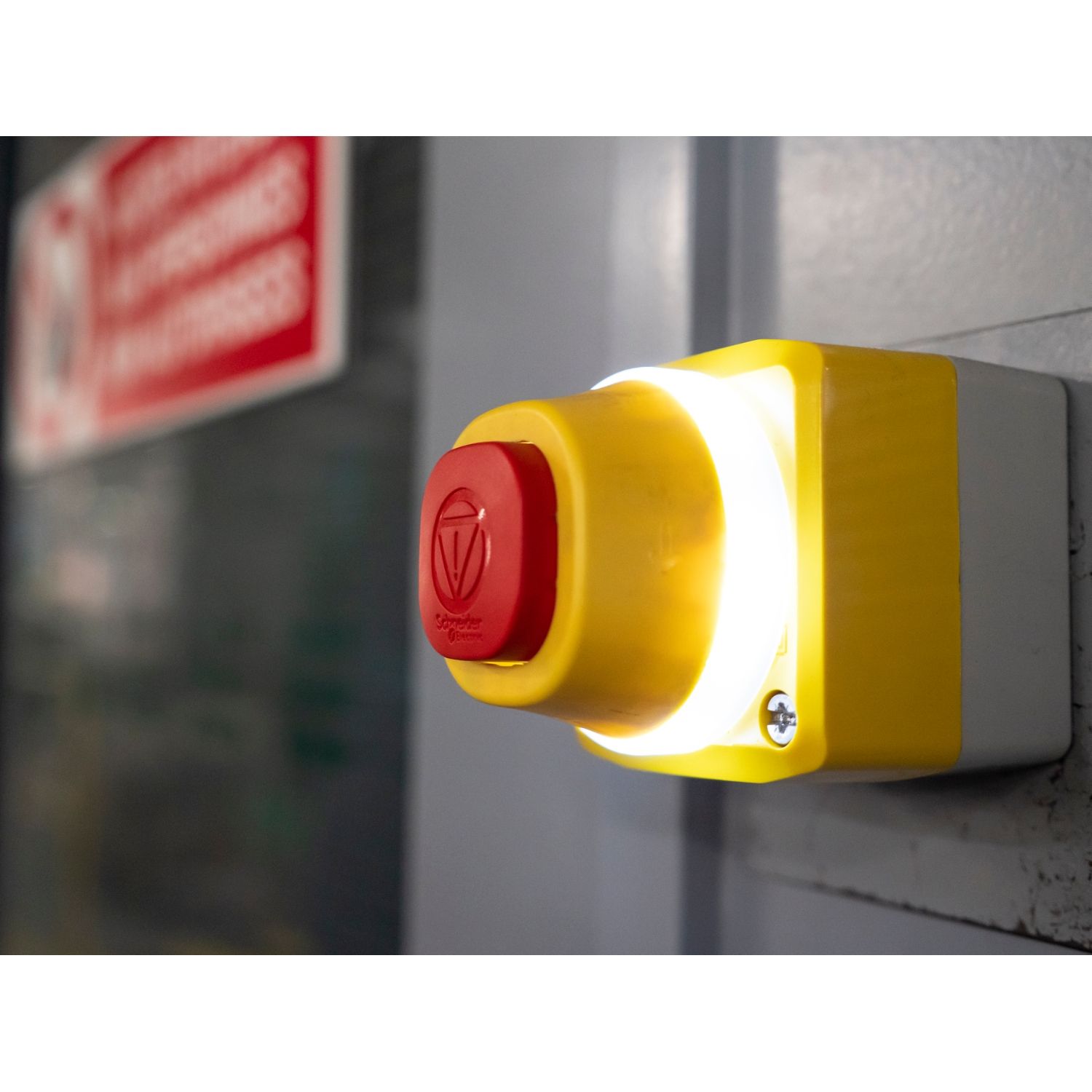

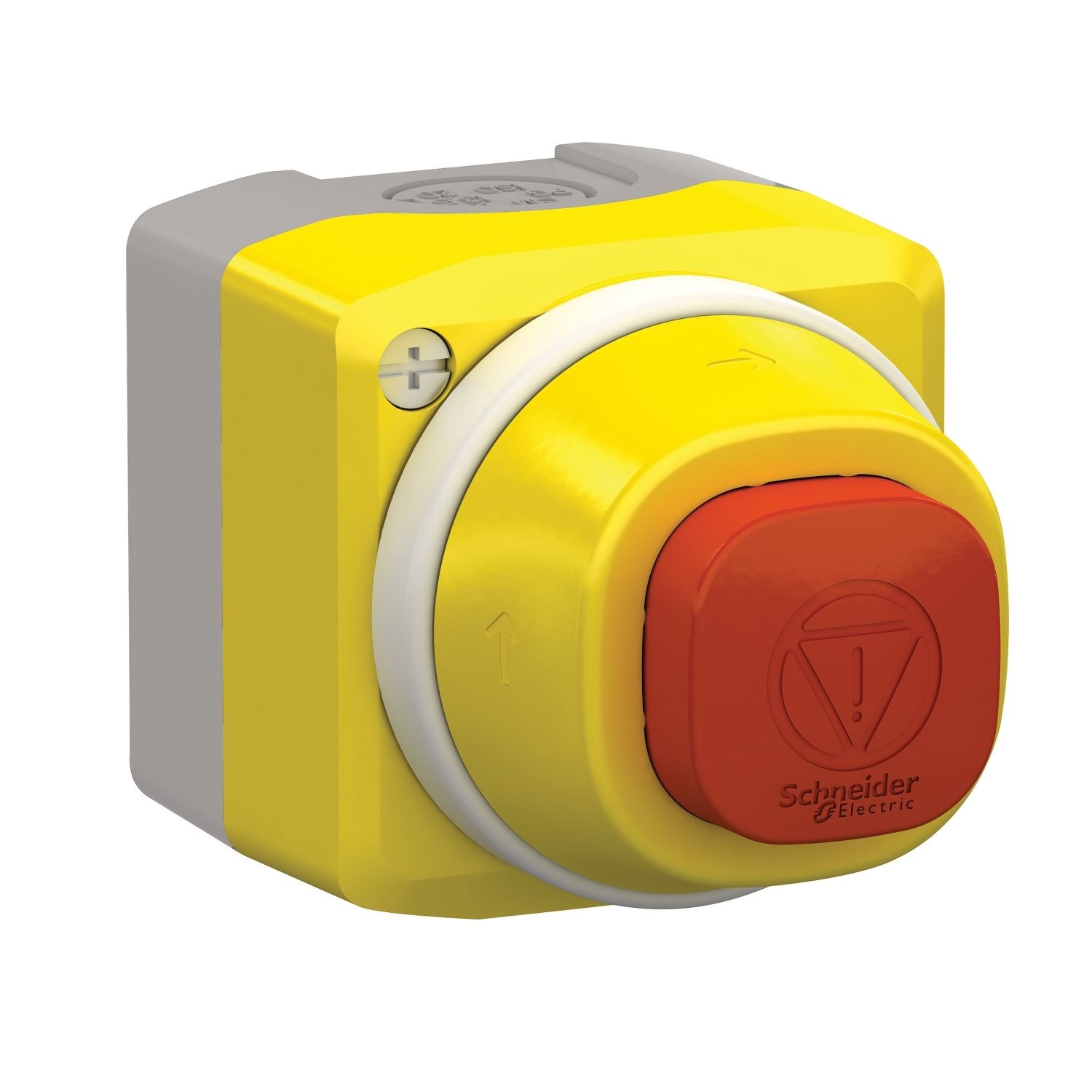

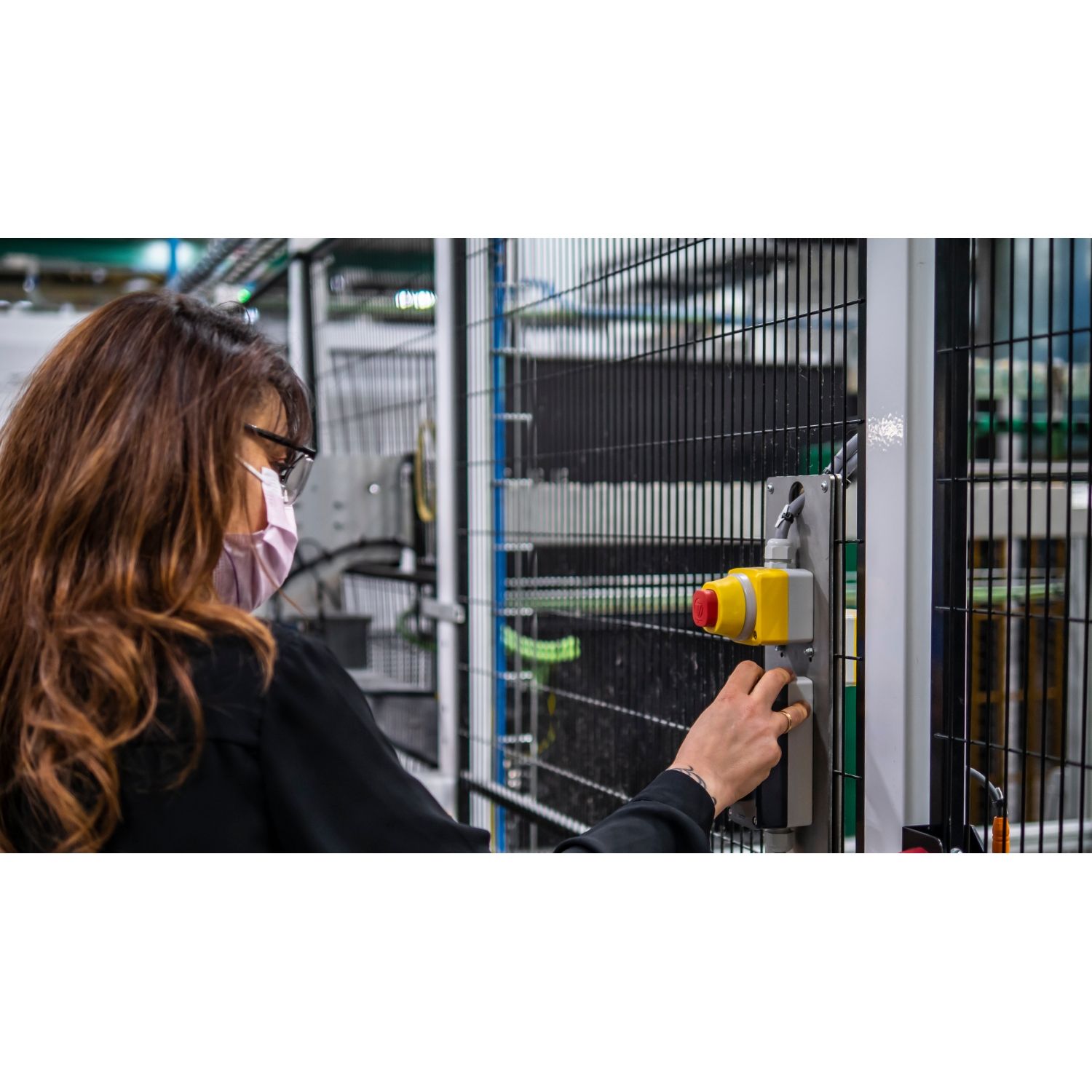

Picture of Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 illuminated emergency stop, white red fixed, turn to release, 1NO 2NC, 24V AC DC
SKU:

XALK84W3BG

Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 illuminated emergency stop, white red fixed, turn to release, 1NO 2NC, 24V AC DC

$213.73
Available for Shipping : 19-Jan-2025
Product Selector
Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 illuminated emergency stop, white red fixed, turn to release, 1NO 2NC, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XALK
Contact operation slow-break
Colour of cover yellow (RAL 1021)
Operators description red unmarked 1 NO + 2 NC
Control station composition 1 mushroom head push-button, red 1 NO + 2 NC
Colour of base of enclosure light grey (RAL 7035)
Range of product Harmony XALK
Reset turn to release
Control station application emergency stop function, emergency switching off function
Operator profile red square 32 mm
Material polycarbonate
Product or component type complete control station
Product destination for XB5 Ø 22 mm control and signalling units
[Us] rated supply voltage 24 V AC/DC
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to EN/IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V, 5 mA conforming to EN/IEC 60947-5-4, λ < 10exp(-6) at 5 V, 1 mA conforming to EN/IEC 60947-5-4
Compatibility code XALK
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 4 kV on contact (on metal parts) conforming to IEC 61000-4-2
Mechanical durability 300000 cycles
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Electrical insulation class class II conforming to IEC 61140
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 1.5 mm (NC changing electrical state)
Operating force 44 N
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN/IEC 60947-1
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Net weight 0.182 kg
Cable entry 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm, 1 knock-out for cable entry 0-14 mm
[Ith] conventional free air thermal current 10 A conforming to EN/IEC 60947-5-1
Positive opening with conforming to EN/IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to EN 50102
Vibration resistance 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C 4520, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 7.0 cm
Package 1 Length 9.8 cm
Package 1 Weight 215.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.106 kg

Related products

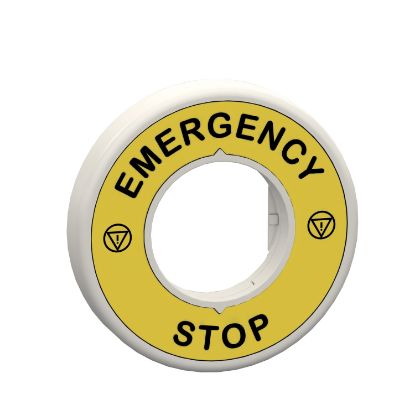

Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked EMERGENCY STOP, 24V AC DC
