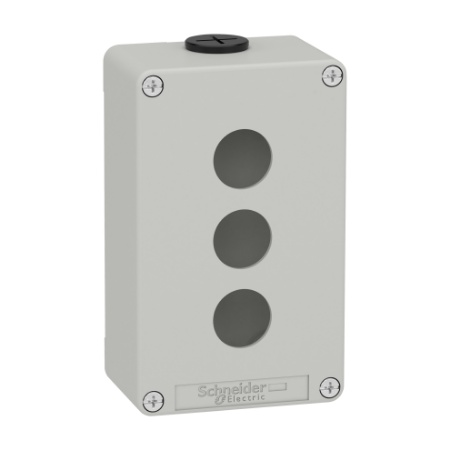

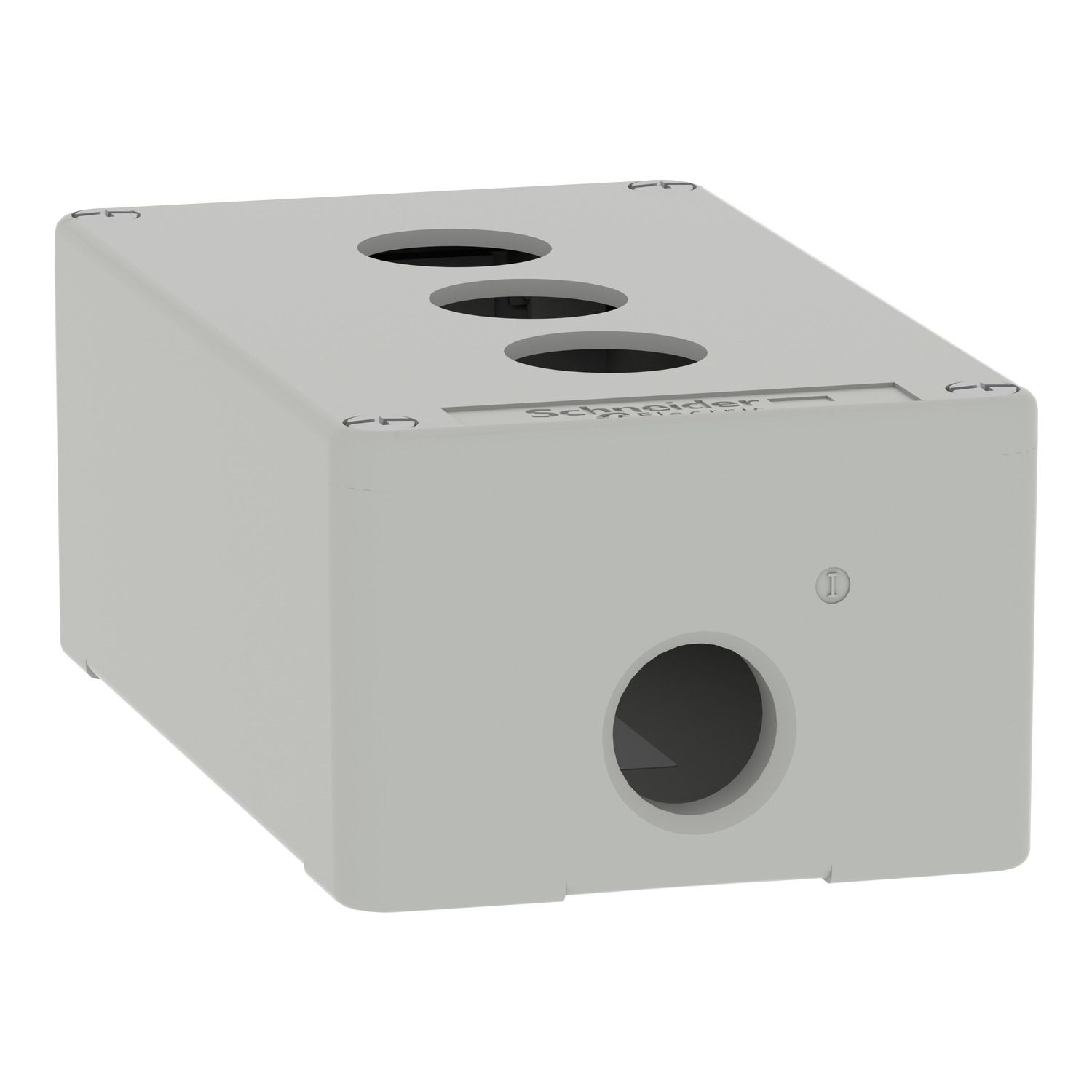

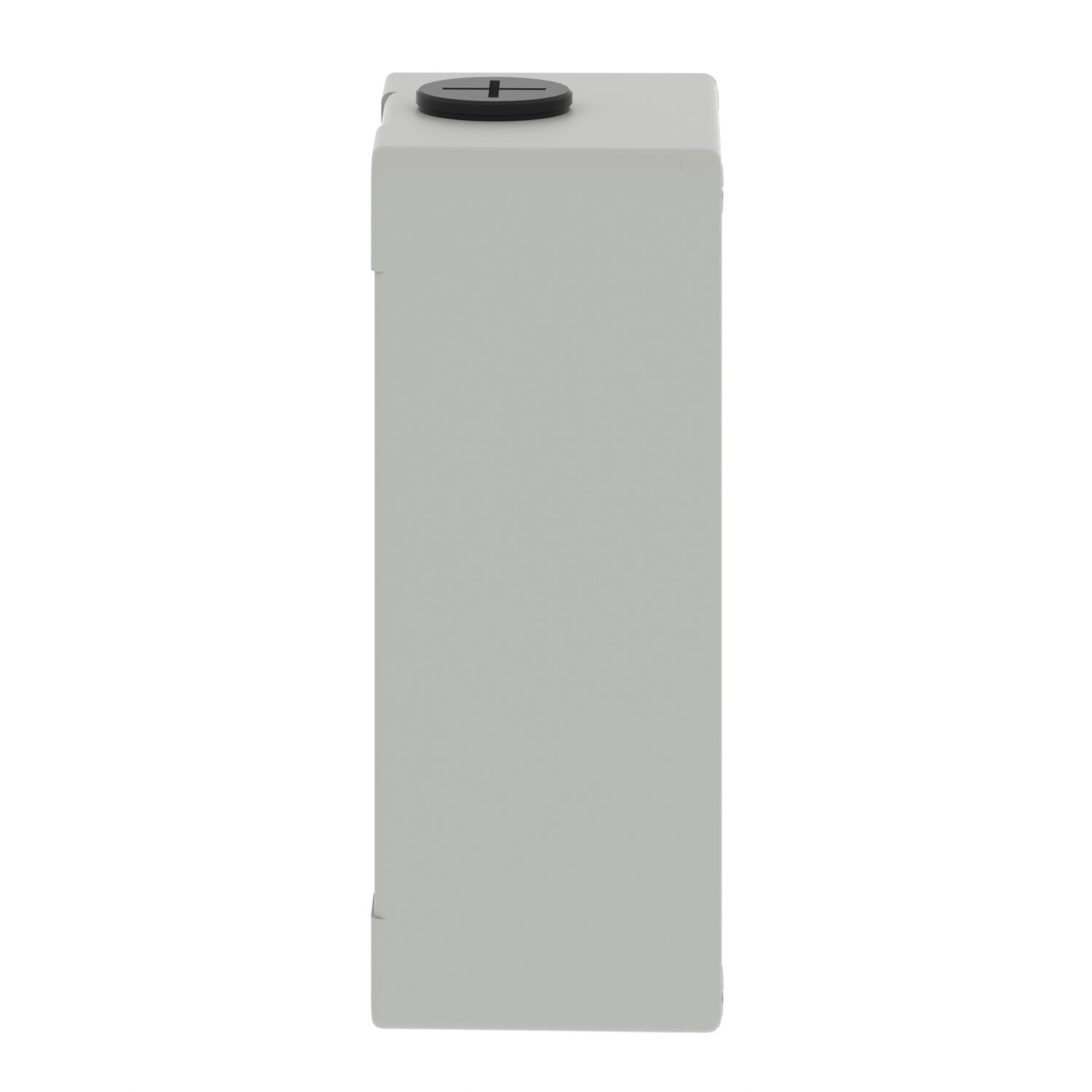

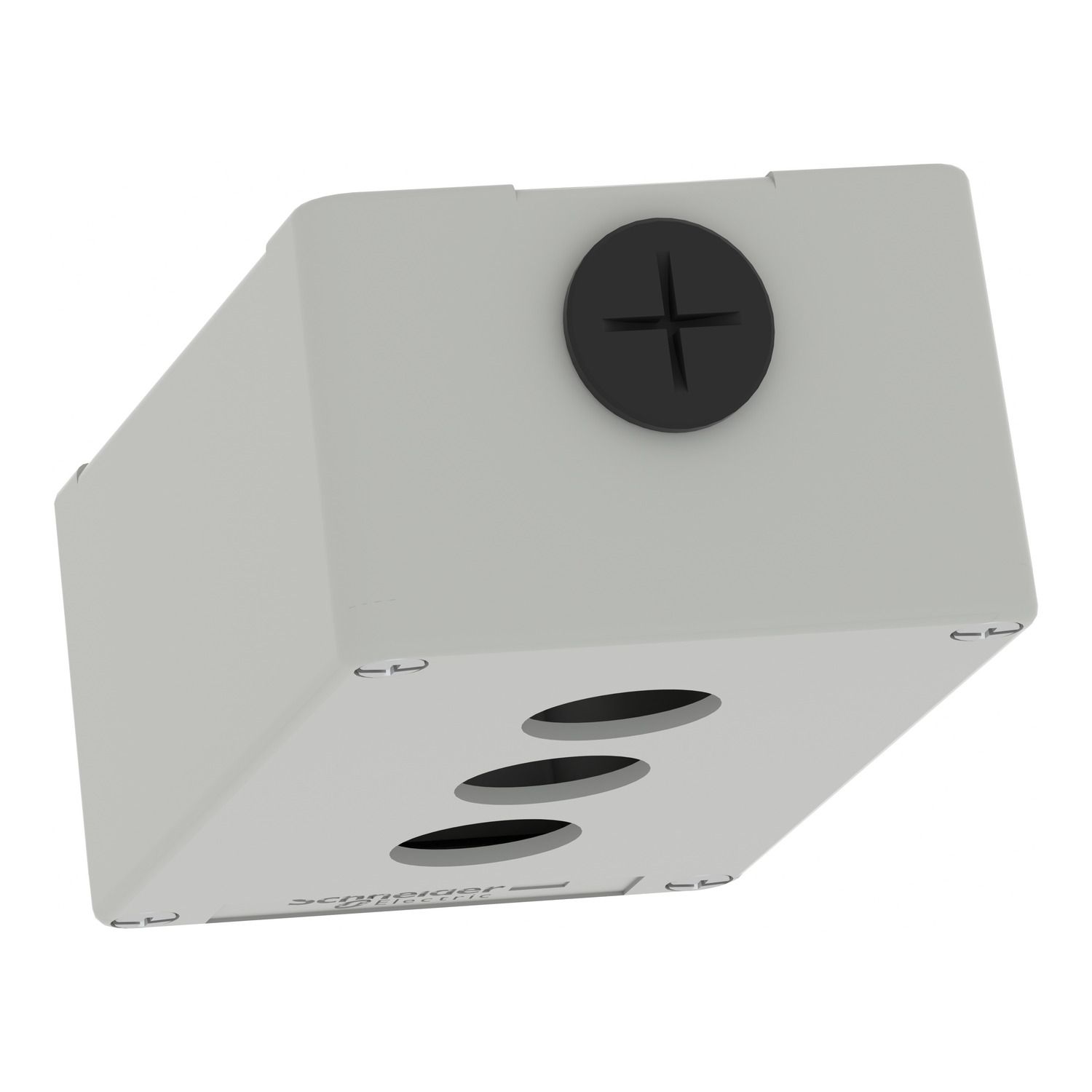

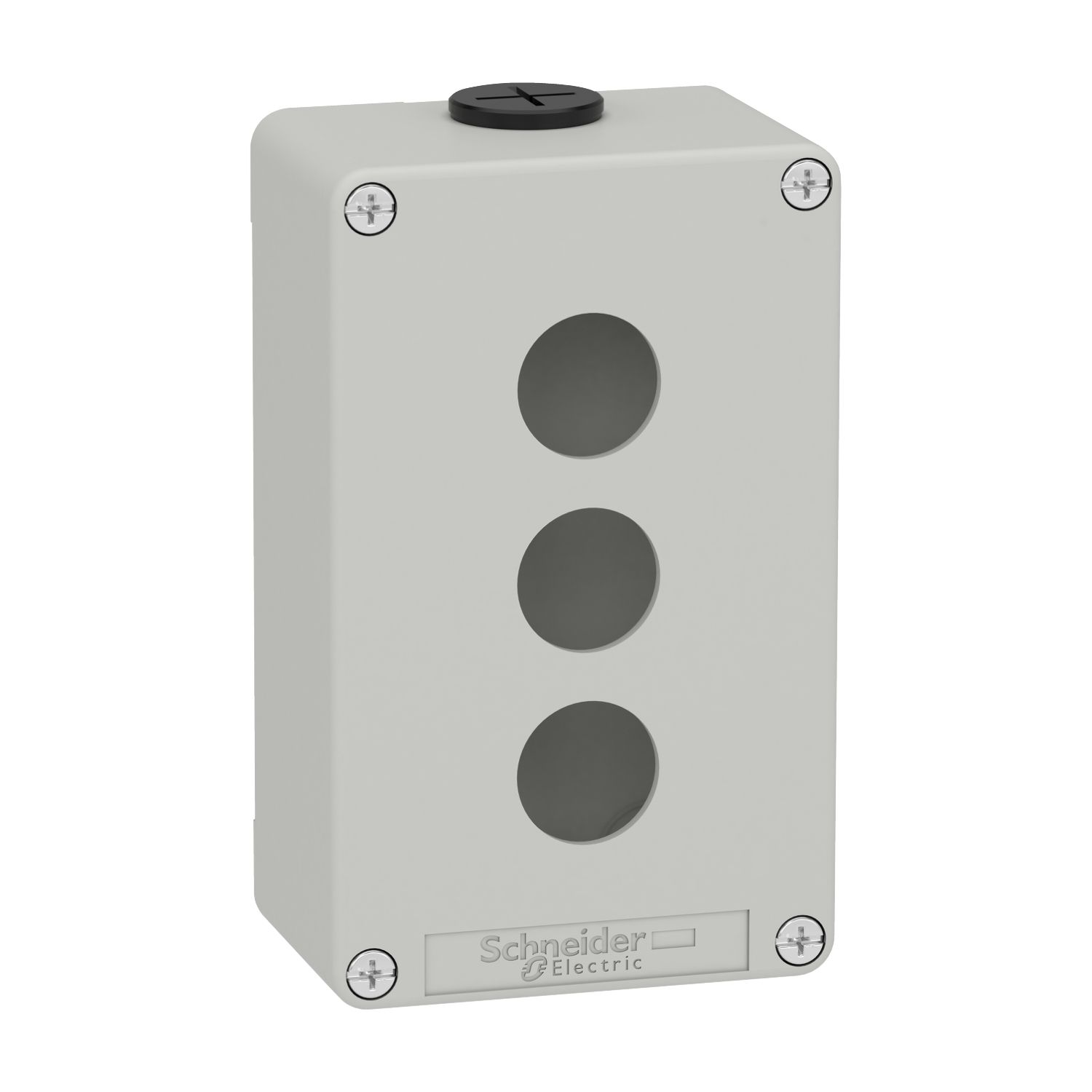

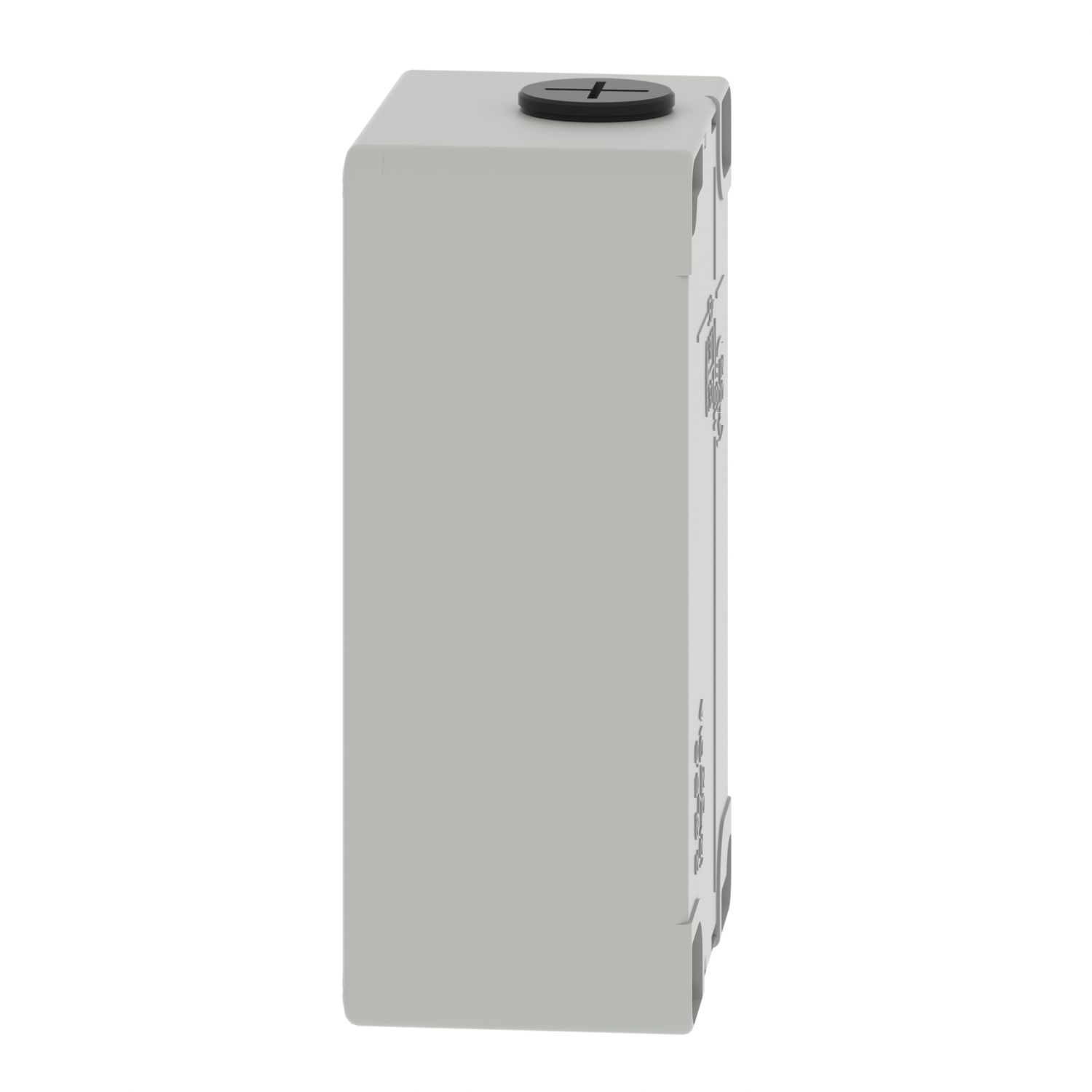

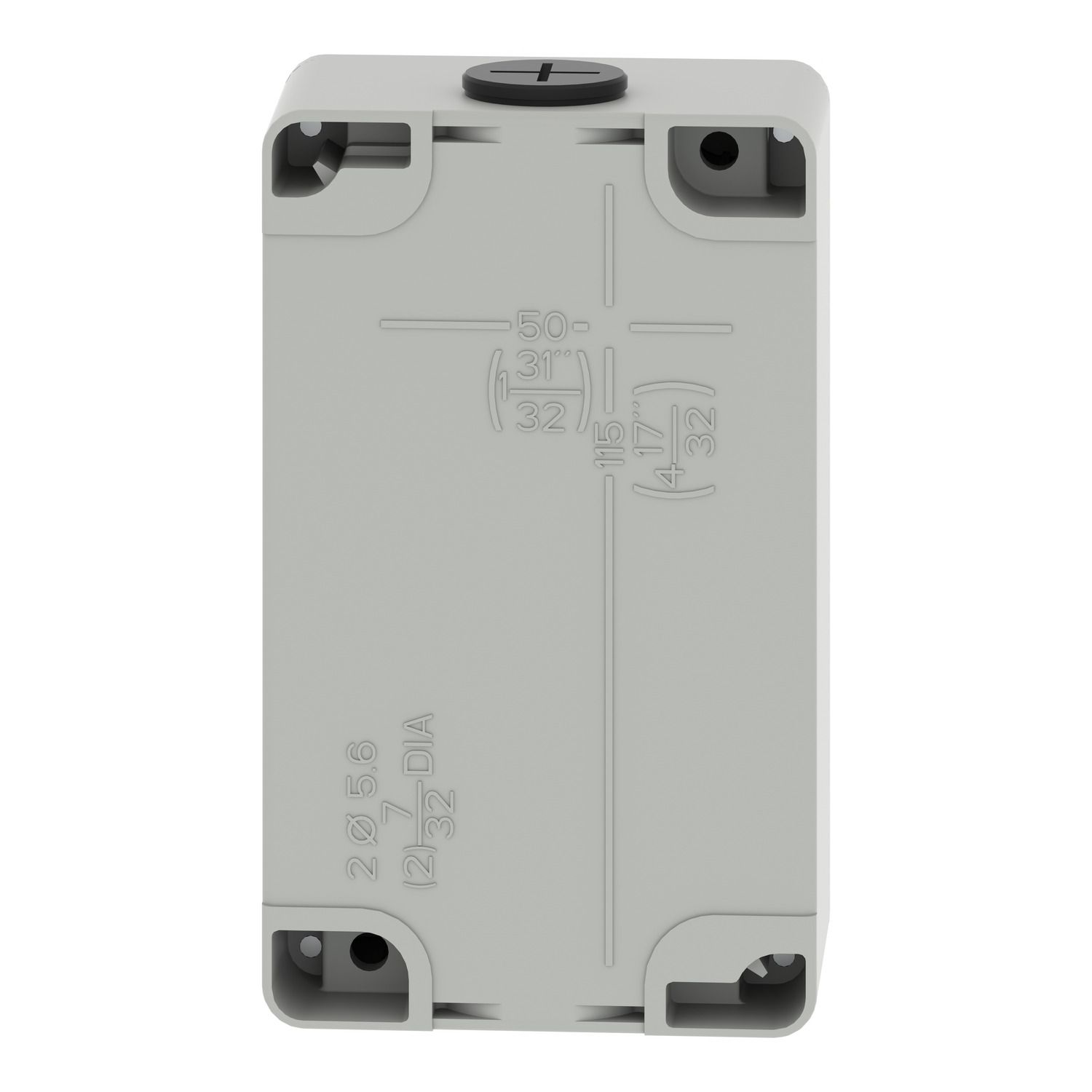

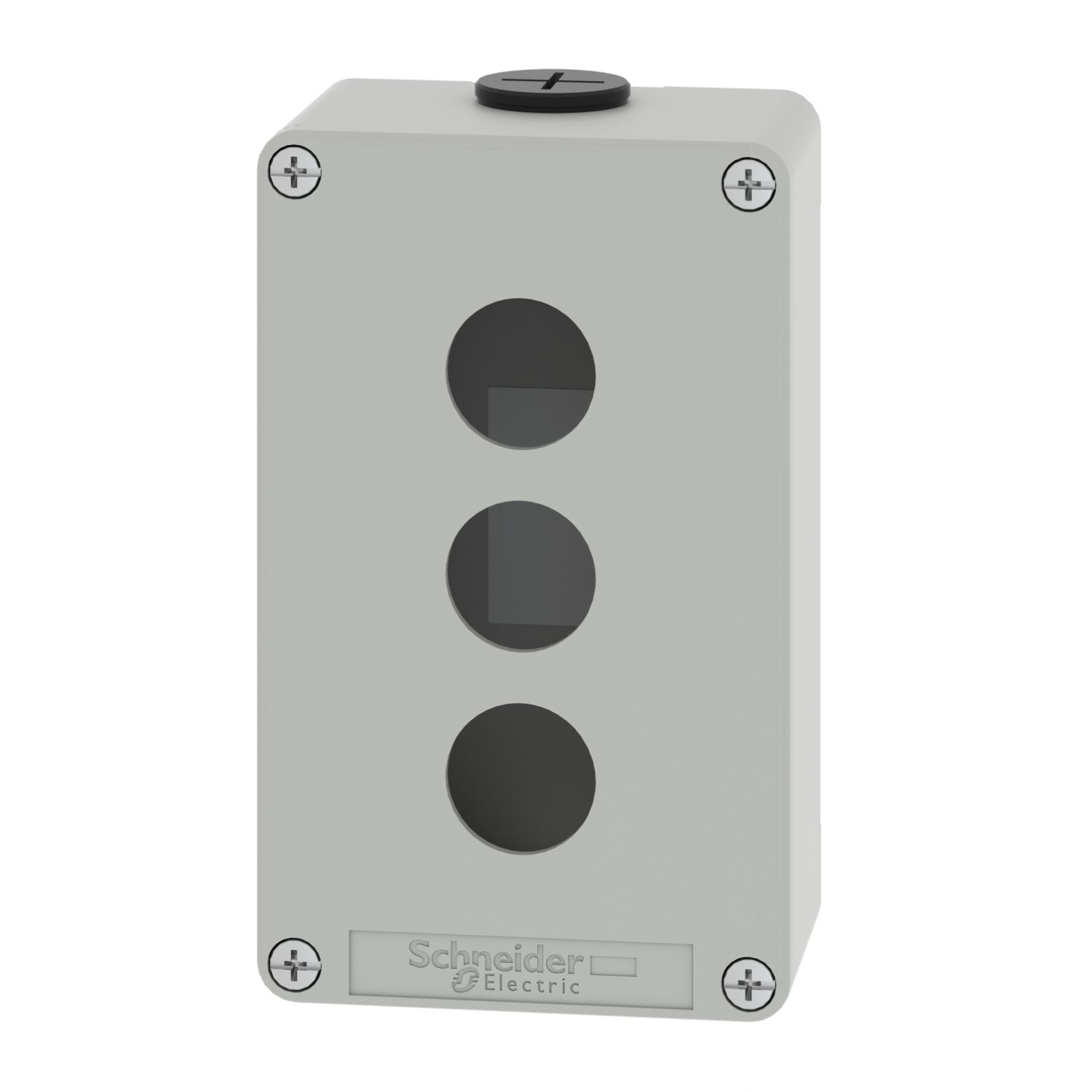

Picture of Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, 3 cut outs 22mm, 80x130x51,5mm, UL cULus
SKU:

XAPD2203

Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, 3 cut outs 22mm, 80x130x51,5mm, UL cULus

$139.54
Product Selector
Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, 3 cut outs 22mm, 80x130x51,5mm, UL cULus
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD2203 is an empty enclosure with grey color (RAL7035). This version with 3 holes hole position allows combination of XB4/XB5 functions in a small volume. The size remains compact. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M20 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 80mm (width) x 130mm (height) x 51.5mm (depth) and it weighs 0.605kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE, UL, cULus and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines It complies with directives such as RoHS, WEEE and REACh relating to environmental protection.

Products specifications

Attribute nameAttribute value
Main
Device short nameXAPD
Usable depth49 mm
Sale per indivisible quantity1
Number of cut-out3 cut-outs
Colour of covergrey (RAL 7035)
IP degree of protectionIP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1, IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1, IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Colour of base of enclosuregrey (RAL 7035)
Range of productHarmony XAP
Materialdie cast zinc
Product front plate size80 x 130 mm
Product or component typedie-cast empty control station
Product destinationfor Ø 22 mm control and signalling units
Complementary
Cut-out dimensionsØ 22 mm
Thread typeM20 x 1.5
Control station typemetal
CAD overall height130 mm
Number of vertical rows1
CAD overall depth51.5 mm
CAD overall width80 mm
Net weight0.61 kg
Cable entry2 x cable gland conforming to ISO
Number of horizontal rows3
Environment
Protective treatmentTC
Resistance to chemical agentsspecial treatment can be obtained on request
Ambient air temperature for storage-40-70 °C
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to IEC 62262
Degree of protectionUL type 4X conforming to UL 50 E, UL type 4 conforming to UL 50 E
Electrical shock protection classclass I conforming to IEC 61140
Product certificationsEAC, cULus, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.700 cm
Package 1 Width8.900 cm
Package 1 Length15.600 cm
Package 1 Weight715.000 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight8.985 kg
