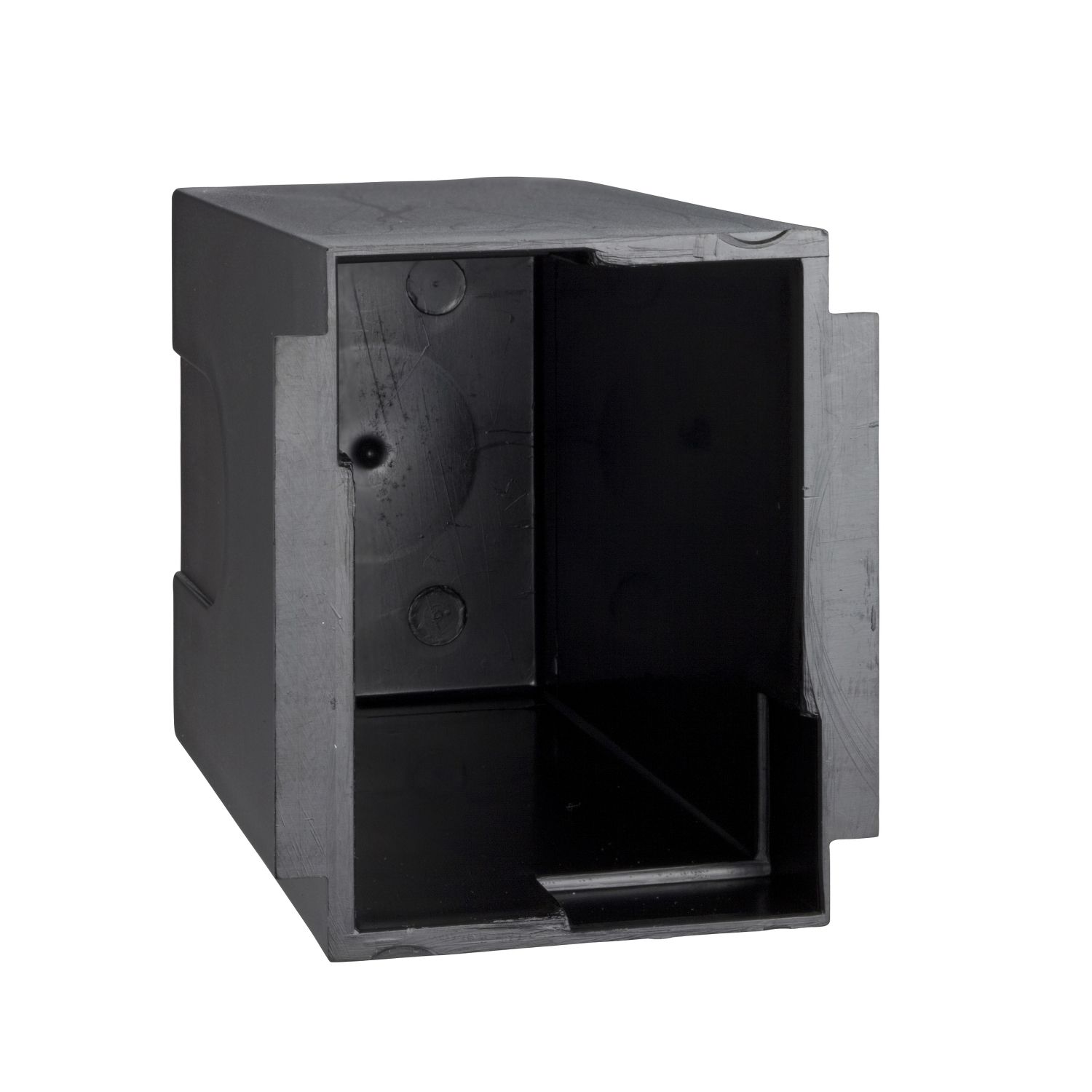

Picture of Protective rear cover, Harmony XAP, for plastron XAPE301, insulated material, without opening, IP 65
SKU:

XAPE901

Protective rear cover, Harmony XAP, for plastron XAPE301, insulated material, without opening, IP 65

Old price: $37.29 INC GST
$29.09 INC GST
Available for Shipping : 12-Jan-2026
Protective rear cover, Harmony XAP, for plastron XAPE301, insulated material, without opening, IP 65
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony XAPE protective rear cover for front plate used insulated material. It has a square shape and it is compatible with front plate XAPE301. This empty flush mounted box is designed as a protective rear cover for your control stations. It uses insulating fiberglass material and it is ideal for finger protection. It is compatible with flush front plate XAPE301. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP657, making it ideal for operation in harsh environments. It can be retrofitted with control stations to allow for finger protection. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XAPE
Resistance to chemical agents good resistant to salts, good resistant to organic acids, good resistant to oils and petrol, good resistant to diluted mineral acids, good resistant to chloride and fluoride solvents, good resistant to alcohols, good resistant to acetone
Product mounting flush mounting
IP degree of protection IP657 conforming to NF C 20-010, IP65 conforming to IEC 60529
Range of product Harmony XAP
Material insulated material
Product or component type protective rear cover
Cable entry knock-out cable entries
Product destination for front plate XAPE301
Complementary
Compatibility code XAPE
Net weight 0.04 kg
Environment
Protective treatment TH, TC
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class I conforming to NF C 20-030, class I conforming to IEC 60536
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 5.200 cm
Package 1 Length 6.000 cm
Package 1 Weight 39.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.780 kg
