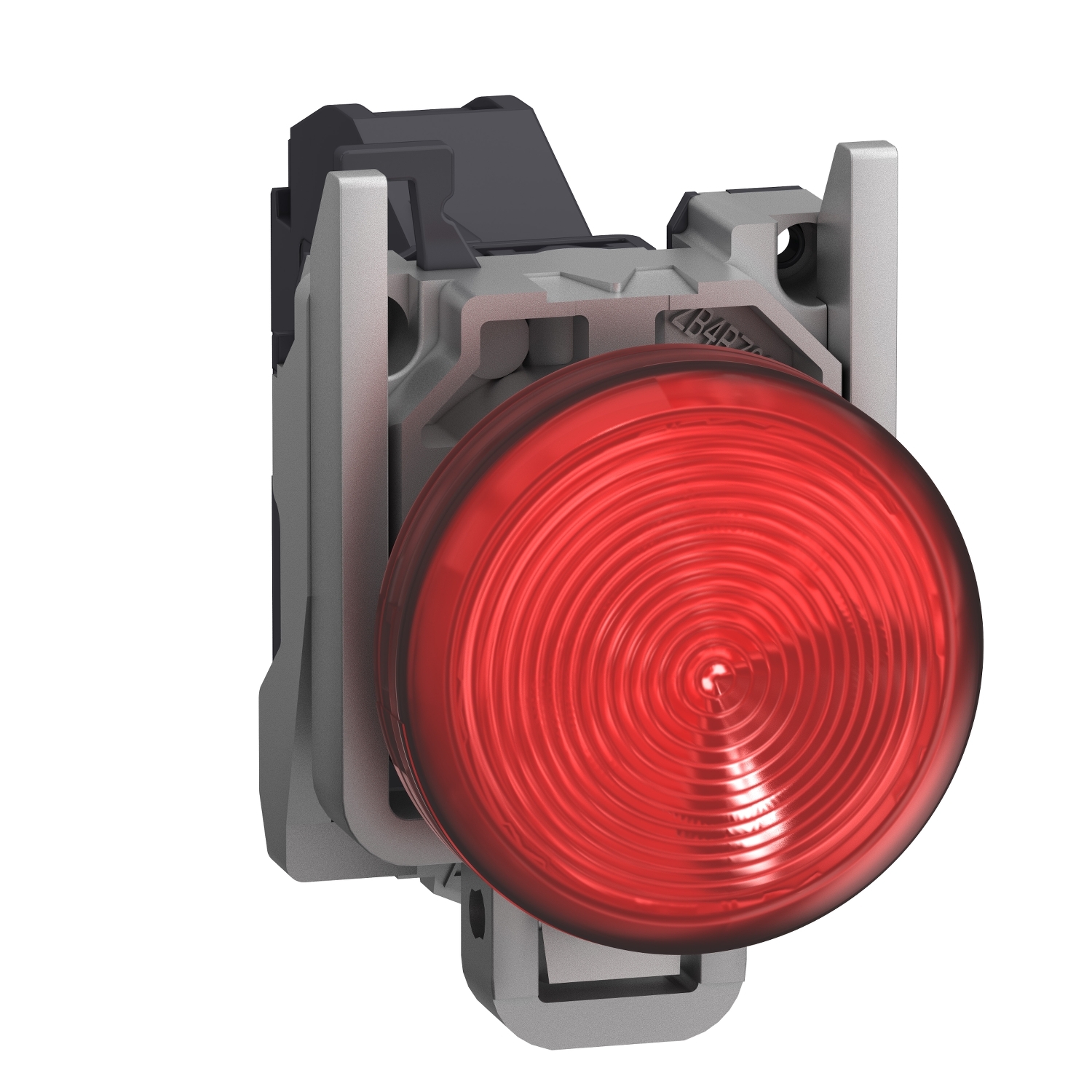

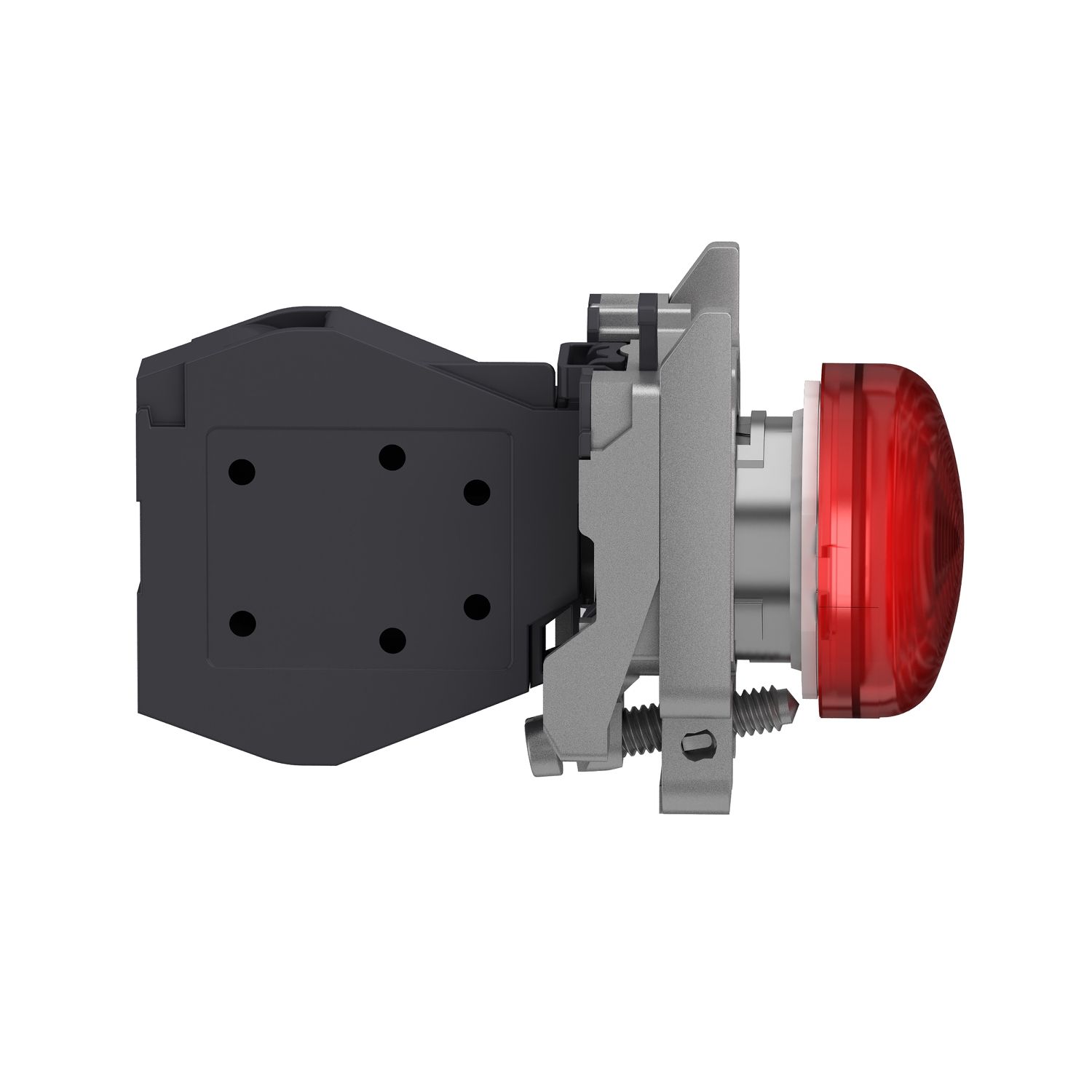

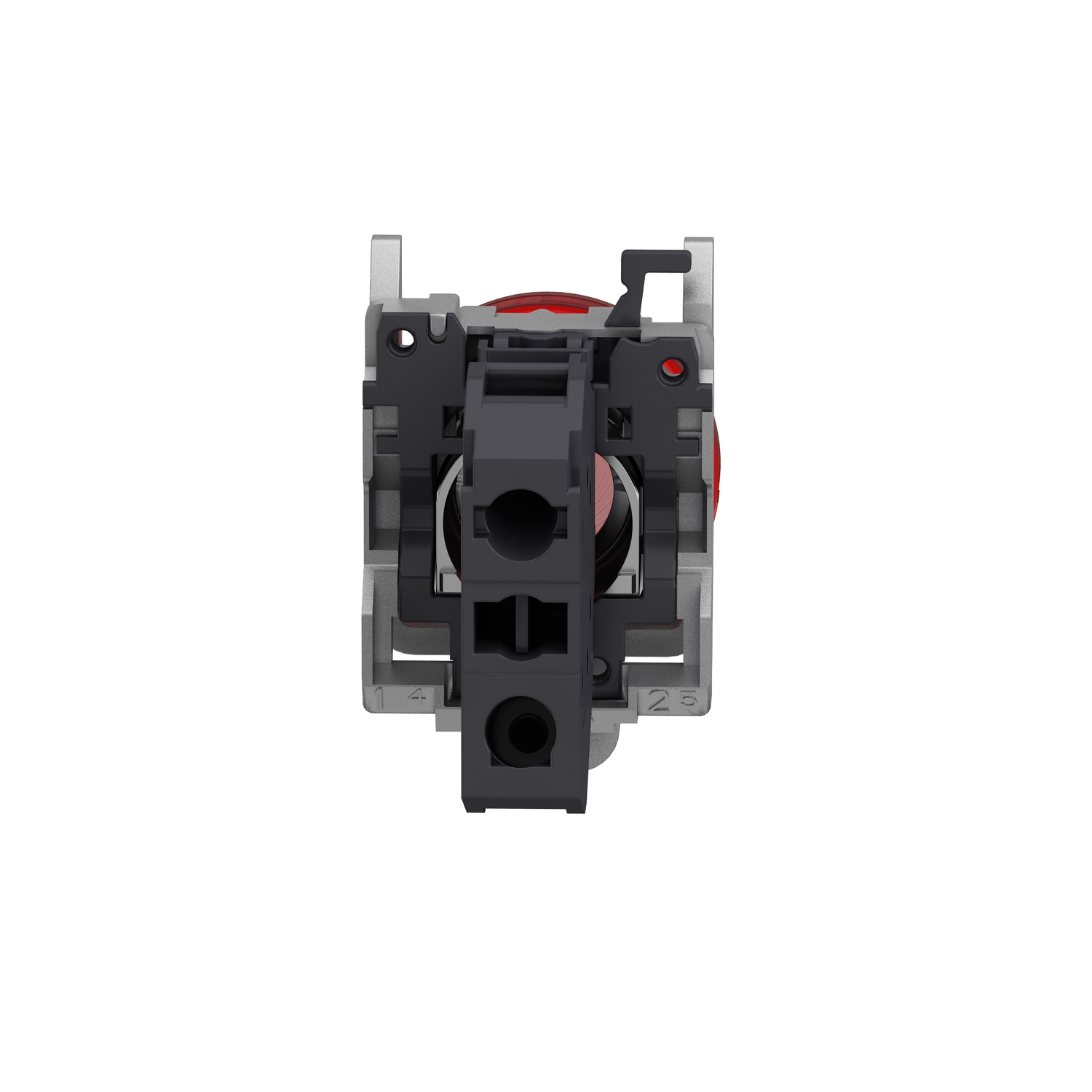

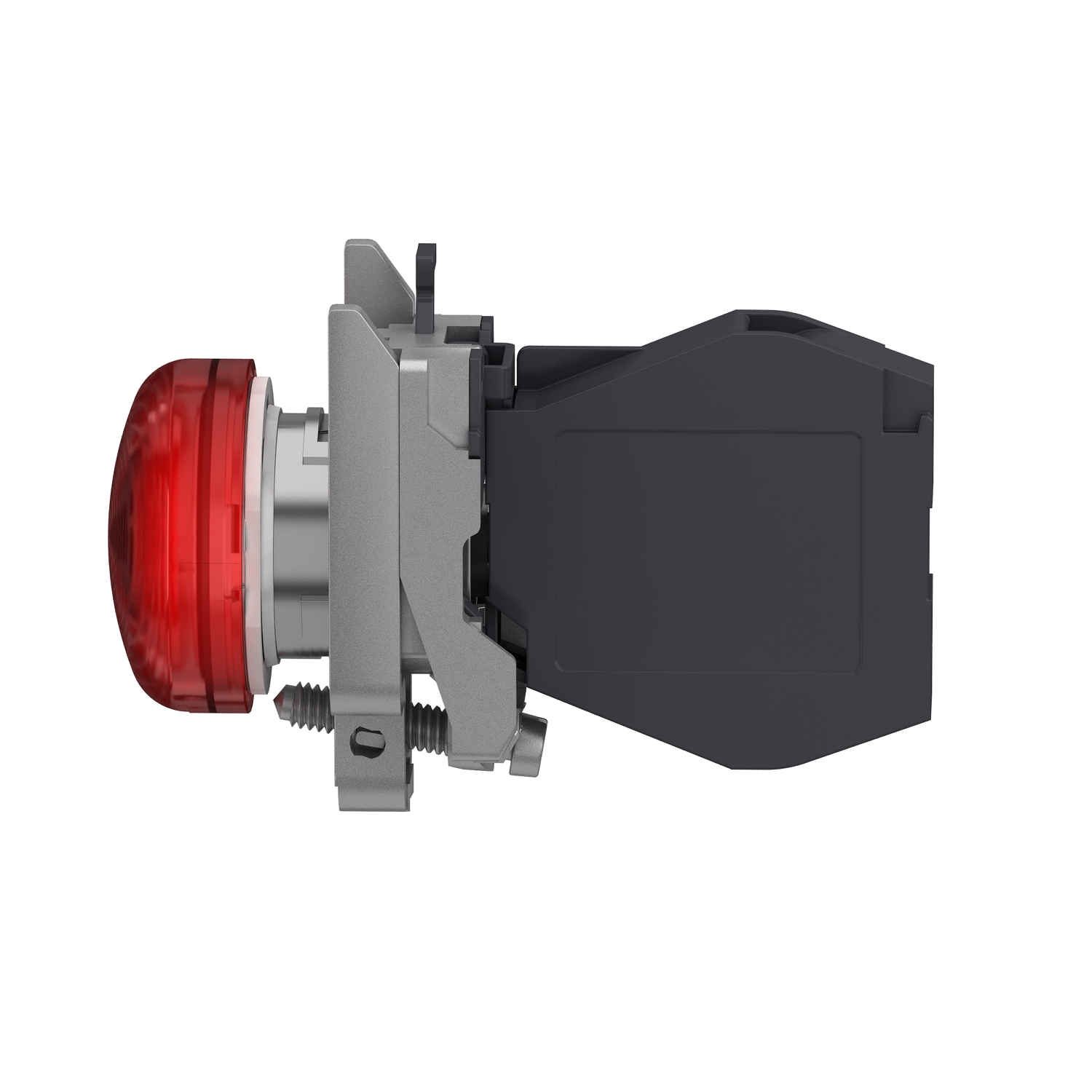

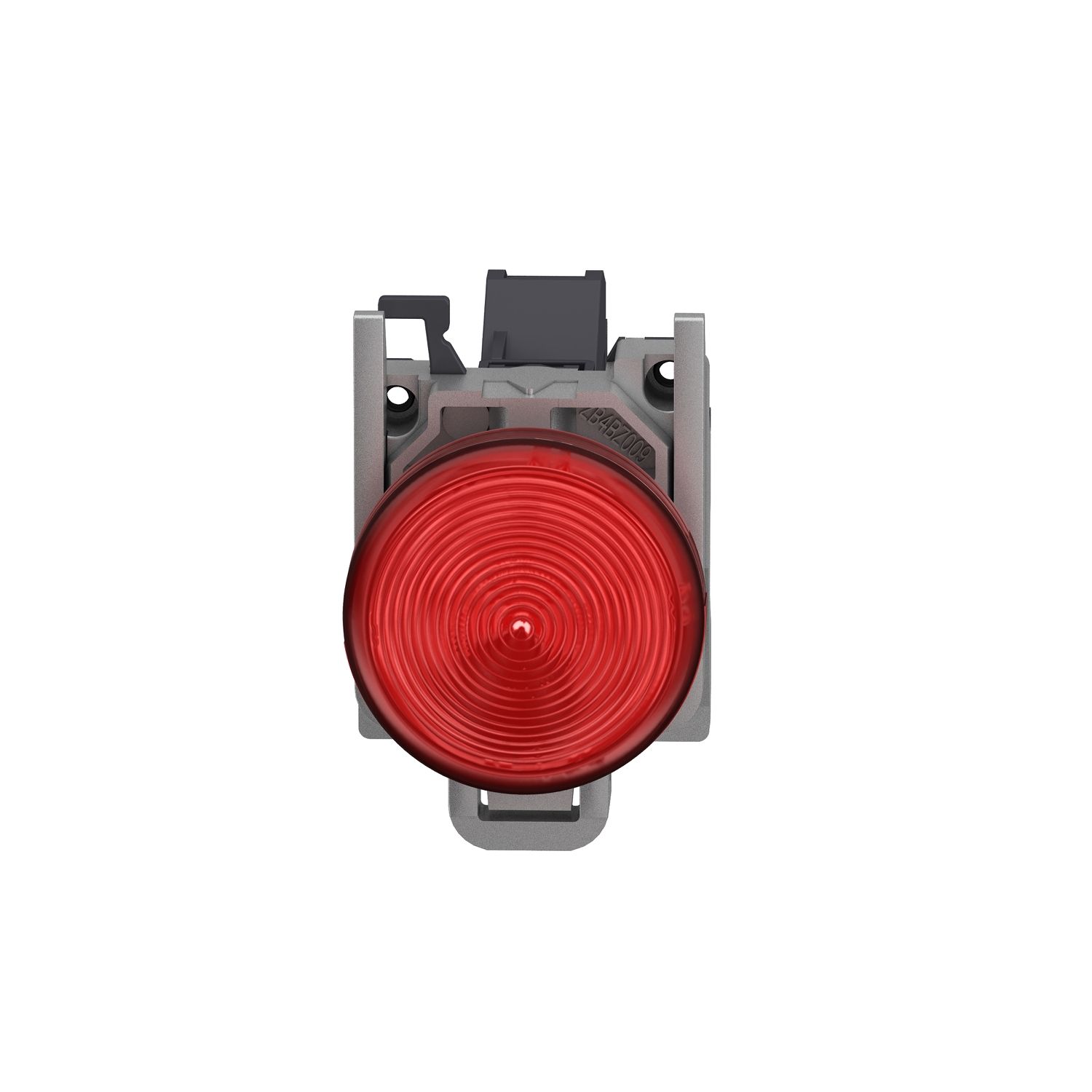

Picture of Complete pilot light, Harmony XB4 - ATEX D, red, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, red, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, red, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, red, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, red, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, red, integral LED, 24...254V
SKU:

XB4BVBM4GEX

Complete pilot light, Harmony XB4 - ATEX D, red, integral LED, 24...254V

Please Contact Sales to buy this Product. click here
Complete pilot light, Harmony XB4 - ATEX D, red, integral LED, 24...254V
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 02-Nov-2024
Image of product
Technical illustration
Instruction sheet
Image of product
Declaration of conformity
Catalogue
Image of product
Image of product
Product Page Link
Product Data Sheet
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral red LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 254V AC/DC rating. It weighs 83g. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Products specifications

Attribute nameAttribute value
Main
Device short nameXB4
Sale per indivisible quantity1
Fixing collar materialzamak
Range of productHarmony XB4
Bezel materialchromium plated metal
Gas zonezone 1 - 2
Product or component typecomplete pilot light
Mounting diameter22 mm
Dust zonezone 21 - 22
Operator additional informationwith plain lens
Complementary
Device mountingfixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to IEC 60947-1
Tightening torque0.8-1.2 N.m conforming to IEC 60947-1
Compatibility codeXB4
Light source colourwhite
Cap/operator or lens colourred
MarkingEx eb mb IIC Gb, Ex tb IIIC Db, II 2 GD
Height30 mm
Depth69 mm
Width46.2 mm
Signalling typesteady
Service life100000 h
Connections - terminalsscrew clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Net weight0.083 kg
Shape of signaling unit headround
Light sourceintegral LED
Fixing center>= 30 x 40 mm (support panel) - thickness: 1-6 mm
Embedding depth58 mm
[Us] rated supply voltage24...254 V AC/DC
Environment
Protective treatmentTH
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP65 conforming to IEC 60529
StandardsCSA C22.2 No 213, ANSI/ISA 12.12.01, UL 60079-31, UL 60079-18, UL 60079-0, IEC 60079-31:2009, EN/IEC 60079-18:2009, IEC 60079-7:2009, IEC 60079-0:2009
Ambient air temperature for operation-20-75 °C
Overvoltage categoryI conforming to IEC 60536
Product certificationsINERIS 04ATEX9003U
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.100 cm
Package 1 Width15.300 cm
Package 1 Length22.300 cm
Package 1 Weight95.000 g
