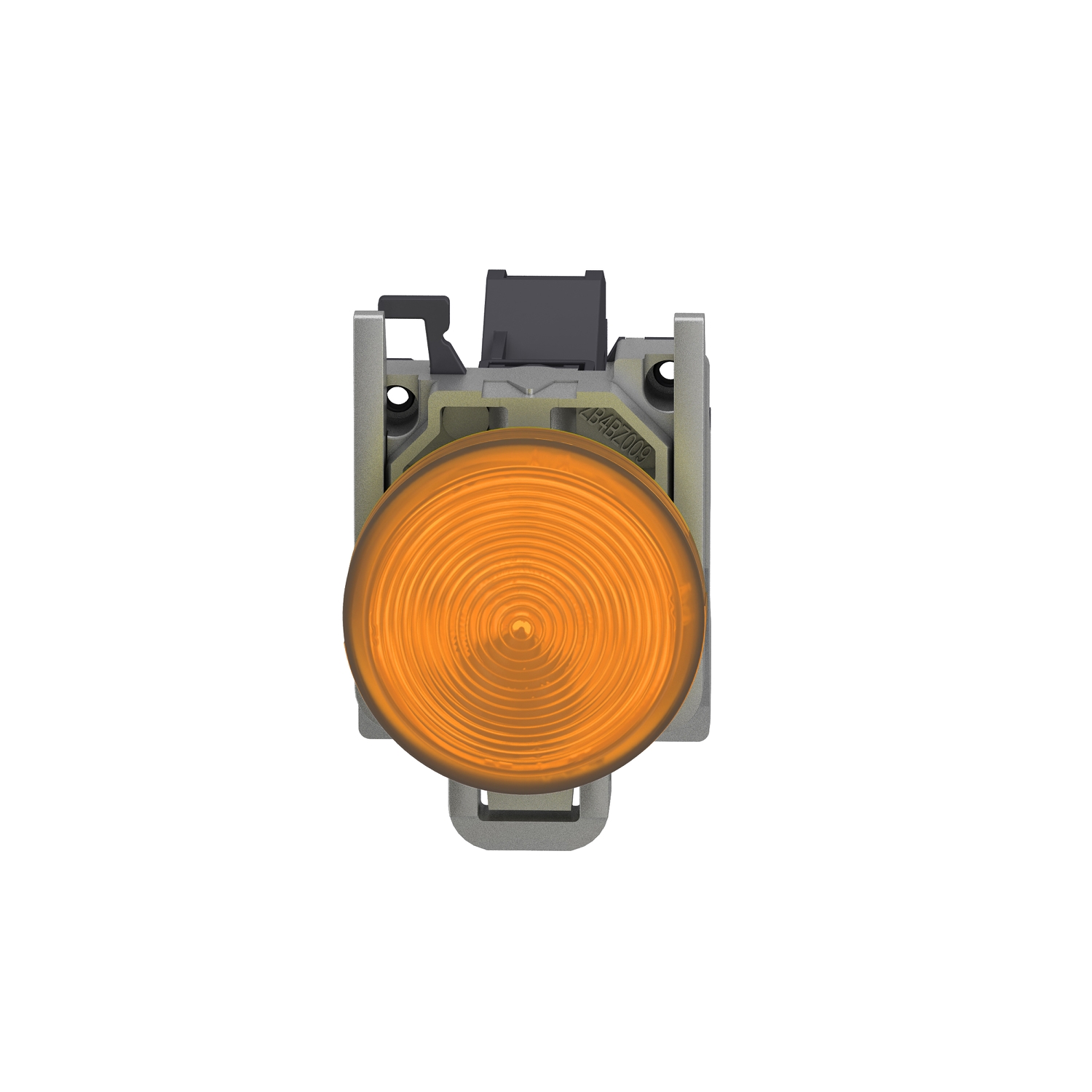

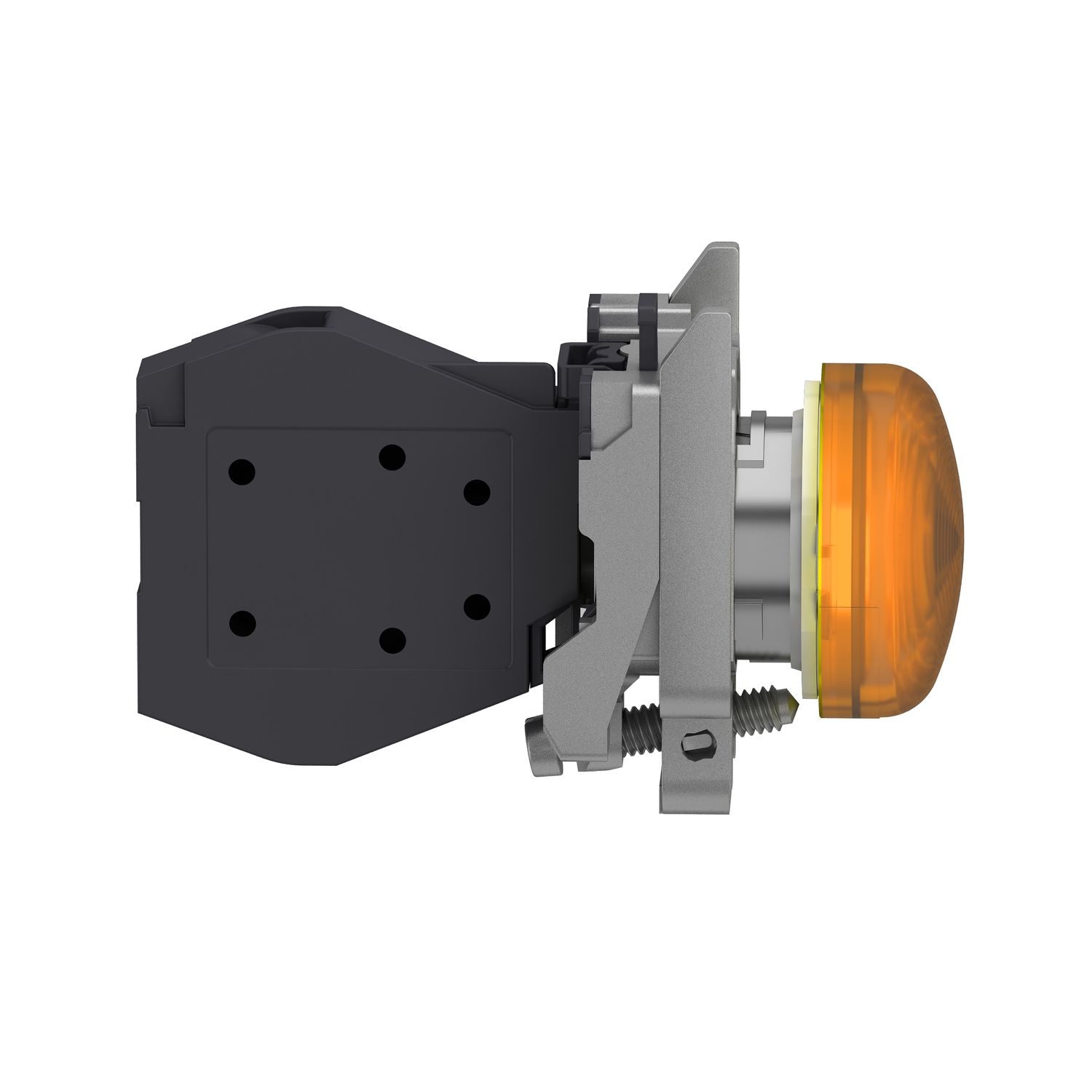

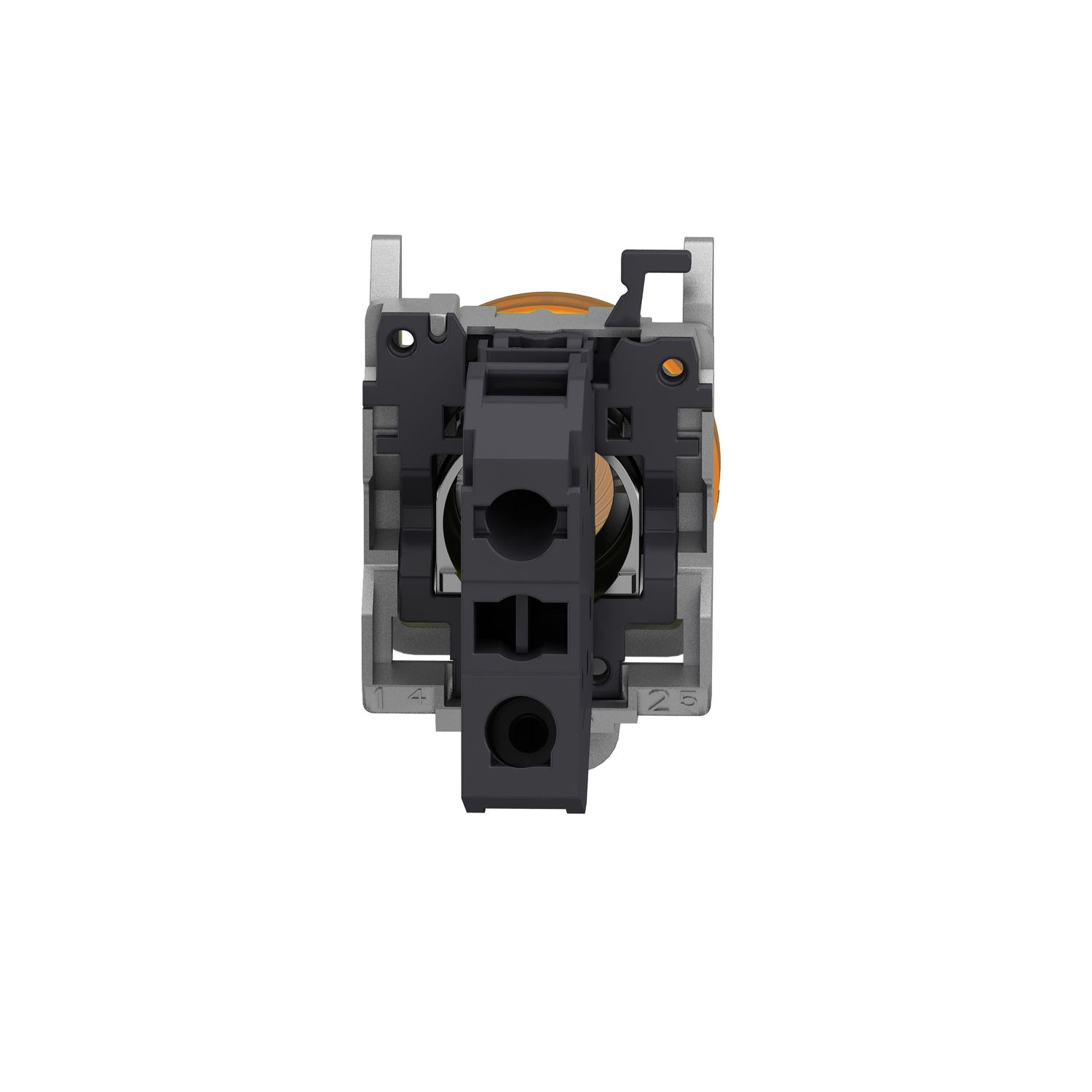

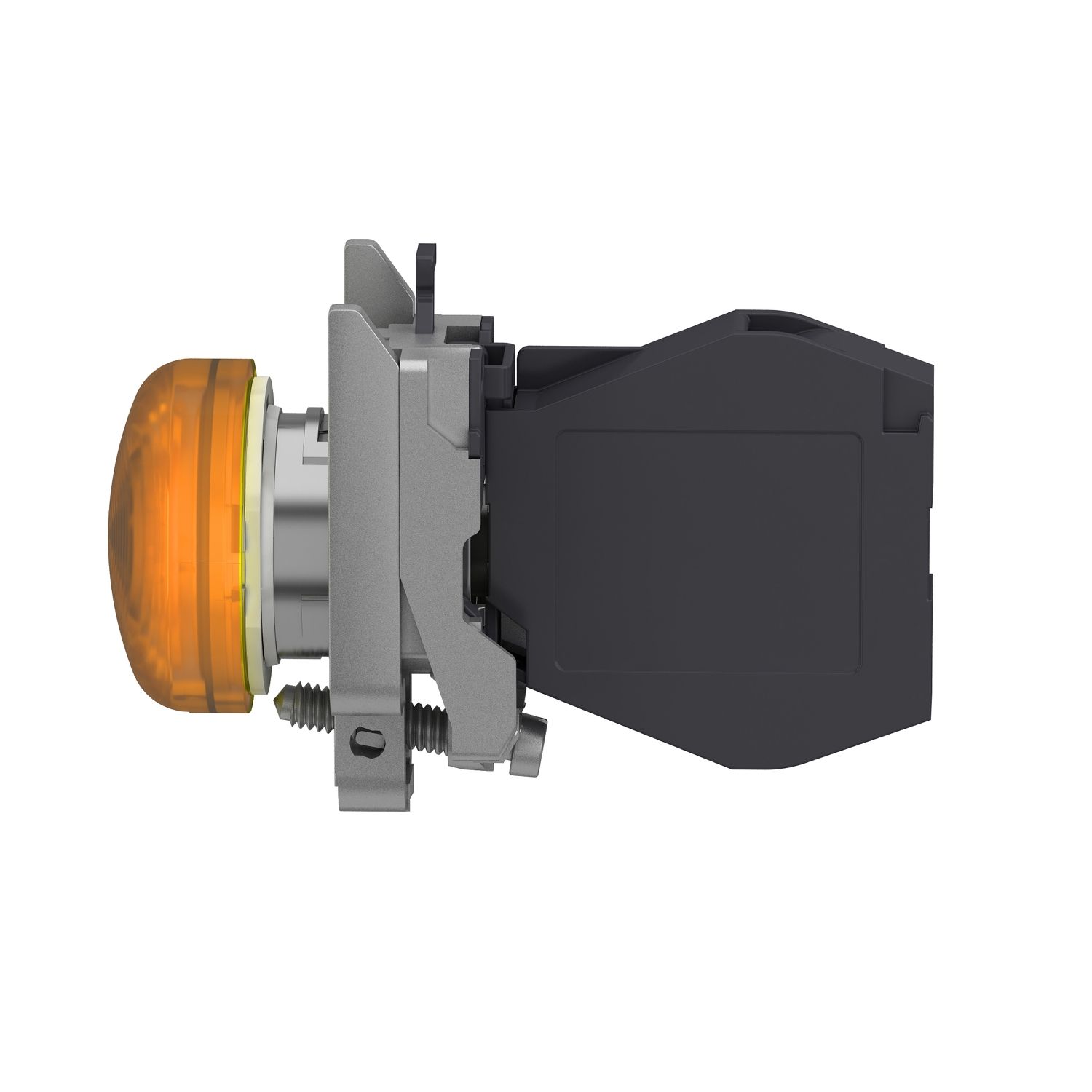

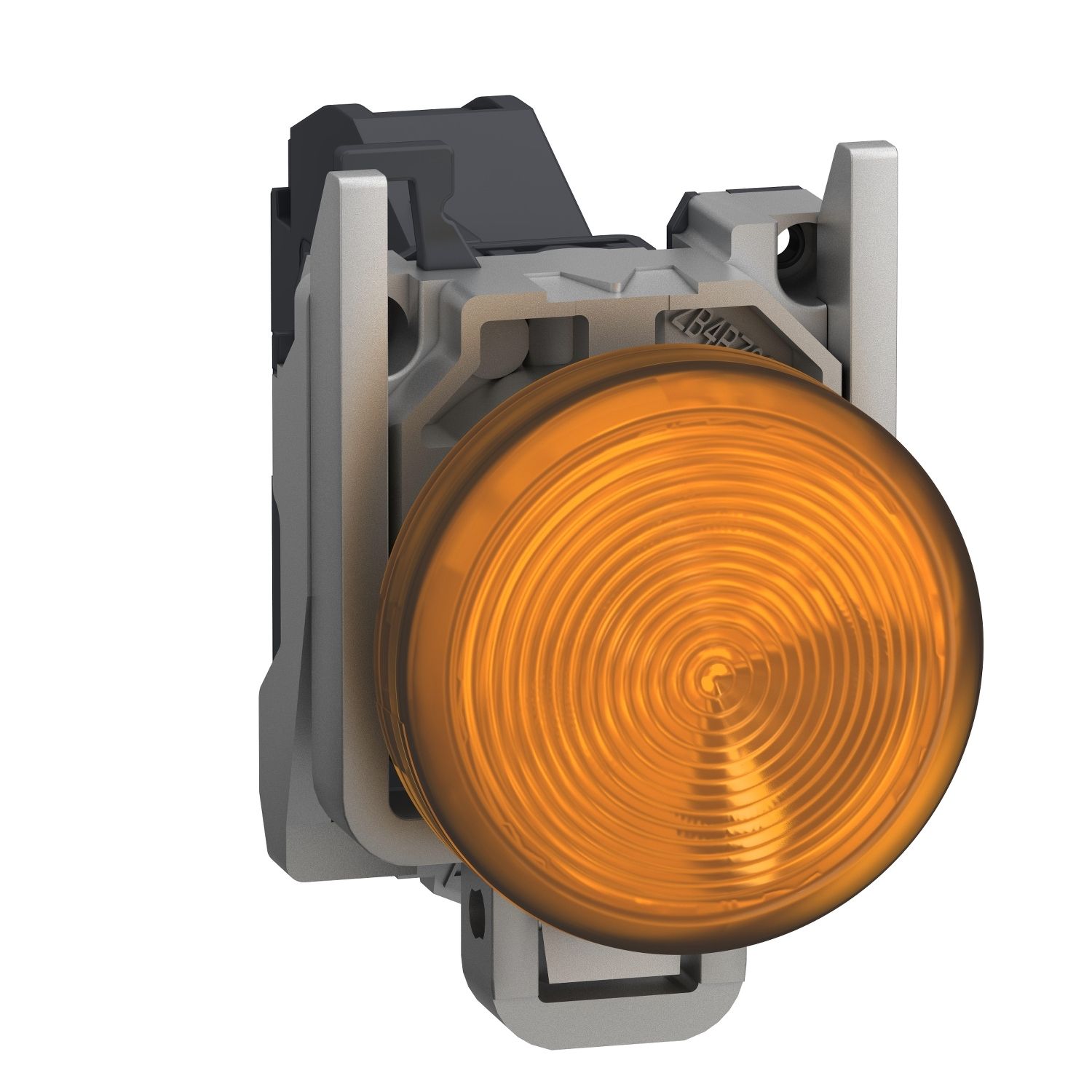

Picture of Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V
Picture of Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V
SKU:

XB4BVBM5GEX

Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V

$197.90
Available for Shipping : 05-Jan-2025
Complete pilot light, Harmony XB4 - ATEX D, orange, integral LED, 24...254V
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This complete pilot light has a circular head shape and comes with integral yellow LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This complete pilot light with plain lens provides clear visual feedback on the status of machines. This pilot light has a 24V to 254V AC/DC rating. It weighs 83g. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Products specifications

Attribute name Attribute value
Main
Device short name XB4
Sale per indivisible quantity 1
Fixing collar material zamak
Range of product Harmony XB4
Bezel material chromium plated metal
Gas zone zone 1 - 2
Product or component type complete pilot light
Mounting diameter 22 mm
Dust zone zone 21 - 22
Operator additional information with plain lens
Complementary
Device mounting fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to IEC 60947-1
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code XB4
Light source colour white
Cap/operator or lens colour orange
Marking Ex eb mb IIC Gb, II 2 GD, Ex tb IIIC Db
Height 30 mm
Depth 69 mm
Width 46.2 mm
Signalling type steady
Service life 100000 h
Connections - terminals screw clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Net weight 0.083 kg
Shape of signaling unit head round
Light source integral LED
Fixing center >= 30 x 40 mm (support panel) - thickness: 1-6 mm
Embedding depth 58 mm
[Us] rated supply voltage 24...254 V AC/DC
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Standards CSA C22.2 No 213, ANSI/ISA 12.12.01, UL 60079-31, UL 60079-18, UL 60079-0, IEC 60079-31:2009, EN/IEC 60079-18:2009, IEC 60079-7:2009, IEC 60079-0:2009
Ambient air temperature for operation -20-75 °C
Overvoltage category I conforming to IEC 60536
Product certifications INERIS 04ATEX9003U
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 10.5 cm
Package 1 Length 15.0 cm
Package 1 Weight 106.0 g
