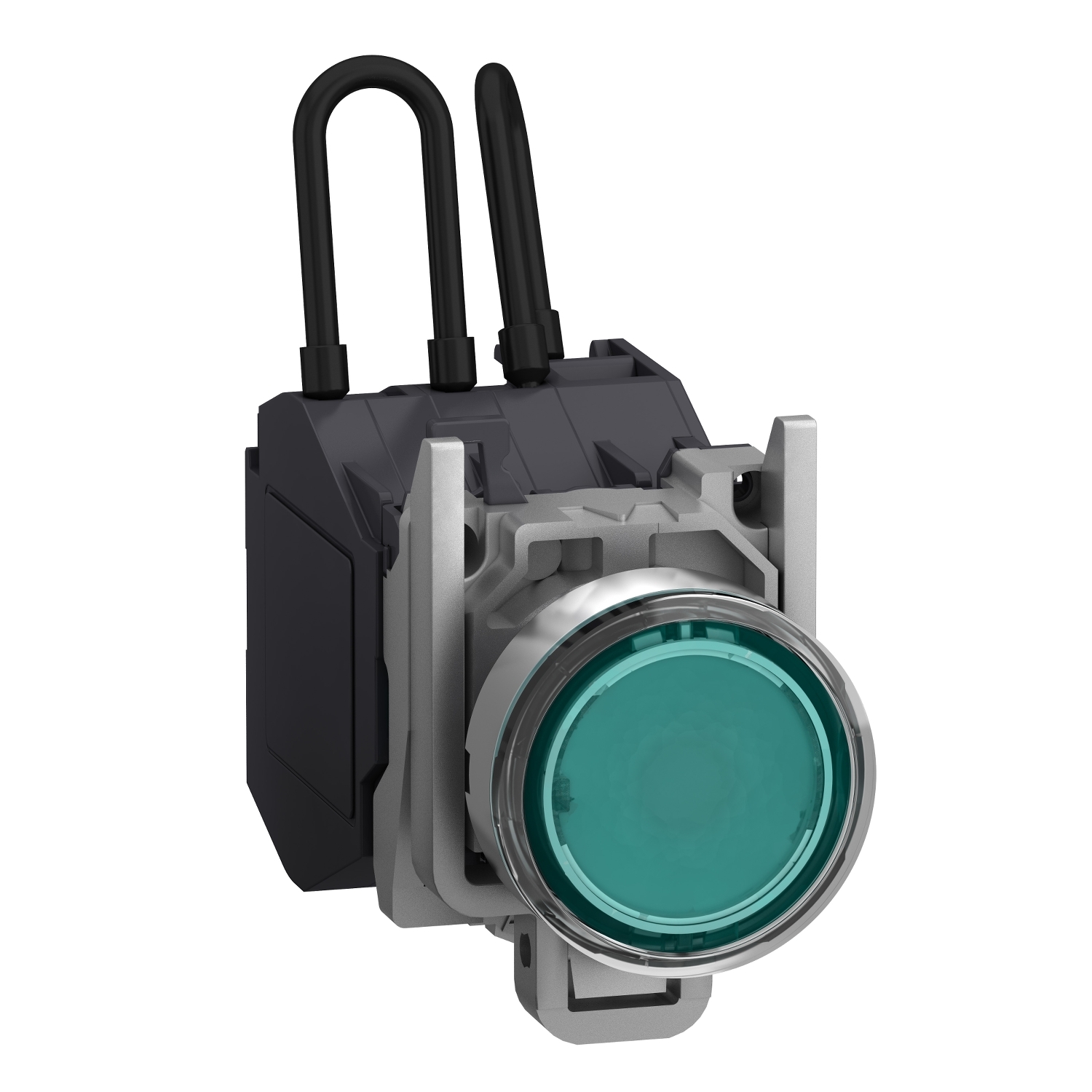

Picture of Push to test pilot light, Harmony XB4, Explosive atmosphere, 24...254V, Green
SKU:

XB4BW23BM5GEX

Push to test pilot light, Harmony XB4, Explosive atmosphere, 24...254V, Green

Please Contact Sales to buy this Product. click here
Push to test pilot light, Harmony XB4, Explosive atmosphere, 24...254V, Green
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 02-Nov-2024
Instruction sheet
End of life manual
Declaration of conformity
Catalogue
Product environmental
Technical illustration
Product Page Link
Product Data Sheet
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This push-to-test pilot light has a circular head shape and comes with integral green LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pilot light with plain lens provides clear visual feedback on the status of machines. It comes with 1 NO contact with slow-break operation. This pilot light has a 24V to 254V AC/DC rating. It has a chromium plated metal bezal. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Products specifications

Attribute nameAttribute value
Main
Device short nameXB4
Range of productHarmony XB4
Bezel materialchromium plated metal
Product or component typepush-to-test pilot light
Complementary
Device mountingfixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to IEC 60947-1
Tightening torque0.8-1.2 N.m conforming to IEC 60947-1
Compatibility codeXB4
Mechanical durability5000000 cycles
Contact operationslow-break
[Ie] rated operational current2.87 A at 24 V, DC, Q300 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC, Q300 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC, Q300 conforming to IEC 60947-5-1, 6 A at 120 V, AC, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC, A600 conforming to IEC 60947-5-1, 1.9 A at 380 V, AC, A600 conforming to IEC 60947-5-1
Sale per indivisible quantity1
Fixing collar materialzamak
Cap/operator or lens colourgreen
MarkingEx db eb mb IIC Gb, II 2 GD, Ex tb IIIC Db
Operating travel4.452 mm (total travel), 4.622 mm (changing state point), 1.657 mm (engagement point)
Operating force3.962 N
Height30 mm
[Us] rated supply voltage24...254 V, 24...254 V AC/DC
Depth72 mm
Width46.2 mm
Signalling typesteady
[Ui] rated insulation voltage415 V
Service life100000 h
Contacts type and composition1 NO
Connections - terminalsscrew clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Current consumption2...10 mA
Net weight0.117 kg
Shape of signaling unit headround
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Mounting diameter22 mm
Positive openingwithout
Light sourceintegral LED
Fixing center>= 30 x 40 mm (support panel) - thickness: 1-6 mm
Embedding depth58 mm
Operator additional informationbooted (clear silicon)
Environment
Protective treatmentTH
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP66 conforming to IEC 60529
StandardsCSA C22.2 No 213, ANSI/ISA 12.12.01, UL 60079-31, UL 60079-18, UL 60079-0, IEC 60079-31:2009, EN/IEC 60079-18:2009, IEC 60079-7:2009, IEC 60079-0:2009
Ambient air temperature for operation-20-75 °C
Overvoltage categoryI conforming to IEC 60536
Gas zonezone 1 - 2
Dust zonezone 21 - 22
Product certificationsINERIS 04ATEX9004U
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.2 cm
Package 1 Width3.0 cm
Package 1 Length4.6 cm
Package 1 Weight126.0 g
