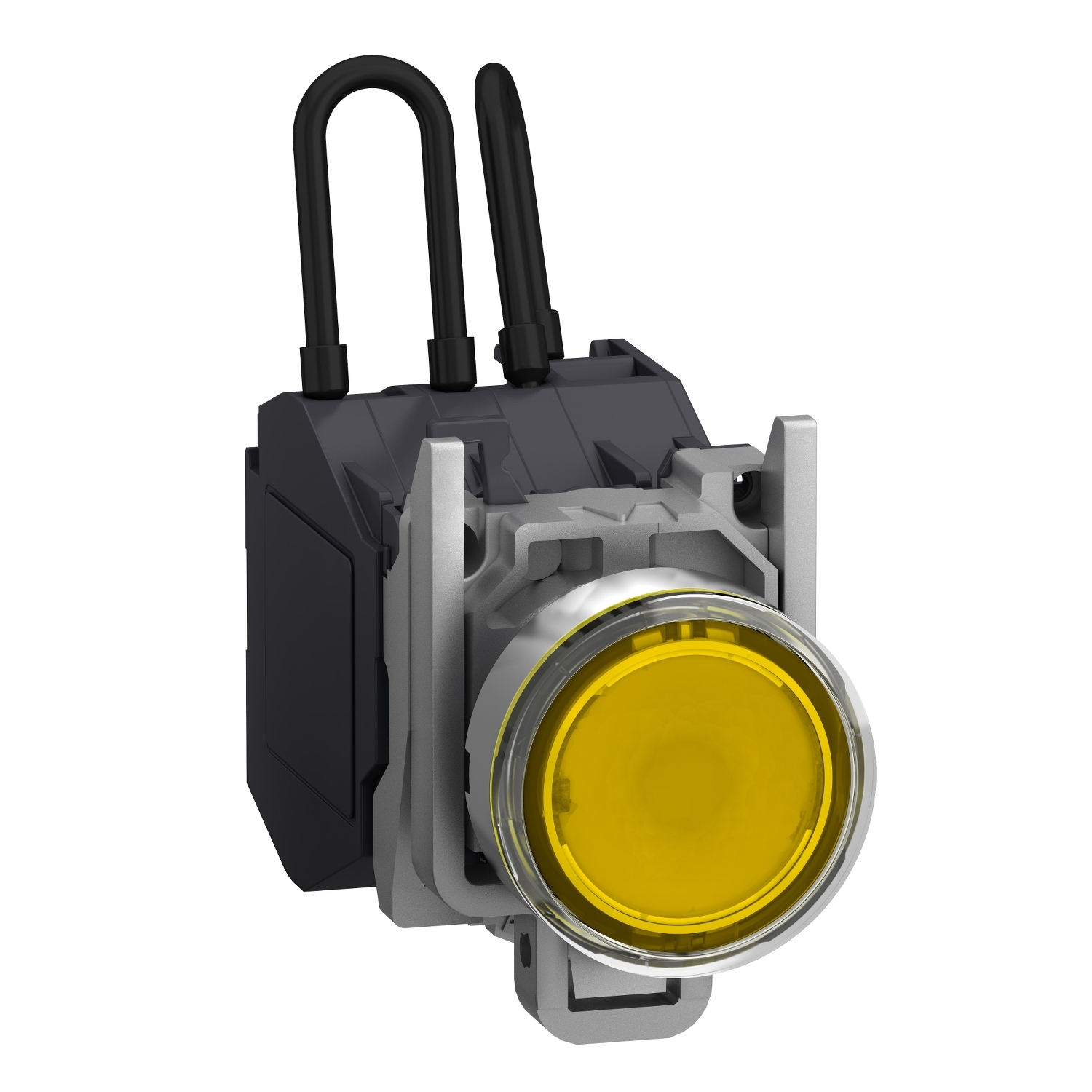

Picture of Push to test pilot light, Harmony XB4 - ATEX D, metal, orange, 22mm, integral LED, 1NO, 24…254V
SKU:

XB4BW25BM5GEX

Push to test pilot light, Harmony XB4 - ATEX D, metal, orange, 22mm, integral LED, 1NO, 24…254V

$380.04
Available for Shipping : 05-Jan-2025
Push to test pilot light, Harmony XB4 - ATEX D, metal, orange, 22mm, integral LED, 1NO, 24…254V
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Declaration of conformity
Catalogue
Product environmental
Technical illustration
Product Page Link
Product Data Sheet
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This push-to-test pilot light has a circular head shape and comes with integral orange LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pilot light with plain lens provides clear visual feedback on the status of machines. It comes with 1 NO contact with slow-break operation. This pilot light has a 24V to 254V AC/DC rating. It has a chromium plated metal bezal. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Products specifications

Attribute name Attribute value
Main
Device short name XB4
Range of product Harmony XB4
Bezel material chromium plated metal
Product or component type push-to-test pilot light
Complementary
Device mounting fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to IEC 60947-1
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code XB4
Mechanical durability 5000000 cycles
Contact operation slow-break
[Ie] rated operational current 2.87 A at 24 V, DC, Q300 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC, Q300 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC, Q300 conforming to IEC 60947-5-1, 6 A at 120 V, AC, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC, A600 conforming to IEC 60947-5-1, 1.9 A at 380 V, AC, A600 conforming to IEC 60947-5-1
Sale per indivisible quantity 1
Fixing collar material zamak
Cap/operator or lens colour orange
Marking Ex db eb mb IIC Gb, Ex tb IIIC Db, II 2 GD
Operating travel 4.452 mm (total travel), 4.622 mm (changing state point), 1.657 mm (engagement point)
Operating force 3.962 N
Height 30 mm
[Us] rated supply voltage 24...254 V, 24...254 V AC/DC
Depth 72 mm
Width 46.2 mm
Signalling type steady
[Ui] rated insulation voltage 415 V
Service life 100000 h
Contacts type and composition 1 NO
Connections - terminals screw clamp terminals, 1 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Current consumption 2...10 mA
Net weight 0.117 kg
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Mounting diameter 22 mm
Positive opening without
Light source integral LED
Fixing center >= 30 x 40 mm (support panel) - thickness: 1-6 mm
Embedding depth 58 mm
Operator additional information booted (clear silicon)
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Standards CSA C22.2 No 213, ANSI/ISA 12.12.01, UL 60079-31, UL 60079-18, UL 60079-0, IEC 60079-31:2009, EN/IEC 60079-18:2009, IEC 60079-7:2009, IEC 60079-0:2009
Ambient air temperature for operation -20-75 °C
Overvoltage category I conforming to IEC 60536
Gas zone zone 1 - 2
Dust zone zone 21 - 22
Product certifications INERIS 04ATEX9004U
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.2 cm
Package 1 Width 3.0 cm
Package 1 Length 4.6 cm
Package 1 Weight 126.0 g
