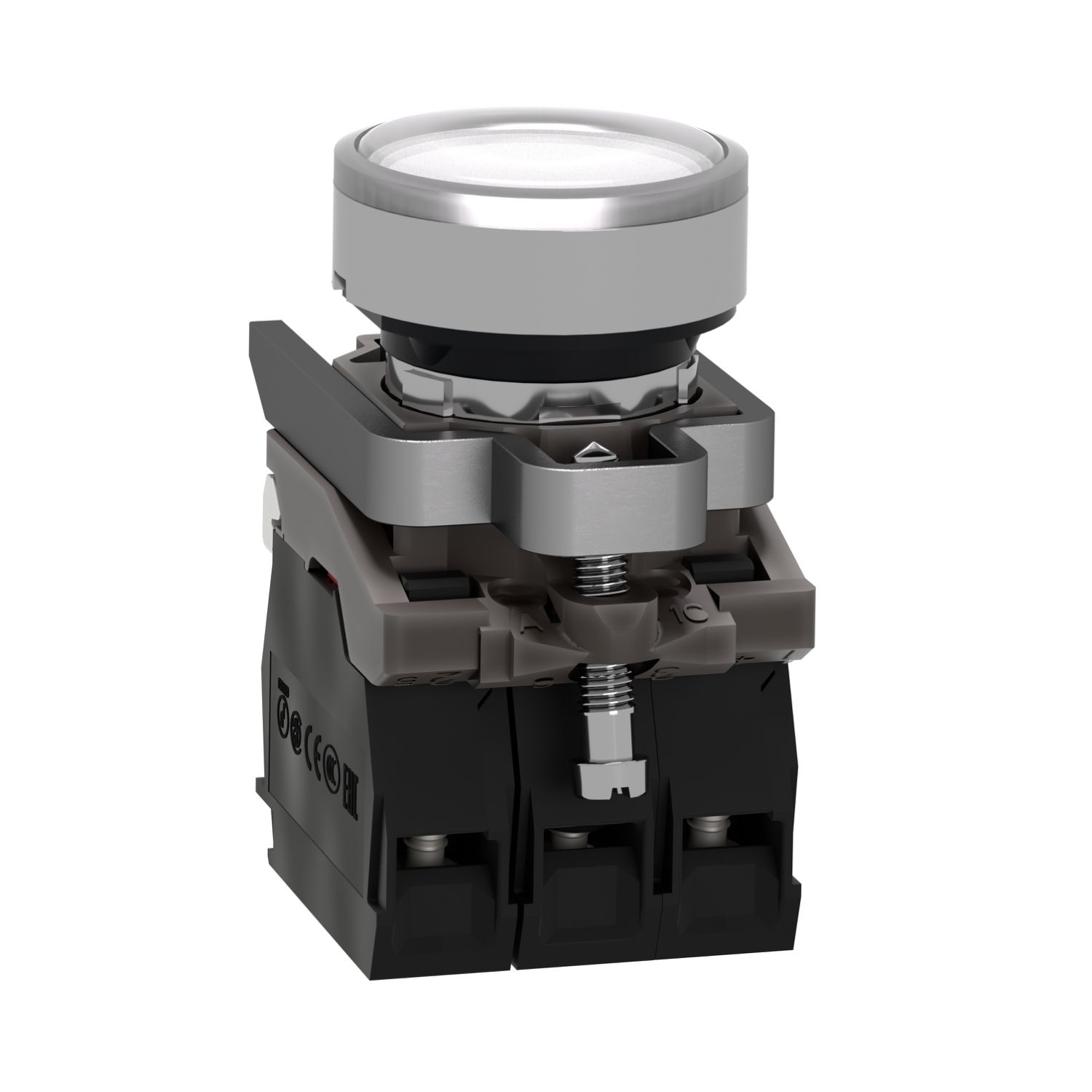

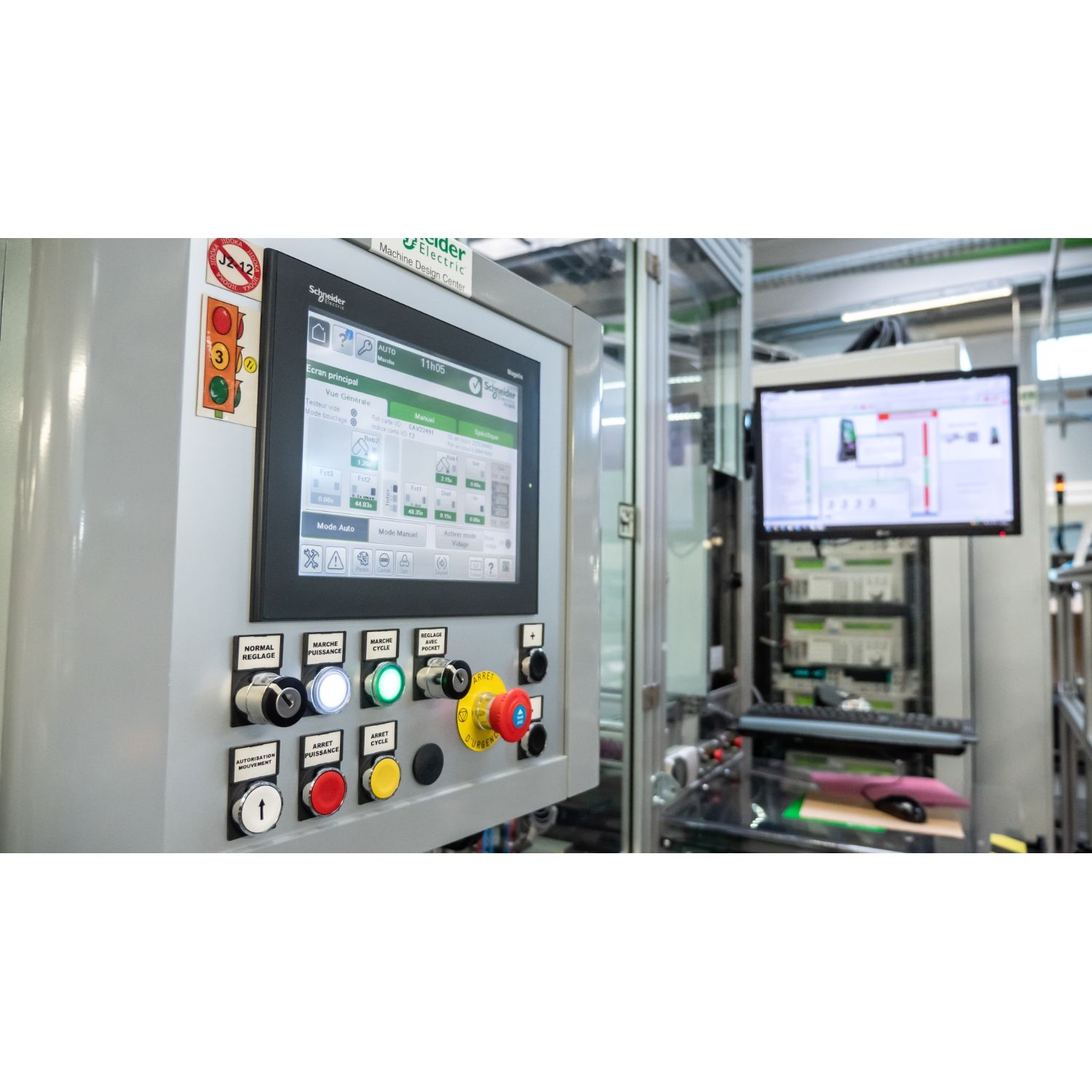

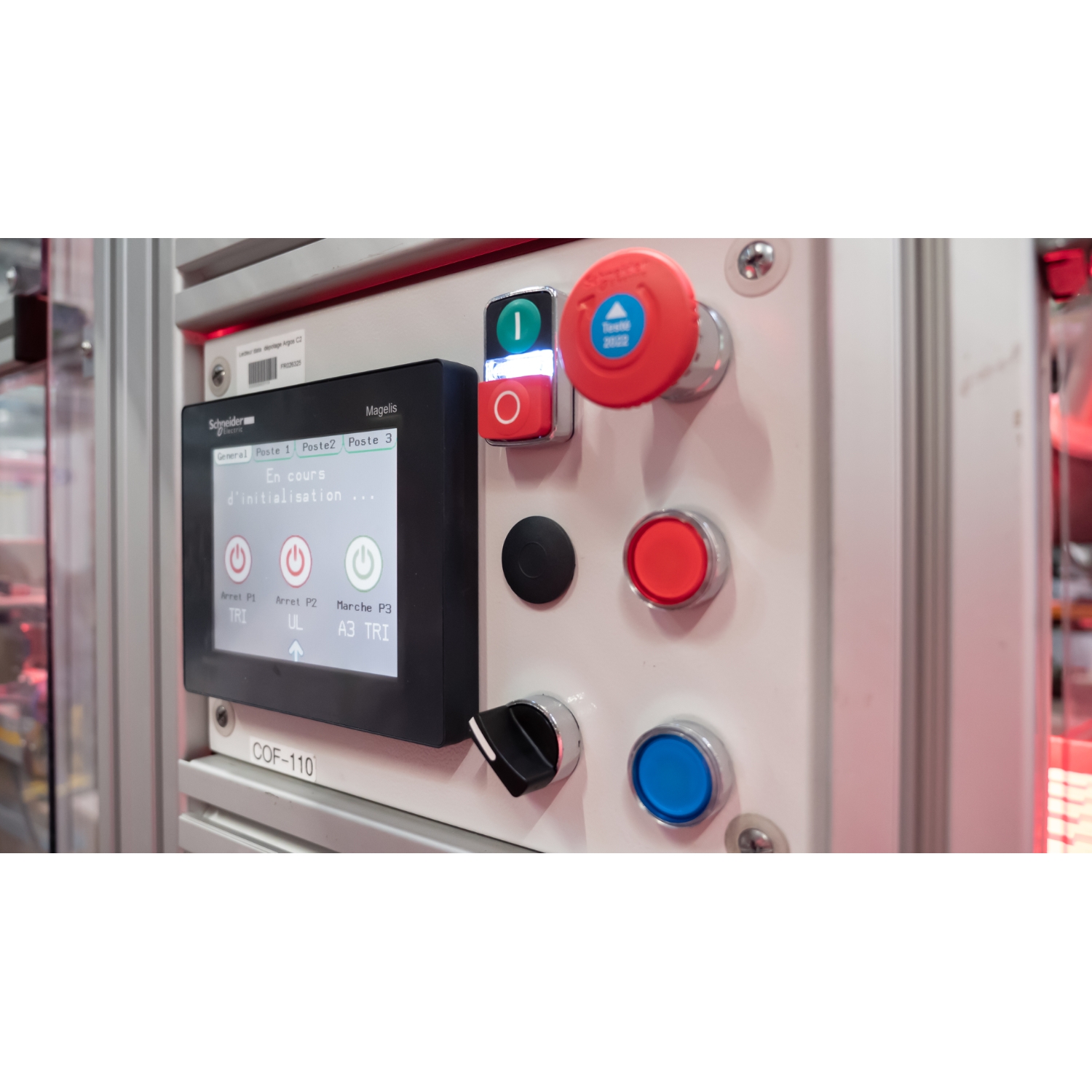

Picture of Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

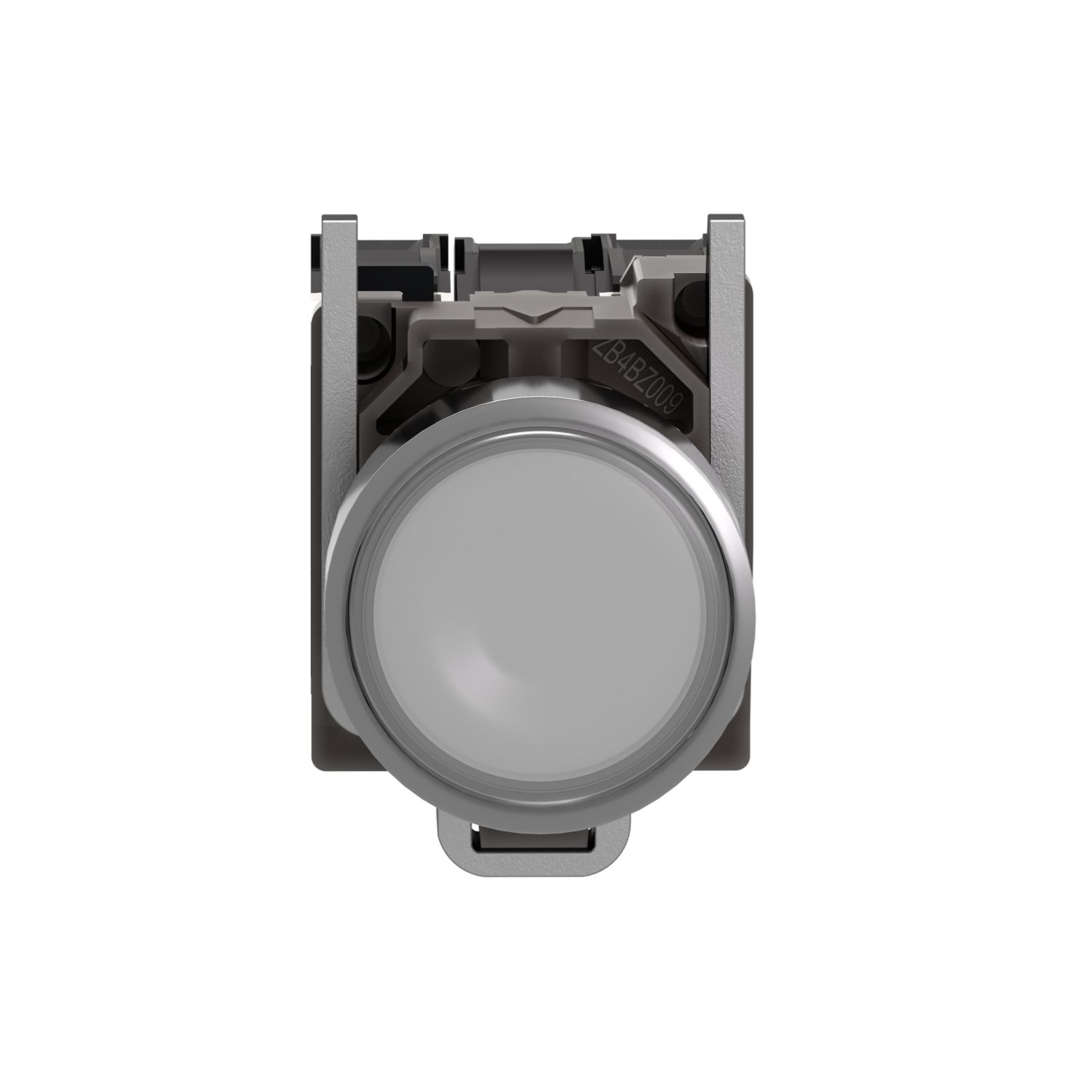

Picture of Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
SKU:

XB4BW31B5

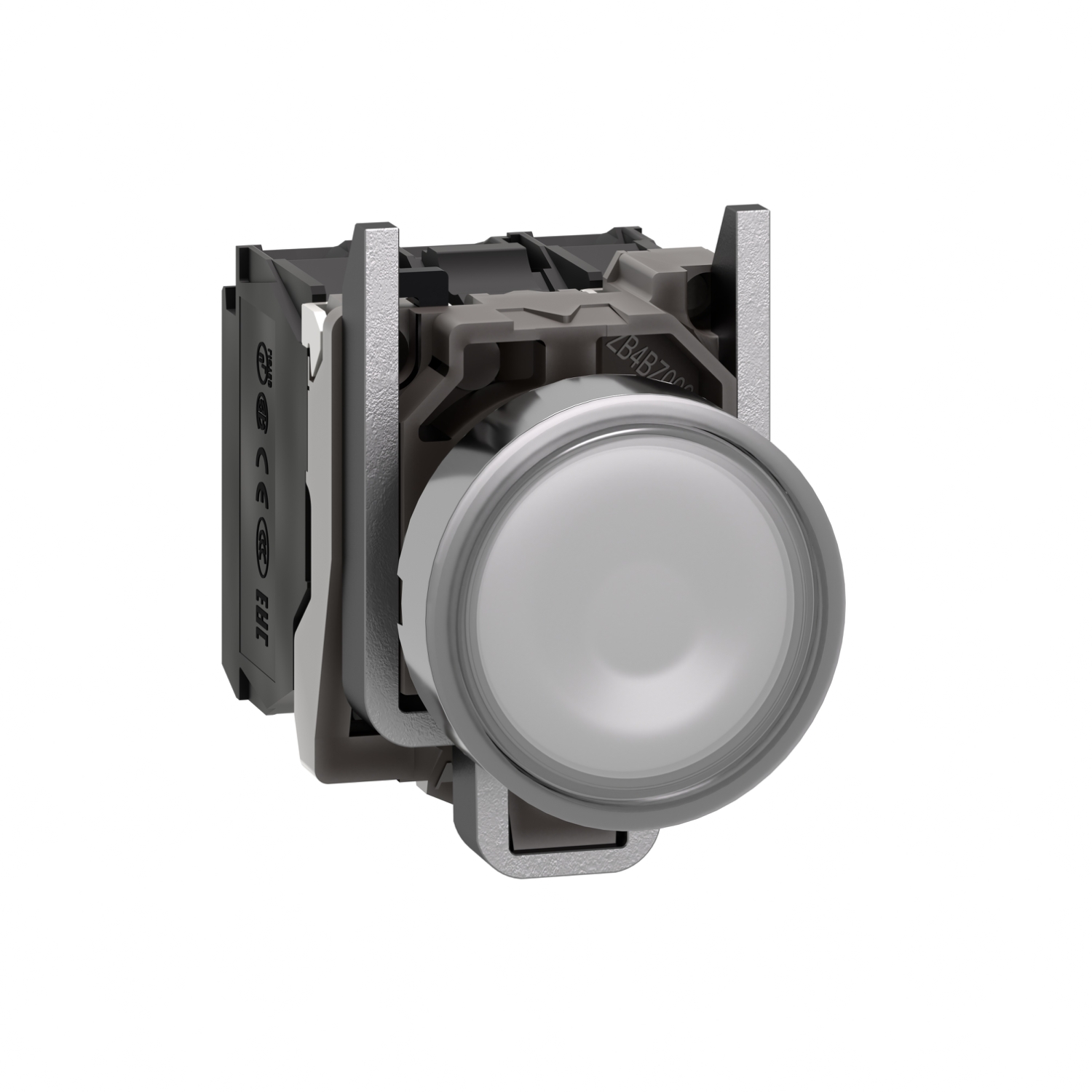

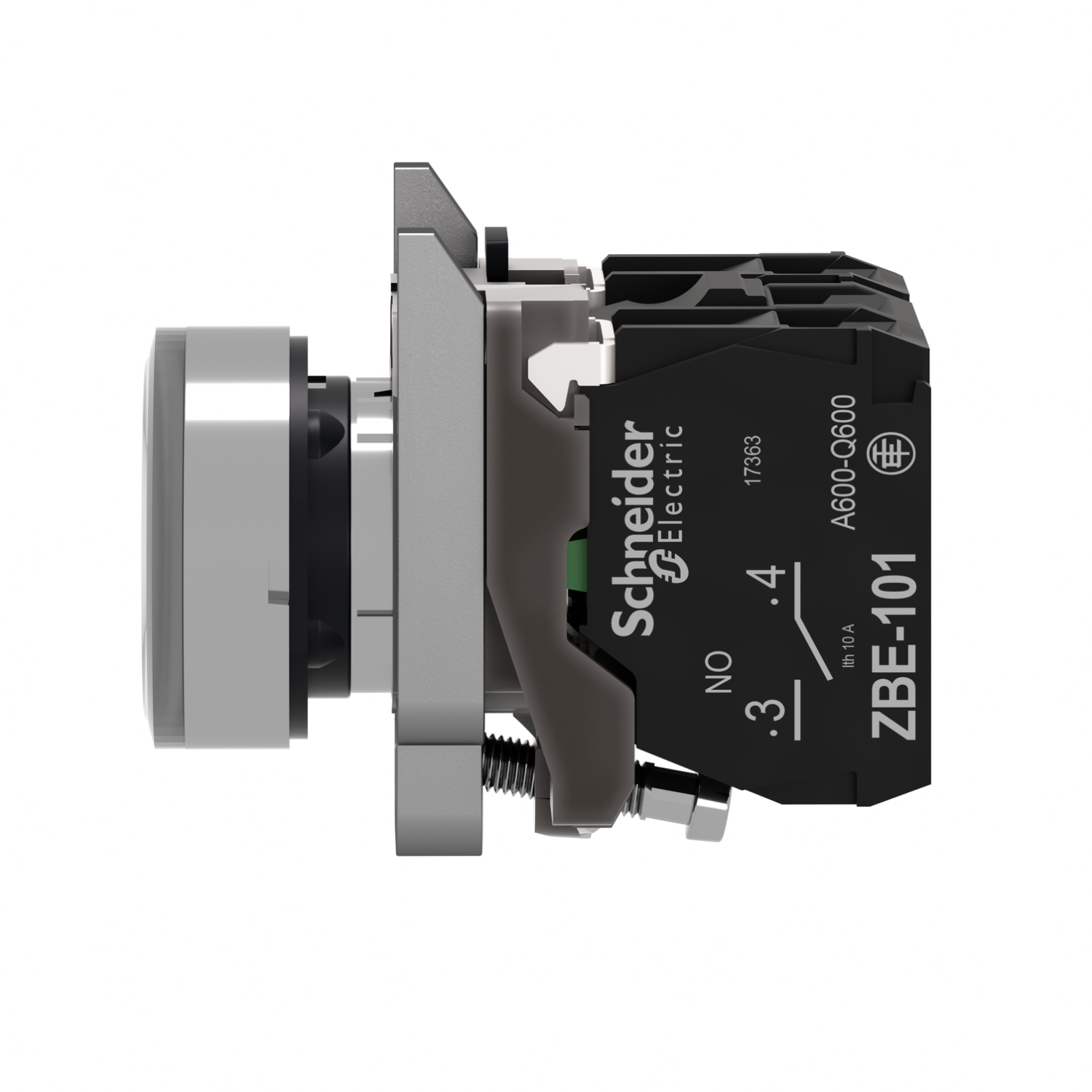

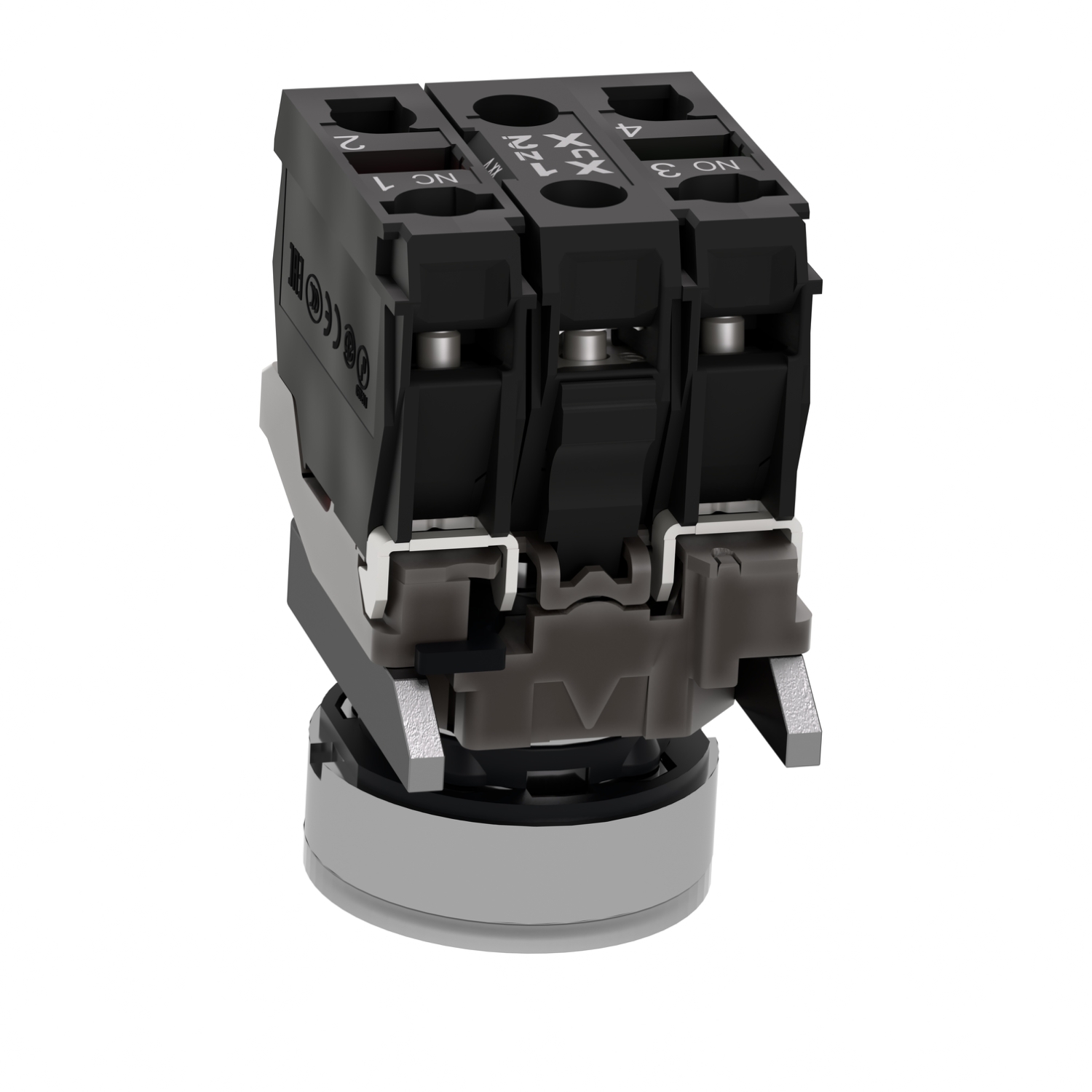

Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

$110.56
Product Selector
Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Technical illustration
End of life manual
Declaration of conformity
Catalogue
Image of product
Image of product
Instruction sheet
Product environmental
Image of product
Image of product
Product Page Link
Product Data Sheet
This Harmony XB4 illuminated modular white push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Products specifications

Attribute nameAttribute value
Main
Device short nameXB4
Contact operationslow-break
Sale per indivisible quantity1
Head typestandard
Fixing collar materialzamak
Type of operatorspring return
Range of productHarmony XB4
Bulb baseintegral LED
[Us] rated supply voltage24 V AC/DC at 50/60 Hz
Operator profilewhite flush
Bezel materialchromium plated metal
Contacts type and composition1 NO + 1 NC
Connections - terminalsscrew clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit headround
Product or component typeilluminated push-button
Mounting diameter22 mm
Light sourceuniversal LED
Operator additional informationwith plain lens
Complementary
Shape of screw headslotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliabilityλ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility codeXB4
Mechanical durability10000000 cycles
Supply voltage limits21.6-26.4 V AC, 19.2-30 V DC
[Ie] rated operational current1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Surge withstand1 kV conforming to IEC 61000-4-5
Electrical durability1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentationcomplete product
Customizable1, no
Cap/operator or lens colourwhite
Contacts materialsilver alloy (Ag/Ni)
Operating travel4.3 mm (total travel), 2.6 mm (NO changing electrical state), 1.5 mm (NC changing electrical state)
Operating force3.8 N, 3.5 N NC changing electrical state
Height47 mm
[Us] rated supply voltage24 V
Depth57 mm
Width30 mm
Signalling typesteady
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
Service life100000 h at rated voltage and 25 °C
GCR BRIDGEXB4BWCUST03
Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
Current consumption18 mA
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Net weight0.097 kg
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Positive openingwith conforming to IEC 60947-5-1 appendix K
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1

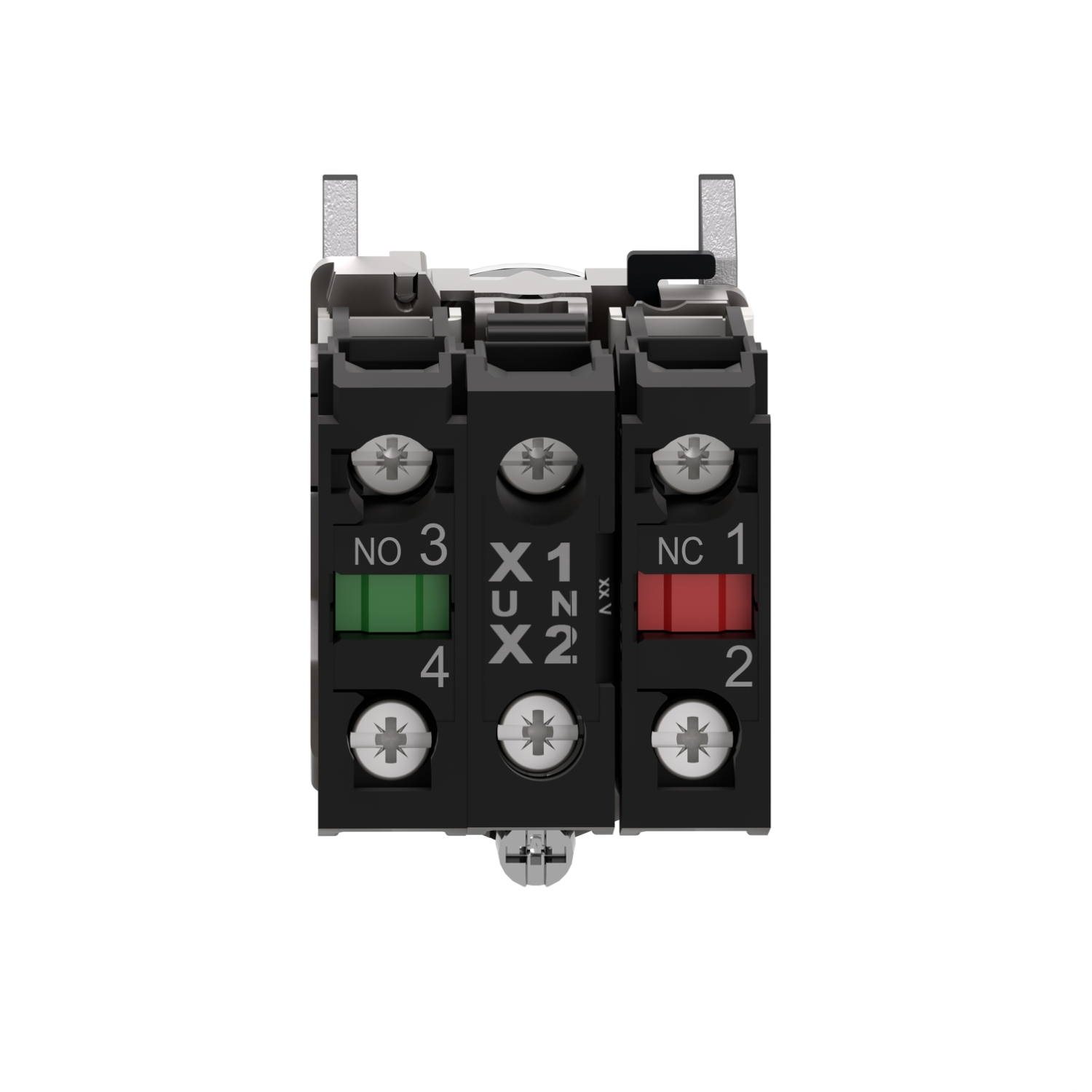

Terminals description ISO n°1(21-22)NC, (13-14)NO
Contacts usagestandard contacts
Environment
Resistance to fast transients2 kV conforming to IEC 61000-4-4
Protective treatmentTH
Resistance to electrostatic discharge8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP69K, IP69, IP67, IP66 conforming to IEC 60529
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation-40-70 °C
IK degree of protectionIK06 conforming to IEC 50102
Electromagnetic emissionclass B conforming to IEC 55011
Electrical shock protection classclass I conforming to IEC 60536
NEMA degree of protectionNEMA 4X, NEMA 13
Vibration resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
StandardsJIS C8201-1, IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-5
Product certificationsBV, GL, LROS (Lloyds register of shipping), UL listed, CSA, DNV
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height3.5 cm
Package 1 Width5.5 cm
Package 1 Length8.5 cm
Package 1 Weight96.25 g
Unit Type of Package 22
Number of Units in Package 2100
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight10.079 kg
Unit Type of Package 33
Number of Units in Package 3800
Package 3 Height75.0 cm
Package 3 Width80.0 cm
Package 3 Length60.0 cm
Package 3 Weight88.632 kg
