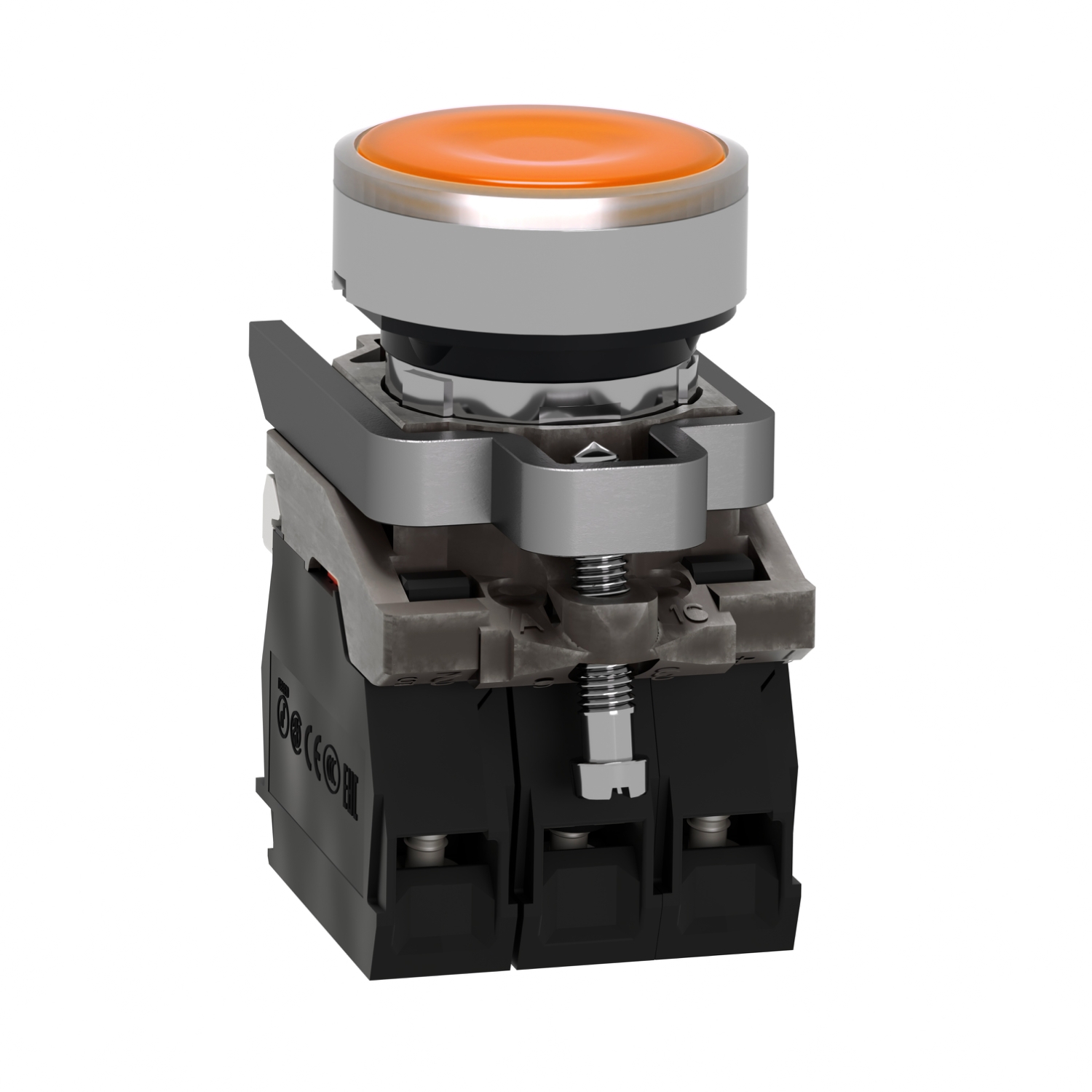

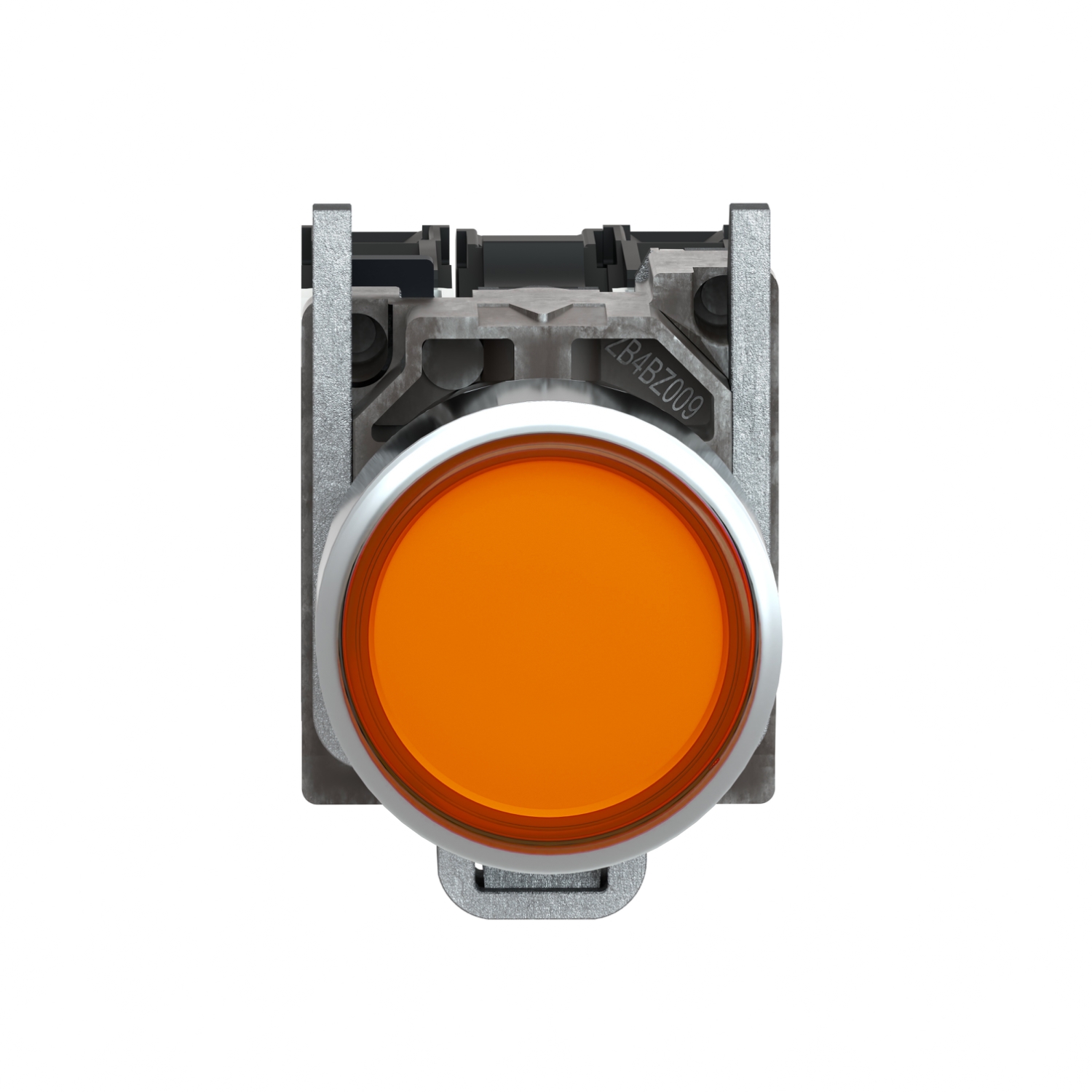

Picture of Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

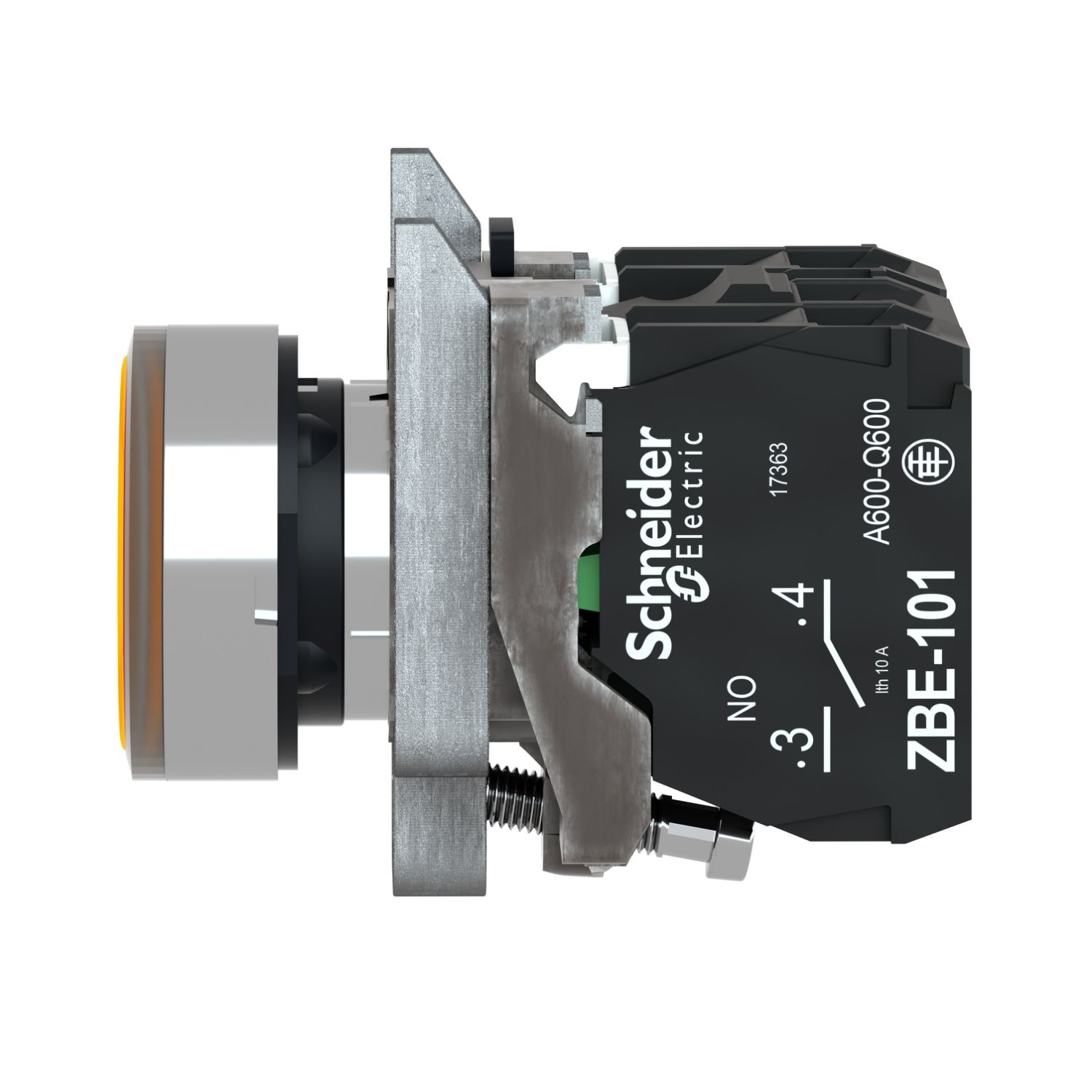

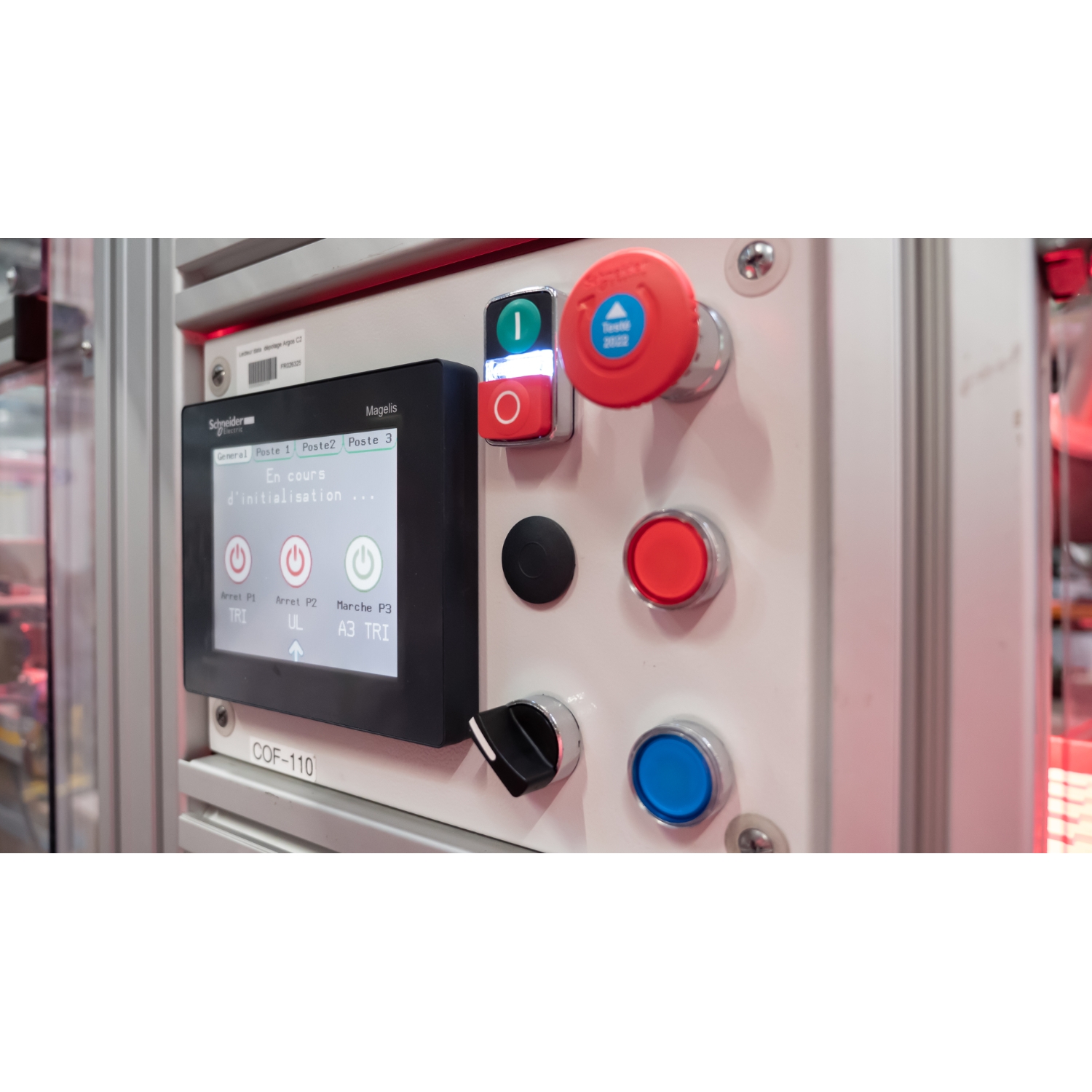

Picture of Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

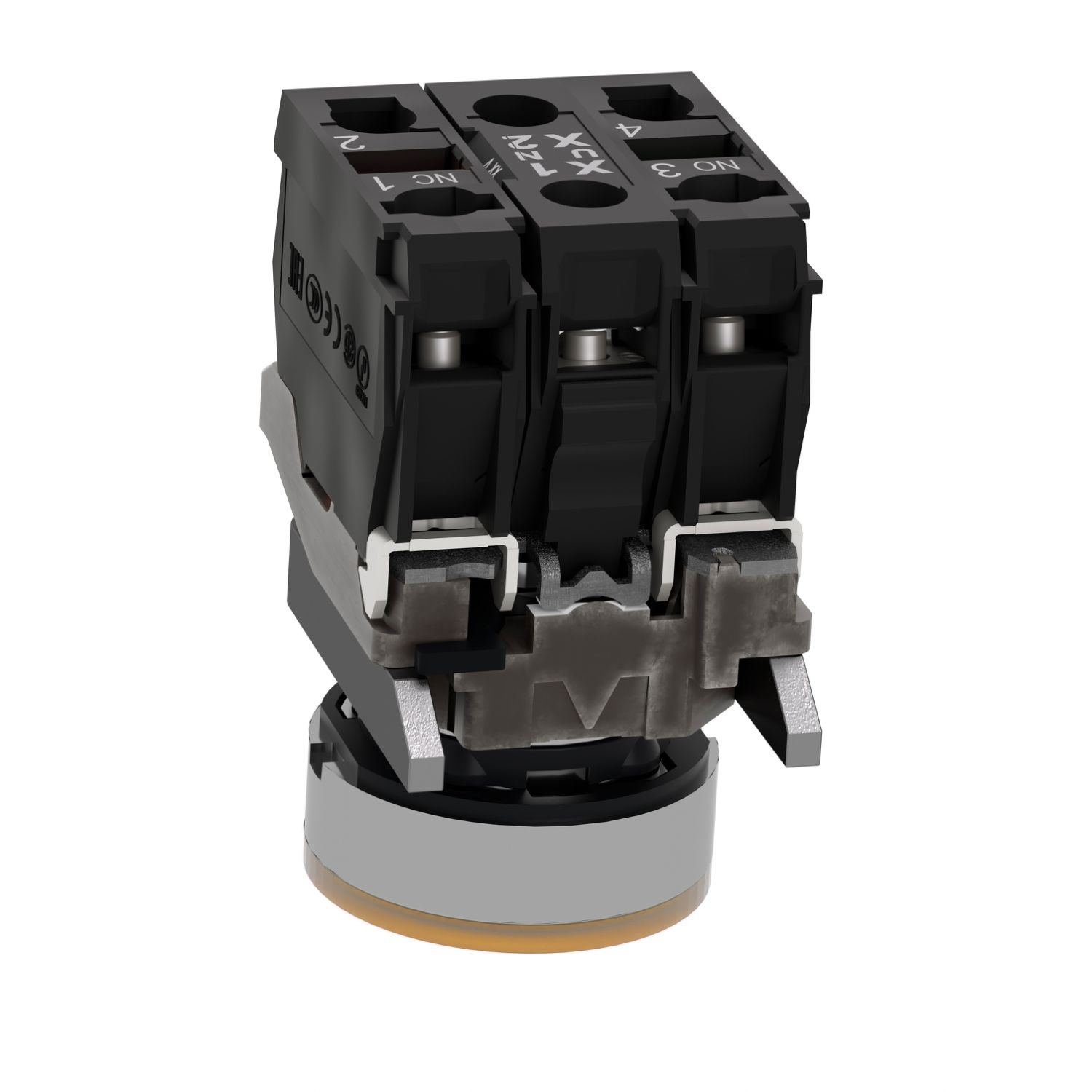

Picture of Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

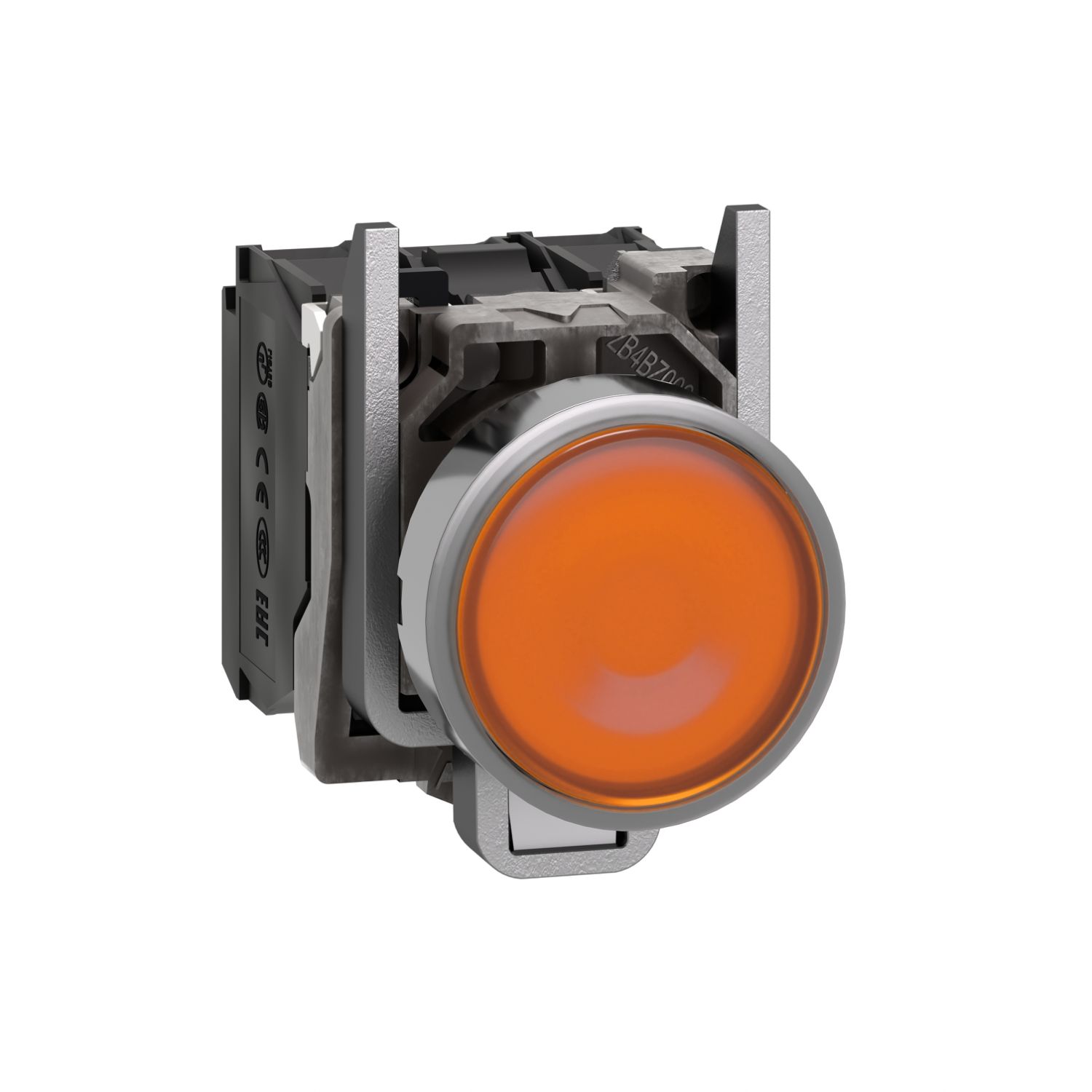

Picture of Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
SKU:

XB4BW35B5

Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

$103.74
Available for Shipping : 10-Dec-2024
Product Selector
Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
End of life manual
Declaration of conformity
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This Harmony XB4 illuminated modular orange push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XB4
Contact operation slow-break
Sale per indivisible quantity 1
Head type standard
Fixing collar material zamak
Type of operator spring return
Range of product Harmony XB4
Bulb base integral LED
[Us] rated supply voltage 24 V AC/DC at 50/60 Hz
Operator profile orange flush
Bezel material chromium plated metal
Contacts type and composition 1 NO + 1 NC
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit head round
Product or component type illuminated push-button
Mounting diameter 22 mm
Light source universal LED
Operator additional information with plain lens
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XB4
Mechanical durability 10000000 cycles
Supply voltage limits 21.6-26.4 V AC, 19.2-30 V DC
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Surge withstand 1 kV conforming to IEC 61000-4-5
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation complete product
Customizable 1, no
Cap/operator or lens colour orange
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state), 1.5 mm (NC changing electrical state)
Operating force 3.8 N, 3.5 N NC changing electrical state
Height 47 mm
[Us] rated supply voltage 24 V
Depth 101 mm
Width 30 mm
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Service life 100000 h at rated voltage and 25 °C
GCR BRIDGE XB4BWCUST03
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Current consumption 18 mA
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.097 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening with conforming to IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1

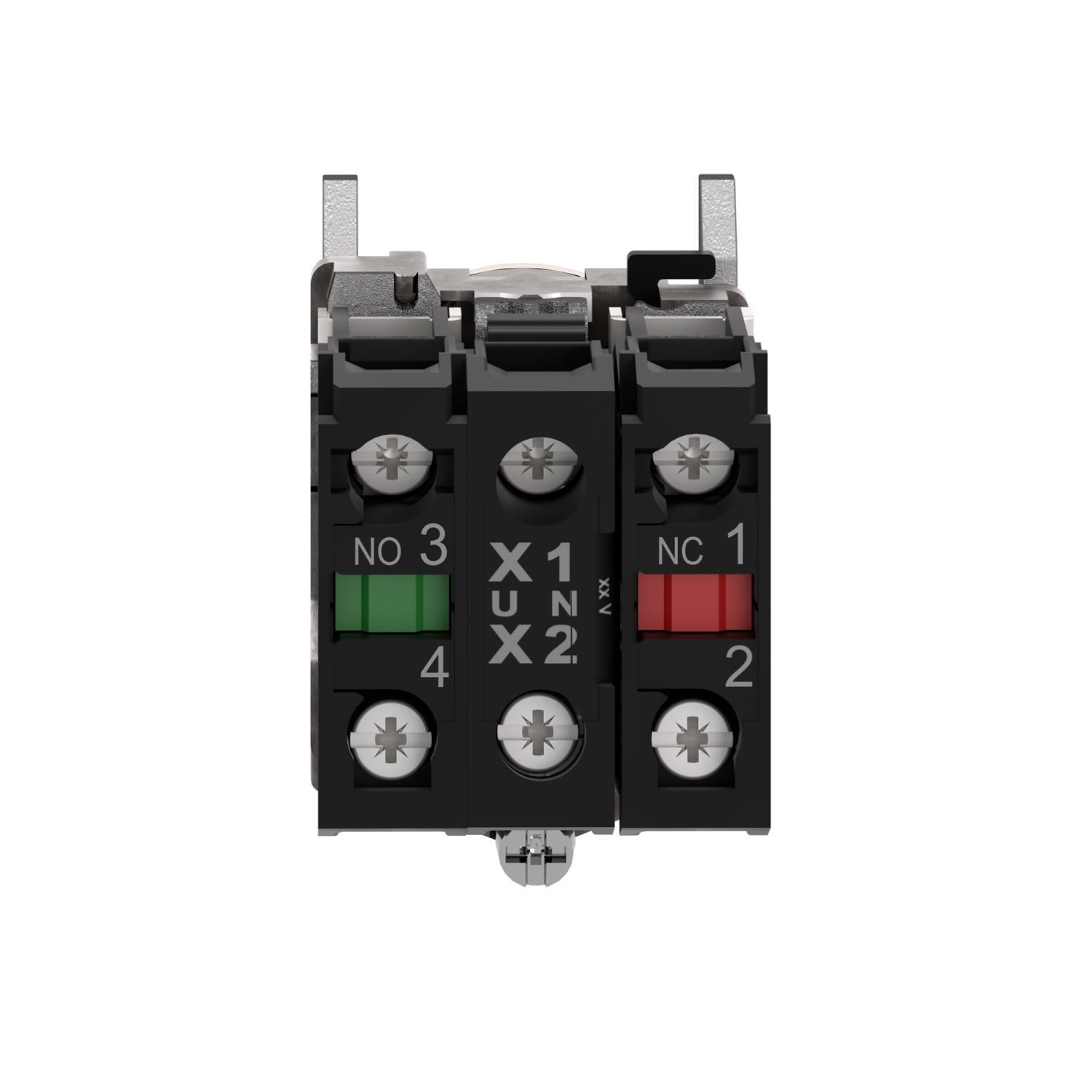

Terminals description ISO n°1 (21-22)NC, (13-14)NO
Contacts usage standard contacts
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
Electromagnetic emission class B conforming to IEC 55011
Electrical shock protection class class I conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, IEC 60947-5-5
Product certifications BV, CSA, UL listed, GL, DNV, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 5.5 cm
Package 1 Length 8.5 cm
Package 1 Weight 96.66 g
Unit Type of Package 2 2
Number of Units in Package 2 150
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 14.913 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 127.304 kg
