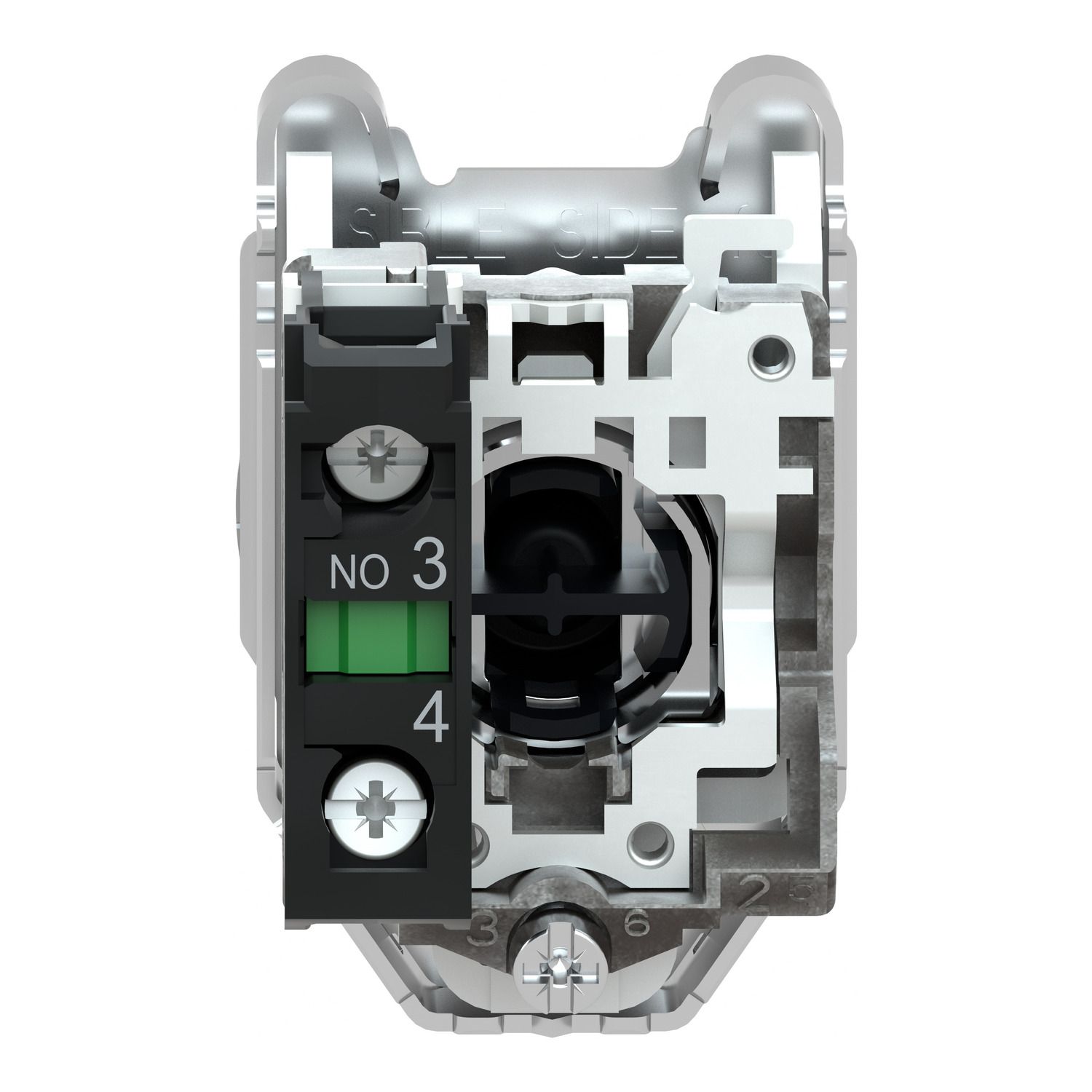

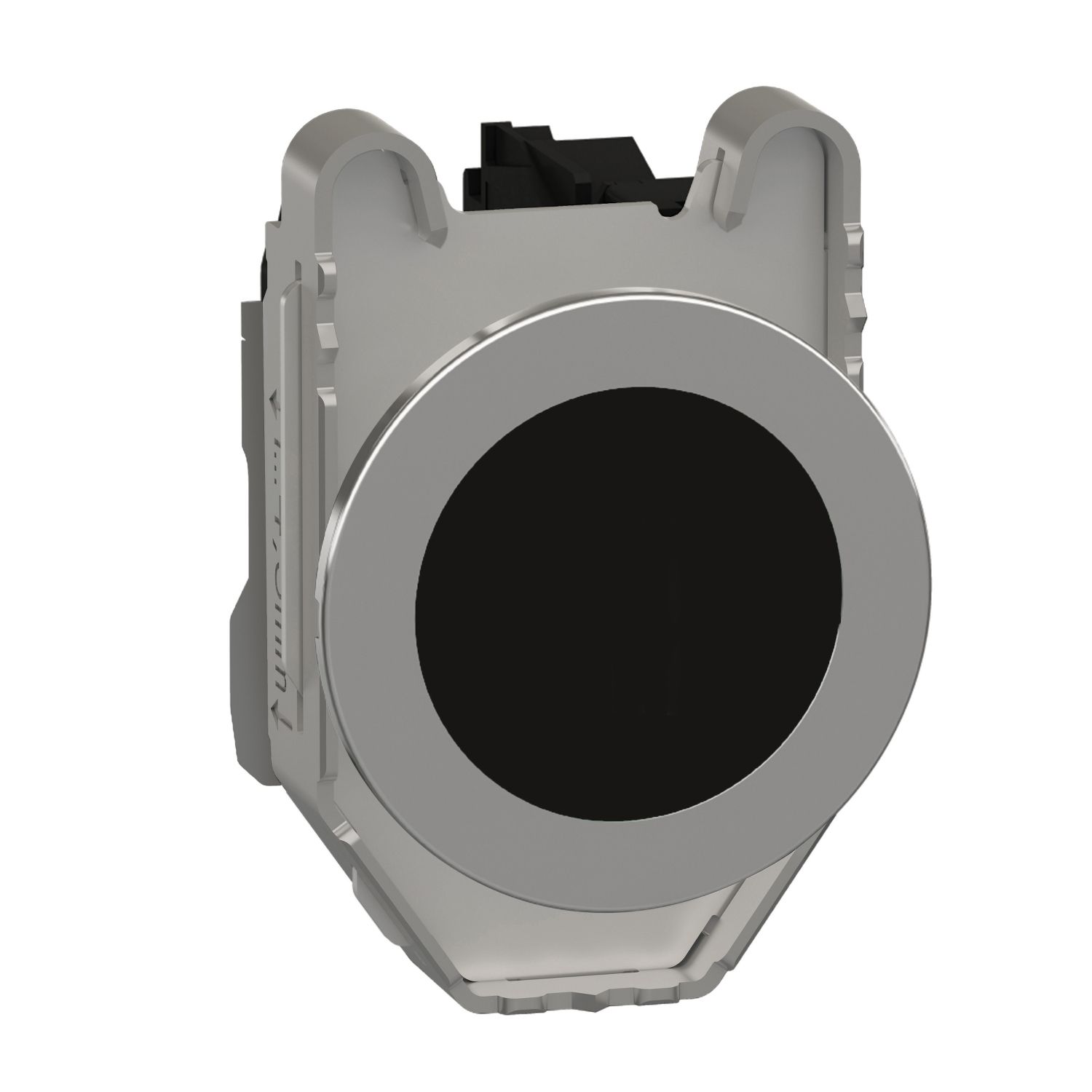

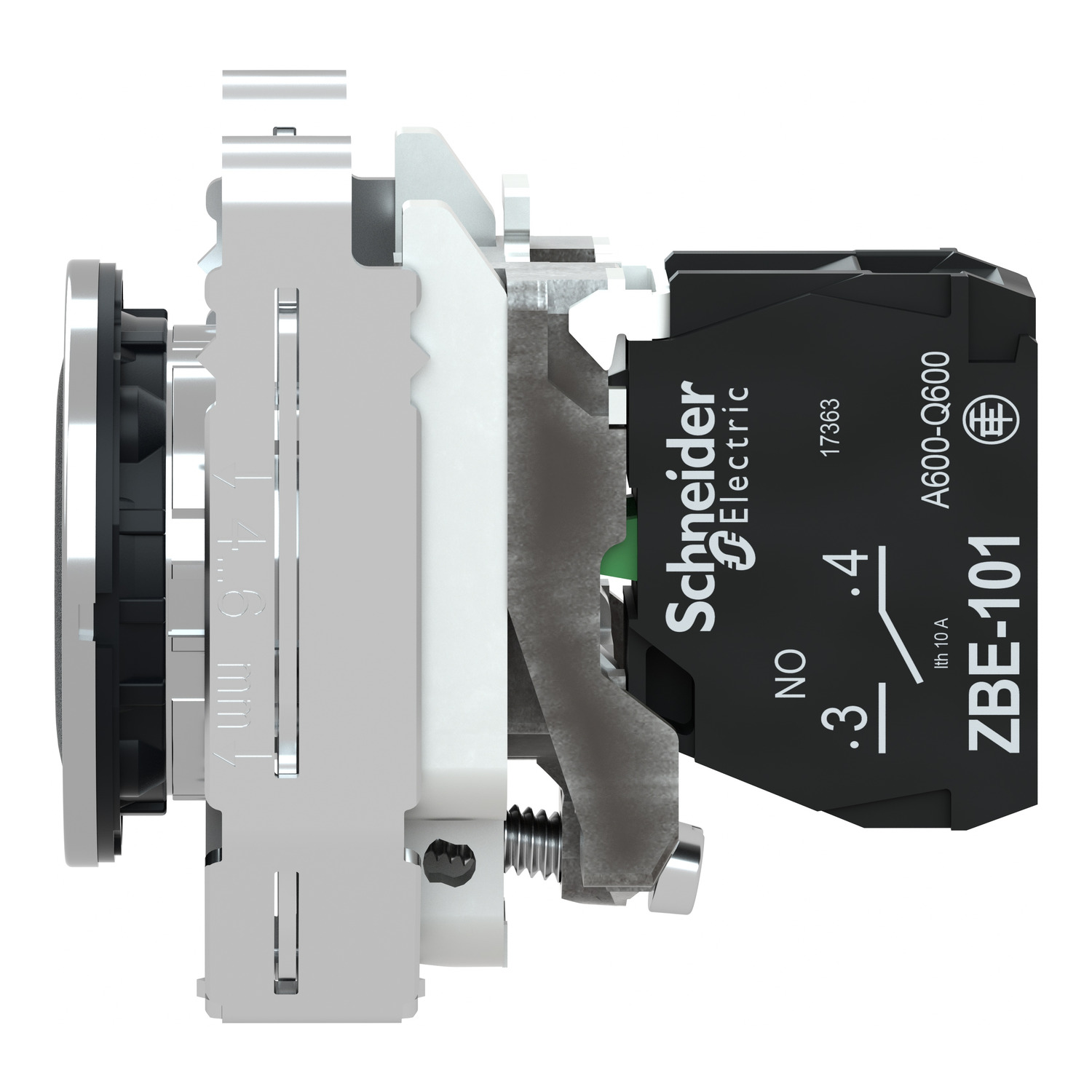

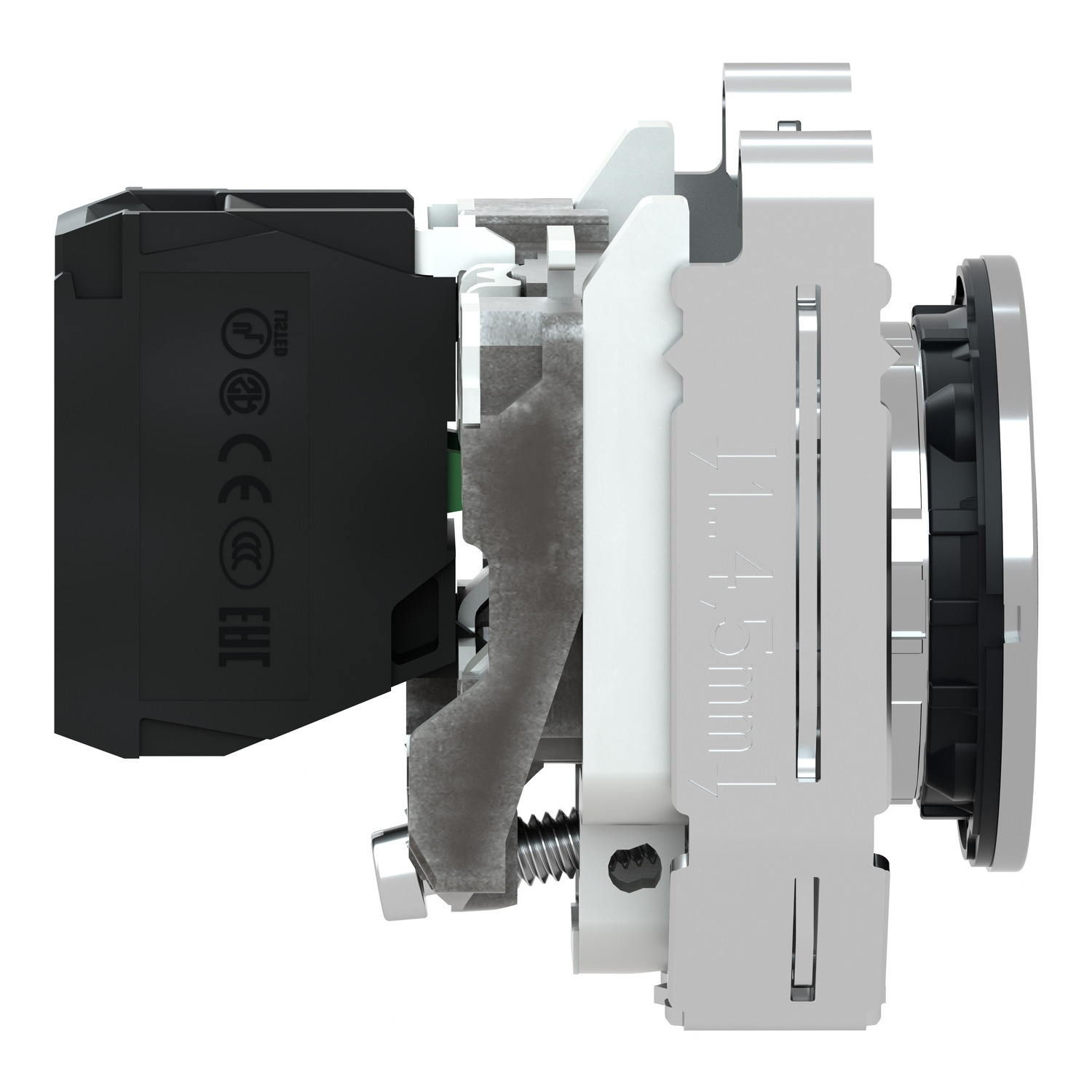

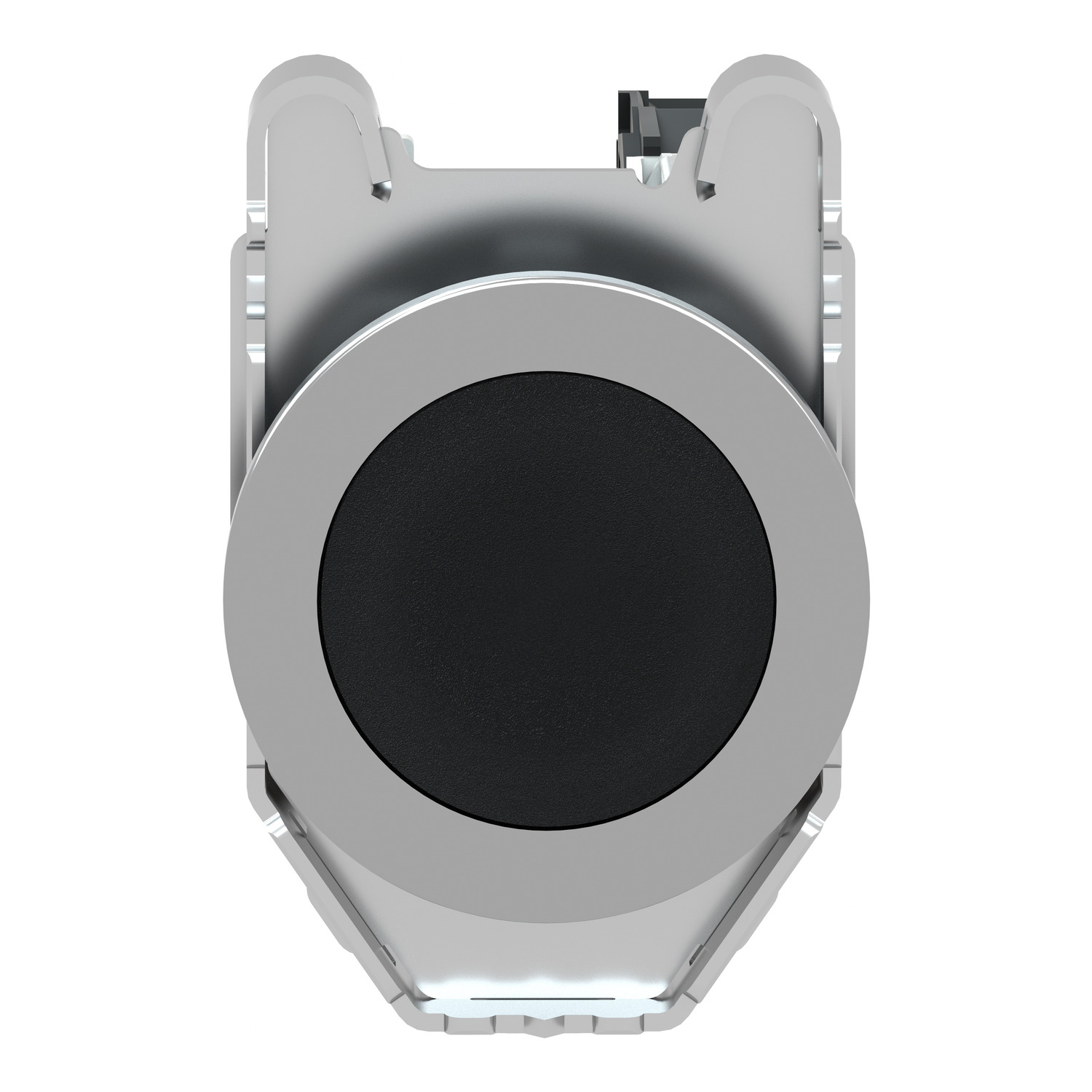

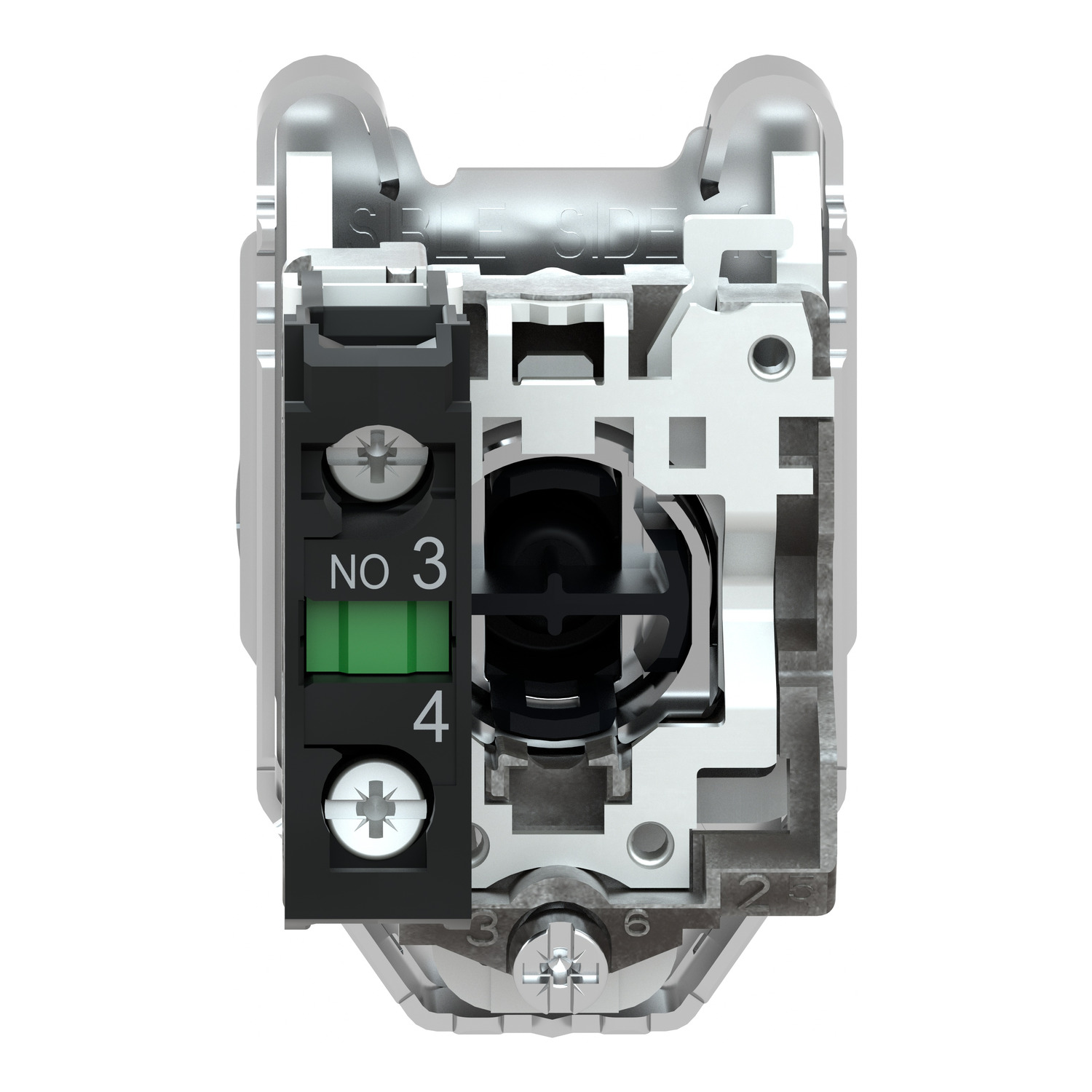

Picture of Push button flush mounted, Harmony XB4, metal, black, 30mm, spring return, unmarked, 1NO
SKU:

XB4FA21

Push button flush mounted, Harmony XB4, metal, black, 30mm, spring return, unmarked, 1NO

$46.88
Available for Shipping : 28-Nov-2024
Product Selector
Push button flush mounted, Harmony XB4, metal, black, 30mm, spring return, unmarked, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Declaration of conformity
Catalogue
Product environmental
Technical illustration
Product Page Link
Product Data Sheet
This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and black. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Products specifications

Attribute name Attribute value
Main
Device short name XB4F
Product compatibility ZBZF33, ZBZF32, ZBYF...
Contact operation slow-break
Sale per indivisible quantity 1
Head type built-in-flush
Fixing collar material zamak
Type of operator spring return
Range of product Harmony XB4
Operator profile black flush, unmarked
Bezel material chromium plated metal
Contacts type and composition 1 NO
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit head round
Product or component type push-button
Mounting diameter 30.5 mm
Complementary
Device mounting built-in
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XB4
Mechanical durability 10000000 cycles
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation complete product
Customizable 1, no
Cap/operator or lens colour black
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state)
Fixing mode by screws
Operating force 3.8 N NO changing electrical state
Height 47 mm
Depth 55 mm
Width 36.6 mm
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
GCR BRIDGE XB4FACUST01
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.116 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1 (13-14)NO
Contacts usage standard contacts
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class I conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.600 cm
Package 1 Width 5.200 cm
Package 1 Length 4.300 cm
Package 1 Weight 109 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 9.288 kg
