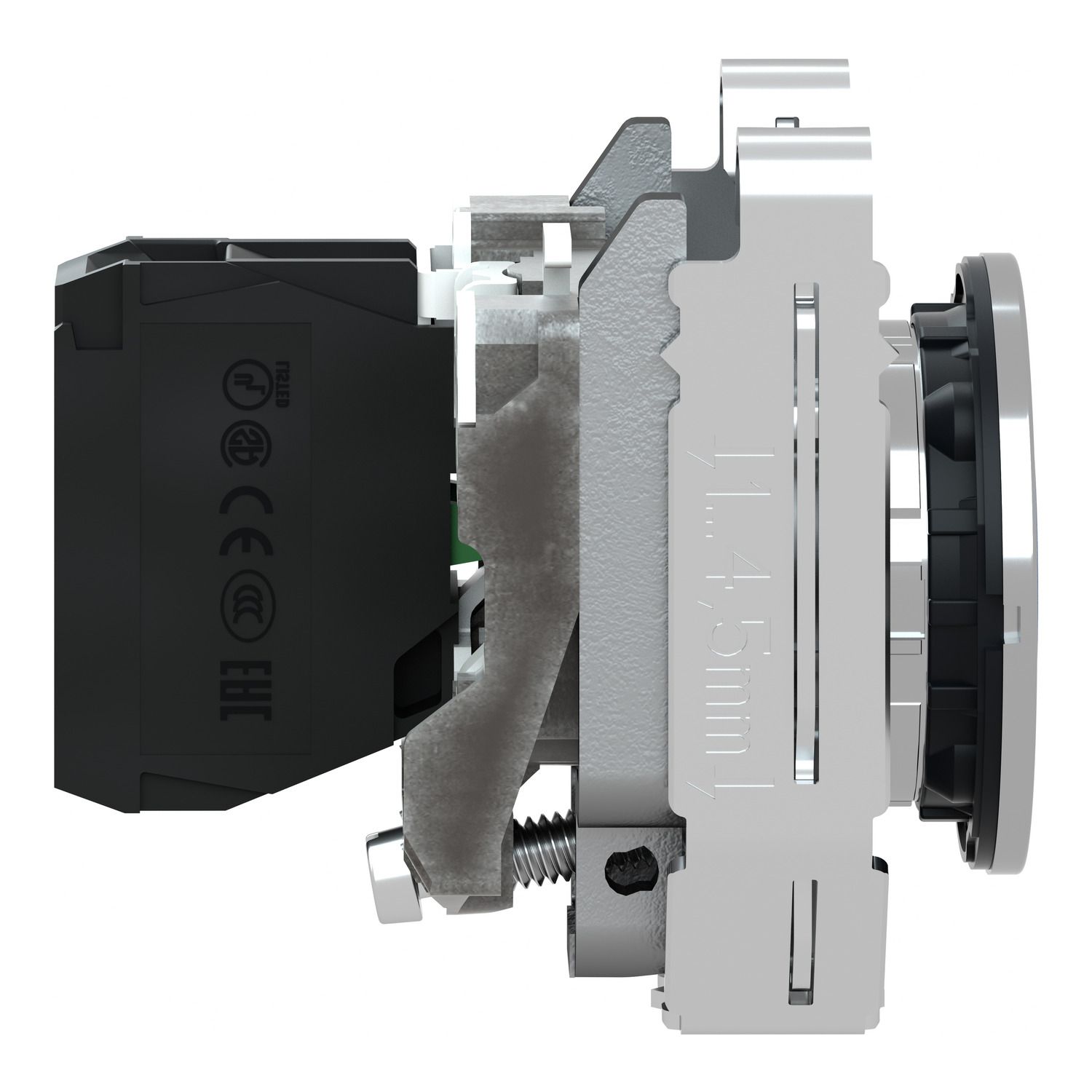

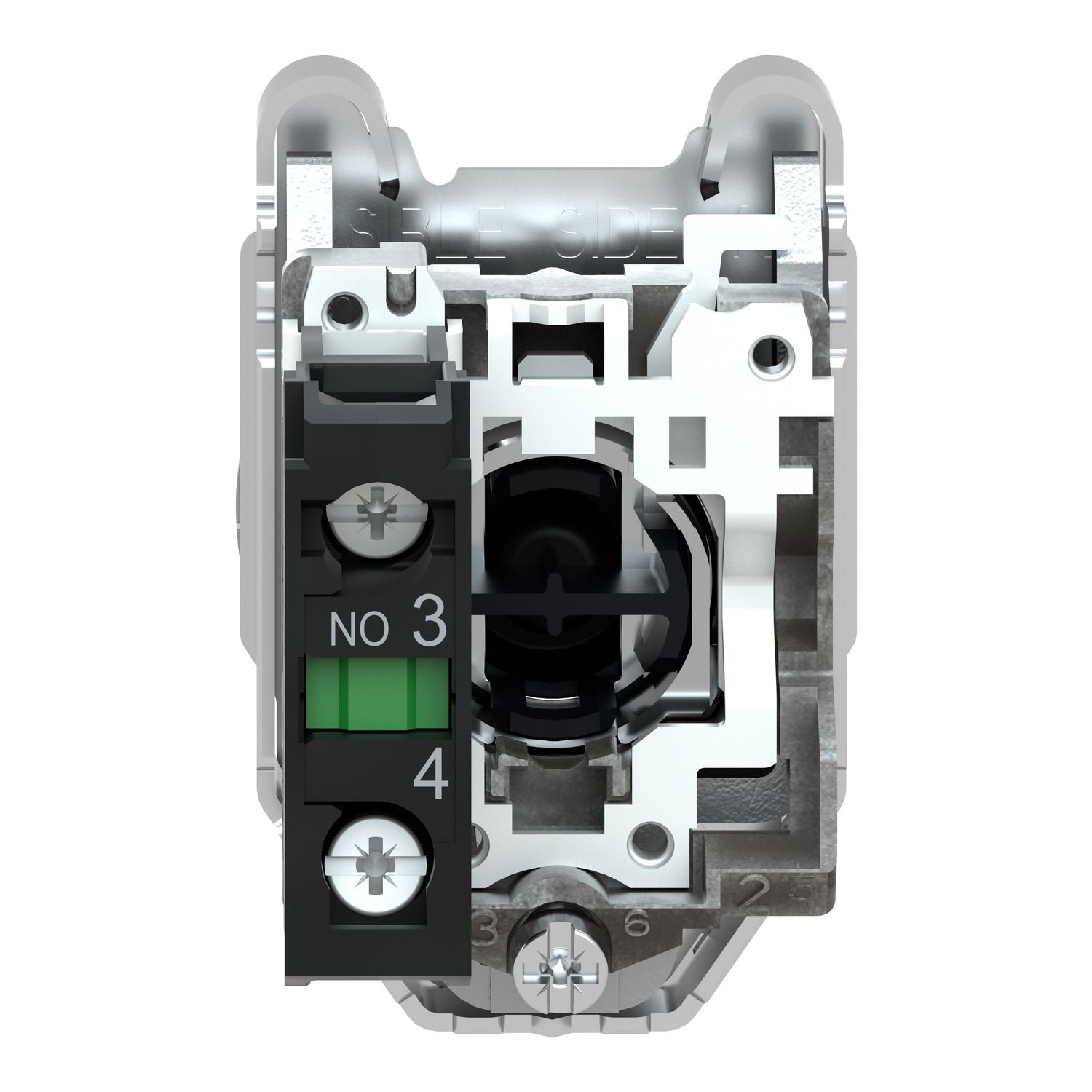

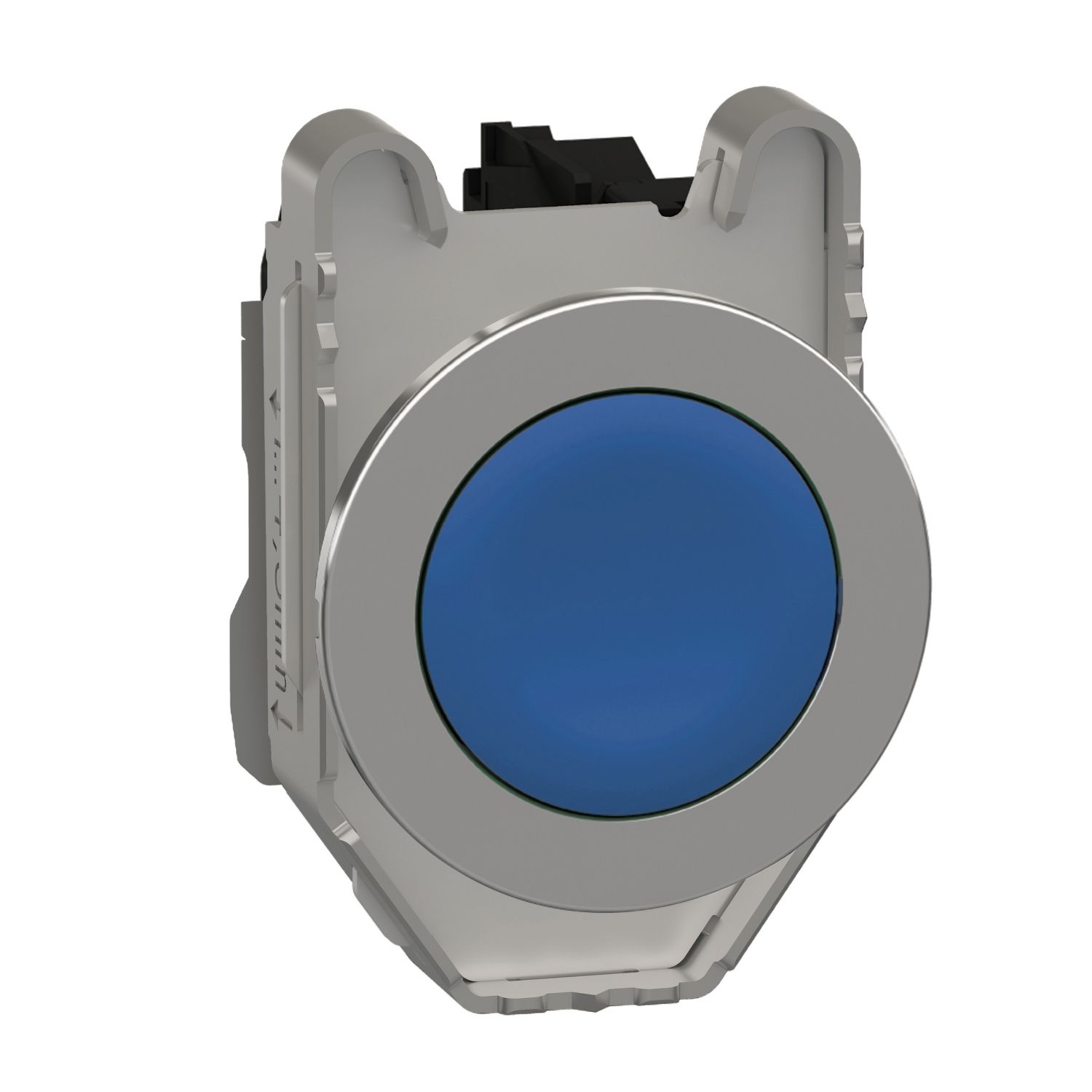

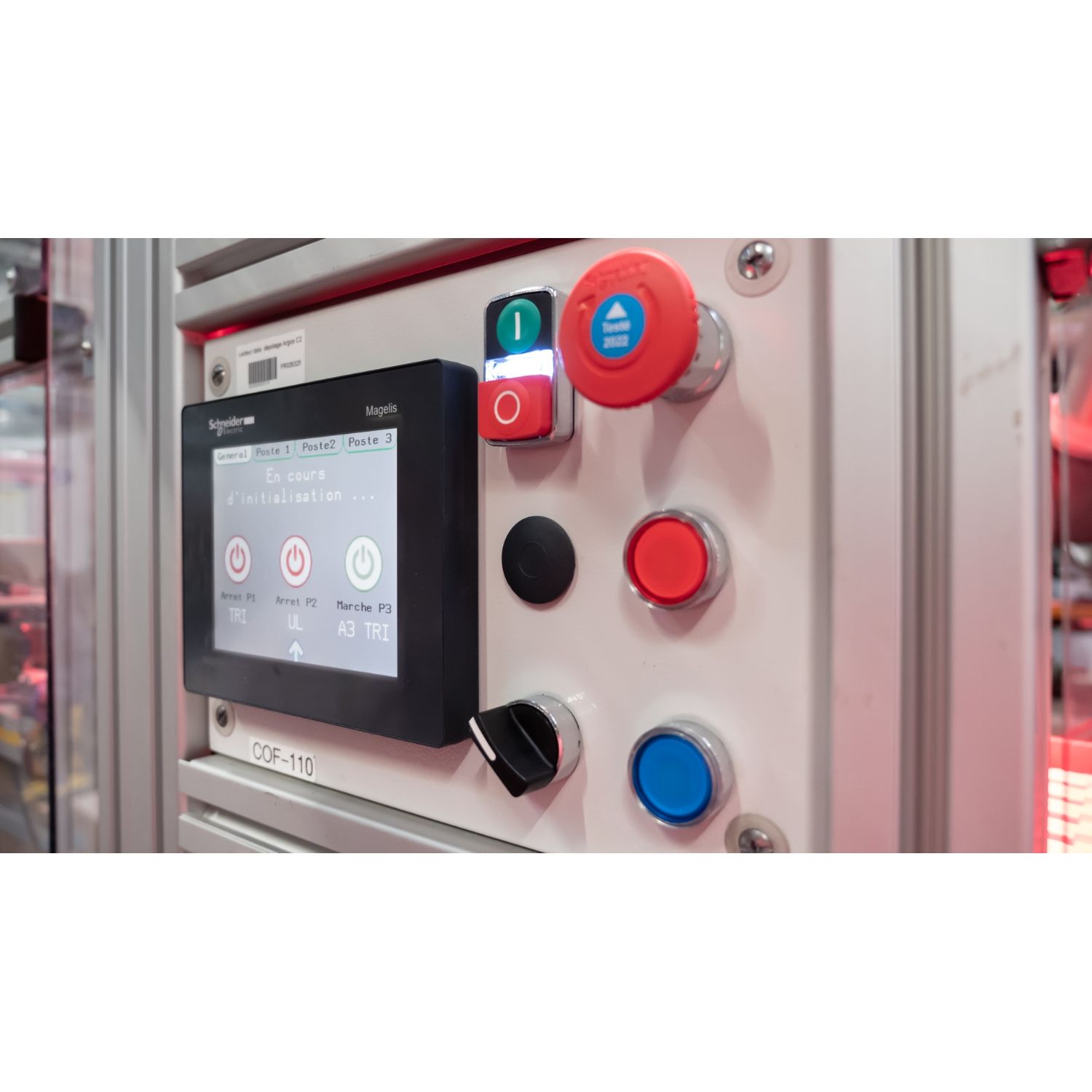

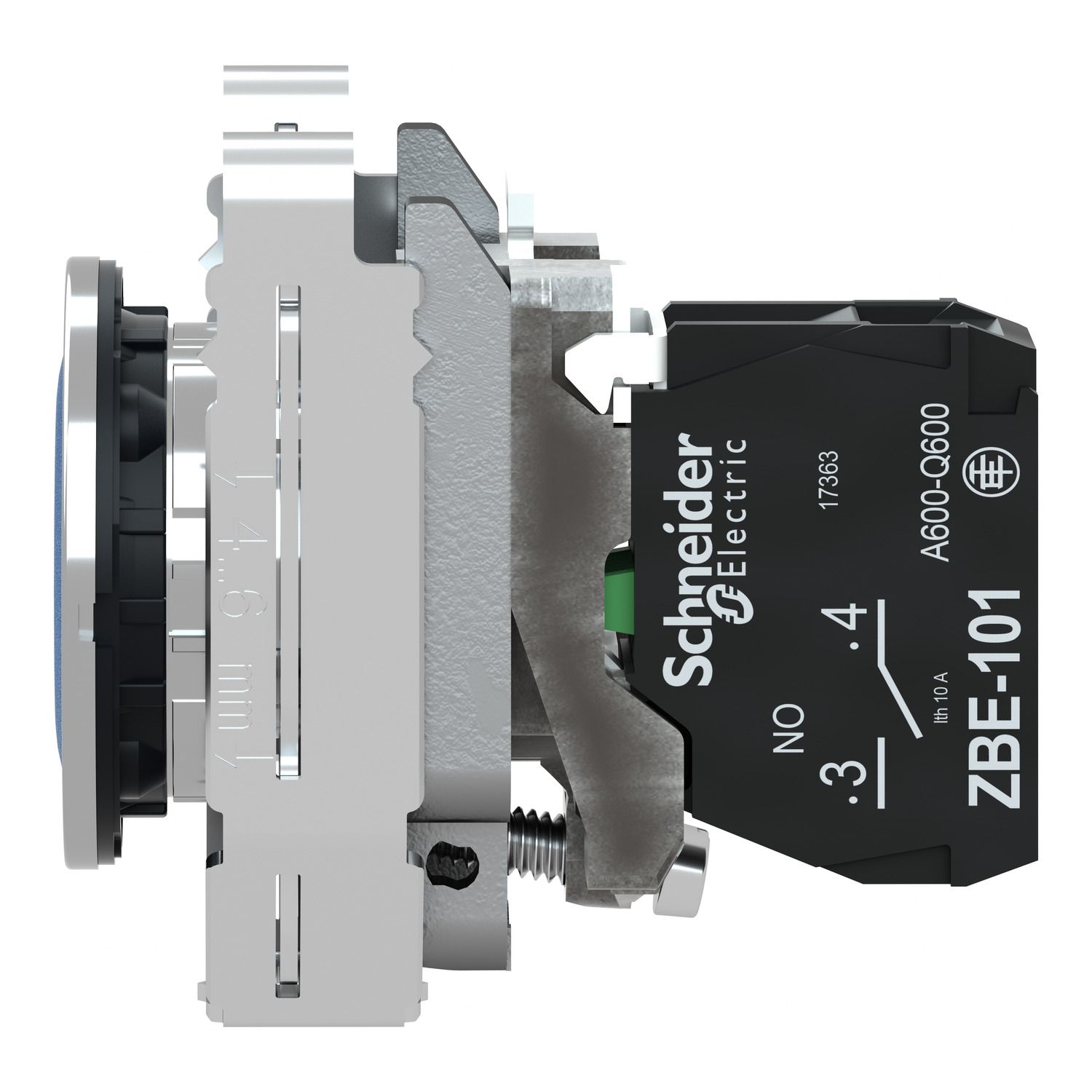

Picture of Push button flush mounted, Harmony XB4, metal, blue, 30mm, spring return, unmarked, 1NC
SKU:

XB4FA61

Push button flush mounted, Harmony XB4, metal, blue, 30mm, spring return, unmarked, 1NC

$46.88
Product Selector
Push button flush mounted, Harmony XB4, metal, blue, 30mm, spring return, unmarked, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Instruction sheet
End of life manual
Declaration of conformity
Product environmental
Catalogue
Technical illustration
Product Page Link
Product Data Sheet

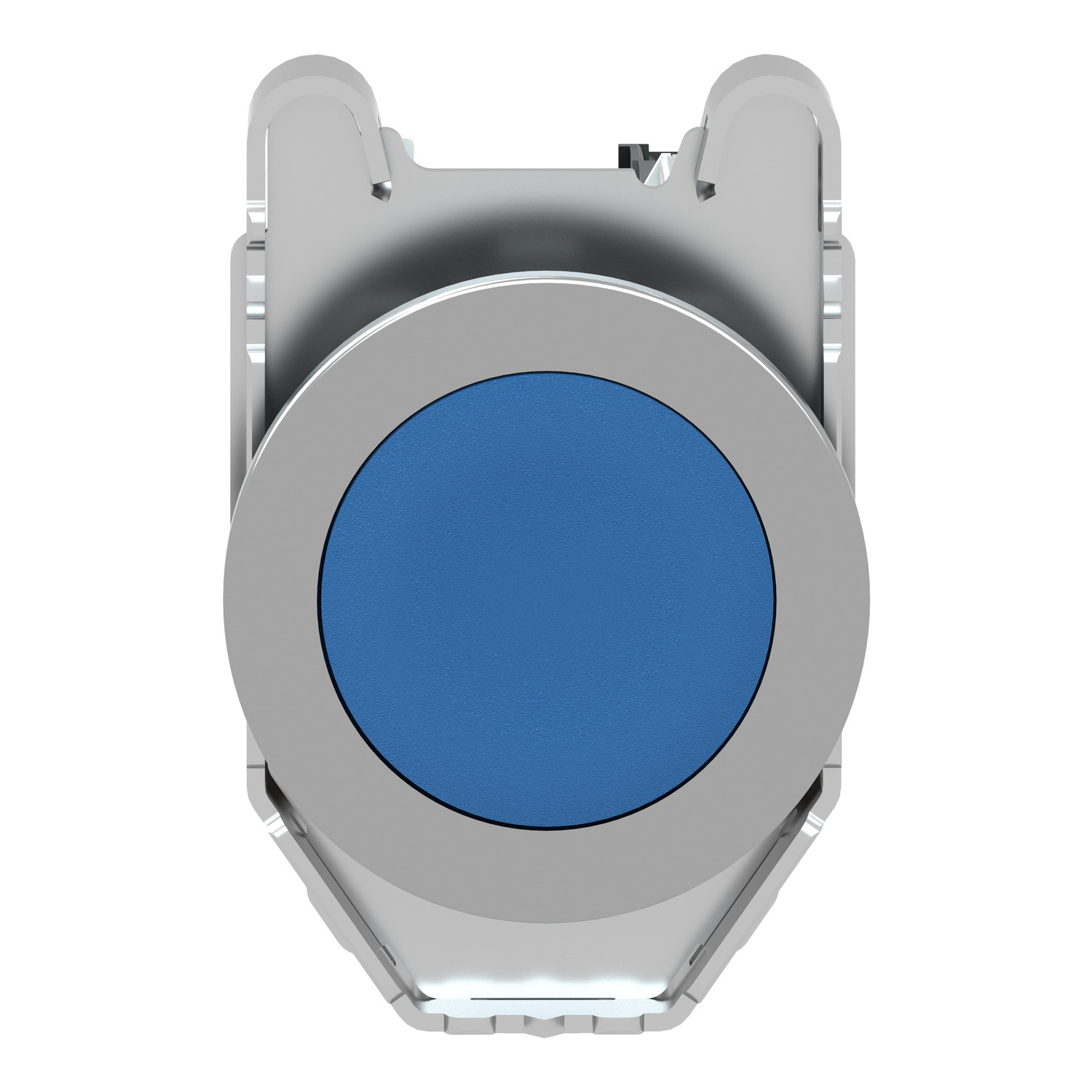

This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and blue. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Products specifications

Attribute nameAttribute value
Main
Device short nameXB4F
Product compatibilityZBZF33, ZBZF32, ZBYF...
Contact operationslow-break
Sale per indivisible quantity1
Head typebuilt-in-flush
Fixing collar materialzamak
Type of operatorspring return
Range of productHarmony XB4
Operator profileblue flush, unmarked
Bezel materialchromium plated metal
Contacts type and composition1 NO
Connections - terminalsscrew clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit headround
Product or component typepush-button
Mounting diameter30.5 mm
Complementary
Device mountingbuilt-in
Shape of screw headslotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliabilityλ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility codeXB4
Mechanical durability10000000 cycles
[Ie] rated operational current1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentationcomplete product
Customizable1, no
Cap/operator or lens colourblue
Contacts materialsilver alloy (Ag/Ni)
Operating travel4.3 mm (total travel), 2.6 mm (NO changing electrical state)
Fixing modeby screws
Operating force3.8 N NO changing electrical state
Height47 mm
Depth55 mm
Width36.6 mm
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
GCR BRIDGEXB4FACUST01
Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Net weight0.116 kg
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Positive openingwithout
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1(13-14)NO
Contacts usagestandard contacts
Environment
Protective treatmentTH
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP69K, IP69, IP67, IP66 conforming to IEC 60529
Ambient air temperature for operation-40-70 °C
IK degree of protectionIK06 conforming to IEC 50102
NEMA degree of protectionNEMA 4X, NEMA 13
Overvoltage categoryclass I conforming to IEC 60536
Vibration resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
StandardsJIS C8201-1, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14
Product certificationsCSA, UL listed
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.600 cm
Package 1 Width5.200 cm
Package 1 Length4.300 cm
Package 1 Weight109 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight4.717 kg
