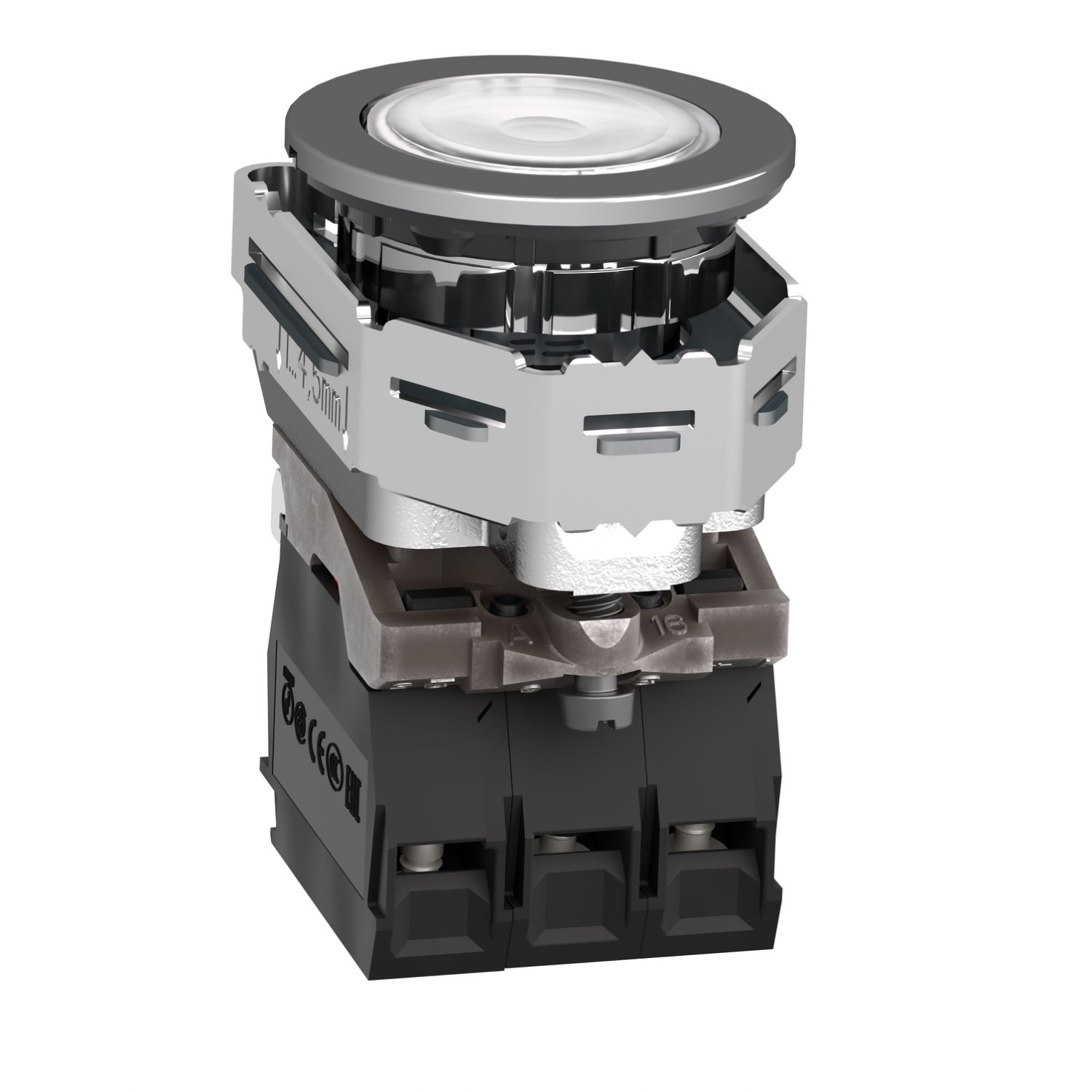

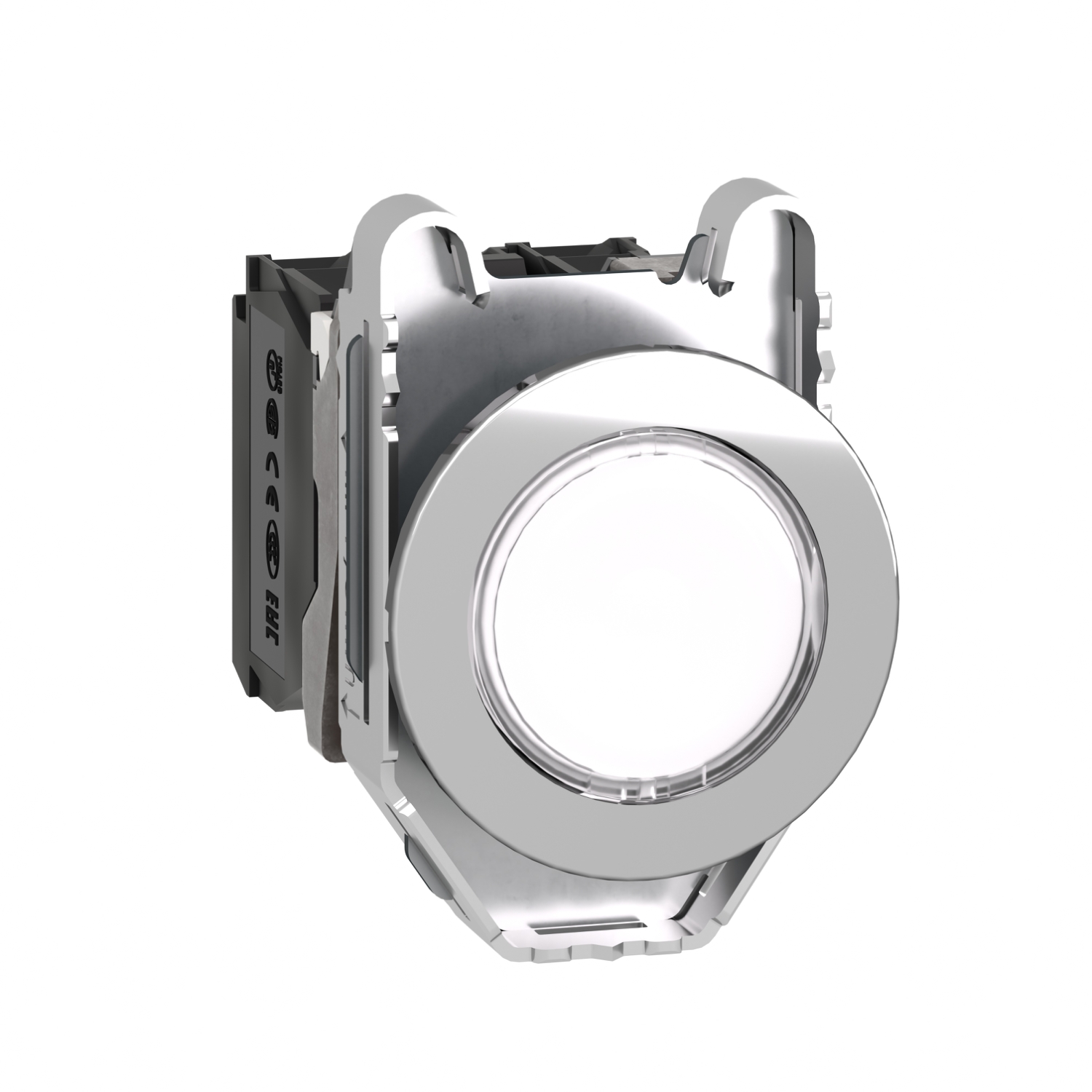

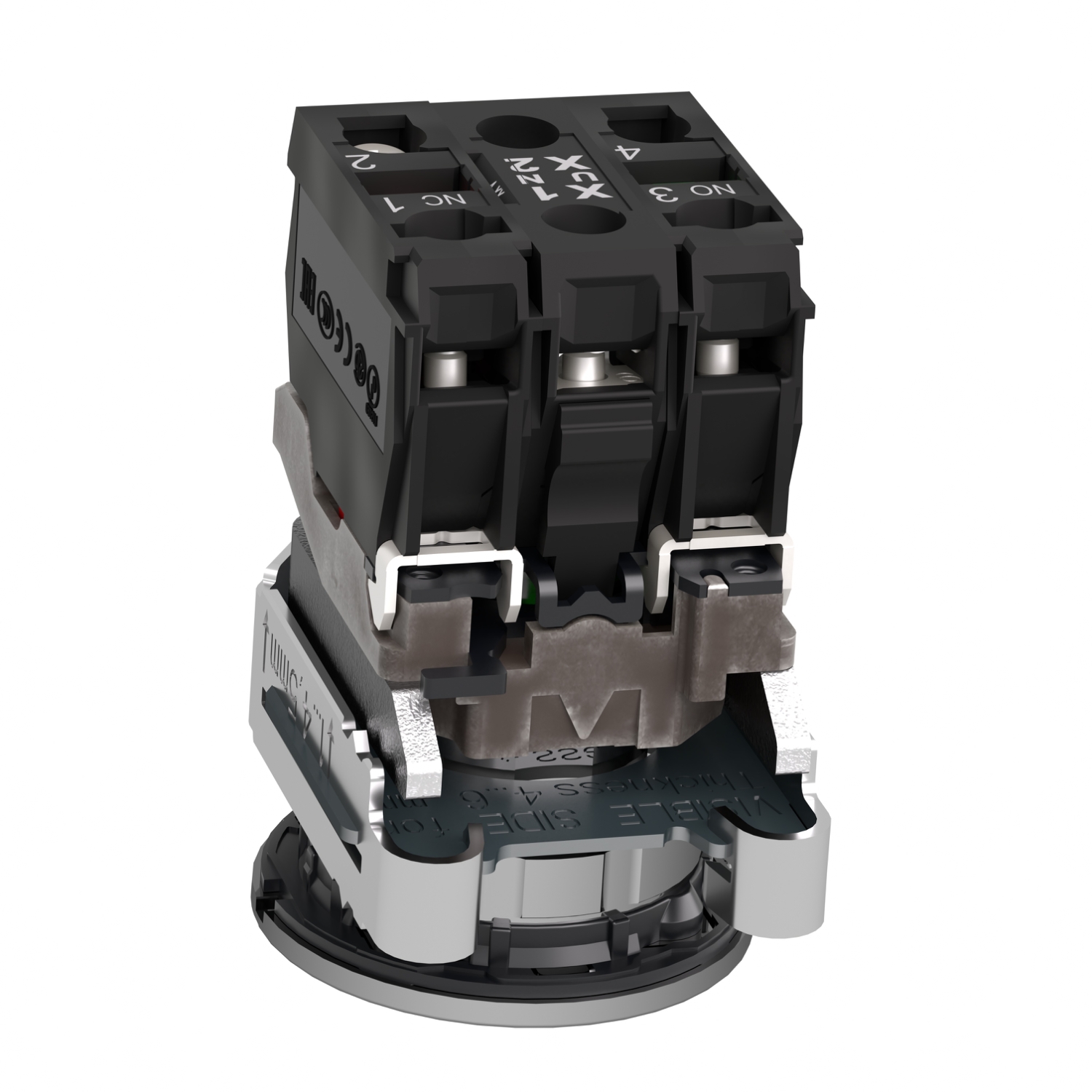

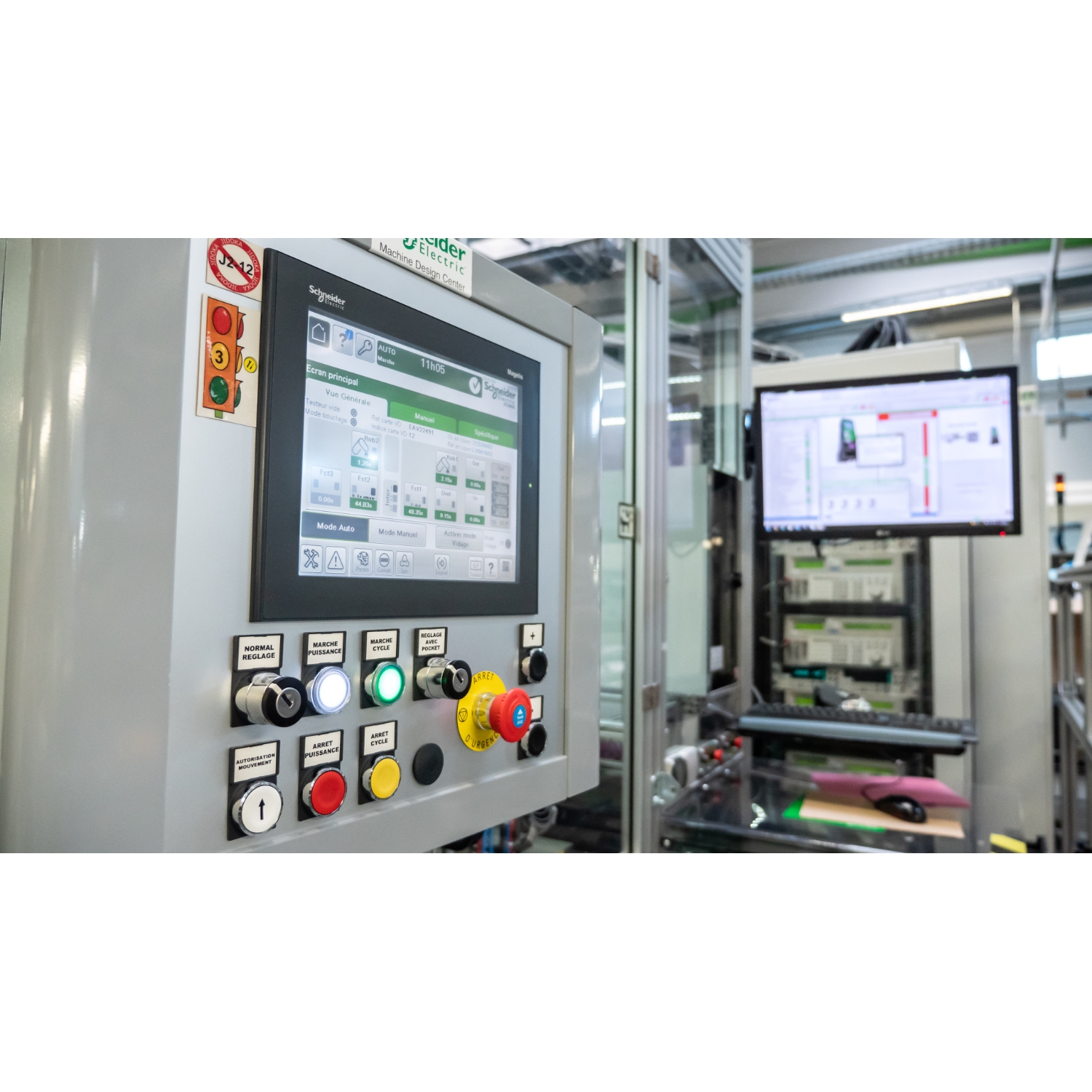

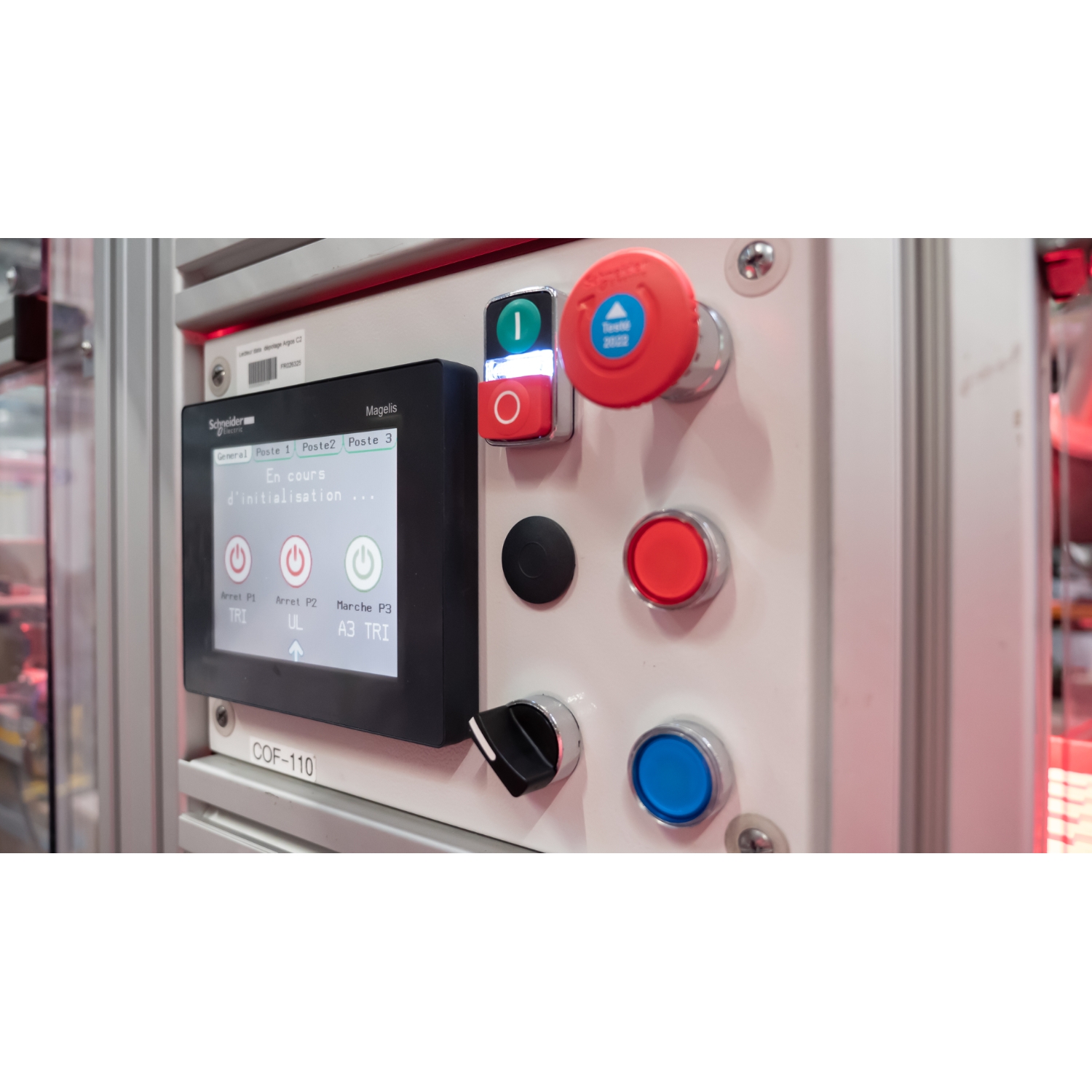

Picture of Illuminated push button, Harmony XB4, metal, white flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, white flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, white flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Picture of Illuminated push button, Harmony XB4, metal, white flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
SKU:

XB4FW31B5

Illuminated push button, Harmony XB4, metal, white flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

$87.43
Available for Shipping : 10-Dec-2024
Product Selector
Illuminated push button, Harmony XB4, metal, white flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Declaration of conformity
Catalogue
Product environmental
Technical illustration
Product Page Link
Product Data Sheet
This flush mounted illuminated pushbutton is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is an integral LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and white. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 132 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Products specifications

Attribute name Attribute value
Main
Device short name XB4F
Contact operation slow-break
Sale per indivisible quantity 1
Head type built-in-flush
Fixing collar material zamak
Type of operator spring return
Range of product Harmony XB4
Bulb base integral LED
[Us] rated supply voltage 24 V AC/DC at 50/60 Hz
Operator profile white flush
Bezel material chromium plated metal
Contacts type and composition 1 NO + 1 NC
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit head round
Product or component type illuminated push-button
Mounting diameter 30.5 mm
Light source universal LED
Operator additional information with plain lens
Complementary
Device mounting built-in
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility code XB4
Mechanical durability 10000000 cycles
Supply voltage limits 21.6-26.4 V AC, 19.2-30 V DC
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Surge withstand 1 kV conforming to IEC 61000-4-5
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation complete product
Customizable 1, no
Cap/operator or lens colour white
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state), 1.5 mm (NC changing electrical state)
Fixing mode by screws recommended torque: 0.8 N.m
Operating force 3.8 N, 3.5 N NC changing electrical state
Height 47 mm
[Us] rated supply voltage 24 V
Depth 55 mm
Width 36.6 mm
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Service life 100000 h at rated voltage and 25 °C
GCR BRIDGE XB4FWCUST02
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Current consumption 18 mA
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.132 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening with conforming to IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1 (21-22)NC, (13-14)NO
Contacts usage standard contacts
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50 E, Type 4 conforming to UL 50 E, Type 12 conforming to UL 50 E, Type 13 conforming to UL 50 E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
Electromagnetic emission class B conforming to IEC 55011
Electrical shock protection class class I conforming to IEC 60536
Vibration resistance 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CE, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14
Product certifications EAC, CCC, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.700 cm
Package 1 Width 4.300 cm
Package 1 Length 5.200 cm
Package 1 Weight 127.000 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.567 kg
