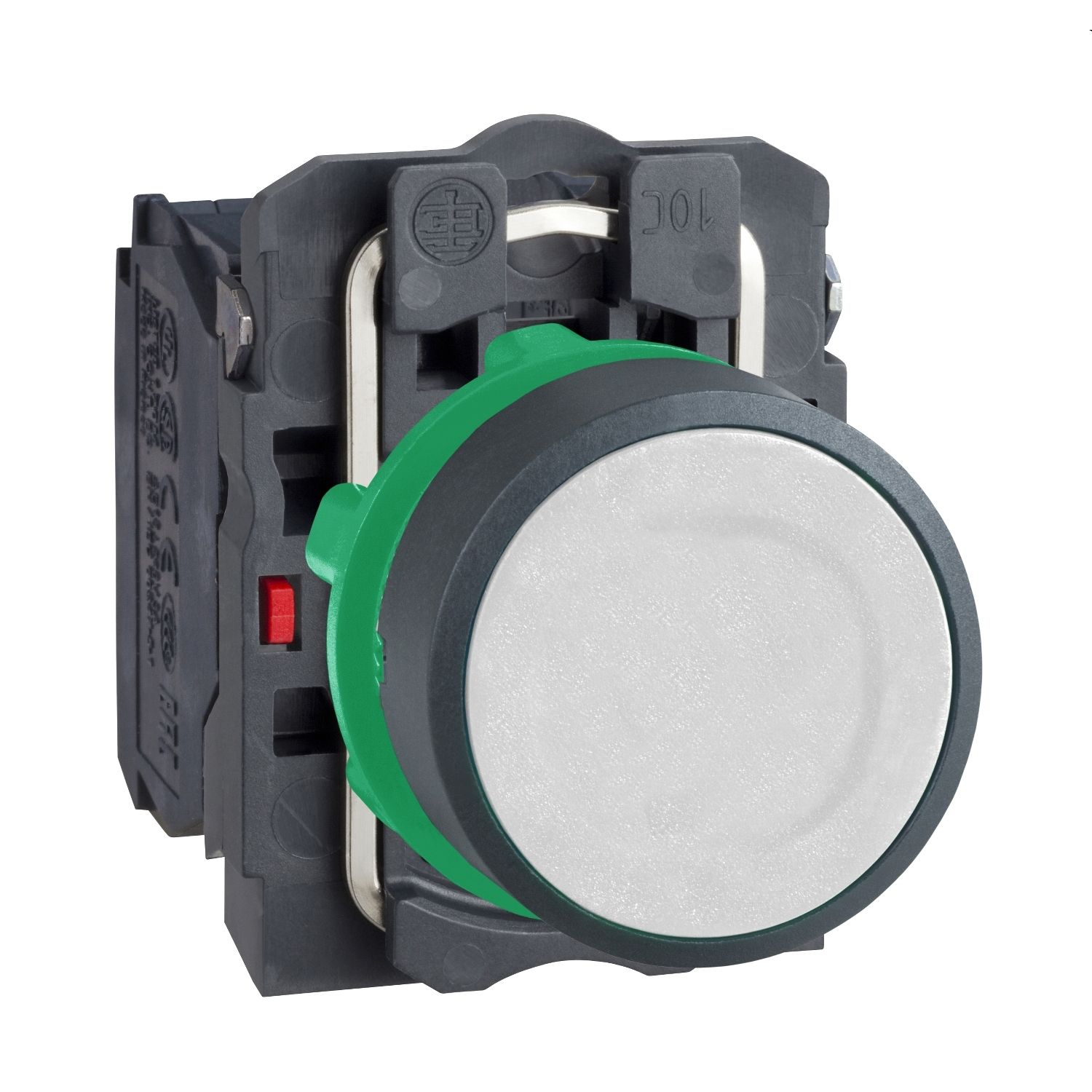

Picture of Push button, Harmony XB5, white flush, plastic, 22mm, spring return, 1NO + 1NC, unmarked
SKU:

XB5AA15

Push button, Harmony XB5, white flush, plastic, 22mm, spring return, 1NO + 1NC, unmarked

$46.42 INC GST
Available for Shipping : 05-Jun-2025
Product Selector
Push button, Harmony XB5, white flush, plastic, 22mm, spring return, 1NO + 1NC, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XB5, flush modular white push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Device short name XB5
Operator profile white flush, unmarked
Contact operation slow-break
Bezel material dark grey plastic, plastic
Sale per indivisible quantity 1
Contacts type and composition 1 NO + 1 NC
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Head type standard
Fixing collar material plastic
Shape of signaling unit head round
Product or component type push-button
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Depth 52 mm
Width 30 mm
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Customizable no, 1
Compatibility code XB5
Mechanical durability 10000000 cycles
Electrical durability 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
GCR BRIDGE XB5AACUST04
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation complete product
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Cap/operator or lens colour white
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening with conforming to IEC 60947-5-1 appendix K
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state), 1.5 mm (NC changing electrical state)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Operating force 3.8 N NO changing electrical state, 3.5 N NC changing electrical state
Terminals description ISO n°1 (13-14)NO, (21-22)NC
Height 42 mm
Contacts usage standard contacts
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications RINA, CSA, UL listed, GL, LROS (Lloyds register of shipping), DNV, BV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 5.500 cm
Package 1 Length 8.500 cm
Package 1 Weight 44.200 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.440 kg
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 47.040 kg
