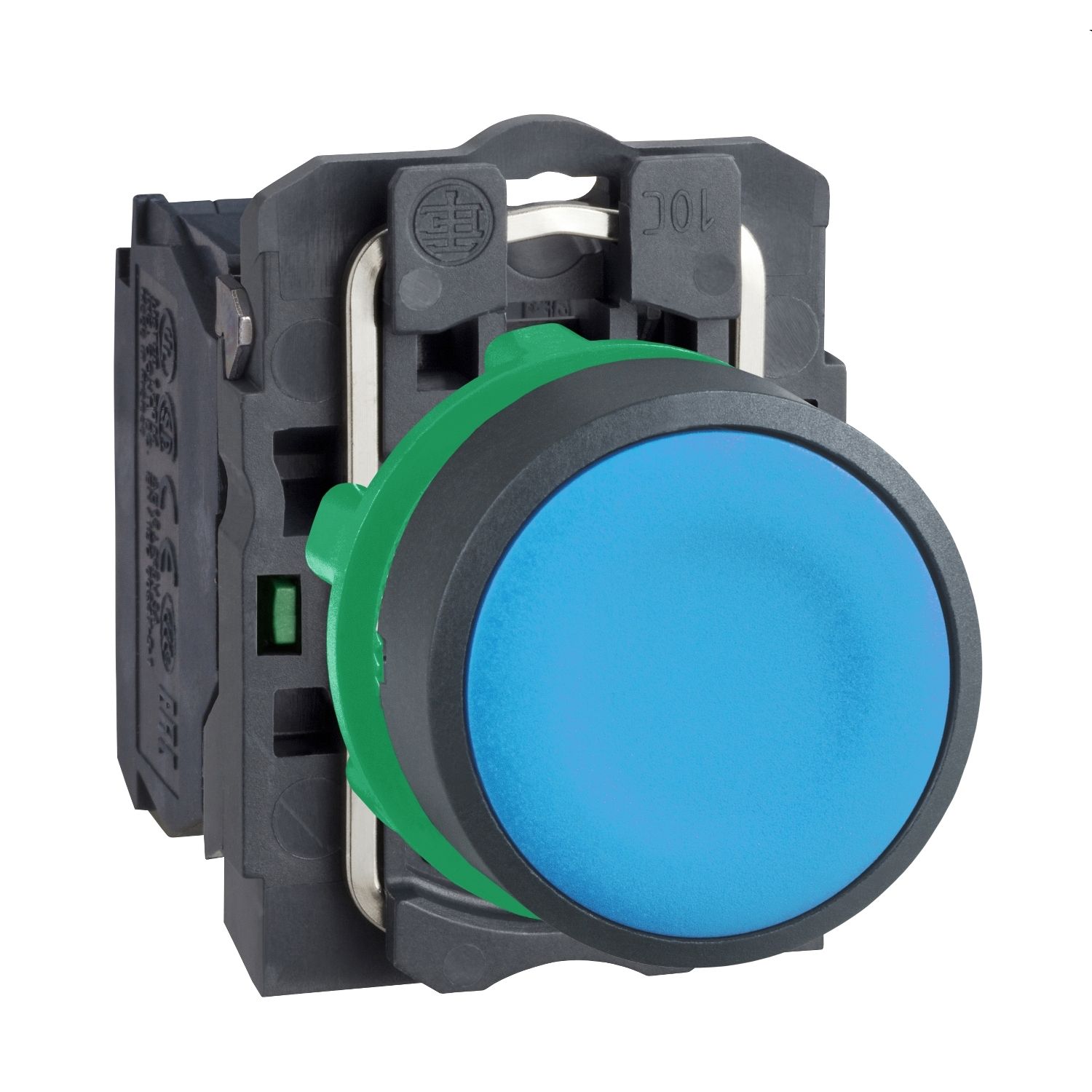

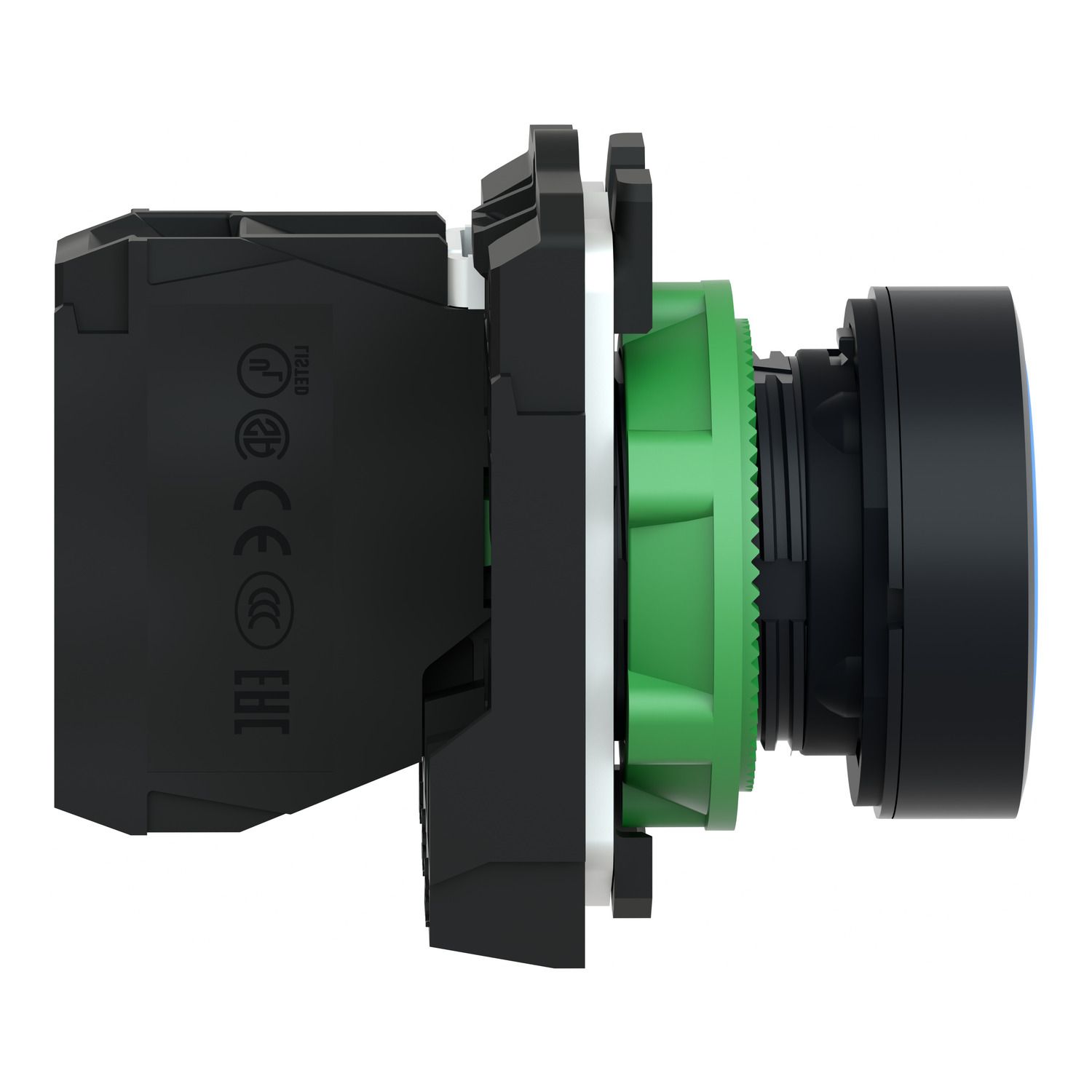

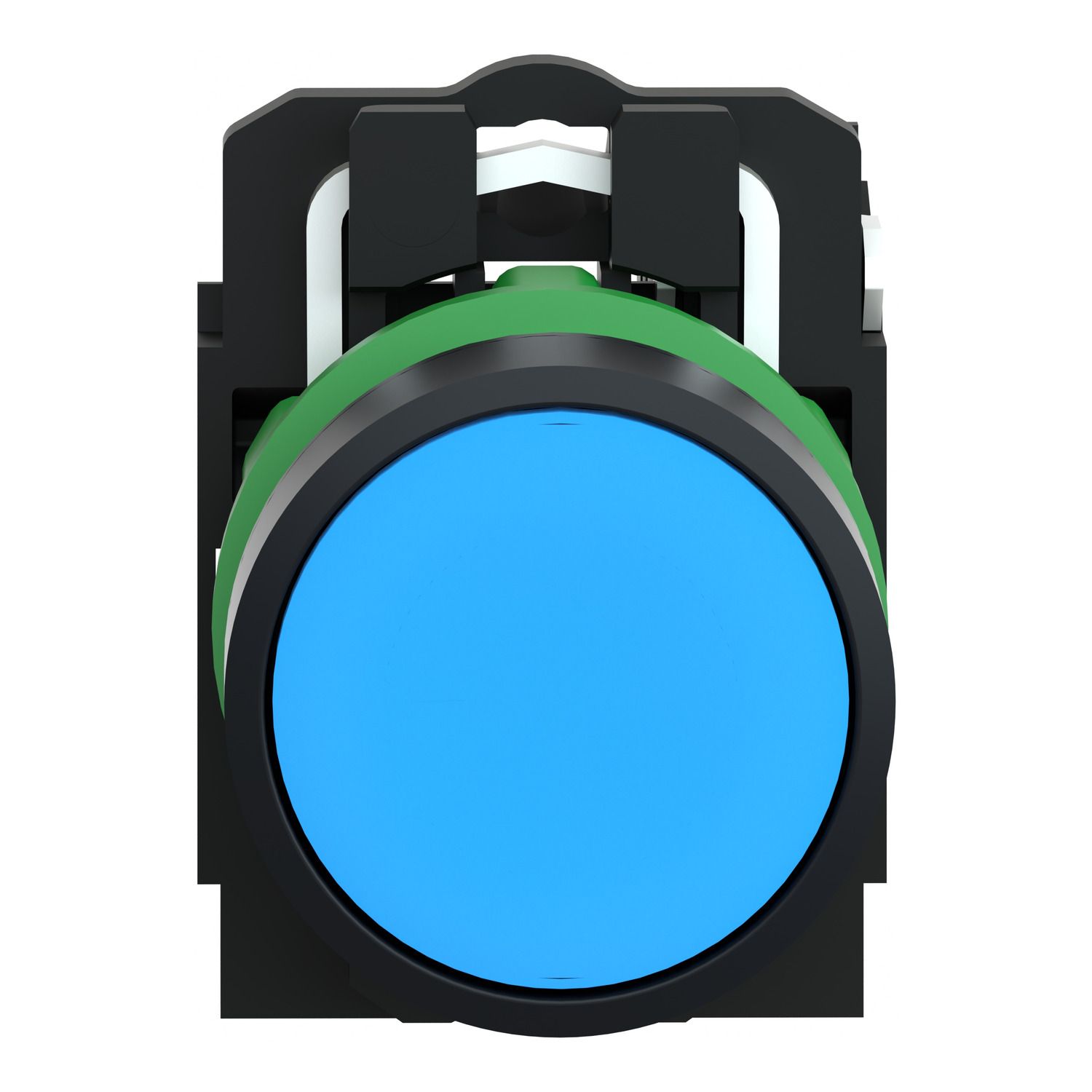

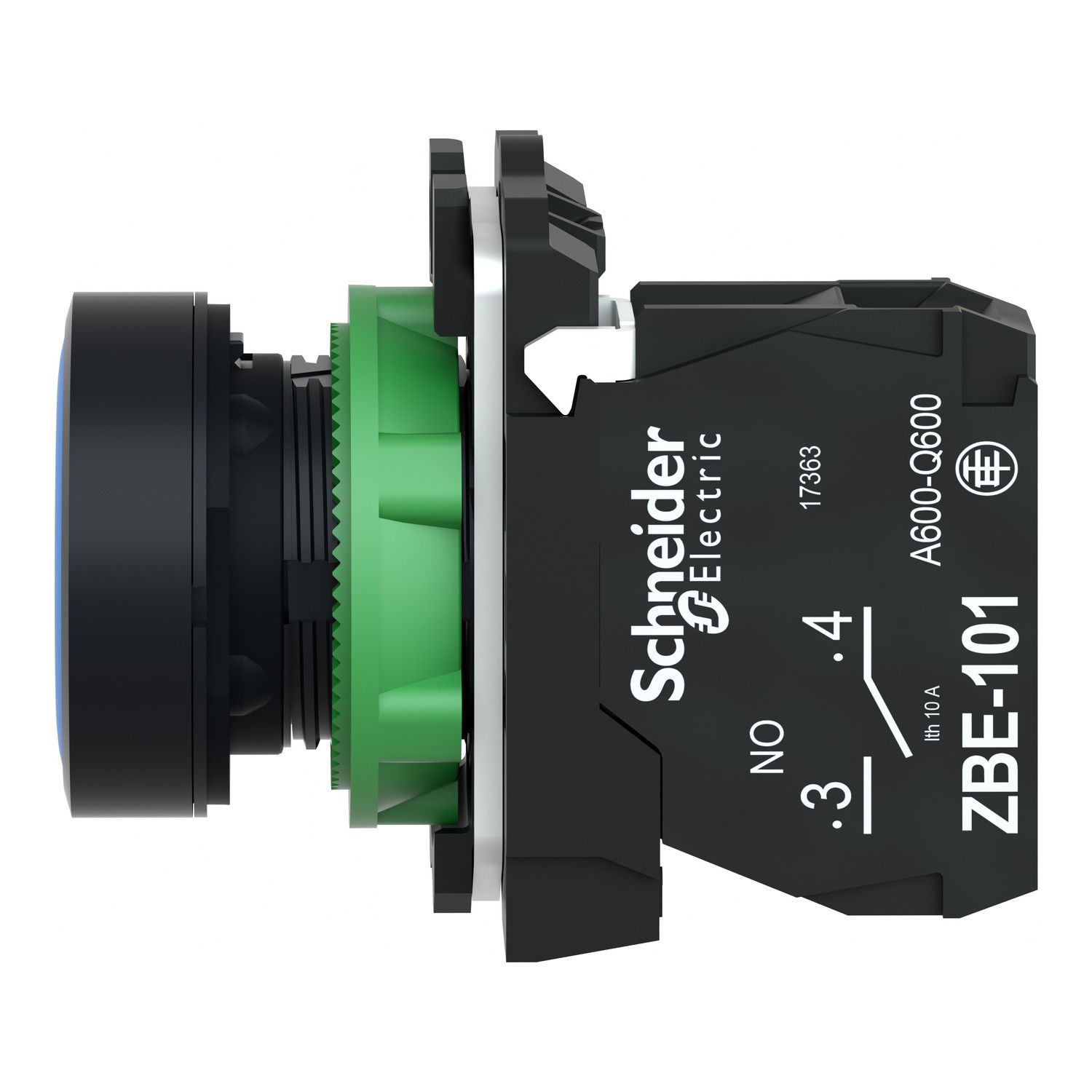

Picture of Push button, Harmony XB5, plastic, flush, blue, 22mm, spring return, unmarked, 1NO
SKU:

XB5AA61

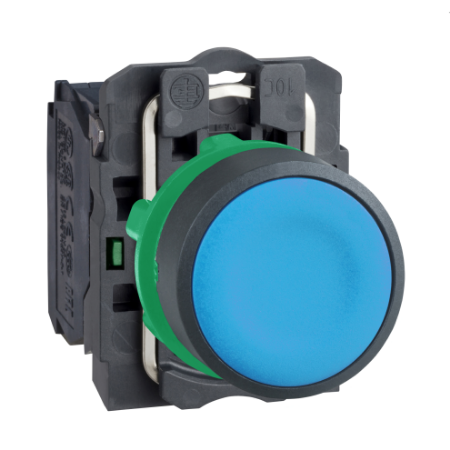

Push button, Harmony XB5, plastic, flush, blue, 22mm, spring return, unmarked, 1NO

$33.58
Product Selector
Push button, Harmony XB5, plastic, flush, blue, 22mm, spring return, unmarked, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Declaration of conformity
End of life manual
Product environmental
Instruction sheet
Technical illustration
Product Page Link
Product Data Sheet
This Harmony XB5, modular blue push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute nameAttribute value
Main
Device short nameXB5
Contact operationslow-break
Sale per indivisible quantity1
Head typestandard
Fixing collar materialplastic
Type of operatorspring return
Range of productHarmony XB5
Operator profileblue flush, unmarked
Bezel materialdark grey plastic, plastic
Contacts type and composition1 NO
Connections - terminalsscrew clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit headround
Product or component typepush-button
Mounting diameter22 mm
Complementary
Shape of screw headslotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliabilityλ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Compatibility codeXB5
Mechanical durability10000000 cycles
Electrical durability1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C
[Ie] rated operational current1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Device presentationcomplete product
Customizable1, no
Cap/operator or lens colourblue
Contacts materialsilver alloy (Ag/Ni)
Operating travel4.3 mm (total travel), 2.6 mm (NO changing electrical state)
Operating force3.8 N NO changing electrical state
Height42 mm
Depth52 mm
Width30 mm
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
GCR BRIDGEXB5AACUST01
Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
Net weight0.037 kg
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Positive openingwithout
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1

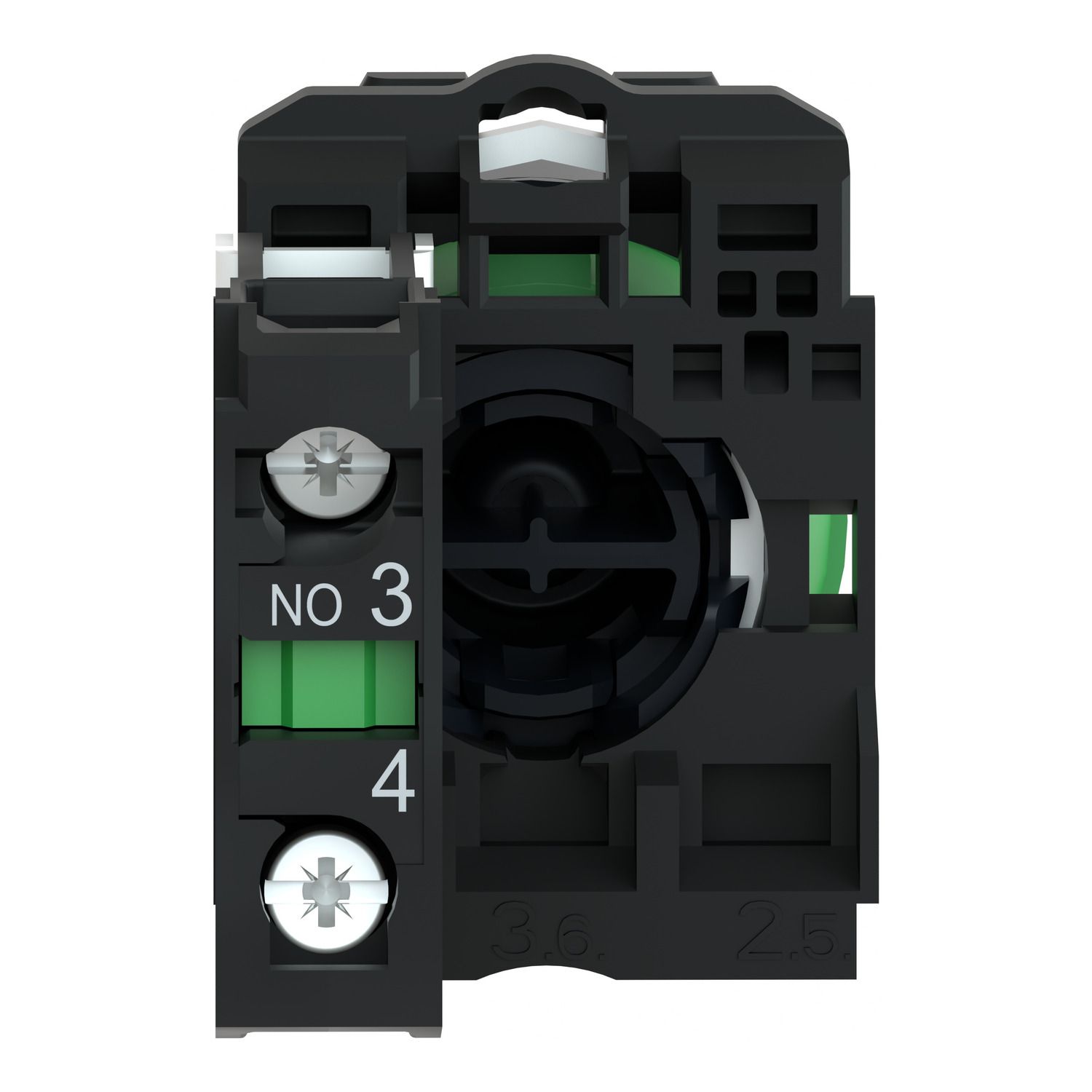

Terminals description ISO n°1(13-14)NO
Contacts usagestandard contacts
Environment
Protective treatmentTH
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP69K, IP69, IP67, IP66 conforming to IEC 60529
StandardsJIS C8201-1, UL 508, IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1
Ambient air temperature for operation-40-70 °C
IK degree of protectionIK03 conforming to IEC 50102
NEMA degree of protectionNEMA 4X, NEMA 13
Overvoltage categoryclass II conforming to IEC 60536
Vibration resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Product certificationsDNV, CSA, RINA, UL listed, LROS (Lloyds register of shipping), GL, BV
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.800 cm
Package 1 Width3.400 cm
Package 1 Length5.400 cm
Package 1 Weight36.000 g
Unit Type of Package 22
Number of Units in Package 25
Package 2 Height8.800 cm
Package 2 Width3.400 cm
Package 2 Length26.500 cm
Package 2 Weight180.000 g
Unit Type of Package 33
Number of Units in Package 3150
Package 3 Height30.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight5.866 kg
Unit Type of Package 44
Number of Units in Package 41200
Package 4 Height75.000 cm
Package 4 Width60.000 cm
Package 4 Length80.000 cm
Package 4 Weight55.004 kg
