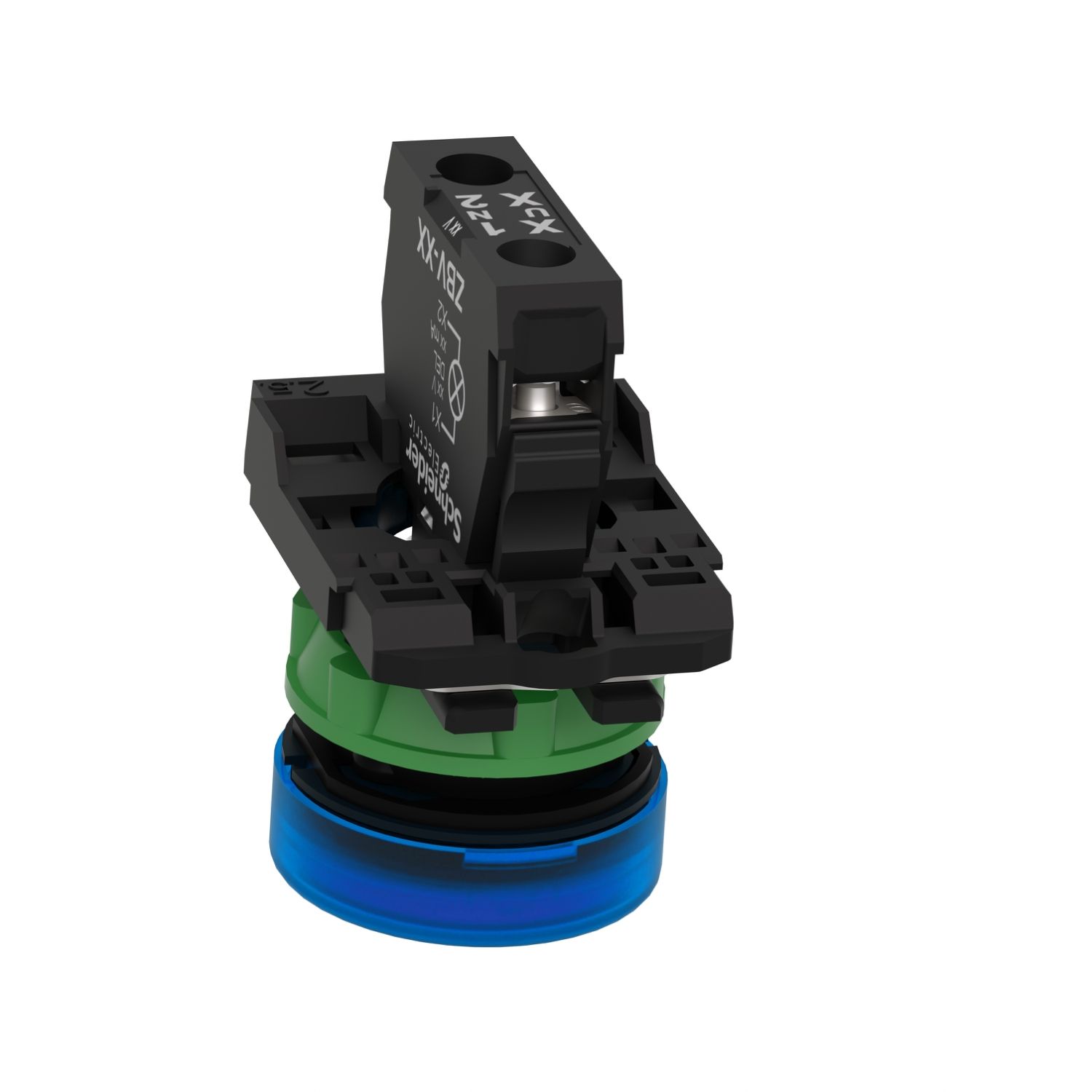

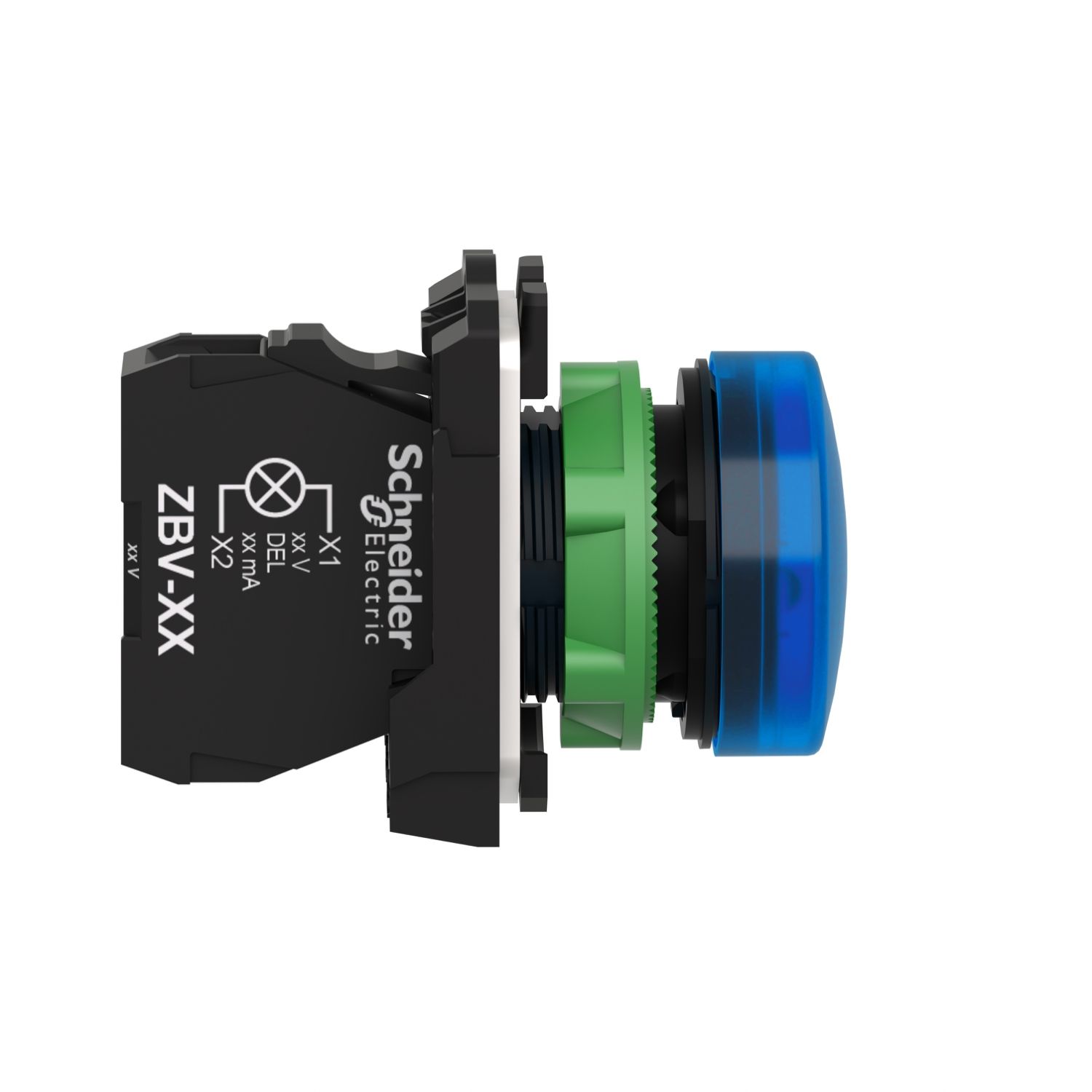

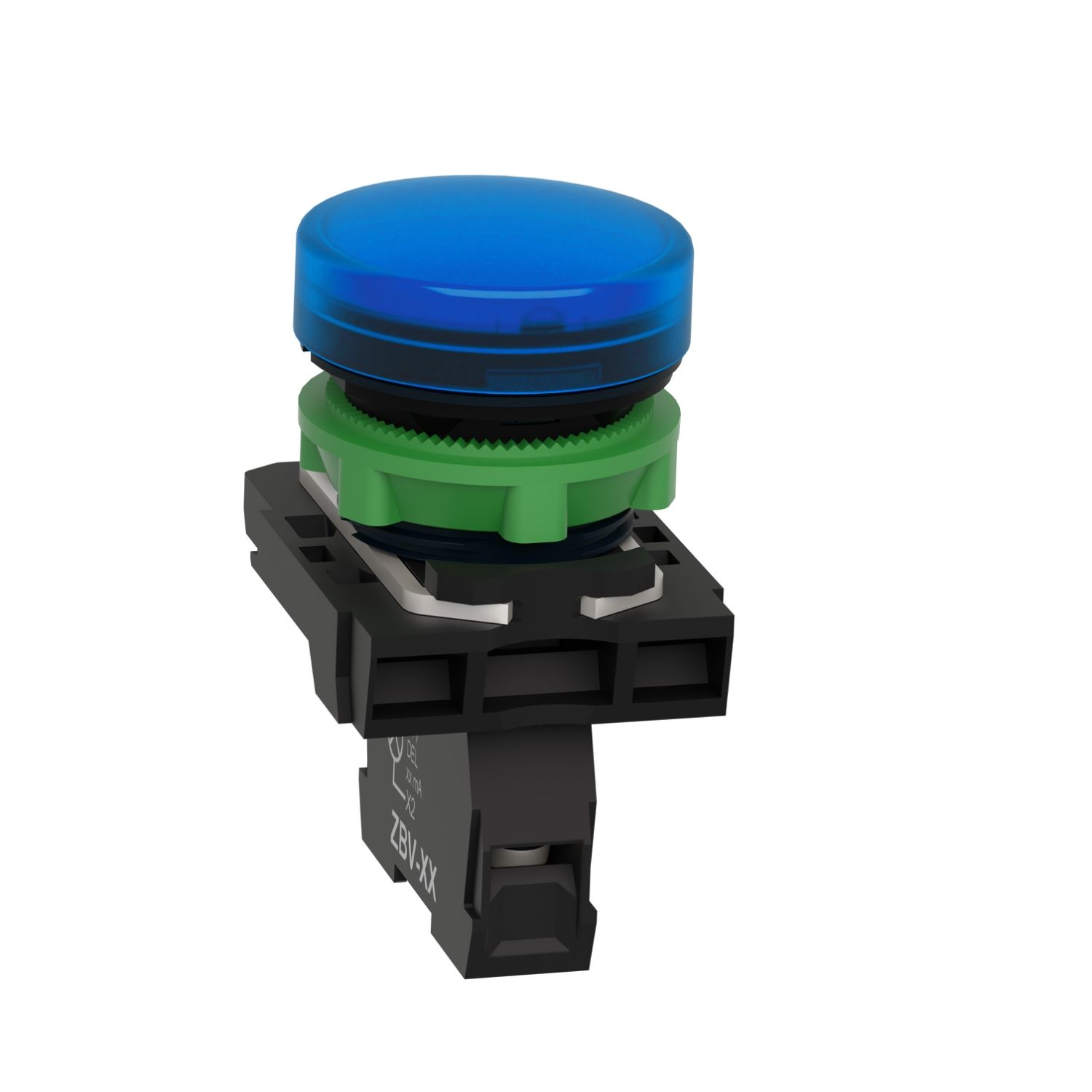

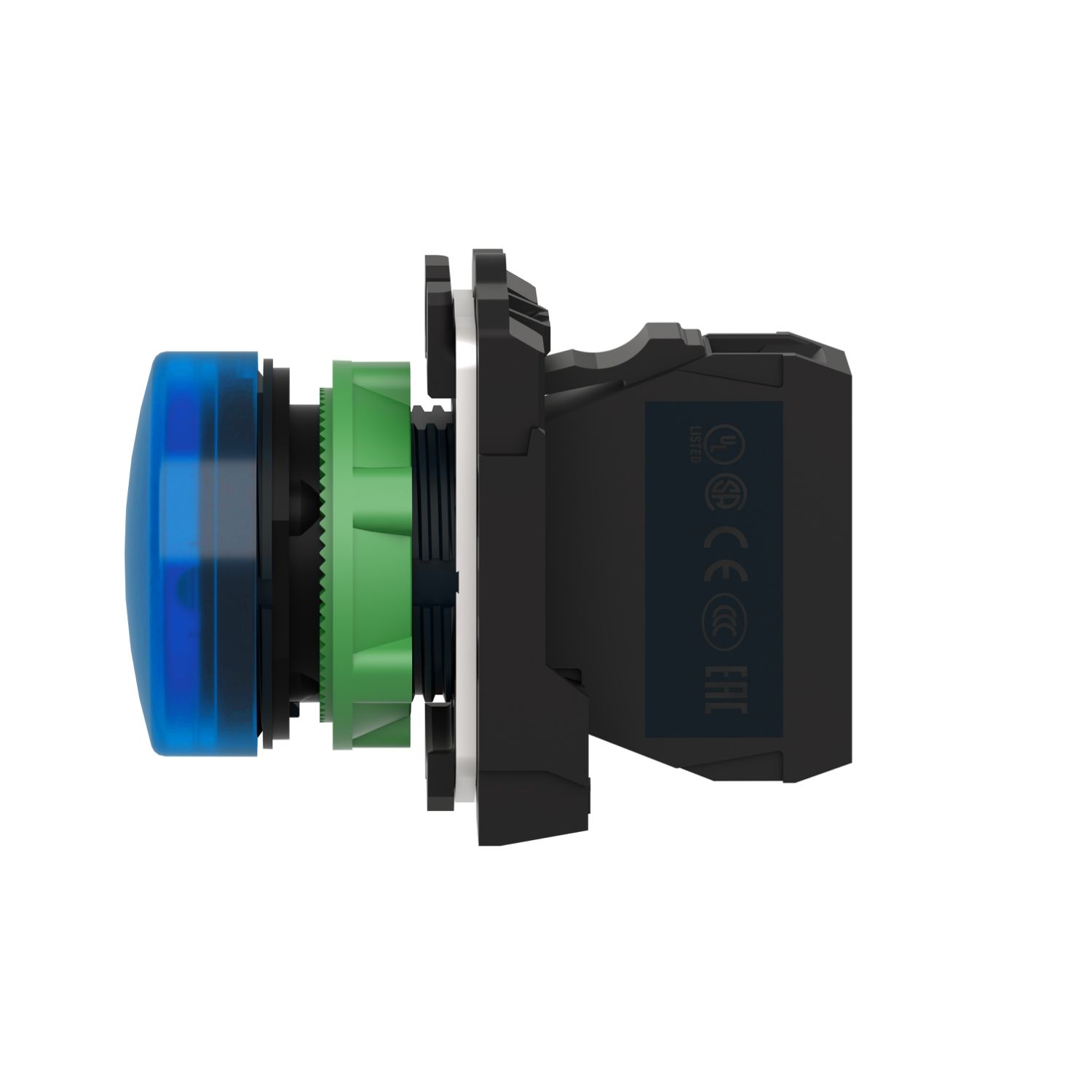

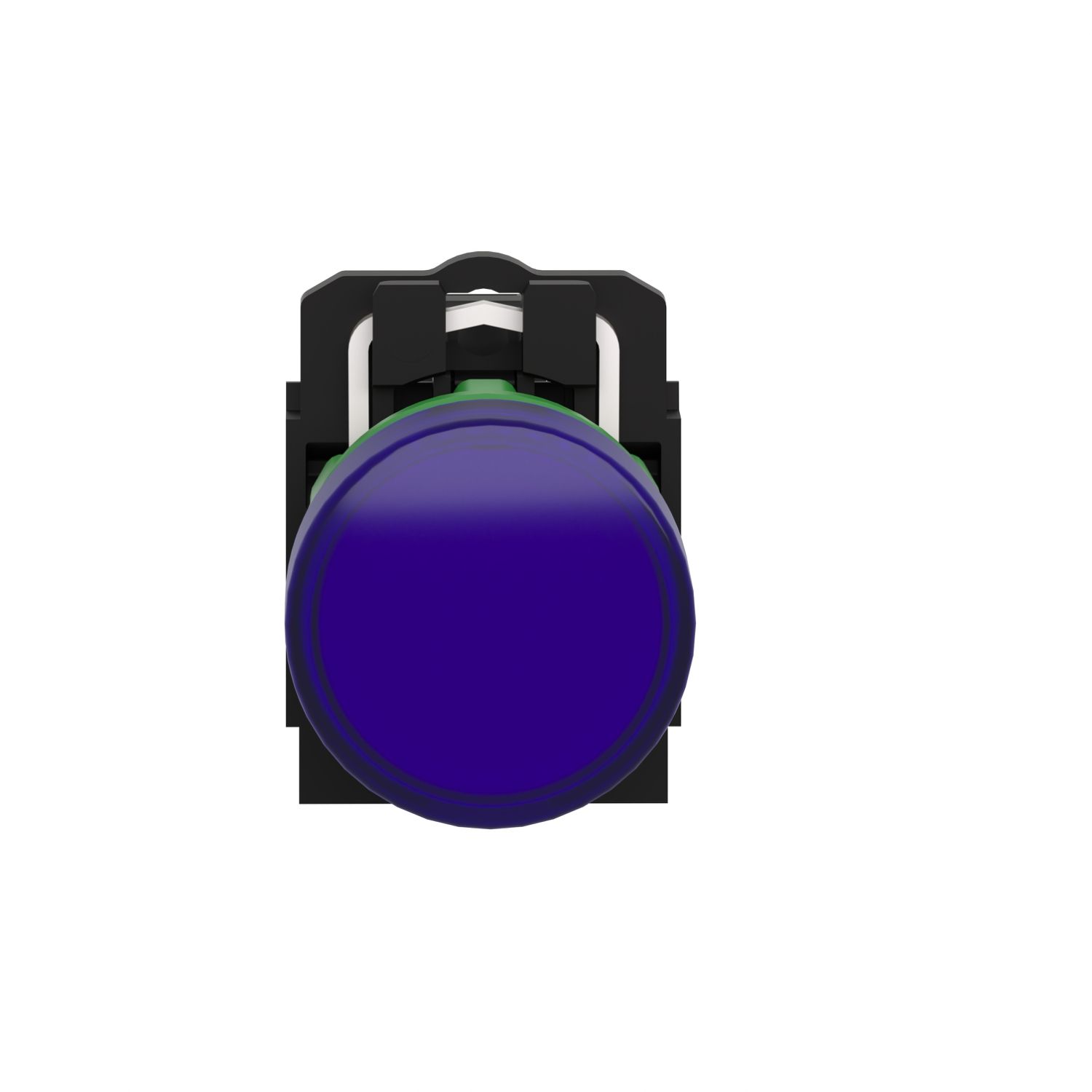

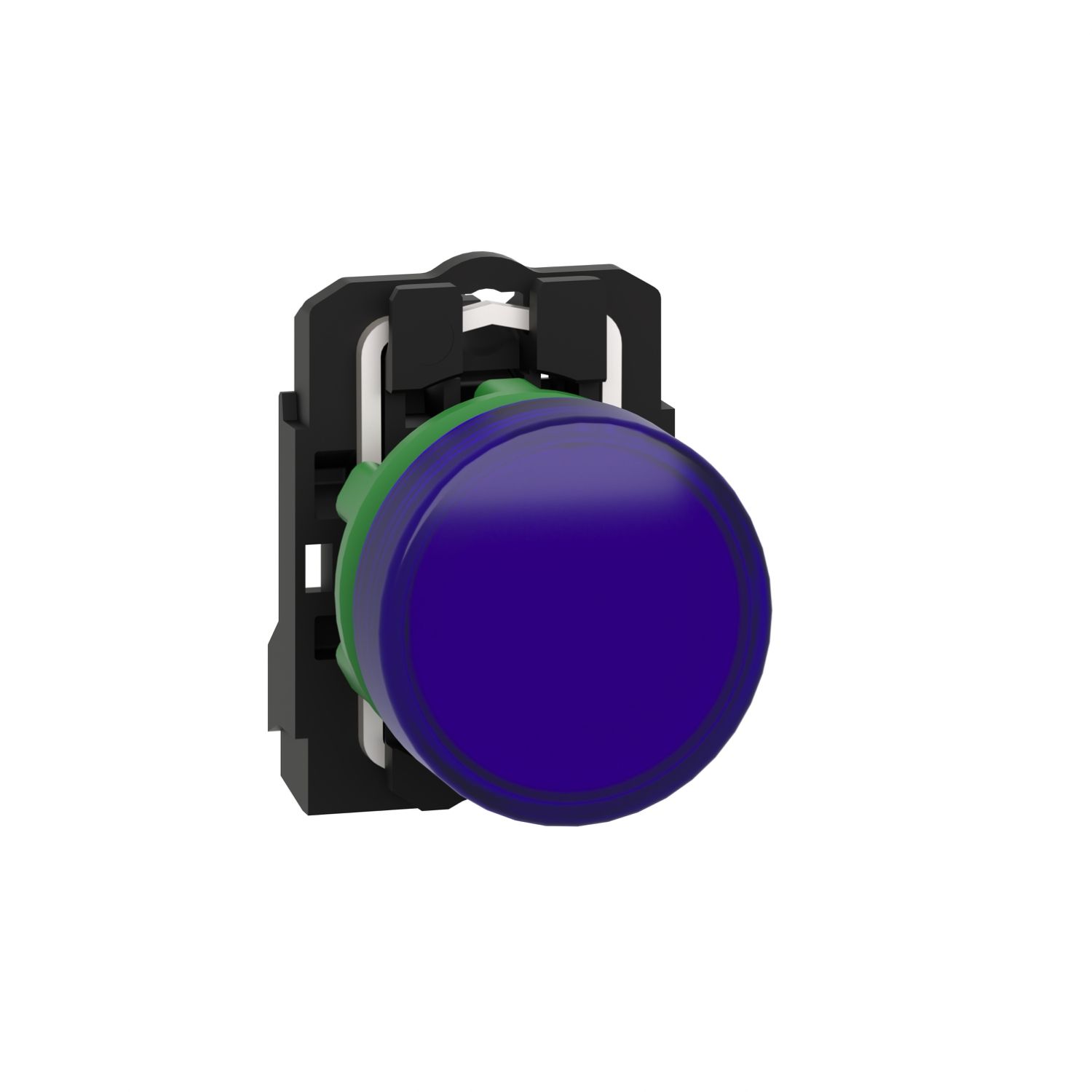

Picture of Harmony XB5, Pilot light, grey plastic, blue, 22mm, universal LED, plain lens, 24V AC DC
Picture of Harmony XB5, Pilot light, grey plastic, blue, 22mm, universal LED, plain lens, 24V AC DC
Picture of Harmony XB5, Pilot light, grey plastic, blue, 22mm, universal LED, plain lens, 24V AC DC
Picture of Harmony XB5, Pilot light, grey plastic, blue, 22mm, universal LED, plain lens, 24V AC DC
SKU:

XB5AVB6

Harmony XB5, Pilot light, grey plastic, blue, 22mm, universal LED, plain lens, 24V AC DC

Old price: $53.02 INC GST
$41.36 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Harmony XB5, Pilot light, grey plastic, blue, 22mm, universal LED, plain lens, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Circularity Profile

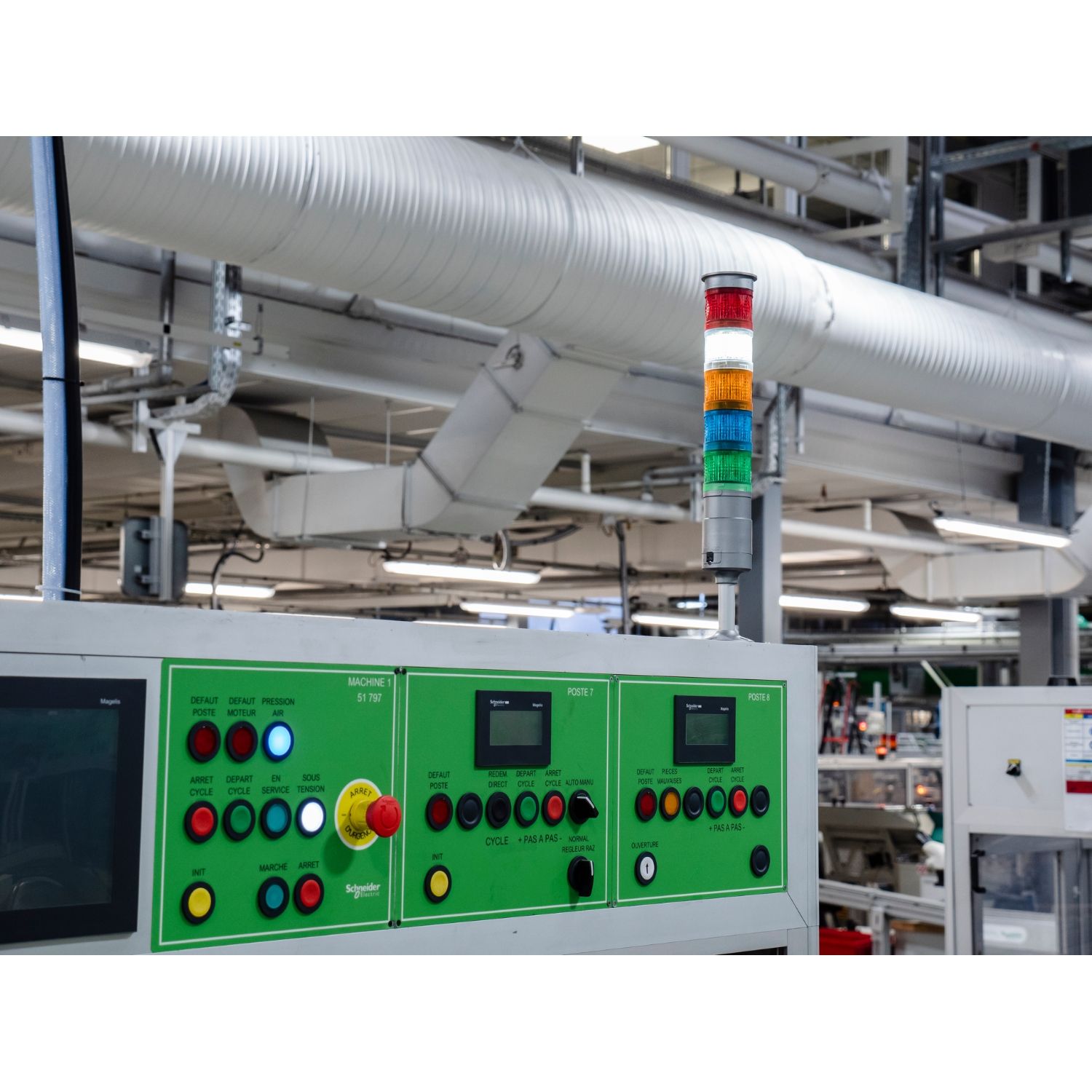

Image of product in real life situation
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5, plain lens modular blue pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Sale per indivisible quantity 1
Device presentation complete product
Fixing collar material plastic
Cap/operator or lens colour blue
[Us] rated supply voltage 24 V AC/DC at 50/60 Hz
Light source universal LED
Device short name XB5
Light source colour blue
Head type standard
Range of product Harmony XB5
Bulb base integral LED
Bezel material dark grey plastic
Shape of signaling unit head round
Product or component type pilot light
Mounting diameter 22 mm
Operator additional information with plain lens
Complementary
Compatibility code XB5
Surge withstand 1 kV conforming to IEC 61000-4-5
Customizable 1, no
Height 42 mm
[Us] rated supply voltage 24 V
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Current consumption 18 mA
Net weight 0.038 kg
Supply voltage limits 21.6-26.4 V AC, 19.2-30 V DC
Depth 54 mm
Width 30 mm
Signalling type steady
Service life 100000 h at rated voltage and 25 °C
GCR BRIDGE XB5AVCUST03
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1

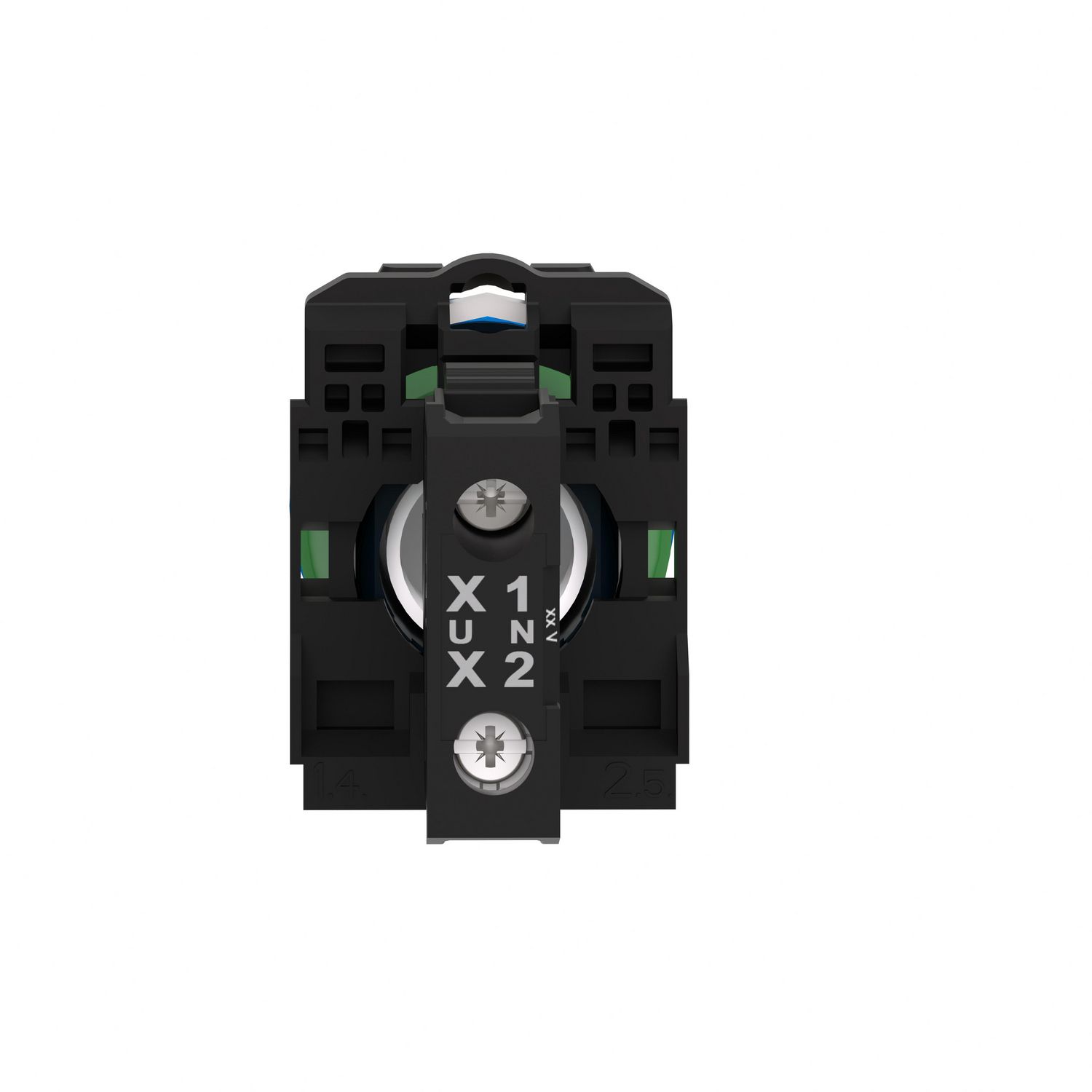

Terminals description ISO n°1 (X1-X2)PL
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
Standards JIS C8201-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60947-1, JIS C8201-5-1
NEMA degree of protection NEMA 4X, NEMA 13
Product certifications UL listed, CSA
Protective treatment TH
IP degree of protection IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Electromagnetic compatibility electromagnetic emission class B conforming to IEC 55011, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 50102
Electromagnetic emission class B conforming to IEC 55011
Overvoltage category class II conforming to IEC 60536
Vibration resistance 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.800 cm
Package 1 Width 3.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 36.000 g
Unit Type of Package 2 2
Number of Units in Package 2 150
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.800 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 56.204 kg

Customers who bought this item also bought

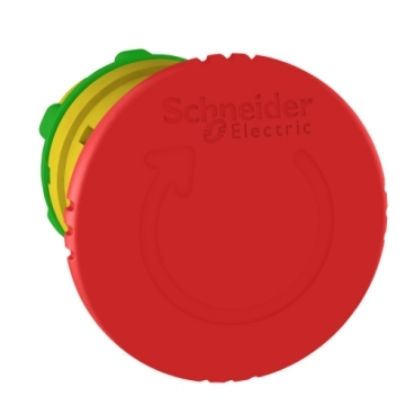

Harmony XB5, Emergency stop head,switching off, plastic, red mushroom 40mm, 22mm, trigger and latching turn to release

ZB5AS844
$47.88 INC GST $61.38 INC GST
View Detail

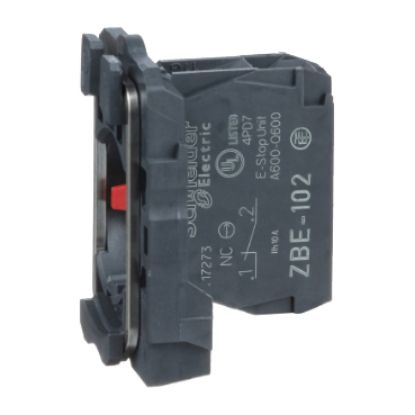

Harmony XB5, Single contact block with body fixing collar, plastic, screw clamp terminal, 1NC

ZB5AZ102
$18.79 INC GST $24.09 INC GST
View Detail

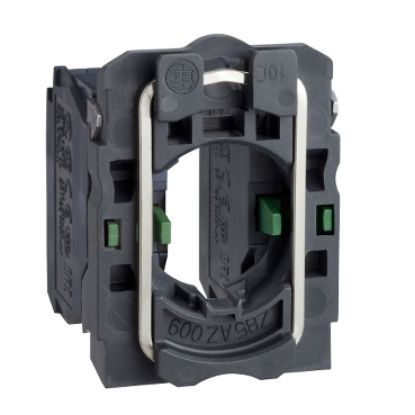

Harmony XB5, Single contact block with body fixing collar, plastic, screw clamp terminal, 2NO

ZB5AZ103
$31.83 INC GST $40.81 INC GST
View Detail

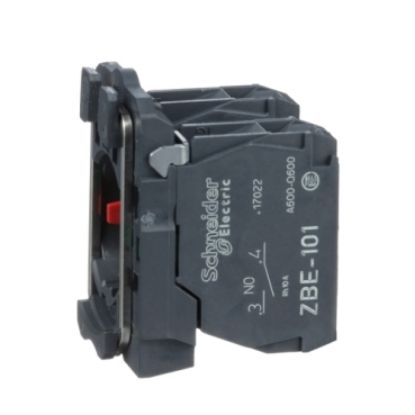

Harmony XB5, Single contact block with body fixing collar, plastic, screw clamp terminal, 1NO+1NC
