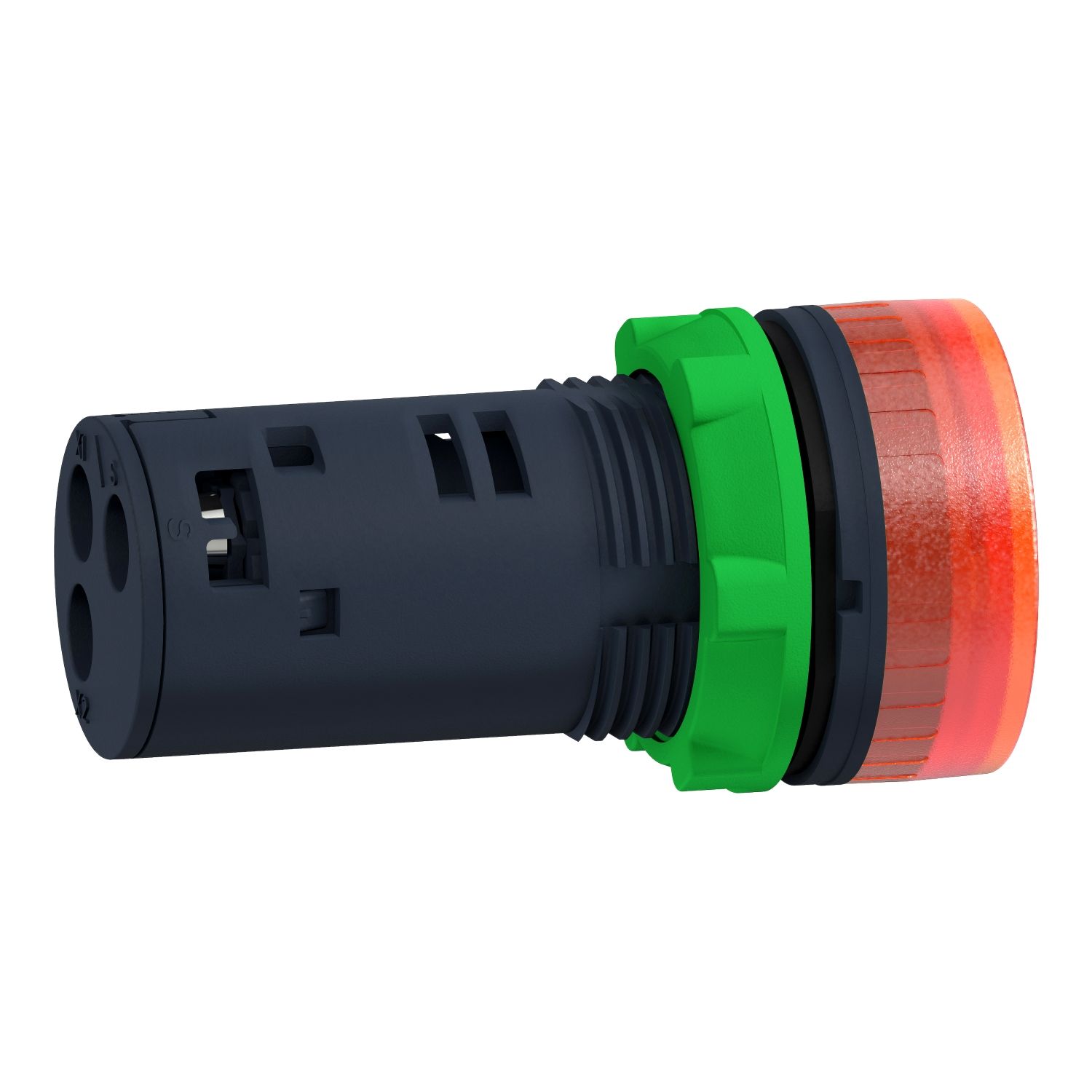

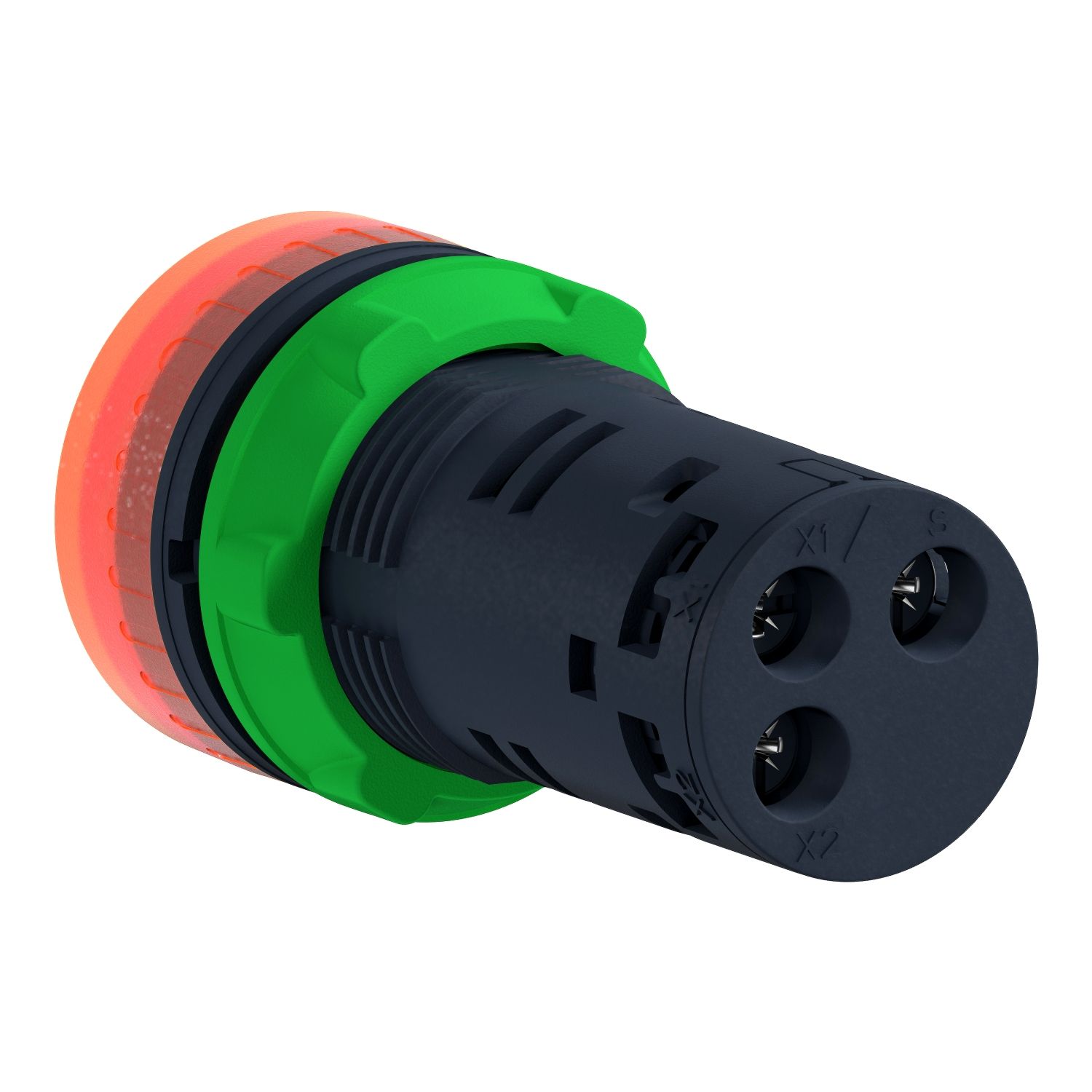

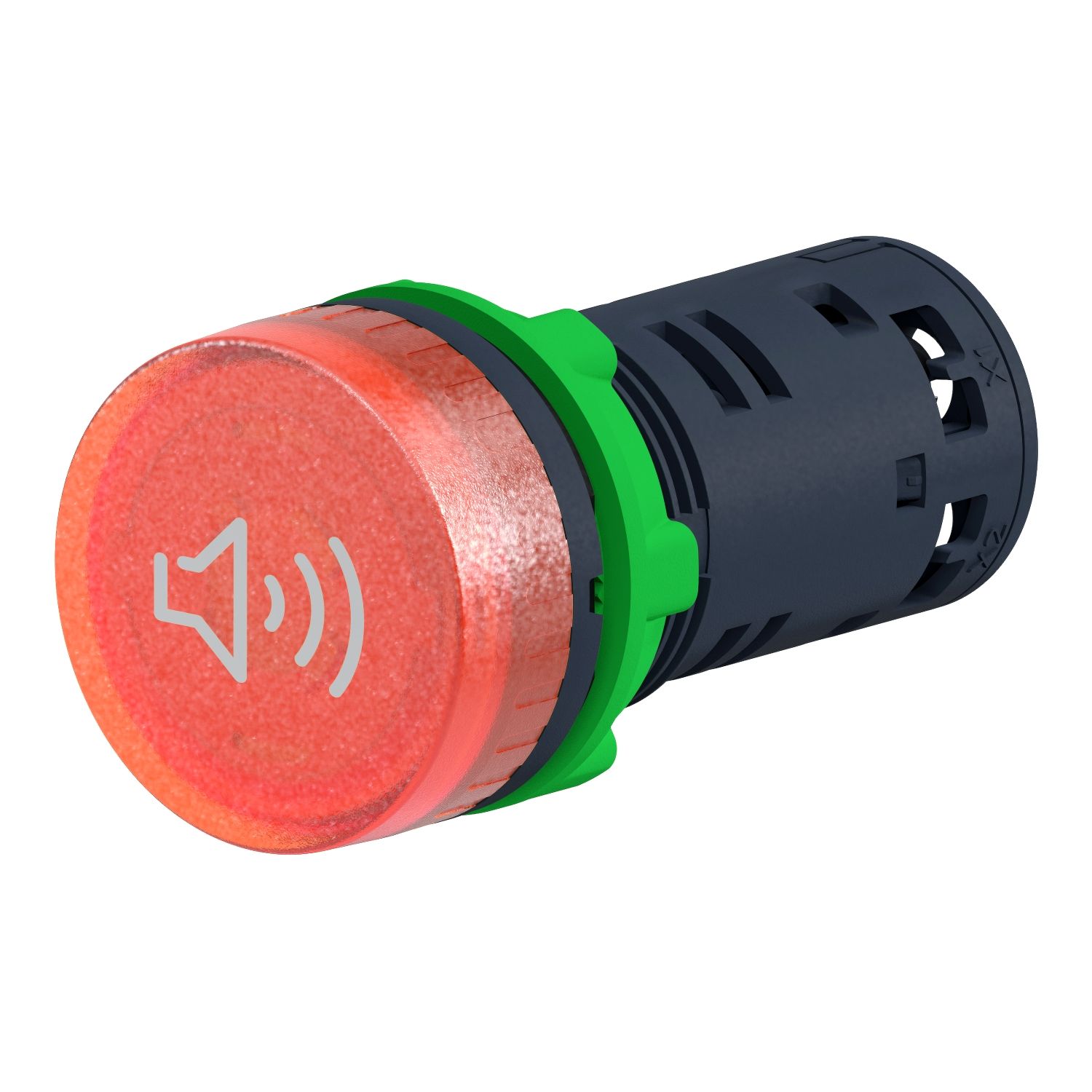

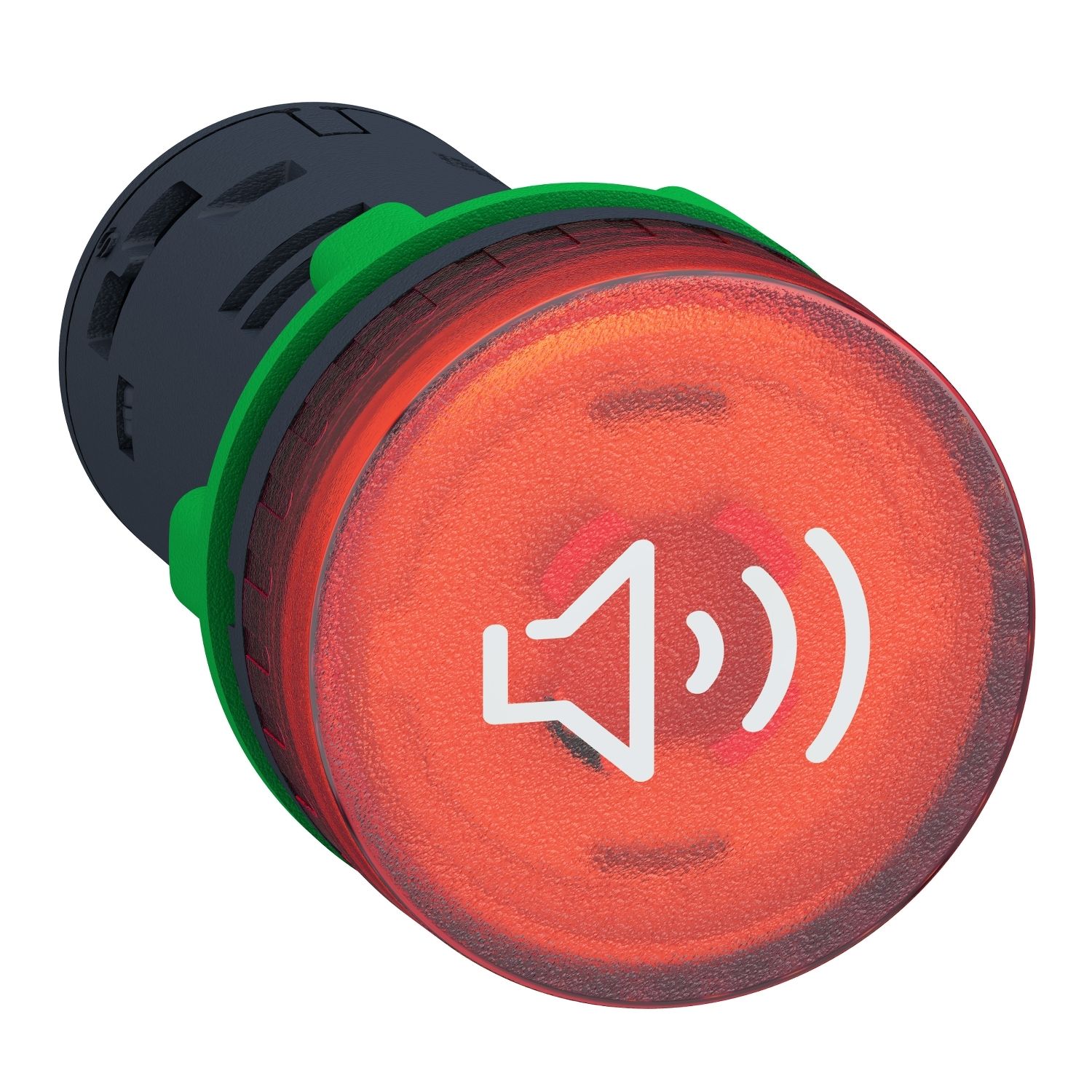

Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
Picture of Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
SKU:

XB5KS2M4

Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC

Old price: $215.82 INC GST
$168.34 INC GST
Available for Shipping : 06-Apr-2026
Product Selector
Annunciator, Harmony XB5, Illuminated buzzer, plastic, red, 22mm, continuous or intermittent tone, 230…240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026

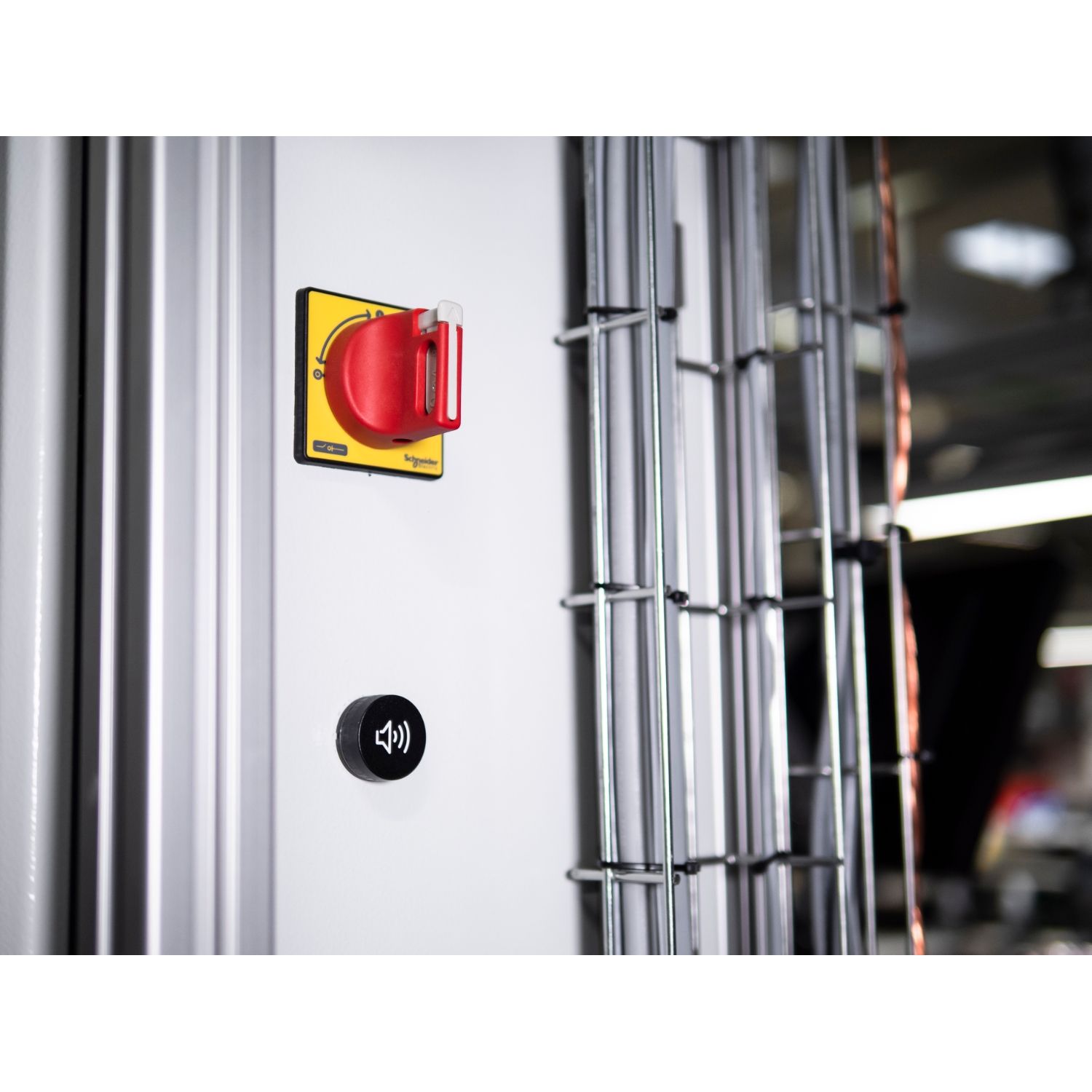

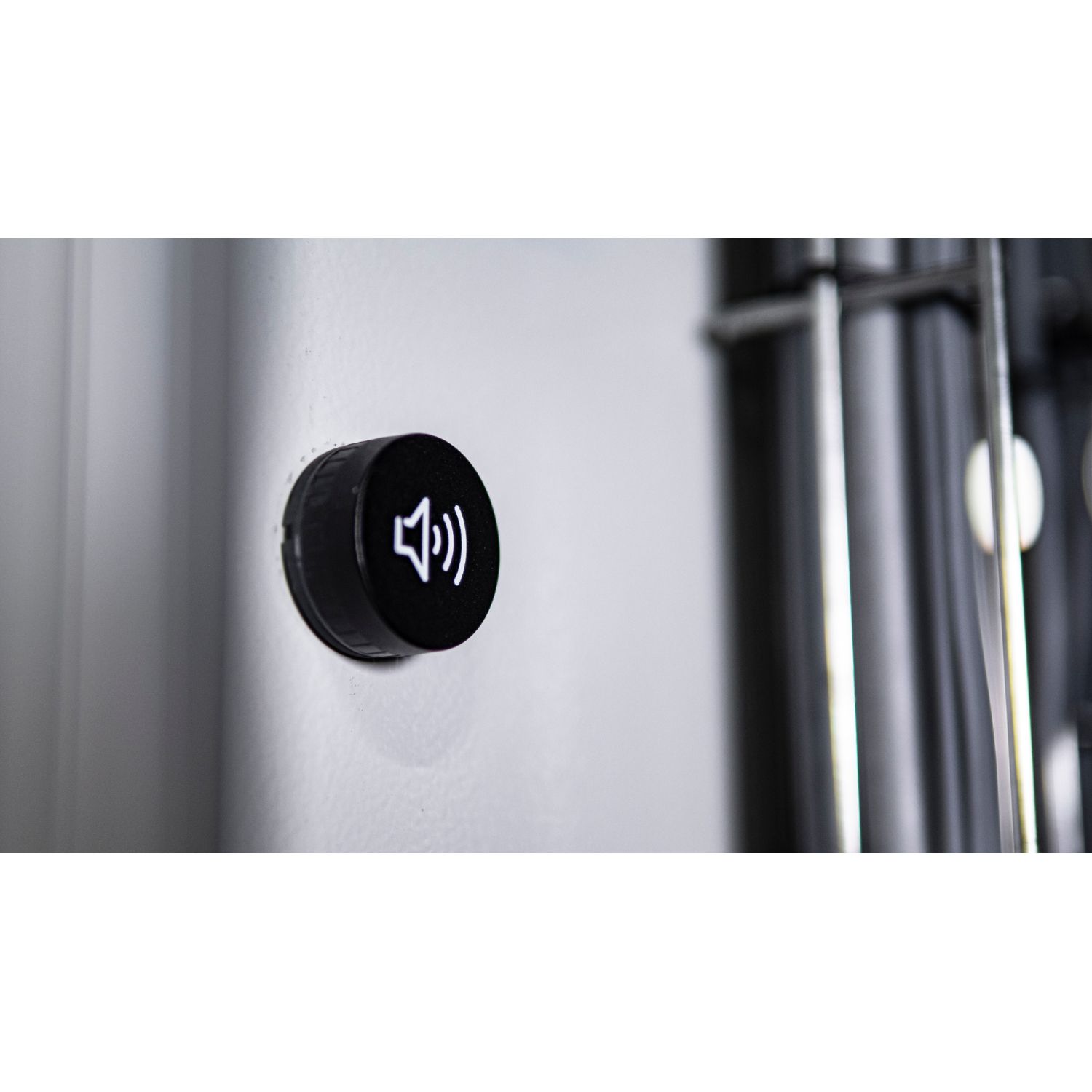

Image of product in real life situation
Image of product in real life situation
Instruction sheet
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Cap/operator or lens colour red
Range of product Harmony XB5
Bezel material plastic
Product or component type annunciator
Mounting diameter 22 mm
Complementary
Supply frequency 50/60 Hz
Height 29 mm
[Us] rated supply voltage 230...240 V +/- 10 %, 230...240 V
Depth 55 mm
Width 29 mm
Supply circuit type AC
Signalling type continuous or intermittent tone
Noise level 90 dB 6.8 kHz 0.1 m +/- 10 %
Resistance to high pressure washer 9000000 Pa at 80 °C, distance : 0.1 m
Current consumption <= 35 mA
Net weight 0.024 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 13, NEMA 4X
Ambient air temperature for operation -40-70 °C
Overvoltage category class II conforming to IEC 60536
Standards IEC 50102, IEC 62262, IEC 60529, JIS C8201-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, UL 508, IEC 60947-1, CSA C22.2 No 14
Product certifications BV, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 14.000 cm
Package 1 Length 11.000 cm
Package 1 Weight 33.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.434 kg
Unit Type of Package 3 3
Number of Units in Package 3 3200
Package 3 Height 75.000 cm
Package 3 Width 40.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 118.388 kg
