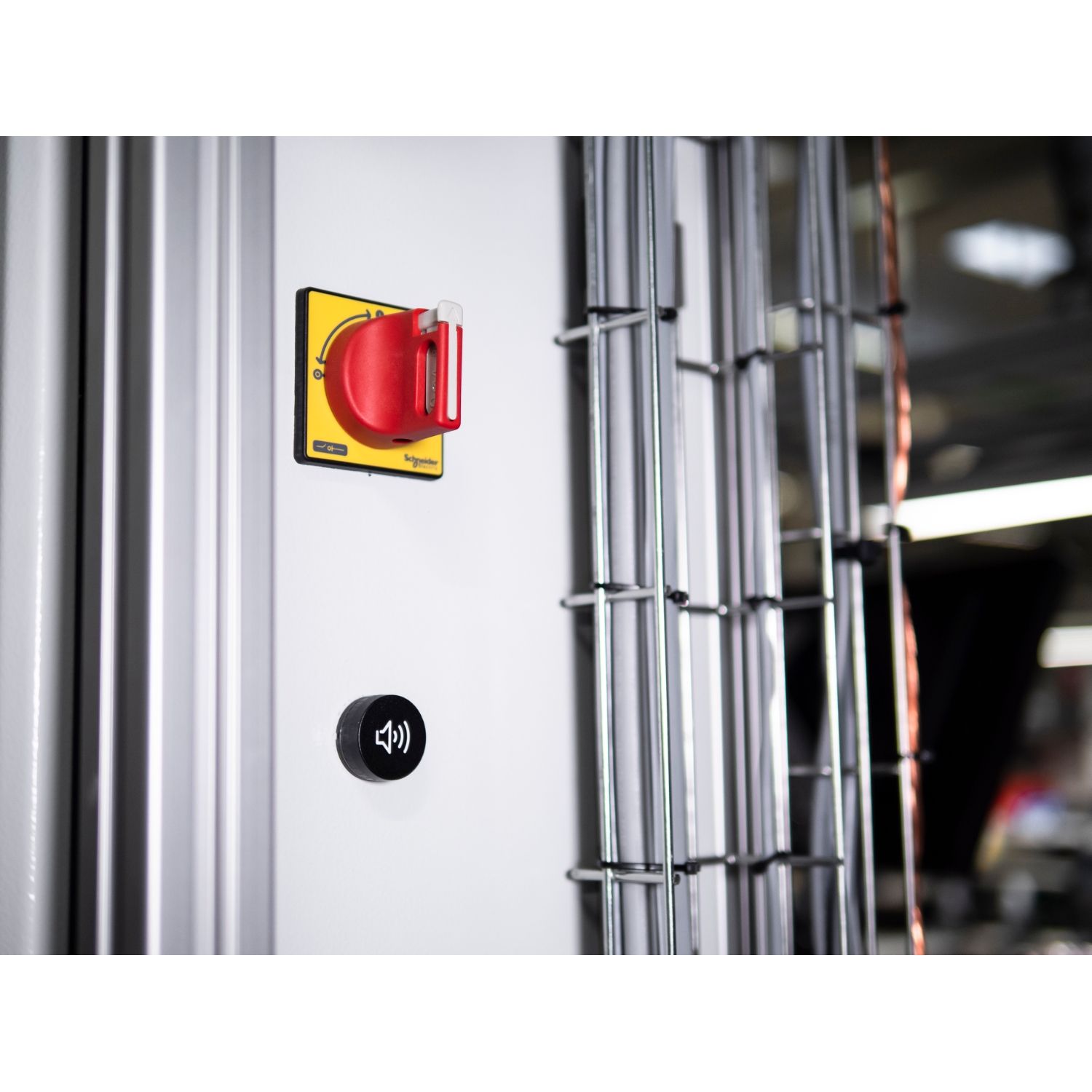

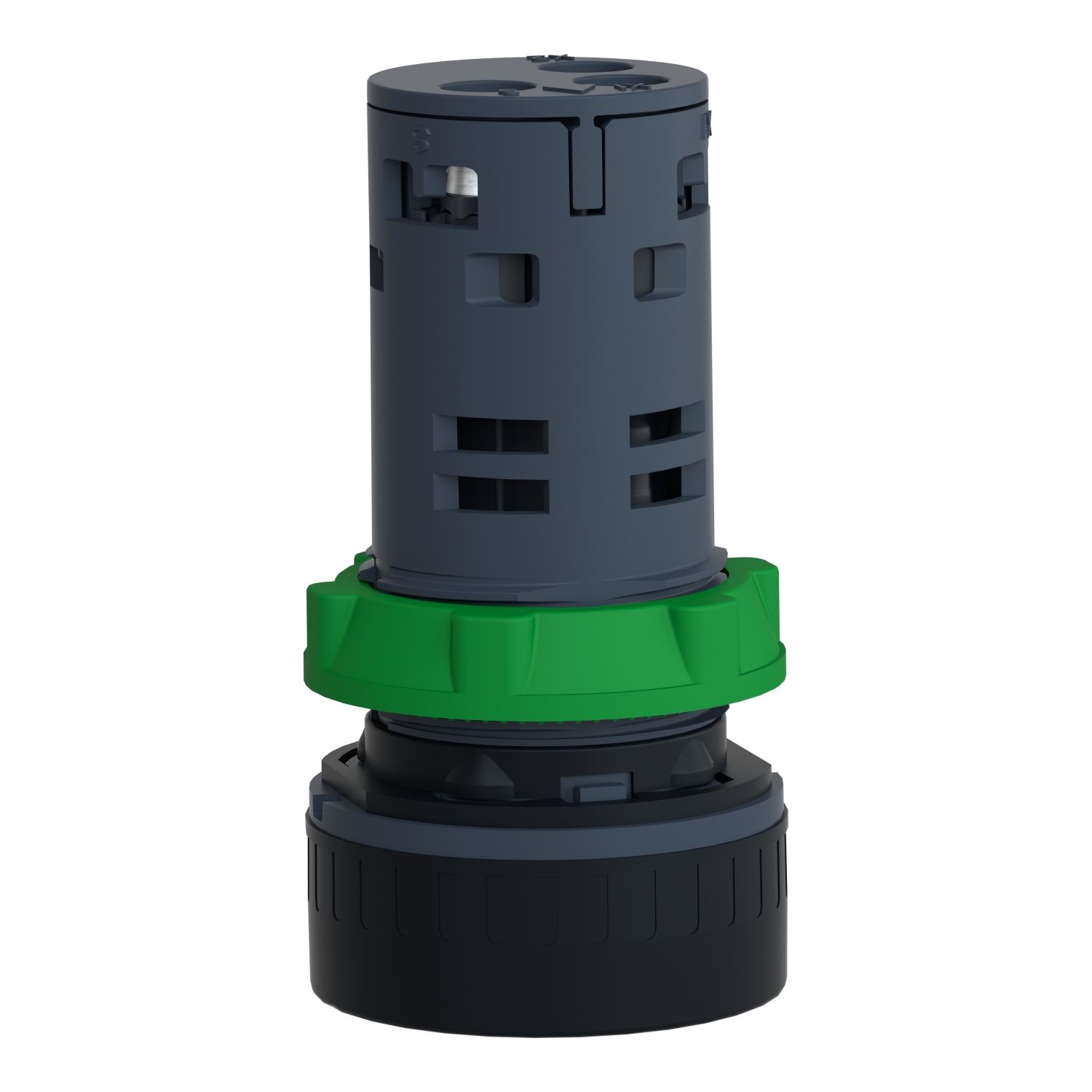

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

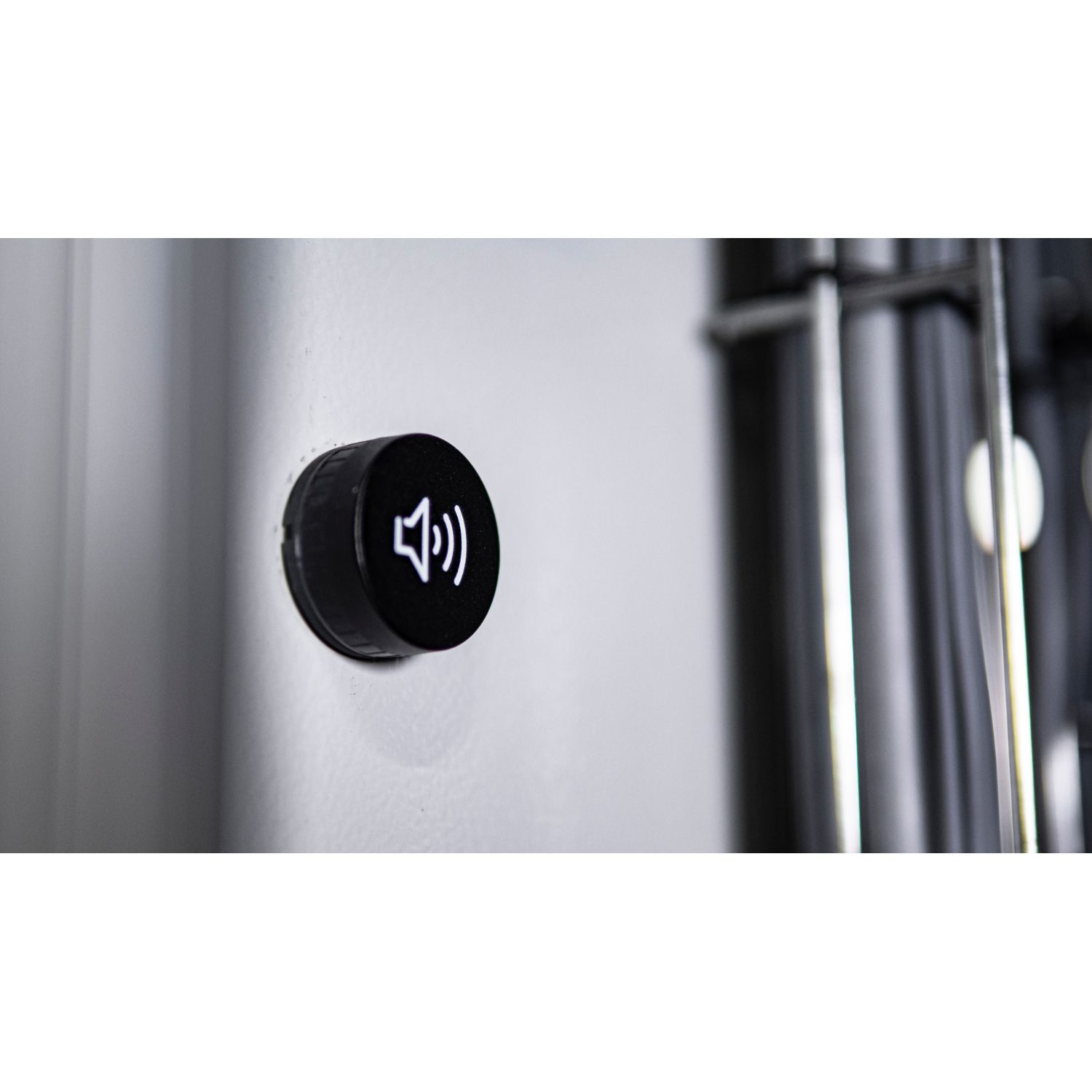

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

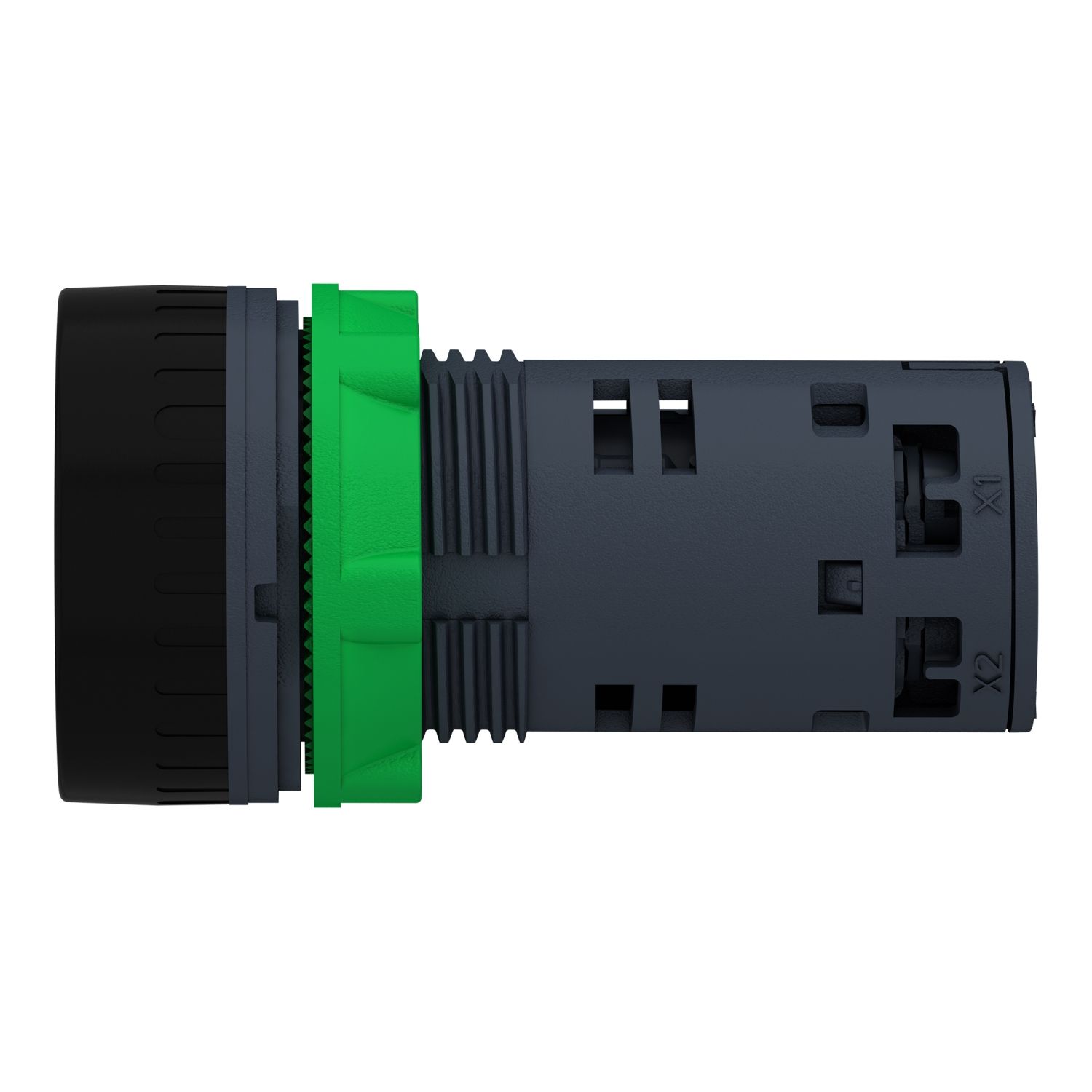

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

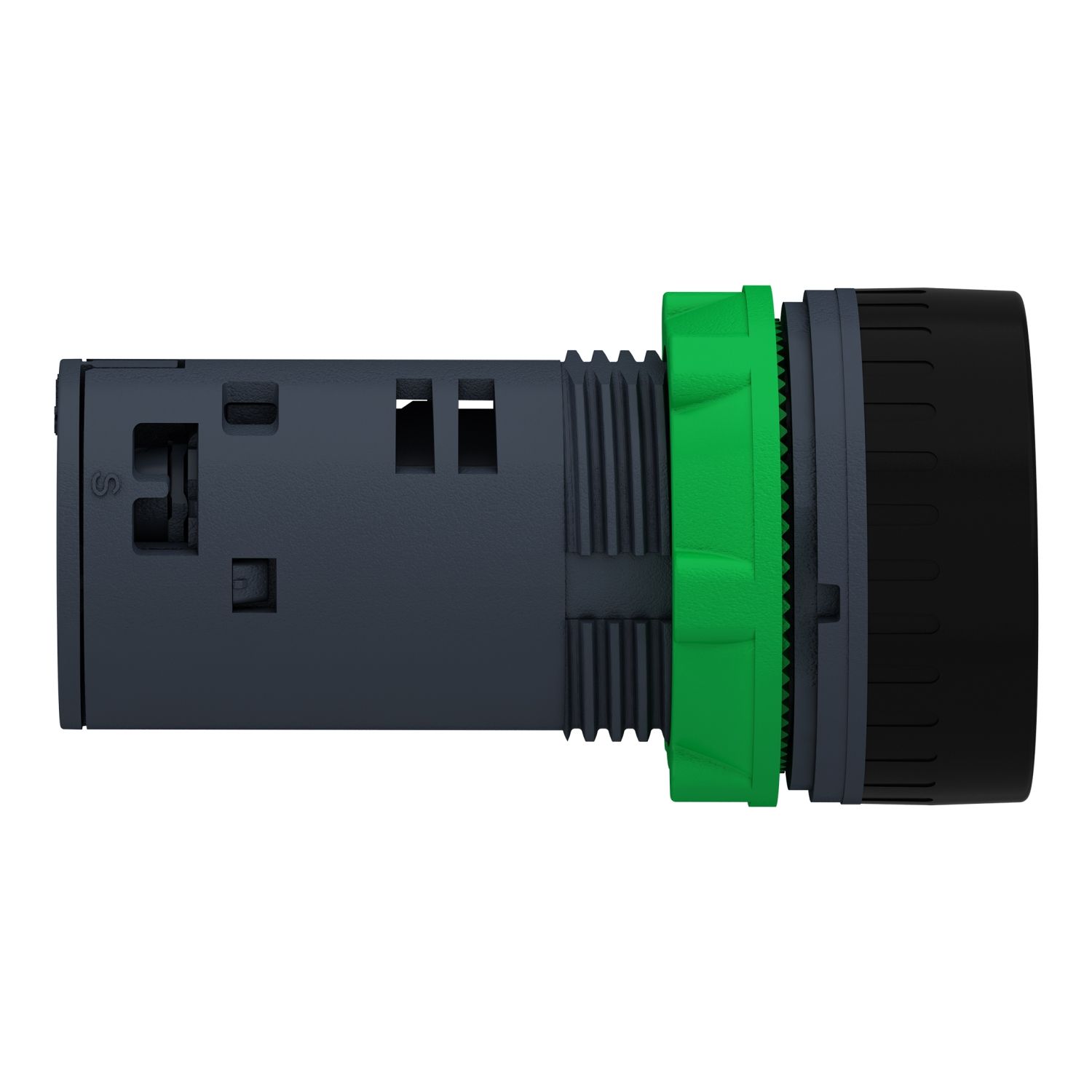

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

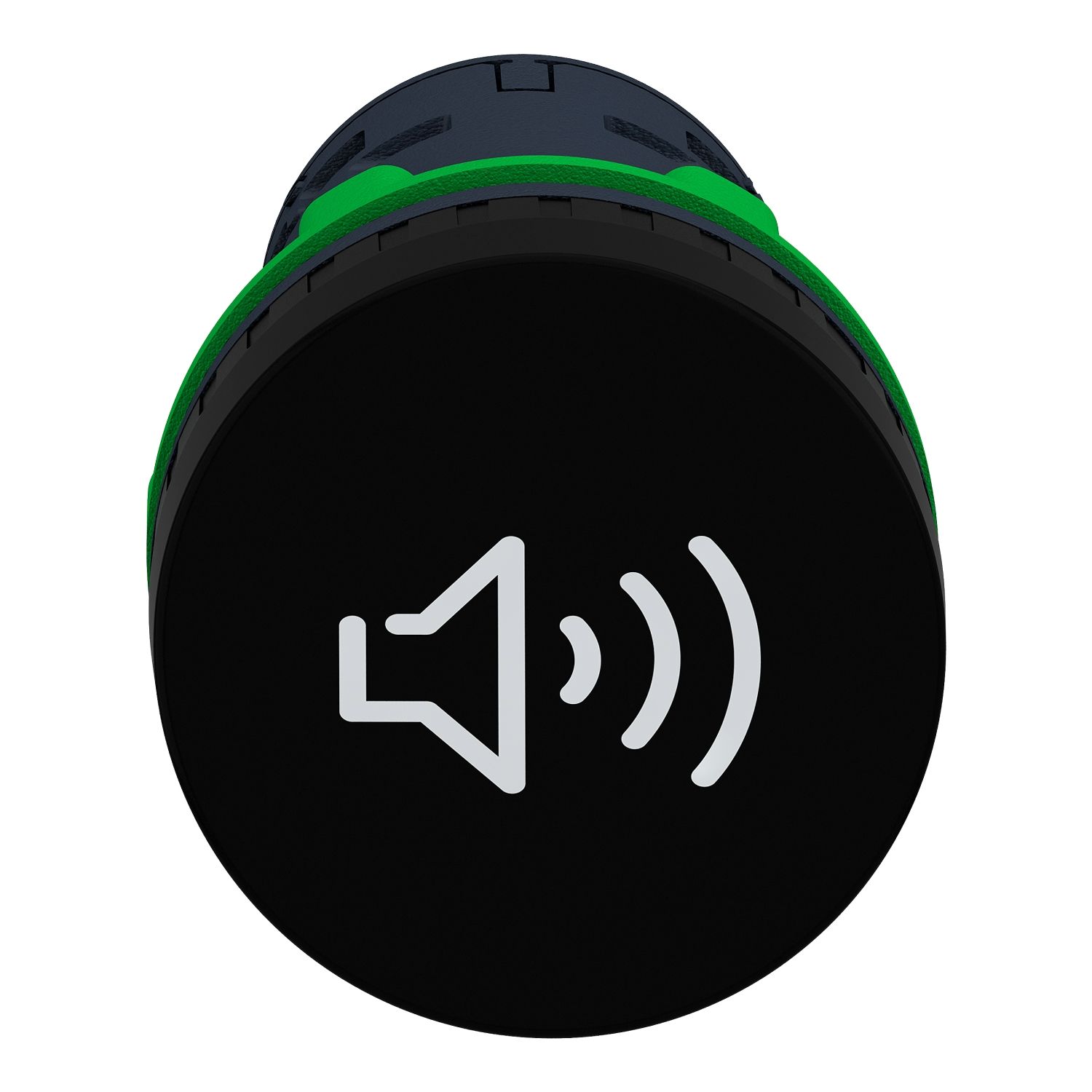

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

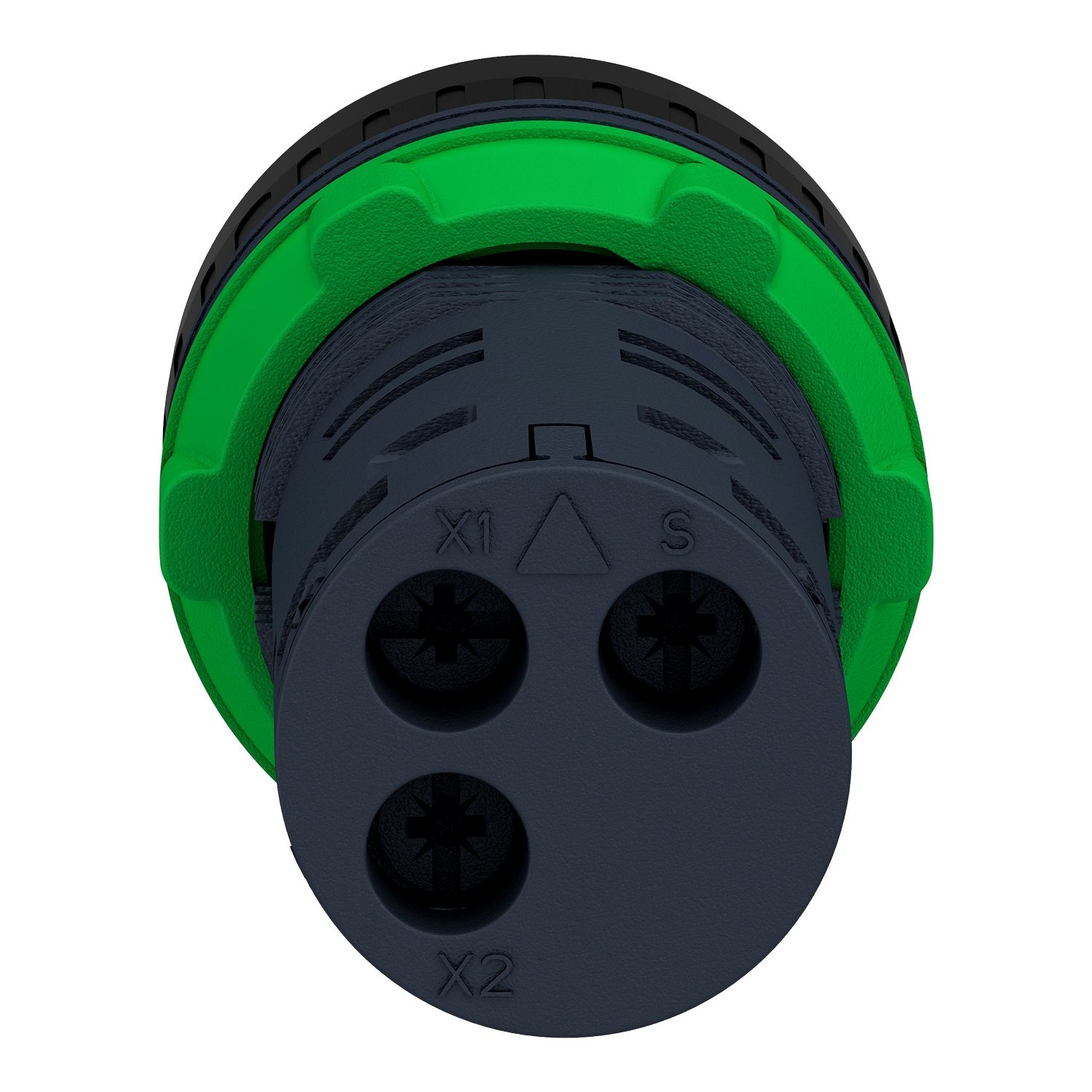

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

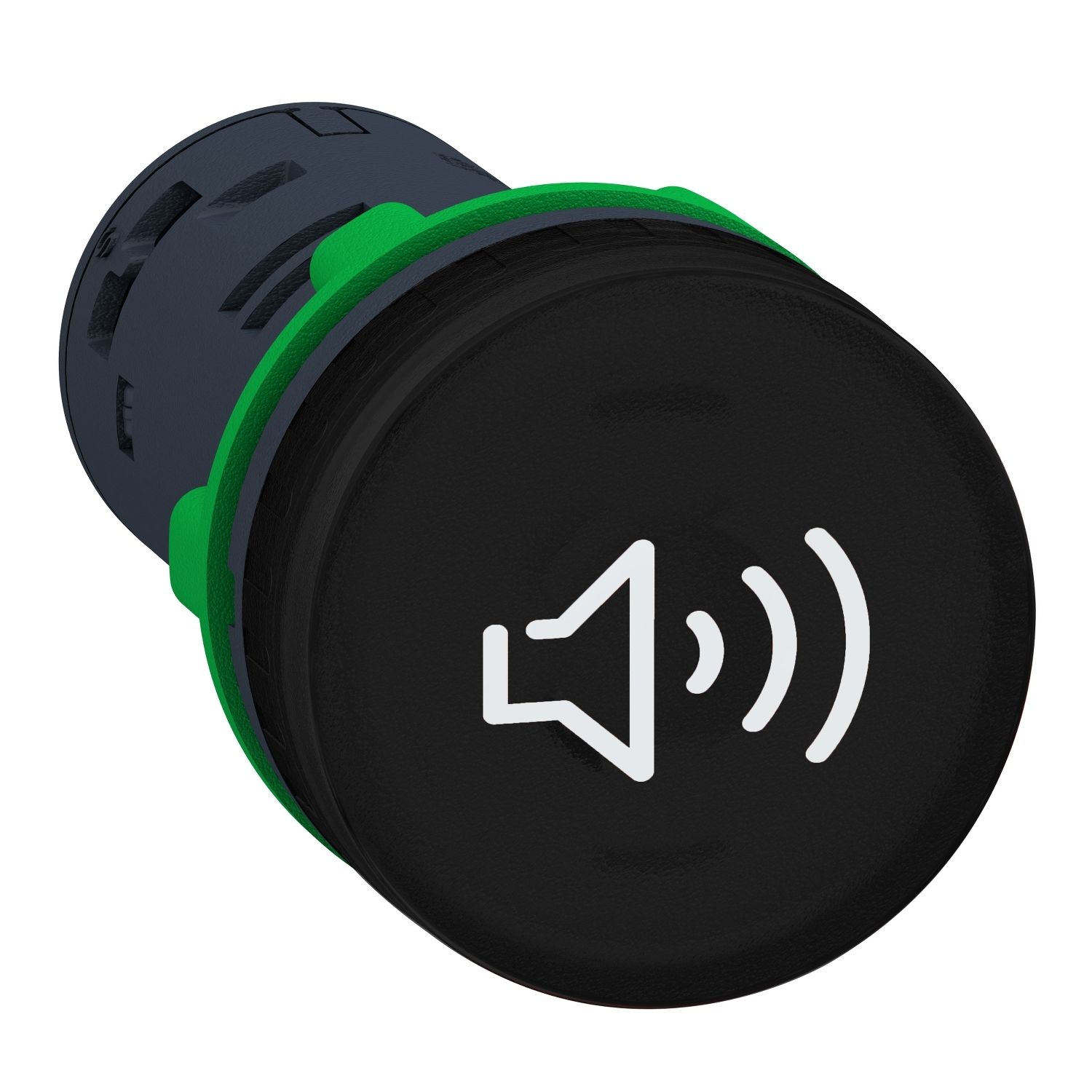

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

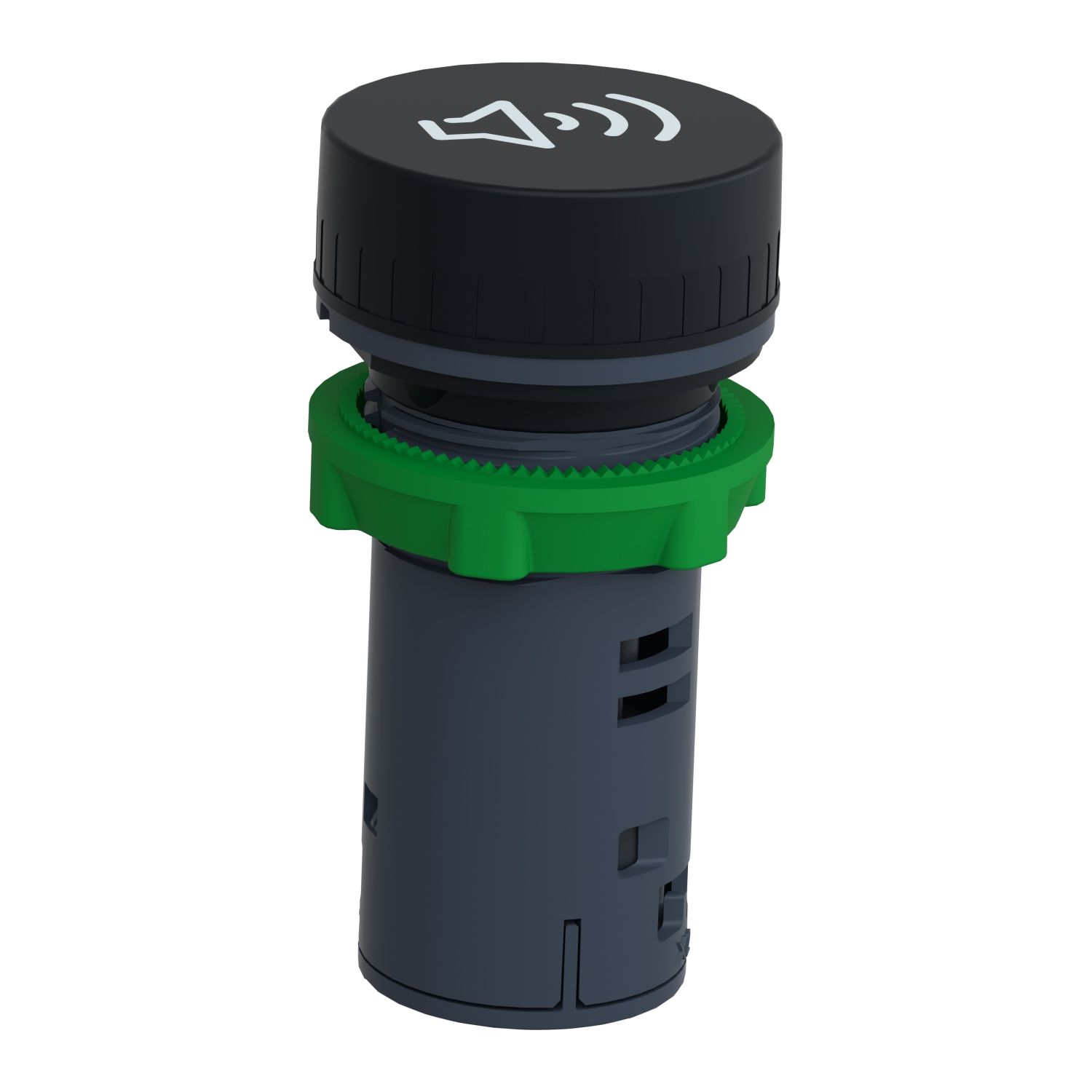

Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC
Picture of Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC
SKU:

XB5KSB

Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC

Old price: $290.95 INC GST
$226.94 INC GST
Available for Shipping : 23-Mar-2026
Product Selector
Annunciator, Harmony XB5, Complete buzzer, plastic, 22mm, continuous or intermittent tone, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 23-Mar-2026
Environmental Disclosure
Image of product in real life situation
Circularity Profile
Declaration of conformity
Image of product in real life situation
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This Harmony XB5, annunciator siren is supplied with 24V AC/DC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Products specifications

Attribute name Attribute value
Main
Head type standard
Cap/operator or lens colour black
Range of product Harmony XB5
Bezel material dark grey plastic
Product or component type annunciator
Mounting diameter 22 mm
Complementary
Supply frequency 50/60 Hz
Height 29 mm
[Us] rated supply voltage 24 V +/- 10 %, 24 V
Depth 55 mm
Width 29 mm
Supply circuit type AC/DC
Signalling type continuous or intermittent tone
Noise level 90 dB 6.8 kHz 0.1 m +/- 10 %
Resistance to high pressure washer 9000000 Pa at 80 °C, distance : 0.1 m
Current consumption <= 28 mA
Net weight 0.024 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
NEMA degree of protection NEMA 13, NEMA 4X
Ambient air temperature for operation -40-70 °C
Electrical shock protection class class II conforming to IEC 60536
Overvoltage category class II conforming to IEC 60536
Standards IEC 50102, IEC 62262, IEC 60529, JIS C8201-1, JIS C8201-5-1, UL 508, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-1
Product certifications BV, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 3.000 cm
Package 1 Length 5.400 cm
Package 1 Weight 28 g
Unit Type of Package 2 2
Number of Units in Package 2 88
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.696 kg
