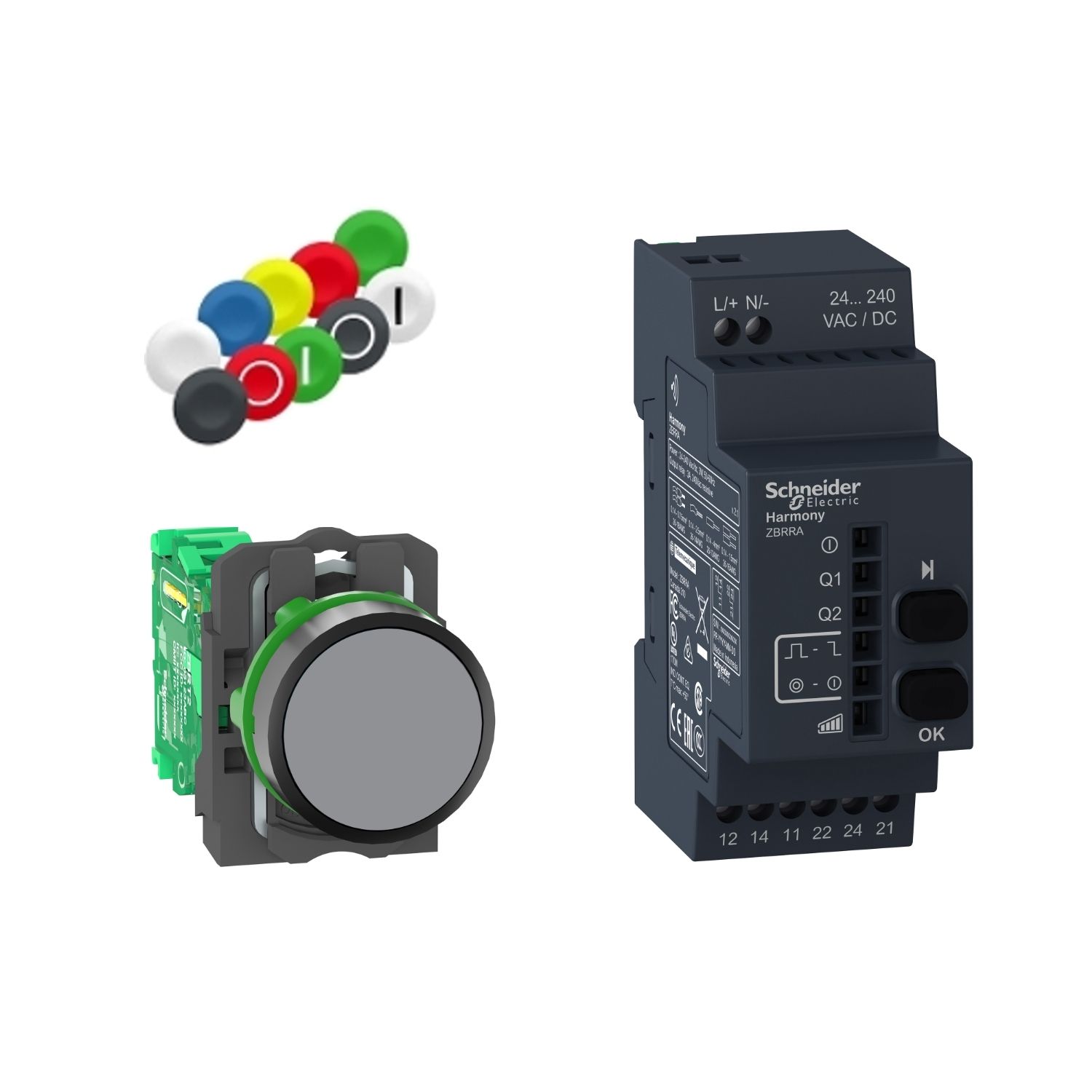

Picture of Harmony XB5R, Wireless push button and configurable receiver with 10 colored caps, plastic, Ø22, 24...240 V AC/DC
SKU:

XB5RFA02

Harmony XB5R, Wireless push button and configurable receiver with 10 colored caps, plastic, Ø22, 24...240 V AC/DC

$484.66
Available for Shipping : 25-Nov-2024
Product Selector
Harmony XB5R, Wireless push button and configurable receiver with 10 colored caps, plastic, Ø22, 24...240 V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
End of life manual
Technical illustration
Catalogue
Instruction sheet
Declaration of conformity
User guide
Product environmental
Brochure
Product Page Link
Product Data Sheet
This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 230g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.

Products specifications

Attribute name Attribute value
Main
Transmission frequency 2405 MHz for receiver, 2405 MHz for transmitter
Device short name XB5R
Range of product Harmony XB5R
Antenna type omnidirectional
Level or class 5M00G7W
Head material plastic
Product or component type wireless and batteryless package
Complementary
Bandwidth 5-5 MHz
Compatibility code XB5R
Type of receiver programmable receiver (2 relays)
Number of channels 1
Customizable 0, no
Antenna gain 0 dBi
Communication port protocol Zigbee conforming to IEEE 802.15.4
Status LED 1 LED green and yellow for reception signal, 2 LEDs green for function mode, 2 LEDs green for relay ON, 1 LED green for power ON
Control type wireless and batteryless push-button Ø 22 mm assembled on fixing collar
Max power consumption in W 1 mW
Kit composition 1 push-button head diameter: 22 mm, 1 diameter: 22 mm, 1 fixing collars, 1 receiver, 1 set of caps, 1 transmitter
Modulation Technique O-QPSK
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz
Environment
Radio agreement ANATEL, ICASA, FCC, ARIB T66, RSS, SRRC
Marking CE
Standards IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14
Product certifications C-Tick, CSA, GOST, CCC, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.300 cm
Package 1 Width 10.500 cm
Package 1 Length 10.800 cm
Package 1 Weight 207.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.850 kg
