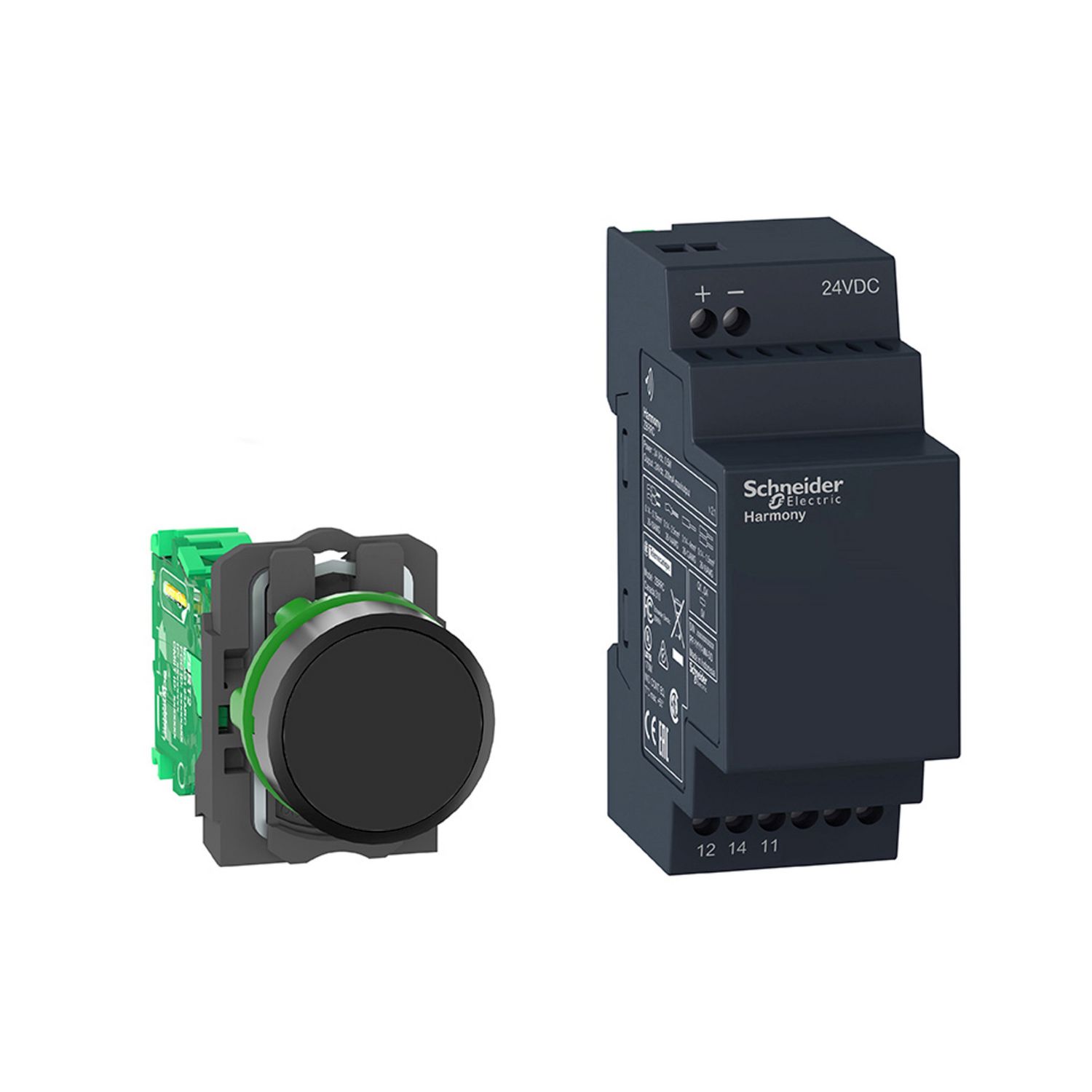

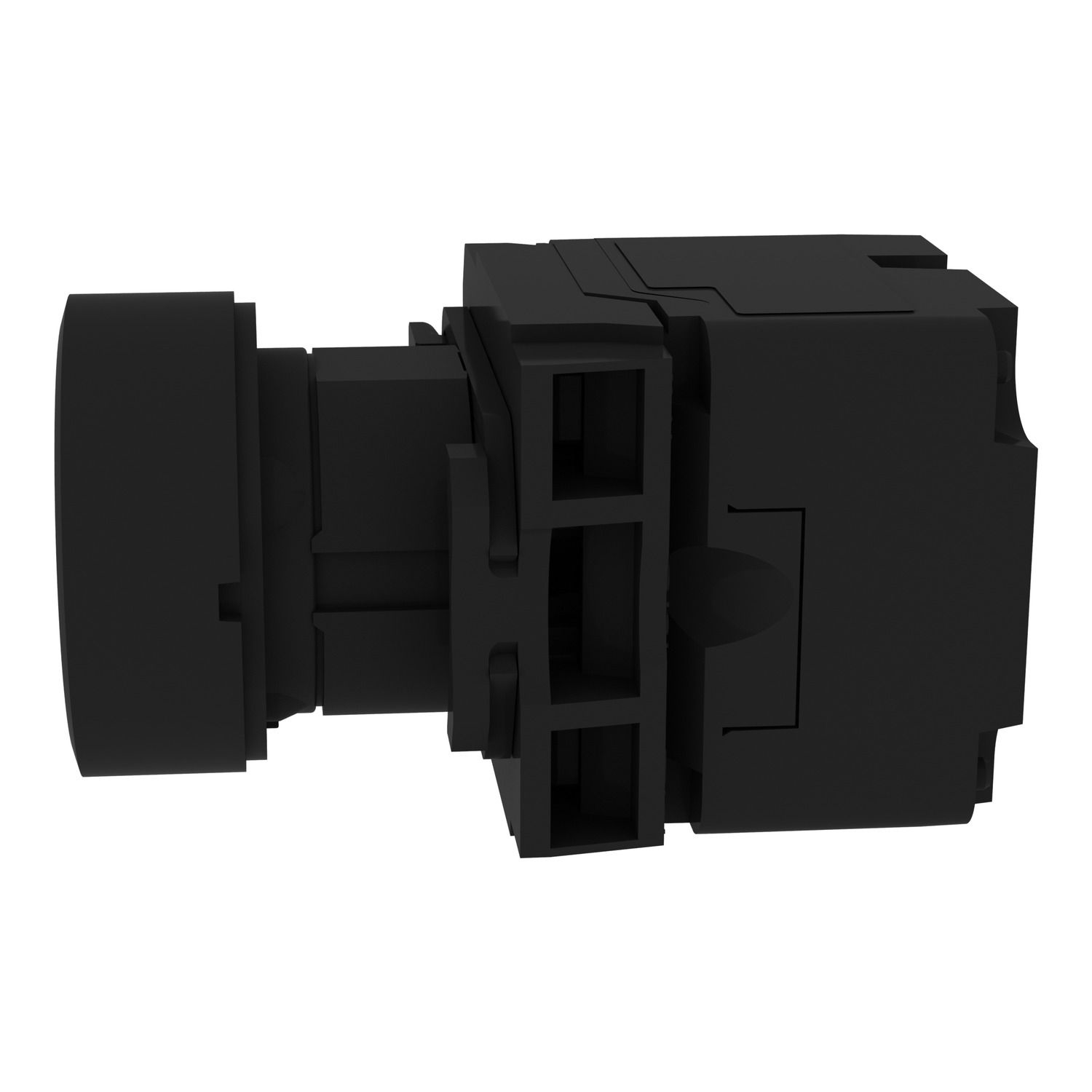

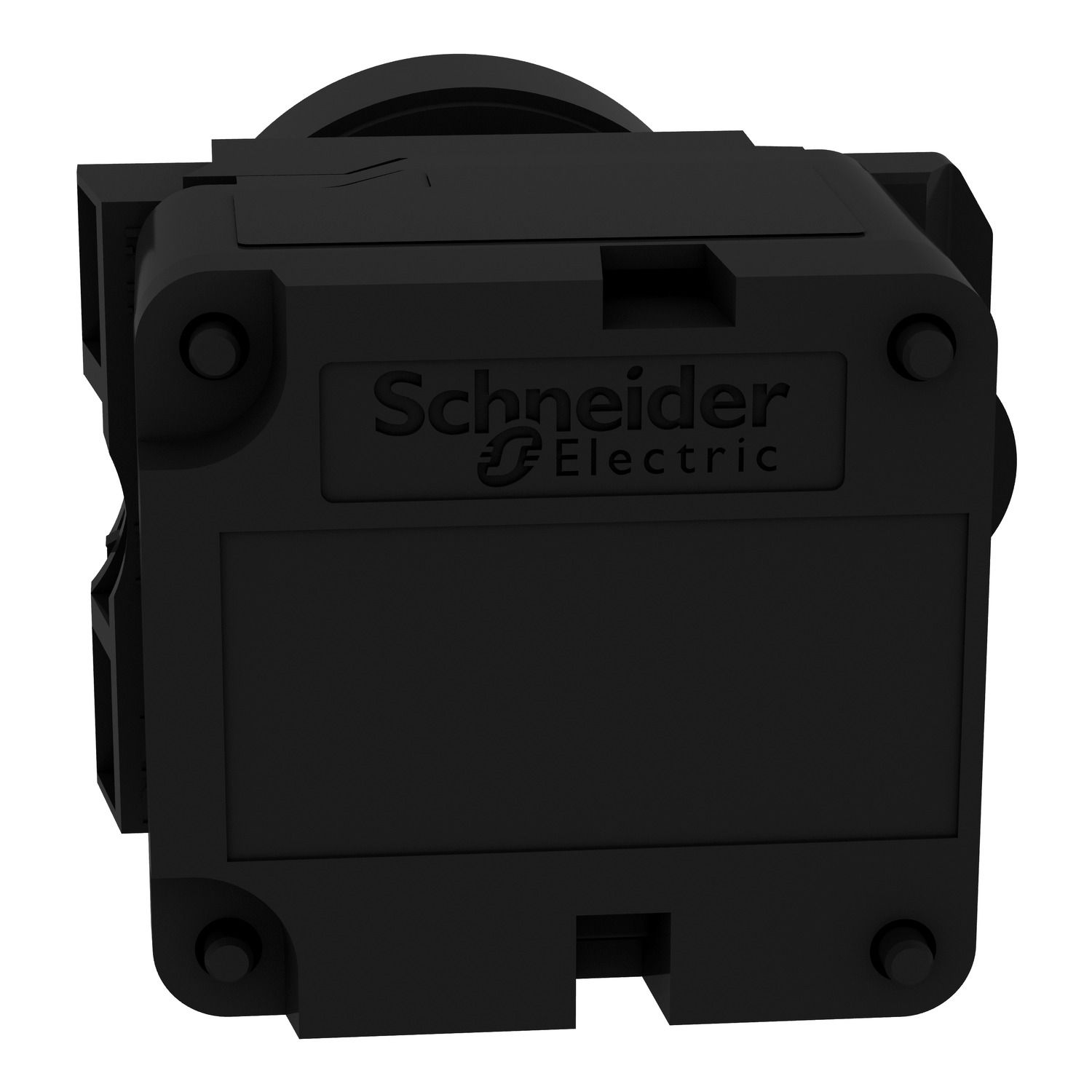

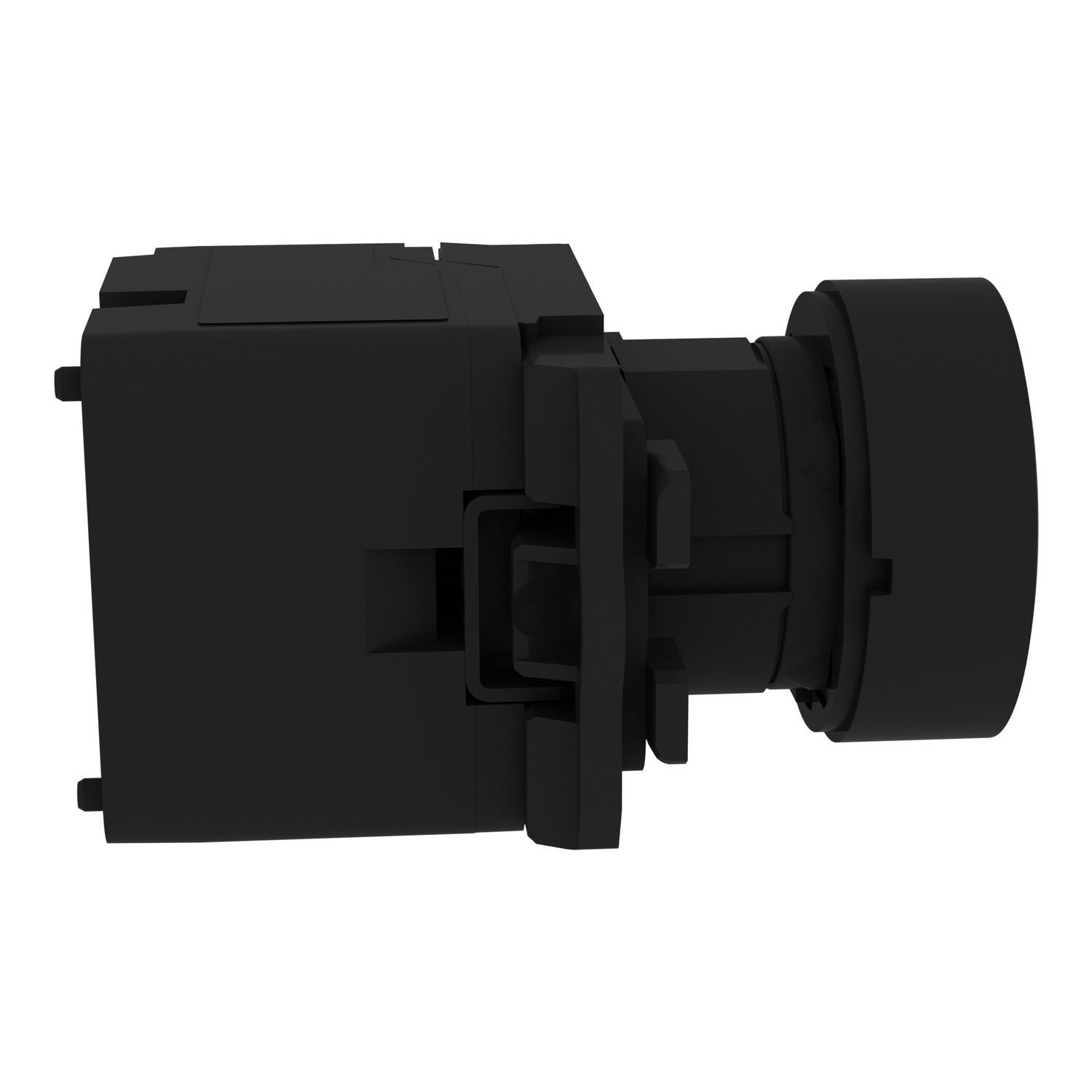

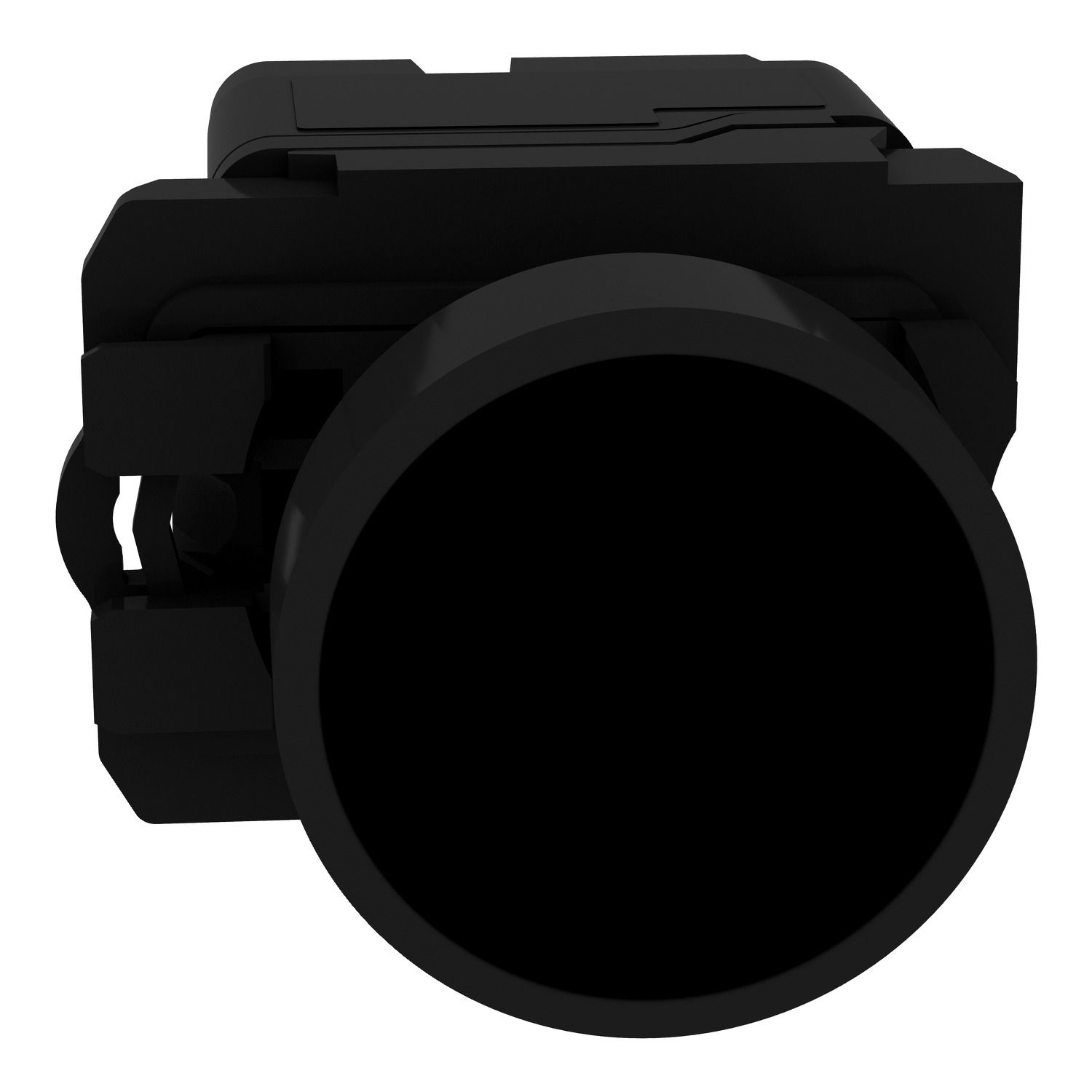

Picture of Harmony XB5R, Wireless push button and non-configurable receiver, plastic, Ø22, with 1 black cap, 24 V DC
SKU:

XB5RFB01

Harmony XB5R, Wireless push button and non-configurable receiver, plastic, Ø22, with 1 black cap, 24 V DC

$245.10
Available for Shipping : 06-Jan-2025
Product Selector
Harmony XB5R, Wireless push button and non-configurable receiver, plastic, Ø22, with 1 black cap, 24 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Technical illustration
End of life manual
Catalogue
Instruction sheet
User guide
Declaration of conformity
Product environmental
Brochure
Product Page Link
Product Data Sheet
This Harmony XB5, flush black wireless push button and receiver unit set is supplied with a 24V DC input. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It provides robust wireless communications, for guaranteed operation even in the most electromagnetically disturbed environments. Its simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.

Products specifications

Attribute name Attribute value
Main
Transmission frequency 2405 MHz for receiver, 2405 MHz for transmitter
Device short name XB5R
Range of product Harmony XB5R
Antenna type omnidirectional
Level or class 5M00G7W
Head material plastic
Product or component type wireless and batteryless package
Complementary
Bandwidth 5-5 MHz
Compatibility code XB5R
Type of receiver non-programmable receiver (1 relay)
Number of channels 1
Customizable 0, no
Antenna gain 0 dBi
Communication port protocol Zigbee conforming to IEEE 802.15.4
Control type wireless and batteryless push-button Ø 22 mm assembled on fixing collar
[Us] rated supply voltage 24 V, 24 V DC
Max power consumption in W 1 mW
Kit composition 1 push-button head diameter: 22 mm, 1 diameter: 22 mm, 1 fixing collars, 1 receiver, 1 set of caps, 1 transmitter
Modulation Technique O-QPSK
Environment
Radio agreement ARIB T66, FCC, ANATEL, RSS, ICASA, SRRC
Marking CE
Standards UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1
Product certifications CCC, CSA, GOST, C-Tick, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.300 cm
Package 1 Width 10.500 cm
Package 1 Length 10.800 cm
Package 1 Weight 195.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.666 kg

Related products

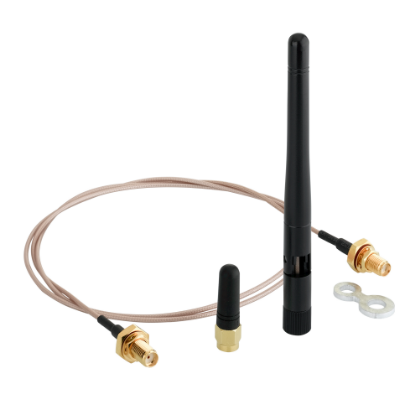

Picture of Wireless and batteryless range, Harmony XB5R, passive antenna to pass through a wall, cable 0.9m, connector SMA female
