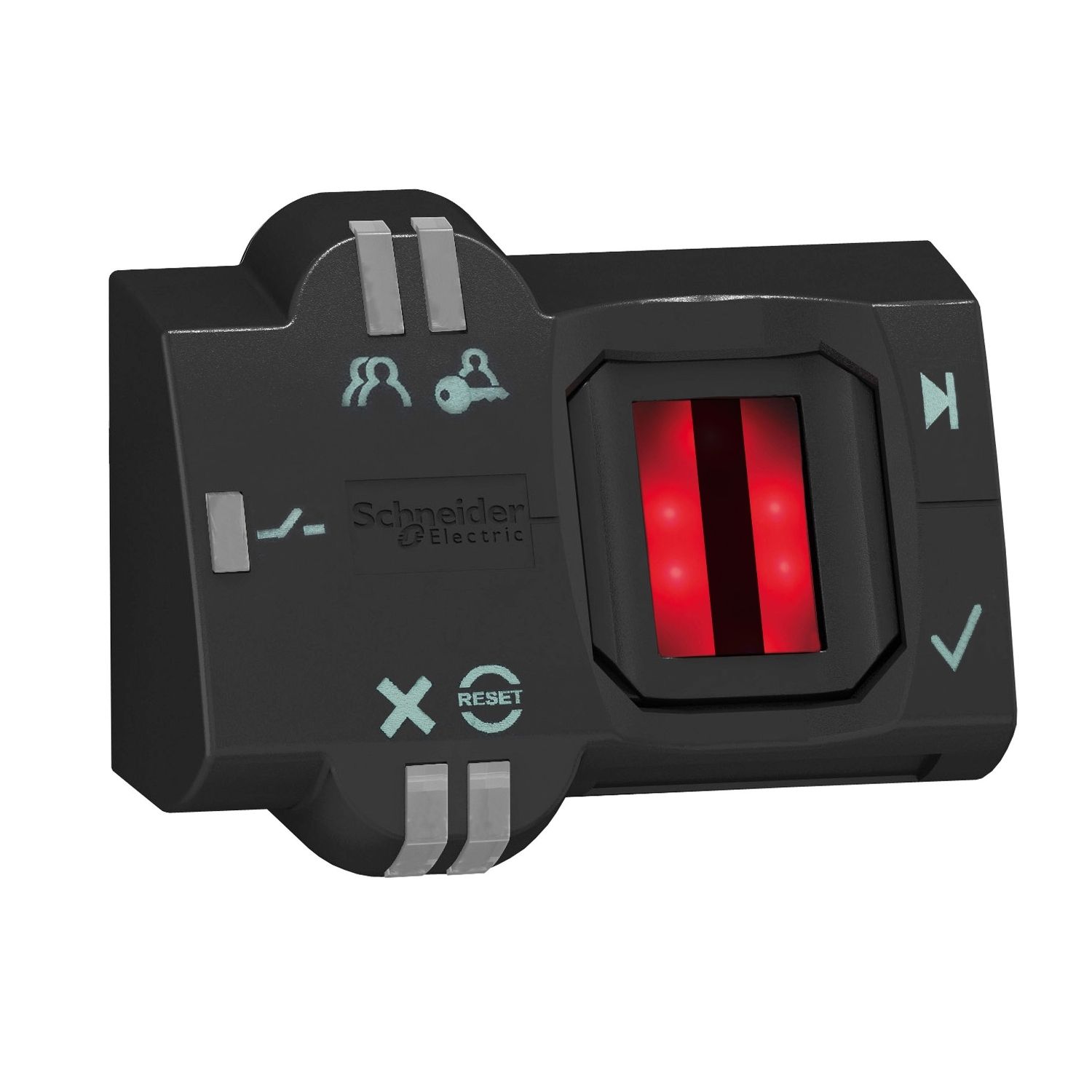

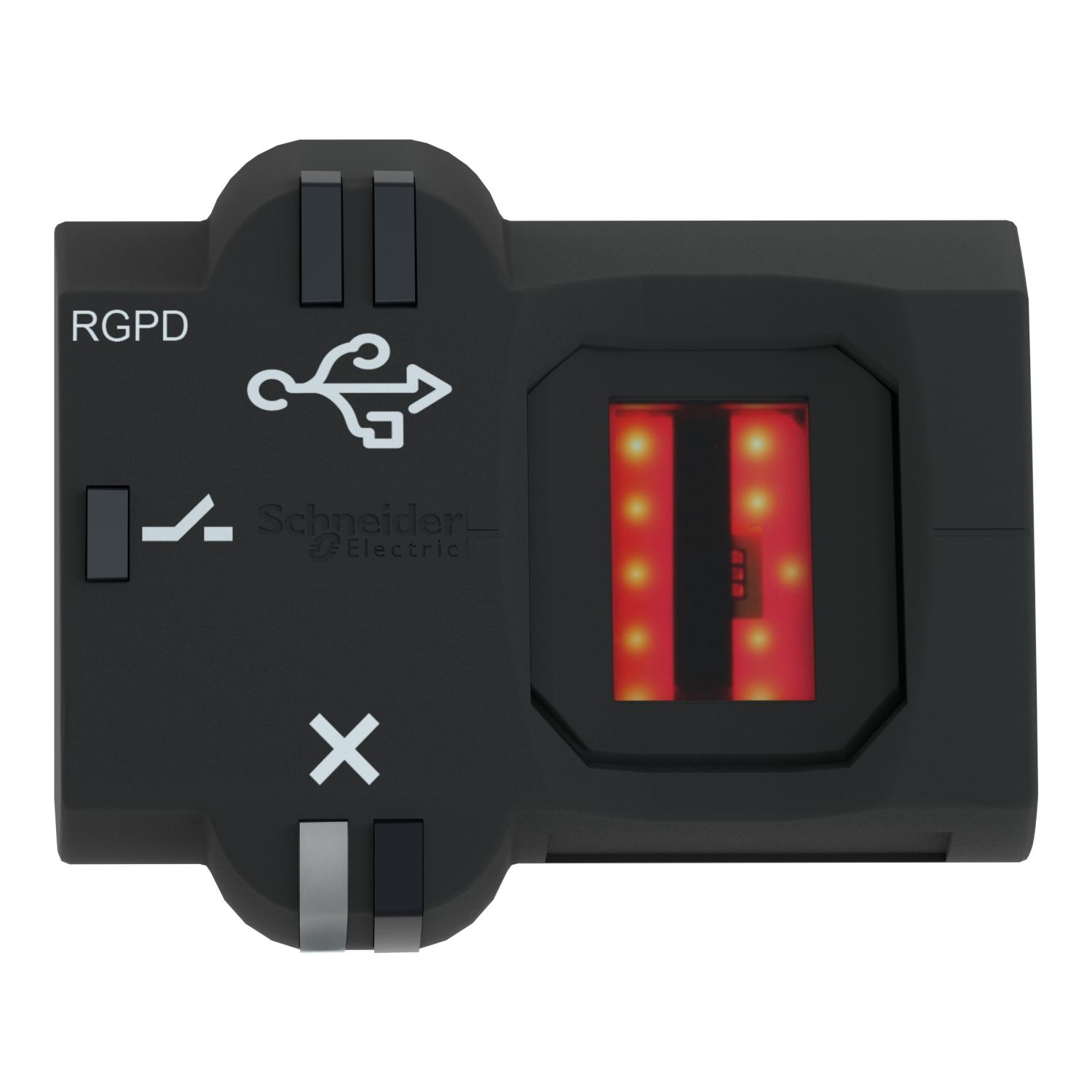

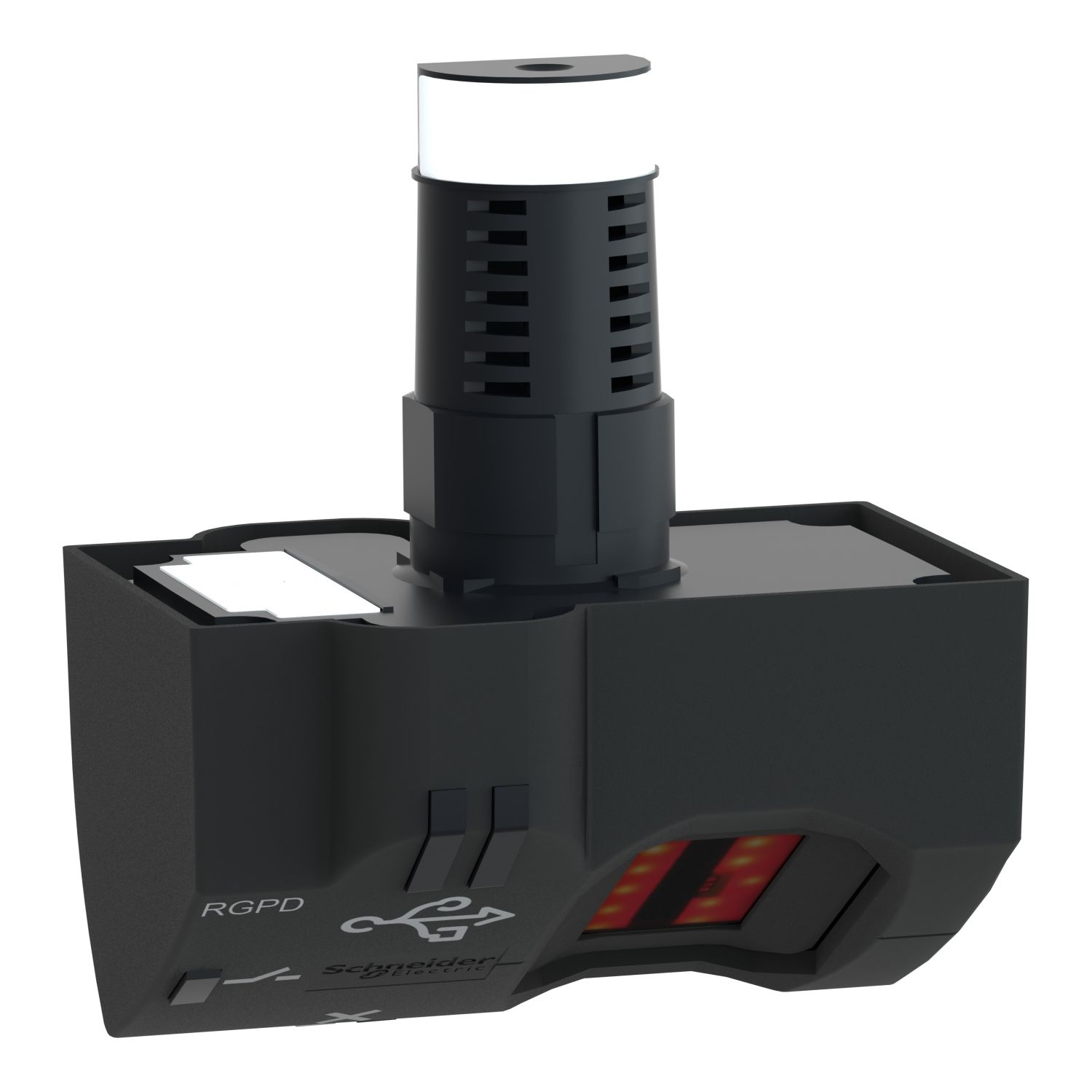

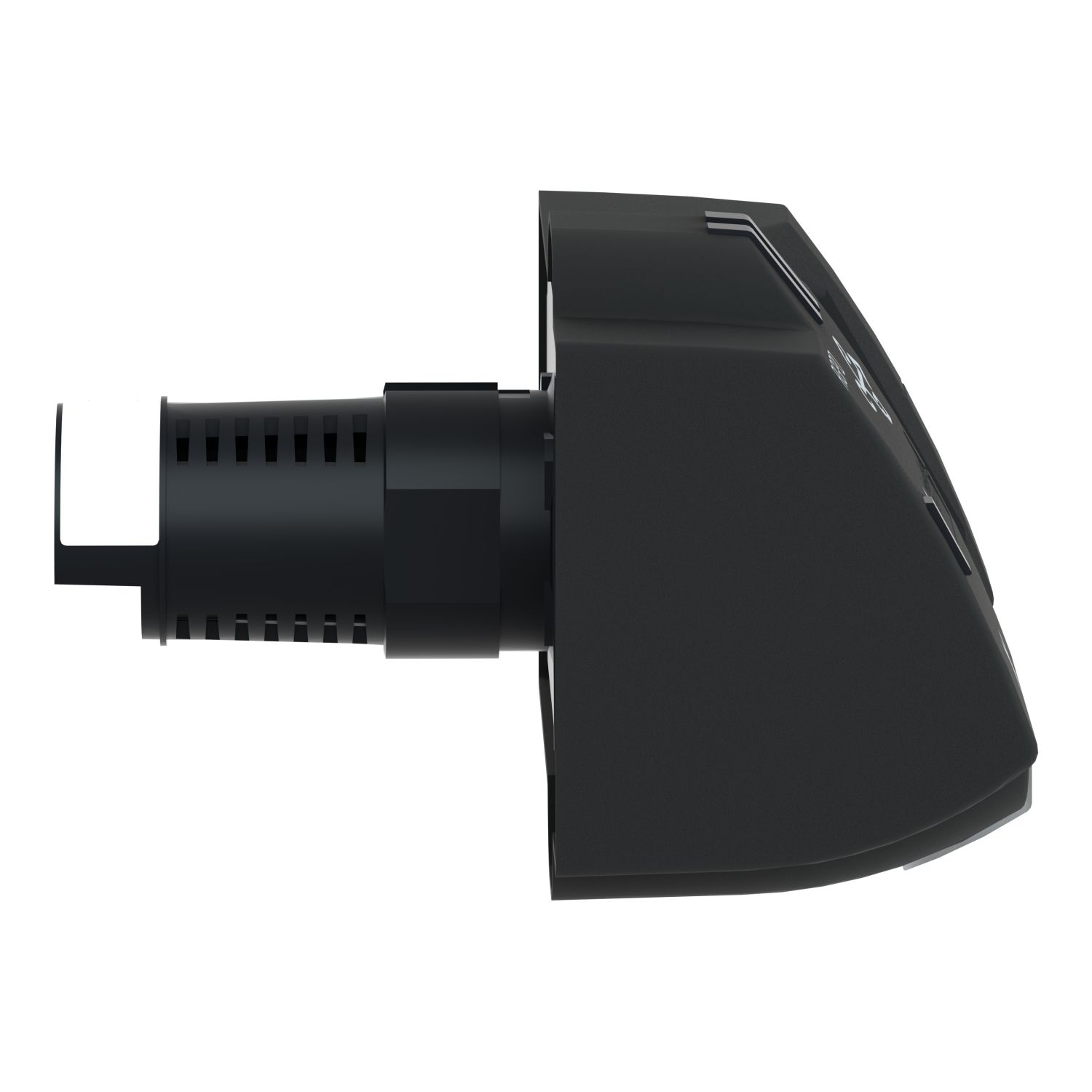

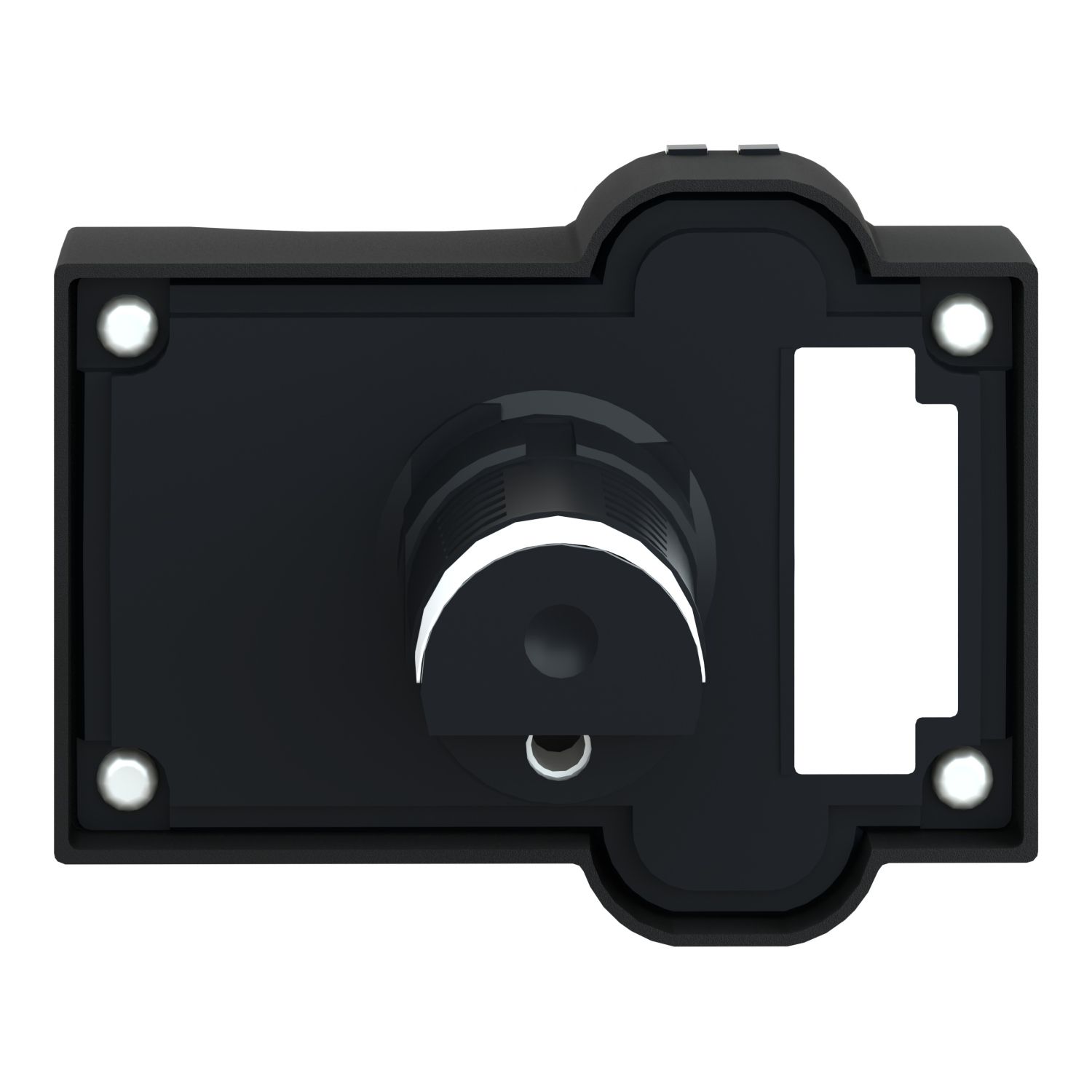

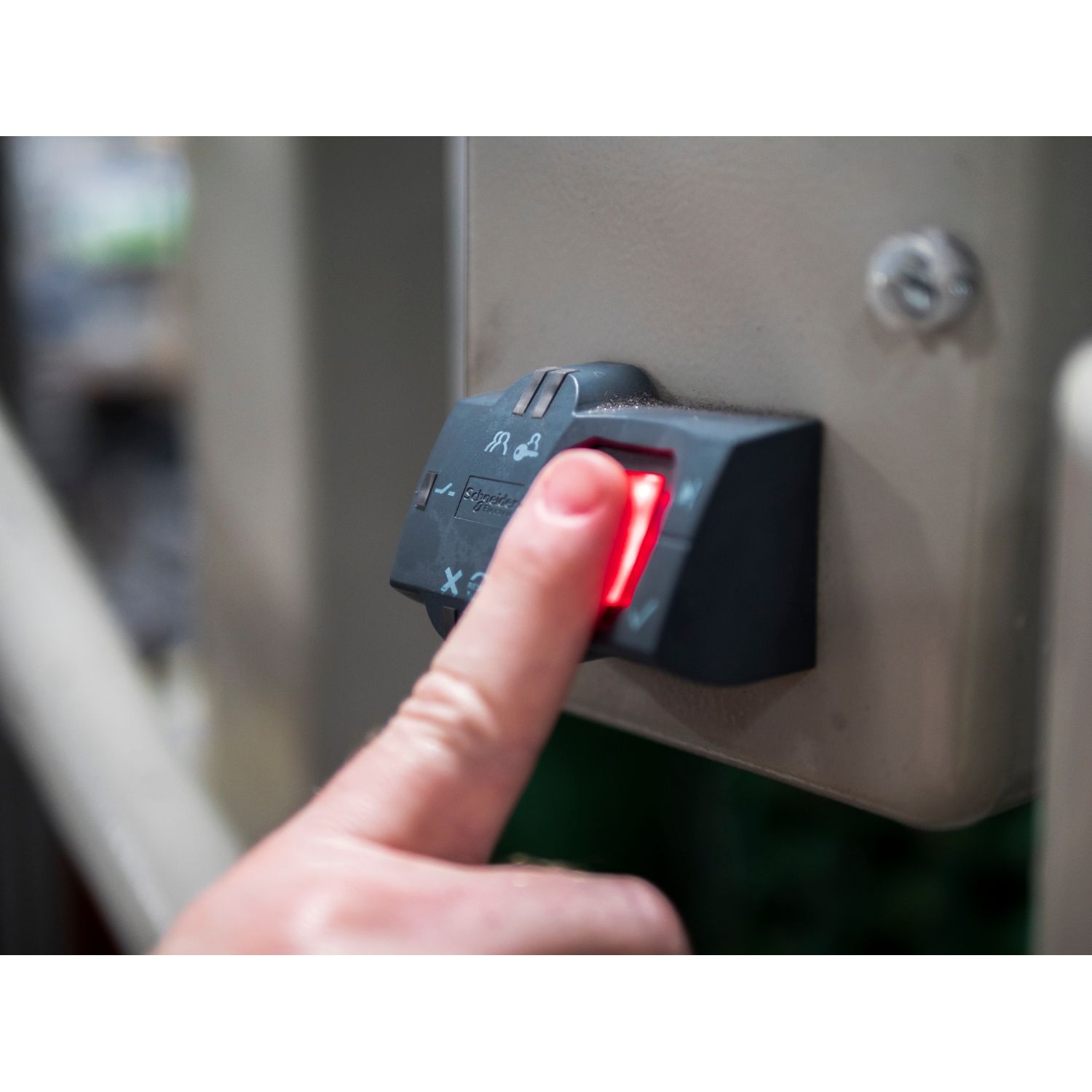

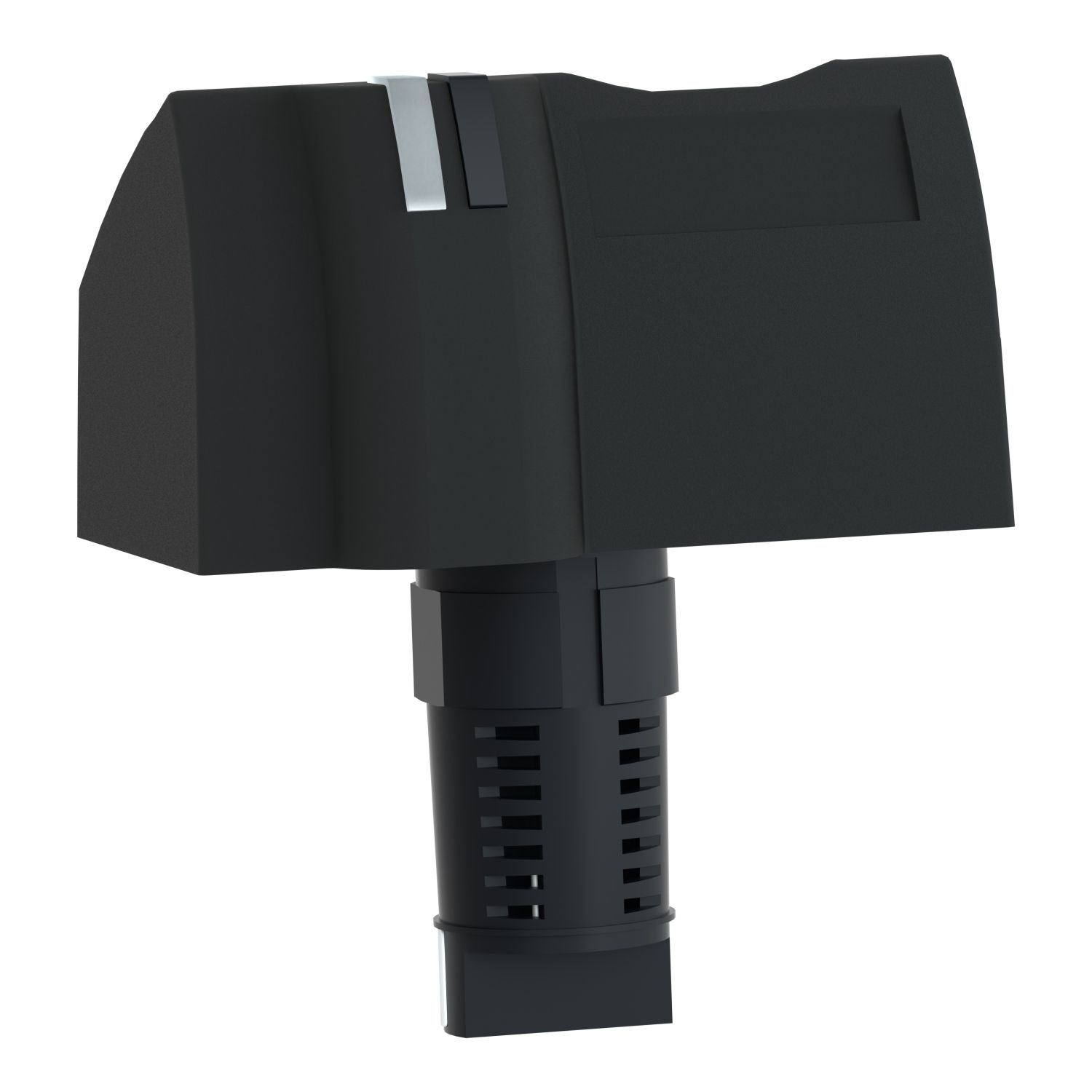

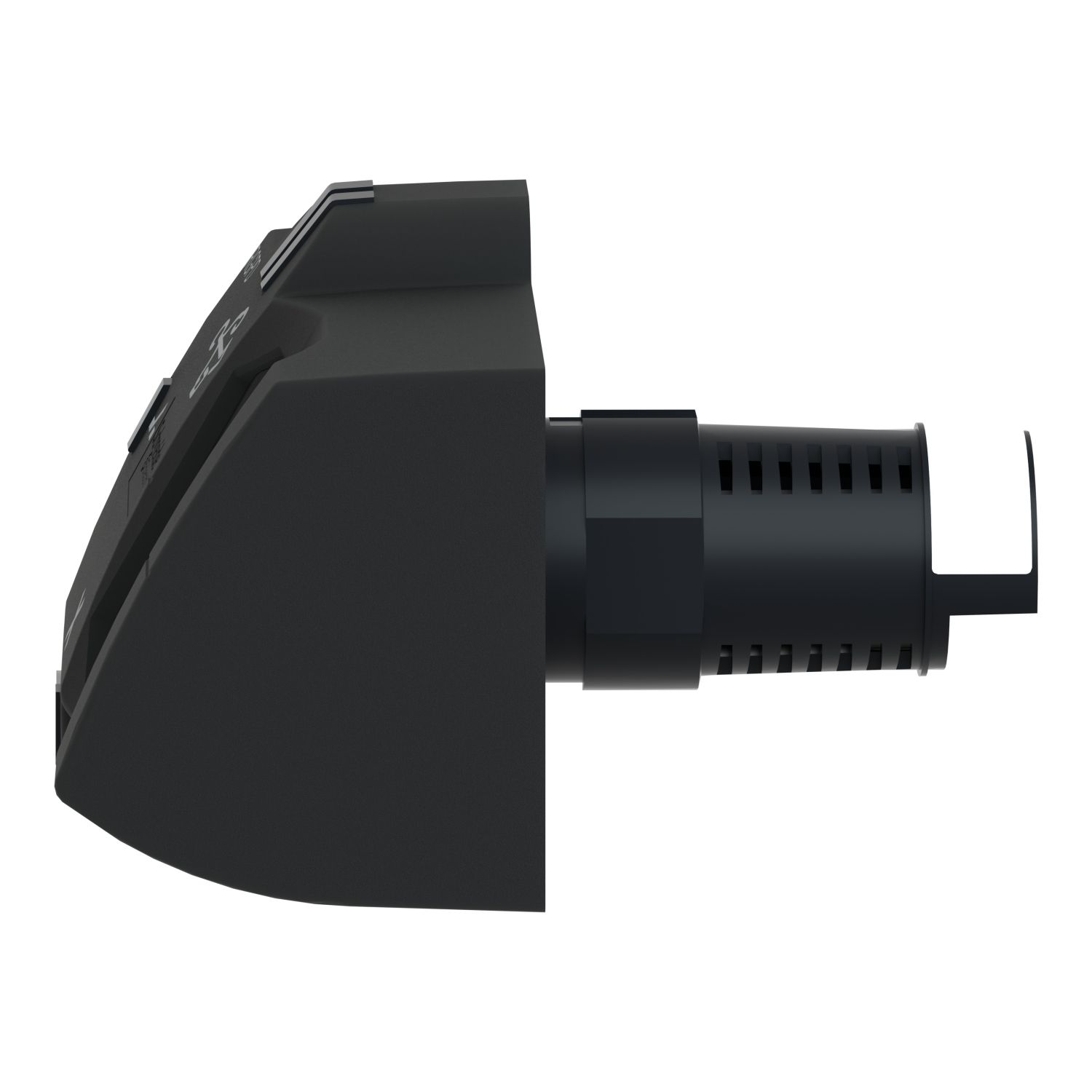

Picture of Harmony XB5S, Biometric switch bistable, plastic, 22mm, connection by 2m cable, 24V AC DC
SKU:

XB5S1B2L2

Harmony XB5S, Biometric switch bistable, plastic, 22mm, connection by 2m cable, 24V AC DC

$537.71
Harmony XB5S, Biometric switch bistable, plastic, 22mm, connection by 2m cable, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
Technical illustration
Declaration of conformity
Product environmental
User guide
Instruction sheet
Technical illustration
Product Page Link
Product Data Sheet
This Harmony XB5, bistable biometric switch has a pre-wired cable connection and is supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute nameAttribute value
Main
Device short nameXB5S
Memory usage200 users with up to 2 fingerprints per user
Output typePNP
Type of operatorstay put
Operator position information2 positions
Product specific applicationmaterials handling, industrial machines
Operator profilefingerprint reader
Bezel materialdark grey plastic
Sale per indivisible quantity1
Connections - terminals1 pre-wired cable, 3 x 0.34 mm²
IP degree of protectionIP65 (front face) conforming to EN/IEC 60529, IP20 (rear face) conforming to EN/IEC 60529
Product or component typebiometric switch
Mounting diameter22 mm
Complementary
Maximum delay first up3 s + 0.5 ms per user registered
[Ures] residual voltage1 V closed state
Function of modulebi-stable
Enclosure materialpolyamide PA66
Protection typeoverload protection, reverse polarity, short-circuit
Operating positionvertical surface installation, flat surface installation, horizontal position
Customizableno, 0
Local signalling1 LED (red) for reset, 1 LED (red) for error, 1 LED (orange) for operator's registration mode, 1 LED (orange) for administrator's registration mode, 1 LED (green) for output state indicator
Supply voltage limits20-30 V DC
Maximum delay recovery1.5 s
[Us] rated supply voltage24 V DC, 24 V
Net weight0.17 kg
MarkingCE
Maximum switching current200 mA
Cable insulation materialPvR
Short-circuit protection250 mA external fuse type gG
Maximum delay response1.5 s
Electrical connectionfree wire ends with 3 wires of 2 m
Current consumption<= 70 mA no-load
Environment
NEMA degree of protectionNEMA 12
Ambient air temperature for storage-25-70 °C
Vibration resistance1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn 11 ms conforming to IEC 60068-2-27
StandardsIEC 61000-6-2, IEC 61000-6-4
Range of productHarmony XB5S
Ambient air temperature for operation-5-50 °C
Product certificationsCSA, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.8 cm
Package 1 Width9.5 cm
Package 1 Length18.5 cm
Package 1 Weight196.0 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.904 kg

Related products

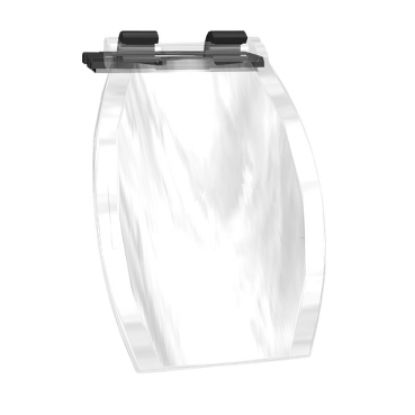

Picture of Harmony XB5S, Protective cover for Biometric switch
