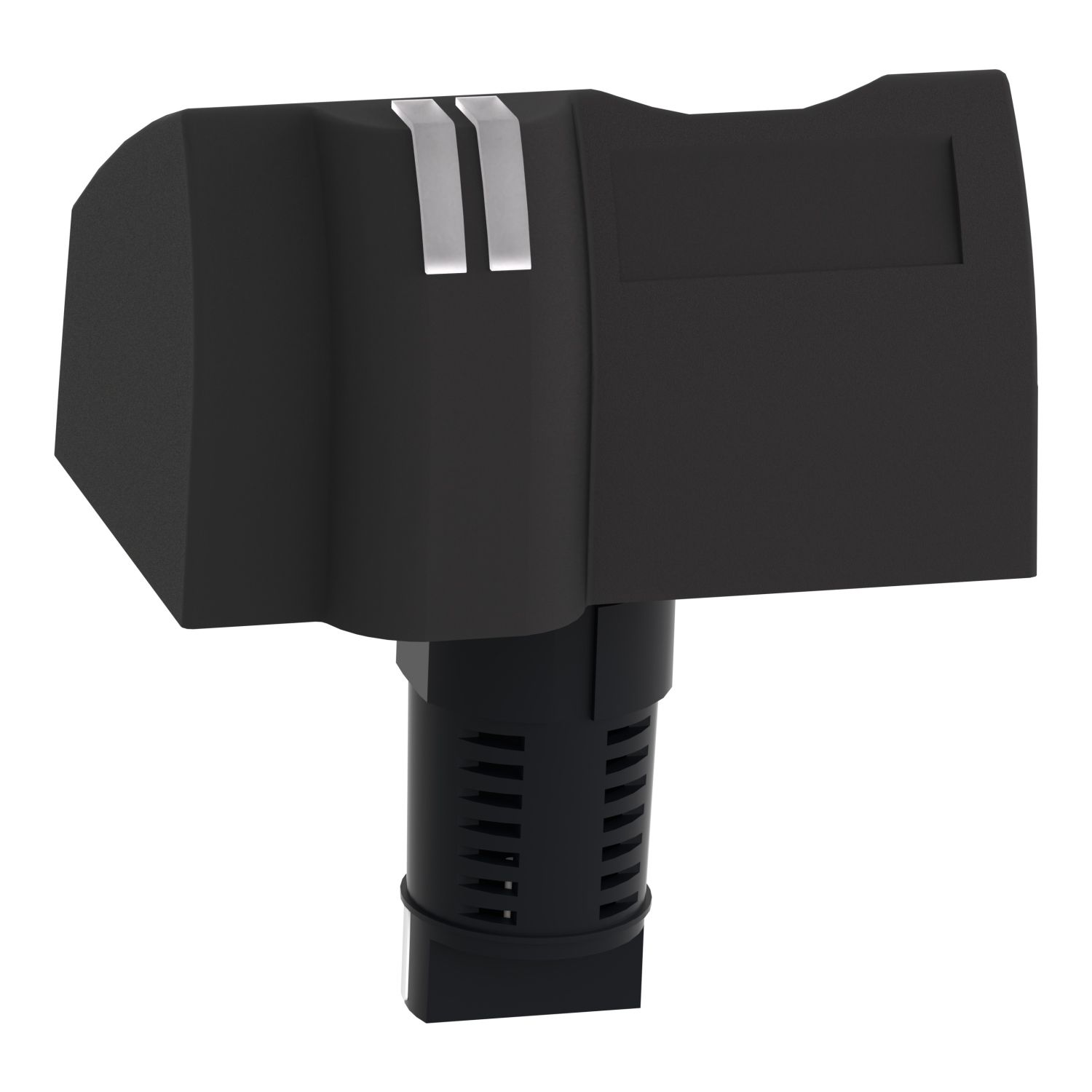

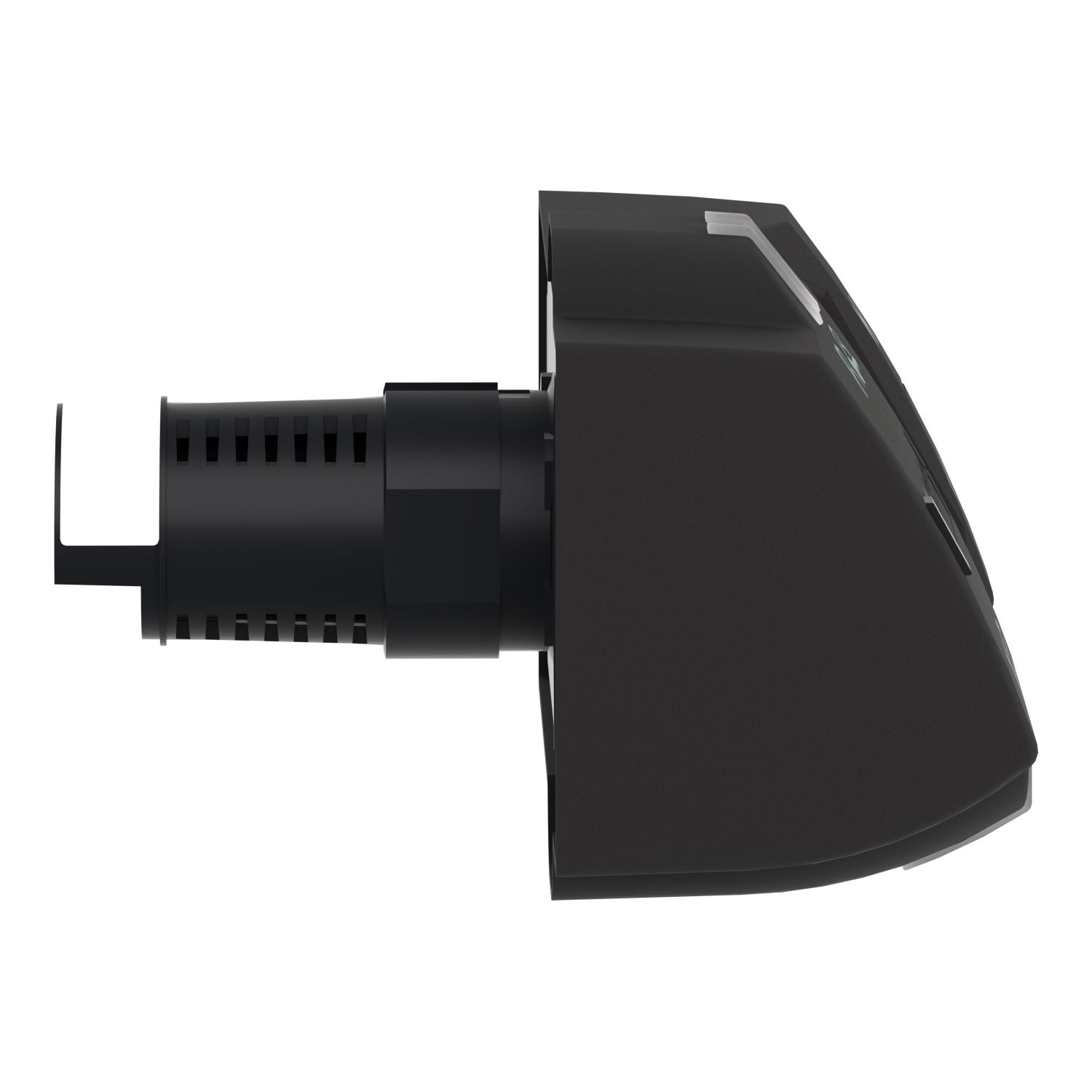

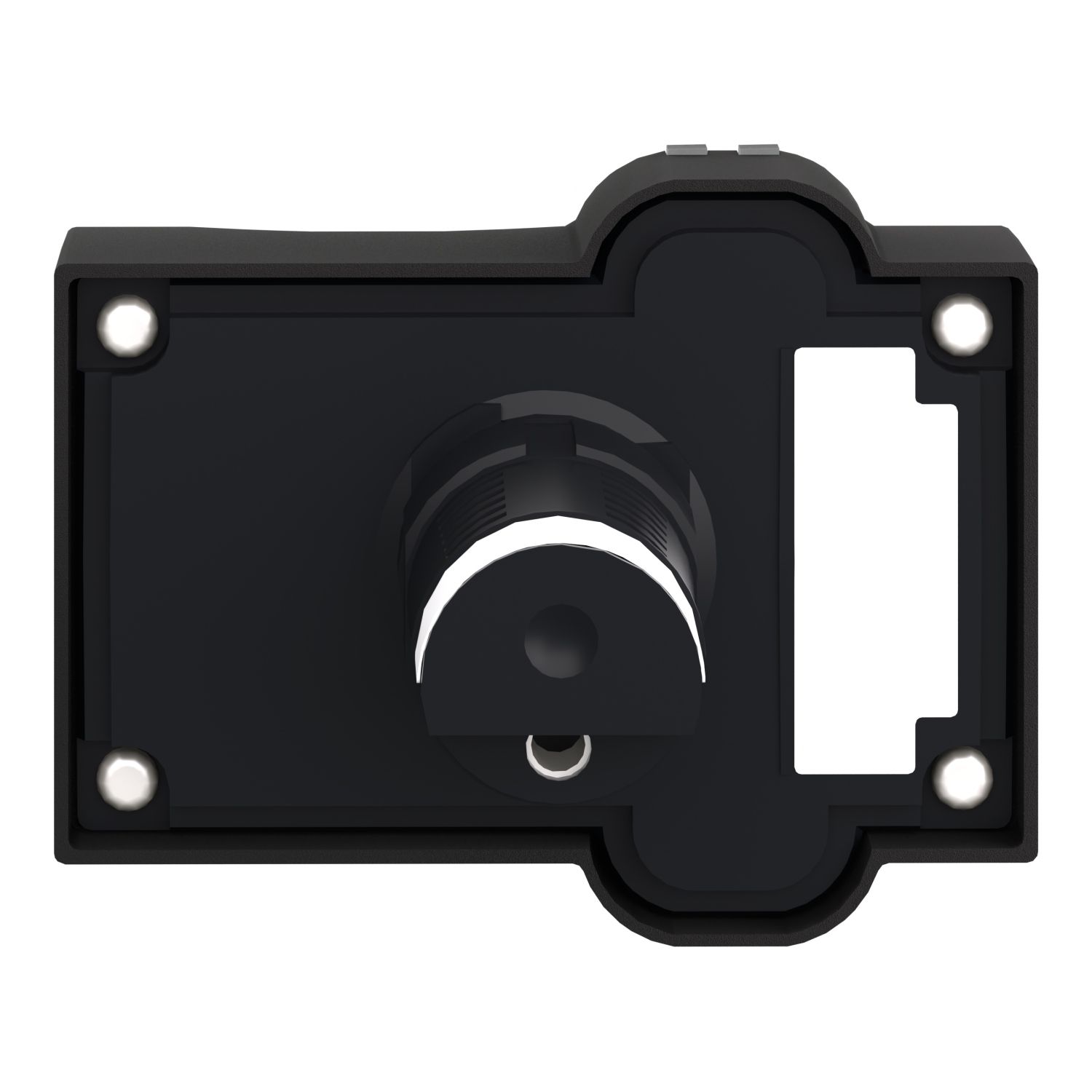

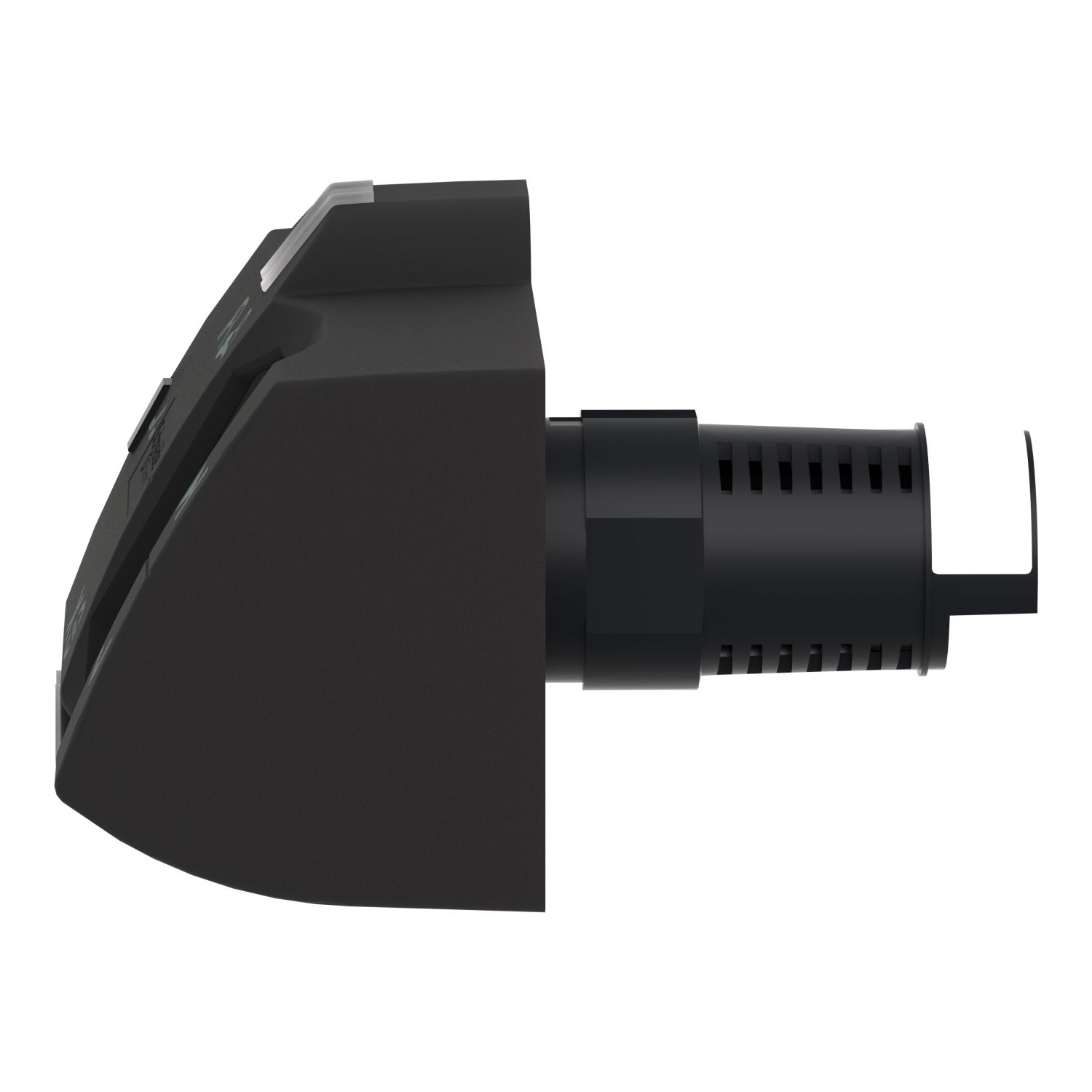

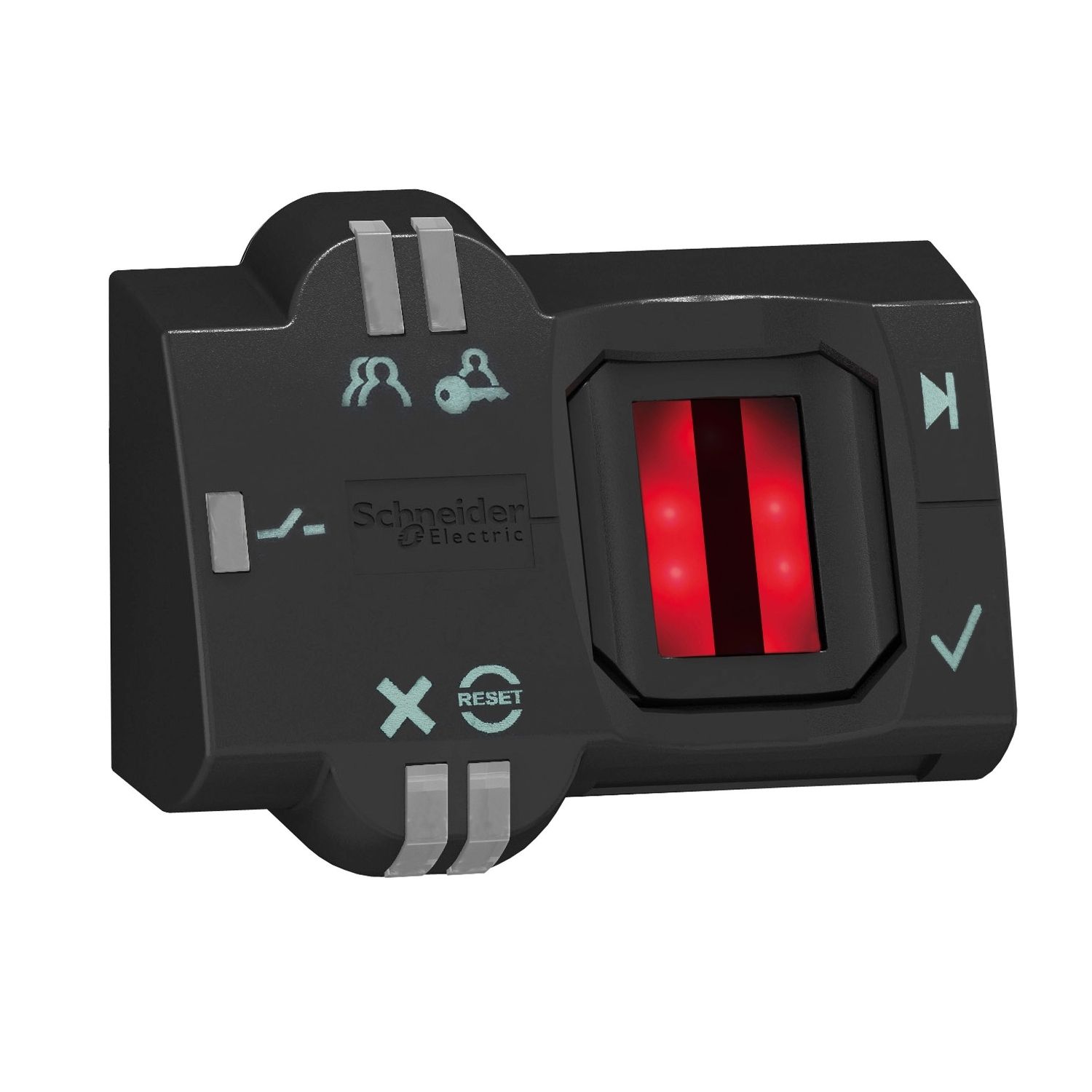

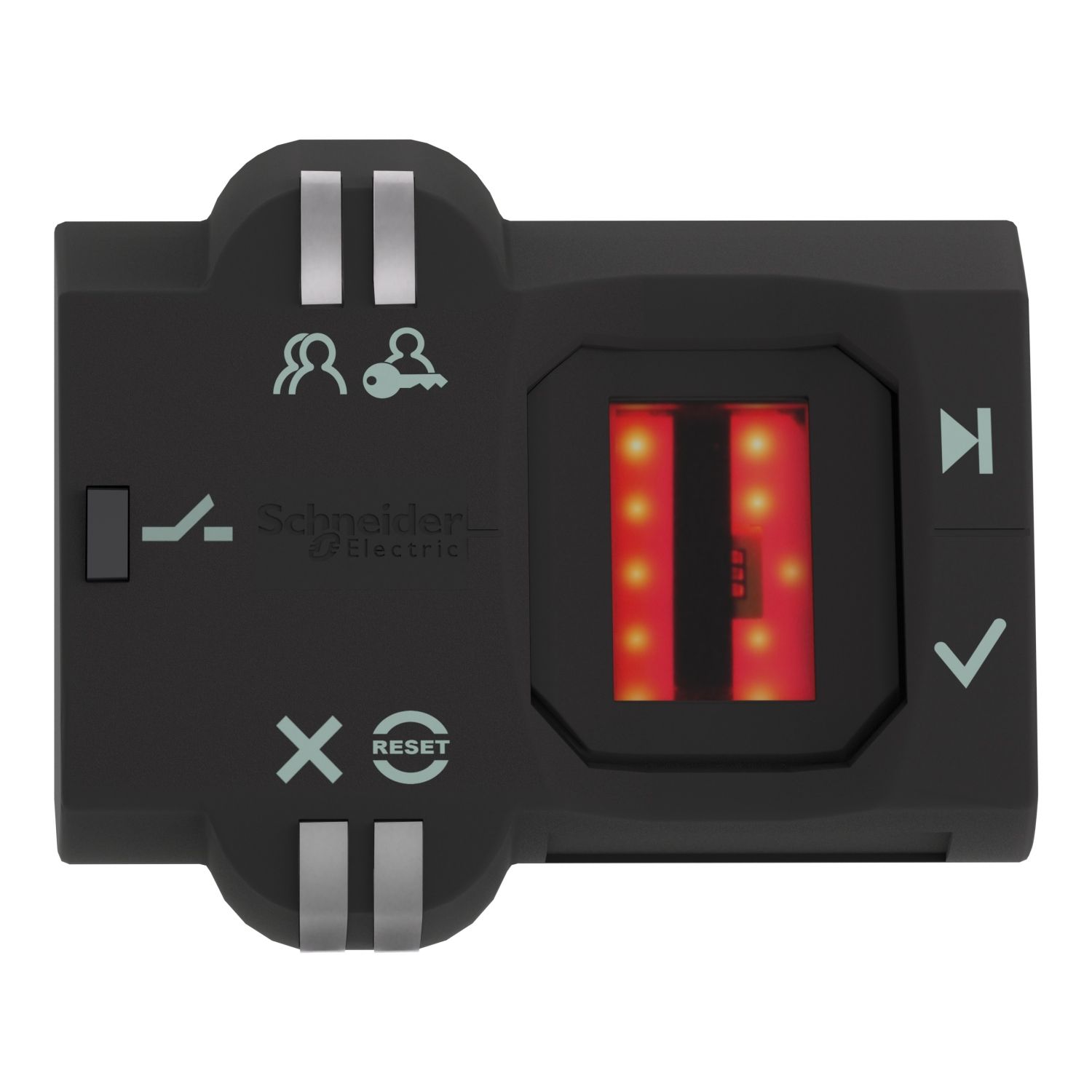

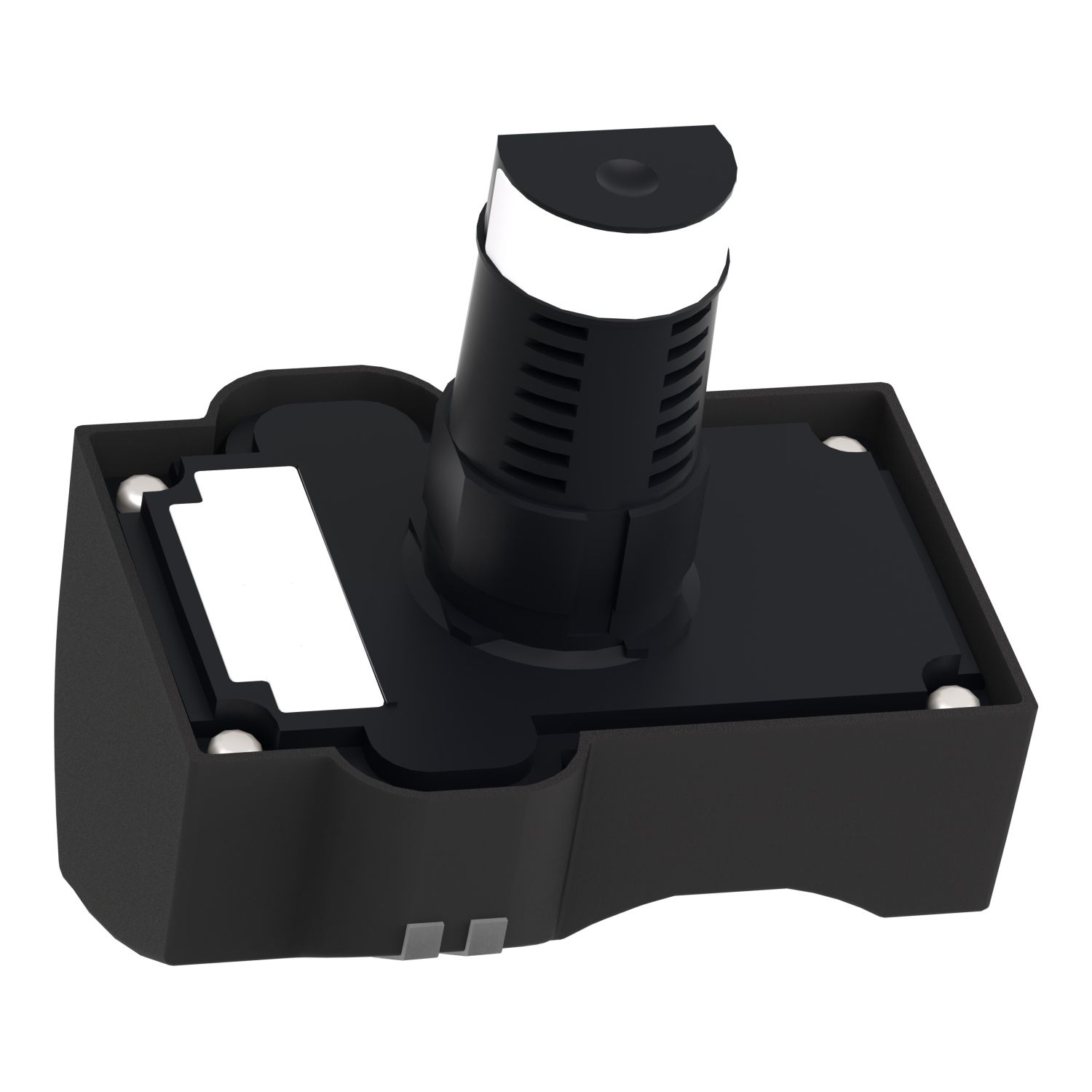

Picture of Biometric switch monostable, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC
SKU:

XB5S2B2M12

Biometric switch monostable, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC

$537.71
Biometric switch monostable, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
Technical illustration
Declaration of conformity
User guide
Image of product
Image of product
Image of product
Instruction sheet
Image of product
Product environmental
Image of product
Image of product
Technical illustration
Image of product
Image of product
Product Page Link
Product Data Sheet

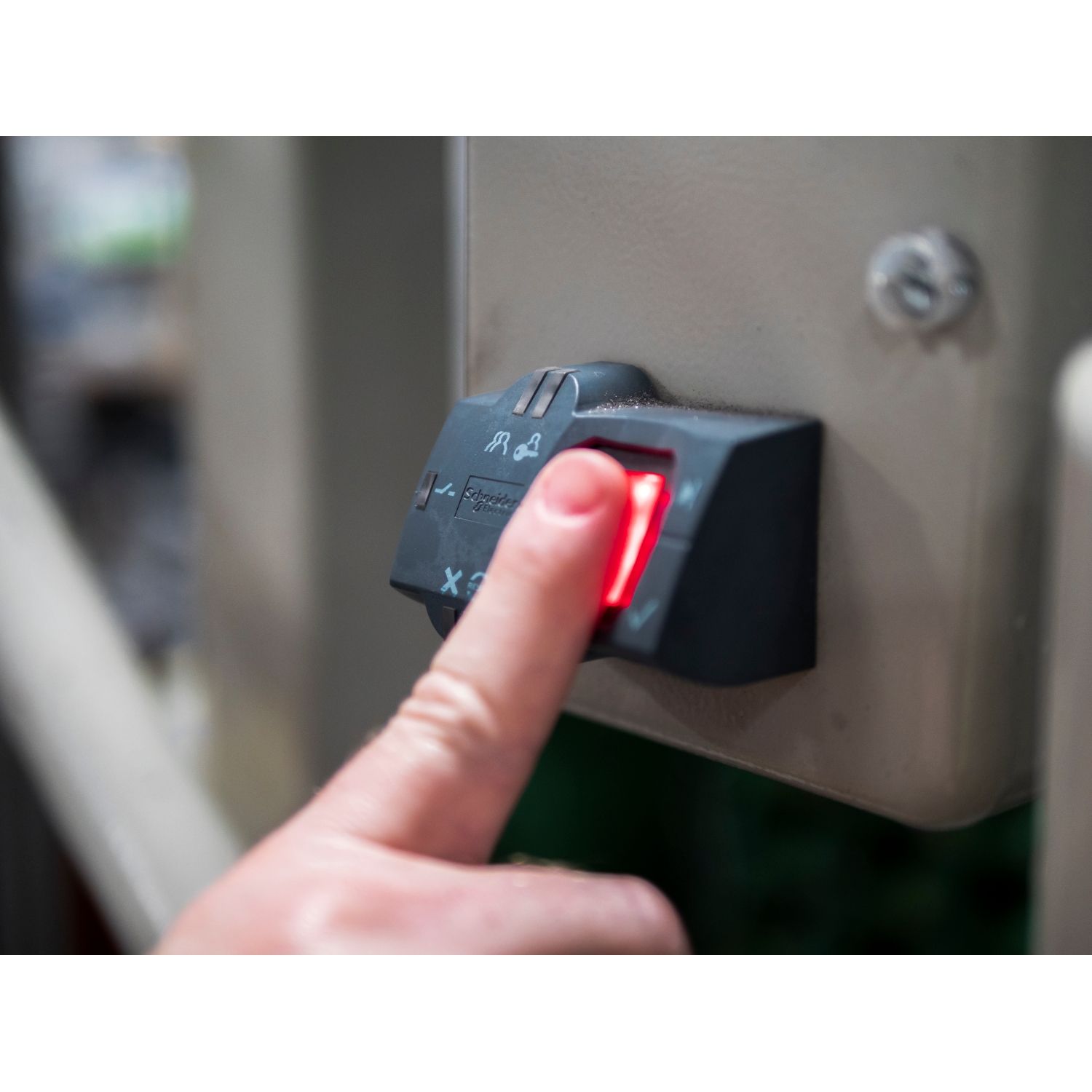

This Harmony XB5, monostable biometric switch has a M12 connectoris supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute nameAttribute value
Main
Device short nameXB5S
Memory usage200 users with up to 2 fingerprints per user
Output typePNP
Type of operatormomentary
Product specific applicationmaterials handling, industrial machines
Operator profilefingerprint reader
Bezel materialdark grey plastic
Sale per indivisible quantity1
IP degree of protectionIP65 (front face) conforming to EN/IEC 60529, IP20 (rear face) conforming to EN/IEC 60529
Product or component typebiometric switch
Mounting diameter22 mm
Complementary
Maximum delay first up3 s + 0.5 ms per user registered
[Ures] residual voltage1 V closed state
Function of modulemonostable
Enclosure materialpolyamide PA66
Protection typereverse polarity, short-circuit,  overload protection
Operating positionflat surface installation, horizontal position, vertical surface installation
Customizableno, 0
Local signalling1 LED (red) for reset, 1 LED (red) for error, 1 LED (orange) for operator's registration mode, 1 LED (orange) for administrator's registration mode, 1 LED (green) for output state indicator
Supply voltage limits20-30 V DC
Maximum delay recovery1.5 s
[Us] rated supply voltage24 V DC, 24 V
Net weight0.183 kg
MarkingCE
Maximum switching current200 mA
Cable insulation materialPvR
Short-circuit protection250 mA external fuse type gG
Maximum delay response1.5 s
Electrical connectionM12 connector of 0.2 m
Current consumption<= 70 mA no-load
Environment
NEMA degree of protectionNEMA 12
Ambient air temperature for storage-25-70 °C
Vibration resistance1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn 11 ms conforming to IEC 60068-2-27
StandardsIEC 61000-6-4, IEC 61000-6-2
Range of productHarmony XB5S
Ambient air temperature for operation-5-50 °C
Product certificationsUL, CSA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.7 cm
Package 1 Width9.5 cm
Package 1 Length18.5 cm
Package 1 Weight163.0 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.634 kg
