SKU:

XB6AV4BB

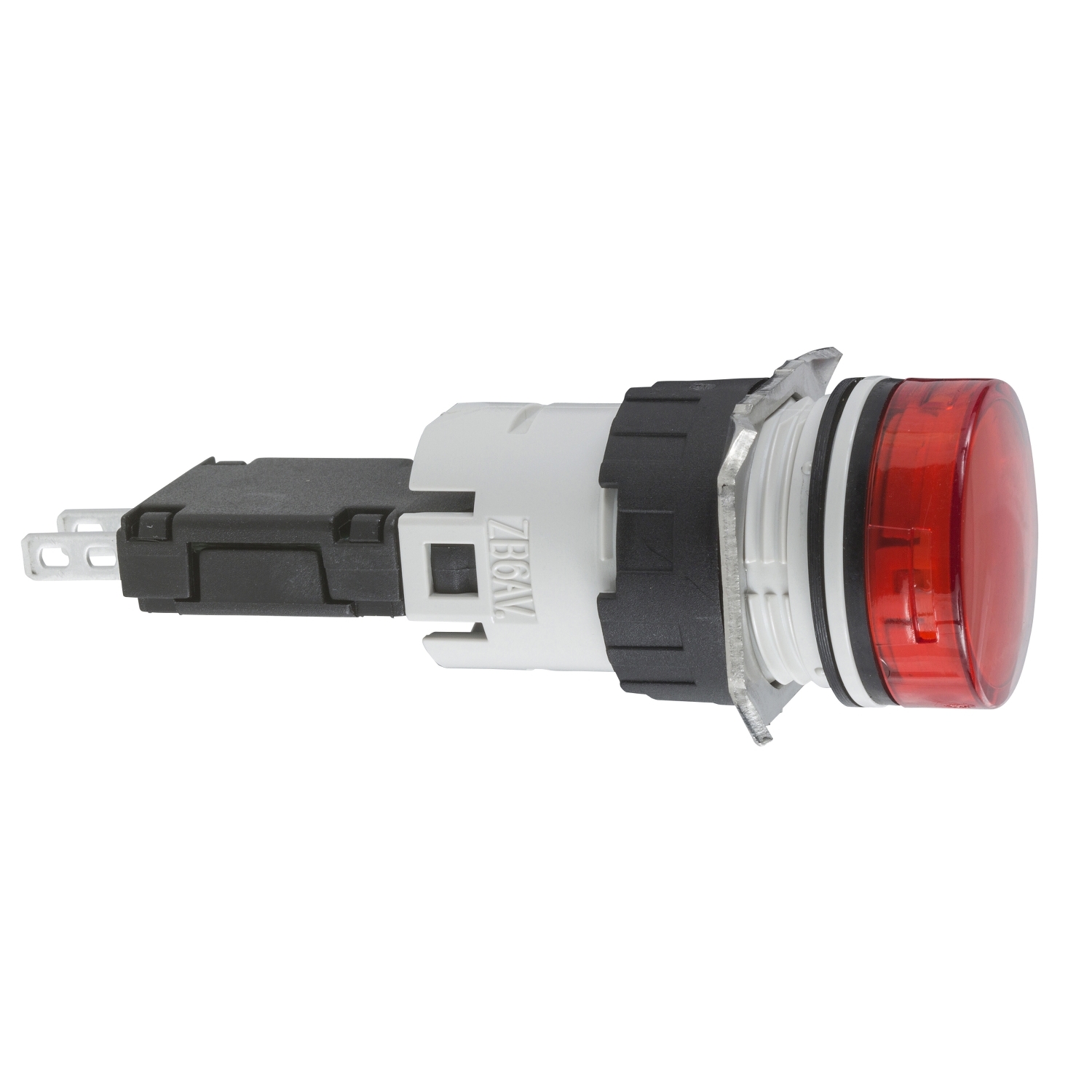

Complete pilot light, Harmony XB6, round red, plastic, 16mm, integral LED 12...24V

$57.34
Available for Shipping : 10-Dec-2024
Product Selector
Complete pilot light, Harmony XB6, round red, plastic, 16mm, integral LED 12...24V
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XB6 red, complete pilot light is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Products specifications

Attribute name Attribute value
Main
Bulb base integral LED
Device short name XB6
Bezel material plastic
Sale per indivisible quantity 1
Cap/operator or lens colour red
Shape of signaling unit head round
Product or component type complete pilot light
Mounting diameter 16 mm
Light block supply direct
Light source LED
Range of product Harmony XB6
[Us] rated supply voltage 12...24 V AC/DC
Complementary
Depth 57 mm
Width 18 mm
Operating position any position
Compatibility code XB6
Supply voltage limits 6-30 V AC/DC
Signalling type steady
[Ui] rated insulation voltage 250 V (pollution degree 2) conforming to IEC 60947-1
Surge withstand 2 kV in free air conforming to IEC 61000-4-5, 1 kV direct contact conforming to IEC 61000-4-5
Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm
Current consumption 15 mA
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.015 kg
Terminals description ISO n°1 (+ -)PL
Height 18 mm
Environment
Electromagnetic emission class B conforming to IEC 55011
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
NEMA degree of protection NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-5, JIS C8201-5-1, IEC 60947-1, UL 508, JIS C 852, CSA C22.2 No 14, IEC 60947-5-1
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -25-70 °C
Product certifications UL, CCC, CSA, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 11.0 cm
Package 1 Length 16.0 cm
Package 1 Weight 11.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 830.0 g
