SKU:

XB6AV5BB

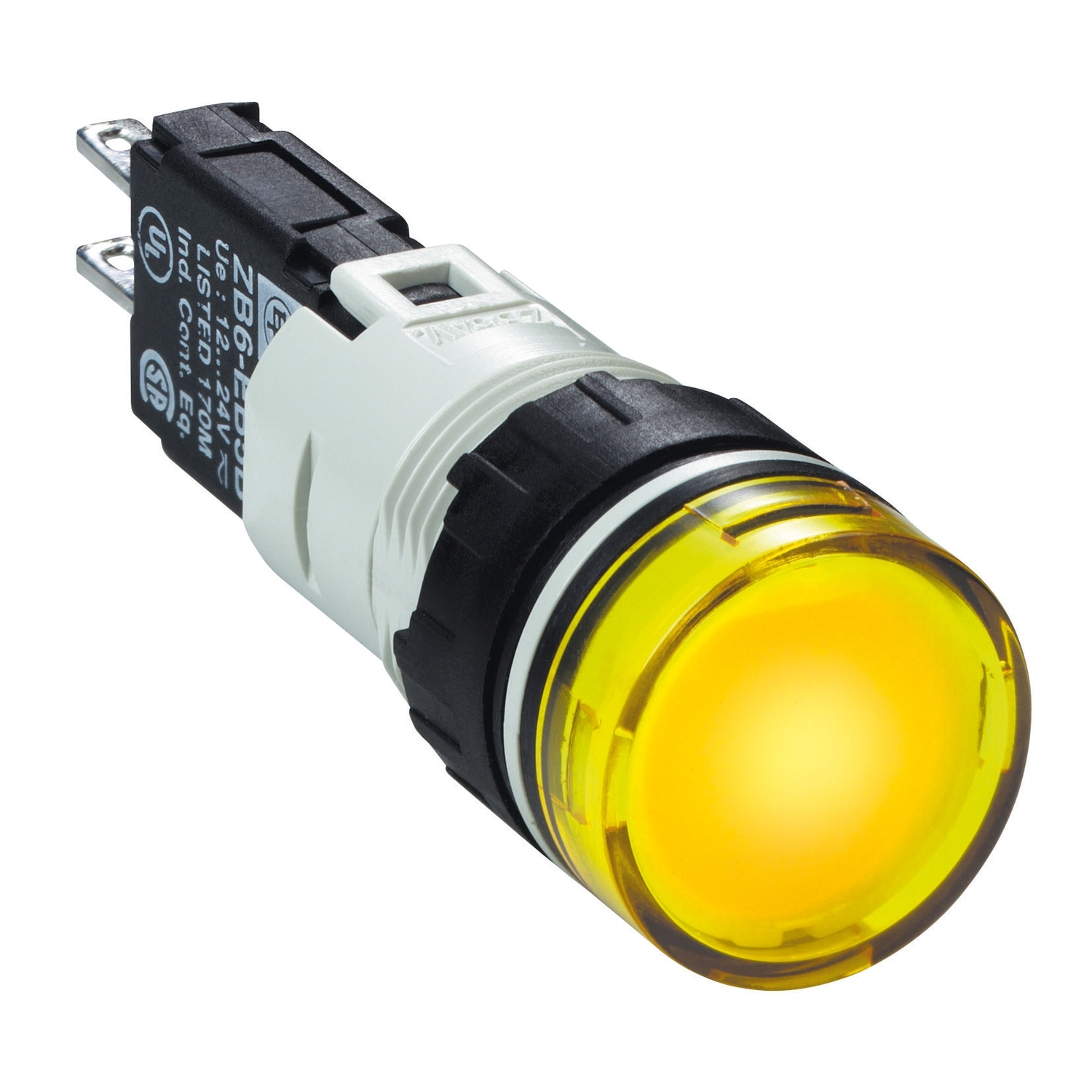

Complete pilot light, Harmony XB6, round yellow, plastic, 16mm, integral LED 12...24V

$60.58
Product Selector
Complete pilot light, Harmony XB6, round yellow, plastic, 16mm, integral LED 12...24V
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Declaration of conformity
Image of product
Image of product
Image of product
Image of product
Image of product
Image of product
Product Page Link
Product Data Sheet
This Harmony XB6 yellow, complete pilot light is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Products specifications

Attribute nameAttribute value
Main
Bulb baseintegral LED
Device short nameXB6
Bezel materialplastic
Sale per indivisible quantity1
Cap/operator or lens colouryellow
Shape of signaling unit headround
Product or component typecomplete pilot light
Mounting diameter16 mm
Light block supplydirect
Light sourceLED
Range of productHarmony XB6
[Us] rated supply voltage12...24 V AC/DC
Complementary
Depth57 mm
Width18 mm
Operating positionany position
Compatibility codeXB6
Supply voltage limits6-30 V AC/DC
Signalling typesteady
[Ui] rated insulation voltage250 V (pollution degree 2) conforming to EN/IEC 60947-1
Surge withstand2 kV in free air conforming to IEC 61000-4-5, 1 kV direct contact conforming to IEC 61000-4-5
Connections - terminalsFaston connectors, connection size: 2.8 x 0.5 mm
Current consumption15 mA
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1
Net weight0.015 kg
Terminals description ISO n°1(+ -)PL
Height18 mm
Environment
Electromagnetic emissionclass B conforming to EN 55011
Resistance to fast transients2 kV conforming to IEC 61000-4-4
Protective treatmentTC
Electrical shock protection classclass II conforming to IEC 61140
Resistance to electrostatic discharge8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
NEMA degree of protectionNEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP65 conforming to IEC 60529
Vibration resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
StandardsJIS C8201-1, JIS C 852, UL 508, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/IEC 60947-1
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation-25-70 °C
Product certificationsUL, CSA, CCC, GOST
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.0 cm
Package 1 Width8.0 cm
Package 1 Length8.0 cm
Package 1 Weight10.0 g
Unit Type of Package 22
Number of Units in Package 260
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight819.0 g
