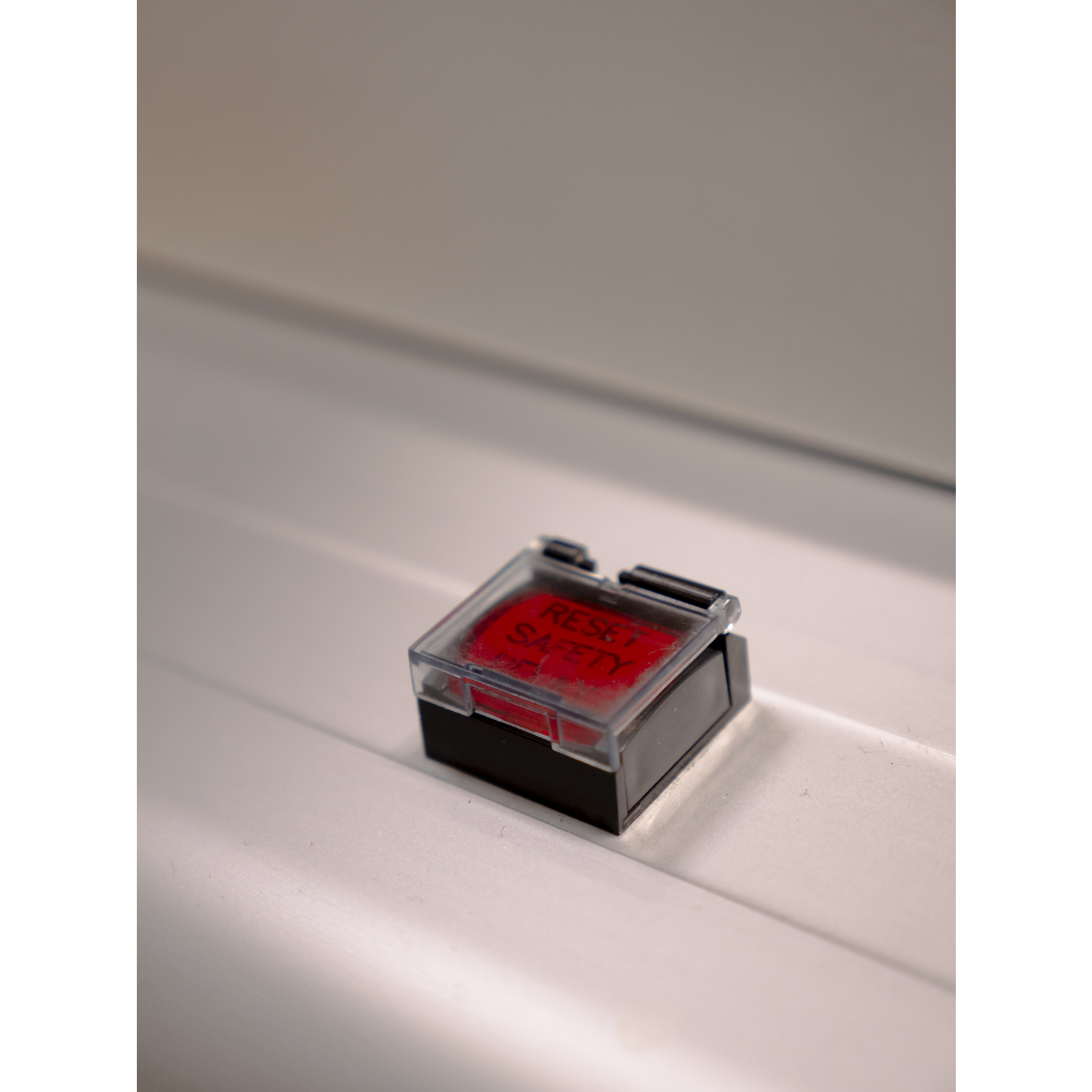

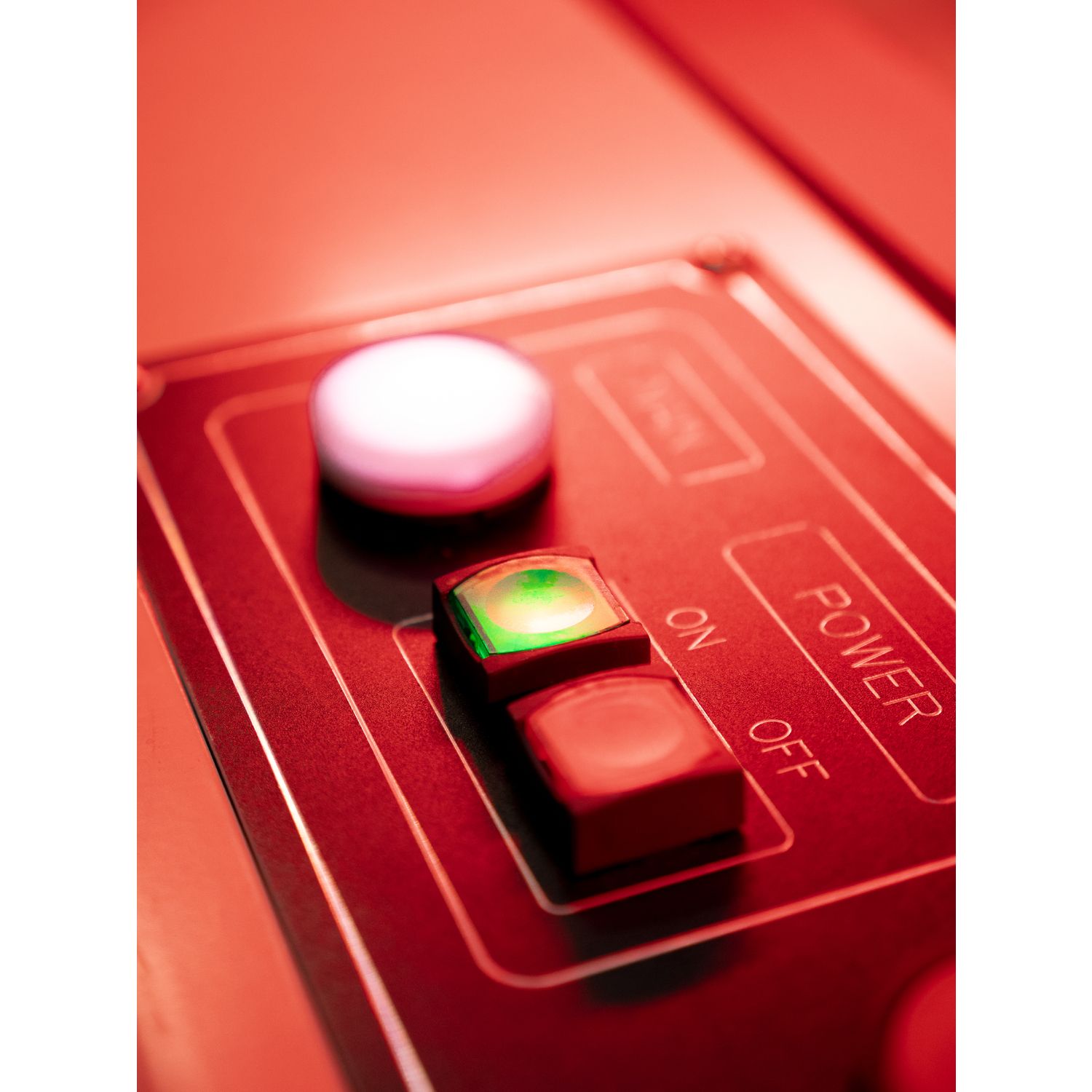

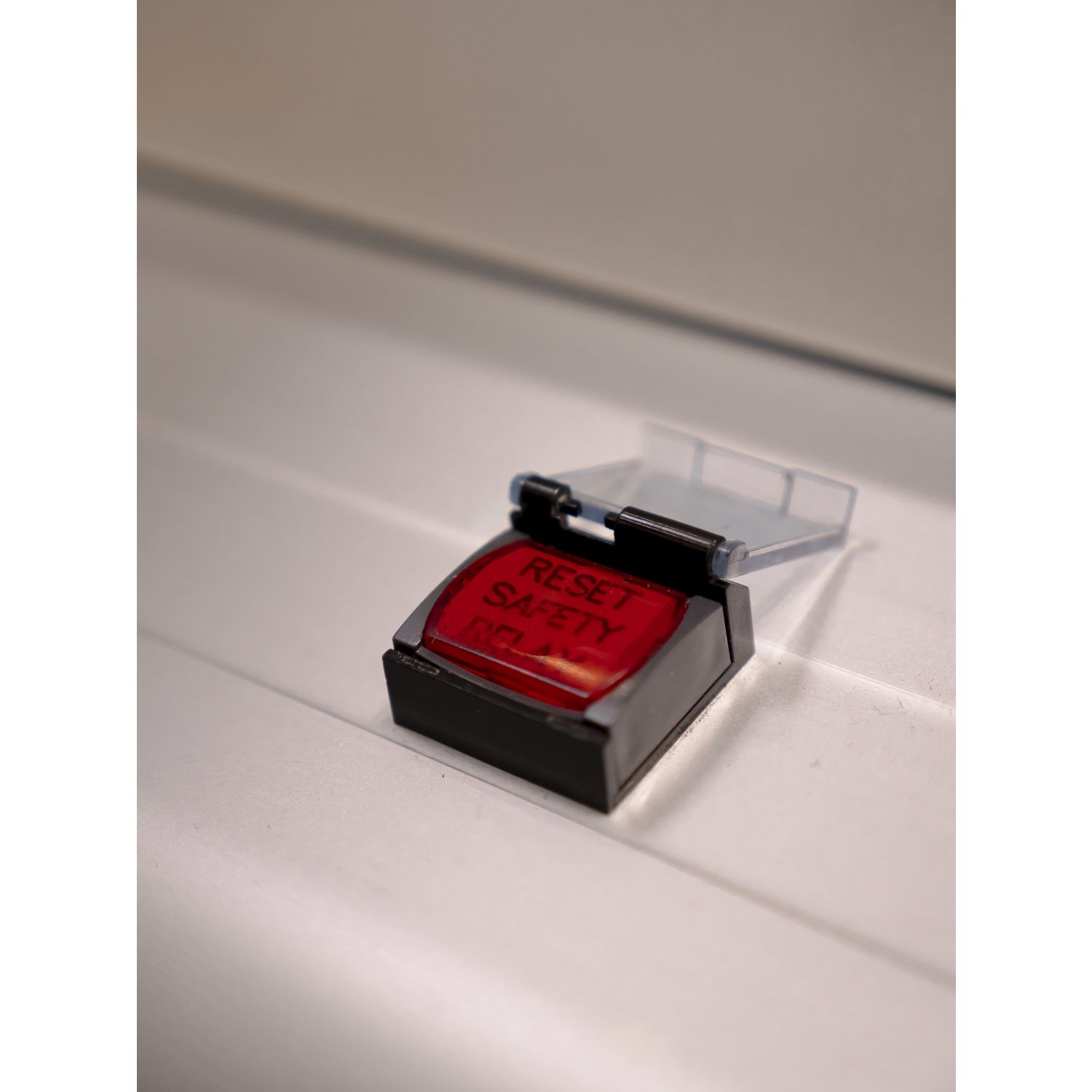

Picture of Complete pilot light, Harmony XB6, rectangular green, plastic, 16mm, integral LED, 12...24V
SKU:

XB6DV3BB

Complete pilot light, Harmony XB6, rectangular green, plastic, 16mm, integral LED, 12...24V

$60.58
Available for Shipping : 10-Dec-2024
Product Selector
Complete pilot light, Harmony XB6, rectangular green, plastic, 16mm, integral LED, 12...24V
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product Page Link
Product Data Sheet

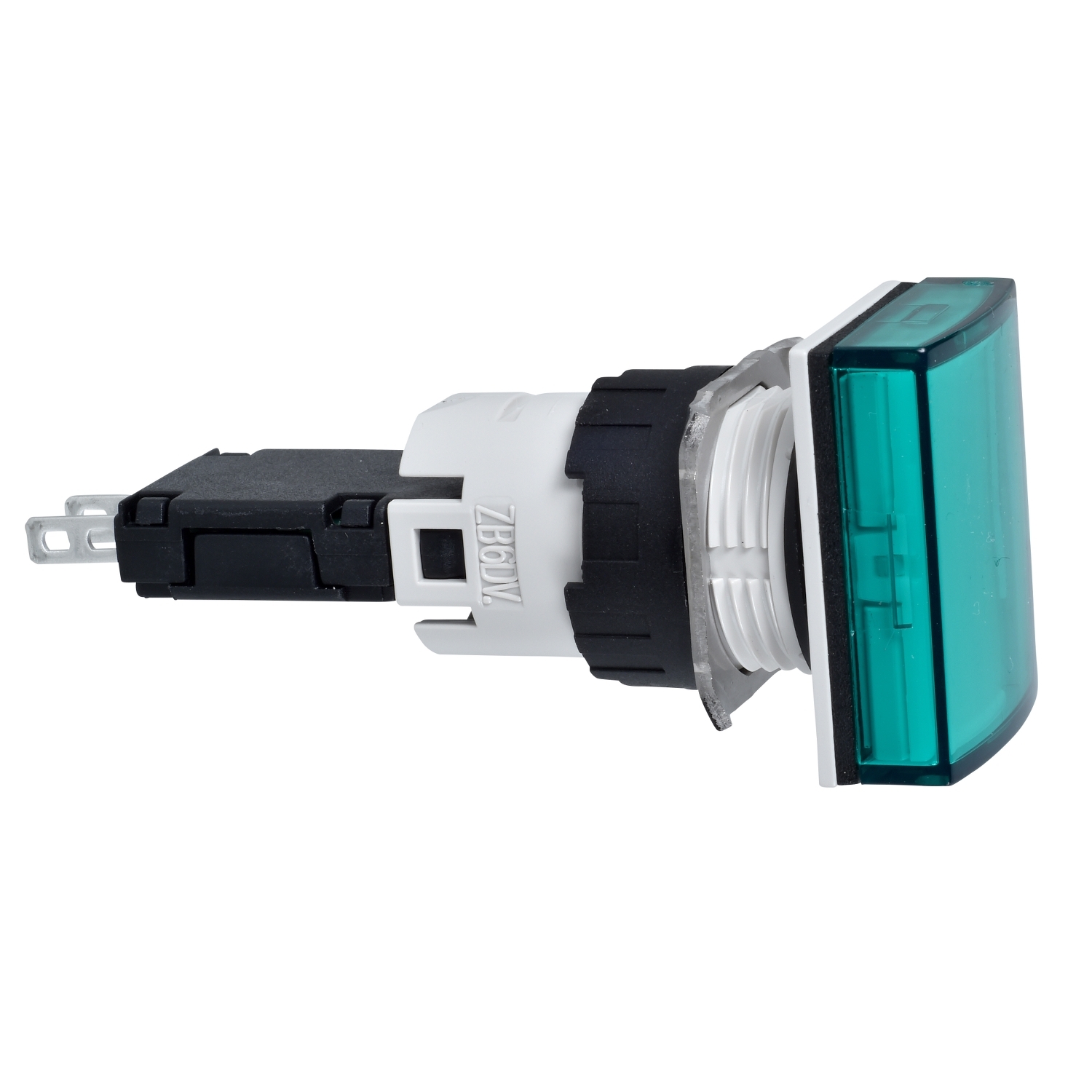

"This product is part of the Harmony XB6 range, an offer of Ø 16mm plastic pushbuttons, switches, and pilot lights." "This pilot light indicates a closed or active circuit with a light." "It has a rectangular shaped head with green lens." "It is equipped with integral LED base and LED light. The light block is rated to 12V to 24V AC/DC supply voltage." "It is furnished with 2.8mm x 0.5mm Faston connector for electrical connection." "It is an IP65 and NEMA 4/4X/13 rated product." "This SK Plus options type pilot light is fitted with plastic bezel. Its dimensions are 24mm (width) x 57mm (depth) x 18mm (height). It weighs 0.015kg." "It is ideal for control boards, surveillance rooms, alarms, small finishing machines, local and remote control panels." "This product is certified by CCC, CSA, UL and GOST. It meets JIS C 852, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1 and JIS C8201-1 standards." "It is installed into a Ø 16mm panel cutout." "The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications."

Products specifications

Attribute name Attribute value
Main
Bulb base integral LED
Device short name XB6
Bezel material plastic
Sale per indivisible quantity 1
Cap/operator or lens colour green
Shape of signaling unit head rectangular
Product or component type complete pilot light
Mounting diameter 16 mm
Light block supply direct
Light source LED
Range of product Harmony XB6
[Us] rated supply voltage 12...24 V AC/DC
Complementary
Depth 57 mm
Width 24 mm
Operating position any position
Compatibility code XB6
Supply voltage limits 6-30 V AC/DC
Signalling type steady
[Ui] rated insulation voltage 250 V (pollution degree 2) conforming to EN/IEC 60947-1
Surge withstand 2 kV in free air conforming to IEC 61000-4-5, 1 kV direct contact conforming to IEC 61000-4-5
Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm
Current consumption 15 mA
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
Net weight 0.015 kg
Terminals description ISO n°1 (+ -)PL
Height 18 mm
Environment
Electromagnetic emission class B conforming to EN 55011
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
NEMA degree of protection NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-5-1, UL 508, JIS C 852
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -25-70 °C
Product certifications GOST, UL, CSA, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 8.0 cm
Package 1 Length 8.0 cm
Package 1 Weight 12.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 889.0 g
