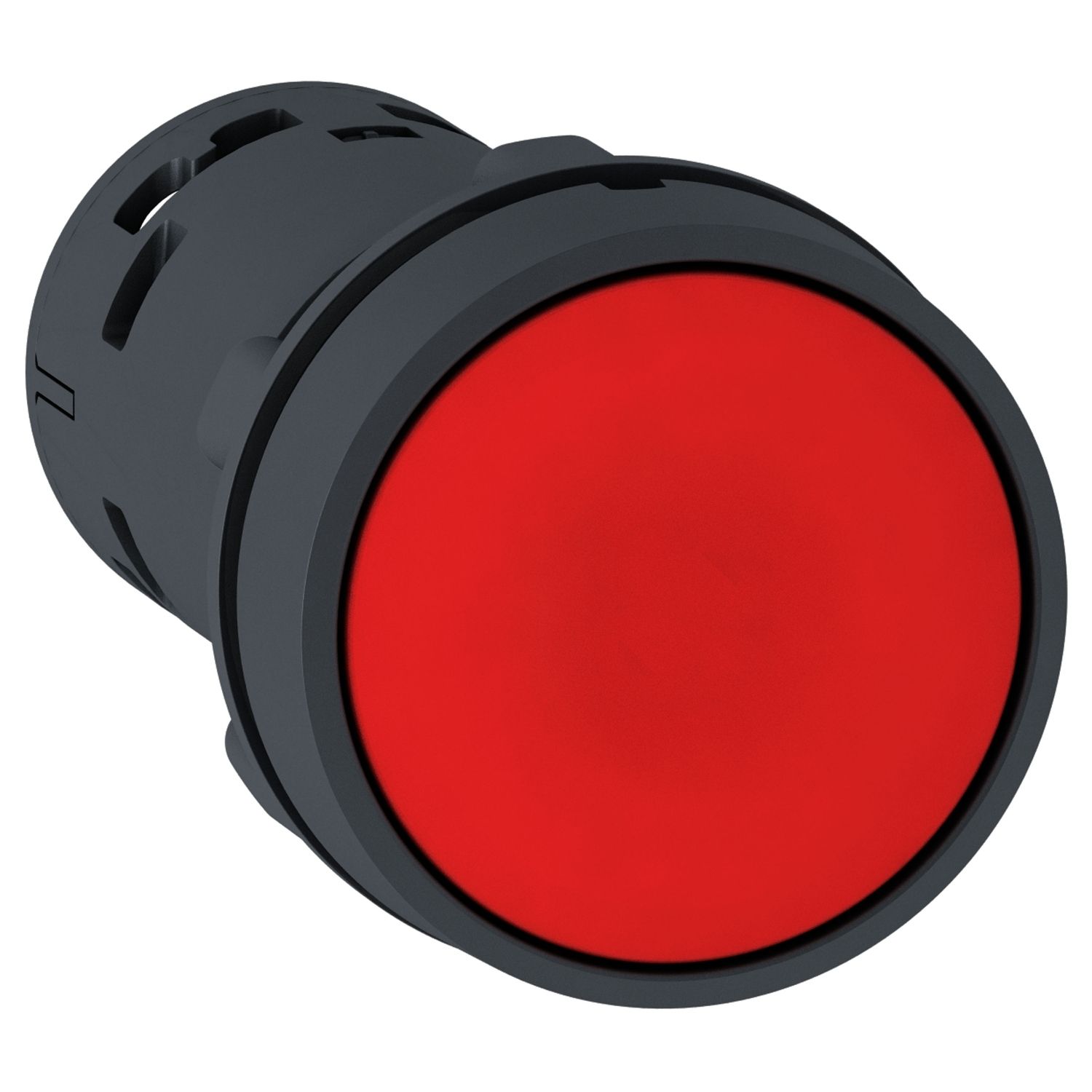

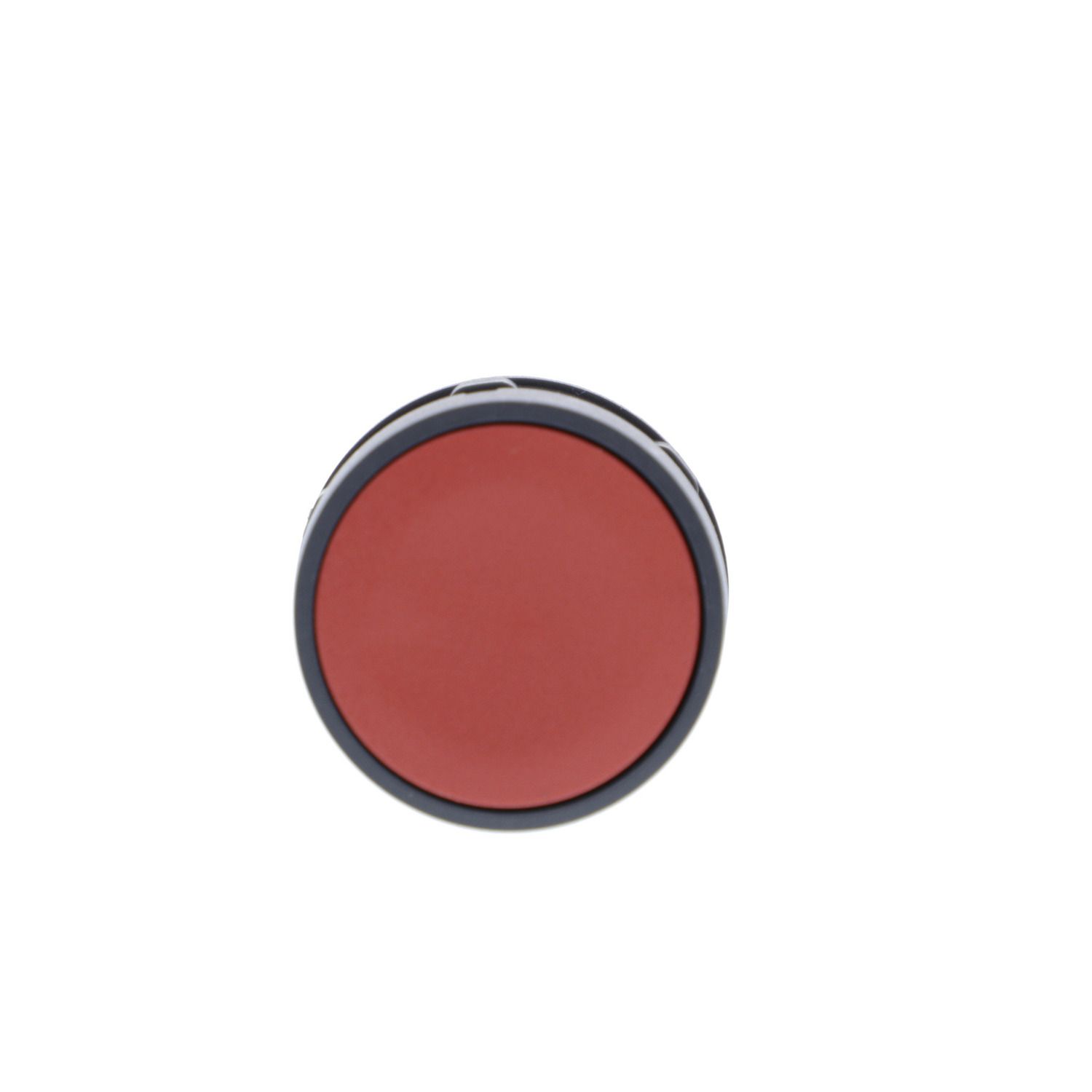

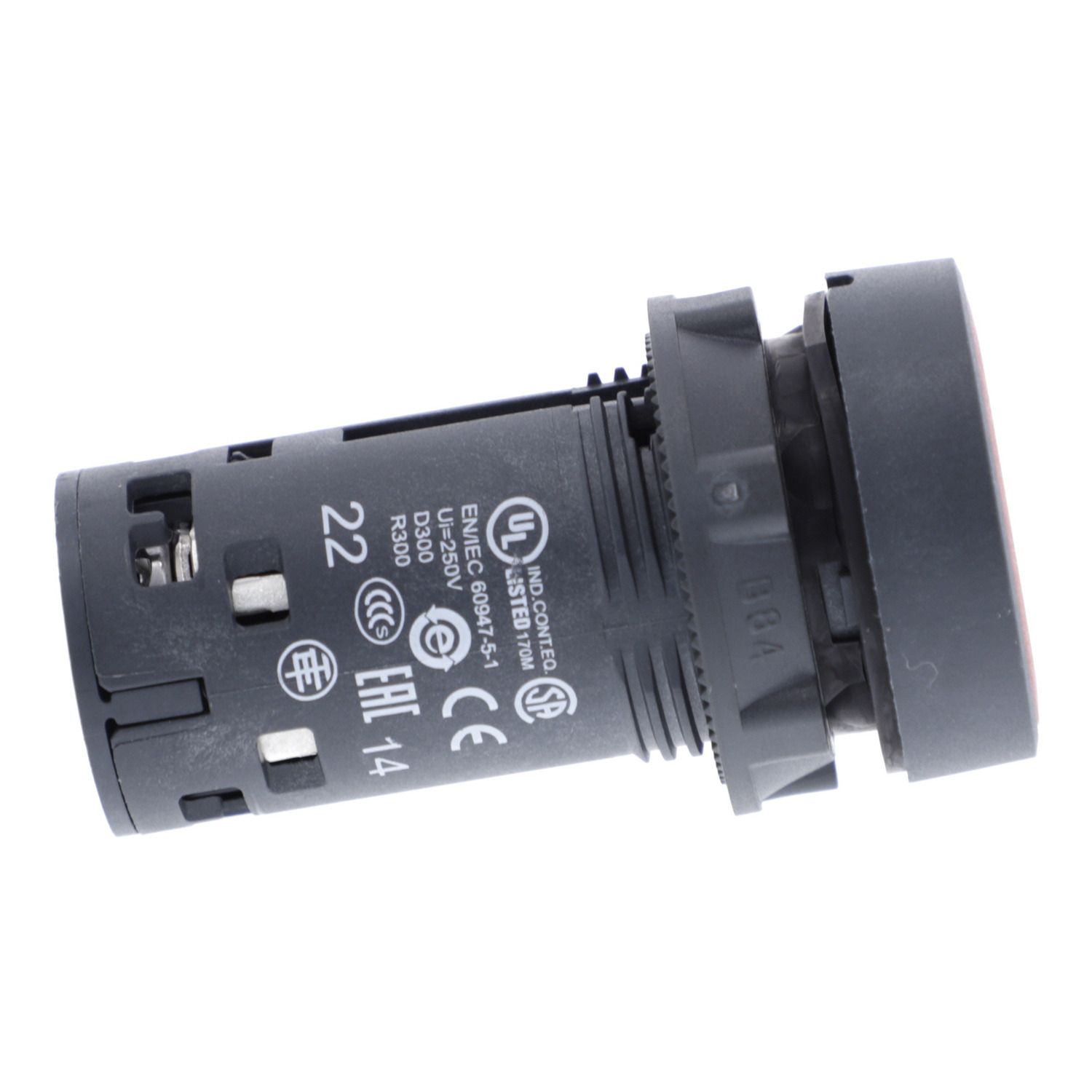

Picture of Monolithic push button, Harmony XB7, plastic, red, 22mm, spring return, unmarked, 1NO+1NC
SKU:

XB7NA45

Monolithic push button, Harmony XB7, plastic, red, 22mm, spring return, unmarked, 1NO+1NC

$23.04
Available for Shipping : 24-Nov-2024
Product Selector
Monolithic push button, Harmony XB7, plastic, red, 22mm, spring return, unmarked, 1NO+1NC
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Declaration of conformity
Product environmental
CAD
Catalogue
Product Page Link
Product Data Sheet
This Harmony XB7, monolithic red push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XB7
Sale per indivisible quantity 10
Device presentation monolithic product
IP degree of protection IP65 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529
Type of operator spring return
Range of product Harmony XB7
Operator profile red flush, unmarked
Contacts type and composition 1 NO + 1 NC
Connections - terminals screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit head round
Product or component type push-button
Mounting diameter 22 mm
Complementary
Device mounting fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with JIS No 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ <= 10exp(-6) at 17 V, 5 mA conforming to IEC 60947-5-4
Compatibility code XB7
Mechanical durability 1000000 cycles
Contact operation slow-break
[Ie] rated operational current 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1, 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
CAD overall height 29 mm
Cap/operator or lens colour red
Fixing mode fixing nut beneath head: 2-2.4 N.m
CAD overall depth 51.5 mm
CAD overall width 29 mm
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.021 kg
Positive opening with NC contact conforming to IEC 60947-5-1 appendix K
Fixing center >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm
Short-circuit protection 4 A cartridge fuse type gG conforming to IEC 60947-5-1

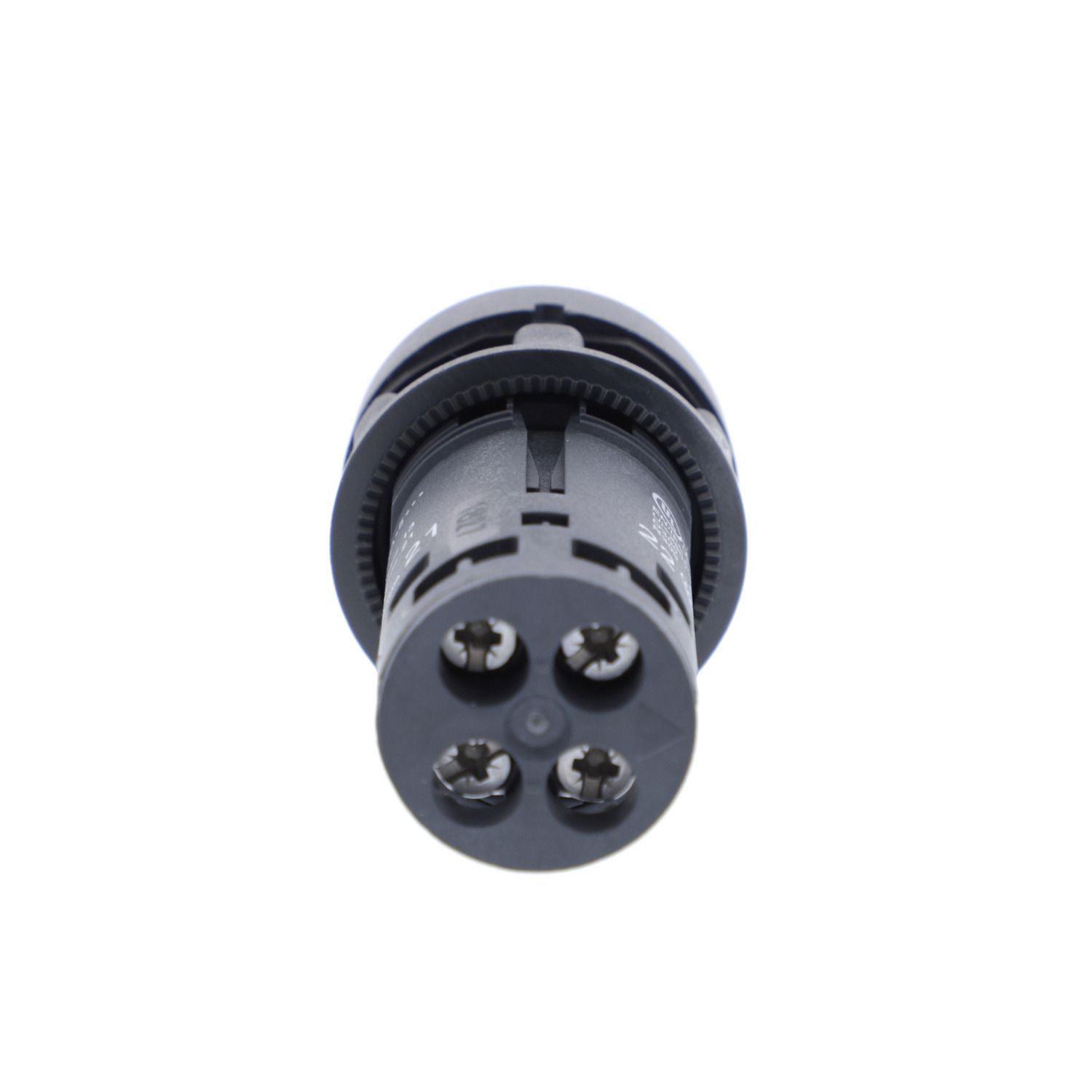

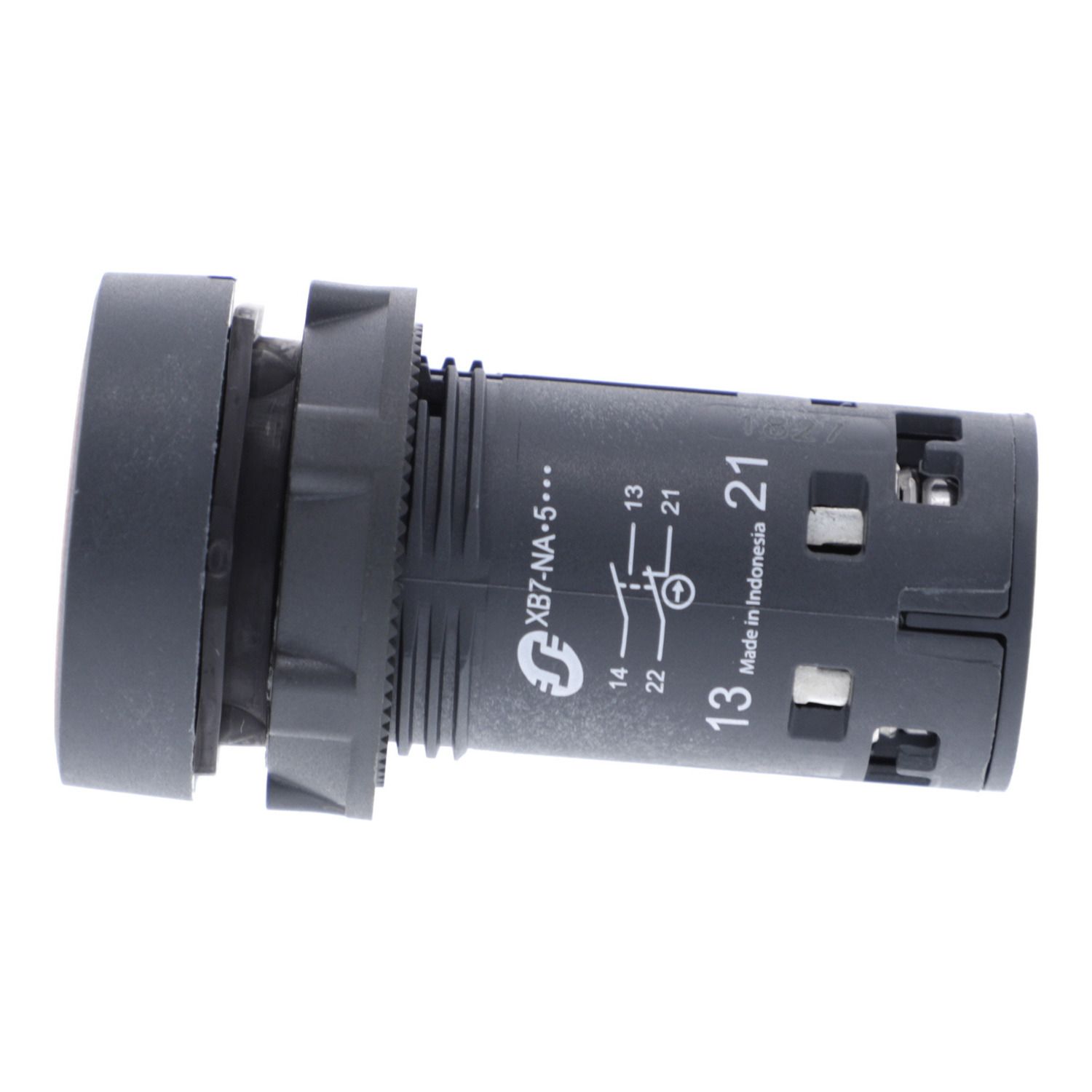

Terminals description ISO n°1 (21-22)NC, (13-14)NO
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
NEMA degree of protection NEMA 3 conforming to UL 50 E, NEMA 12 conforming to UL 50 E
Overvoltage category class II conforming to IEC 61140
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
Product certifications GOST, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 3.0 cm
Package 1 Length 3.0 cm
Package 1 Weight 23.0 g
