SKU:

XDPC5555C4

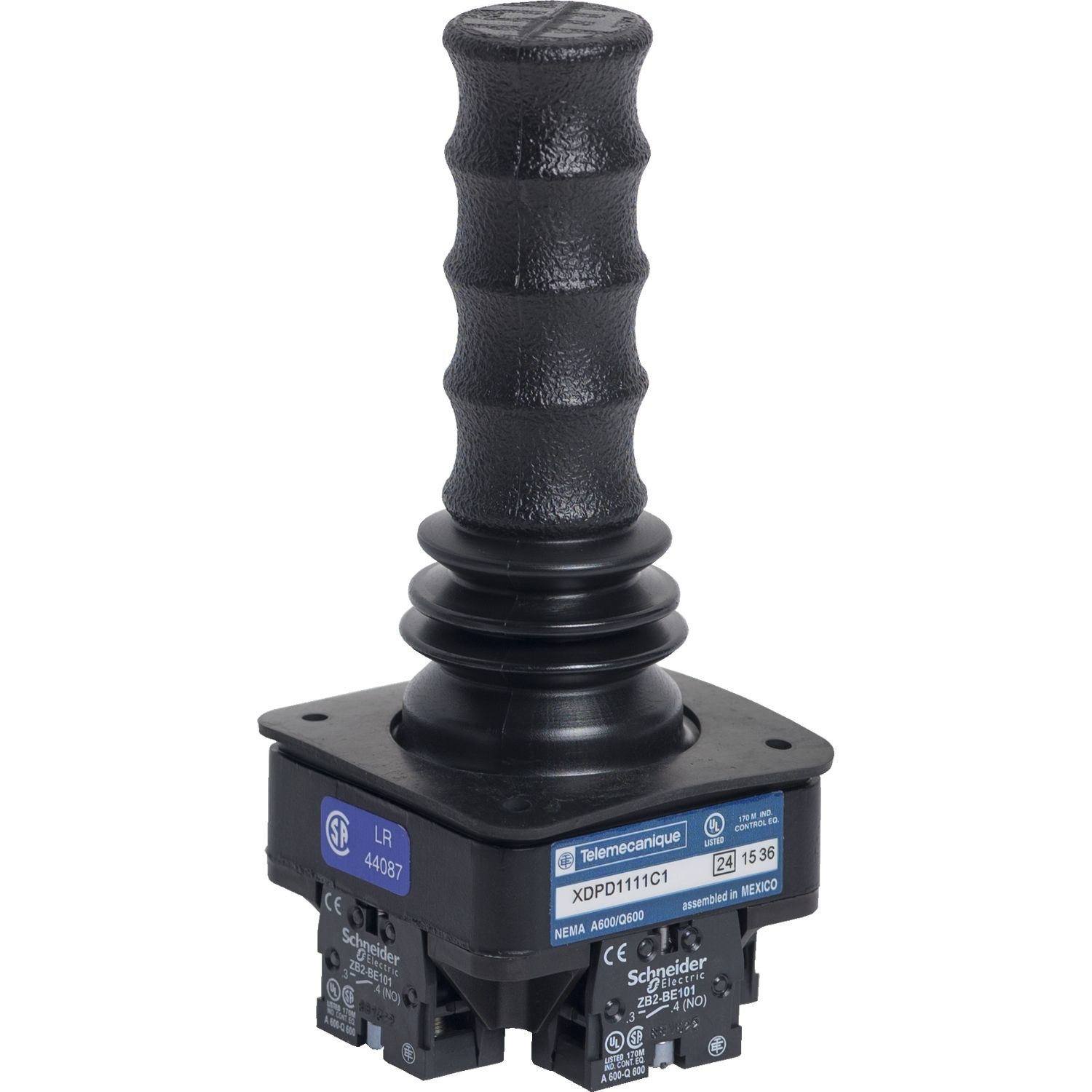

Complete joystick controller, Harmony XK, XDP, 4 directions, 1 C/O contact per direction

$454.56 INC GST

Qty:

Available for Shipping : 13-Mar-2025

Complete joystick controller, Harmony XK, XDP, 4 directions, 1 C/O contact per direction

Manufacturer: Schneider Electric

End of life manual

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	XDP
Bezel material	plastic
Sale per indivisible quantity	1
Product or component type	complete joystick controller
Mounting diameter	48 mm
Range of product	Harmony XK
Complementary
Depth	65 mm
Width	52 mm
Return	spring return
Mechanical durability	1000000 cycles
Operator position information	2 positions
Contacts type and composition	4 C/O
Net weight	0.5 kg
Operator direction information	1 direction
Height	166.6 mm
Contacts usage	standard
Environment
IP degree of protection	IP65
Standards	JIS C 4520, EN/IEC 60947-5-1, EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508
Ambient air temperature for operation	-40-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.366 cm
Package 1 Width	8.636 cm
Package 1 Length	17.78 cm
Package 1 Weight	485.344 g
