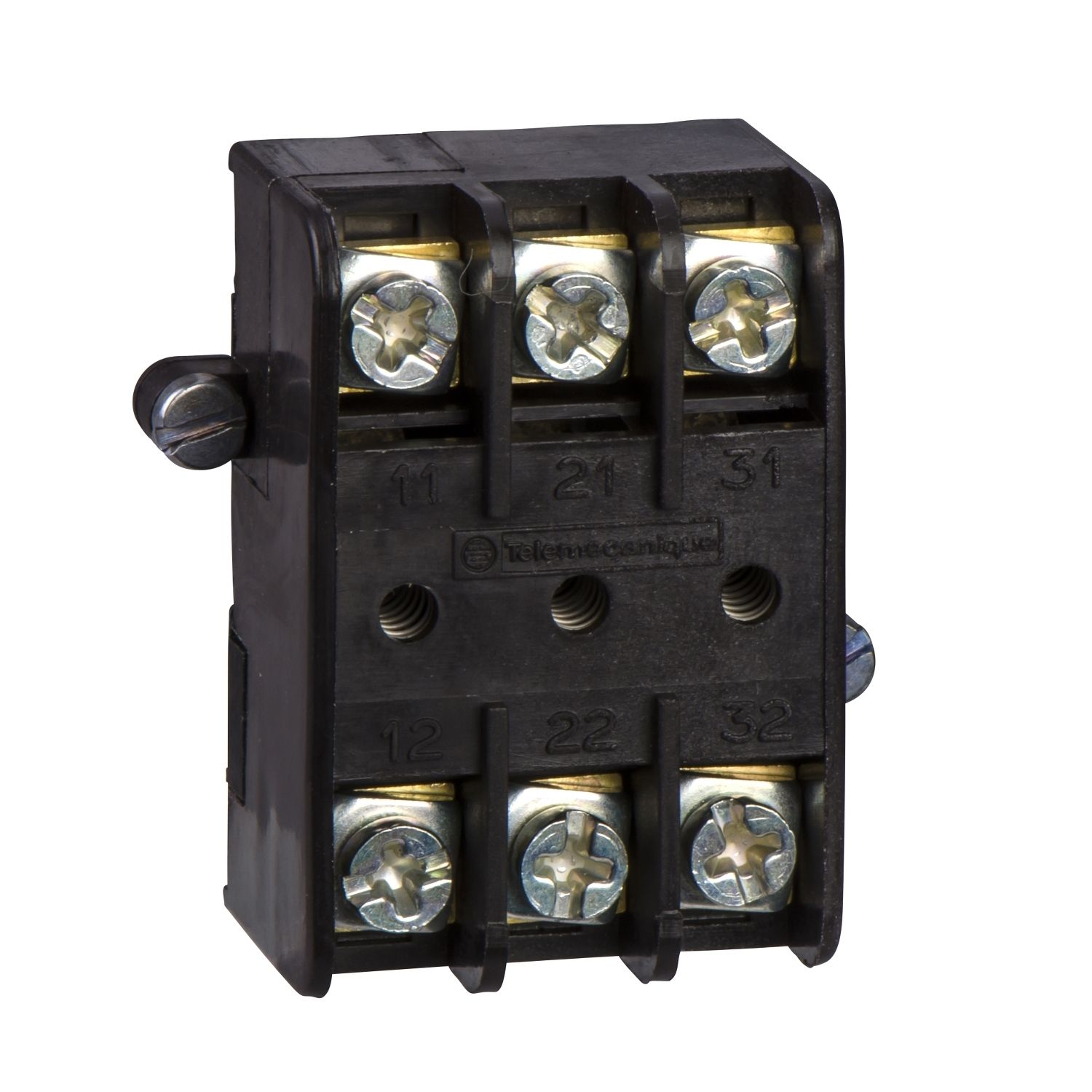

Picture of Contact block, Harmony XAC, single contact, spring return, emergency stop push button, 3NO
SKU:

XENT1991

Contact block, Harmony XAC, single contact, spring return, emergency stop push button, 3NO

Old price: $112.20 INC GST
$87.52 INC GST
Available for Shipping : 24-Mar-2026
Contact block, Harmony XAC, single contact, spring return, emergency stop push button, 3NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 24-Mar-2026
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This Harmony XENT1991 is a pendant station contact 240V AC 3A. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACD
Electrical circuit type power circuit, control circuit
Type of operator spring return
Contact operation slow-break
Contacts type and composition 3 NC
Component name XENT
Contact block application emergency stop push-button
Product or component type contact block
Contact block type single
Range of product Harmony XAC
Complementary
Rated operational power in W 3000 W AC-23B at 400 V
Mechanical durability 3000000 cycles
[Ui] rated insulation voltage 400 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.04 kg
Short-circuit protection 6 A fuse protection by cartridge fuse type aM
[Ithe] conventional enclosed thermal current 10 A
Terminals description ISO n°1 (21-22)NC, (11-12)NC, (31-32)NC
Environment
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 70 gn conforming to IEC 60068-2-27
Standards CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 5.3 cm
Package 1 Length 5.9 cm
Package 1 Weight 42.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.462 kg
