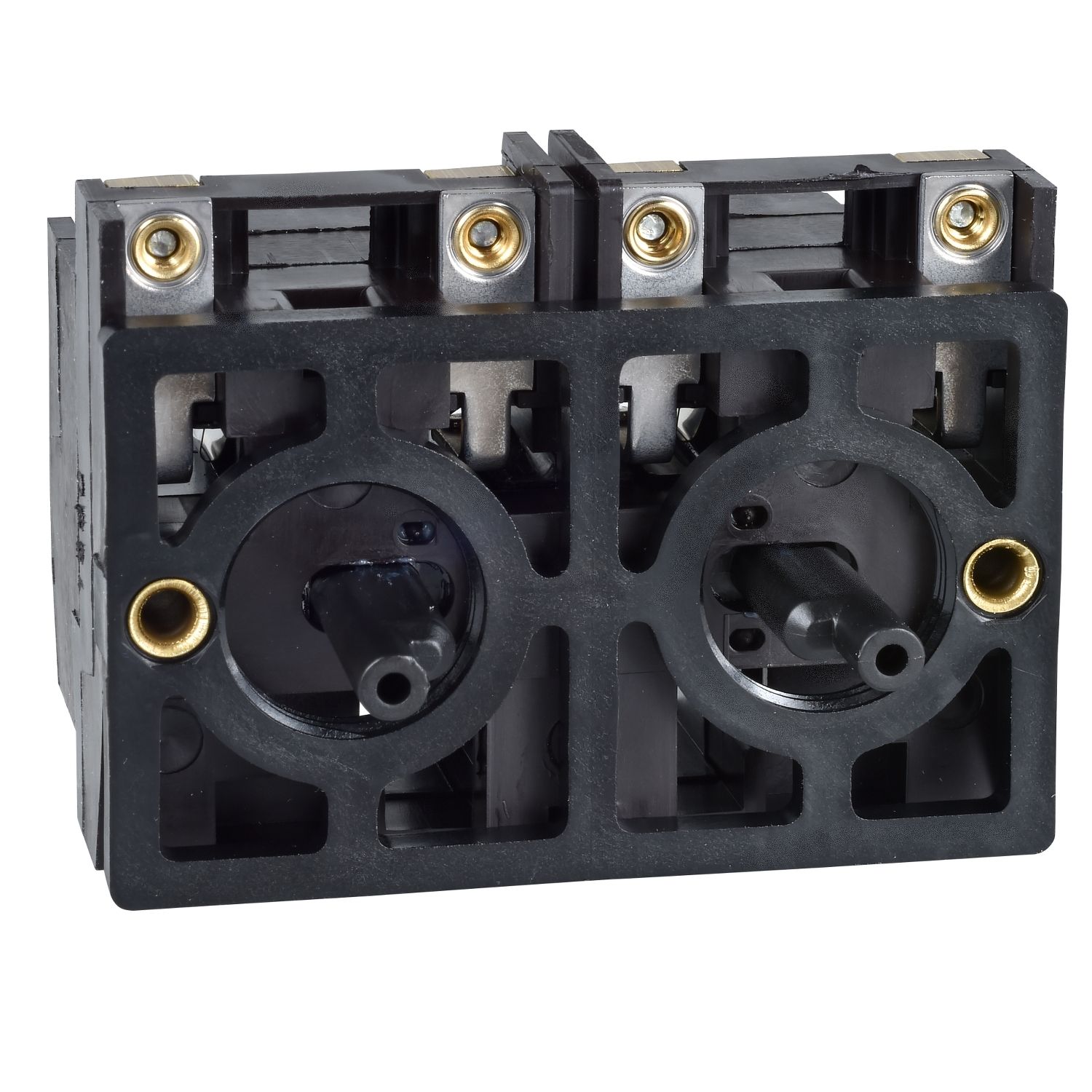

Double contact block, Harmony XAC, spring return, front mounting, single speed CO

Old price: $378.40 INC GST
$295.15 INC GST
Available for Shipping : 14-Apr-2026
Double contact block, Harmony XAC, spring return, front mounting, single speed CO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Apr-2026

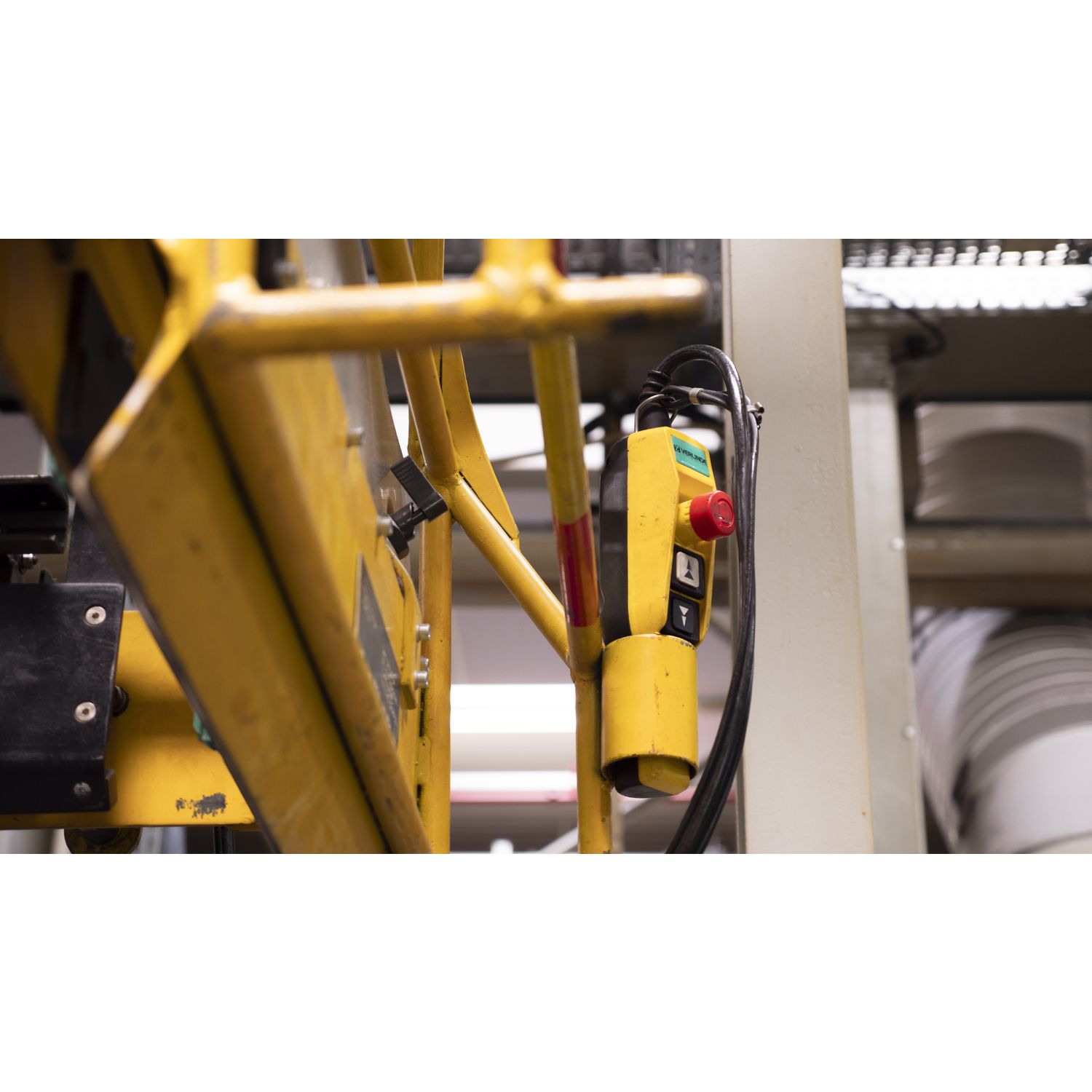

Image of product in real life situation
Instruction sheet

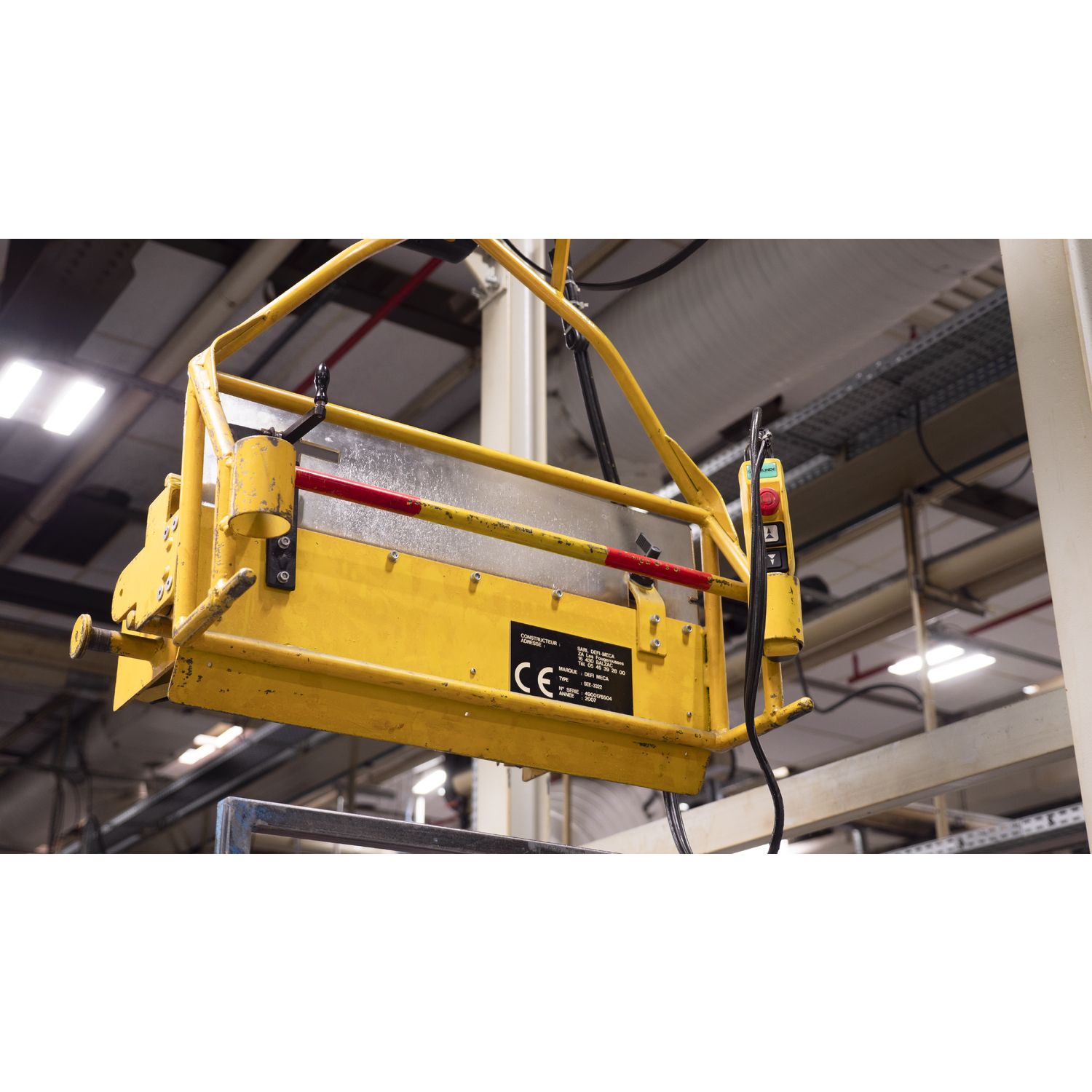

Image of product in real life situation
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches It protects operators from unexpected contact with live circuits It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections

Products specifications

Attribute name Attribute value
Main
Product compatibility XACM, XACB
Electrical circuit type control circuit
Type of operator 2 spring return
Mechanical interlocking with mechanical interlocking
Contact operation snap action
Component name XESD
Contact block application single speed
Product or component type contact block
Contact block type double
Range of product Harmony XAC
Mounting of block front mounting
Complementary
Rated operational power in W 95 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 140 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
Contact code designation Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
Operating force 25 N, 15 N
Mechanical durability 1000000 cycles
Rated operational power in VA 750 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load), 50 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load), 450 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load), 100 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load)
[Ui] rated insulation voltage 500 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Short-circuit protection 10 A fuse protection by cartridge fuse type gG
[Ithe] conventional enclosed thermal current 10 A
Maximum resistance across terminals 25 MOhm
Terminals description ISO n°1 (13-14-11-12)OF, B
Terminals description ISO n°2 (23-24-21-22)OF, B
Terminal identifier (11-12)NC, (13-14)NO
Environment
Electrical shock protection class class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No 14
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.1 cm
Package 1 Width 7.2 cm
Package 1 Length 8.9 cm
Package 1 Weight 156.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.99 kg
