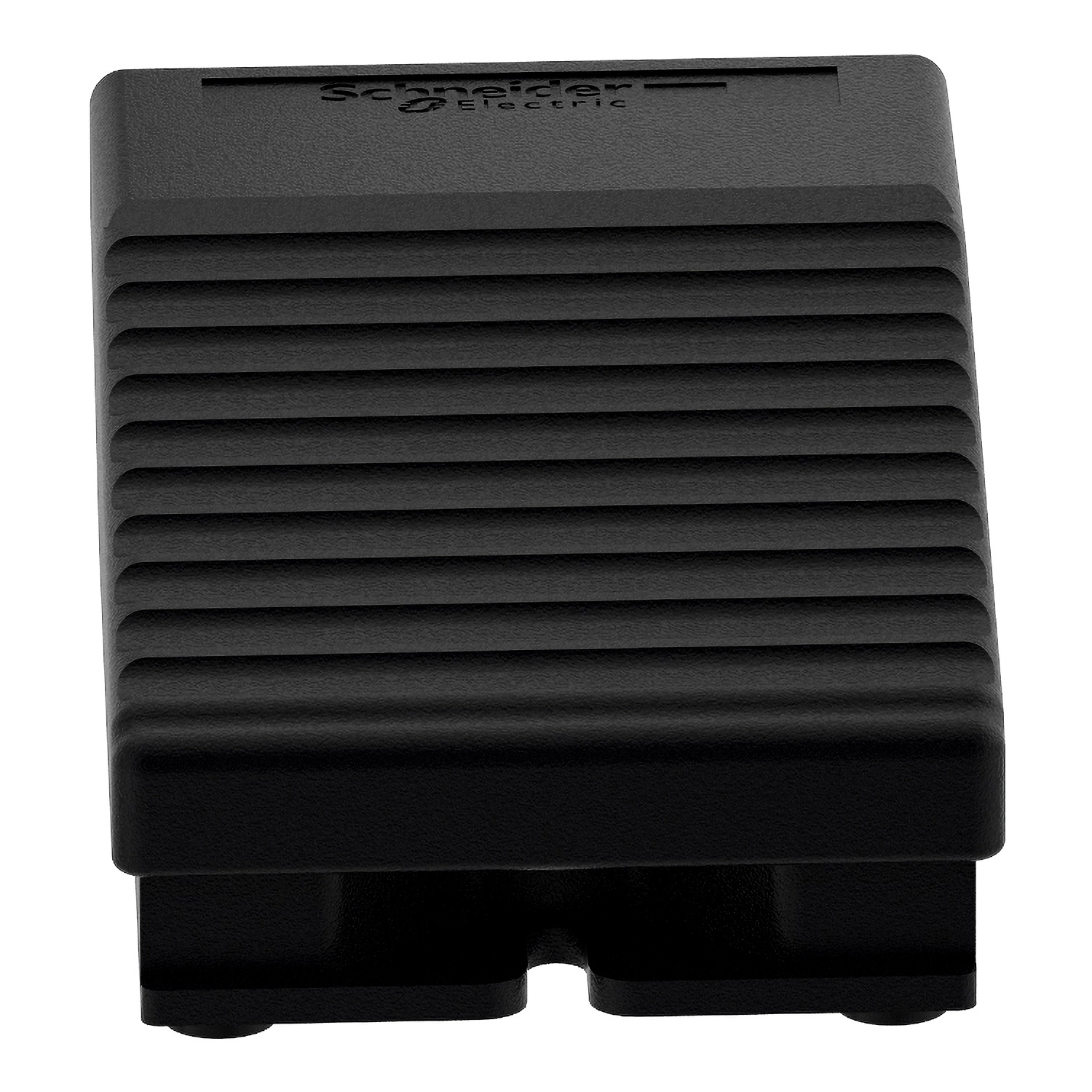

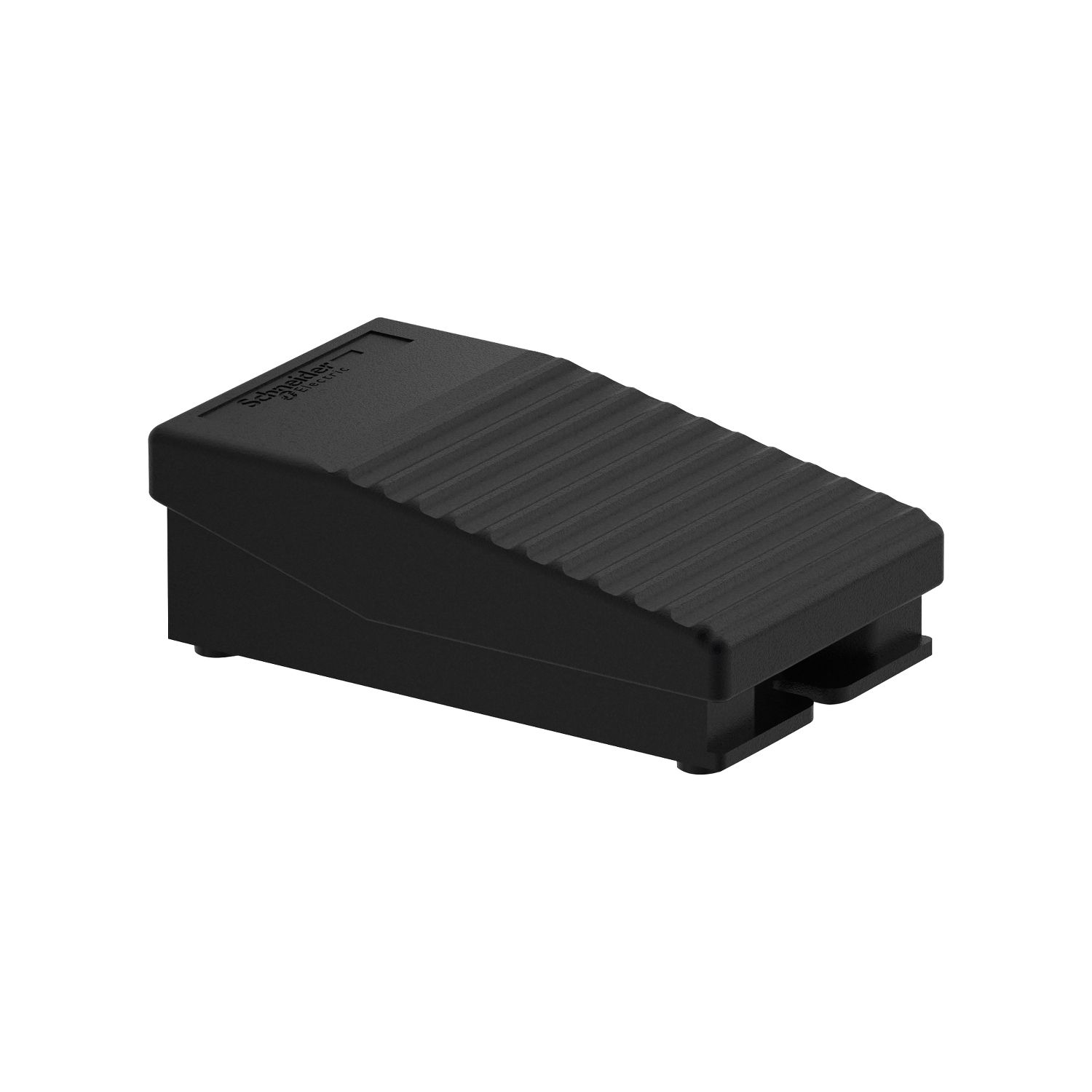

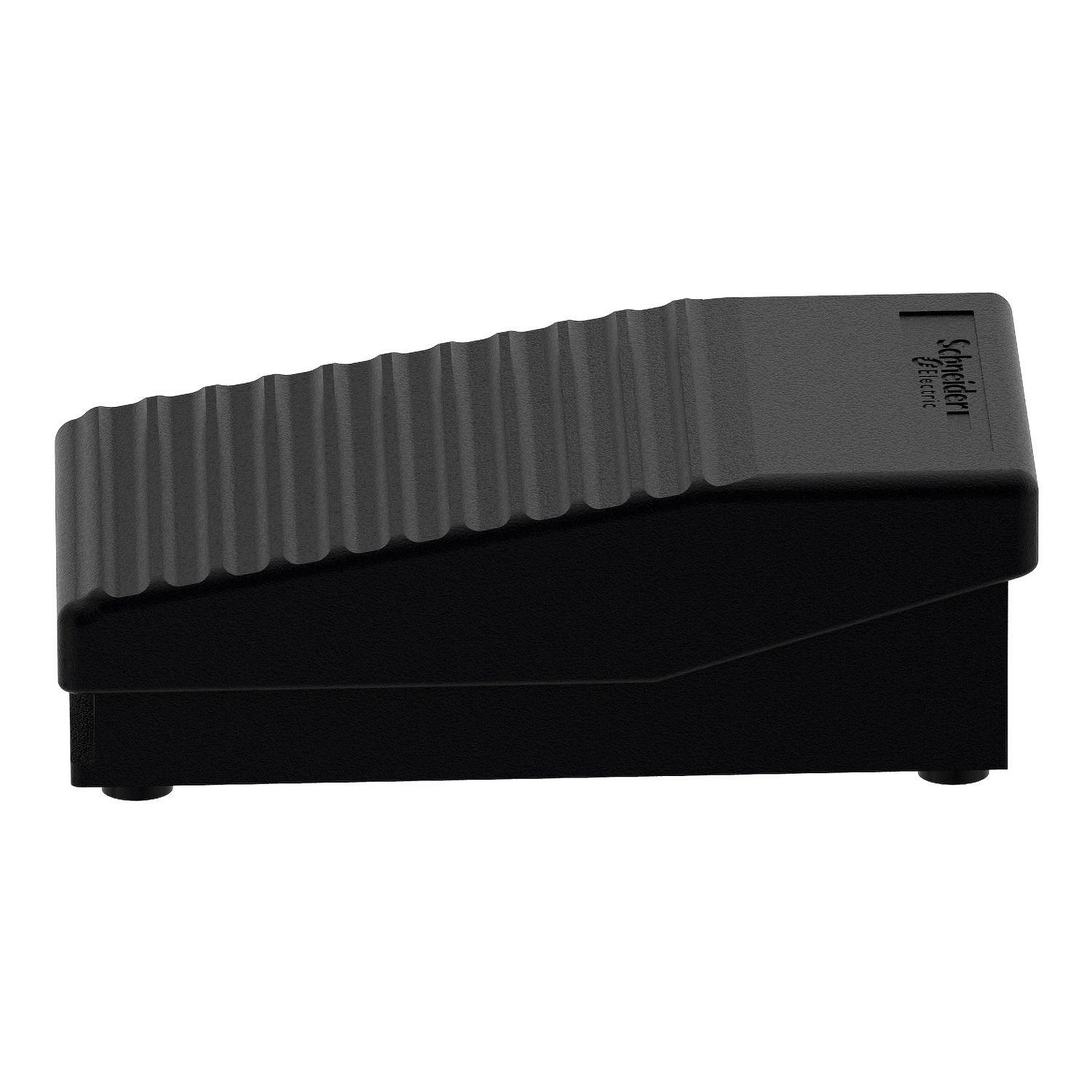

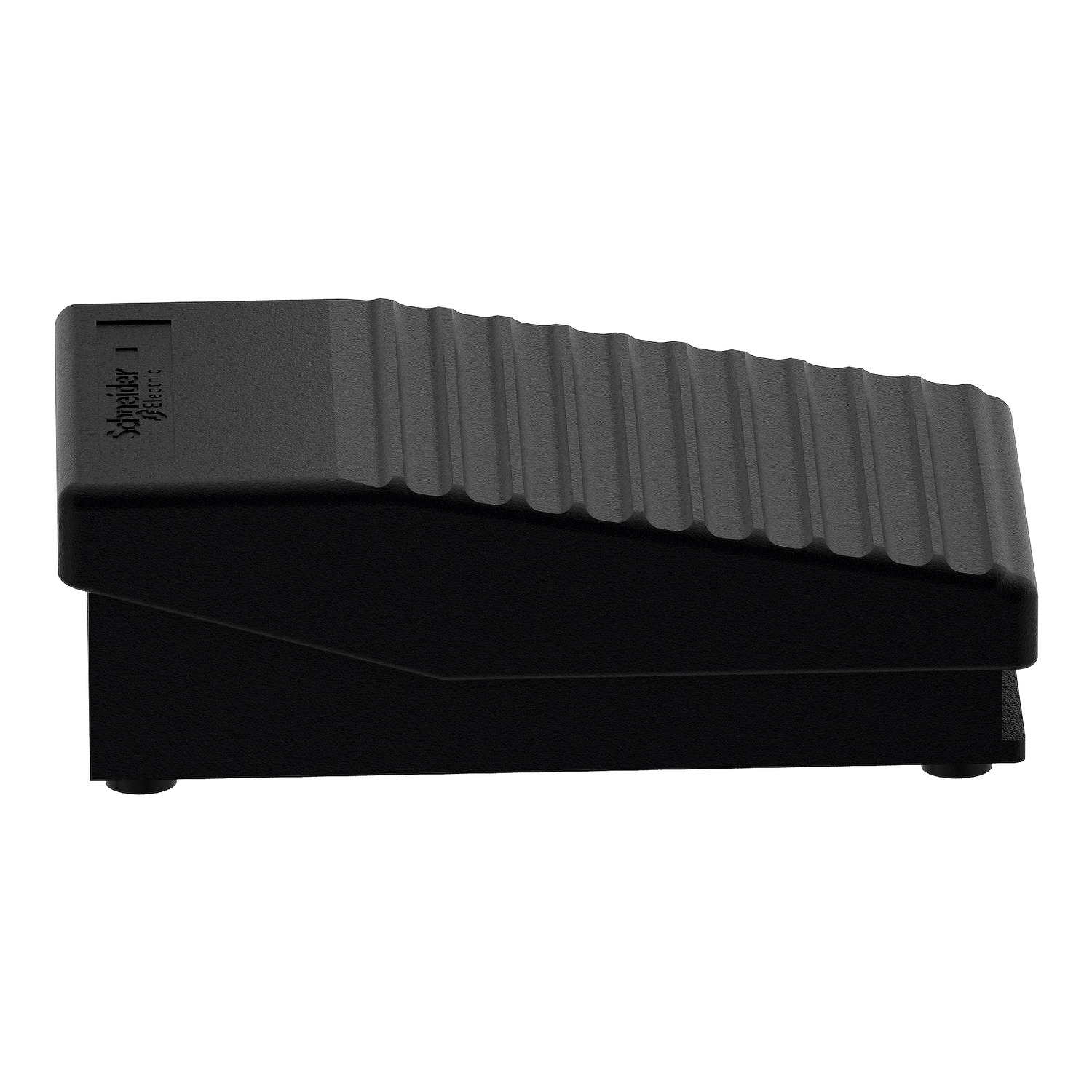

Picture of Single foot switch, Harmony XPE, plastic, black, without cover, 1 step, 1 contact 1NC+NO, IP43
SKU:

XPEA110

Single foot switch, Harmony XPE, plastic, black, without cover, 1 step, 1 contact 1NC+NO, IP43

$220.94
Available for Shipping : 24-Nov-2024
Single foot switch, Harmony XPE, plastic, black, without cover, 1 step, 1 contact 1NC+NO, IP43
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This Harmony XPE consists of a single step black plastic safety footswitch. It has 1 x NC + 1 x NO contacts. It preserves the ergonomy of your machines, while ensuring their compliance with the latest safety standards. It provides long life in harsh conditions thanks to its resistance to hydraulic oil and various greases.

Products specifications

Attribute name Attribute value
Main
Device short name XPEA
Foot switch type single foot switch
Contact operation 1 step
Colour black
Range of product Harmony XPE
Contacts type and composition 1 NC + 1 NO
Trigger mechanism without trigger mechanism
Material plastic
Product or component type foot switch
Complementary
Compatibility code XPEA
Mechanical durability 2000000 cycles
[Ie] rated operational current 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A, 3 A, 240 V, AC-15, A300
Maximum resistance across terminals 25 MOhm conforming to NF C 93-050 method A, 25 MOhm conforming to IEC 60255-7 category 3
Rated operational power in W 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

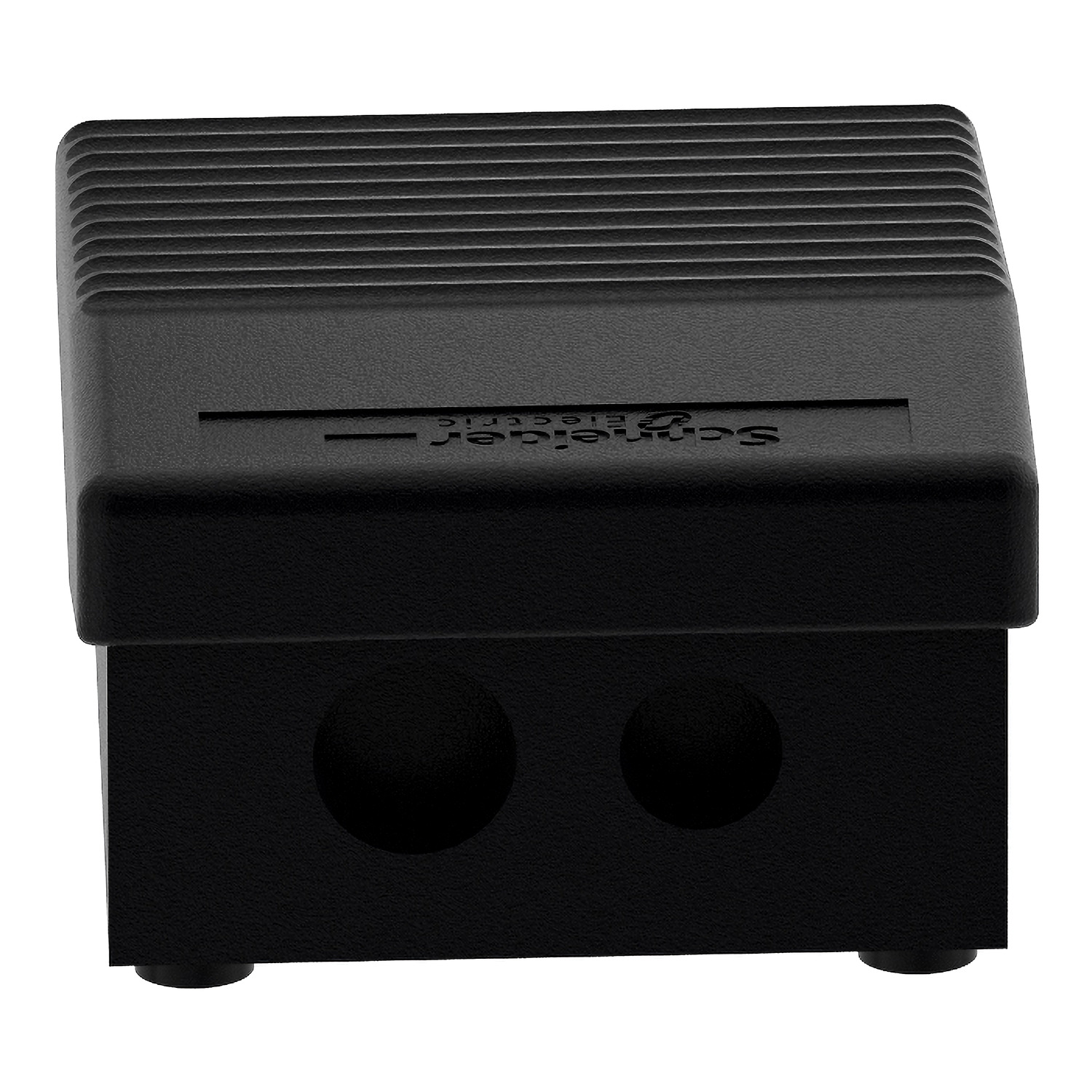

Cable entry 1 plain hole for M16 cable gland, 1 plain hole for M20 cable gland
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to VDE 0110 group C, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminal, <= 2 x 1.5 mm² with or without cable end, screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.275 kg
Positive opening with conforming to IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to VDE 0660-200, 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP43 conforming to IEC 60529
Shock resistance 25 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-55 °C
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 61140
Vibration resistance 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards IEC 60947-5-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.5 cm
Package 1 Width 9.4 cm
Package 1 Length 18.9 cm
Package 1 Weight 334.0 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.69 kg
Unit Type of Package 3 3
Number of Units in Package 3 64
Package 3 Height 77.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 35.54 kg
