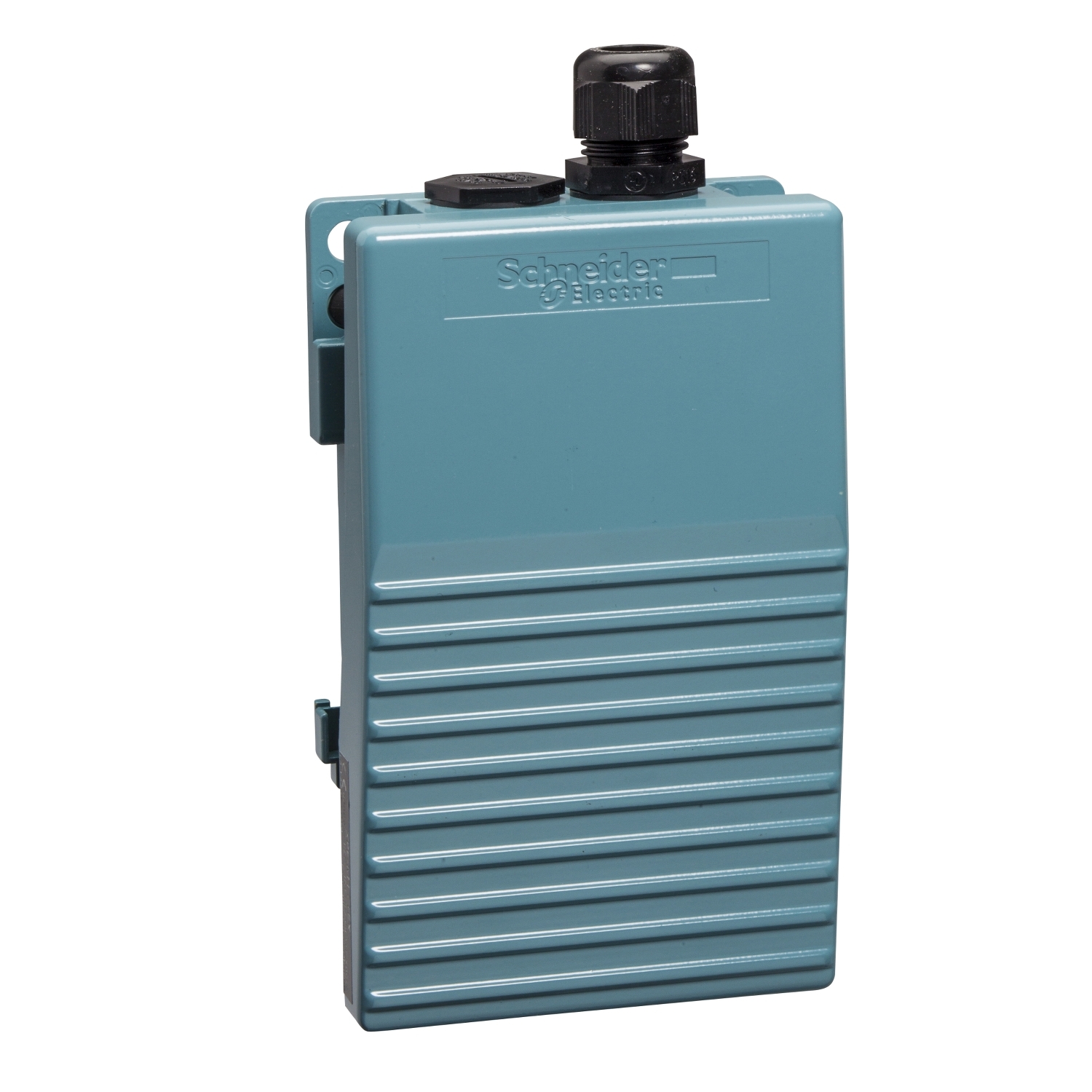

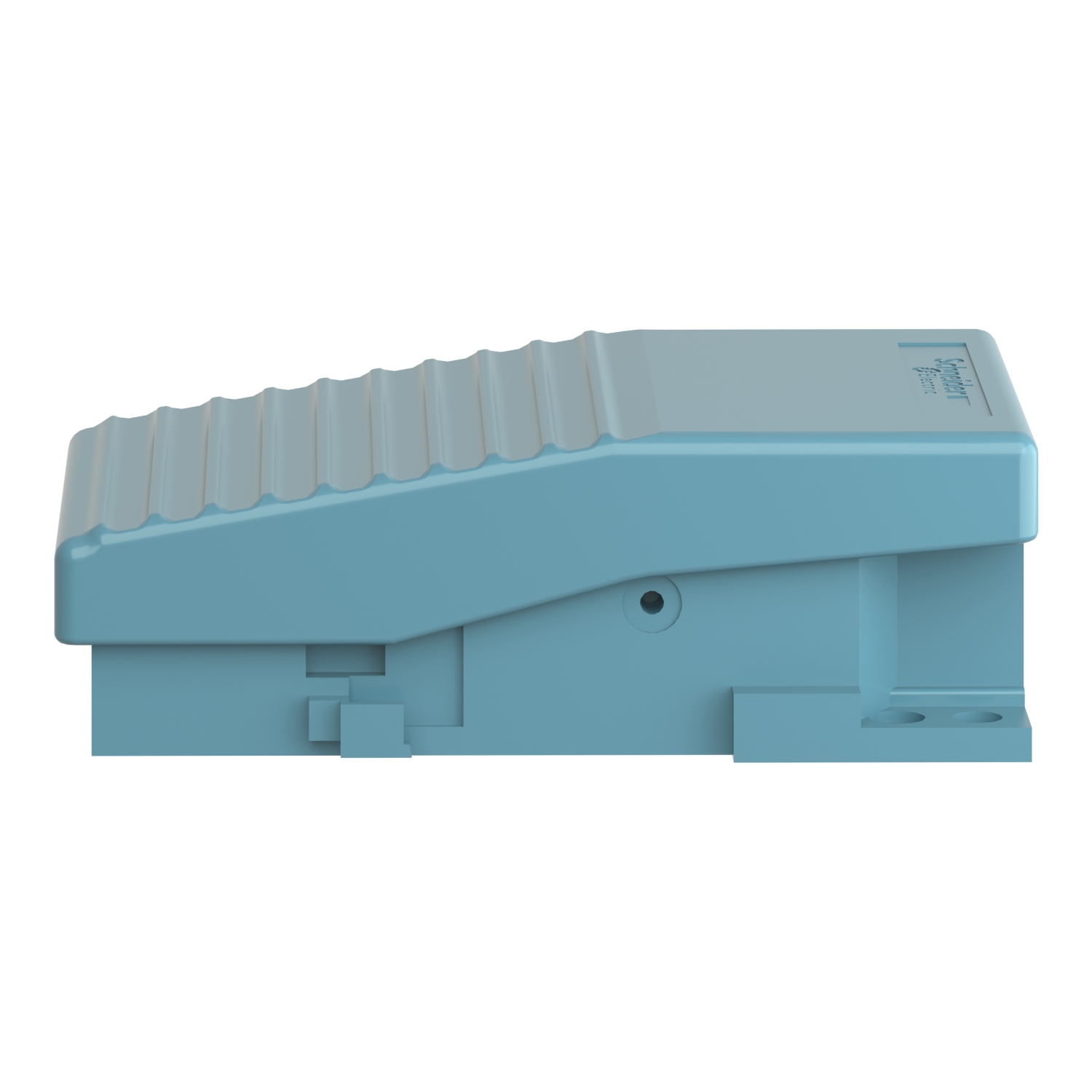

Picture of Single foot switch, Harmony XPE, metal, blue, without cover, 2 steps, 2 contacts 1NC+NO, IP66
SKU:

XPEM211

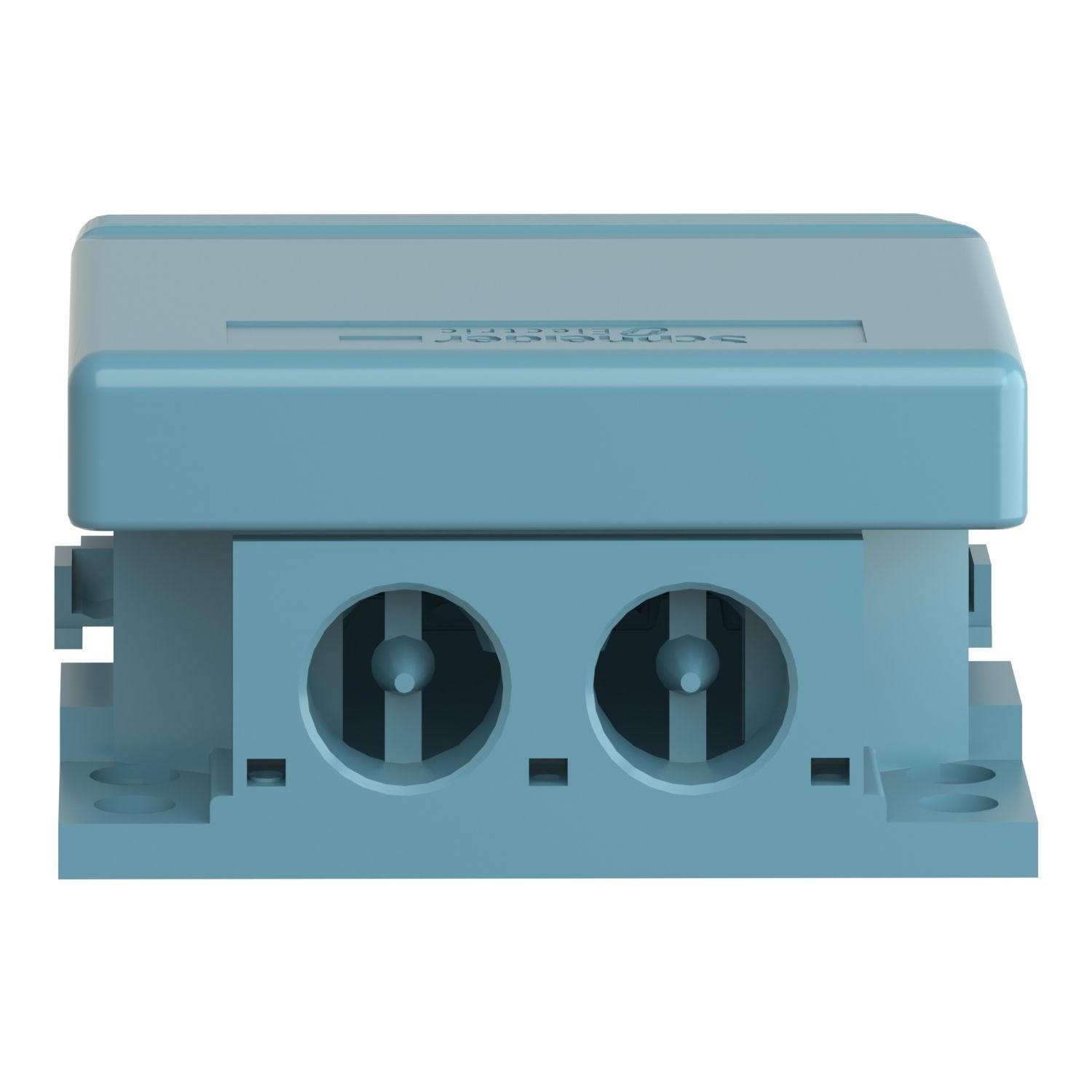

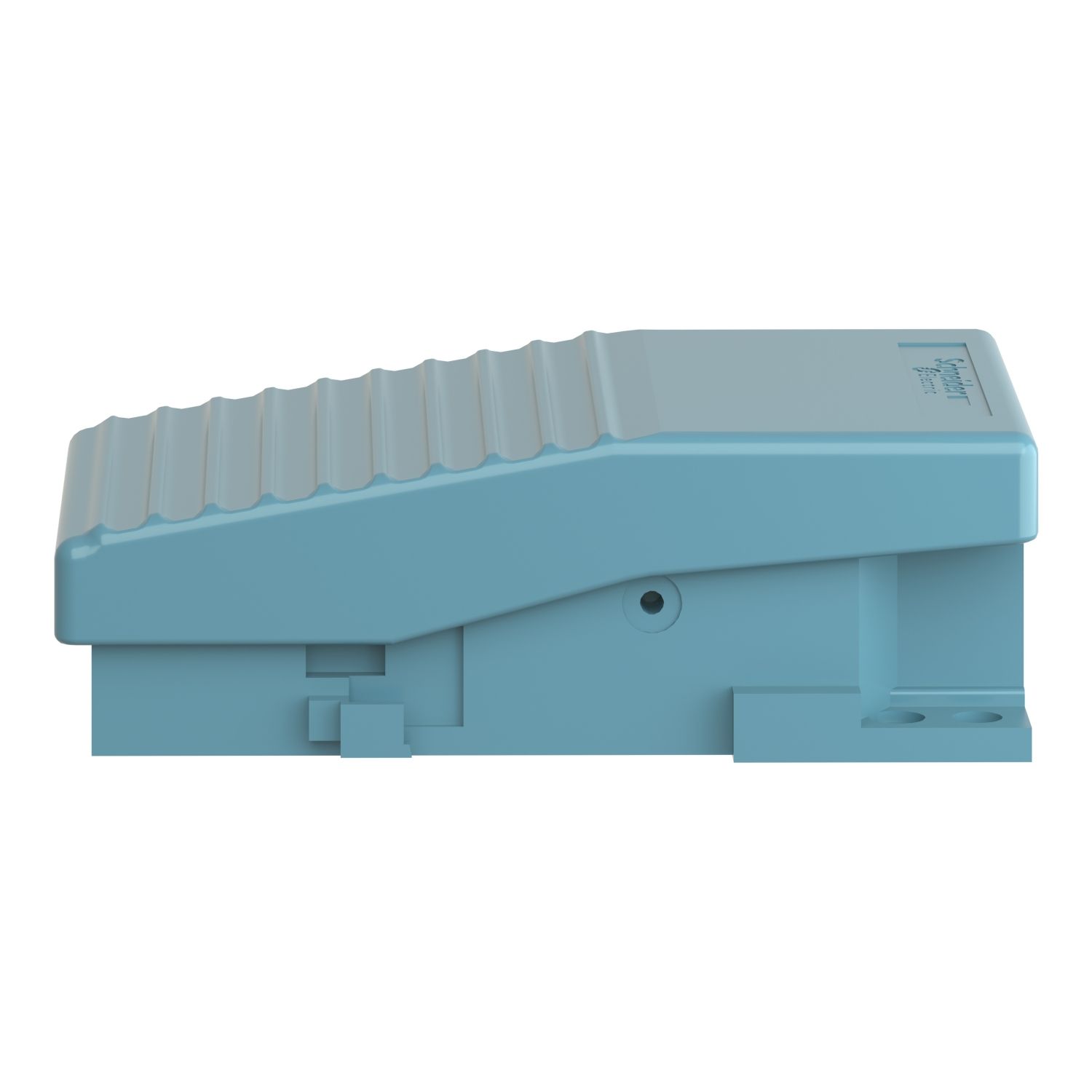

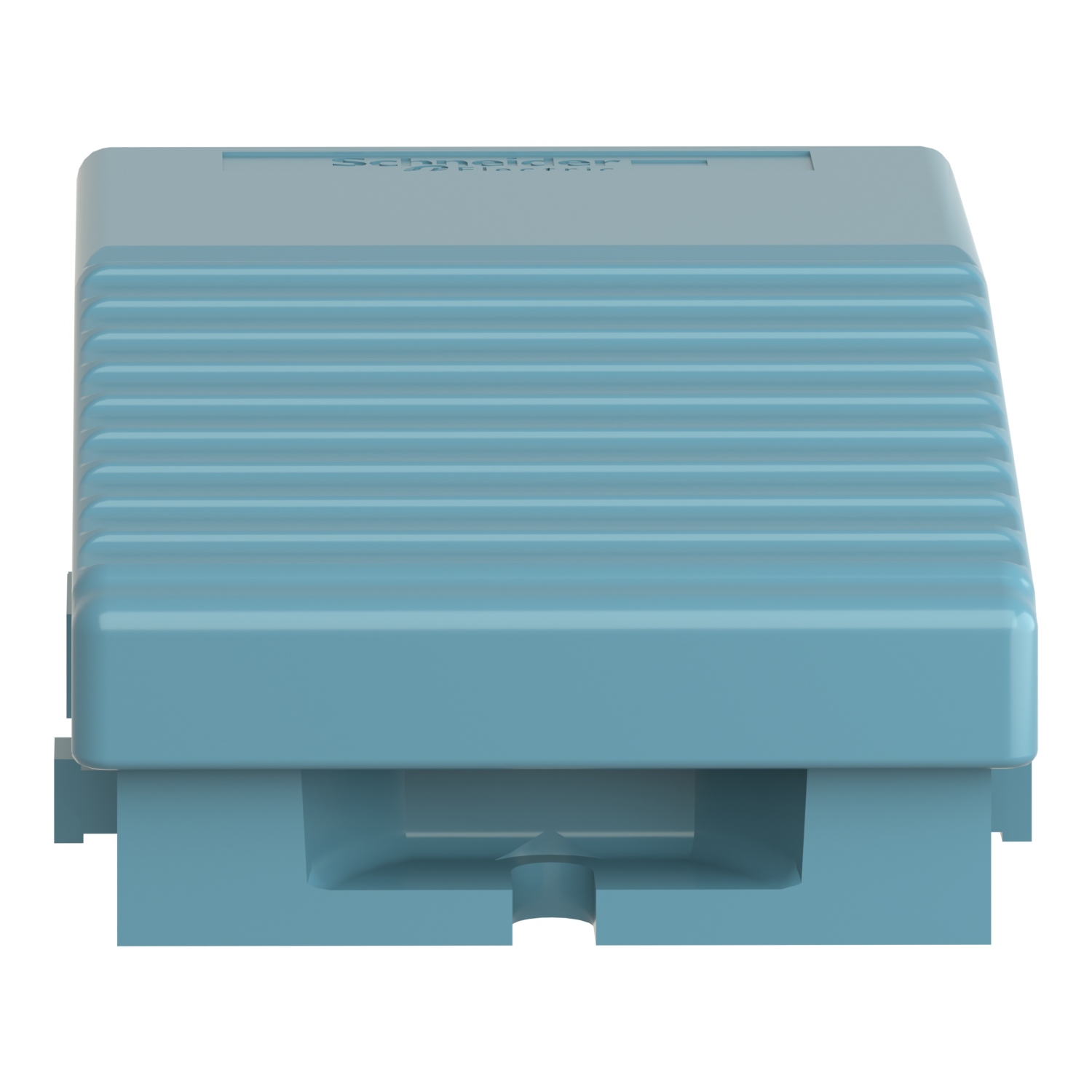

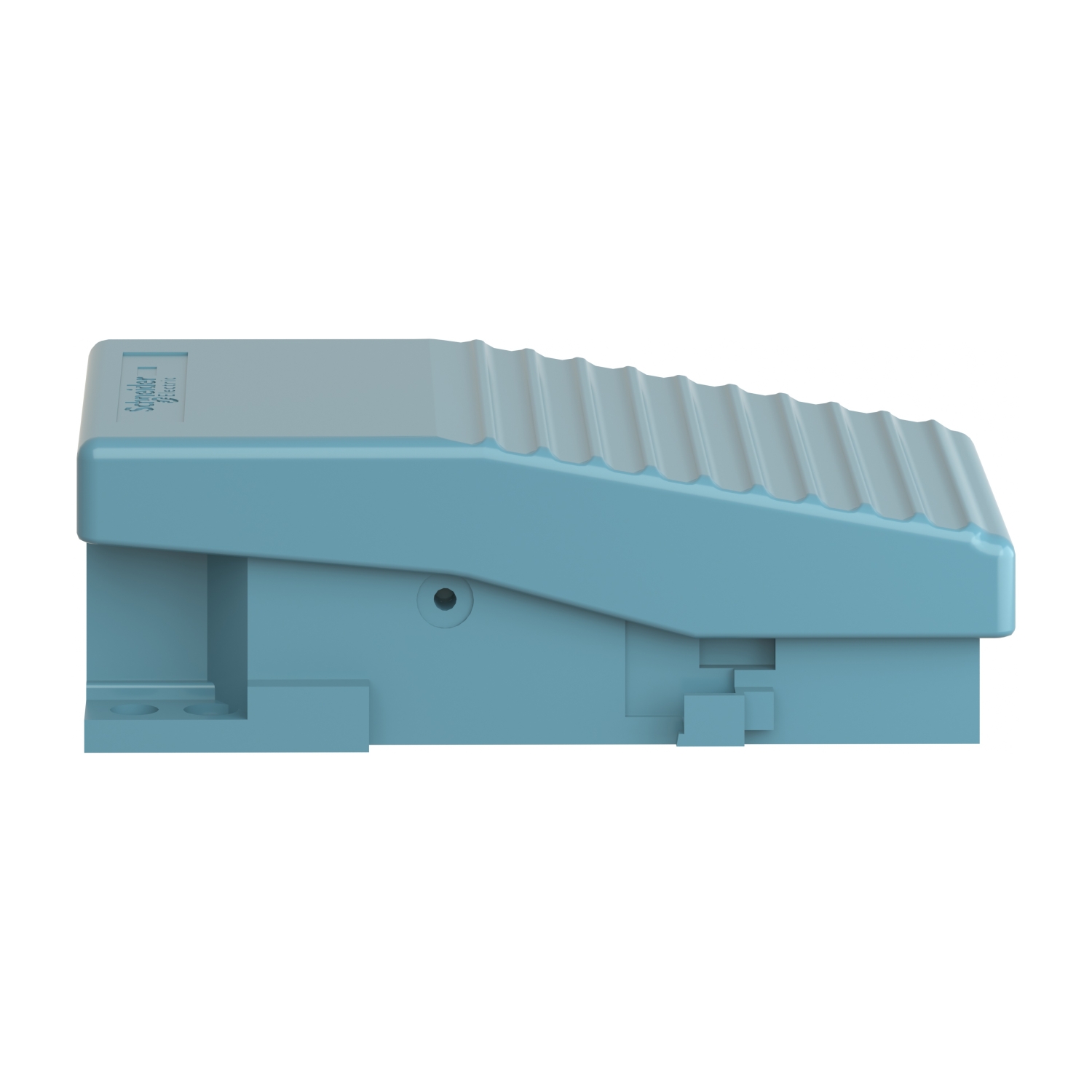

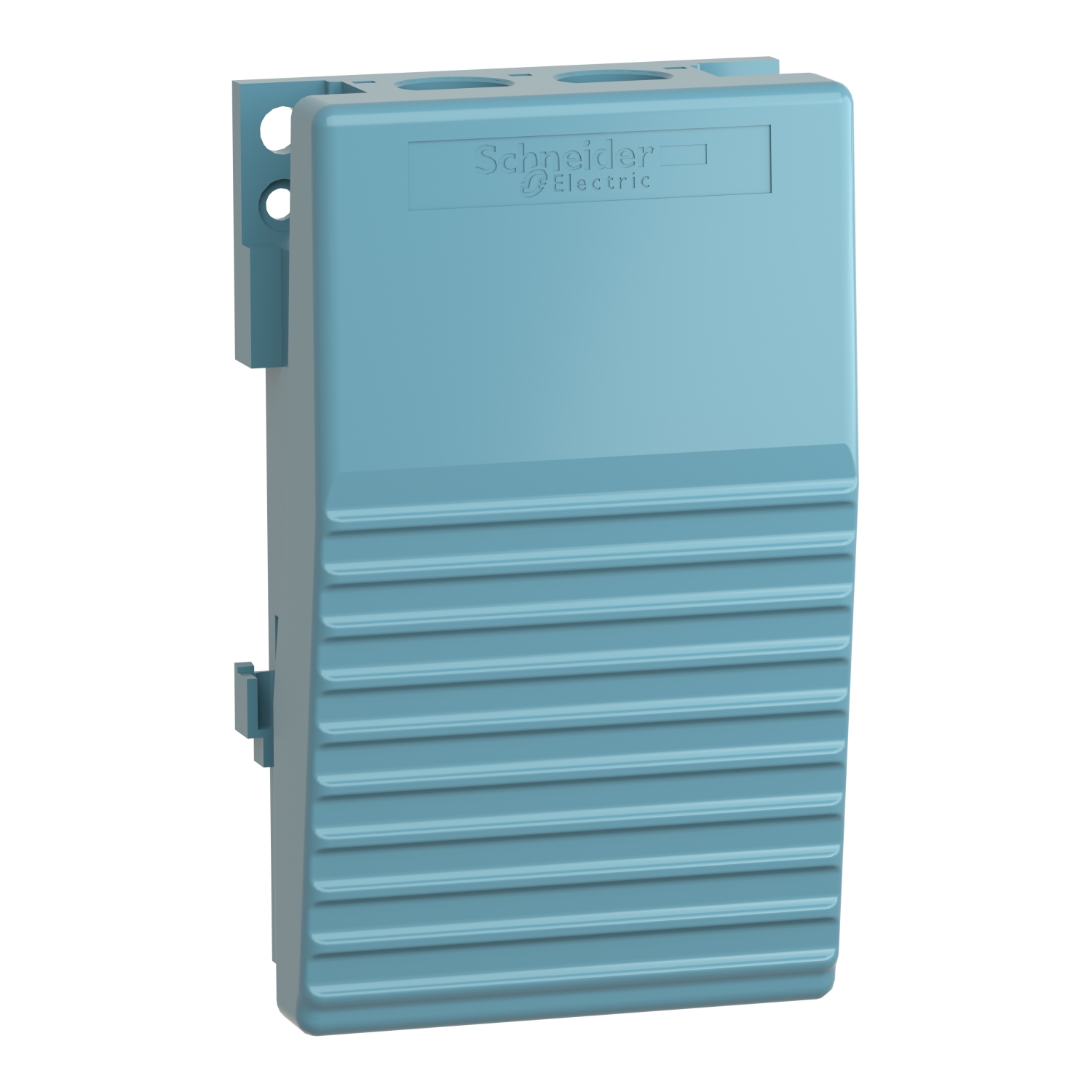

Single foot switch, Harmony XPE, metal, blue, without cover, 2 steps, 2 contacts 1NC+NO, IP66

$662.83
Single foot switch, Harmony XPE, metal, blue, without cover, 2 steps, 2 contacts 1NC+NO, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

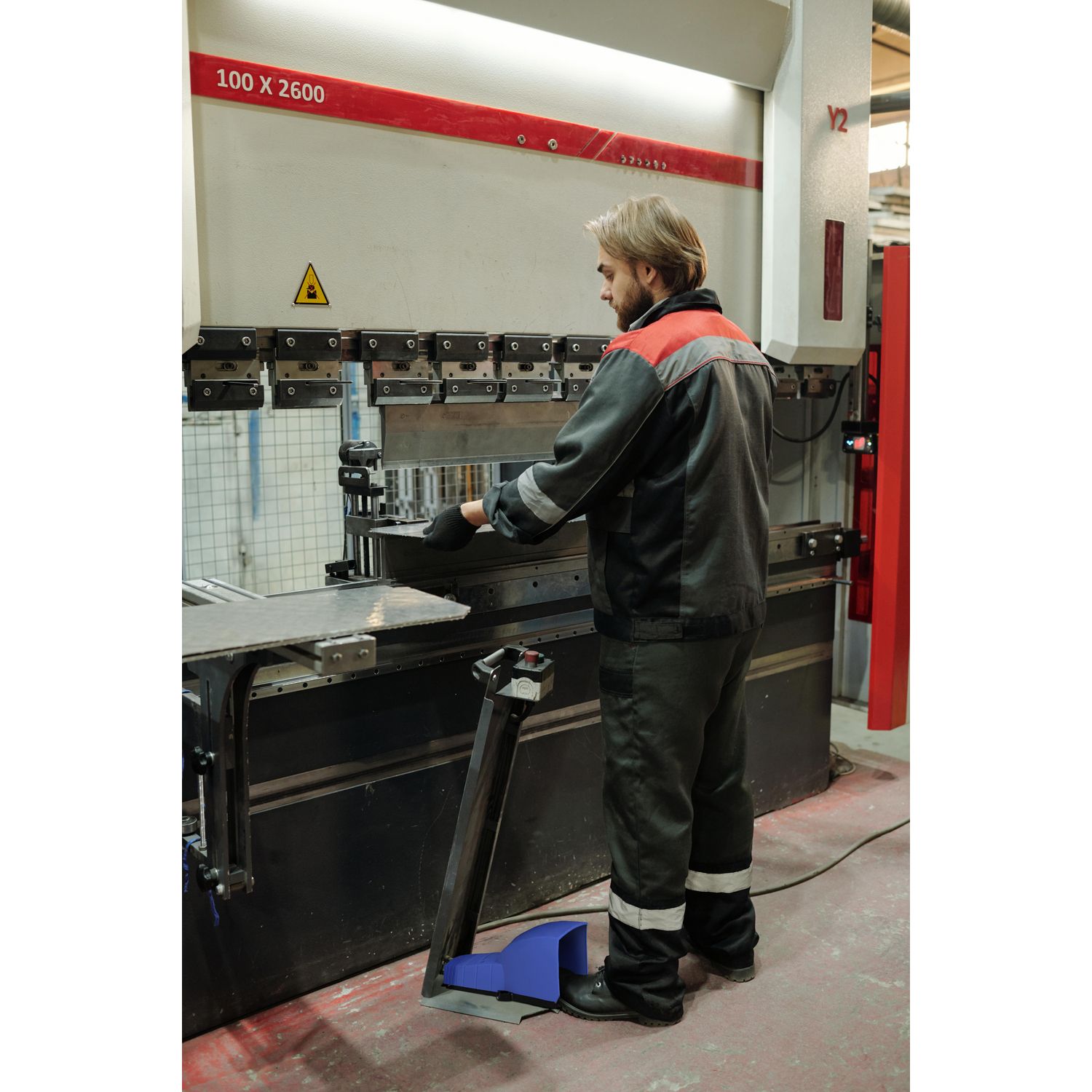

This XPE blue, metal, single foot switch is an ideal solution for providing start and stop instructions for many types of industrial machines, running in various operating modes like normal (pulsed) start, inching, hold to run. It is designed such that the operating pedal is close to the ground and at a comfortable angle. It is delivered without a protective cover, this makes it suitable for applications where the issuing of the start instruction presents a reduced level of danger. It incorporates snap action contacts with positive opening operation. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. Its 2 step contact operation makes it ideal for applications involving 2-speed machines.

Products specifications

Attribute nameAttribute value
Main
Device short nameXPEM
Foot switch typesingle foot switch
Contact operation2 steps
Colourblue
Range of productHarmony XPE
Contacts type and composition2 NC + NO
Trigger mechanismwithout trigger mechanism
Materialmetal
Product or component typefoot switch
Complementary
Compatibility codeXPEM
Mechanical durability15000000 cycles
[Ie] rated operational current0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A, 3 A, 240 V, AC-15, A300
Maximum resistance across terminals25 MOhm conforming to NF C 93-050 method A, 25 MOhm conforming to IEC 60255-7 category 3
Rated operational power in W7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Cable entry2 entries tapped for Pg 16 cable gland
[Ui] rated insulation voltage300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to VDE 0110 group C, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to EN/IEC 60947-1
Connections - terminalsscrew clamp terminal, <= 2 x 1.5 mm² with or without cable end, screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-1
Net weight1.2 kg
Positive openingwith conforming to EN/IEC 60947-5-1 appendix K
Short-circuit protection10 A cartridge fuse type gG conforming to VDE 0660-200, 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Environment
Protective treatmentTC
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP66 conforming to IEC 60529
Shock resistance20 gn conforming to IEC 60068-2-27, 150 gn conforming to NF E 09-031
Ambient air temperature for operation-25-70 °C
Overvoltage categoryclass I conforming to NF C 20-030, class I conforming to EN/IEC 61140
Vibration resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
StandardsEN/IEC 60947-5-1, VDE 0660-200
Product certificationsCSA, FIMKO
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.8 cm
Package 1 Width12.0 cm
Package 1 Length18.5 cm
Package 1 Weight1.36 kg
Unit Type of Package 22
Number of Units in Package 24
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.801 kg

Related products

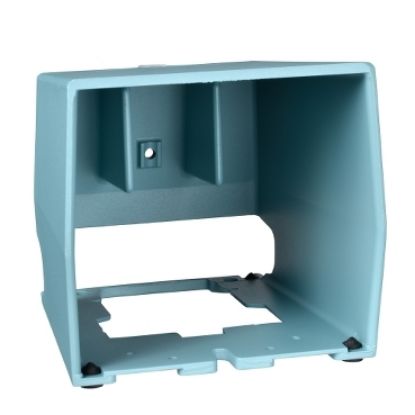

Protective cover, Harmony XPE, single cover, for foot switch, metal, blue

XPEZ901
$313.60
