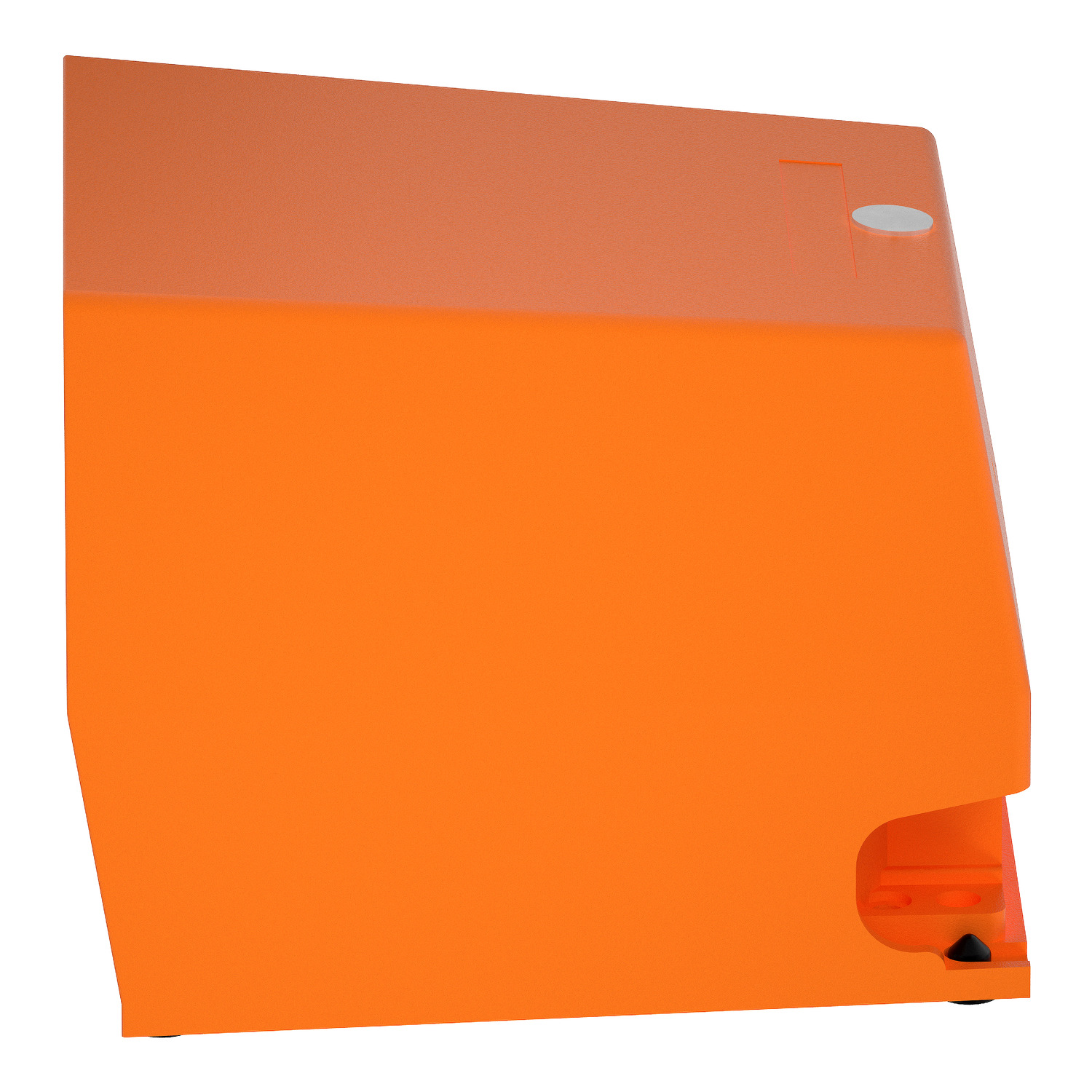

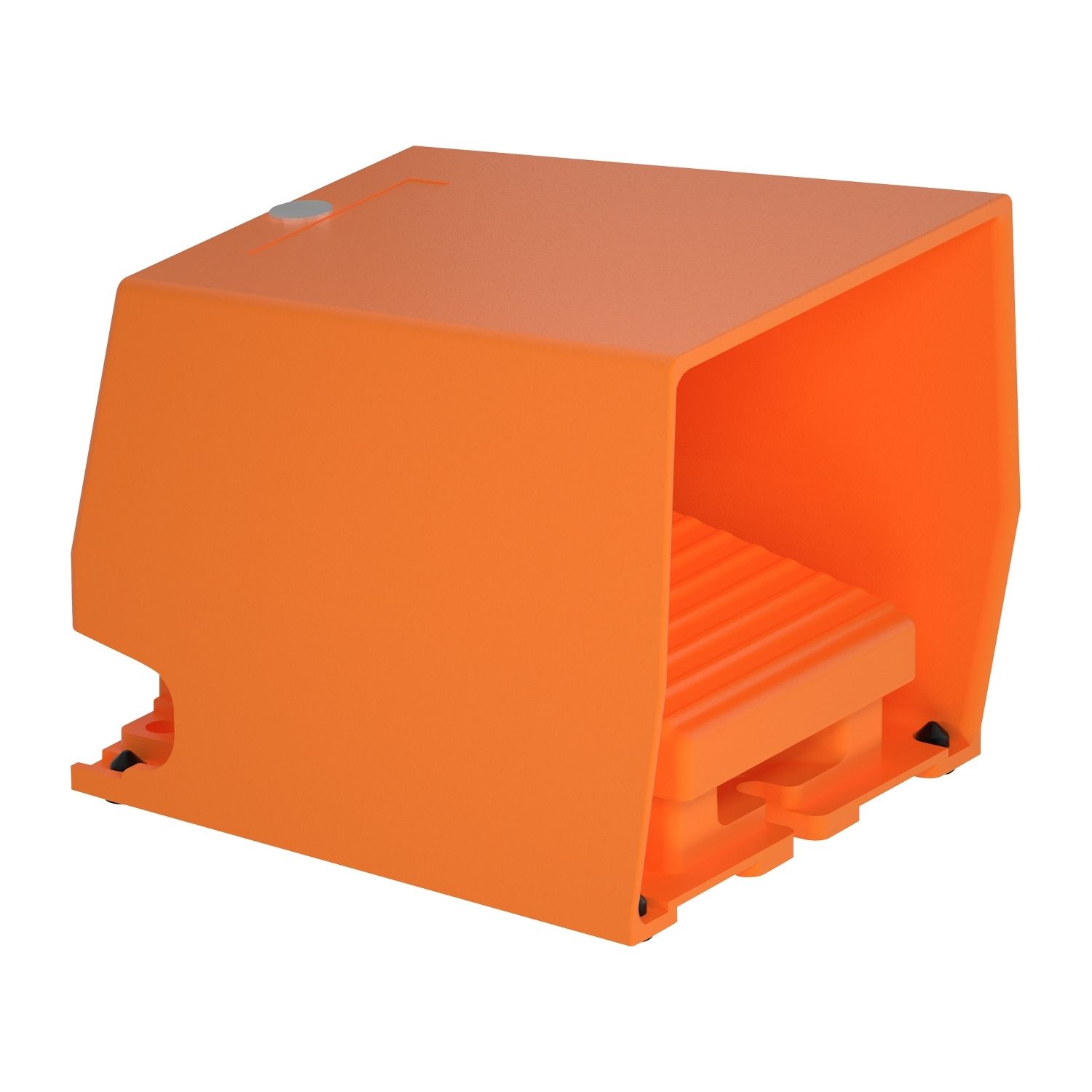

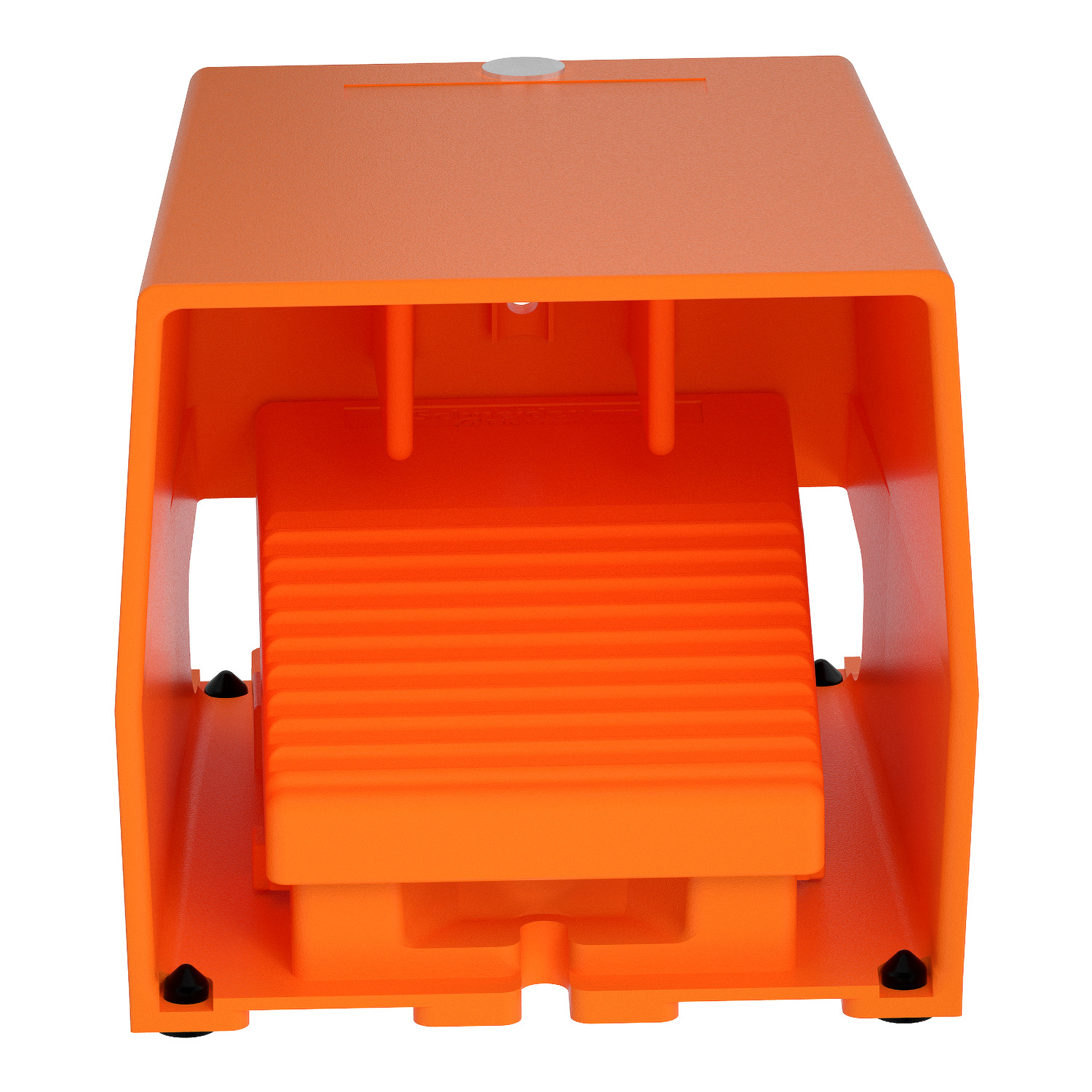

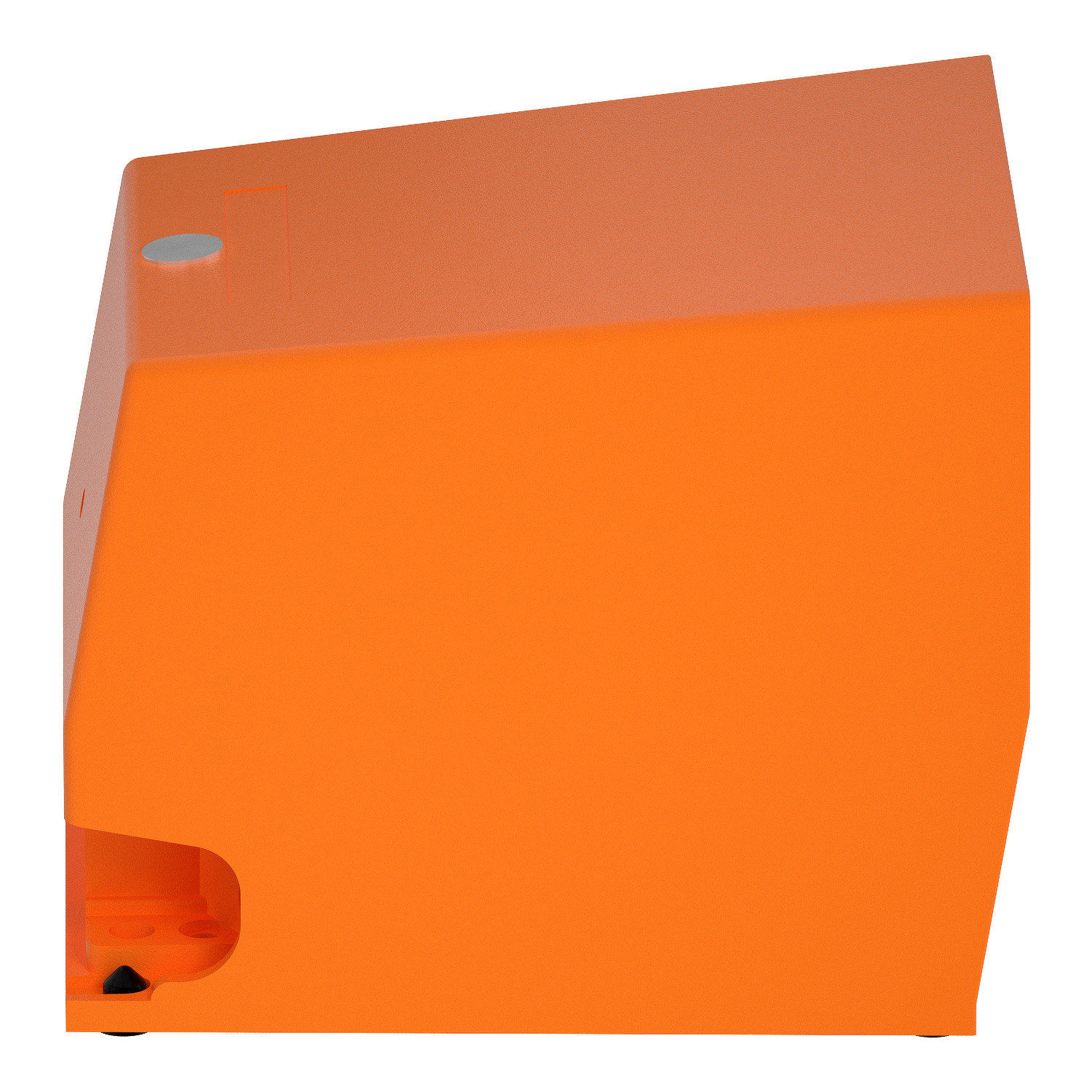

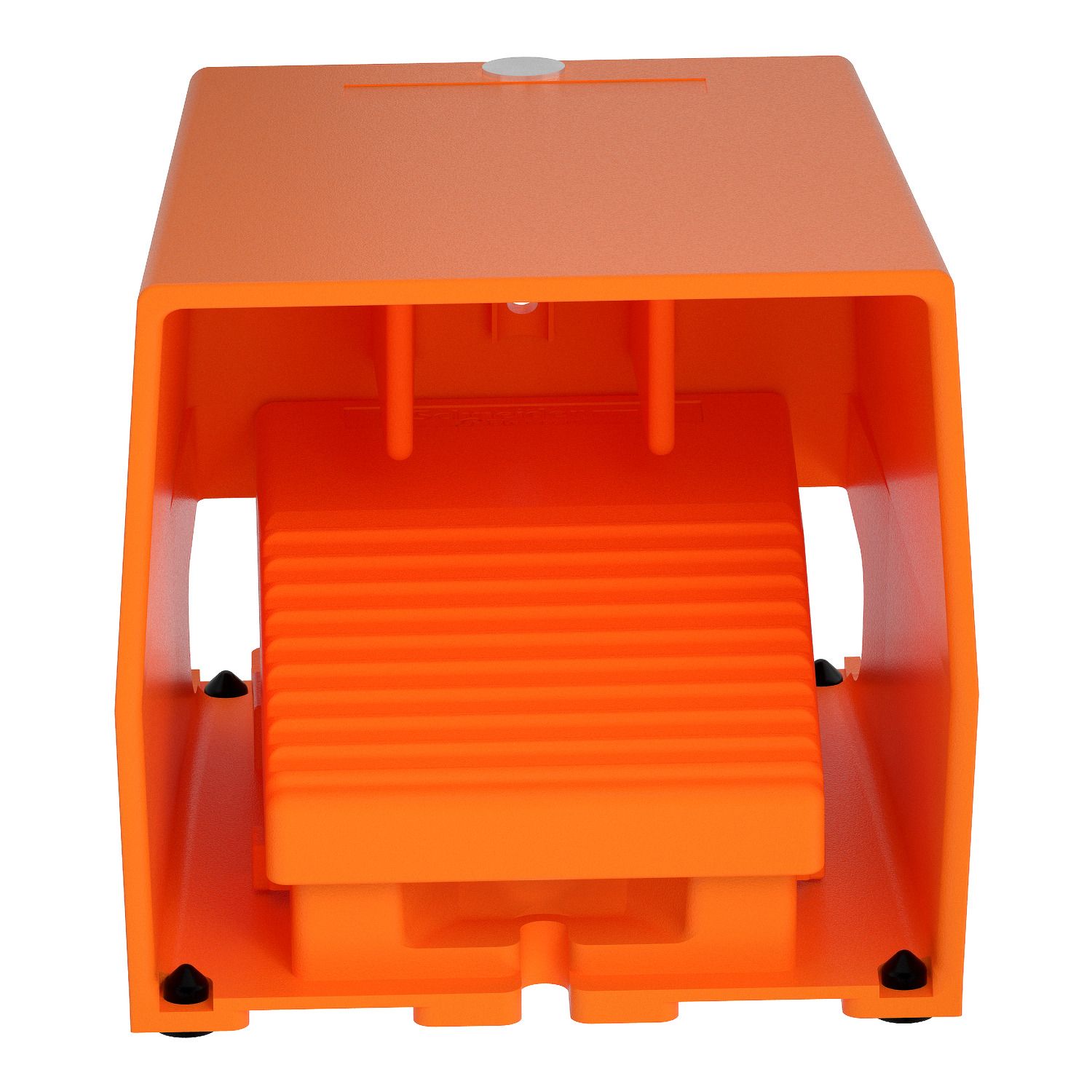

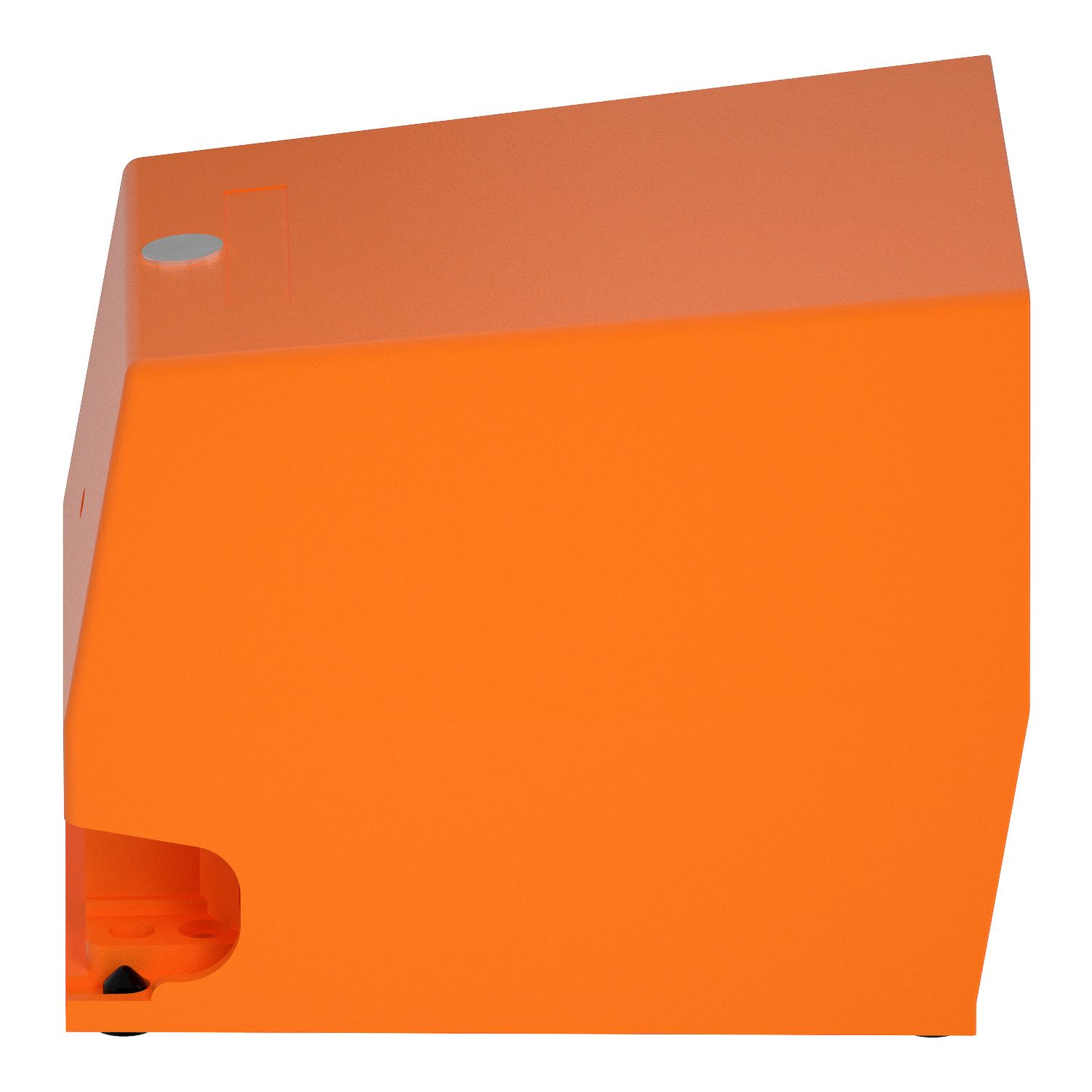

Picture of Single foot switch, Harmony XPE, metal, orange, with cover, 1 step, 1 contact 1NC+NO, IP66
SKU:

XPER310

Single foot switch, Harmony XPE, metal, orange, with cover, 1 step, 1 contact 1NC+NO, IP66

$555.92
Available for Shipping : 10-Dec-2024
Single foot switch, Harmony XPE, metal, orange, with cover, 1 step, 1 contact 1NC+NO, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

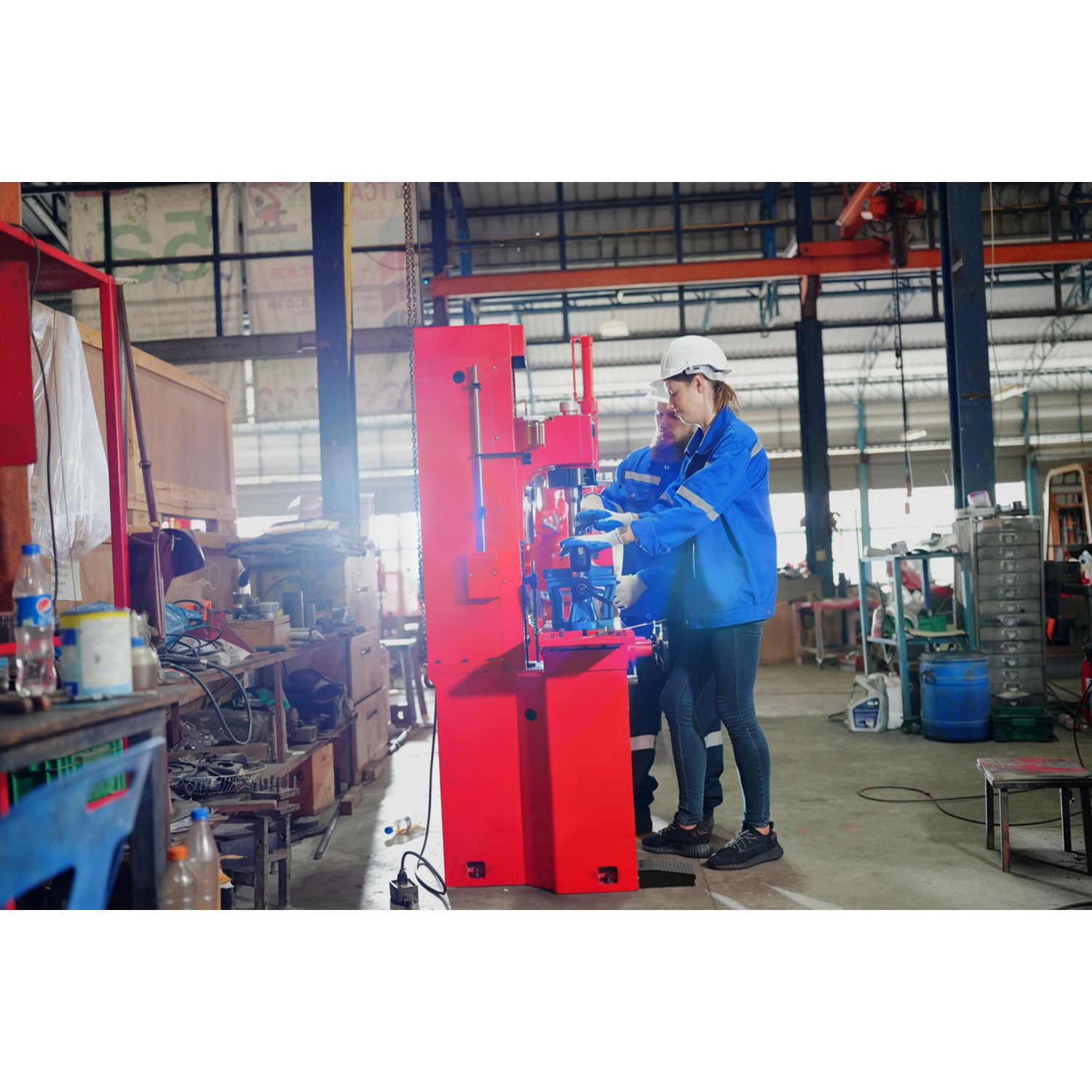

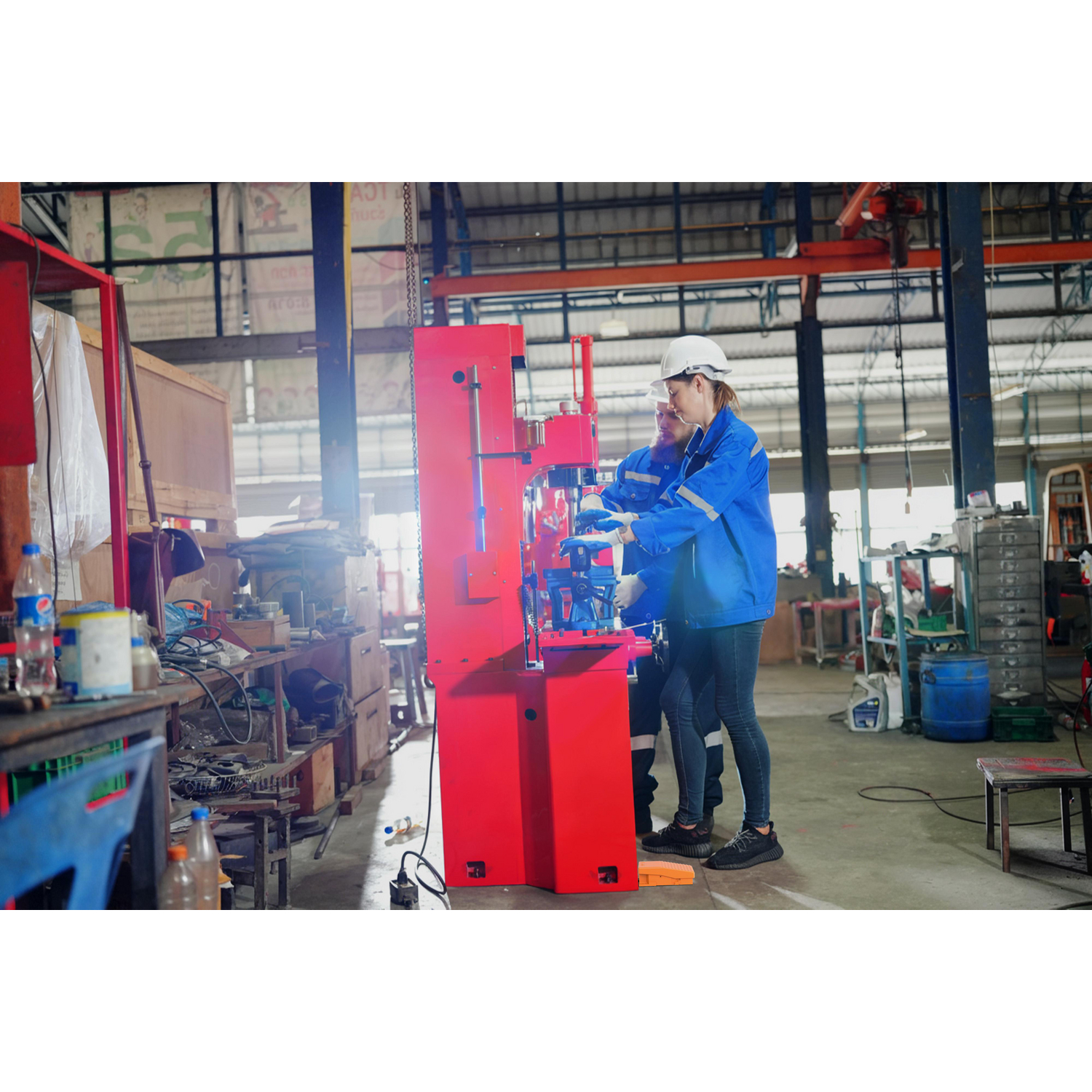

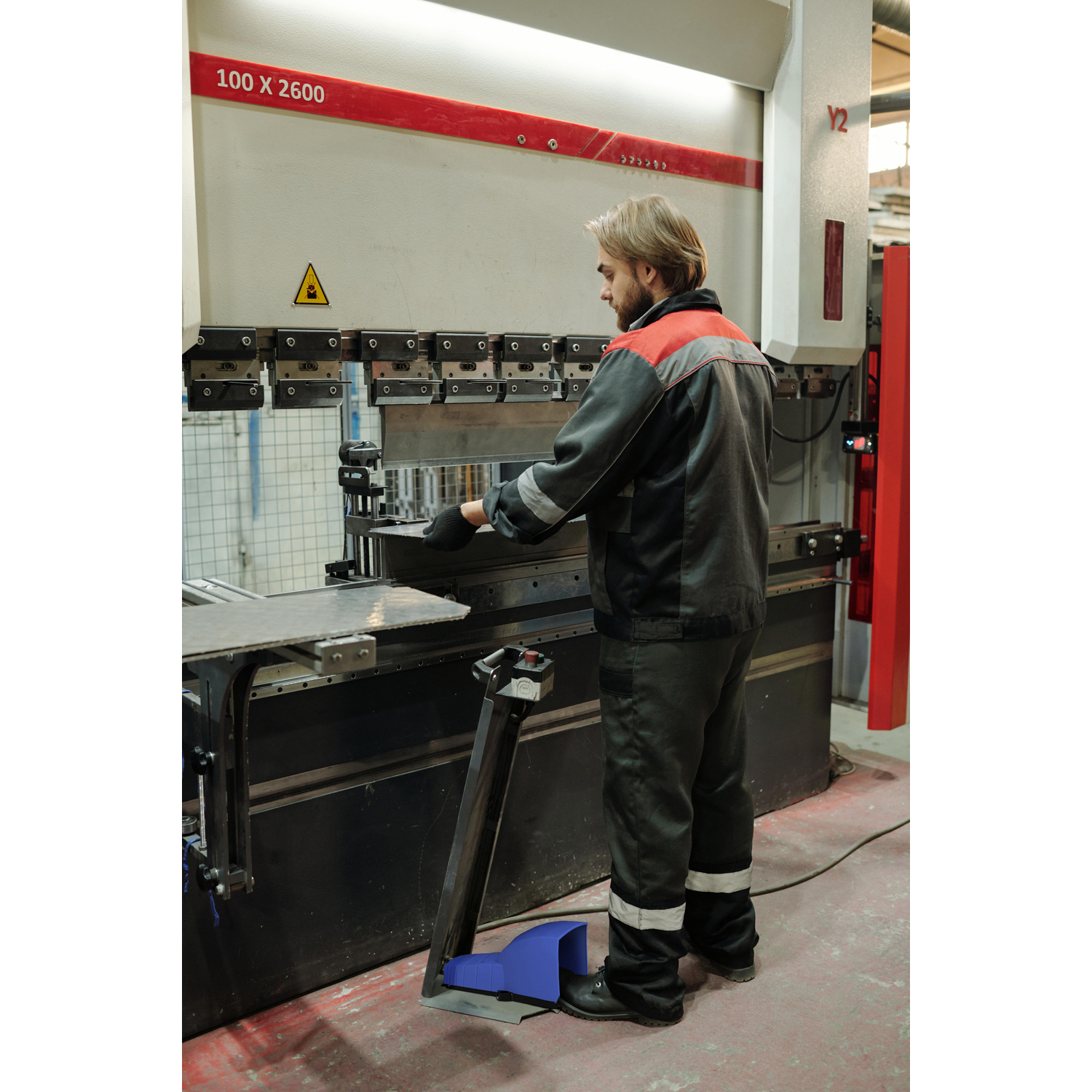

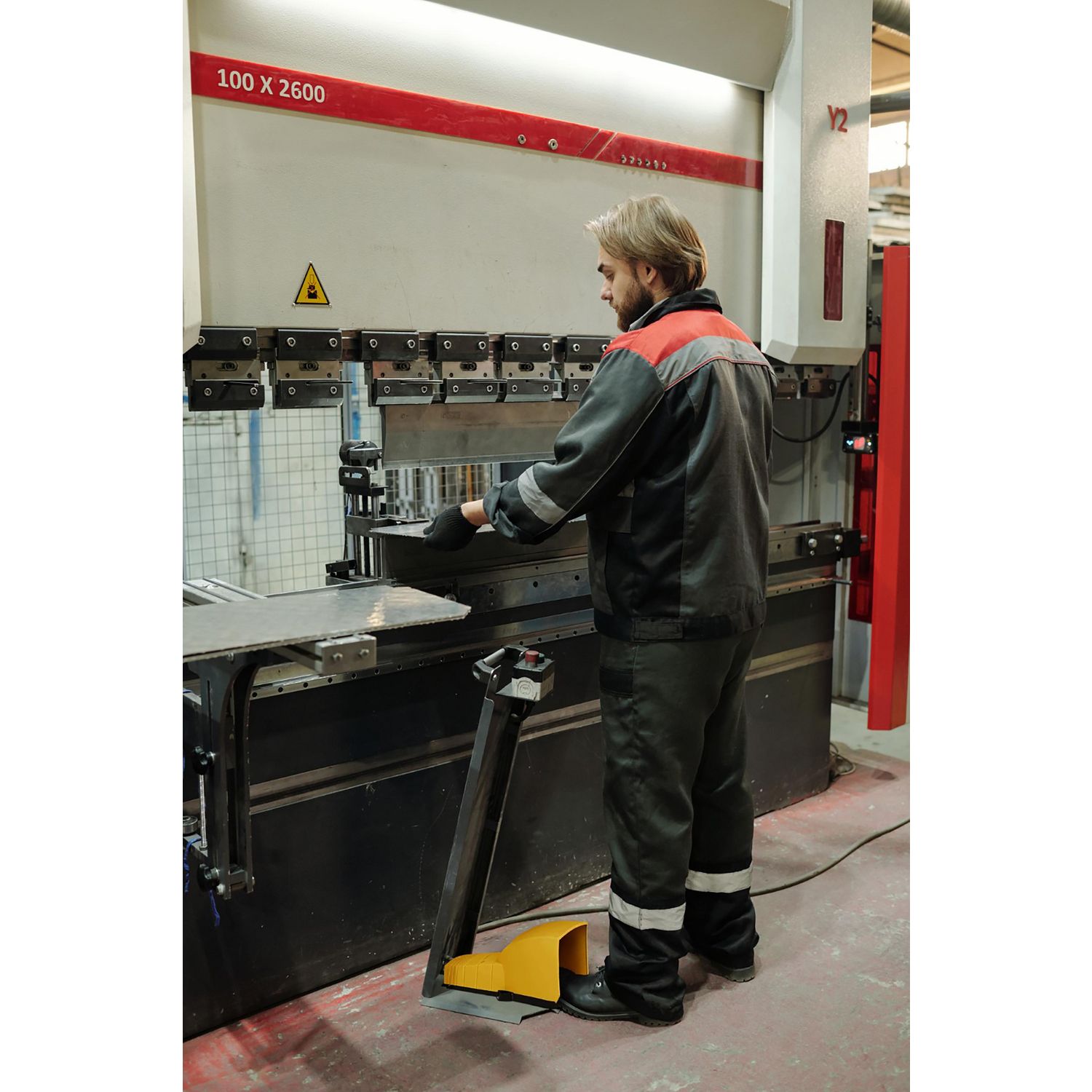

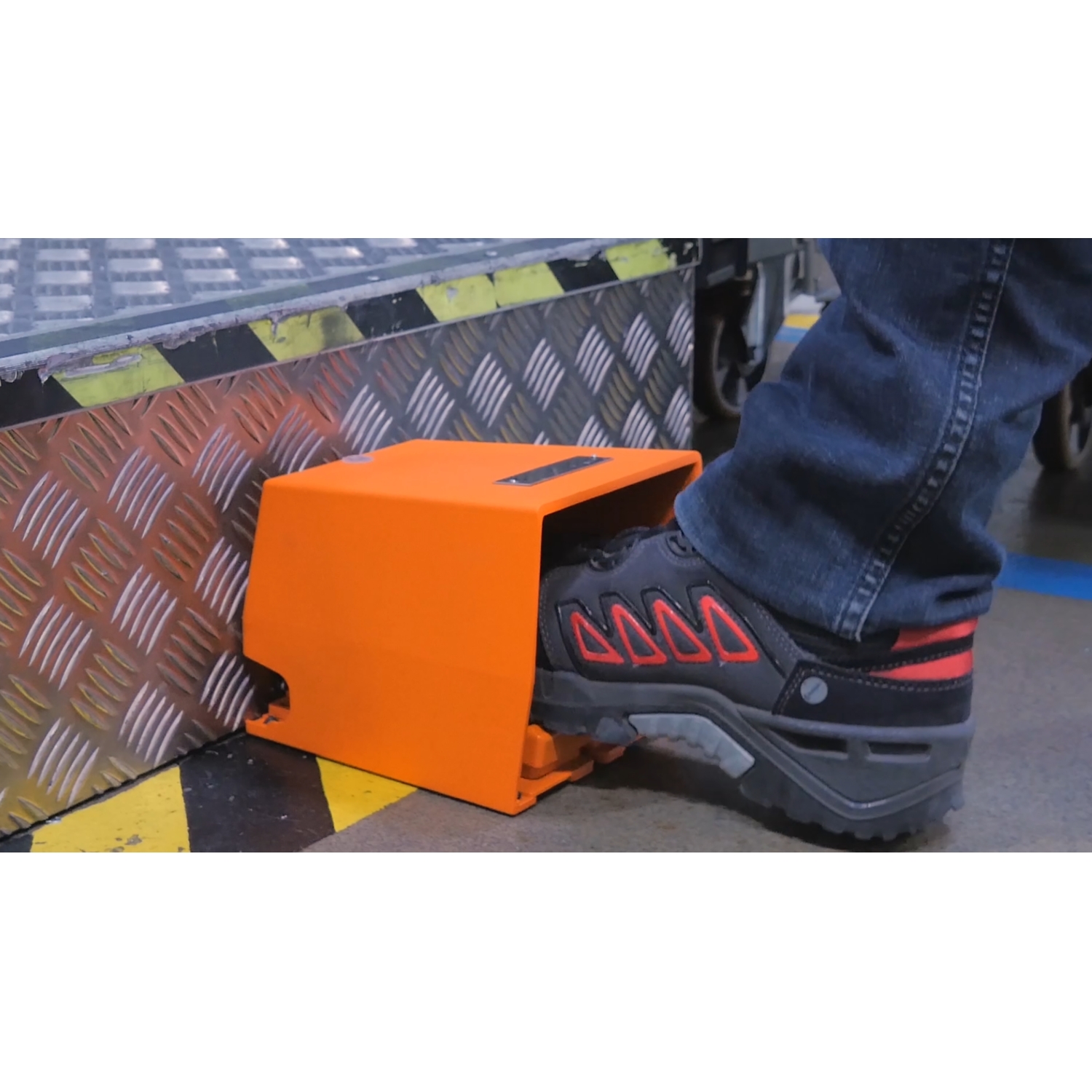

This footswitch is ideal for bending machines, dosing machines, assembly stations, packaging machines, cutting presses, stamping presses and machine tools (numerical control, lathes, milling machines, grinders, machining centres). It is also ideal for guillotines, cutters, folders, saws, forging machines, rolling machines and cold metal forming machines.

Products specifications

Attribute name Attribute value
Main
Device short name XPER
Foot switch type single foot switch
Provided equipment cover
Contact operation 1 step
Colour orange
Range of product Harmony XPE
Contacts type and composition 1 NC + 1 NO
Trigger mechanism without trigger mechanism
Material metal
Product or component type foot switch
Complementary
Compatibility code XPER
Mechanical durability 15000000 cycles
[Ie] rated operational current 0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A, 3 A, 240 V, AC-15, A300
Maximum resistance across terminals 25 MOhm conforming to NF C 93-050 method A, 25 MOhm conforming to IEC 60255-7 category 3
Rated operational power in W 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

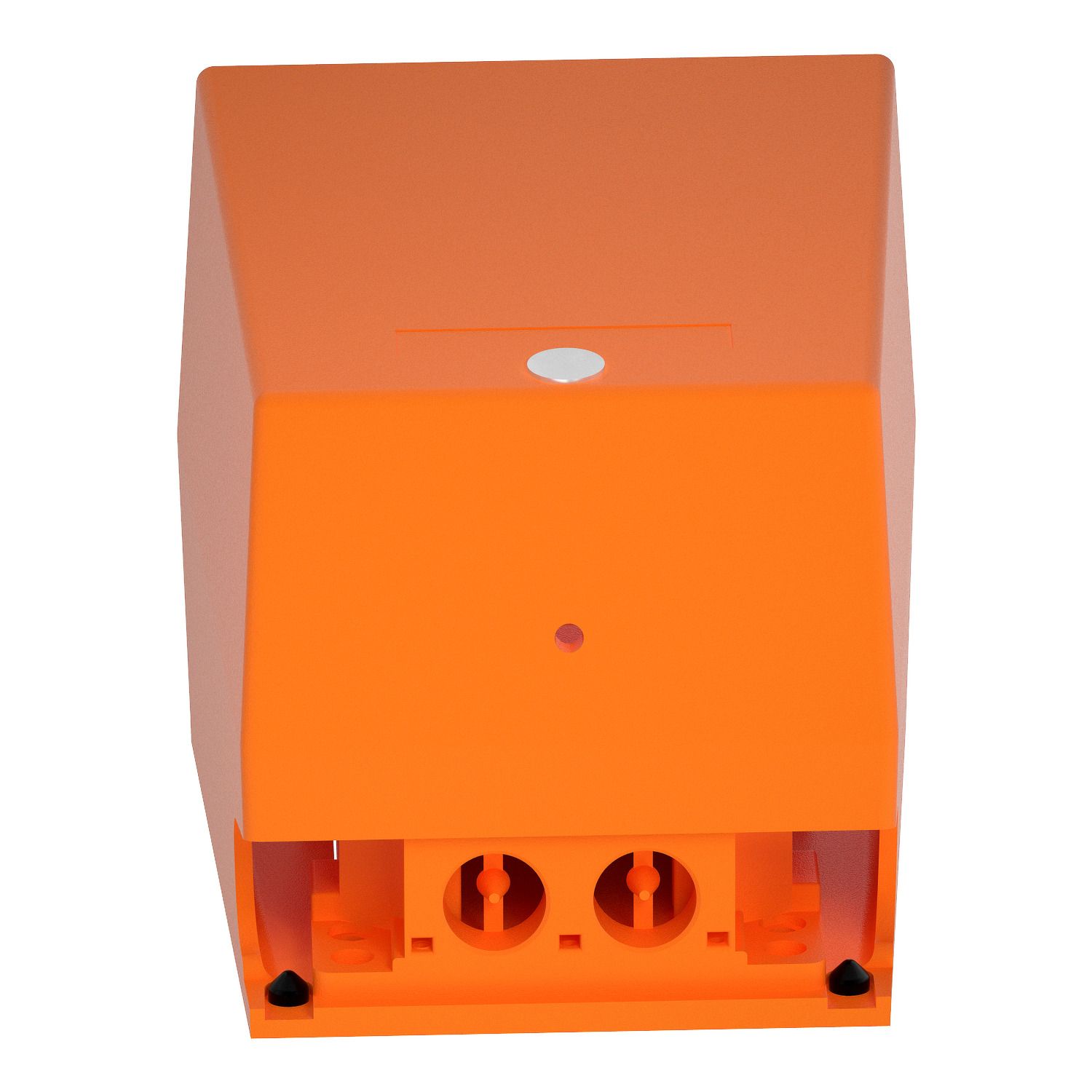

Cable entry 2 entries tapped for Pg 16 cable gland
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to VDE 0110 group C, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to EN/IEC 60947-1
Connections - terminals screw clamp terminal, <= 2 x 1.5 mm² with or without cable end, screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Net weight 2.4 kg
Positive opening with conforming to EN/IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to VDE 0660-200, 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP669 conforming to NF C 20-010, IP66 conforming to IEC 60529
Shock resistance 20 gn conforming to IEC 60068-2-27, 150 gn conforming to NF E 09-031
Ambient air temperature for operation -25-70 °C
Overvoltage category class I conforming to NF C 20-030, class I conforming to EN/IEC 61140
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards NF E 09-031
Product certifications FIMKO
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 22.000 cm
Package 1 Length 23.500 cm
Package 1 Weight 2.398 kg
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 88.000 kg
