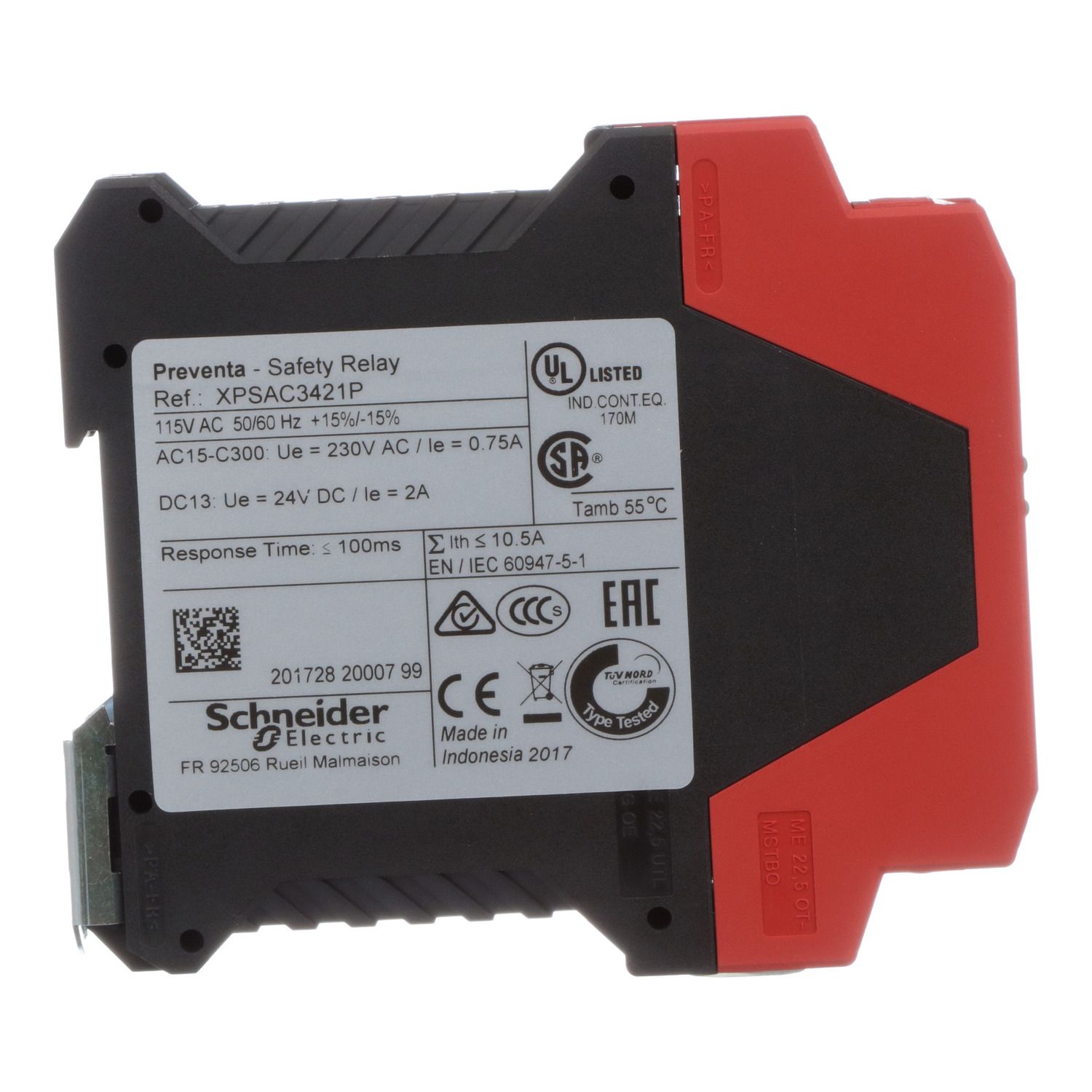

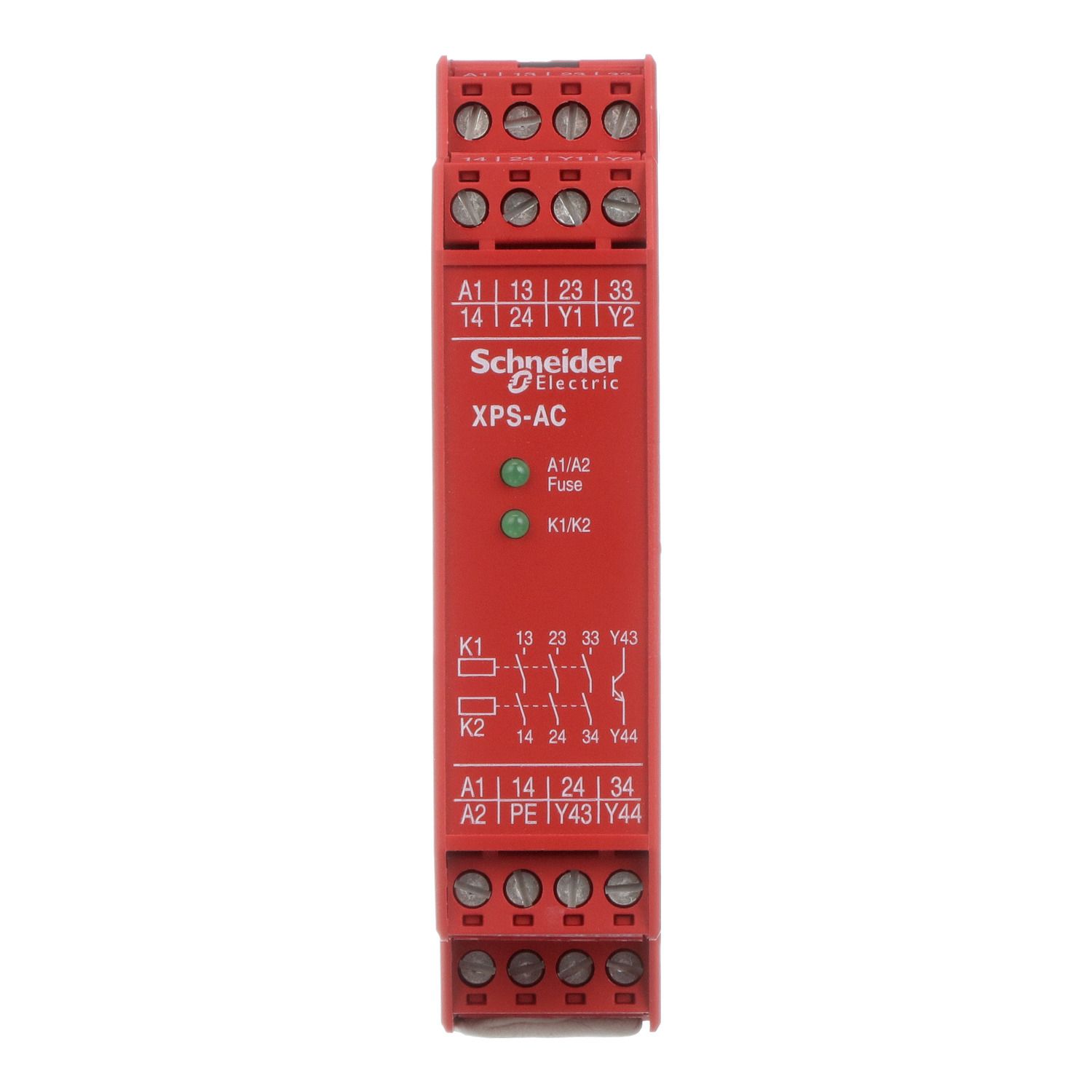

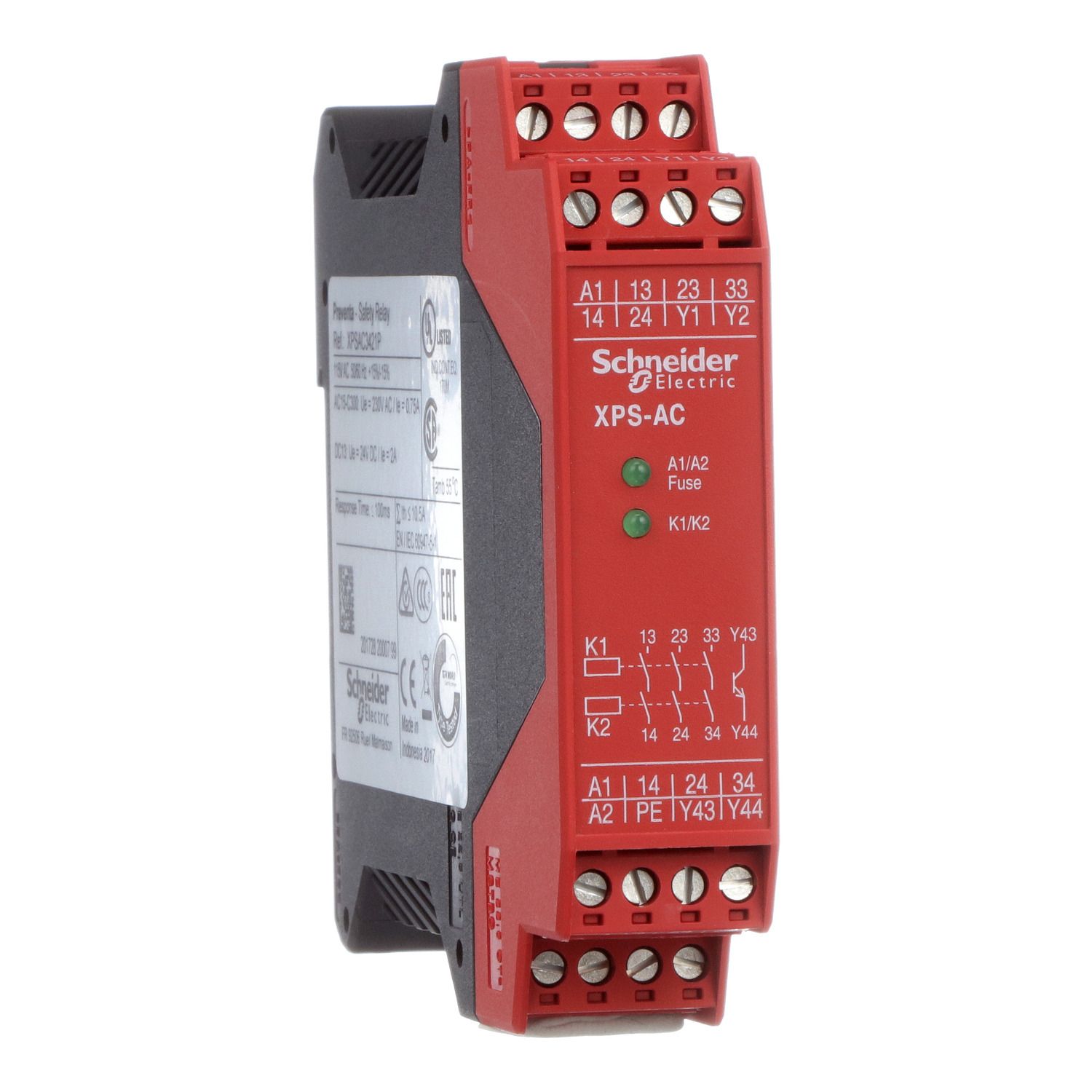

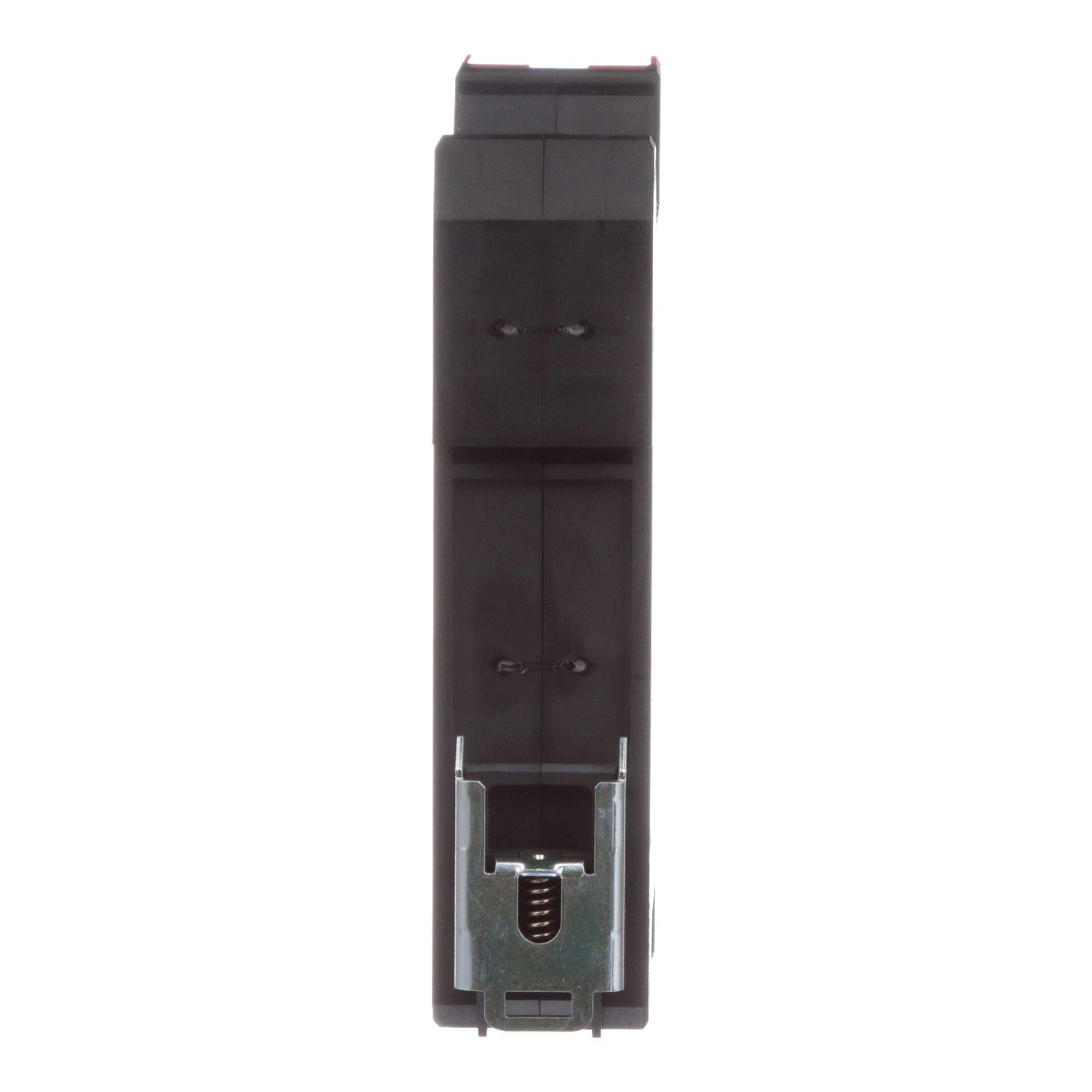

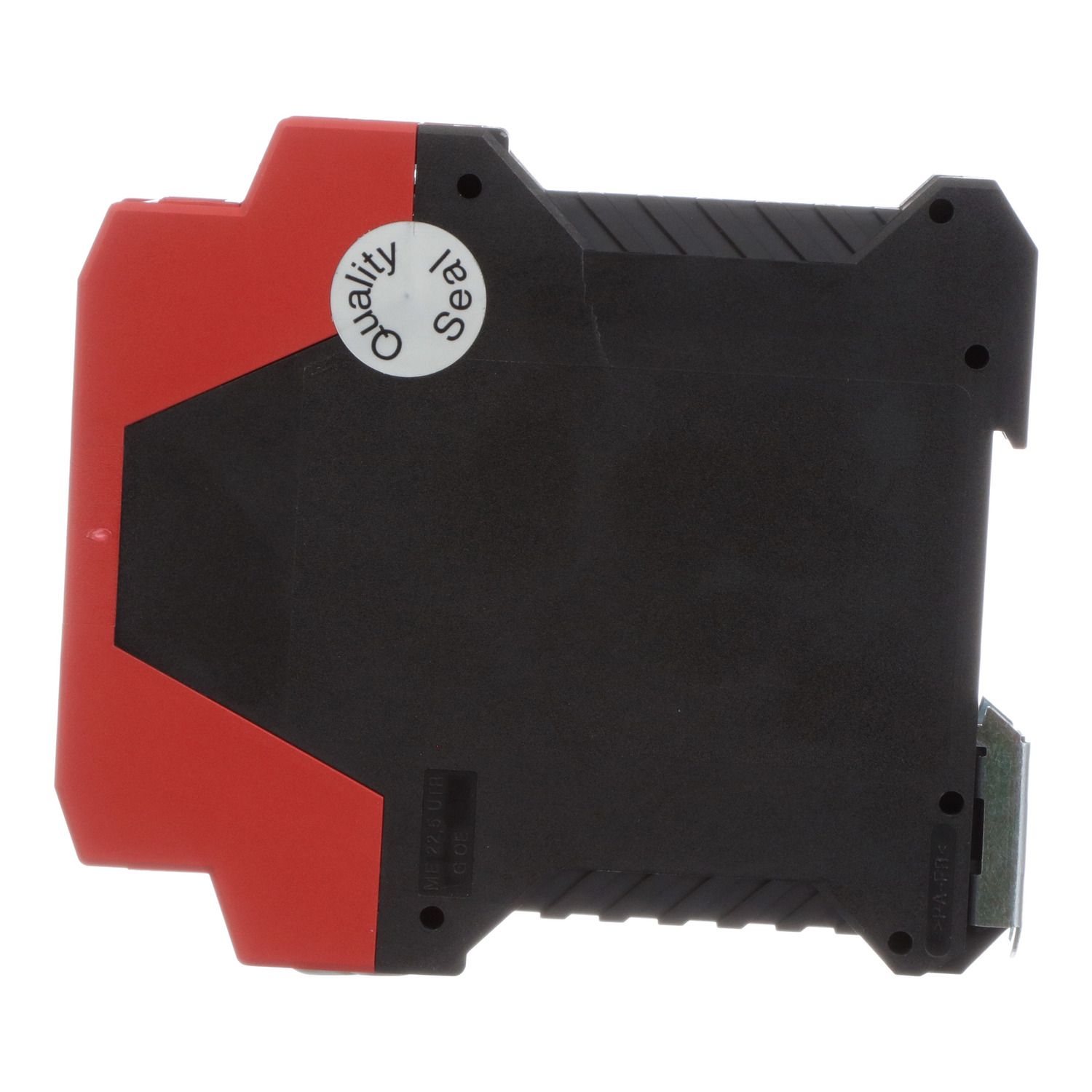

Picture of module XPSAC - Emergency stop - 115 V AC
SKU:

XPSAC3421P

module XPSAC - Emergency stop - 115 V AC

$662.05
Product Selector
module XPSAC - Emergency stop - 115 V AC
Be the first to review this product
Manufacturer: Telemecanique
Estimated Delivery Date: 16-Oct-2024
Image of product
Image of product
Product environmental
Instruction sheet
End of life manual
Image of product
Catalogue
Image of product
CAD
Product Page Link
Product Data Sheet
This XPSAC safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Products specifications

Attribute nameAttribute value
Main
Safety reliability dataPFHd = 3.56E-9 1/h conforming to EN/IEC 62061, DC > 99 % conforming to EN/ISO 13849-1, MTTFd = 210.4 years conforming to EN/ISO 13849-1
Safety module applicationfor emergency stop and switch monitoring
Safety module nameXPSAC
Range of productPreventa Safety automation
[Us] rated supply voltage115 V AC - 15...15 %
Safety levelcan reach SILCL 3 conforming to EN/IEC 62061, can reach PL e/category 4 conforming to EN/ISO 13849-1
Function of moduleemergency stop, switch monitoring
Number of additional circuits1 solid state output
Connections - terminalscaptive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid with cable end, with double bezel, captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible with cable end, with double bezel
Output typerelay instantaneous opening, 3 NO circuit(s), volt-free
Type of startunmonitored
Product or component typePreventa safety module
Complementary
Maximum response time on input open100 ms
Supply frequency50/60 Hz
Associated fuse rating6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum output voltage16 V for relay output
Output thermal current6 A per relay for relay output
Breaking capacity1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
Maximum power consumption in VA7 VA AC
Local signalling2 LEDs
[Ui] rated insulation voltage300 V (pollution degree 2) conforming to DIN VDE 0110 part 1, 300 V (pollution degree 2) conforming to IEC 60947-5-1
Net weight0.21 kg
[Uimp] rated impulse withstand voltage4 kV overvoltage category III conforming to DIN VDE 0110 part 1, 4 kV overvoltage category III conforming to IEC 60947-5-1
[Ith] conventional free air thermal current10.5 A
Minimum output current10 mA for relay output
Current consumption60 mA at 115 V AC on power supply
Mounting support35 mm symmetrical DIN rail
[Uc] control circuit voltage115 V
Environment
Ambient air temperature for storage-25-85 °C
IP degree of protectionIP40 (enclosure) conforming to EN/IEC 60529, IP20 (terminals) conforming to EN/IEC 60529
Ambient air temperature for operation-10-55 °C
StandardsEN 60204-1, EN 1088/ISO 14119, EN/ISO 13850, EN/IEC 60947-5-1
Product certificationsTÜV, CSA, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.9 cm
Package 1 Width2.8 cm
Package 1 Length10.3 cm
Package 1 Weight246.0 g
Unit Type of Package 22
Number of Units in Package 216
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.21 kg
