Picture of module XPSAXE - stop and switch monitoring - 24 V DC/AC
SKU:

XPSAXE5120C

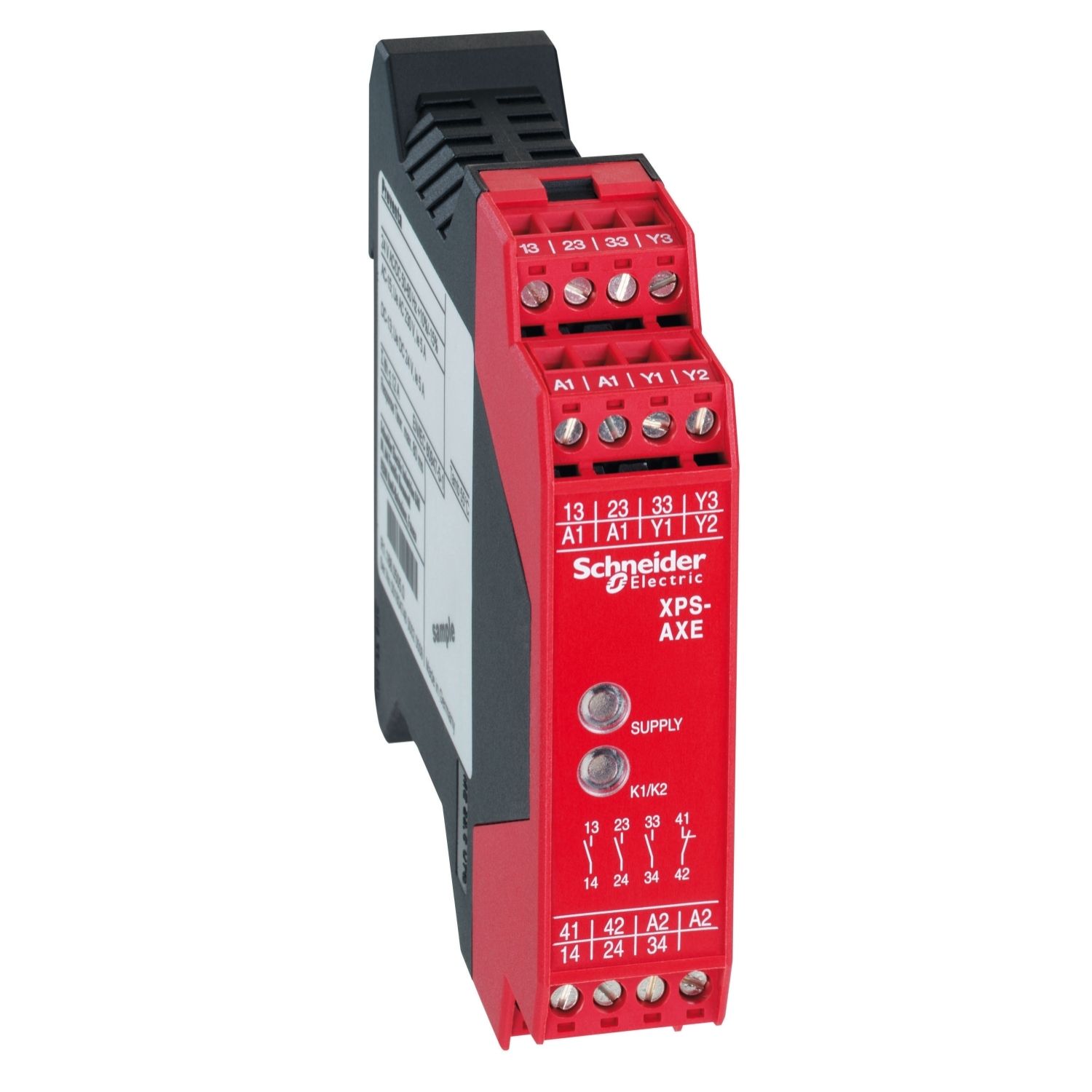

module XPSAXE - stop and switch monitoring - 24 V DC/AC

$662.05
Available for Shipping : 13-Mar-2025
Product Selector
module XPSAXE - stop and switch monitoring - 24 V DC/AC
Be the first to review this product
Manufacturer: Telemecanique
End of life manual
CAD
Product environmental
Declaration of conformity
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This XPSAXE safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.

Products specifications

Attribute name Attribute value
Main
Safety reliability data PFHd = 3E-8 1/h conforming to EN/IEC 62061, MTTFd = 457 years conforming to EN/ISO 13849-1, DC > 99 % conforming to EN/ISO 13849-1
Safety module application for emergency stop and switch monitoring
Safety module name XPSAXE
Range of product Preventa Safety automation
[Us] rated supply voltage 24 V AC, 24 V DC - 15...10 %
Safety level can reach SILCL 3 conforming to EN/IEC 62061, can reach PL e/category 4 conforming to EN/ISO 13849-1
Number of additional circuits 1 NC
Connections - terminals spring terminals, removable terminal block, spring terminals, removable terminal block, 2 x 0.5...2 x 1 mm² flexible with cable end, with double bezel, spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel, spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel, spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end, spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end
Output type relay instantaneous opening, 3 NO circuit(s), volt-free
Product or component type Preventa safety module
Complementary
Maximum response time on input open 80 ms
Supply frequency 50/60 Hz
Synchronisation time between inputs < 0.5 s
Associated fuse rating 6 A gG for instantaneous outputs
Minimum output voltage 17 V for relay output
Output thermal current 6 A for instantaneous and time delay outputs
Breaking capacity 360 VA holding AC-15 B300 relay output, 3600 VA inrush AC-15 B300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output
Maximum power consumption in VA 4 VA DC
Local signalling 2 LEDs
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1, 300 V (pollution degree 2) conforming to IEC 60947-5-1
Net weight 0.229 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to DIN VDE 0110 part 1, 4 kV overvoltage category III conforming to IEC 60947-5-1
Minimum output current 10 mA for relay output
Mounting support 35 mm symmetrical DIN rail
[Uc] control circuit voltage 24 V DC
Environment
Ambient air temperature for storage -25-75 °C
IP degree of protection IP40 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 60529
Ambient air temperature for operation -25-55 °C
Standards EN/IEC 60947-5-1, EN/IEC 60204-1, EN 1088/ISO 14119, EN/ISO 13850
Product certifications UL, CSA, BG
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 11.5 cm
Package 1 Length 12.0 cm
Package 1 Weight 203.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.376 kg
