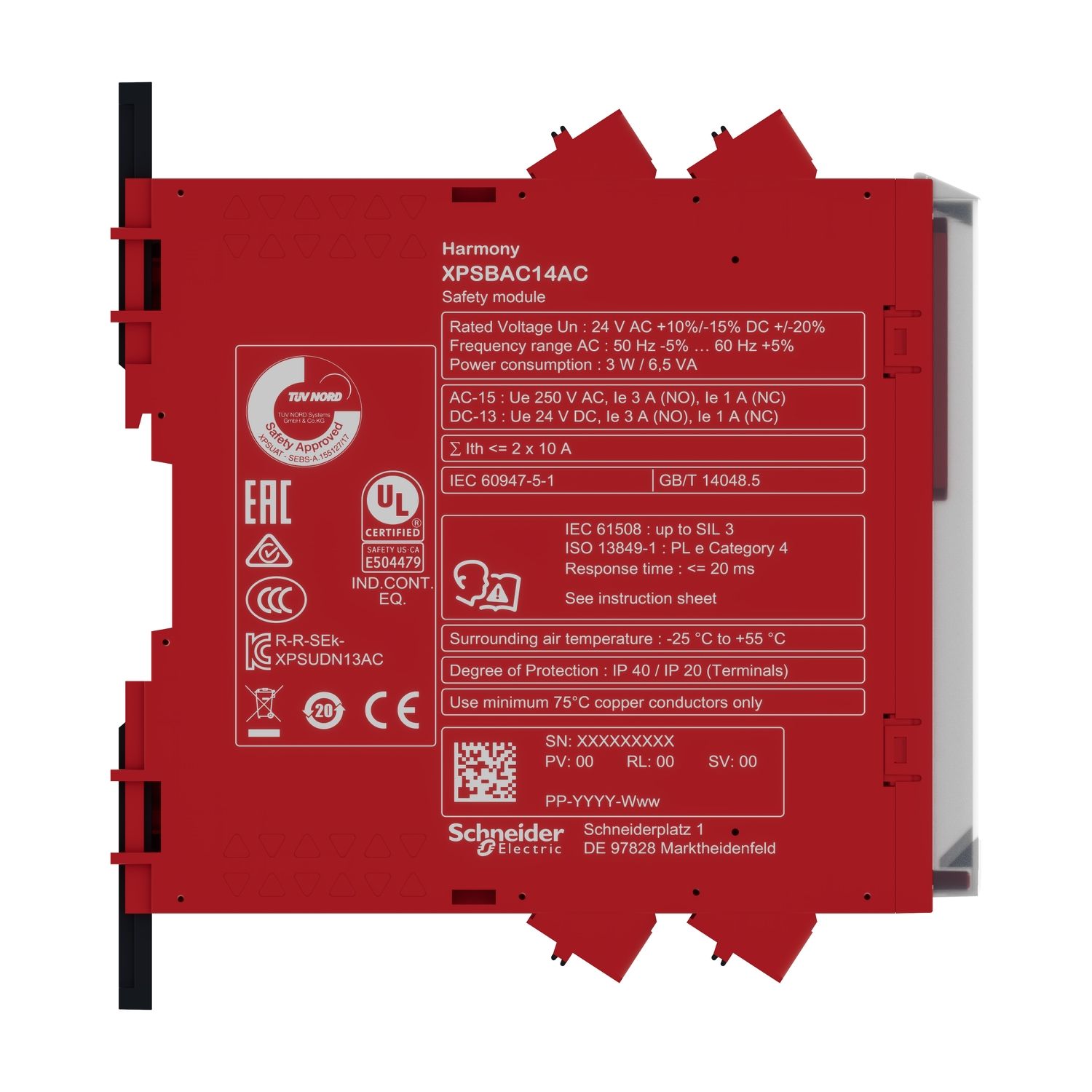

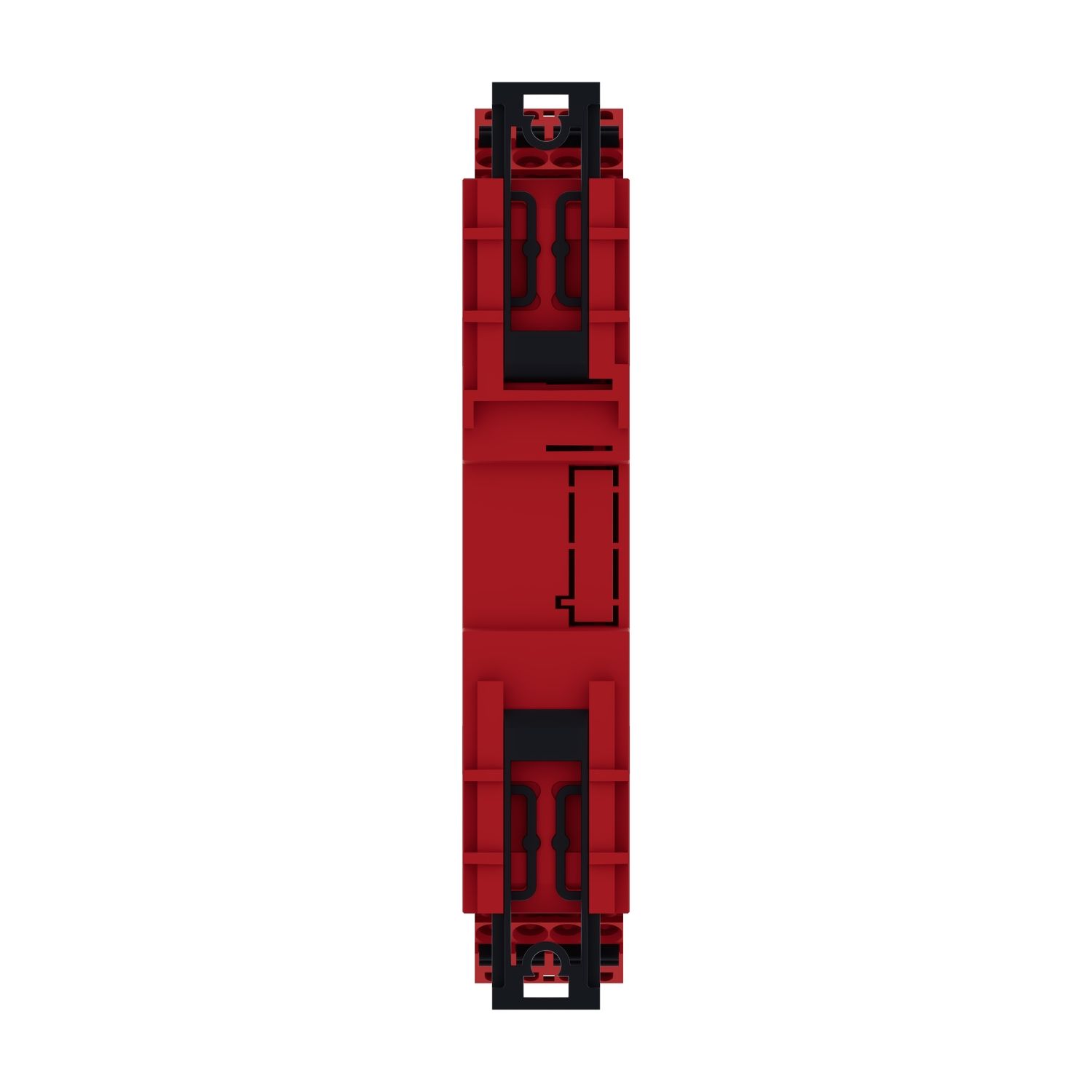

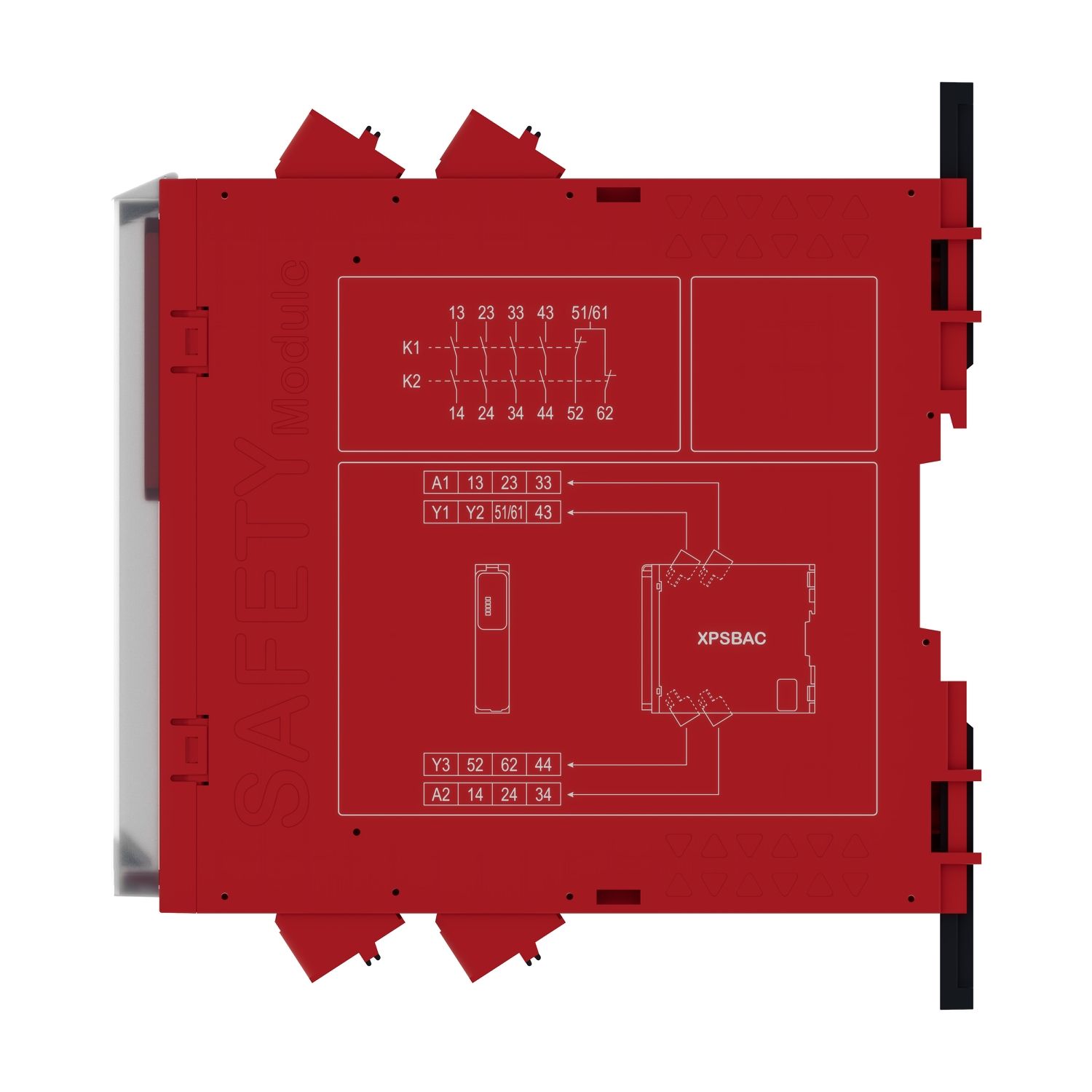

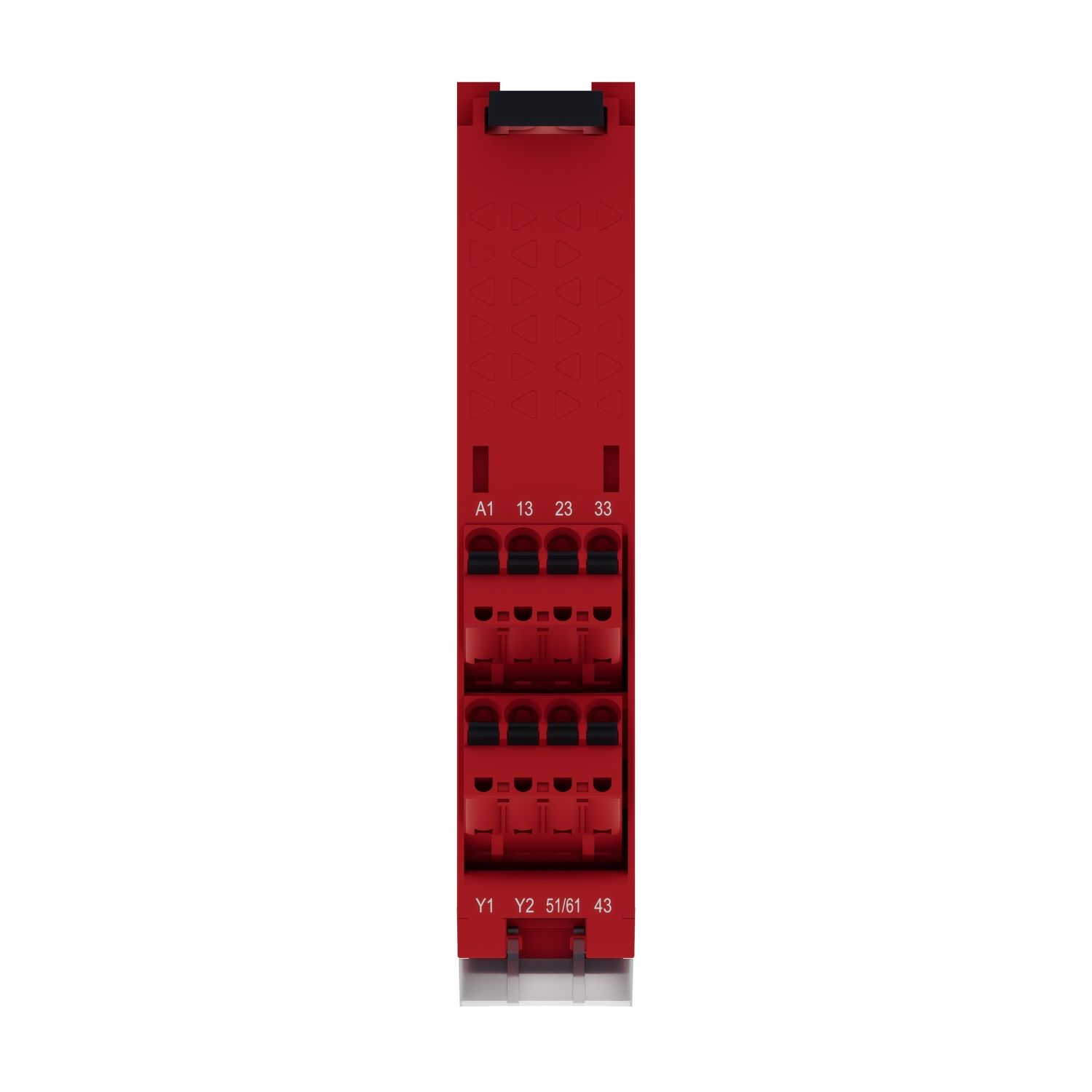

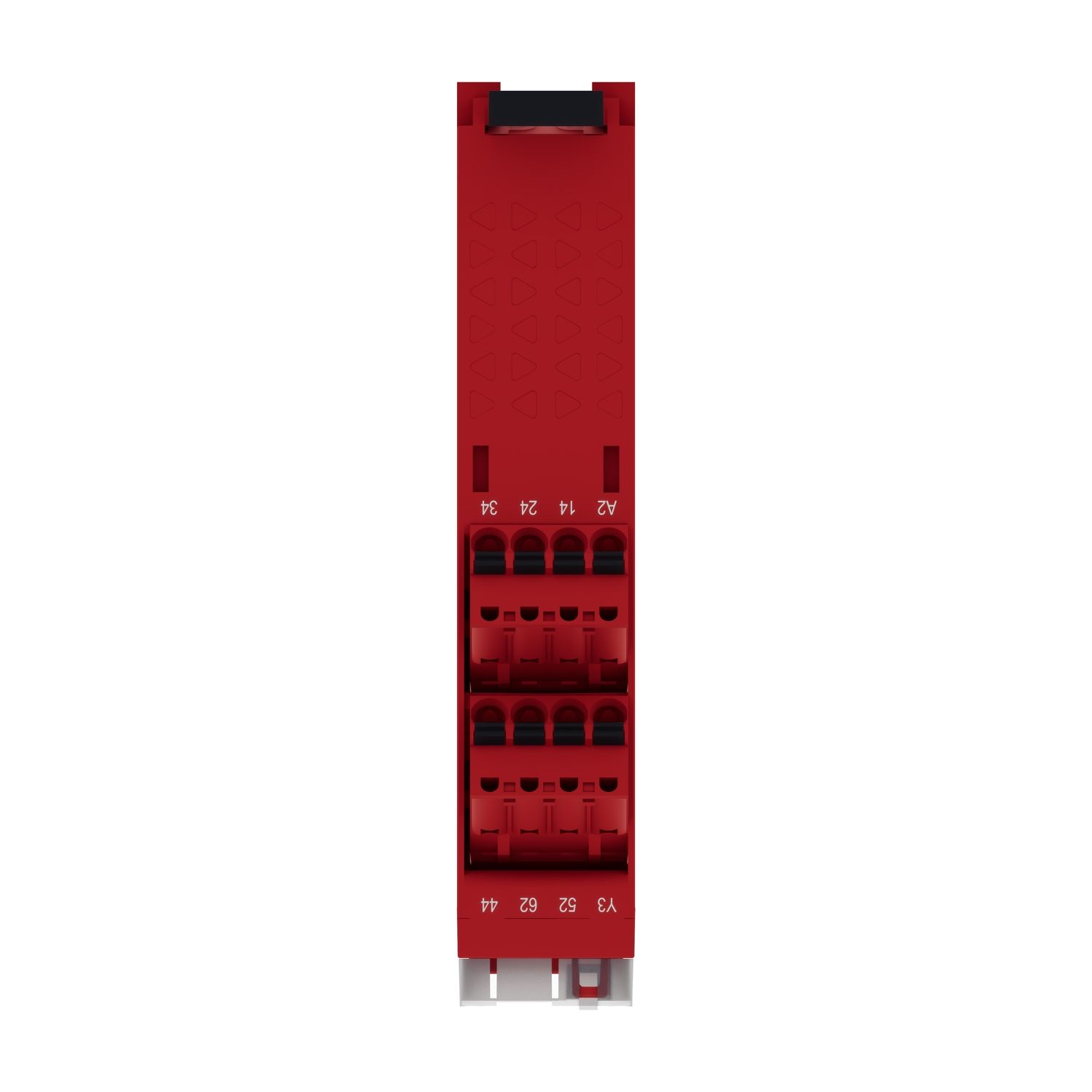

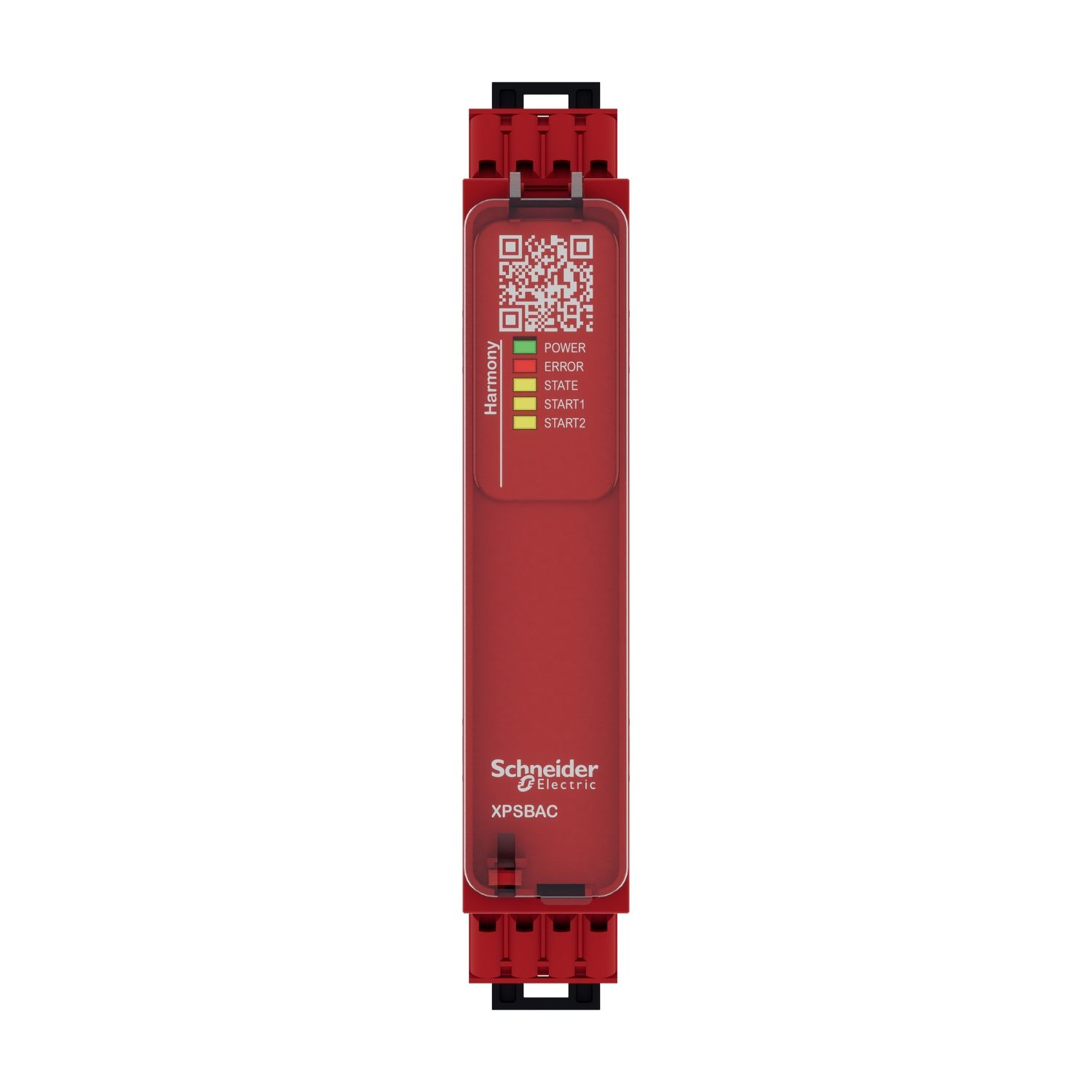

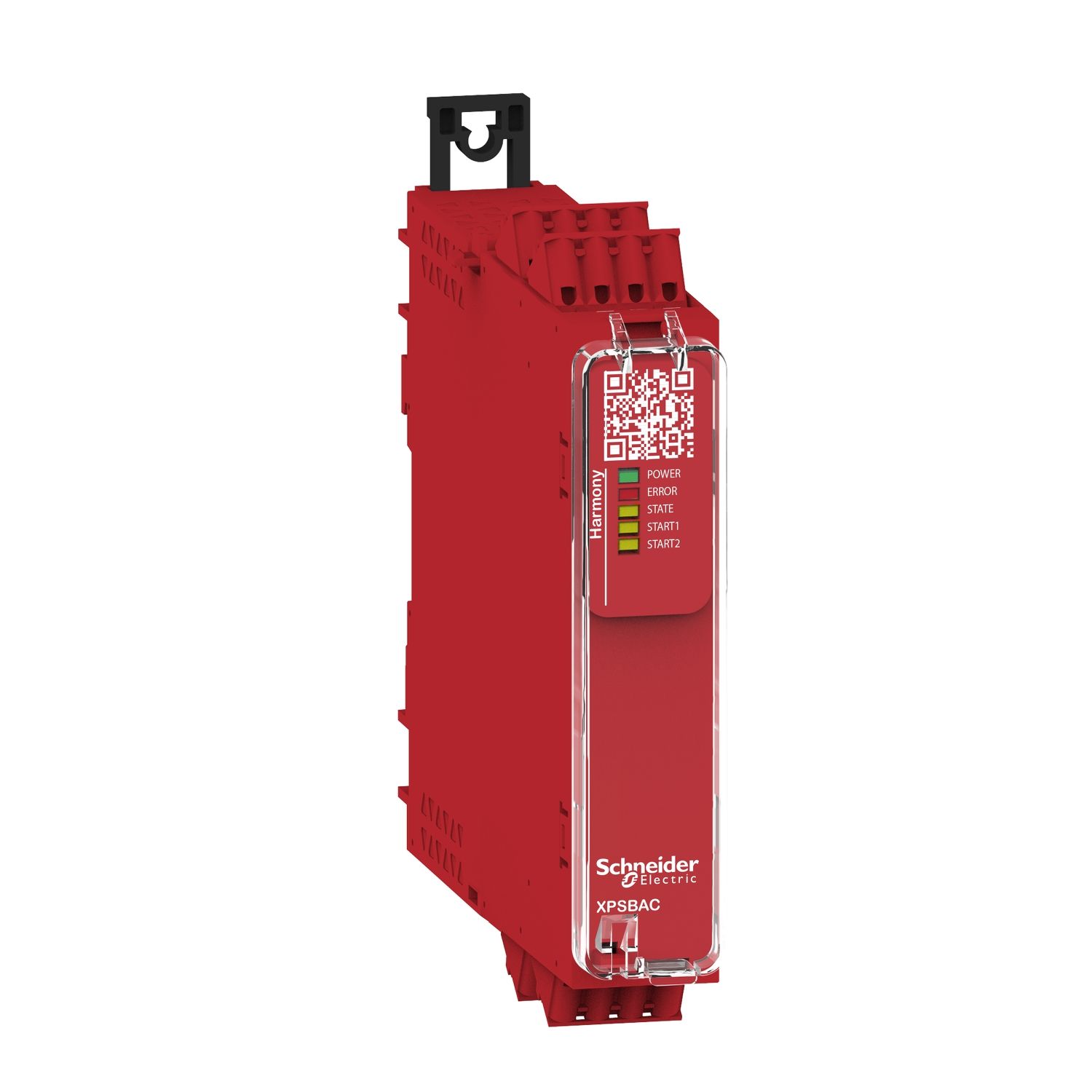

Picture of safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
Picture of safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
Picture of safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
Picture of safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
Picture of safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
Picture of safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
Picture of safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
Picture of safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
SKU:

XPSBAC14AC

safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring

$289.84
Available for Shipping : 24-Nov-2024
safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, spring
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Product environmental
Instruction sheet
End of life manual
Catalogue
Product Page Link
Product Data Sheet
This safety relay is designed for monitoring Emergency stop and Guard switch. The safety relay is powered with 24V AC/DC, and equipped with a spring removable terminal block. This basic safety modules embeds pre-defined safety functions. This safety relay embeds 1 control output, 4 NO safety outputs, and 2 NC diagnostic outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.

Products specifications

Attribute name Attribute value
Main
Electrical circuit type NC pair
Safety reliability data type = B conforming to IEC 61508-1 for normally closed relay contact, SFF > 60% conforming to IEC 61508-1 for normally closed relay contact, PFHd = 0.95E-09 conforming to IEC 61508-1 for normally closed relay contact, HFT=0 conforming to IEC 61508-1 for normally closed relay contact, SFF > 60% conforming to IEC 62061 for normally closed relay contact, PFHd = 0.95E-09 conforming to IEC 62061 for normally closed relay contact, HFT=0 conforming to IEC 62061 for normally closed relay contact, PFHd = 0.95E-09 conforming to ISO 13849-1 for normally closed relay contact, DC > 60 % conforming to ISO 13849-1 for normally closed relay contact, MTTFd > 30 years conforming to ISO 13849-1 for normally closed relay contact, type = B conforming to IEC 61508-1 for normally open relay contact, SFF > 99% conforming to IEC 61508-1 for normally open relay contact, PFHd = 0.95E-09 conforming to IEC 61508-1 for normally open relay contact, HFT = 1 conforming to IEC 61508-1 for normally open relay contact, SFF > 99% conforming to IEC 62061 for normally open relay contact, PFHd = 0.95E-09 conforming to IEC 62061 for normally open relay contact, HFT = 1 conforming to IEC 62061 for normally open relay contact, PFHd = 0.95E-09 conforming to ISO 13849-1 for normally open relay contact, Dcavg >= 99 % conforming to ISO 13849-1 for normally open relay contact, MTTFd > 30 years conforming to ISO 13849-1 for normally open relay contact
Safety module application for emergency stop and protective guard applications
Safety module name XPSBAC
Range of product Harmony Safety Automation
[Us] rated supply voltage 24 V DC - 20...20 %, 24 V AC - 15...10 %
Safety level can reach SIL 1 for normally closed relay contact conforming to IEC 61508, can reach SILCL 1 for normally closed relay contact conforming to IEC 62061, can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1, can reach SIL 3 for normally open relay contact conforming to IEC 61508, can reach SILCL 3 for normally open relay contact conforming to IEC 62061, can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1
Function of module guard monitoring with 1 or 2 limit switches, emergency stop button with 2 NC contacts
Connections - terminals removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel, removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable spring terminal block, 0.2...2.5 mm² solid or flexible
Product or component type safety module
Complementary
Synchronisation time between inputs unlimited
Input protection type internal, electronic
Power consumption in W 1.5 W 24 V DC
Auxiliary contact composition 4 NO + 1 NC
[Ie] rated operational current 1 A DC-13 for normally closed relay contact, 3 A DC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A AC-1 for normally closed relay contact, 3 A DC-13 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A AC-1 for normally open relay contact
Power consumption in VA 3.5 VA 24 V AC 50/60 Hz
Input compatibility normally closed circuit conforming to ISO 13850, mechanical contact conforming to ISO 14119, XC limit switch conforming to ISO 14119, normally closed circuit conforming to ISO 14119
Number of inputs 0
Associated fuse rating 10 A gG for NO relay output circuit conforming to IEC 60947-1
Response time 80 ms at 24 V DC, 150 ms at 24 V AC
Minimum output voltage 5 V for relay output
Height 100 mm
Number of outputs 0
Depth 120 mm
Width 22.5 mm
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to IEC 60947-1
Type of start automatic/manual/monitored
Net weight 0.200 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category II conforming to IEC 60947-1
Local signalling LED yellow with start2 marking for start input, LED yellow with start1 marking for start input, LED yellow with state marking for status, LED red with error marking for error, LED green with power marking for power ON
[Ith] conventional free air thermal current 6 A
Minimum output current 10 mA for relay output
Mounting support 35 mm symmetrical DIN rail
Terminal identifier power supply
Environment
Relative humidity 5-95 % non-condensing
IP degree of protection IP54 (mounting area) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -25-55 °C
Standards IEC 62061 functional safety standard, ISO 13849-1 functional safety standard, IEC 61508-7 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-1 functional safety standard, IEC 60947-5-1
Product certifications cULus, TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 13.5 cm
Package 1 Length 15.5 cm
Package 1 Weight 301.0 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.518 kg
