SKU:

XPSBAC14AP

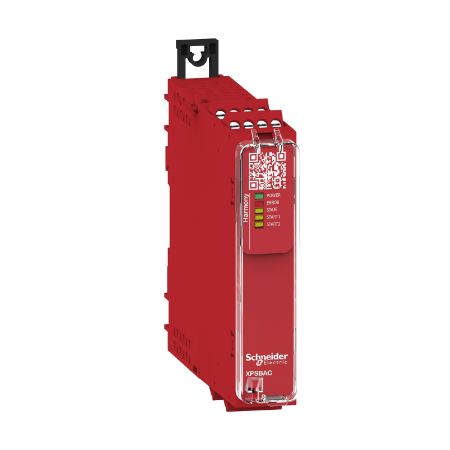

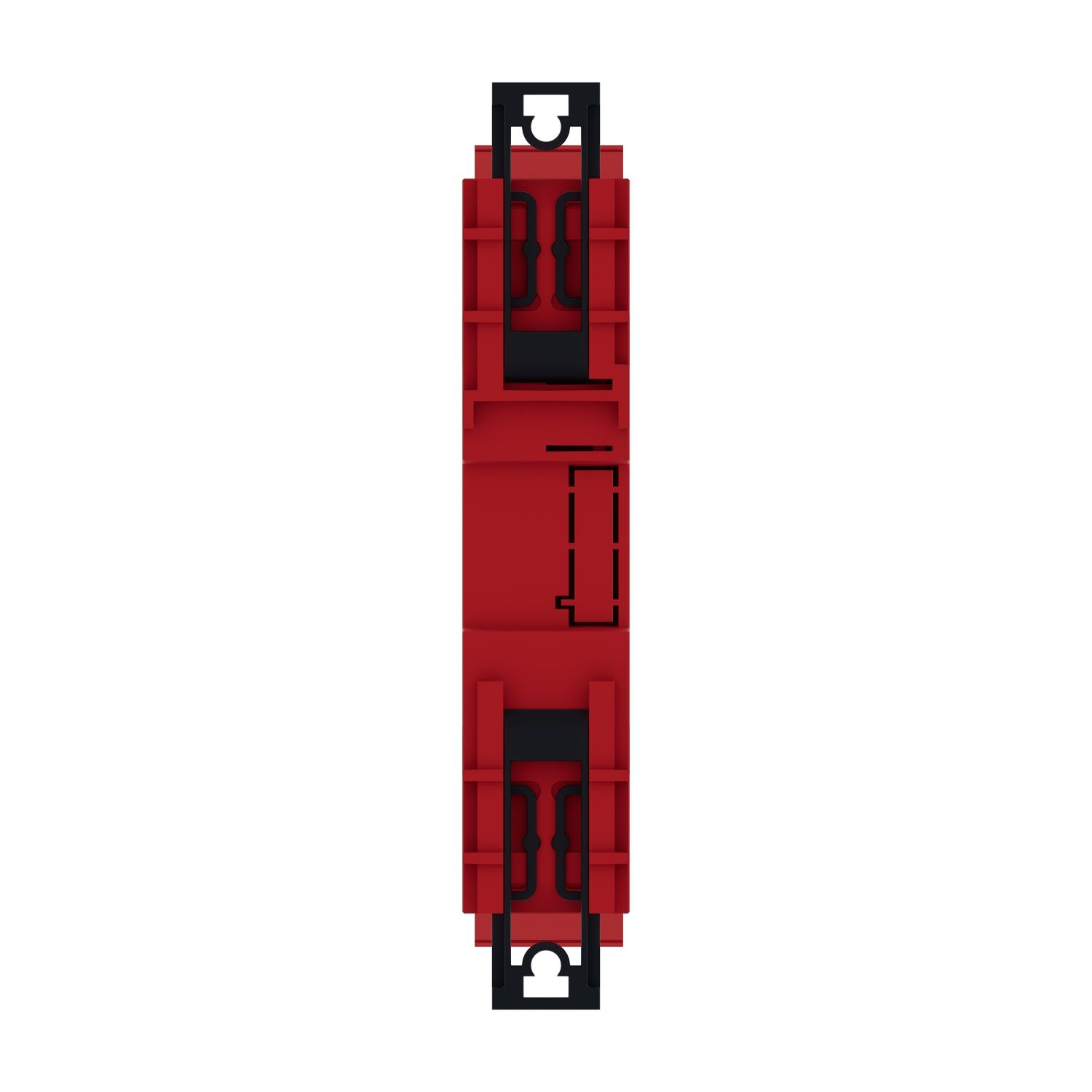

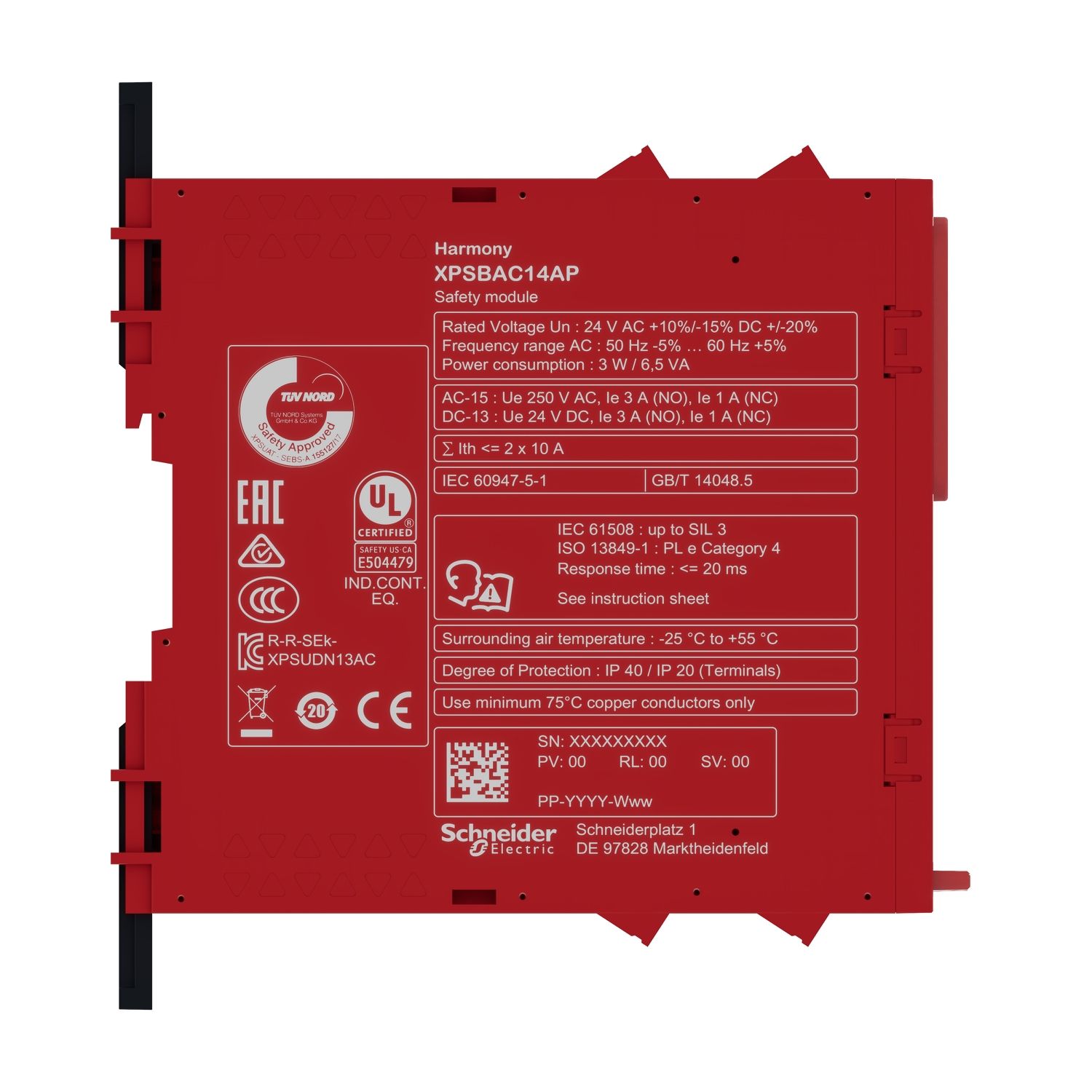

safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, screw

Please Contact Sales to buy this Product. click here
safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, screw
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
User guide
Product environmental
Catalogue
Instruction sheet
End of life manual
Image of product
Image of product
Image of product
Image of product
Image of product
Image of product
Product Page Link
Product Data Sheet
This safety relay is designed for monitoring Emergency stop and Guard switch. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This basic safety modules embeds pre-defined safety functions. This safety relay embeds 1 control output, 4 NO safety outputs, and 2 NC diagnostic outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO13849-1, SILCL 3 conforming to IEC62061, SIL 3 conforming to IEC61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.

Products specifications

Attribute nameAttribute value
Main
Electrical circuit typeNC pair
Safety reliability datatype = B conforming to IEC 61508-1 for normally closed relay contact, SFF > 60% conforming to IEC 61508-1 for normally closed relay contact, PFHd = 0.95E-09 conforming to IEC 61508-1 for normally closed relay contact, HFT=0 conforming to IEC 61508-1 for normally closed relay contact, SFF > 60% conforming to IEC 62061 for normally closed relay contact, PFHd = 0.95E-09 conforming to IEC 62061 for normally closed relay contact, HFT=0 conforming to IEC 62061 for normally closed relay contact, PFHd = 0.95E-09 conforming to ISO 13849-1 for normally closed relay contact, DC > 60 % conforming to ISO 13849-1 for normally closed relay contact, MTTFd > 30 years conforming to ISO 13849-1 for normally closed relay contact, type = B conforming to IEC 61508-1 for normally open relay contact, SFF > 99% conforming to IEC 61508-1 for normally open relay contact, PFHd = 0.95E-09 conforming to IEC 61508-1 for normally open relay contact, HFT = 1 conforming to IEC 61508-1 for normally open relay contact, SFF > 99% conforming to IEC 62061 for normally open relay contact, PFHd = 0.95E-09 conforming to IEC 62061 for normally open relay contact, HFT = 1 conforming to IEC 62061 for normally open relay contact, PFHd = 0.95E-09 conforming to ISO 13849-1 for normally open relay contact, Dcavg >= 99 % conforming to ISO 13849-1 for normally open relay contact, MTTFd > 30 years conforming to ISO 13849-1 for normally open relay contact
Safety module applicationfor emergency stop and protective guard applications
Safety module nameXPSBAC
Range of productHarmony Safety Automation
[Us] rated supply voltage24 V DC - 20...20 %, 24 V AC - 15...10 %
Safety levelcan reach SIL 1 for normally closed relay contact conforming to IEC 61508, can reach SILCL 1 for normally closed relay contact conforming to IEC 62061, can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1, can reach SIL 3 for normally open relay contact conforming to IEC 61508, can reach SILCL 3 for normally open relay contact conforming to IEC 62061, can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1
Function of moduleguard monitoring with 1 or 2 limit switches, emergency stop button with 2 NC contacts

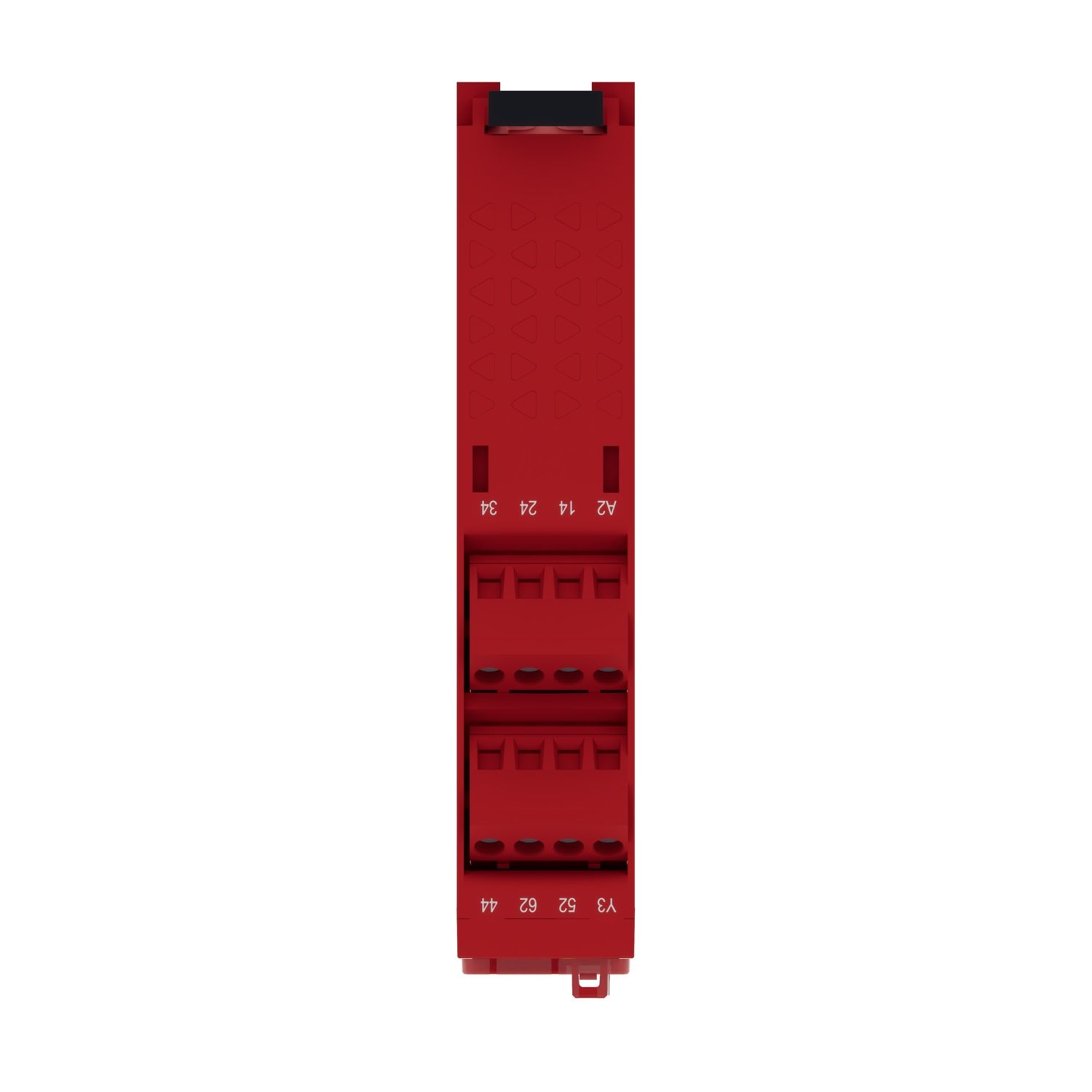

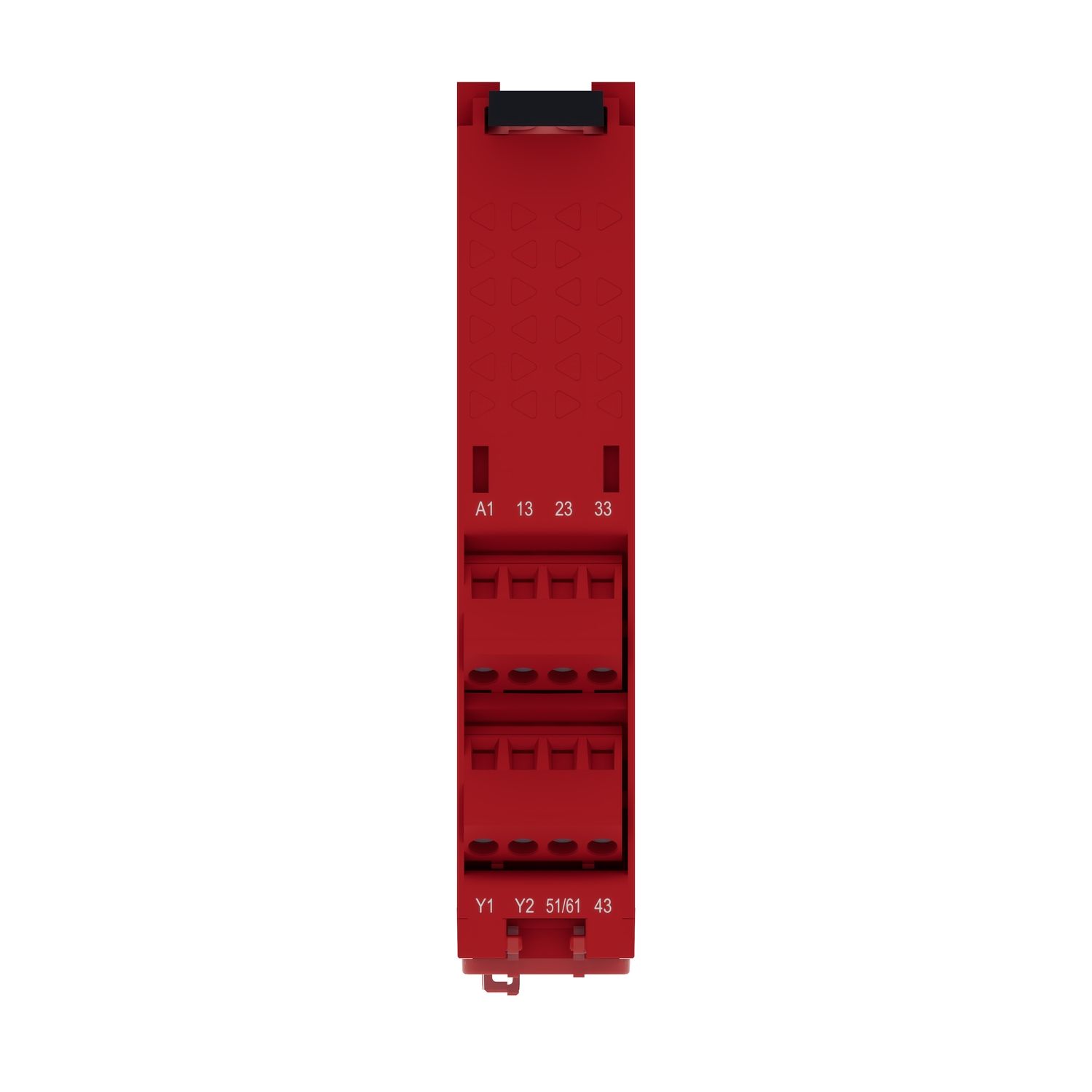

Connections - terminalsremovable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel, removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable screw terminal block, 0.2...2.5 mm² solid or flexible
Product or component typesafety module
Complementary
Synchronisation time between inputsunlimited
Input protection typeinternal, electronic
Power consumption in W1.5 W 24 V DC

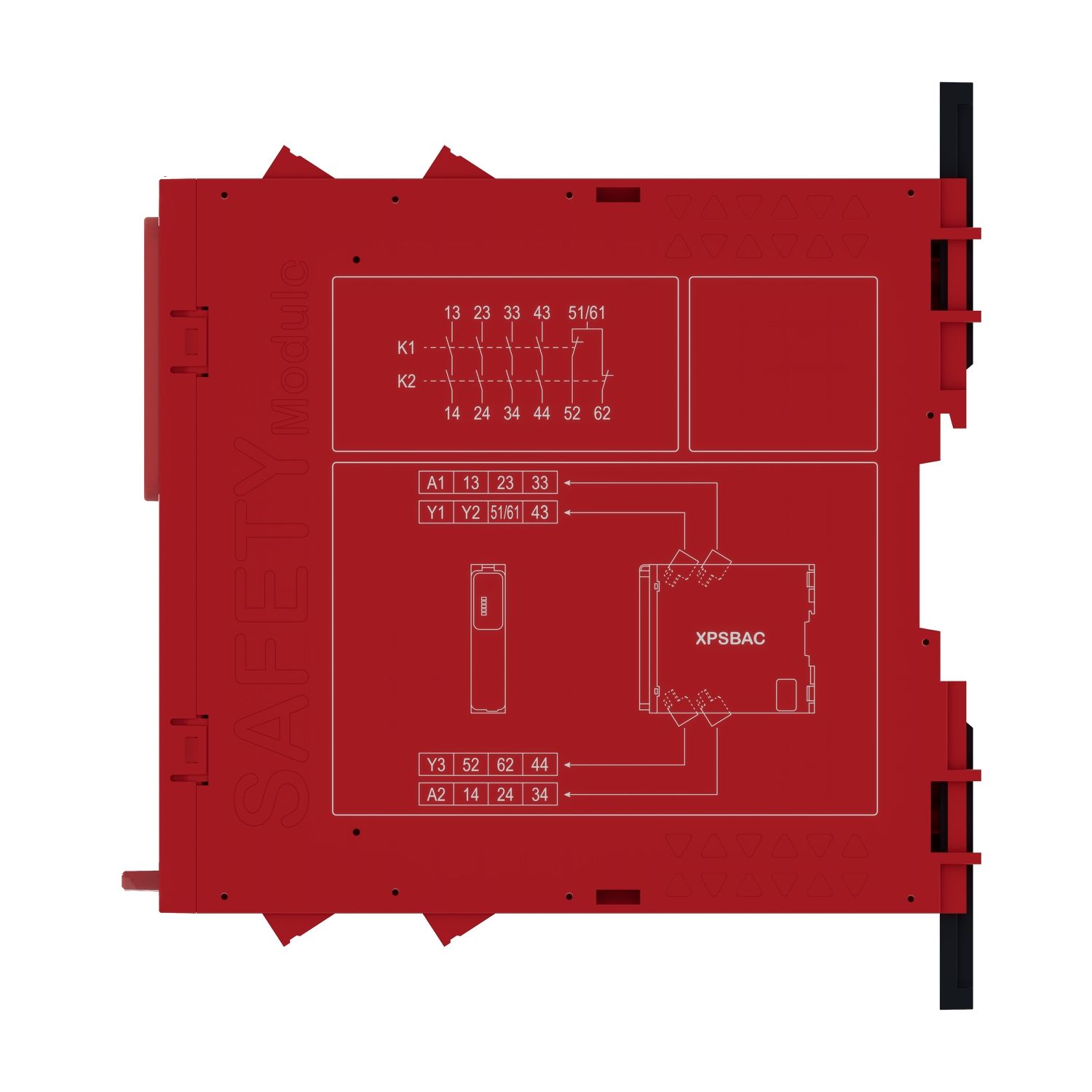

Auxiliary contact composition4 NO + 1 NC
[Ie] rated operational current1 A DC-13 for normally closed relay contact, 3 A DC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 3 A AC-1 for normally closed relay contact, 3 A DC-13 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A AC-1 for normally open relay contact
Power consumption in VA3.5 VA 24 V AC 50/60 Hz
Input compatibilitynormally closed circuit conforming to ISO 13850, mechanical contact conforming to ISO 14119, XC limit switch conforming to ISO 14119, normally closed circuit conforming to ISO 14119
Number of inputs0
Associated fuse rating10 A gG for NO relay output circuit conforming to IEC 60947-1
Response time80 ms at 24 V DC, 150 ms at 24 V AC
Minimum output voltage5 V for relay output
Height100 mm
Number of outputs0
Depth120 mm
Width22.5 mm
[Ui] rated insulation voltage300 V (pollution degree 2) conforming to IEC 60947-1
Type of startautomatic/manual/monitored
Net weight0.200 kg
[Uimp] rated impulse withstand voltage4 kV overvoltage category II conforming to IEC 60947-1

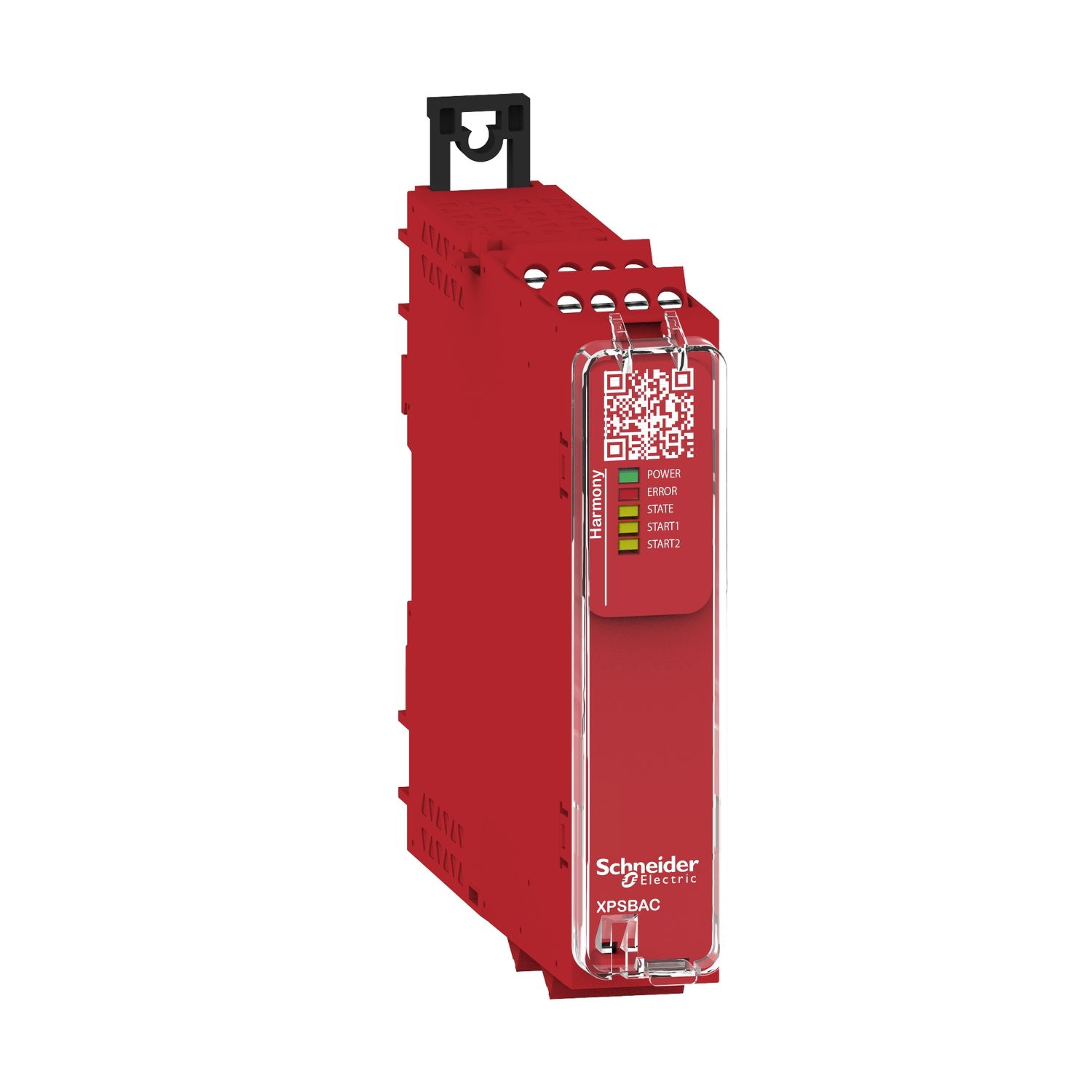

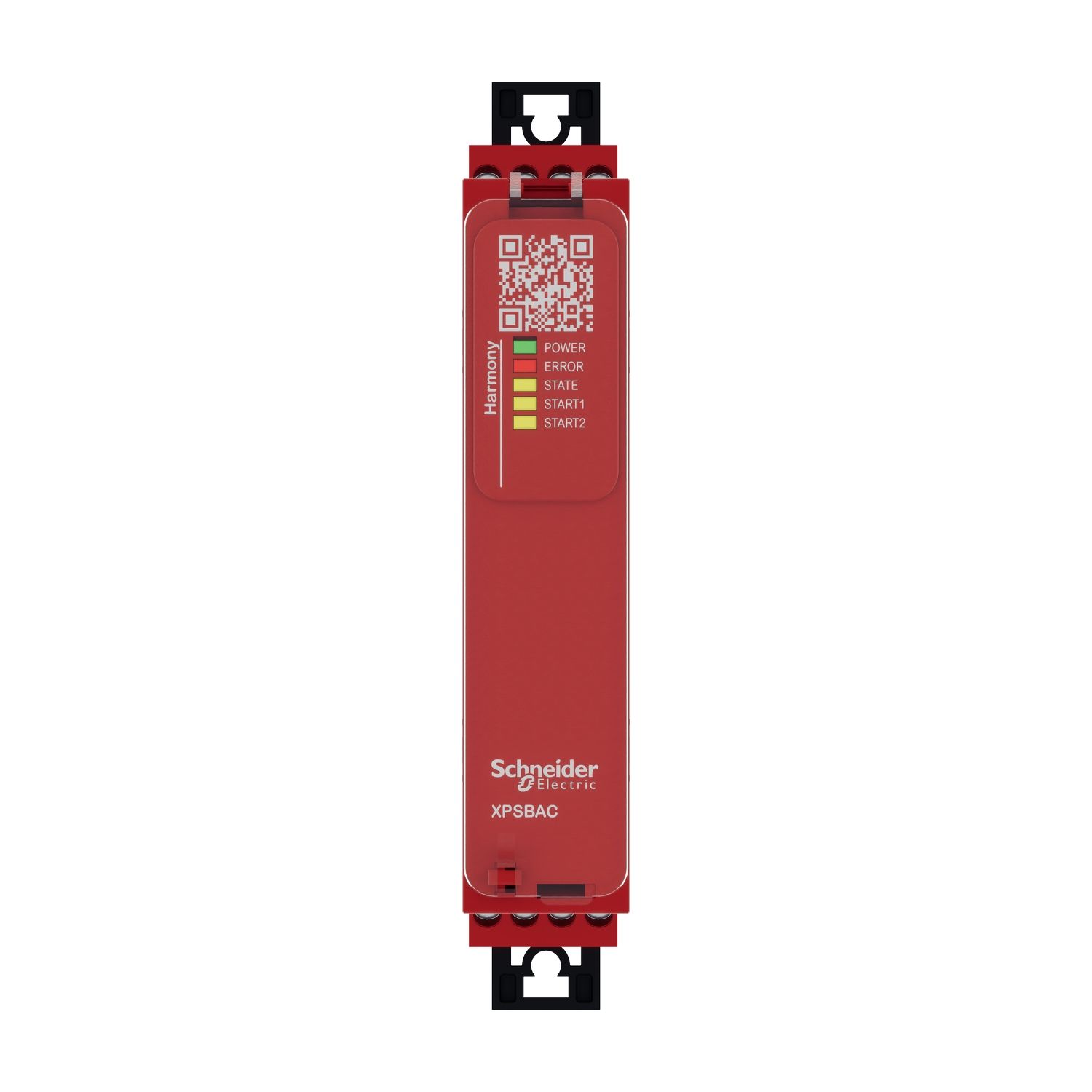

Local signallingLED yellow with start2 marking for start input, LED yellow with start1 marking for start input, LED yellow with state marking for status, LED red with error marking for error, LED green with power marking for power ON
[Ith] conventional free air thermal current6 A
Minimum output current10 mA for relay output
Mounting support35 mm symmetrical DIN rail
Terminal identifierpower supply
Environment
Relative humidity5-95 % non-condensing
IP degree of protectionIP54 (mounting area) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation-25-55 °C
StandardsIEC 62061 functional safety standard, ISO 13849-1 functional safety standard, IEC 61508-7 functional safety standard, IEC 61508-6 functional safety standard, IEC 61508-5 functional safety standard, IEC 61508-4 functional safety standard, IEC 61508-3 functional safety standard, IEC 61508-2 functional safety standard, IEC 61508-1 functional safety standard, IEC 60947-5-1
Product certificationscULus, TÜV
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.500 cm
Package 1 Width13.500 cm
Package 1 Length15.500 cm
Package 1 Weight301.000 g
Unit Type of Package 22
Number of Units in Package 216
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight5.556 kg
Unit Type of Package 33
Number of Units in Package 3128
Package 3 Height75.000 cm
Package 3 Width60.000 cm
Package 3 Length80.000 cm
Package 3 Weight52.000 kg
