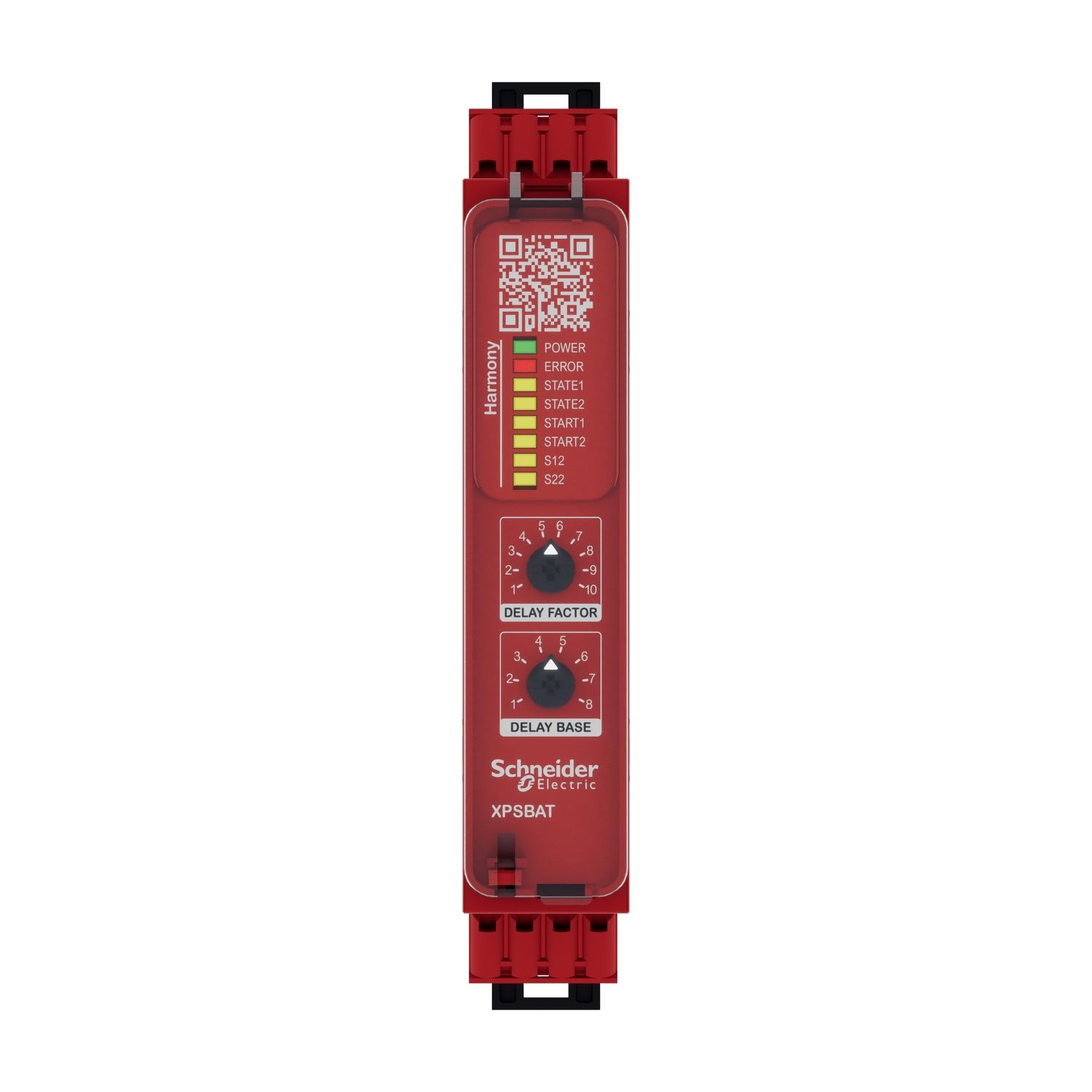

Picture of safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring

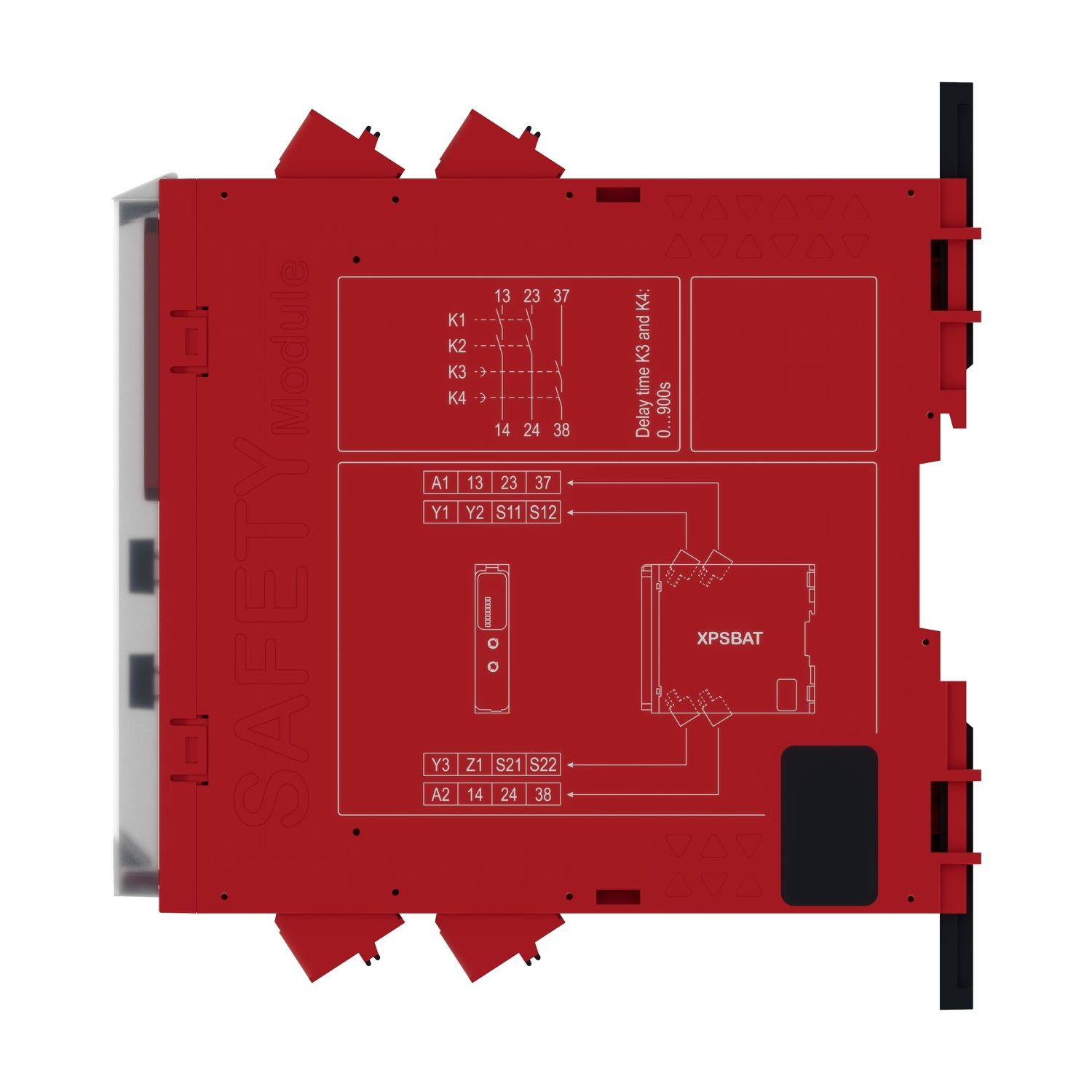

Picture of safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring

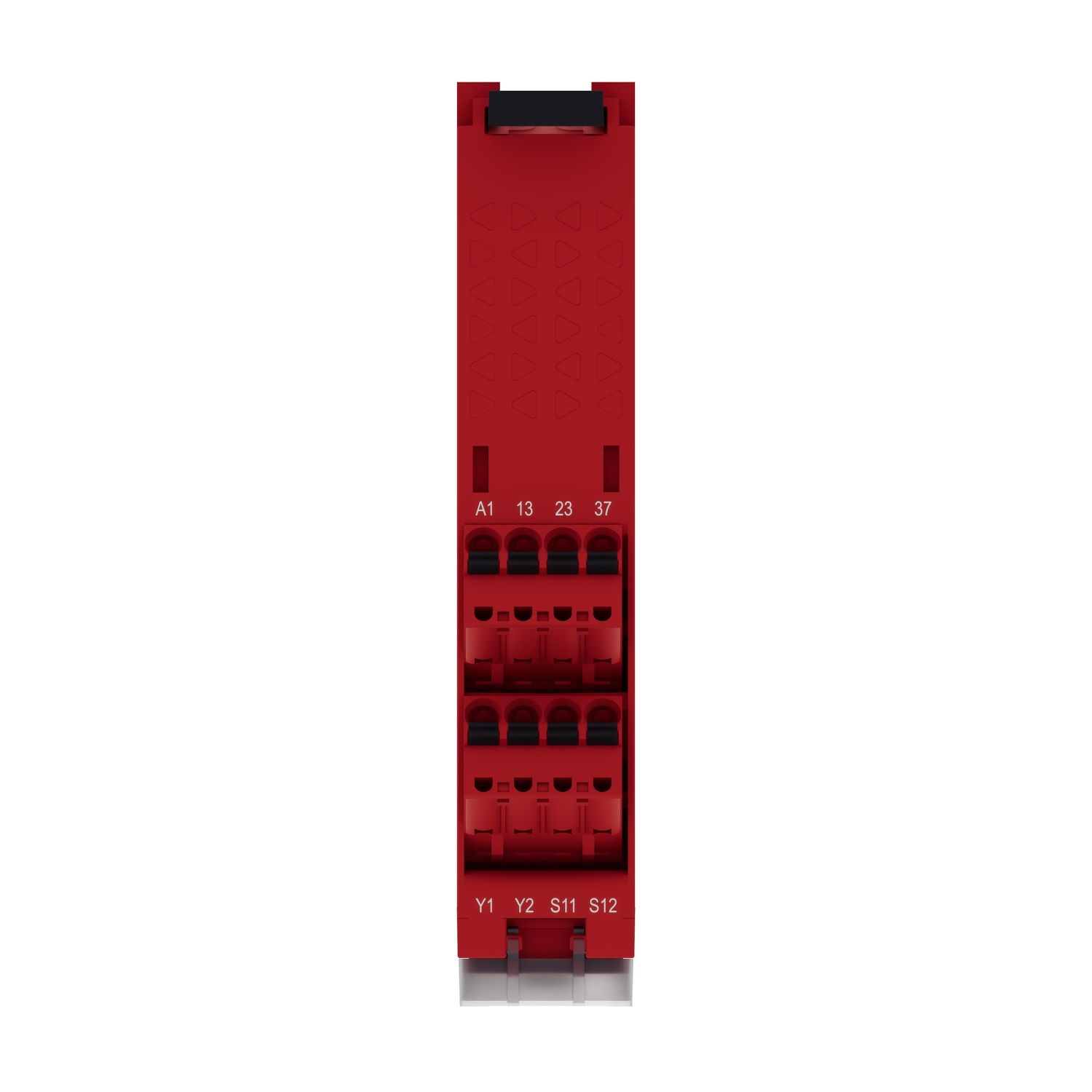

Picture of safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring

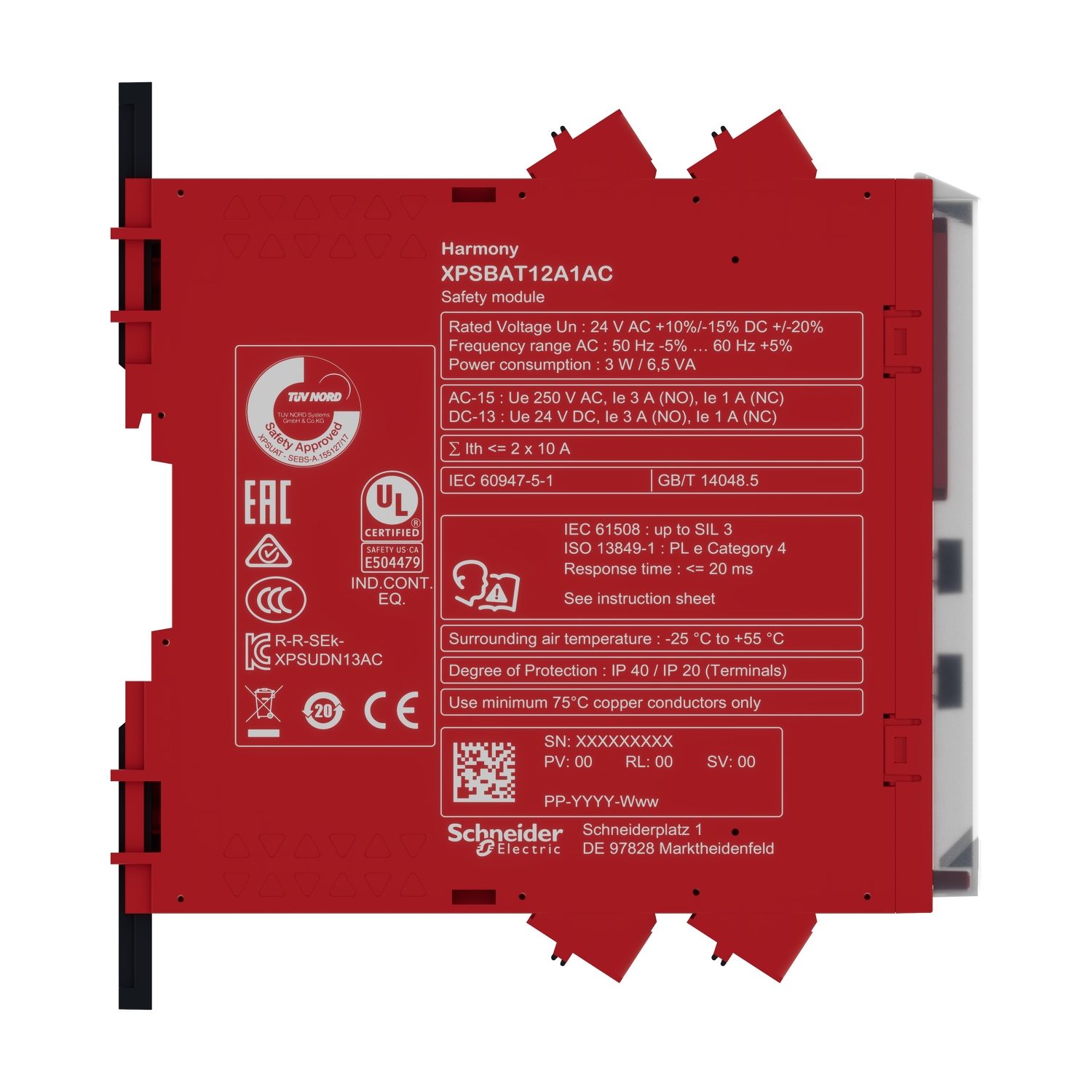

Picture of safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring

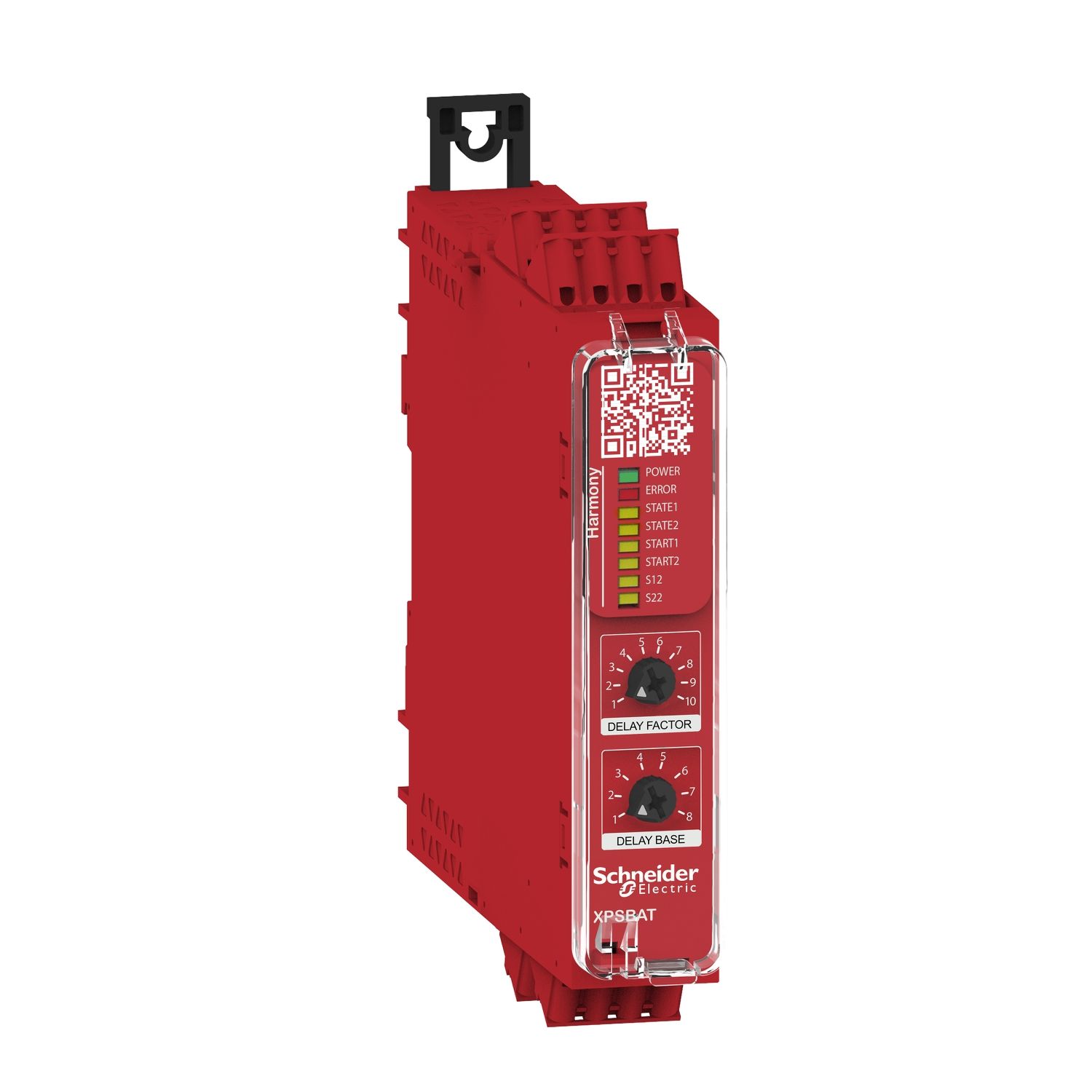

Picture of safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring

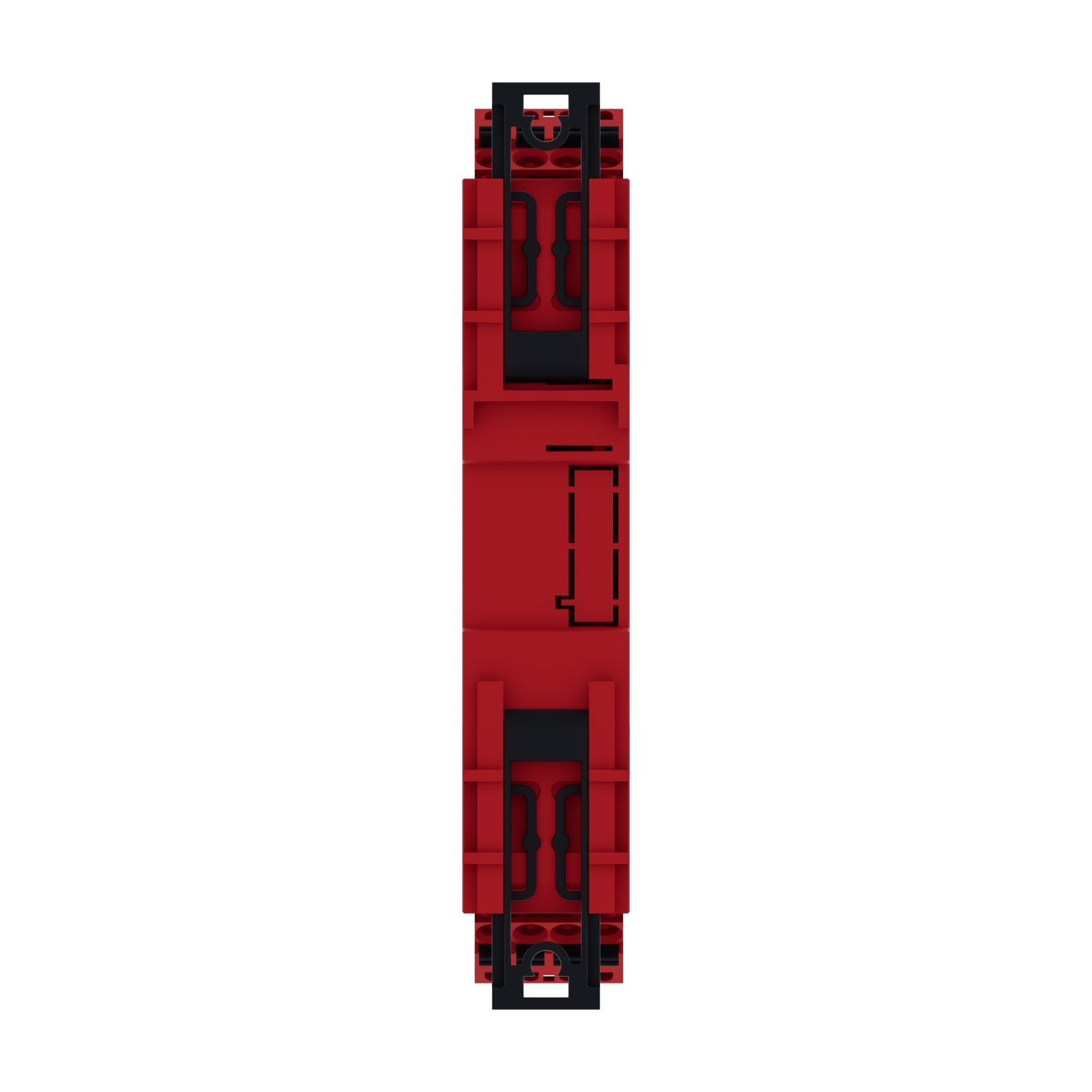

Picture of safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring

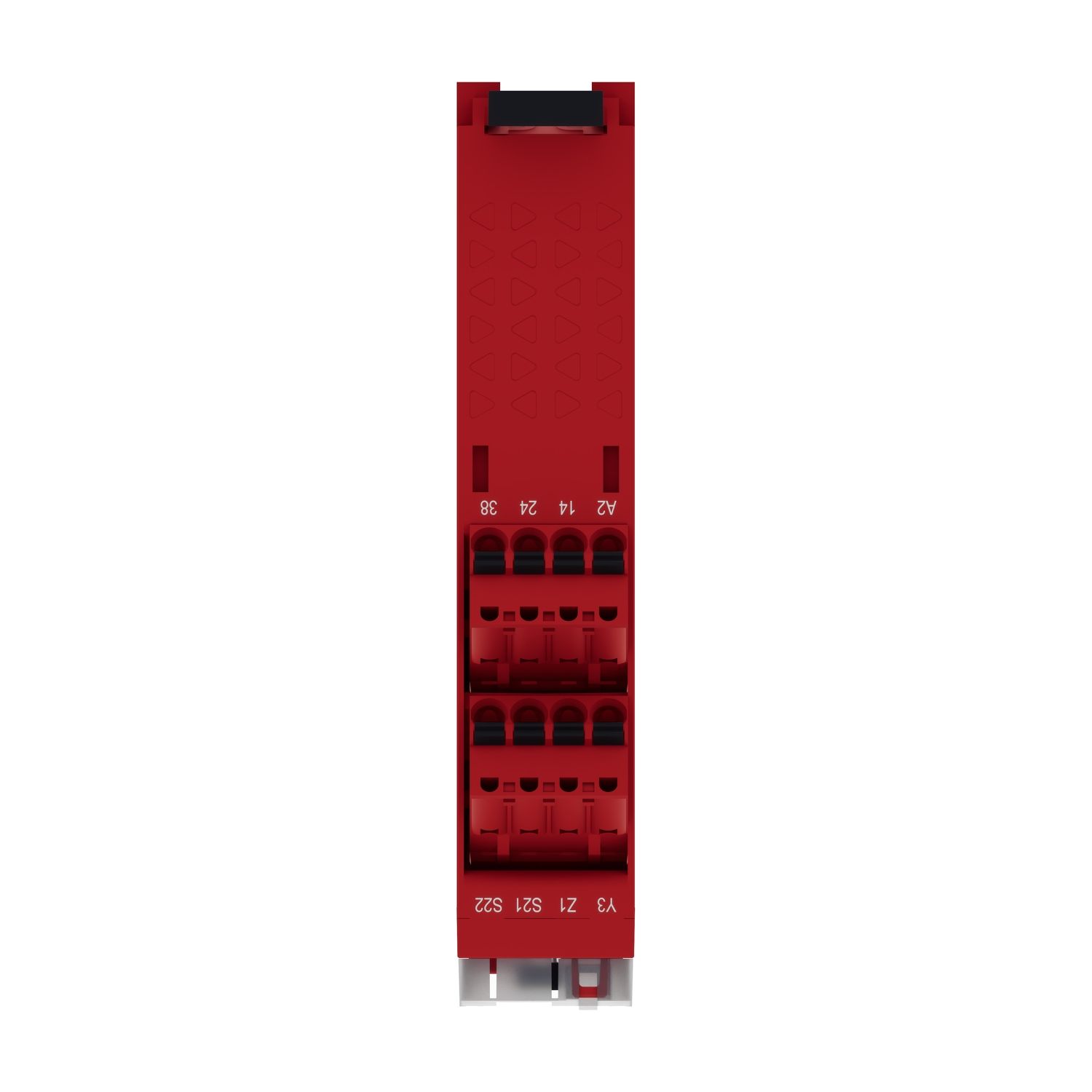

Picture of safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring
Picture of safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring
SKU:

XPSBAT12A1AC

safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring

$624.89
Available for Shipping : 01-Jan-2025
safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, spring
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
End of life manual
User guide
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, RFID safety switch and Safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 control outputs, 2 NO immediate, 3 NO configurable and 1 NC configurable safety output, 1 diagnostic output. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.
