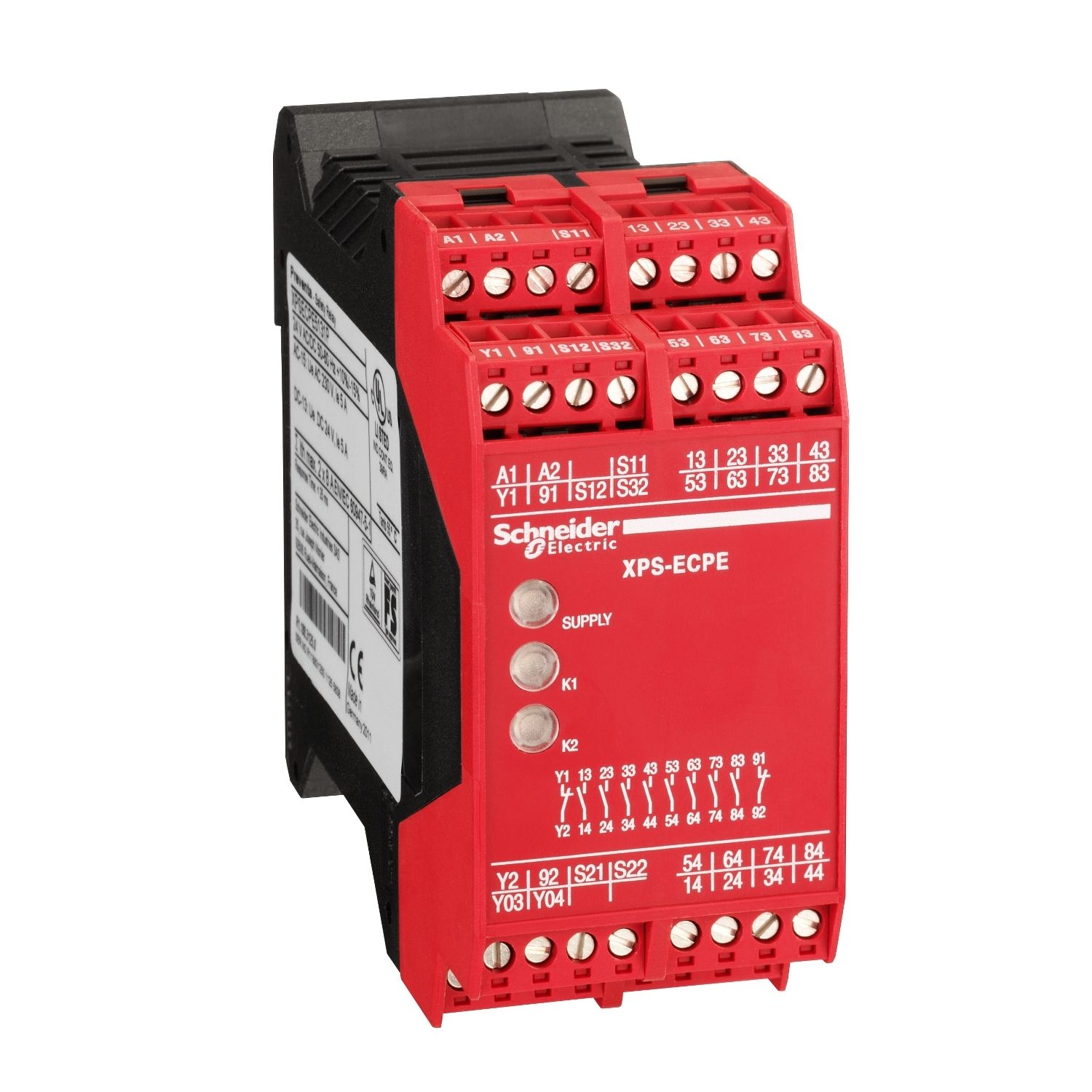

Picture of module XPSEC - increasing the number of safety contacts - 24 V AC DC
SKU:

XPSECPE5131C

module XPSEC - increasing the number of safety contacts - 24 V AC DC

Old price: $1,088.45 INC GST
$800.01 INC GST
Available for Shipping : 12-Jan-2026
module XPSEC - increasing the number of safety contacts - 24 V AC DC
Be the first to review this product
Manufacturer: Telemecanique
Delivery date: 12-Jan-2026
CAD
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This XPSECPE safety module allows to expand the number of safety contacts available on XPS base modules. It is supplied with 24V AC/DC, has 4 safety circuits, 2 additional outputs and removable spring terminals. This safety module meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061 (when connected to the appropriate module). It allows extension of the number of safety contacts, are available as additions to Preventa XPS base modules (Emergency stop, limit switch, two-hand control, etc.). 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.

Products specifications

Attribute name Attribute value
Main
Safety reliability data PFHd = 2.47E-8 1/h conforming to EN/IEC 62061, DC = 0...99 % conforming to EN/ISO 13849-1, MTTFd > 100 years conforming to EN/ISO 13849-1
Safety module application increasing the number of safety contacts
Number of additional circuits 2 NC + 1 solid state output
Safety module name XPSECPE
Range of product Preventa Safety automation
[Us] rated supply voltage 24 V DC - 15...10 %, 24 V AC - 15...10 %
Safety level can reach SILCL 3 can reach the maximum safety level of module base conforming to EN/IEC 62061, can reach PL e/category 4 can reach the maximum safety level of module base conforming to EN/ISO 13849-1
Function of module increasing the number of safety contacts
Output type relay, 8 NO circuit(s), volt-free
Product or component type Preventa safety module
Complementary
Maximum response time on input open 10 ms
Supply frequency 50/60 Hz
Input protection type internal, electronic
Associated fuse rating 6 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum output voltage 5 V for relay output
Output thermal current 6 A per relay for relay output
[Ith] conventional free air thermal current 24 A for relay output
Breaking capacity 3600 VA inrush AC-15 B300 relay output, 360 VA holding AC-15 B300 relay output, 20 mA at 24 V for solid state output circuit, 3 A at 24 V (DC-13) time constant: 50 ms for relay output
Local signalling 3 LEDs
Power consumption in VA 4 VA
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
Connections - terminals spring terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel, spring terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel, spring terminals, removable terminal block, 2 x 0.2...2 x 1 mm² flexible without cable end, spring terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end, spring terminals, removable terminal block, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel, spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel, spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end, spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end
Net weight 0.65 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
Minimum output current 10 mA for relay output
Mounting support 35 mm symmetrical DIN rail
Environment
Ambient air temperature for storage -25-70 °C
IP degree of protection IP40 (enclosure) conforming to EN/IEC 60529, IP20 (terminals) conforming to EN/IEC 60529
Ambient air temperature for operation -25-55 °C
Standards EN/IEC 60204-1, EN/IEC 60947-5-1
Product certifications UL, CSA, TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.2 cm
Package 1 Width 11.3 cm
Package 1 Length 12.3 cm
Package 1 Weight 363.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.749 kg
