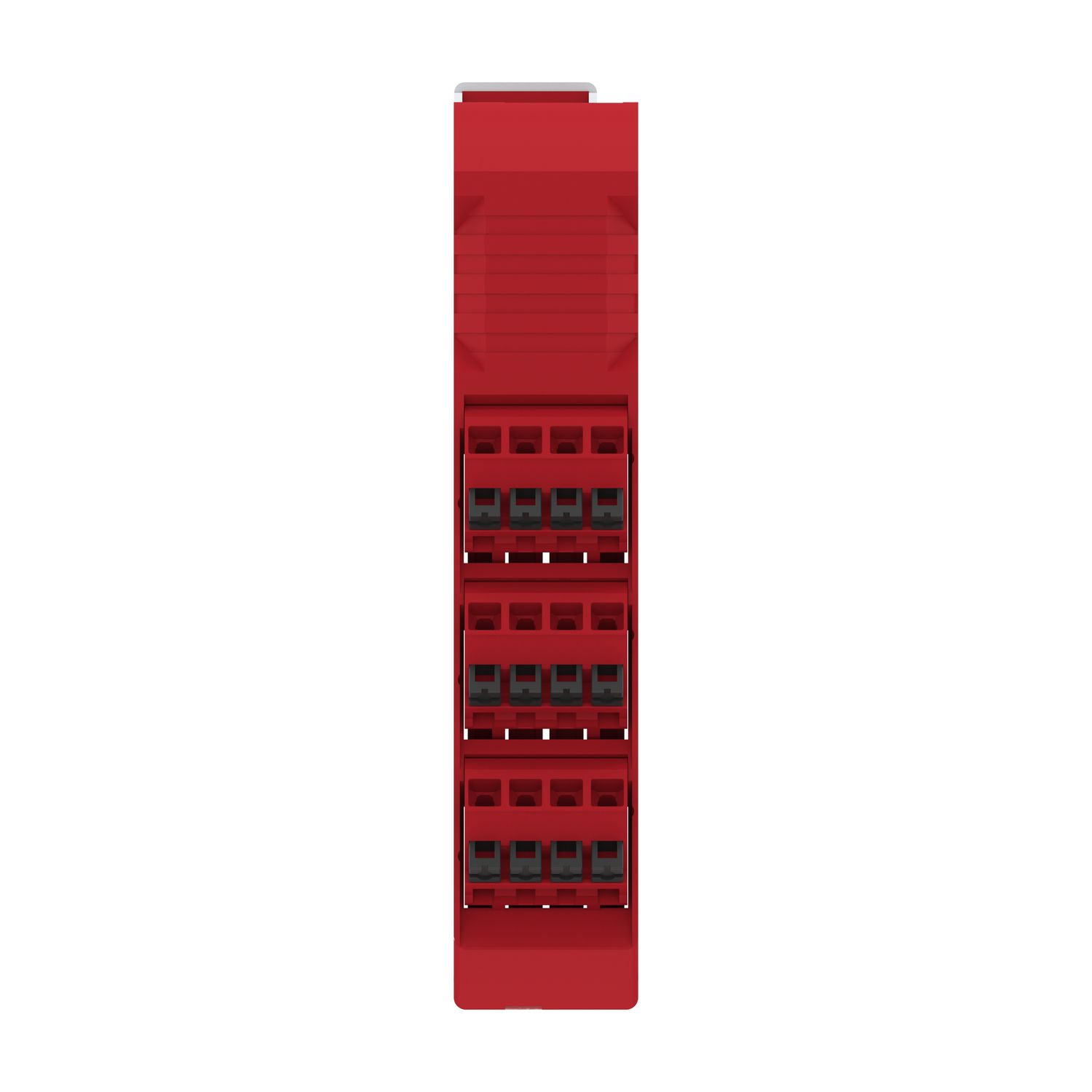

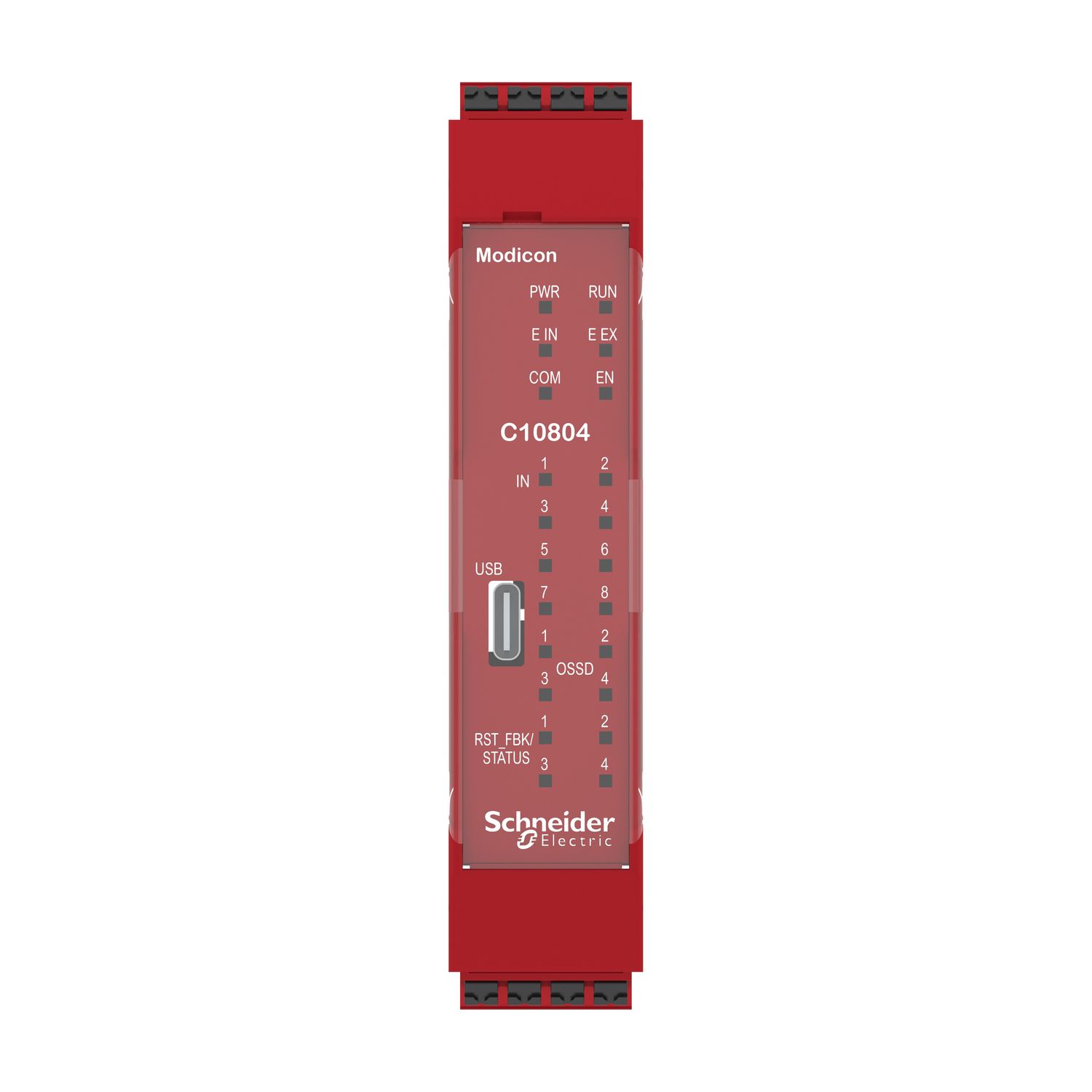

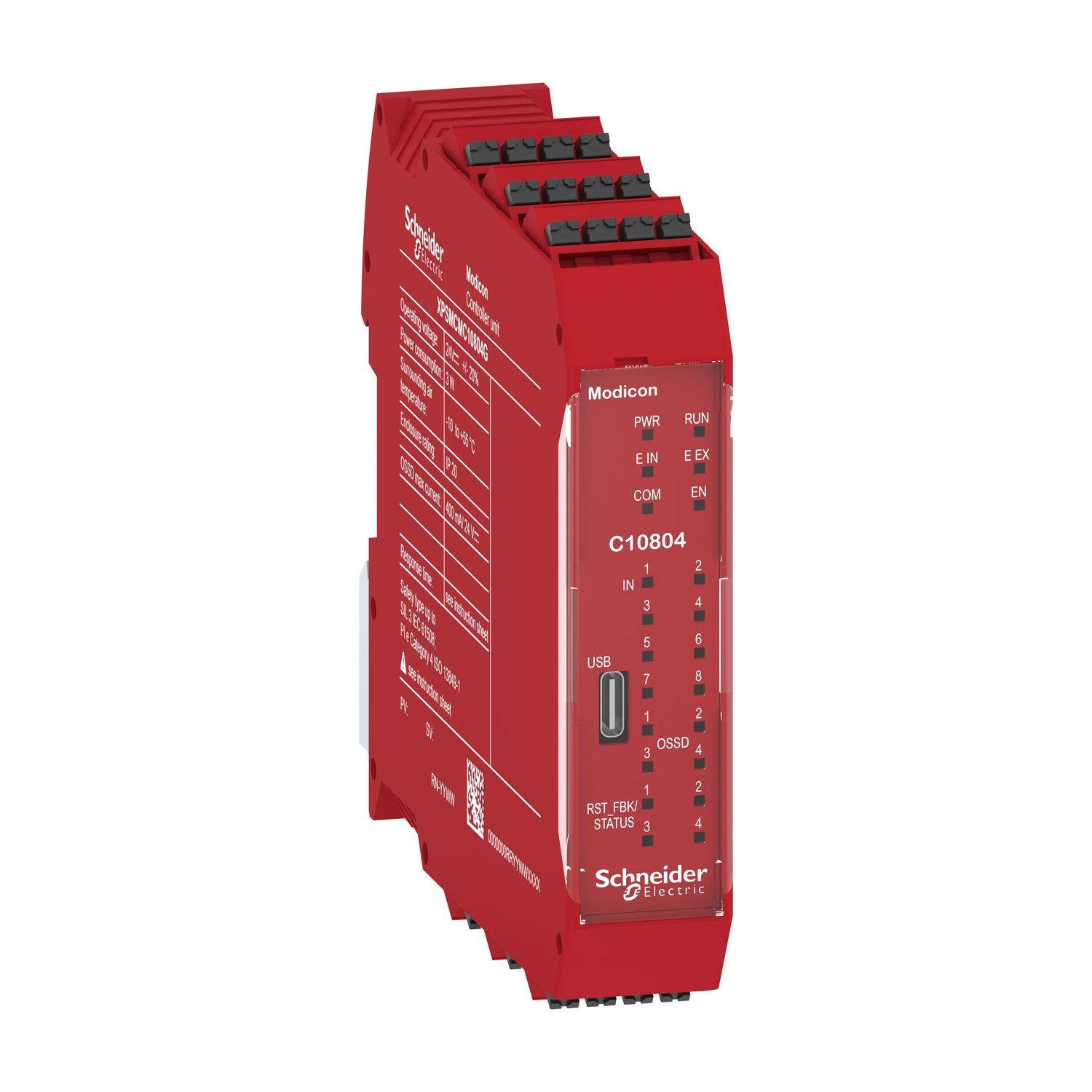

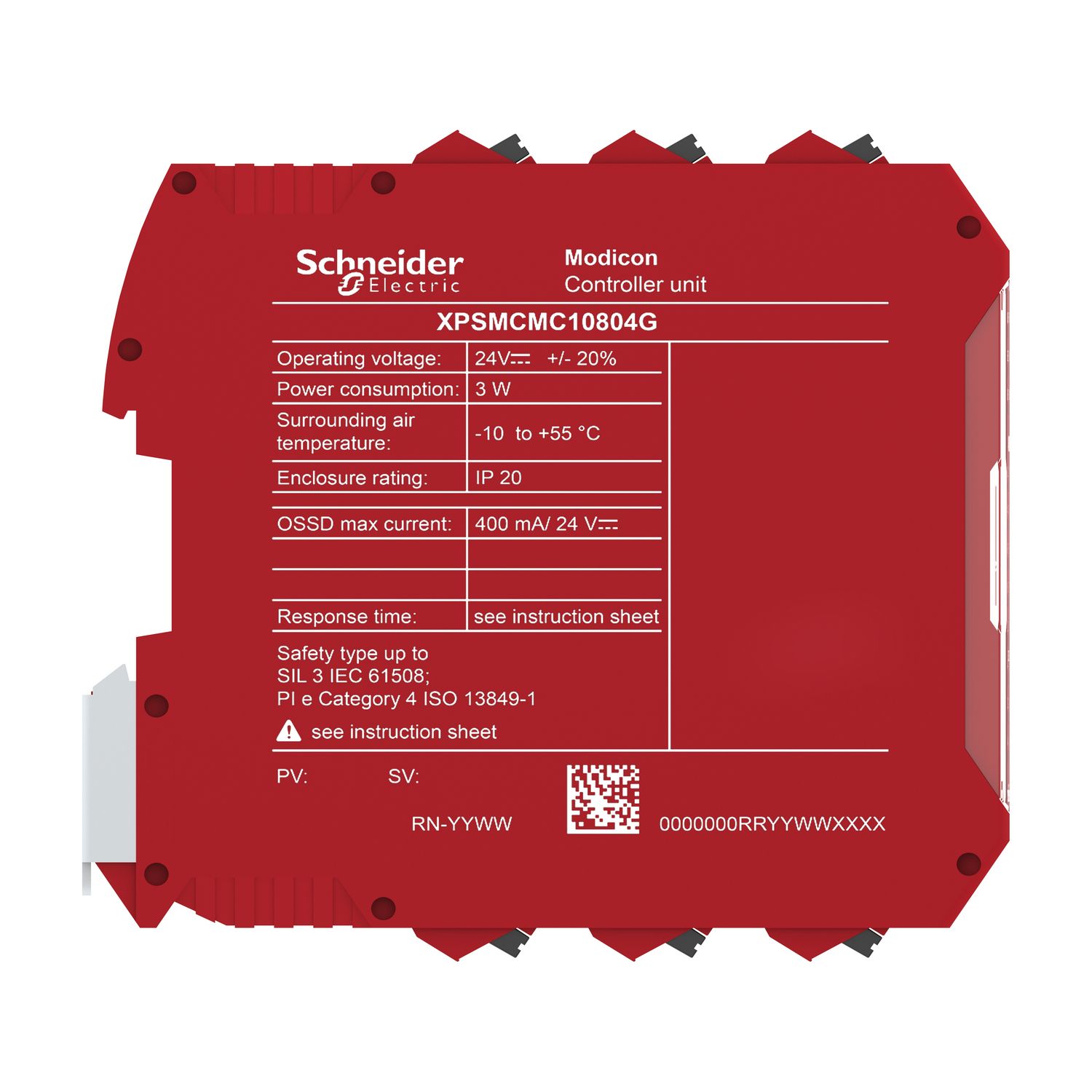

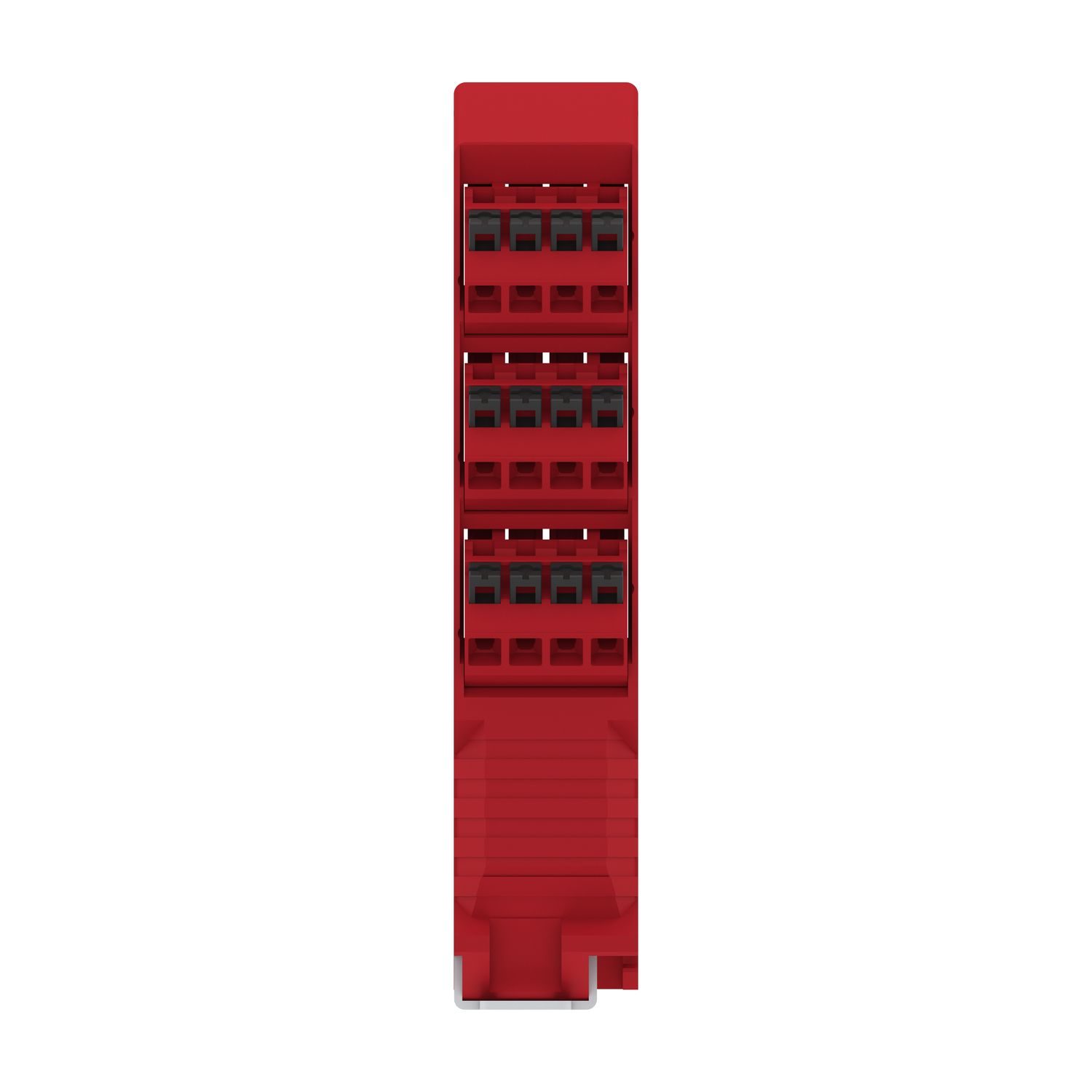

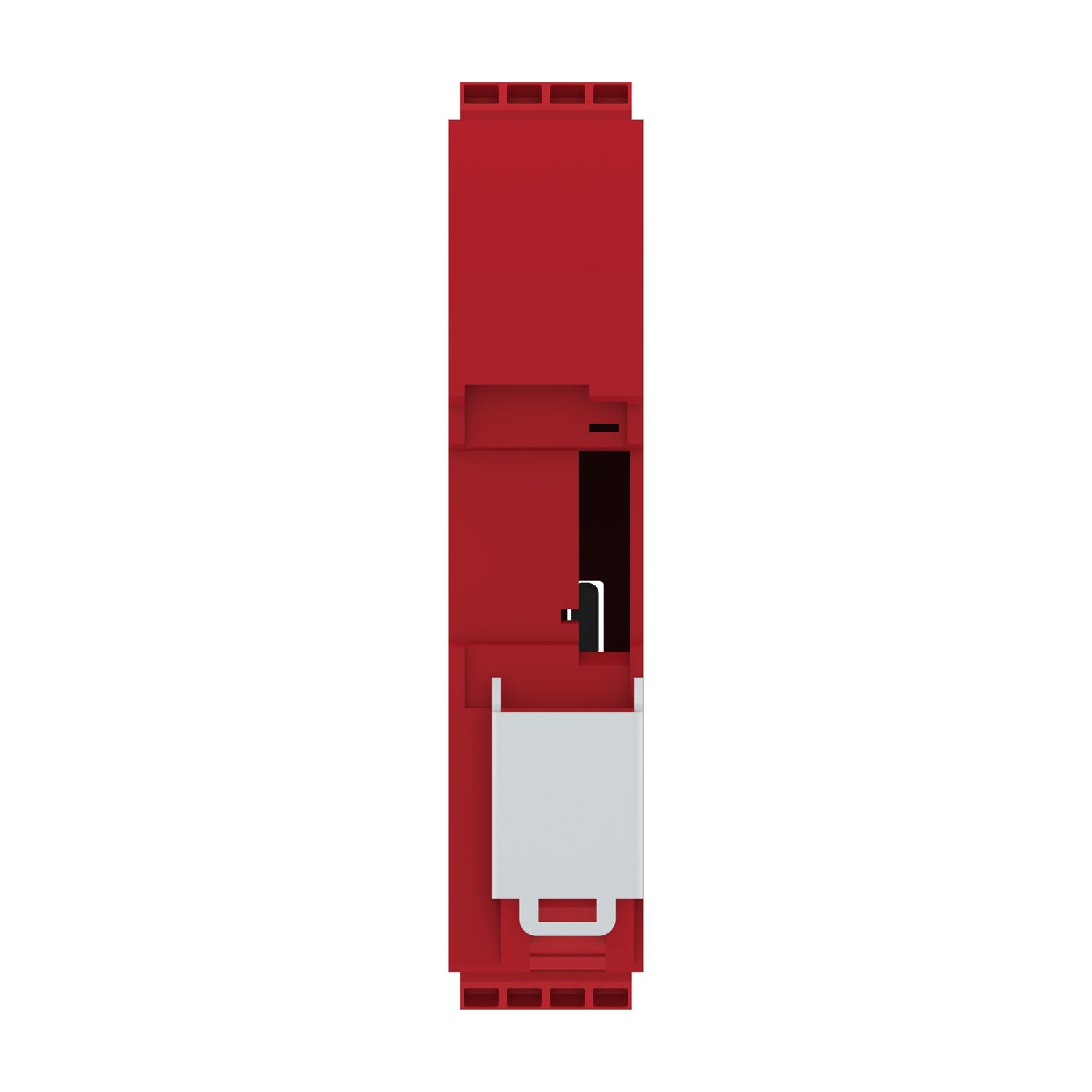

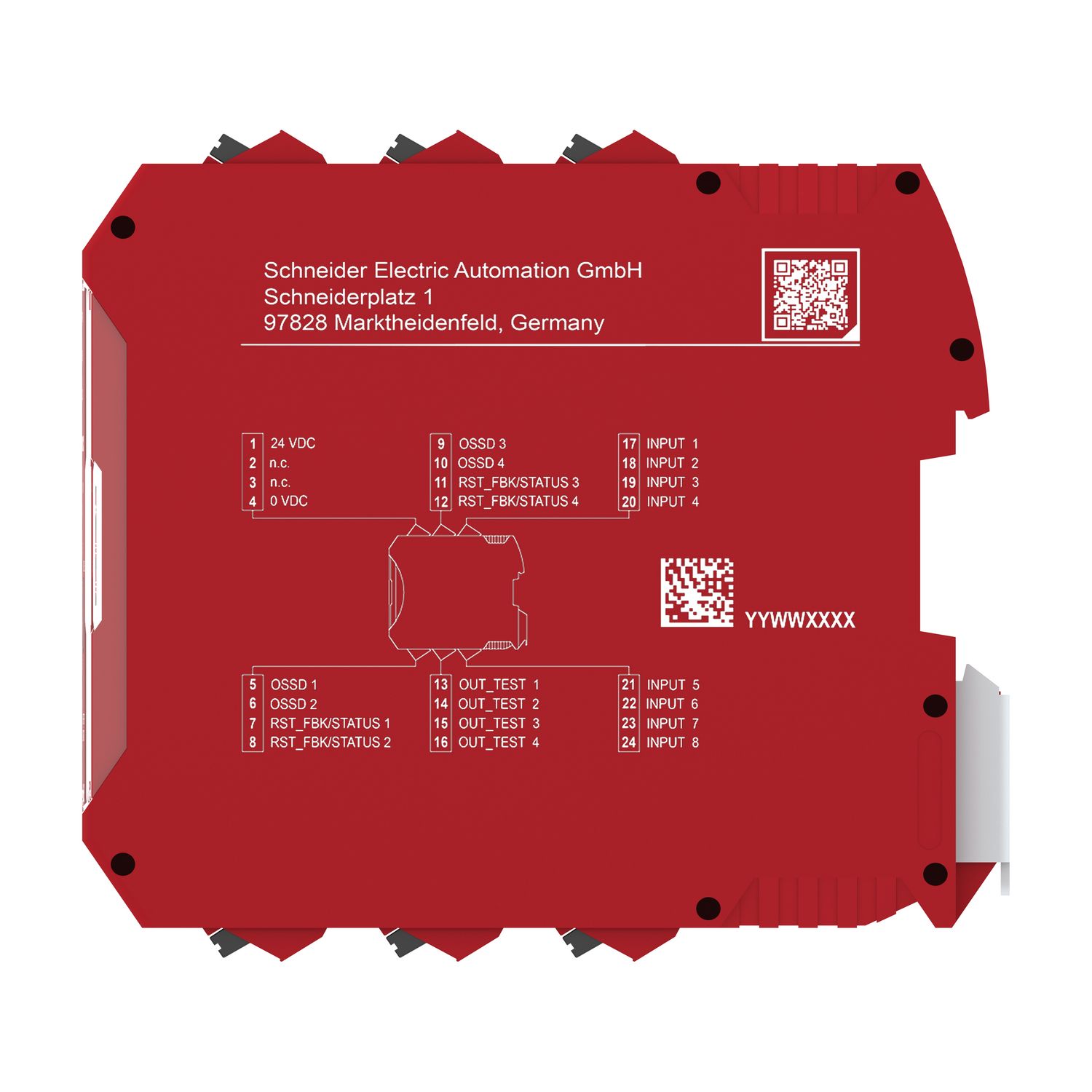

Picture of controller, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, spring
SKU:

XPSMCMC10804G

controller, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, spring

$843.90
Available for Shipping : 19-Dec-2024
Product Selector
controller, Modicon MCM, 8 inputs 4 outputs, monitors expansion modules, spring
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product environmental
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This Modicon MCM safety controller CPU is supplied with 24Vdc, has 8 safe digital inputs, 4 start/restart interlock inputs, 4 single channel OSSD, 4 test outputs, 4 configurable status outputs, fitted with captive spring clamp terminals. It embeds a Mini USB 2.0 connector to receive the configuration done with the software EcoStruxure Machine Expert - HVAC. It is an appropriate solution for machines with a small number of safety functions requiring the configuration flexibility of a safety controller. It can be used as standalone or with fourteen expansion modules. The system is expandable up to 128 inputs, 16 outputs and up to 32 diagnostic status outputs, ideal for machines requiring multiple safety function monitoring. This safety controller CPU figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, communication, master enable, restart signal, output channels). It is a CPU with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safety controller CPU instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Device short name XPSMCM
Function of module counter functions, safety time delays, muting function of light curtains conforming to IEC 61800-5-2, switch monitoring conforming to IEC 61800-5-2, safety mat monitoring conforming to IEC 61326-1, two-hand control conforming to EN/ISO 14119, switch monitoring conforming to EN 574, light curtain monitoring conforming to EN/ISO 14119, foot switch monitoring conforming to IEC 60947-5-1, light curtain monitoring conforming to IEC 61496-1, enabling switch monitoring conforming to IEC 60947-5-1, guard monitoring conforming to EN/ISO 14119, emergency stop conforming to ISO 13850
Discrete output current 400 mA
Electrical connection spring terminal
[Us] rated supply voltage 24 V - 20...20 % DC
Number of inputs 4.0 digital for interlock start/restart or external device monitoring, 8.0 digital for input connection
Discrete input current 400 mA
Product or component type safety controller CPU
Number of outputs 4.0 configurable for diagnostic connection, 4.0 test for line control outputs, 4.0 safety outputs OSSD for contactor/drive connection
Discrete input voltage 24 V
Range of product Modicon Safety automation
Discrete input type PNP, safety input
Discrete output type PNP
Complementary
Safety level SILCL 3 conforming to IEC 62061, type 4 conforming to IEC 61496-1, can reach PL = e conforming to ISO 13849-1, can reach category 4 conforming to ISO 13849-1
Data storage equipment SD card (optional)
Synchronisation time between inputs < 0.5 ms
Depth 114.5 mm
Inductive load 2.4 mH
Width 22.5 mm
Load capacitance 0.82 µF
Mounting support omega 35 mm DIN rail conforming to EN 50022
Quality labels CE
Power dissipation in W 3 W
Net weight 0.155 kg
Maximum number of I/O expansion module 14 with 32.0 discrete output(s) for output, 14 with 128 discrete output(s) for input
Local signalling 2 LEDs yellow with STATUS marking for output channel, 2 LEDs yellow with RST marking for restart signal, 2 LEDs green/red with OUT marking for output status, 8 LEDs yellow with IN marking for input status, 1 LED blue with EN marking for master enable, 1 LED orange with COM marking for communication, 1 LED red with E EX marking for external error, 1 LED red with E IN marking for internal error, 1 LED green with RUN marking for RUN (status), 1 LED green with PWR marking for power ON
Cable cross section 0.2-2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end, 0.2-1 mm² - AWG 24...AWG 18 solid cablewithout cable end, 0.5-1.5 mm² - AWG 20...AWG 16 flexible cablewith cable end, with double bezel, 0.25-1.5 mm² - AWG 23...AWG 16 flexible cablewith cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel, 0.25-1 mm² - AWG 23...AWG 18 flexible cablewith cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end, 0.2-1.5 mm² - AWG 24...AWG 16 flexible cablewithout cable end
Integrated connection type USB 2.0 port, backplane expansion bus
Height 99 mm
Connections - terminals 1 spring terminals, removable terminal block, 2 spring terminals, removable terminal block
Environment
Insulation 250 V AC between power supply and housing conforming to IEC 61800-5-1
Overvoltage category II
Safety reliability data MTTFd < 100 years, DC > 99 %, PFHd = 1.35E-8 1/h high
Service life 20 year(s)
Ambient air temperature for storage -20-85 °C
Relative humidity 10-95 %
IP degree of protection IP20
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 61800-5-1
Vibration resistance +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Shock resistance 10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to IEC 61496-1
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2
Pollution degree 2
Standards IEC 62061, IEC 61800-5-1, IEC 61508, ISO 13849-1, IEC 61496-1
Ambient air temperature for operation -10-55 °C
Product certifications cULus, RCM, TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.0 cm
Package 1 Width 12.5 cm
Package 1 Length 4.3 cm
Package 1 Weight 257.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.801 kg
