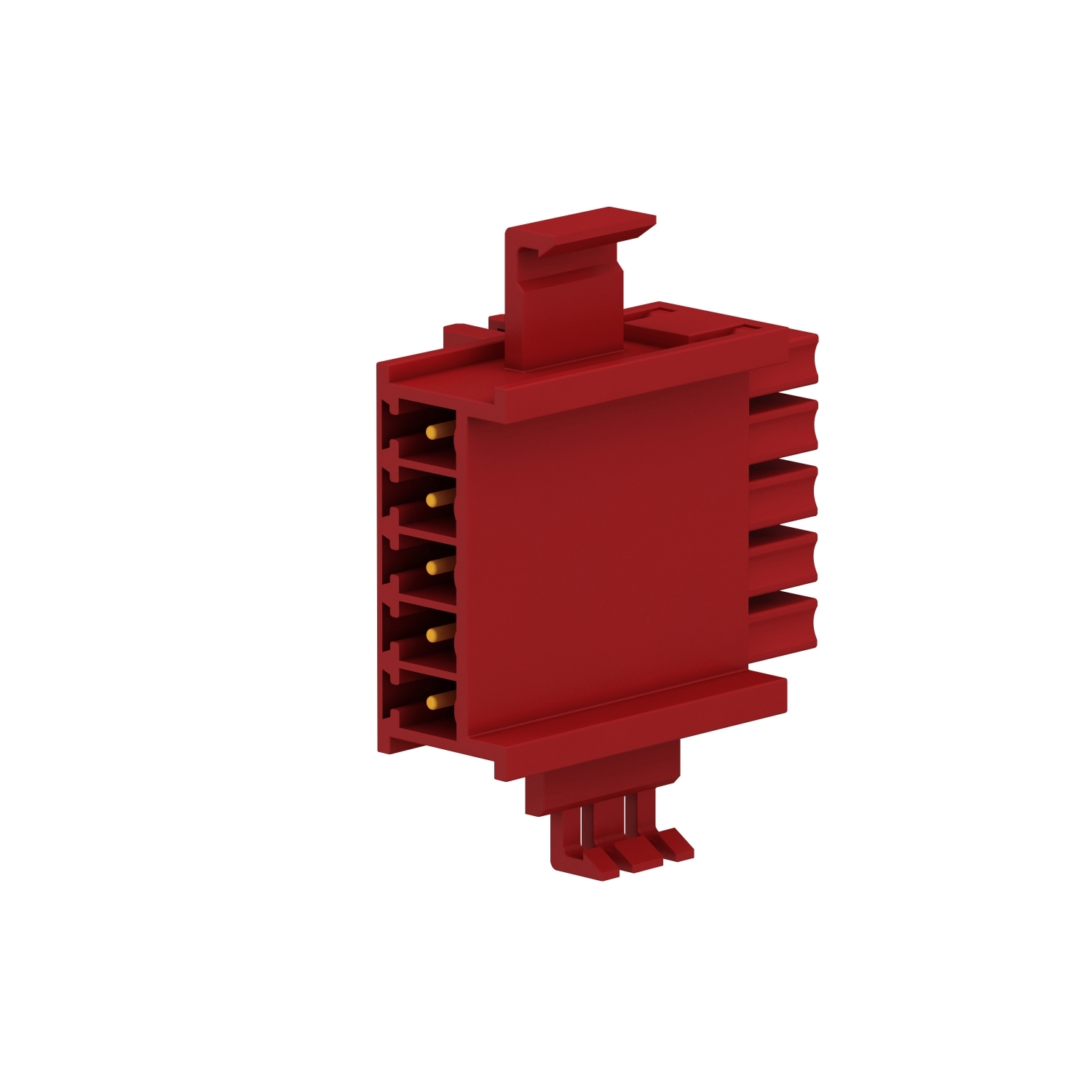

Picture of expansion connector, Modicon XPS MCM, to connect the expansion modules, single backplane
SKU:

XPSMCMCN0000SG

expansion connector, Modicon XPS MCM, to connect the expansion modules, single backplane

$45.01 INC GST
Available for Shipping : 22-Apr-2025
expansion connector, Modicon XPS MCM, to connect the expansion modules, single backplane
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This Modicon MCM backplane expansion connector is used to connect the various expansion modules to the safety controller CPU. This backplane connector provides a safe communication between safe expansion components and the safety controller CPU. its connectors are 1 male + 1 female connectors, 5-pin for rear panel plug-in connector. It weighs 0.01kg. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. This single backplane expansion connector is compatible with the expansion modules and the safety controllers CPU. The backplane expansion connector instals Omega 35 mm DIN rail conforming to IEC 60715. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination for modular device
Accessory / separate part type backplane expansion bus connector
Product compatibility extension modules, logic controller
Accessory / separate part category expansion bus connector
Range of product Preventa Safety automation
Complementary
Quantity per set 1
Mounting support omega 35 mm DIN rail conforming to IEC 60715
Net weight 0.01 kg
Electrical connection 1 male + 1 female connectors - 5-pin for rear panel plug-in connector
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 4.0 cm
Package 1 Length 4.5 cm
Package 1 Weight 18.0 g
Unit Type of Package 2 2
Number of Units in Package 2 35
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 839.0 g
